Path Way® Model 7396 Single Channel RJ45 A/B/C/D, T1 Interface Switch with IP Addressable Ethernet Remote w/Telnet, Rackmount

Overview

The Pathway® Model 7396 RJ45 A/B/C/D, T1 interface switch allows the user the capability to share a single port interface device connected to the "COMMON" port among four other devices connected to the "A", "B", "C", and "D" ports with remote access functionality. Remote Control access can be accomplished using an Ethernet 10/10Base-T connection and Telnet commands.

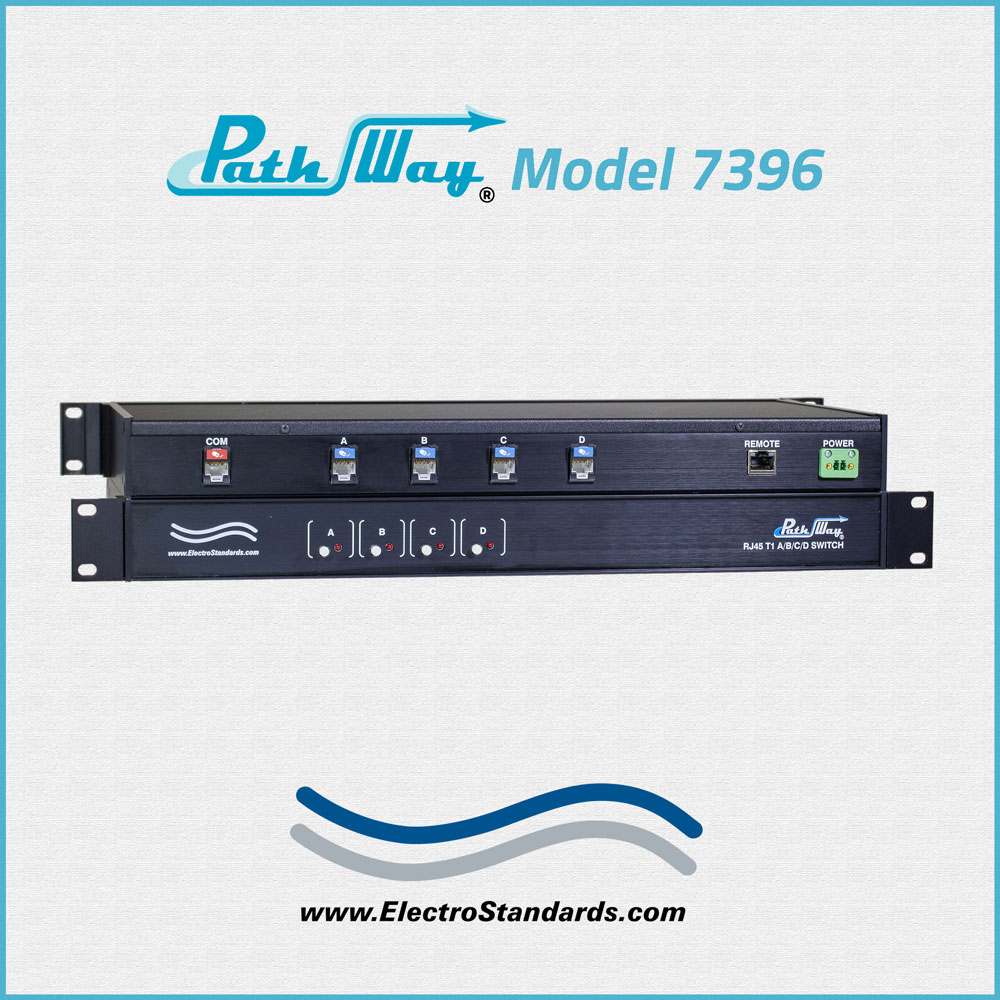

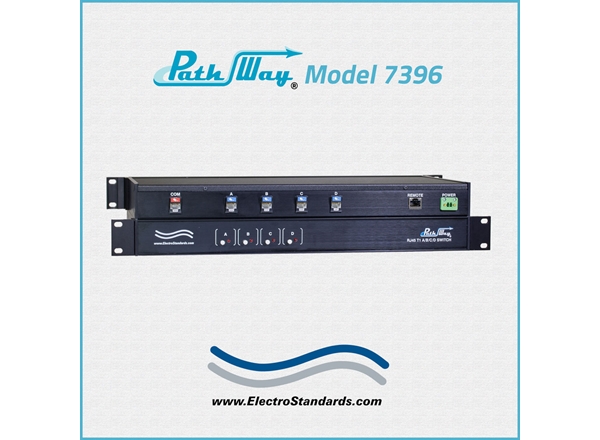

Model 7396 is enclosed in a 1U, full rack size, all metal black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

Certified for T1 Compliance
Applicable to ANY RJ45 Transfer Switch Requirement! Highly Reliable!

FEATURES OF THE MODEL 7396 T1 INTERFACE SWITCH:

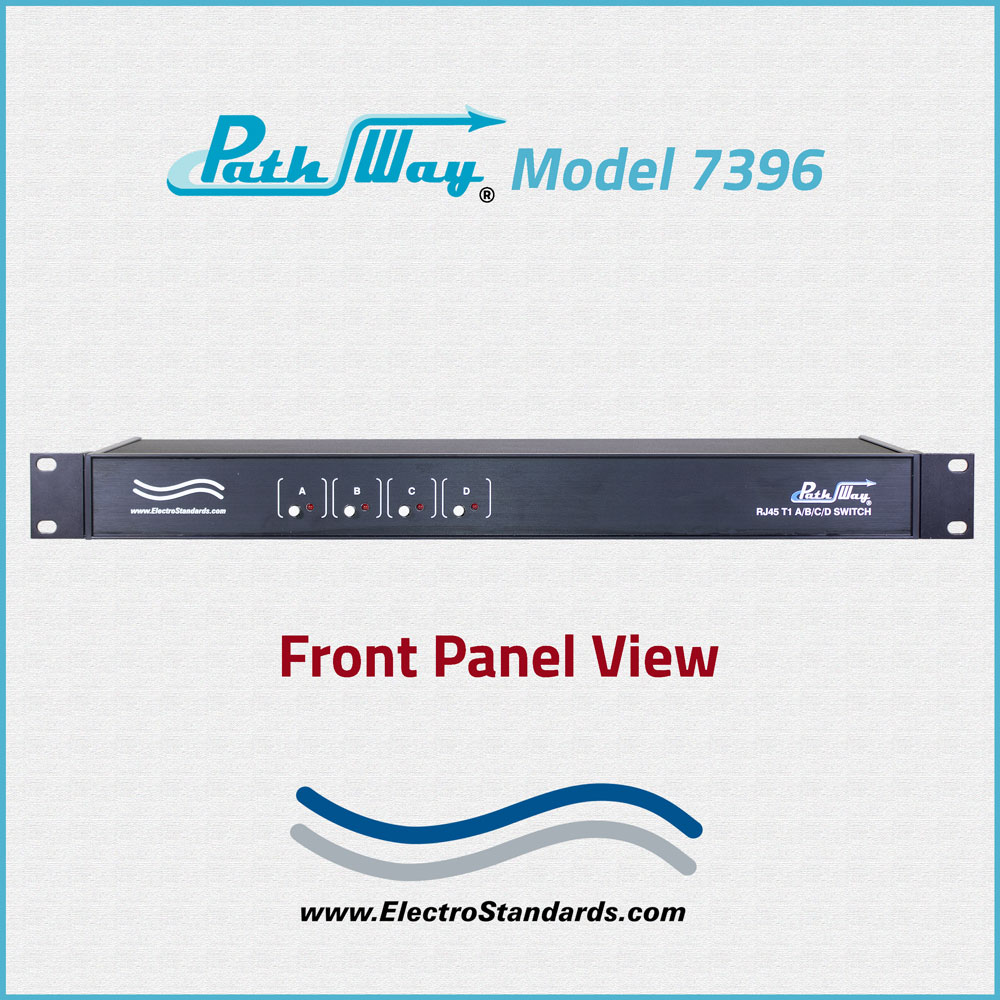

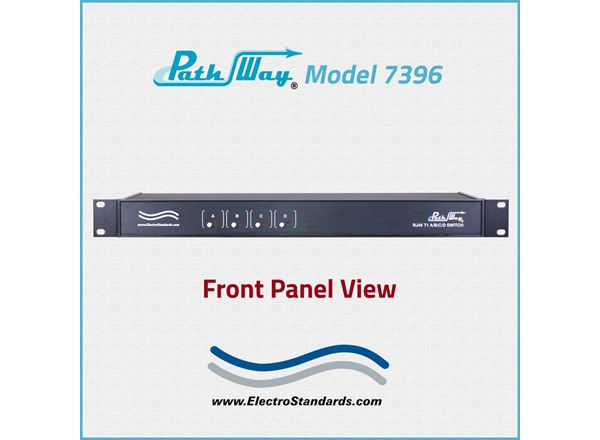

Switch locally via four front panel push buttons, or remotely via an RJ45 Ethernet remote port.
Remote port allows control of the unit based on a set of ASCII commands. Remote commands include position control, query of switch position, and lock/unlock front panel pushbutton control.
Communicate with switch via TELNET.
Front panel LED indicators display switch position and power status.
Four pins of the RJ45 ports are switched: pair 1, pins 1 and 2, and pair 2, pins 4 and 5.
Certified for T1 compliance.
Switch maintains position and continues to pass data during power loss.
Switch powers up in last known position.

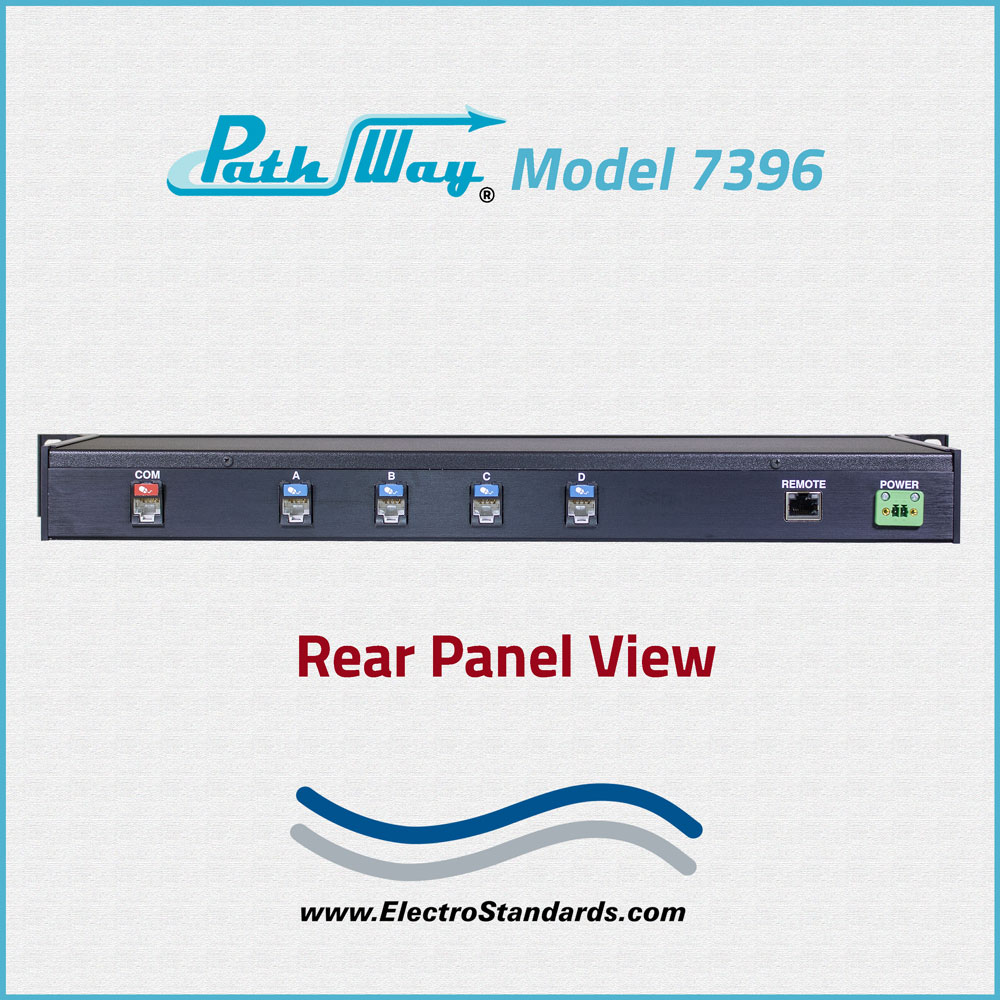

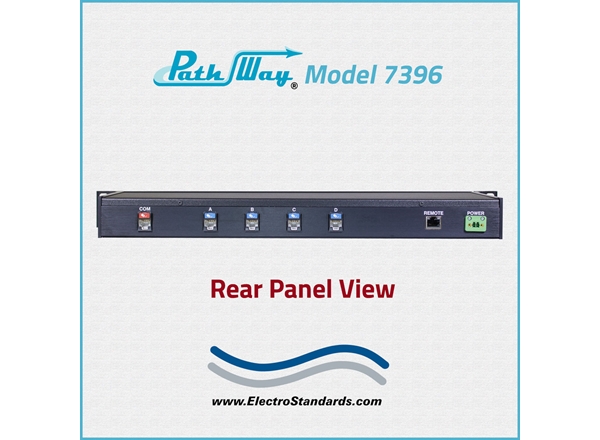

All ports located on rear panel.
External 100-240VAC, 50-60Hz wall mount power supply included.
One year warranty against defects on manufacturer parts and labor.

TECHNICAL SPECIFICATIONS:

PORT CONNECTORS: (5) RJ45 female connectors are labeled A, B, C, D, and COMMON.
FRONT PANEL CONTROLS: (4) Manual pushbuttons allow local switching.
DISPLAY: (4) Front panel LED's display switch position and power status.
REMOTE CONTROL: (1) RJ45 female connector on rear panel accepts 10/100 Base-T LAN Access Ethernet and IP Addressable Ethernet for remote control operation.
POWER: UL approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12 VDC, 500mA to the unit. Has 2-prong, US, non-polarized plug.
DIMENSIONS: Rackmount configuration 19.0" W x 1.75" H x 8.24" D (48.3 x 4.4 x 21.0 cm).
WEIGHT: Approximately 4.3 lbs. (2.0 kg)

PathWay® Model 7396 Single Channel A/B/C/D Application w/Telnet:

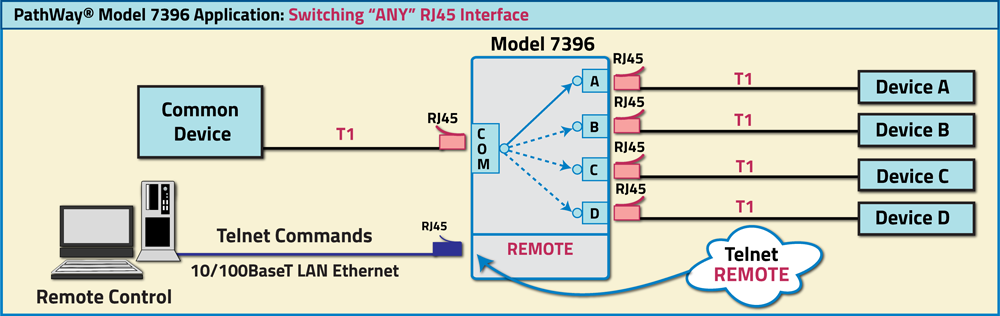

The drawing illustrates a single port interface connected to the RJ45 COMMON port sharing among four devices connected to the RJ45 A, B, C, and D ports. The RJ45 Remote port is a 10/100 Base-T LAN Environment and accepts Telnet Commands.

Ordering Information

Catalog Number: 307396
Model Number: 7396
Base Price: See website or contact us for current pricing and availability.

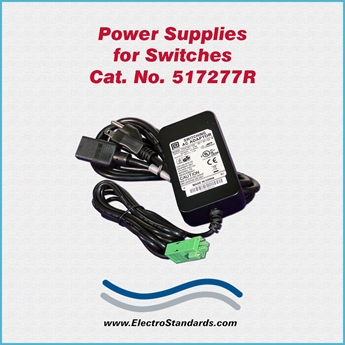

Optional Wide-Range power supply: Catalog Number 517277 IEC C14 Inlet, 100-240VAC, 12 VDC

Documentation & Support

Specification Sheet (PDF) Download Available.
Product Manual available upon request.
For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
