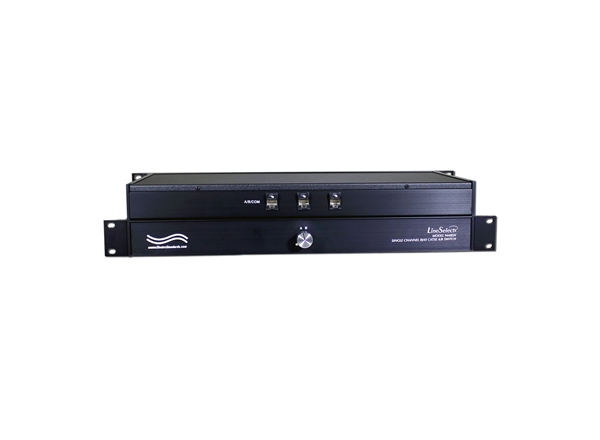

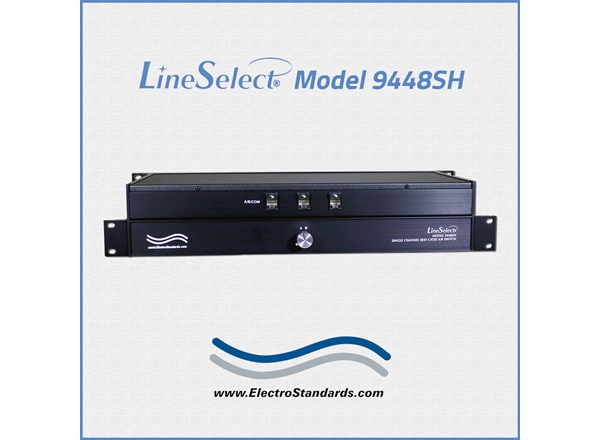

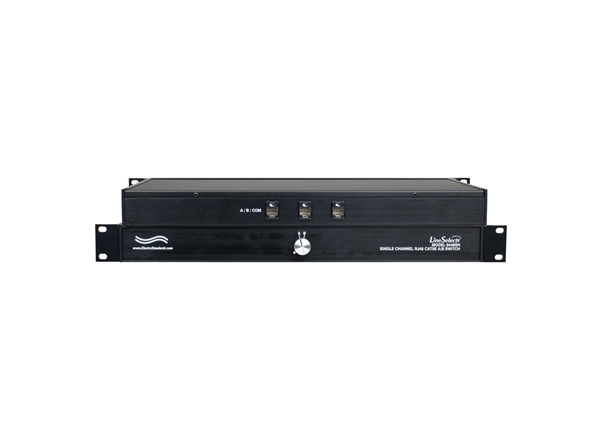

Model 9448SH RJ45 A/B CAT 5e Gigabit Ethernet Switch, Shielded Ports, Catalog # 305913SH

    Model 9448SH RJ45 A/B CAT 5e SwitchModel 9448SH RJ45 A/B CAT 5e SwitchModel 9448SH RJ45 A/B CAT 5e SwitchModel 9448SH RJ45 A/B CAT 5e Switch
Click image to enlarge
    • Model 9448SH RJ45 A/B CAT 5e Switch
    • Model 9448SH RJ45 A/B CAT 5e Switch
    • Model 9448SH RJ45 A/B CAT 5e Switch
    • Model 9448SH RJ45 A/B CAT 5e Switch
Base Price:
$804.00
Catalog No: 305913SH
Model No: 9448SH
Product Type:Switches: Copper
Interface:Cat5e
Positions:2
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:1
Manual Control/No Power Required:LineSelect® Manual Operation
Compliance/Standards:Cat5e
Configuration:Rackmount
Pins Switched:8
Local Control:Rotary Knob

Add to Cart
  • All ports are shielded RJ45 connectors.

  • Recommended for use in noisy environments.

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

LineSelect® Model 9448SH RJ45 Cat 5e Compliant A/B Gigabit Ethernet Switch with Shielded RJ45 Connectors, Rackmount

Overview

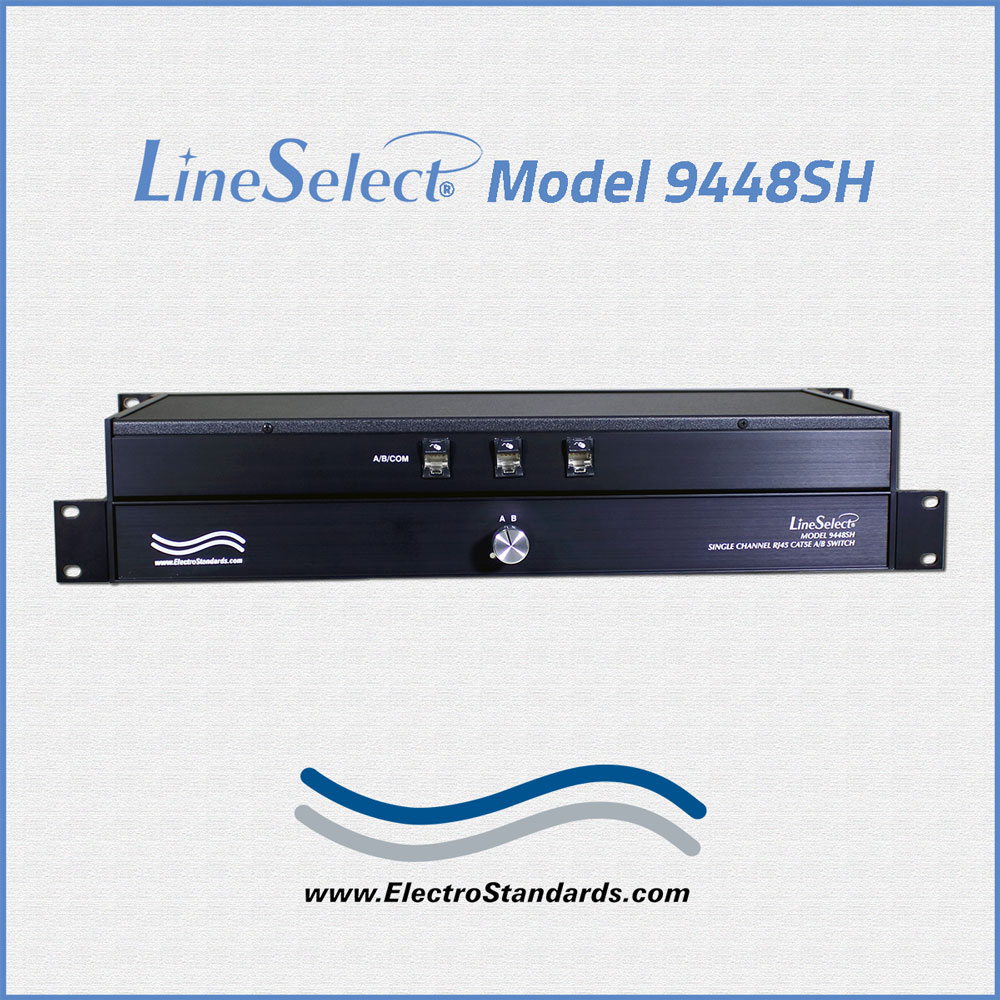

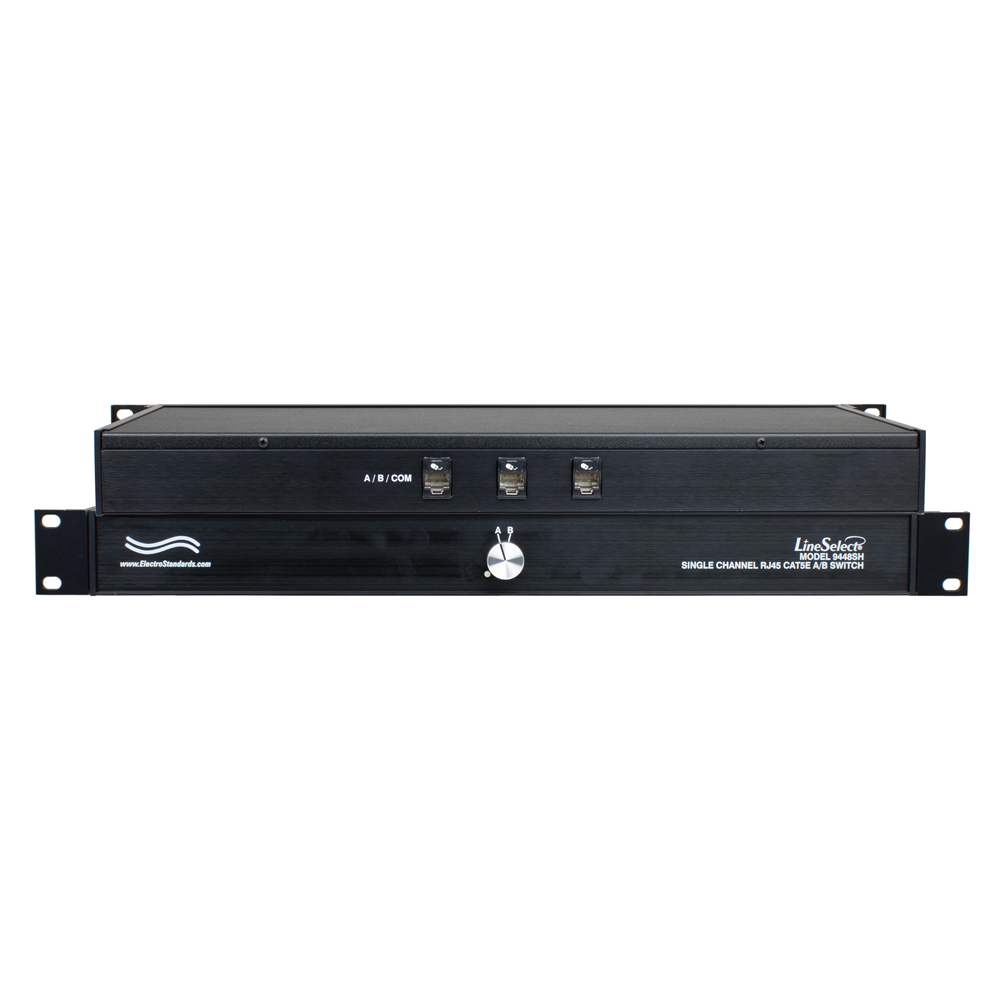

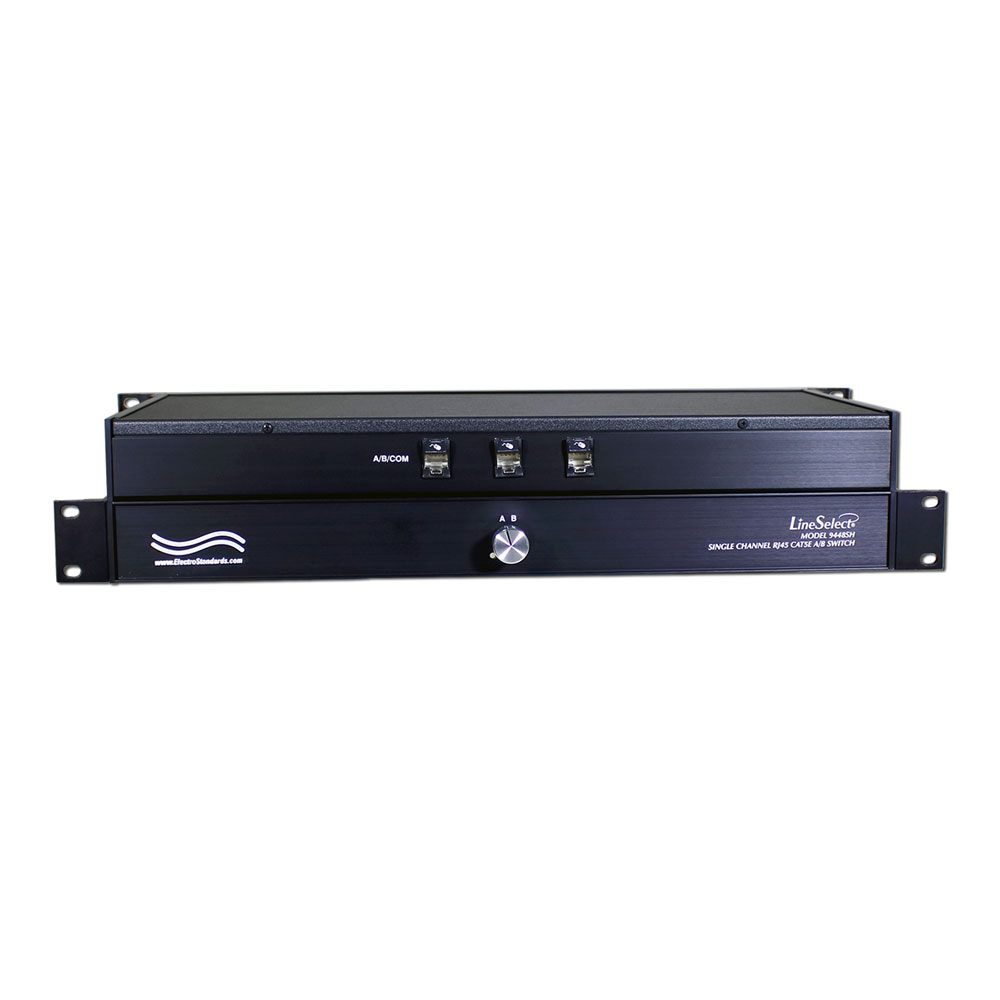

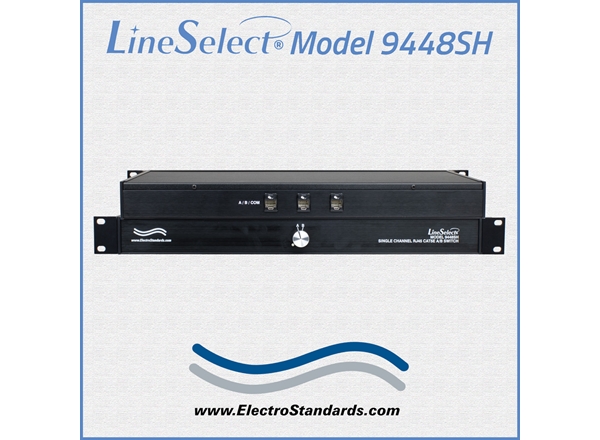

The Model 9448SH Manual Data Network A/B Switch enables access to two 10/100/1000 Base-T (Gigabit Ethernet) networks or RJ45 Devices on ports A and B. The Model 9448SH Category 5e A/B switch allows the user to reroute data between two networks with a simple turn of the front panel rotary knob. This manual network switch supports all 8 pins of the RJ45 CAT5e interface.  No need to plug and unplug cables thereby eliminating connector wear. The Model 9448SH is enclosed in a 1U, full rack size, all metal chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

  • All Ports Are Shielded RJ45 Connectors that provide additional EMI/RFI shielding protection.

  • Recommended for use in noisy environments.

  • Supports Gigabit Ethernet Connectivity.

FEATURES OF THE MODEL 9448SH GIGABIT ETHERNET SWITCH:

  • Allows access to two networks from one computer or workstation.
  • Certified for Cat5e compliance. Rated for 10/100/1000 Base-T networks.
  • All ports are shielded RJ45 connectors.
  • All (8) pins of the RJ45 interface are switched via break-before-make rotary switch.
  • The ports are transparent to all data.
  • Manual operation via front-panel rotary switch.
  • High quality sealed switch with self-wiping precious metal contacts.
  • Eliminates the need to plug and unplug cables.
  • No external power required.
  • Rackmount configuration.
  • Attractive all metal black box packaging provides EMI/RFI shielding.
  • Lifetime warranty against manufacturing defects.
  • Custom length Cat5e cables available for your switch installation.
  • For a similar unit with RJ45 Cat5e, see Model 9448, Cat. No. 305913.

TECHNICAL SPECIFICATIONS:

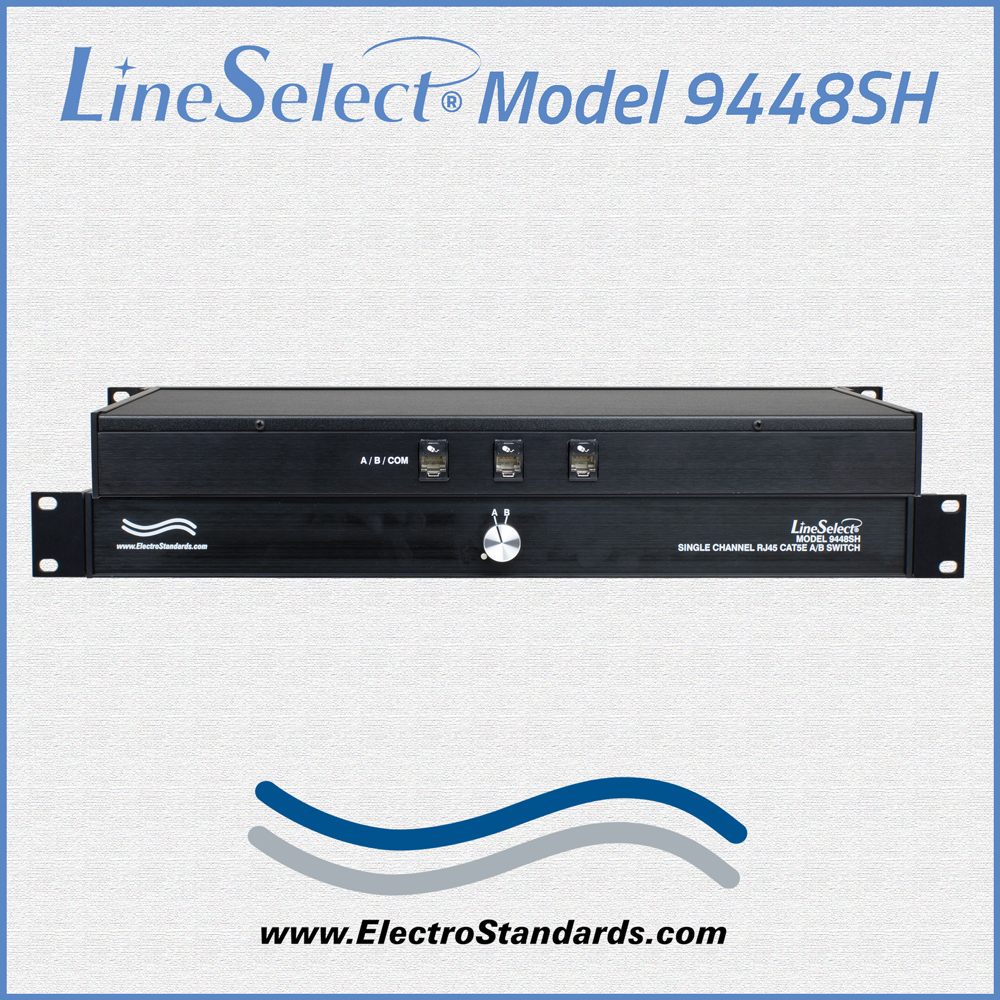

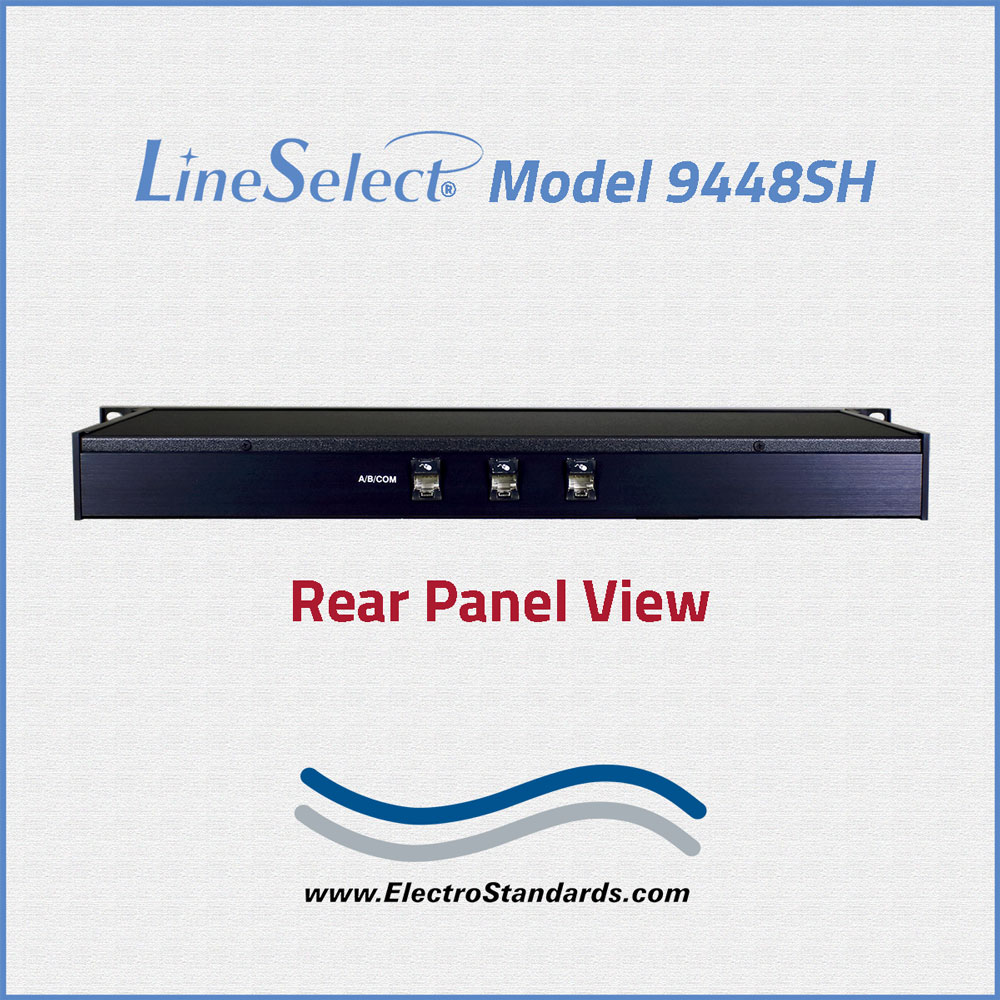

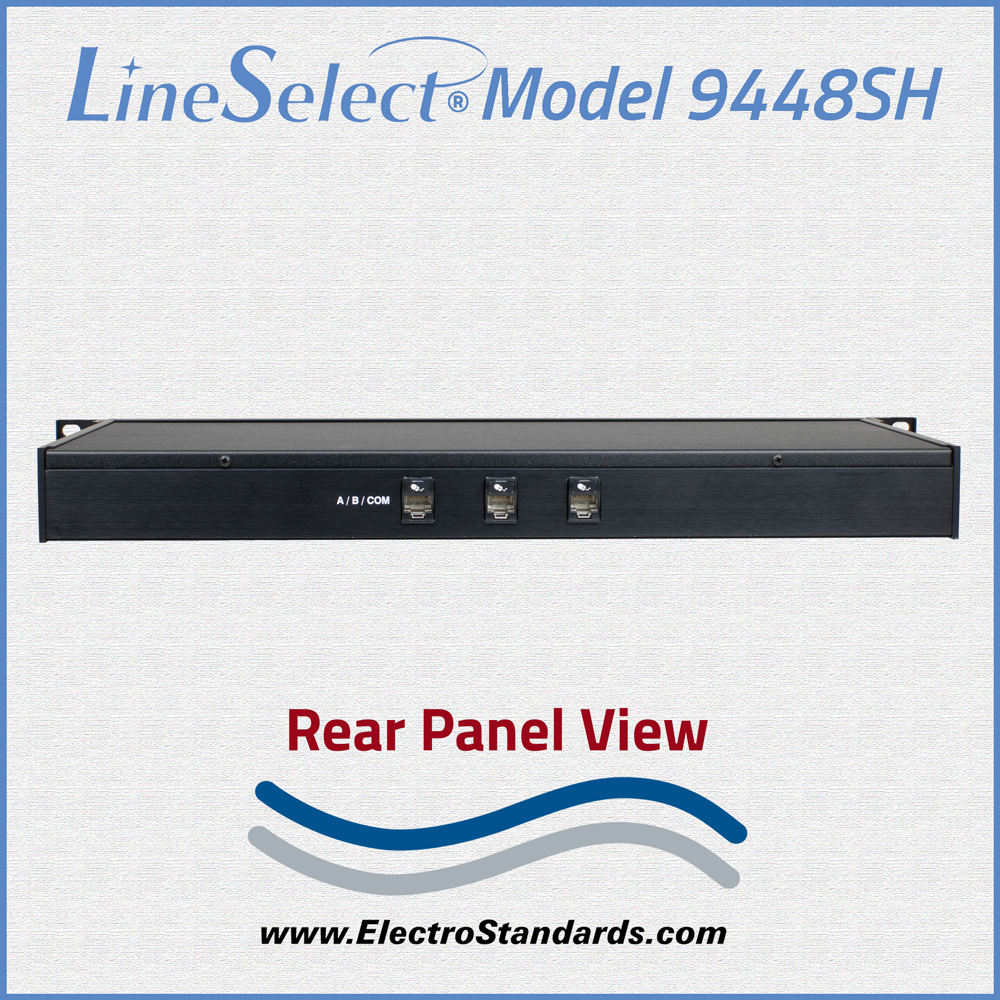

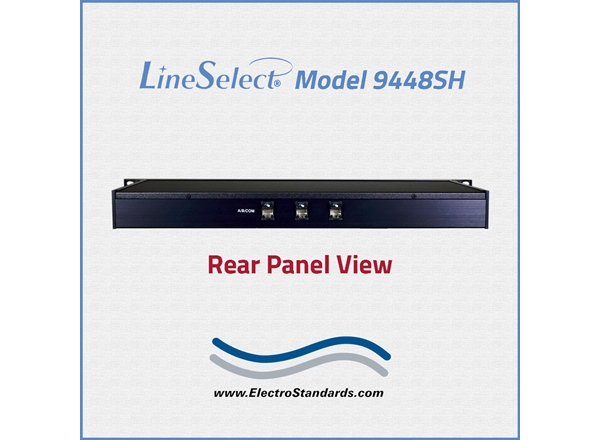

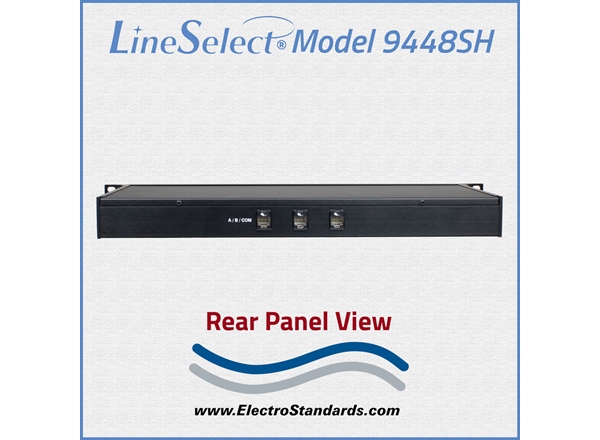

  • PORT CONNECTORS: (3) Shielded RJ45 female connectors labeled A, B, and Common.

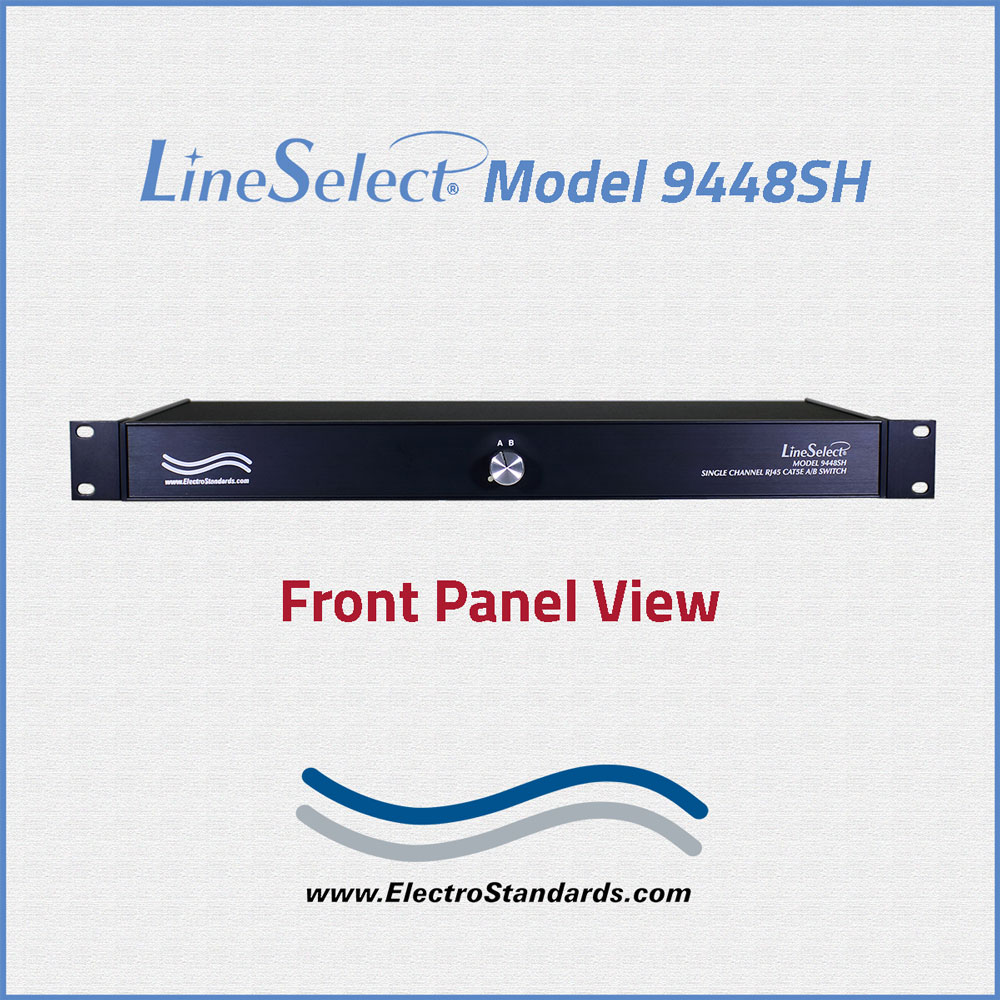

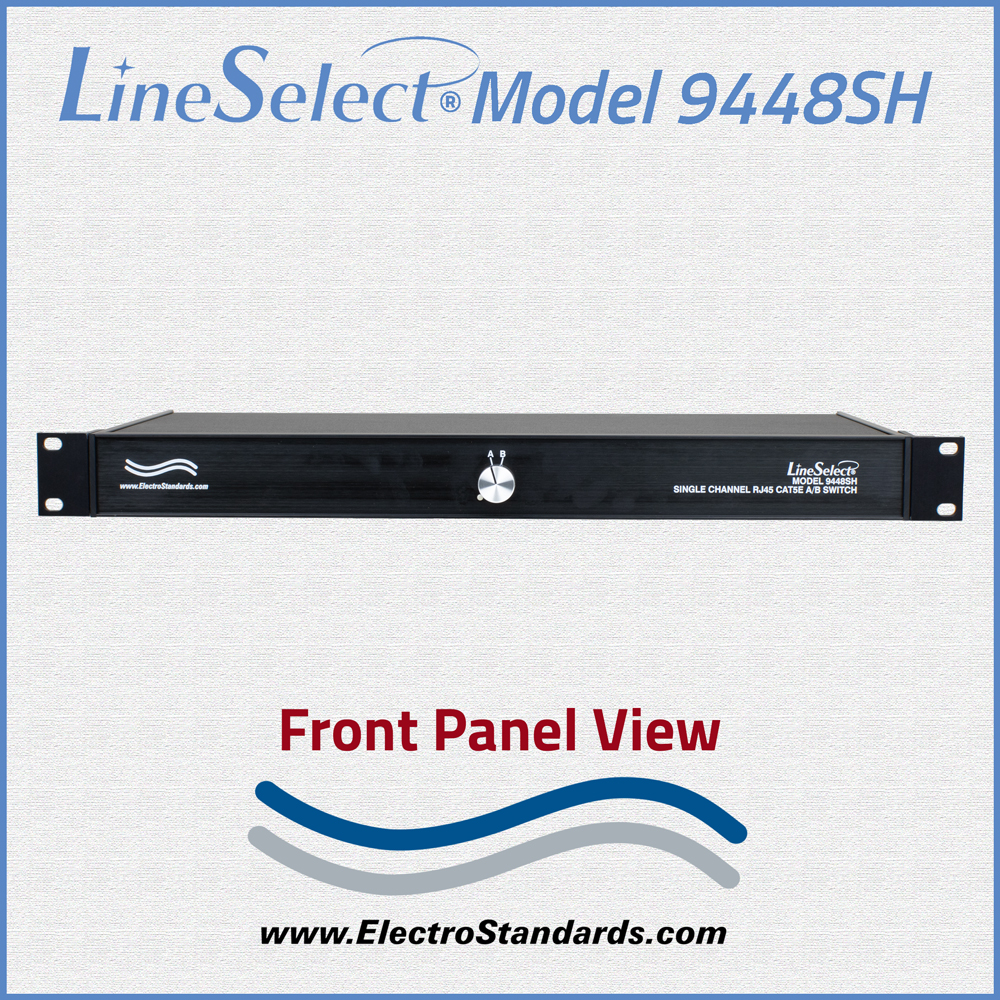

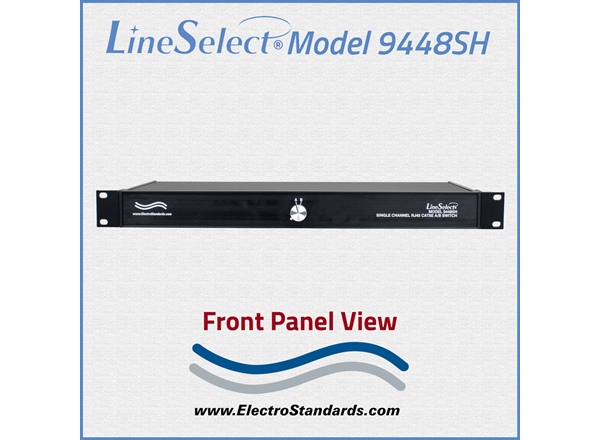

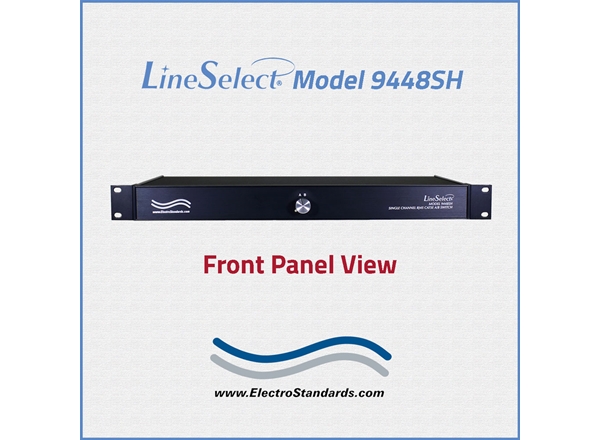

  • FRONT PANEL CONTROLS: (1) Rotary switch on front panel selects A or B.
  • POWER: No power required.  Manually operated.
  • DIMENSIONS: Rackmount 19" W x 1.75" H x 8.9" D (48.3 x 4.4 x 22.6 cm)
  • WEIGHT: Approximately 4.1 lbs. (1.9 kg)

CAT5e A/B NETWORK SWITCH APPLICATION:

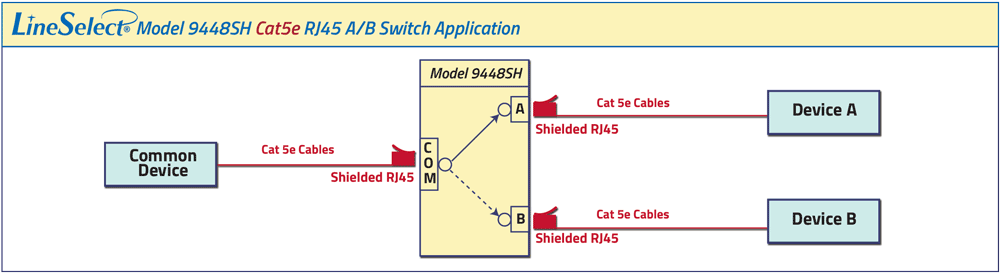

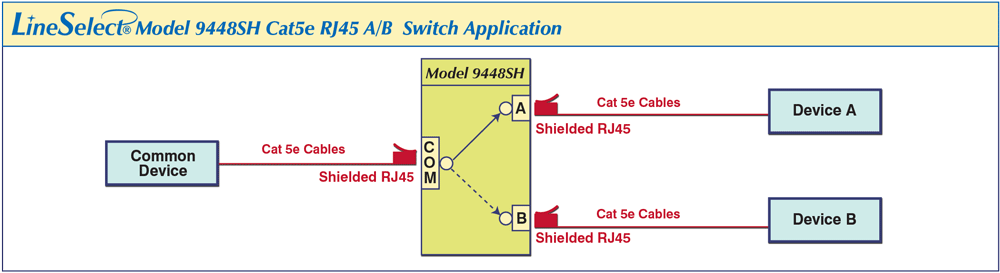

The diagram illustrates one COMMON Device connected to the RJ45 shielded COMMON Port accessing Device A or Device B via the shielded RJ45 A and B ports.

LineSelect® Model 9448SH Shielded RJ45 Cat5e A/B Switch application

Ordering Information

  • Catalog Number: 305913SH
  • Model Number: 9448SH
  • Base Price: See website or contact us for current pricing and availability.
  • Optional Wide-Range power supply: Catalog Number 517277 IEC C14 Inlet, 100-240VAC, 12 VDC

Documentation & Support

  • Specification Sheet (PDF) Download Available.
  • Product Manual available upon request.
  • For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
  • We welcome international inquiries and ship worldwide.

Shipping and Returns           UPS

  • Shipped via UPS ground (unless otherwise requested).
  • Freight Charges prepaid and added to invoice. We can estimate freight charges for you.
  • Return policy: contact us within 30 days of shipment for an RMA number. Items returned without RMA not accepted. Please refer to our full return policy in our Terms and Conditions found on our website.



Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage

Custom Network Switches are available. Contact us by phone, email, or complete the Online Custom Products Form. Click the link to fill out the form.

Electro Standards can supply all of your Network Cable requirements. Click here to reach our Copper Cable Assemblies Webpage.

All data switch boxes, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL Manual Data Network Switches are available for export.
