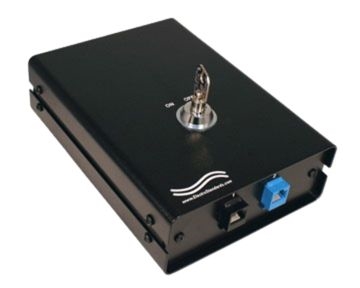

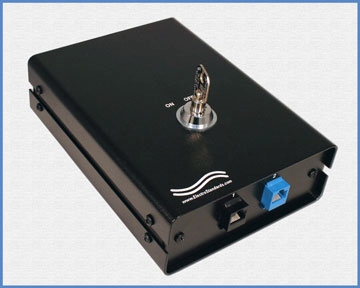

Model 8076 – 2-Channel RJ45/110-Block Cat5e Network Access Keylock Switch

High Quality Manual Data Network Switches Increase the Reliability of Your Network.

The Model 8076 2-Channel RJ45/110-Block Network Access Switch provides secure, manual control of two Cat5e 100BASE-T network connections. Featuring a key-operated ON/OFF switch, this compact solution allows authorized personnel to connect network lines in the normal operating position or break the connections when network access must be disabled.

Designed for structured cabling installations, the Model 8076 accepts incoming cables through internal 110 punchdown blocks and provides external RJ45 output ports for convenient network connectivity. Its keylock mechanism helps prevent unauthorized switching, making it well suited for controlled network access in schools, municipal facilities, government installations, and other environments requiring physical network isolation.

Supporting two independent channels and all eight conductors of each RJ45 connection, the Model 8076 offers a straightforward, power-free method of manually controlling network connectivity without software or electronic management.

Key Benefits:

Two-Channel Network Control: Manually controls two Cat5e 100BASE-T network connections.
Keylock Security: Restricts physical switching to authorized keyholders.
RJ45 and 110 Punchdown Connectivity: Integrates with structured network cabling.
Manual, Power-Free Operation: Switches between ON (normal) and OFF (break) positions without requiring electrical power.
Flexible Installation: Compact desktop enclosure with provisions for wall mounting and incoming cable conduit access.

FEATURES:

Compact Size: 2.37" H x 5.52" W x 7.75: D (6.1 x 14.1 x 19.7 cm)
Weight: 1.3 lbs. (0.6 kg)
Supports (2) RJ45 100 Base-T Cat5e drops.
"Normal" and "Break" positions via key access switch labeled "ON" and "OFF".
Key is removable in the "OFF" position and captive in the "ON" position.
100 Base-T, RJ45 female exit ports, external panel access.
Cat5e 100 Base-T Compliant.
Internal to box, 110 punchdown of incoming lines.
1/2-inch diameter conduit access for input cables.
Key shaped cutouts on bottom cover to facilitate wallmounting.
Municipalities, schools, government: On GSA Schedule!

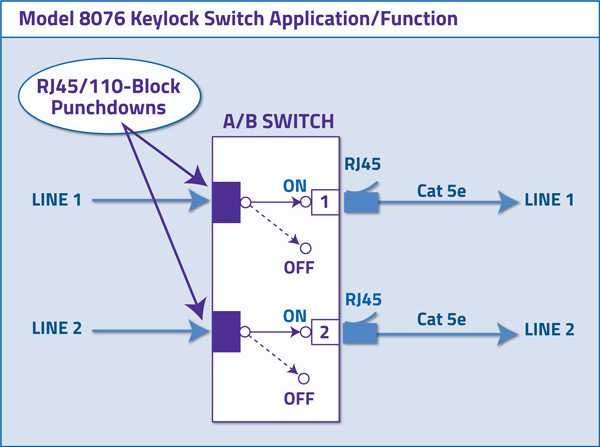

KEYLOCK SWITCH APPLICATION: The diagram shows two RJ45/110-Block punchdowns, Line 1 and Line 2. The Keylock allows the user to select the ON ("NORMAL") position or the OFF ("BREAK") position.

Model 8076 RJ45/110_Block Punchdown Keylock Switch Application diagram.

MODEL 8076 CAT5E SWITCH OPERATION:

The Model 8076 Network Access Keylock 2-Channel Switch accepts two 8-conductor Cat5e cables INPUT via two RJ45/110-Block punchdown connectors and allows the user to switch-through or break-from two OUTPUT RJ45 exit ports.
The user can remove the top cover of the network data switch and punch down the connections inside the unit.

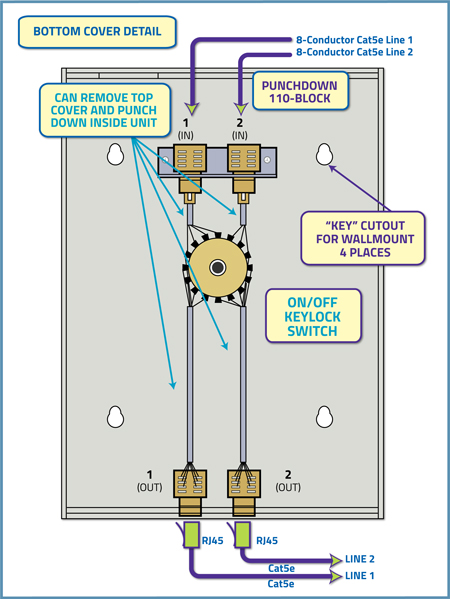

Model 8076 internal view showing the mechanism.

This high-quality network switch is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V. Click here for GSA Terms.

Custom Network Switches are available. Contact us by phone, email, or complete the Online Custom Product Request Form.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

All data switch boxes, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL Manual Data Network Switches are available for export.
