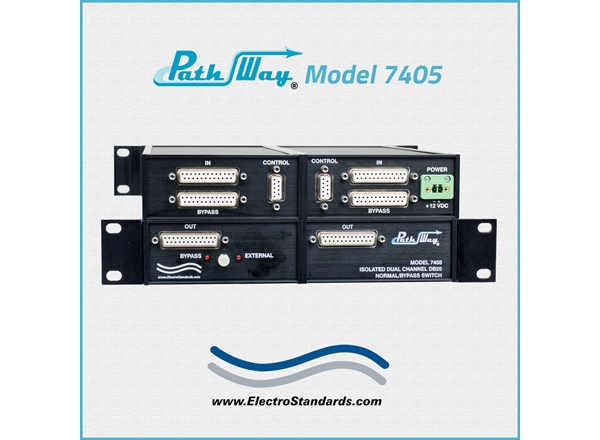

Model 7405 Dual Channel DB25 Normal/Bypass Switch with Channel Isolation, Catalog # 307405

Click image to enlarge

Base Price:

$3,310.00

Catalog No:

307405

Model No:

7405

Product Type:

Switches: Copper

Positions:

Cable Type/Port Connector:

DB25 Switch Ports

Electronic Switches/Power Required:

PathWay® Copper

Configuration:

Rackmount

Remote Port:

DB25

Qty

Add to Cart

SPECIFICATION SHEET

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

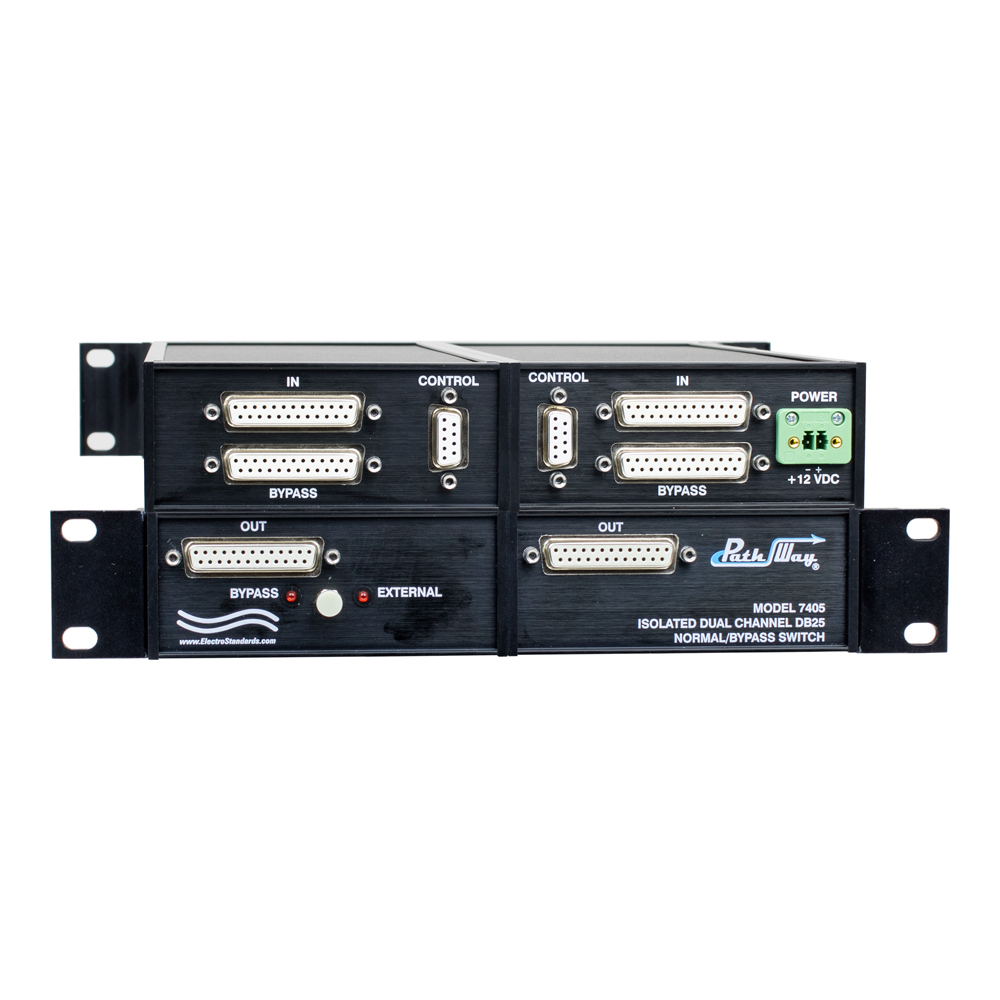

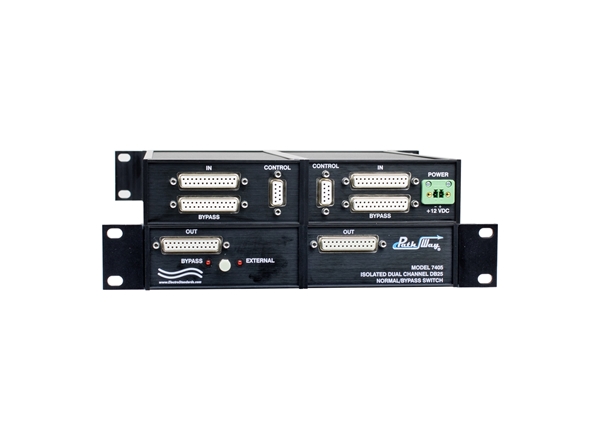

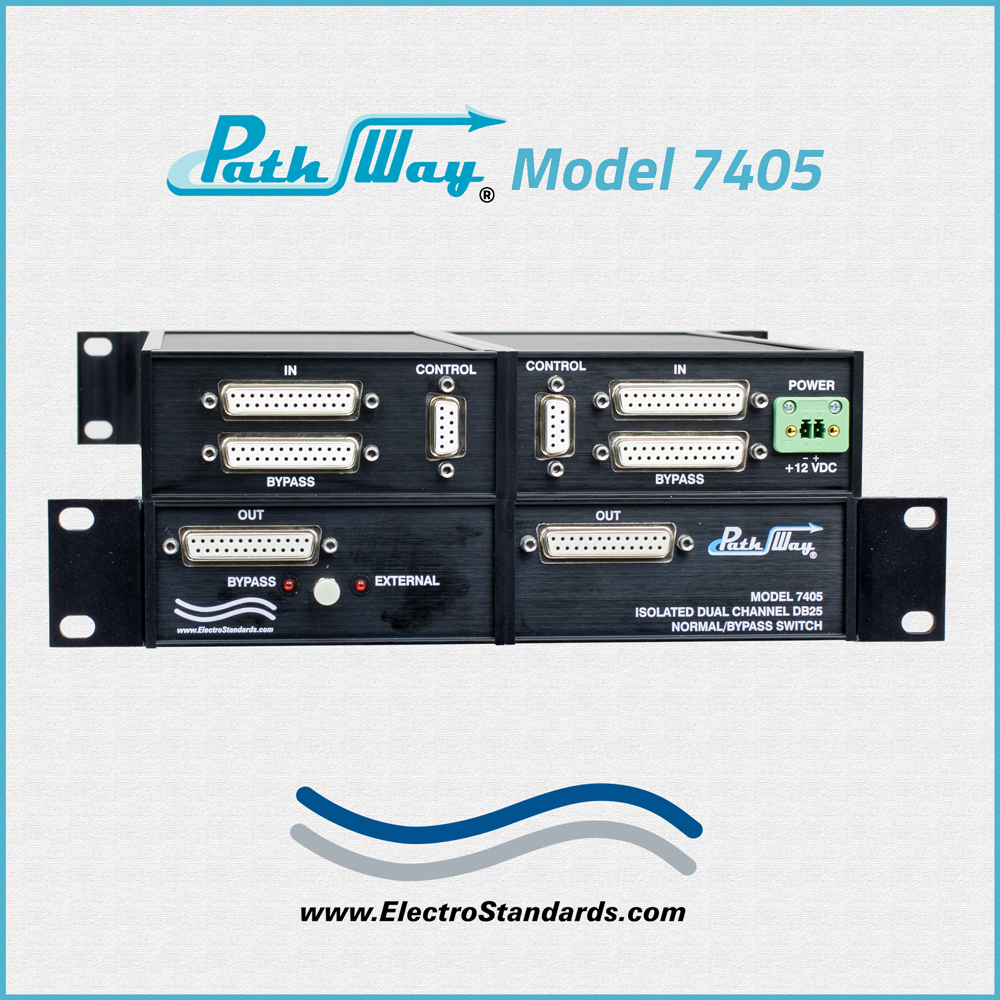

Path Way® Model 7405 Dual Channel DB25 Normal/Bypass Switch with Channel Isolation

Overview

The PathWay® Model 7405 Dual Channel DB25 Normal/Bypass Switch with Channel Isolation allows the user the capability of connecting a single device, connected to the "IN" port, to a device connected to its "OUT" port or alternatively exiting the chamber via its BYPASS port for each of its two channels. The Model 7405 dimensions are 10.58'W x 1.73'H x 15.66'D

Model 7405 weighs approximately 4.0 lbs.

FEATURES OF THE MODEL 7405 NORMAL/BYPASS SWITCH:

Simultaneously switch both channels between modes "NORMAL/PASS" and "BYPASS" locally via a front panel pushbutton.
In Normal/PASS mode, all signals, both channels enter their respective channel chamber routed from the "In" and "Out" ports of their respective channel.
Switches 16 pins of the DB25 Interface.
Pins 3, 16, 17, 9, 15, 12, 2, 14, 24, 11, 13, 5, 10, 8, 4, 19, (16 leads) are switched straight through.
The single front panel actuation simultaneously puts both chambers in the same mode accomplishing no signals in the chamber when in the External position, and both chambers are shielded from each other.
Unit has two chambers in an overall aluminum chassis, with each of the two chambers, Channel 1 and Channel 2, separated by a solid aluminum divided plate.
LED indicators on the front panel display switch position and power status.
Switch maintains position and continues to pass data during power loss.
Switch powers up in last known position.

TECHNICAL SPECIFICATIONS:

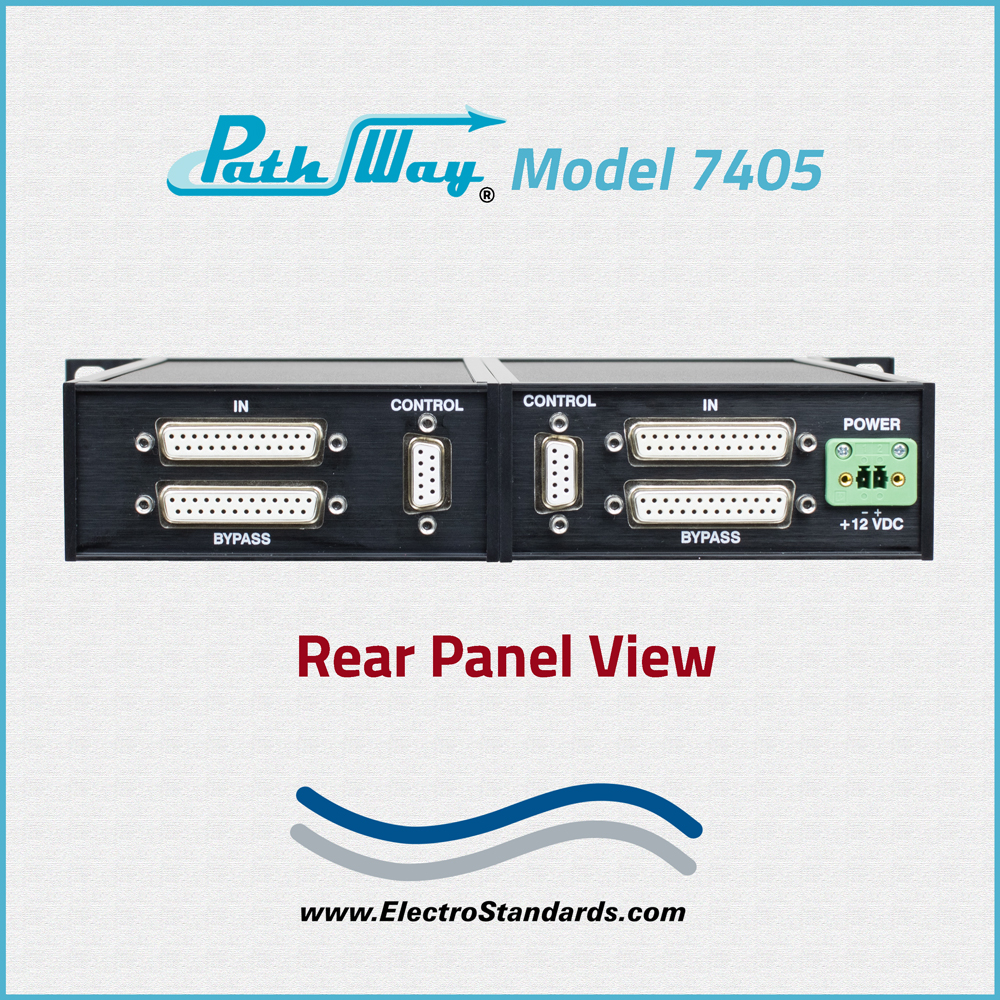

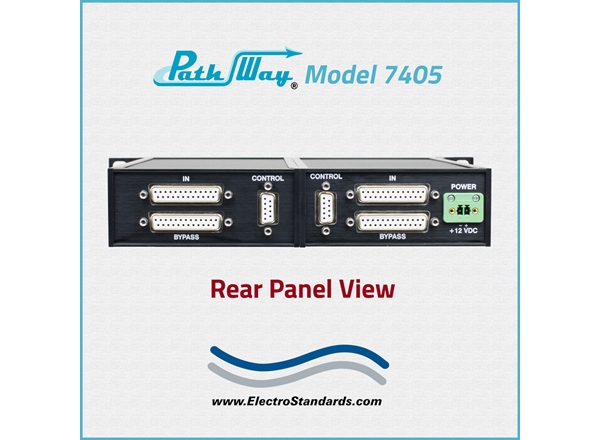

PORT CONNECTORS: (6) DB25 (F) connectors, (2) DB9 (F) connectors.
PINS SWITCHED: switches 16 pins of the DB25 interface.

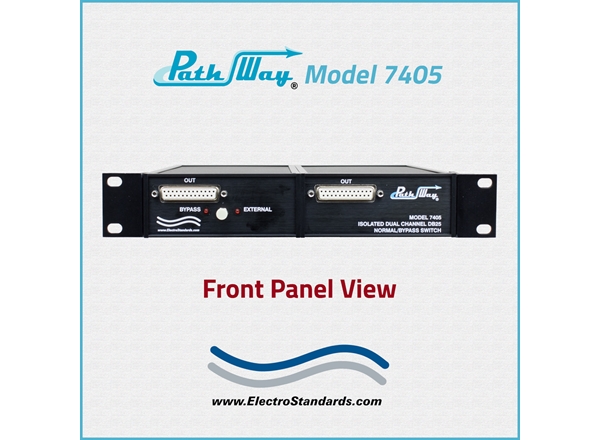

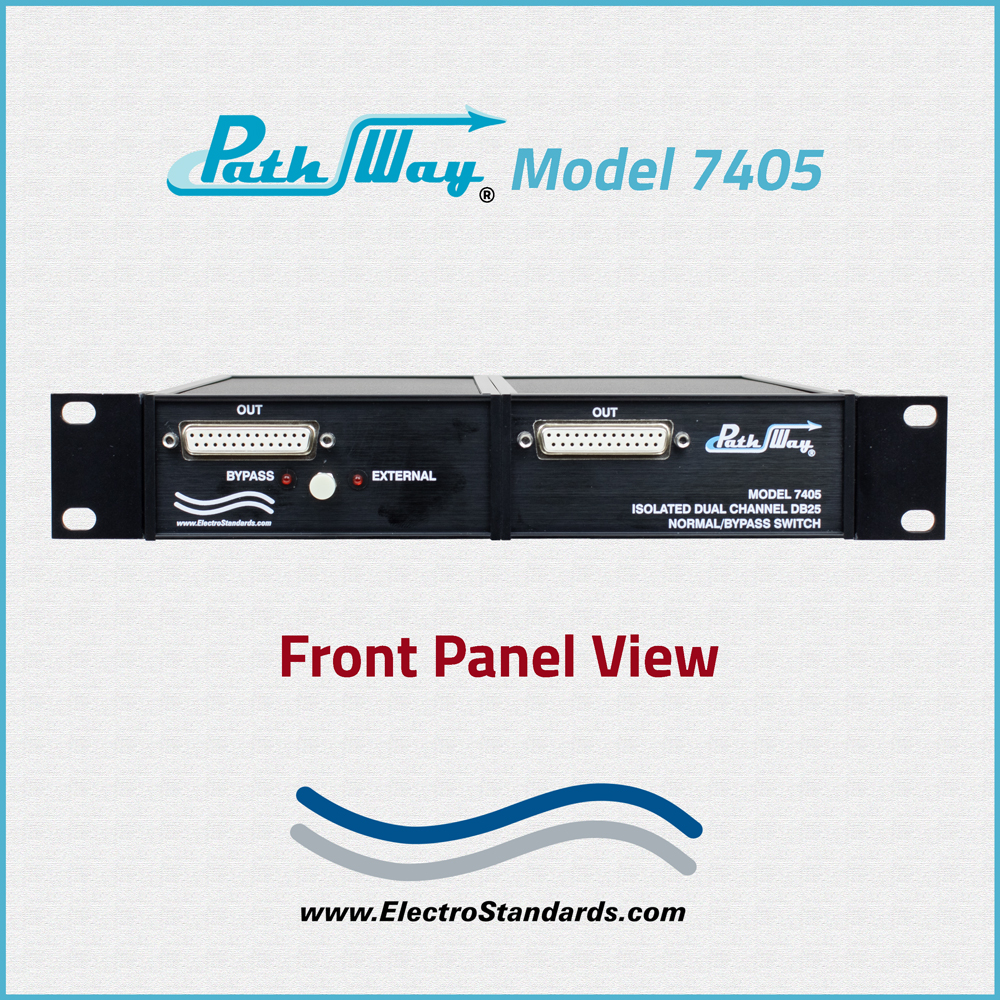

FRONT PANEL CONTROL: (1) manual pushbutton allows local switching.
DISPLAY: (2) Front panel LED's display switch position and power status.
POWER: Wide Range Power Module (Cat. No. 517277) CE and UL listed table mount power module, 100 VAC / 240 VAC, 50Hz/60Hz is included with the unit. Ideal for international applications
DIMENSIONS: Rackmount configuration: 10.58" W x 1.72" H x 15.66" D (26.9 cm x 4.4 cm x 15.66 cm, 10.35"D (26.3 cm) without cables).
WEIGHT: Approximately 4.0 lbs. (3.78 lbs. without cables).

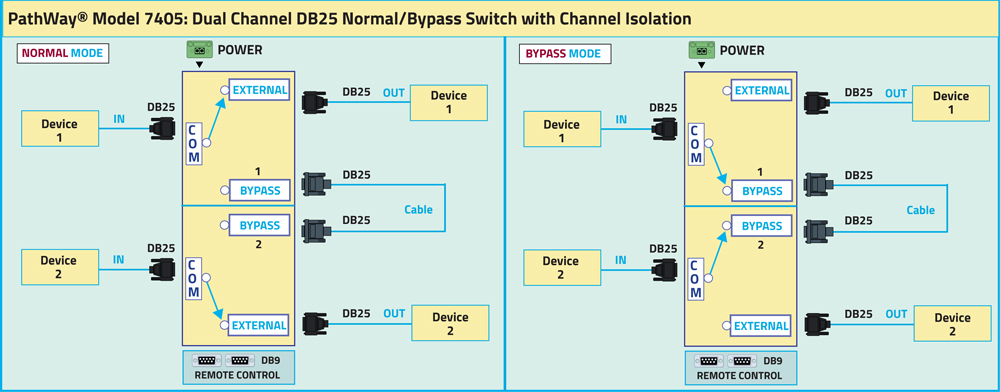

PathWay® Model 7405 Dual Channel DB25 Normal/Bypass Switch with Channel Isolation Application Diagram:

The drawing illustrates the two channels of the M7405 unit in both Bypass and Normal modes of function.

Ordering Information

Catalog Number: 307405
Model Number: 7405
Base Price: See website or contact us for current pricing and availability.
Optional Wide-Range power supply: Catalog Number 517277 IEC C14 Inlet, 100-240VAC, 12 VDC

Documentation & Support

Specification Sheet (PDF) Download Available.
Product Manual available upon request.
For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
We welcome international inquiries and ship worldwide.

Shipping and Returns

Shipped via UPS ground (unless otherwise requested).
Freight Charges prepaid and added to invoice. We can estimate freight charges for you.
Return policy: contact us within 30 days of shipment for an RMA number. Items returned without RMA not accepted. Please refer to our full return policy in our Terms and Conditions found on our website.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.
