Catalog # 307125 - Model 7125 DB9 A/B Automatic Fallback Switch

    DB9 A/B Automatic Fallback Switch
Click image to enlarge
Base Price:
$1,075.00
Catalog No: 307125
Model No: 7125
Protocol:Data loss on PRIMARY port pins 2 & 3
Product Type:Switches: Copper
Positions:3
Cable Type/Port Connector:DB9 Switch Ports
Channels per Switch Chassis:1
Electronic Switches/Power Required:PathWay® Copper
Remote Control:Auto Fallback, Contact Closure
Configuration:Rackmount
Auto Fallback:Data Monitor Port A
Pins Switched:9
Remote Port:DB9
Local Control:Rotary Knob

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview


Path Way® Remotely Controllable Network Switch, DB9, Auto Fallback

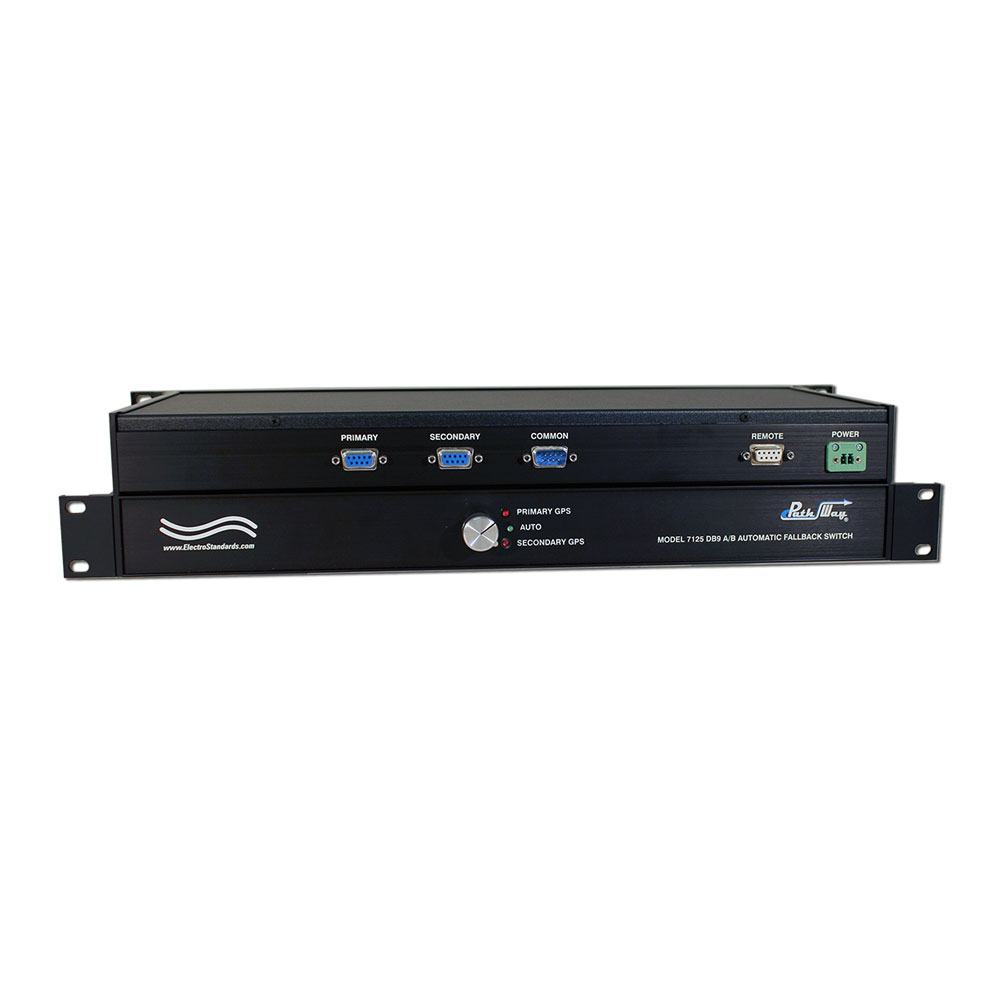

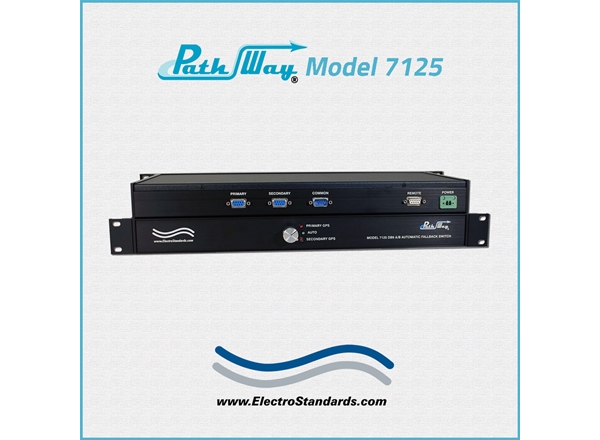

Model 7125 DB9 A/B Automatic Fallback Switch, with Contact Closure Remote Port

  • Automatic fallback based on loss of data on port "A" (PRIMARY GPS)
  • Data activity "Watch Dog" switch keeps data flowing.
  • Automatically switches from PRIMARY GPS to SECONDARY GPS channel.

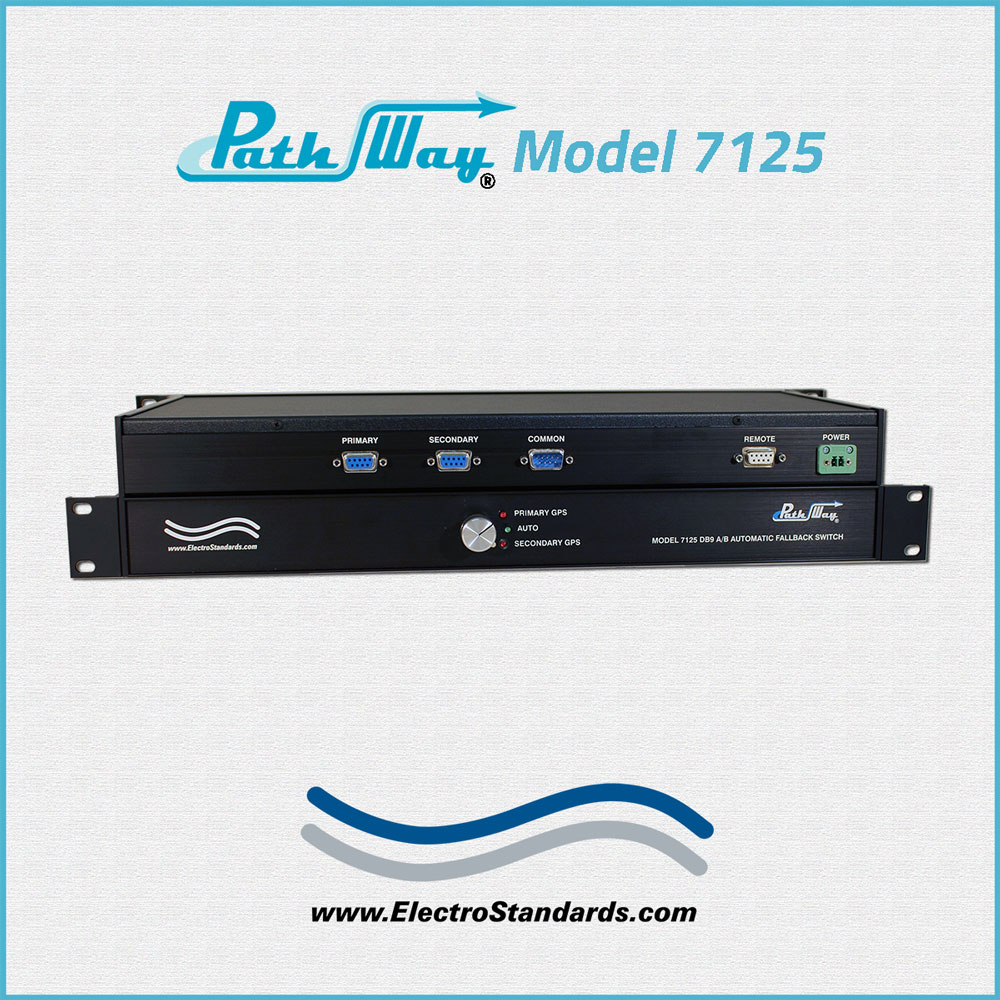

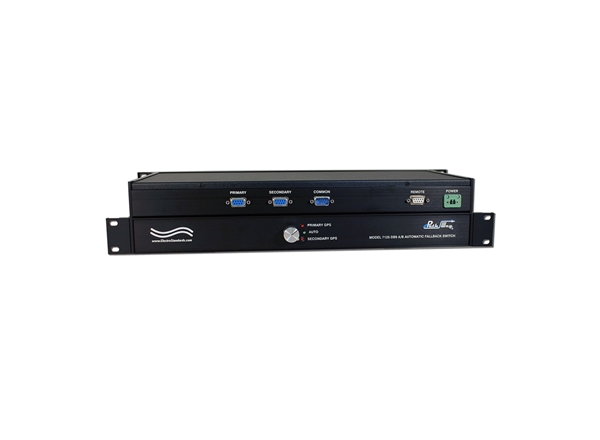

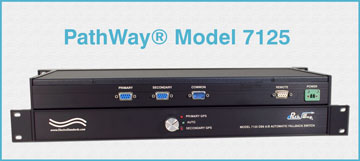

PathWay® Model 7125 DB9 A/B Automatic Fallback switch w/Contact Closure Remote Port

SPECIFICATIONS:

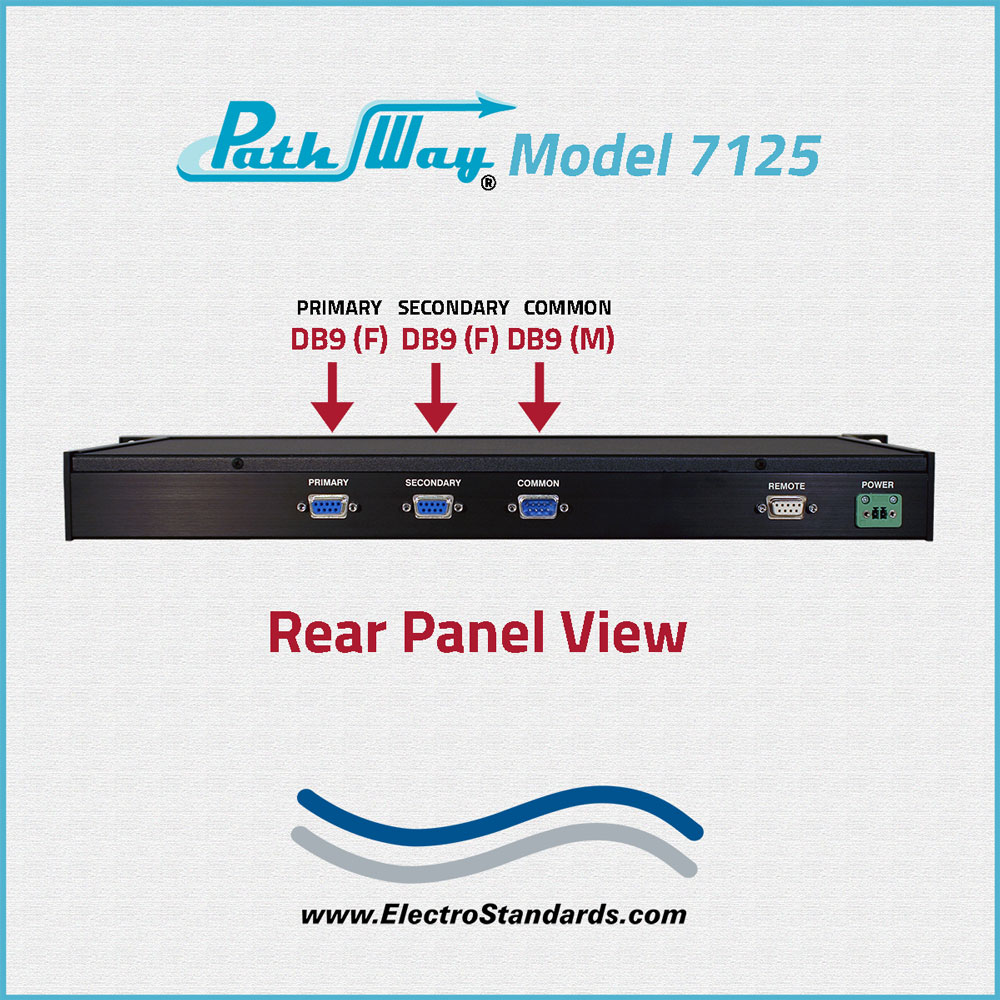

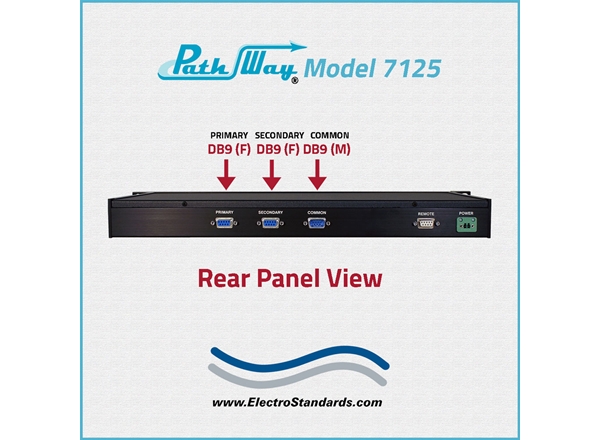

  • PORT CONNECTORS: (2) DB9 female connectors labeled PRIMARY and SECONDARY, (1) DB9 male connector labeled COMMON.

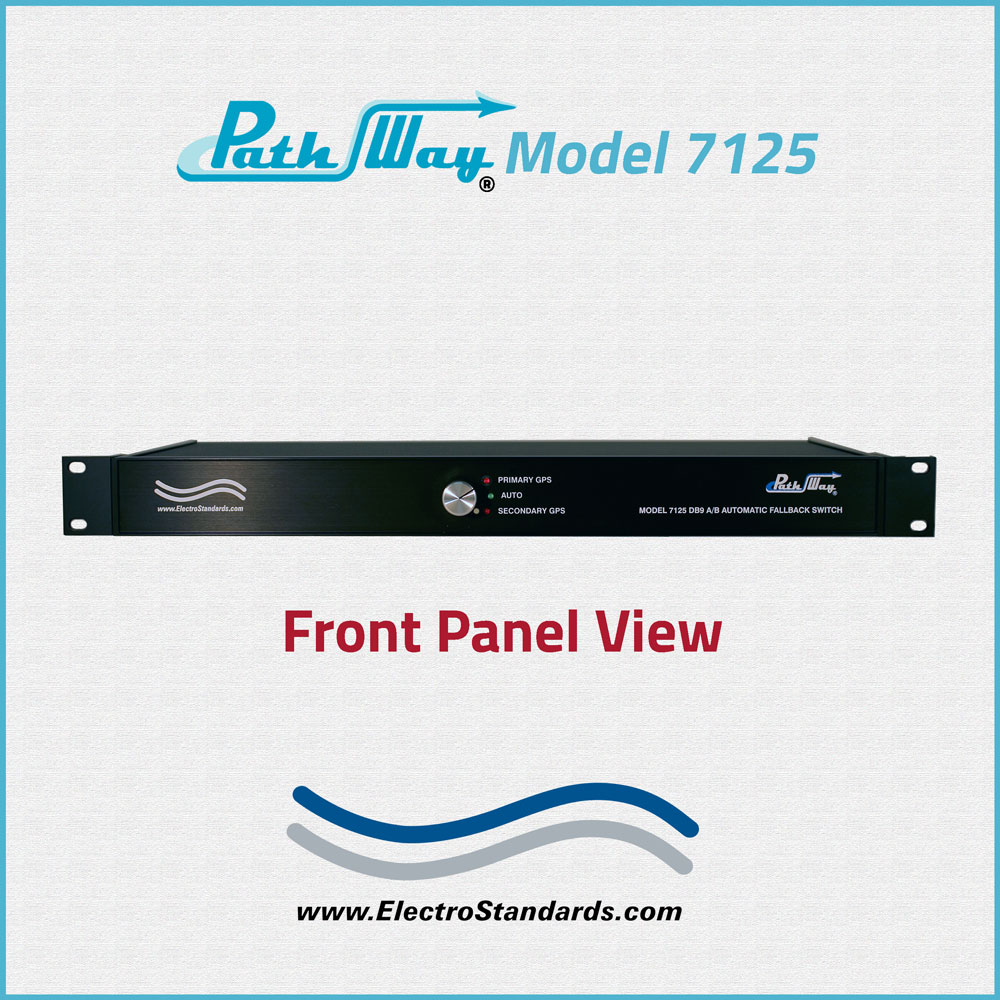

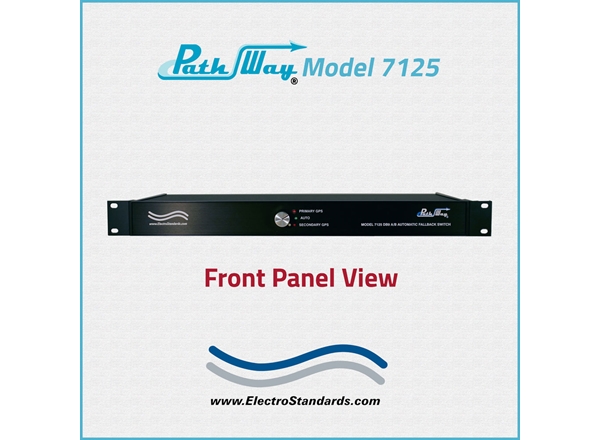

  • FRONT PANEL CONTROL: (1) Rotary switch on front panel selects PRIMARY, SECONDARY or AUTO.
  • DISPLAY: (3) Front panel LED's display switch position, mode and power status.
  • REMOTE: (1) DB9 (F) connector on rear panel accepts Contact Closure switch commands for Remote Control Operation.
  • POWER: UL approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12 VDC, 500 mA to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: 19.0" W x 1.75" H x 8.0" D.  (48.3 x 4.4 x 20.3 cm)
  • WEIGHT: Approximately 4.3 lbs. (2.0 kg).

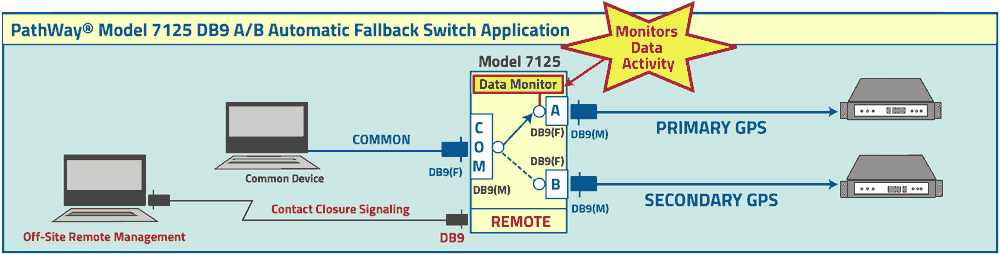

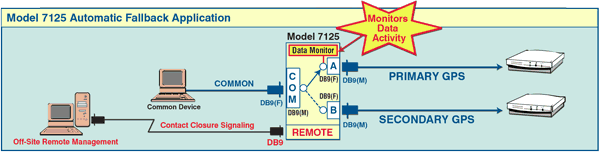

DB9 A/B AUTOMATIC FALLBACK APPLICATION w/CONTACT CLOSURE REMOTE: The drawing illustrates a COMMON Device connected to the DB9 male port with access to two devices connected to two DB9 female ports,  Port "A" (PRIMARY GPS) or Port "B" (SECONDARY GPS). Port "A" (PRIMARY GPS) is monitored for data activity. Loss of data activity on Port "A" (PRIMARY GPS), unit AUTO Switches to Port "B" (SEDONDARY GPS). A DB9 female REMOTE port accepts Contact Closure signaling for Remote Operation or to override AUTO operation.

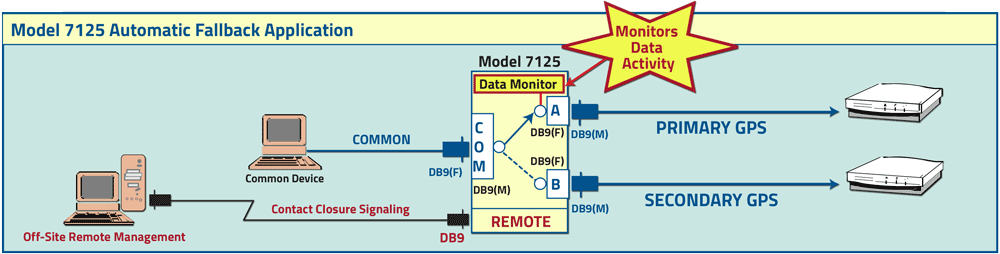

PathWay® Model 7125 DB9 A/B Automatic Fallback Application w/Contact Closure Remote
