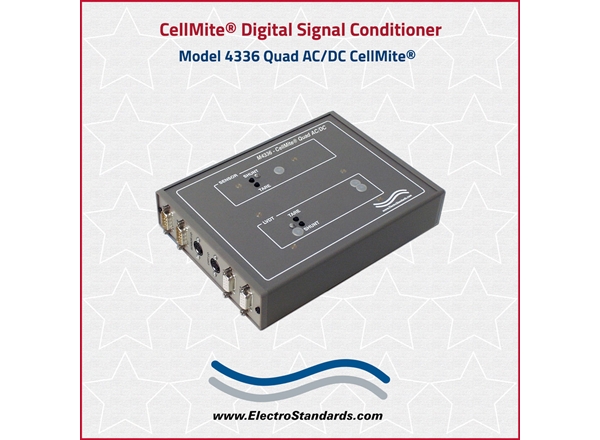

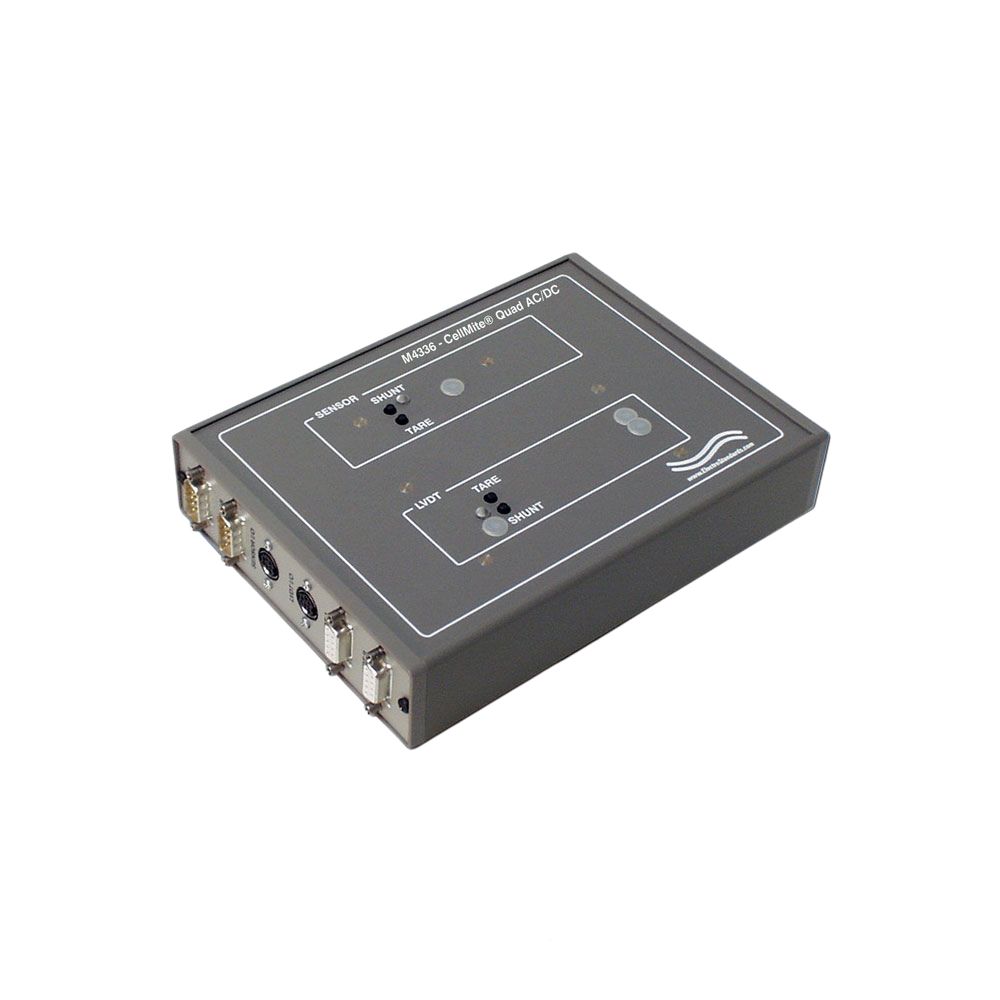

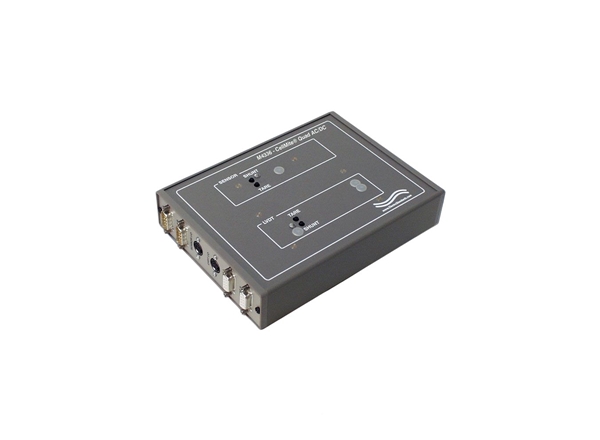

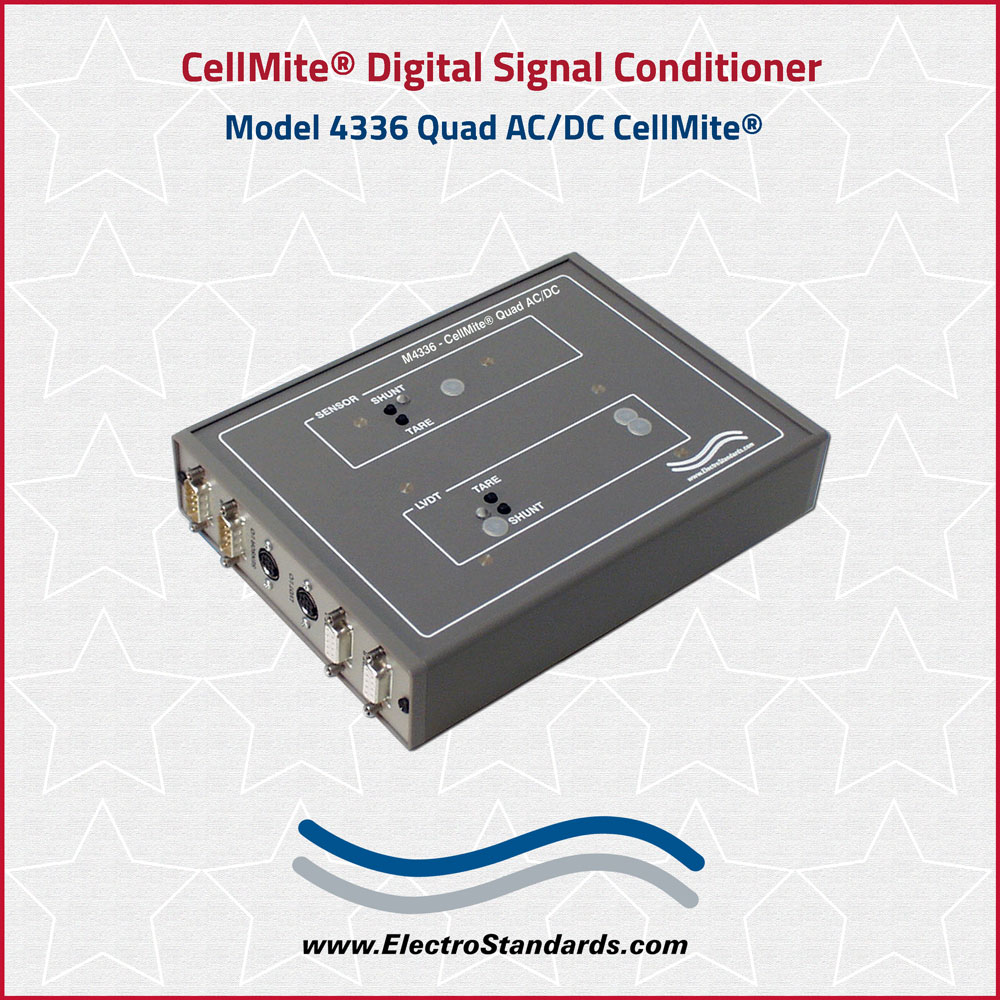

304336 - 4336 CellMite Quad AC/DC Mixed LVDT and Force Digital Signal Conditioner

    AC/DC Mixed LVDT and Force Digital Signal ConditionerAC/DC Mixed LVDT and Force Digital Signal Conditioner
Click image to enlarge
    • AC/DC Mixed LVDT and Force Digital Signal Conditioner
    • AC/DC Mixed LVDT and Force Digital Signal Conditioner
Base Price:
Catalog No: 304336
Model No: 4336
Excitation:LVDT: Voltage - 3kHz, 3Vrms. Sensors: LVDT's AC bridges
Input Range:LVDT: <10mV/V to >100mV/V. Strain Gage: +/-5.5mV/V
Ouput_Analog:LVDT: 16-bit, Scalable. Strain Gage 16-Bit, Scalable.
Output_Serial_Data:Multidrop RS232, RS485
Storage:3 Cal. LVDT/3 Cal. SG Transducers
Product Type:CellMiteĀ®
Conversion Rate:60/sec single channel, 1/sec all simultaneously


Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request


CellMite® Quad AC/DC Mixed LVDT and Force Measurement Digital Signal Conditioner

Powerful load cell and LVDT electronics!

The CellMite® 4336 Quad AC/DC is a 4-channel intelligent digital signal conditioner that connects directly to two AC LVDT transducers and two DC strain gage force transducers and provides direct digital data input into the serial port of a standard PC.

Precision AC sine wave excitation voltages to power the LVDT's and precision DC excitation voltages to power the force strain gage bridges are generated by the unit. Internal signal conditioning with filtering is applied to all channels and the digitized data is sent in serial form to a standard PC.

The CellMite® 4336 Quad also simultaneously generates /-10V analog outputs; one that tracks a user-selected LVDT channel and one that tracks a user-specified force channel. When used in combination with CellView Multi-Display GUI software, a complete data acquisition system is formed with synchronized data storage of all channels in an Excel compatible file, and real-time simultaneous viewing of all channels utilizing up to 8 user-specified software displays.

The CellMite® 4336 Quad AC/DC independently compensates each channel's transducer nonlinearities using its integrated 6-point calibration capability not found in standard signal conditioners. The unit has full range tare capability for the LVDT and strain gage force channels, and dual internal precision shunt resistors for the force channels.

The CellMite® 4336 features include nonvolatile memory for parameter and calibration storage, the ability to select between 3 stored LVDT calibrations for the two LVDT channels, and the ability to select between 3 stored force transducers for the two strain gauge force channels. Also featured are multi-point and mV/V calibration, remote sense excitation, 24-bit internal resolution with 16-bit analog output, and RS232 serial data output that is compatible with off-the-shelf serial to USB converter cables.


CellMite® Quad AC/DC Features:

  • Simultaneous operation of all LVDT and strain gage channels
  • Direct to PC with RS232 data
  • Data logging with multiple recording profiles
  • Data compatible with Excel
  • Automatic and manual triggering
  • 2-pt, mV/V calibration
  • 6-pt Linearization calibration
  • Dual scalable /-10V Analog Outputs, one for LVDTs and one for strain gages
  • 16-Bit Analog Output
  • 24-Bit Resolution
  • Multiple filter selections
  • Storage for 3 calibrated LVDT transducers and 3 calibrated strain gage transducers
  • Selectable sensor gains
  • Remote sense excitation
  • Addressable for serial network
  • Tare, peak, valley
  • Unit Support: In, Cm, mm, %, Lb, Kg, N, mV/V, User Defined
  • Power supplies internally isolated
  • Graphical User Interfaces (GUI) and Software Drivers sold separately. Select from:

CellMite® Quad AC/DC Specifications:

  •  Excitation:
    • LVDT
      • Voltage: 3kHz, 3Vrms (std)
      • Sensors: LVDT's AC Bridges
    • Strain Gage
      • Voltage: 5VDC
      • Sensors: 350 Ohm Bridge Nominal
  • Operation:
    • LVDT
      • Internal Resolution: 24-bit
      • Input Range: Software adjustable from <10mV/V to >100mV/V
      • Error: 0.05%
      • Precision Shunt 60K Ohm for bridge applications
    • Strain Gage
      • Internal Resolution: 24-bit
      • Input Range: /15.5mV/V
      • Error: 0.01%
      • Precision Shunt 60K Ohm
    • Conversion Rate
      • 60/sec single channel
      • 1/sec all channels simultaneously
    • Data Logging
      • Channels: All, simultaneously
      • Format: Excel compatible file
      • Recording Rate: Variable, user selectable
      • Triggering: Manual, automatic, delayed
  • Outputs:
    • Analog:
      • LVDT: 16-bit, Scalable, /-10V.
      • Strain Gage: 16-bit, Scalable, /-10V.
    • Serial Data: Multidrop RS232, RS485
  • Power
    • Included Adapter: 5VDC, 1 A, 110/240VAC, 60/50 Hz.
    • Optional Adapter: 12, 24, 48 VDC
  • Mechanical:
    • Size: 7.5" x 5.5" x 1.5"
    • Weight: 1.12 lbs, (508.02 g)

CellView Multi-Display GUI Software (Cat. No. 514424)

  •  Turnkey simultaneous data acquisition system for networked CellMite® and CellMite® LVDT units.
  • Supports mix and match of CellMite® and CellMite® LVDT units on network.
  • Ability to define 8 simultaneous data displays from multiple channels on multiple units.
  • Save data, calibration, and sensor test information to Excel spreadsheets for all networked units.
  • Guides user through sensor calibrations.
  • Guides user through adding/removing networked CellMite® and CellMite® LVDT units.
  • Ability to select and name any networked units.
  • Tare and reset peak and valley for the sensors.
  • Save/Load units and sensor setup information.
  • Set output data with user-define 5th order polynomial function.
  • Setup a test to start and/or stop automatically with user-selectable trigger events and delayed triggering.
  • Multi sample rate data acquisition via user-definable data logging profile.
  • User programmable analog output voltage range for attached CellMite® and CellMite® LVDT units.
  • Units of In, Cm, mm, %, Lb, mV/V and User Defined.

CellView with Graphing GUI (Cat. No. 514358)


APPLICATION NOTE: How to make your own Plug and Play Load Cell System!
Order Cat No 501574, TEDS-Tag® ID Component to make your Plug and Play Load Cell System!
