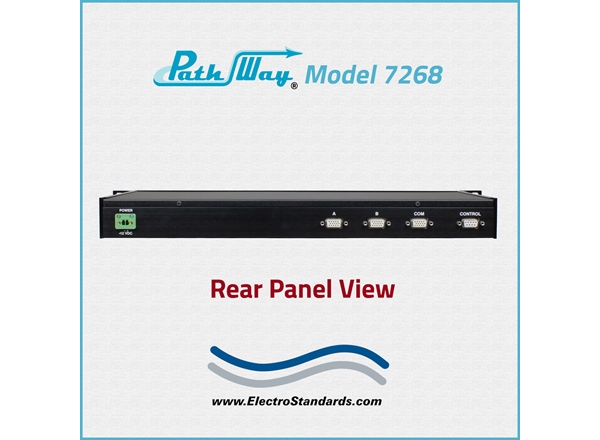

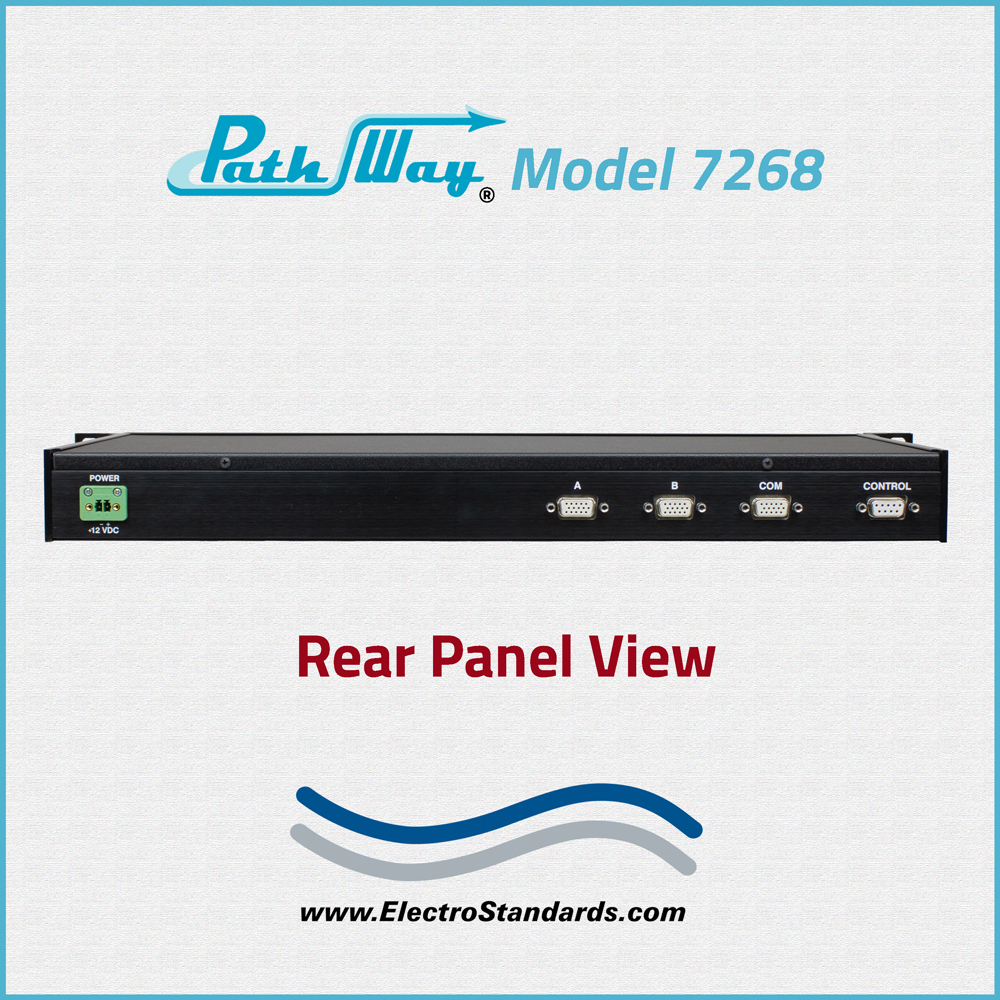

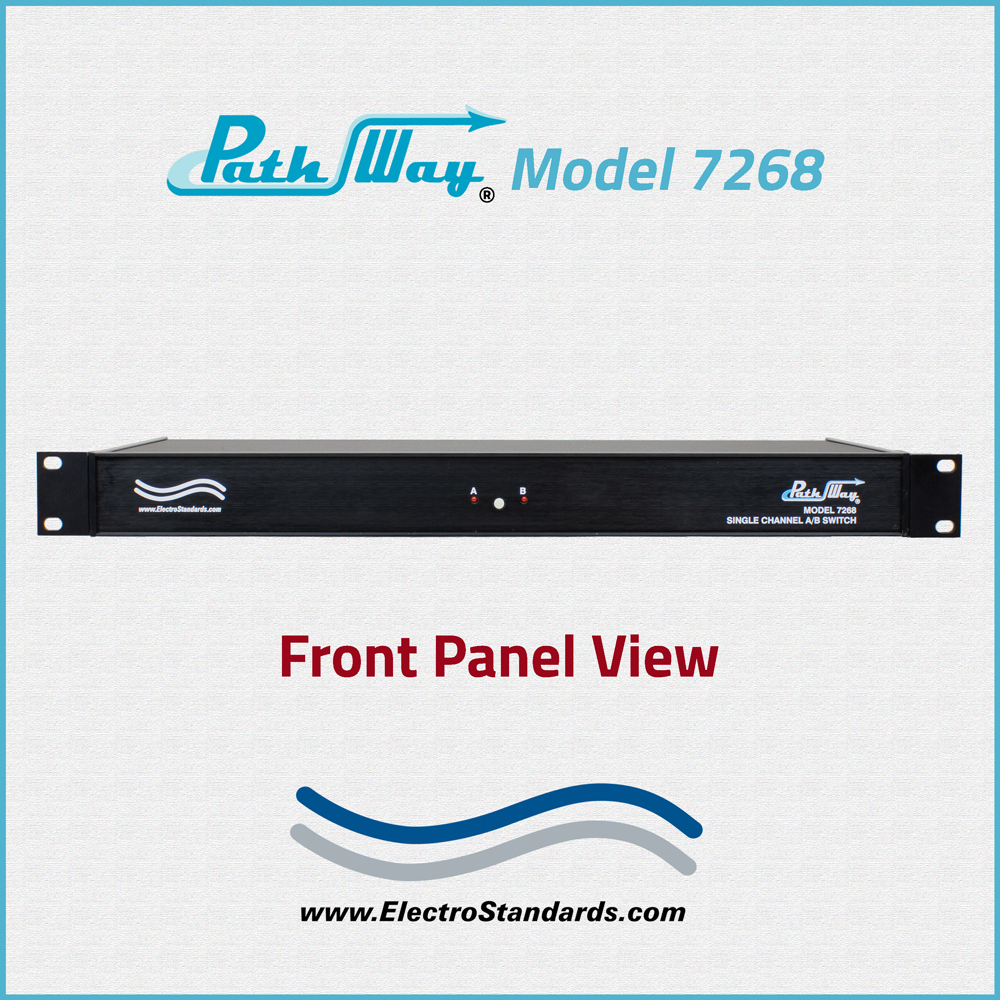

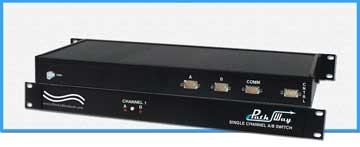

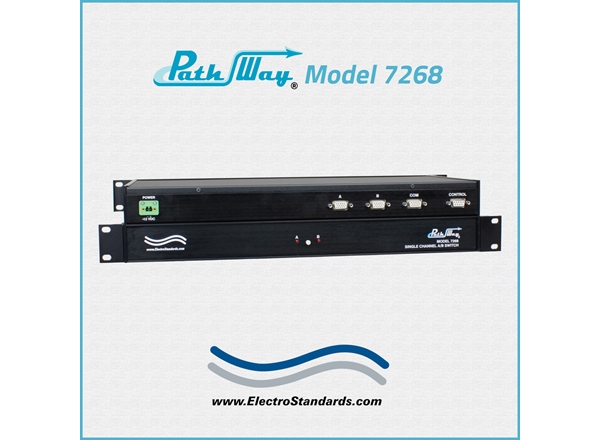

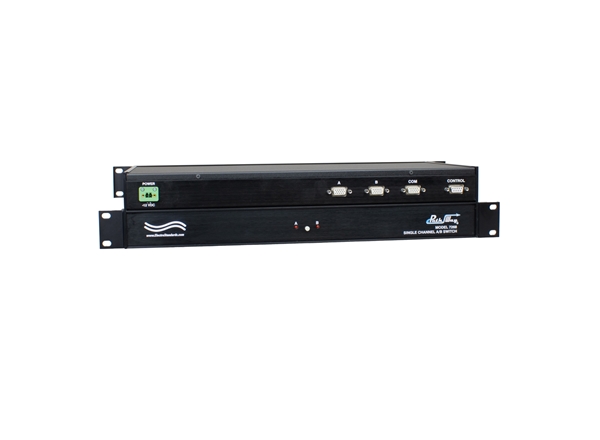

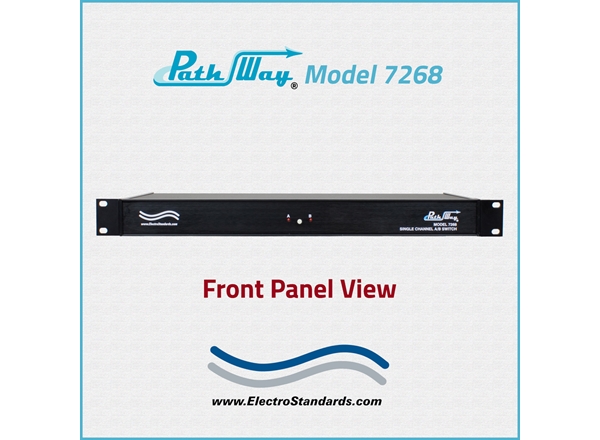

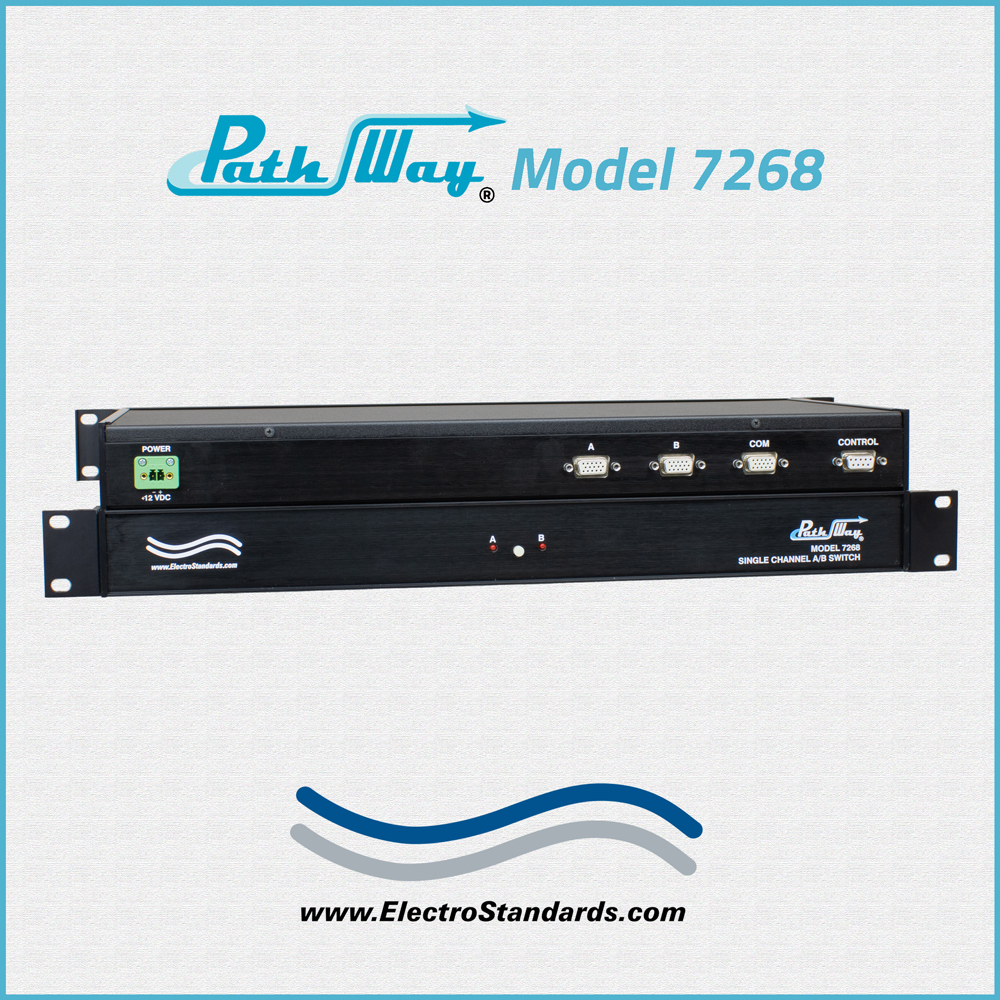

Model 7268 Single Channel HD15 A/B Network Switch with Serial Remote Control, Catalog # 304268

    HD15 A/B Network SwitchHD15 A/B Network SwitchHD15 A/B Network SwitchHD15 A/B Network Switch
Click image to enlarge

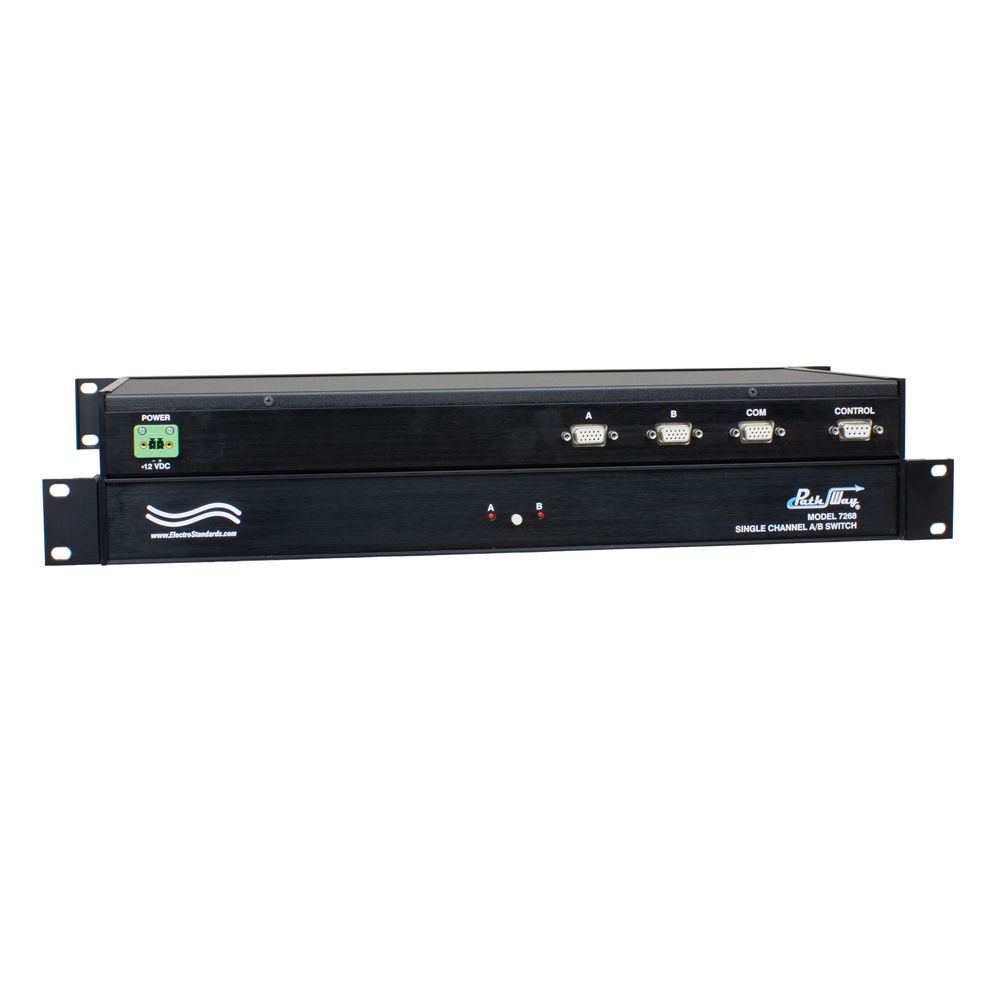

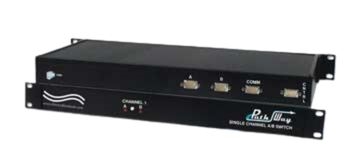

    • HD15 A/B Network Switch
    • HD15 A/B Network Switch
    • HD15 A/B Network Switch
    • HD15 A/B Network Switch
Base Price:
$833.00
Catalog No: 304268
Model No: 7268
Product Type:Switches: Copper
Positions:2
Cable Type/Port Connector:HD15 Switch Ports
Channels per Switch Chassis:1
Electronic Switches/Power Required:PathWay® Copper
Remote Control:RS232 Serial
Configuration:Desktop
Pins Switched:15
Remote Port:DB9
Local Control:Pushbutton
Feature:Remote Control

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Path Way® Model 7268 Single Channel HD15 A/B Switch with Serial Remote Control Port

Overview

The PathWay® Model 7268 Single Channel HD15 Interface A/B Switch provides single channel switching in a low profile, 19-inch 1U rack unit. The Model 7268 allows the user the capability of sharing a single HD15 interface device connected to the Common port among two other devices connected to the A and B ports.

This remotely controllable switch may be controlled locally by manually operating the front panel push button(s) or remotely from the DB9/male serial interface Control port located on the rear of the unit. The front panel LED display indicates the switch position and unit power status.

  • Switches all 15 pins.  Allows compatibility with ALL HD15 interfaces!

FEATURES OF THE MODEL 7268 HD15 SERIAL REMOTE SWITCH:

  • Allows access to HD15 networks from one COMMON network or device.
  • Switches all 15 pins of the HD15 interface.
  • Transparent to data speed and format.
  • Local control via front-panel pushbuttons.
  • Remote control port allows off-site monitoring and switch management.
  • The REMOTE port accepts RS232 Serial Data ASCII commands for switch position control and monitoring.
  • Front panel LED's display switch position and power status.
  • Ideal for fallback applications.
  • Eliminates the need to plug and unplug cables.
  • Retains last switch position in the event of power loss and continues to pass data.
  • Attractive anodized black box packaging provides EMI/RFI shielding.
  •  Custom length HD15 cables available for your switch installation.

TECHNICAL SPECIFICATIONS:

  • PORT CONNECTORS: (3) HD15 (F) connectors labeled A, B, and COMMON.
  • FRONT PANEL CONTROL: (1) Manual pushbutton allows local switching.
  • DISPLAY: (2) Front panel LED's display switch position and power status.
  • REMOTE CONTROL: (1) DB-9 female connector on rear panel accepts ASCII RS232 Serial Data for Remote Control operation.
  • POWER: UL approved 110 / 120 VAC, 60 Hz wall mount power module supplies 12 VDC, 500mA to the unit.
  • DIMENSIONS: Desktop, 19.0' W x 8.0" D x 1.75" H. (48.3 x 4.4 x 20.3 cm)
  •  WEIGHT: Approximately 4.0 lbs. (1.8 Kg)

Be sure to order your HD15 cables along with the switch.  Custom length available.

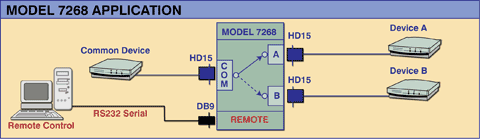

SINGLE CHANNEL APPLICATION: The drawing illustrates the single channel of HD15 A/B switching. The switch may be controlled locally by manually operating the front panel pushbutton or remotely from the DB9/male serial interface Control port located on the rear of the unit. The front panel LED display indicates the switch position and unit power status.

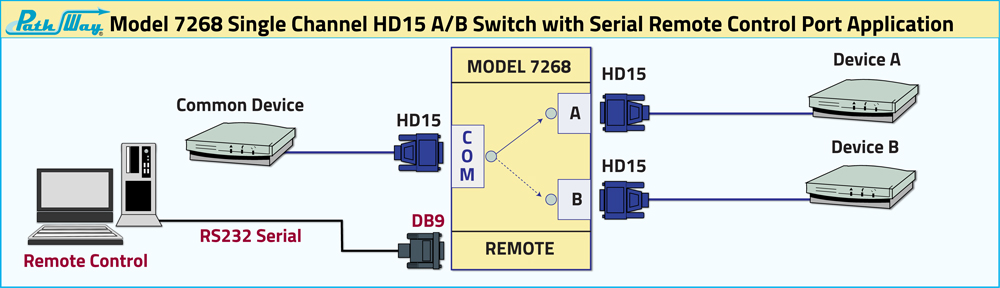

PathWay® Model 7268 Application Diagram
