Catalog # 304194 - Model 4294 FC Simplex A/B/C/D Fiber Switch

    FC Simplex A/B/C/D Fiber SwitchFC Simplex A/B/C/D Fiber SwitchFC Simplex A/B/C/D Fiber SwitchFC Simplex A/B/C/D Fiber Switch
Click image to enlarge
    • FC Simplex A/B/C/D Fiber Switch
    • FC Simplex A/B/C/D Fiber Switch
    • FC Simplex A/B/C/D Fiber Switch
    • FC Simplex A/B/C/D Fiber Switch
Base Price:
$6,930.00
Catalog No: 304194
Model No: 4294
Product Type:Switches: Fiber Optic
Positions:4
Cable Type/Port Connector:FC
Channels per Switch Chassis:1
Electronic Switches/Power Required:QuickSwitch® Fiber Optic
Remote Control:RS232 Serial
Configuration:Rackmount
Fiber Mode:Multimode
Fiber Size:100/140
Fiber Type:Simplex
Remote Port:RJ45
Local Control:Pushbutton
Mirror Technology:OO
Speed:Giga
Wavelength Nano:1300

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual



Overview

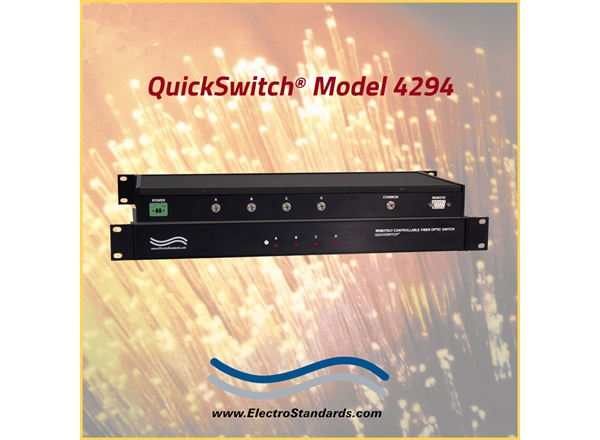

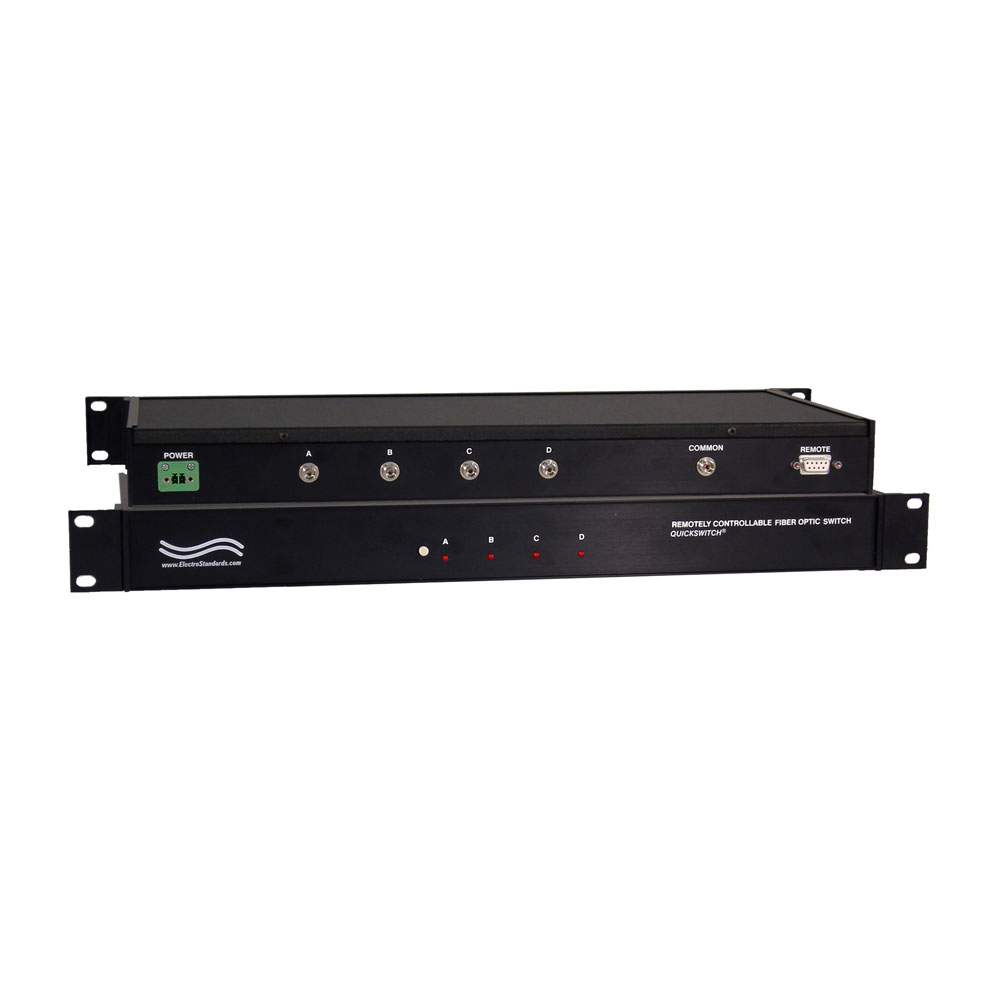

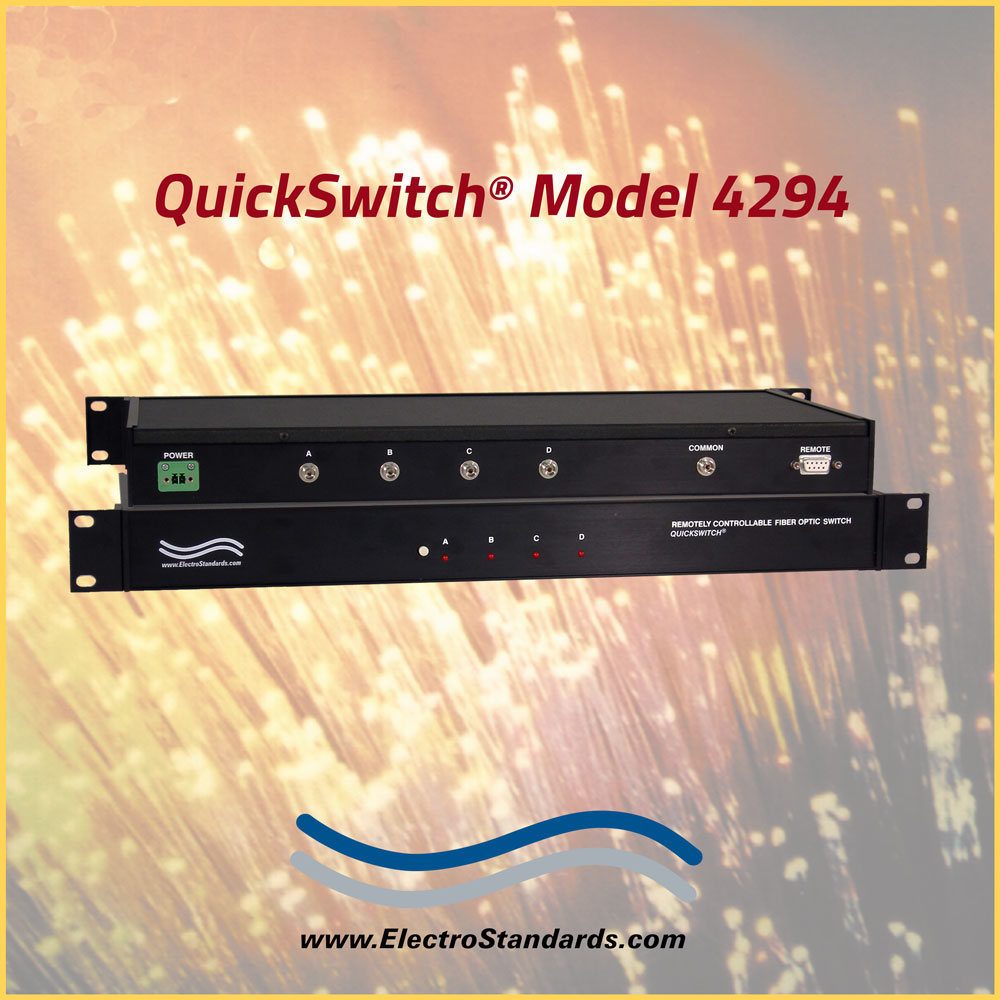

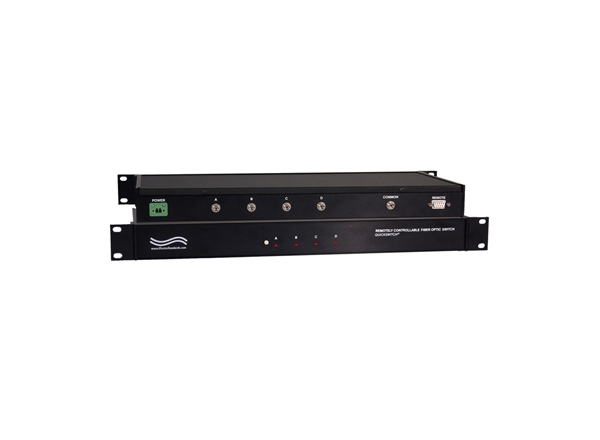

QuickSwitch® Fiber Optic Network Switch, FC Simplex
QuickSwitch® 4294 4-Way All-Optic Simplex Fiber Optic Network Switch with Threaded FC Connectors, 100/140 Graded Index Fiber, UPC

SPECIFICATIONS:

  • WAVELENGTH: Optimum at 1300 nm.

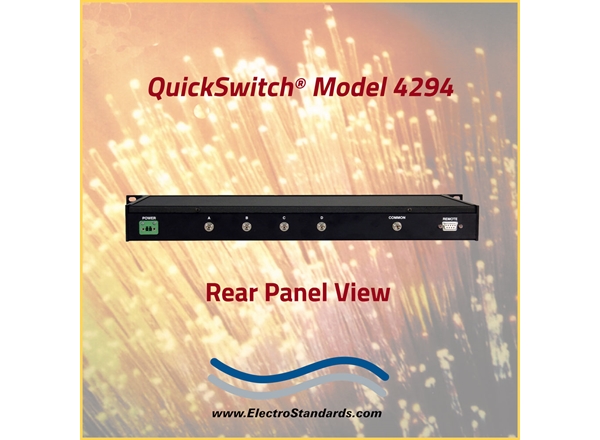

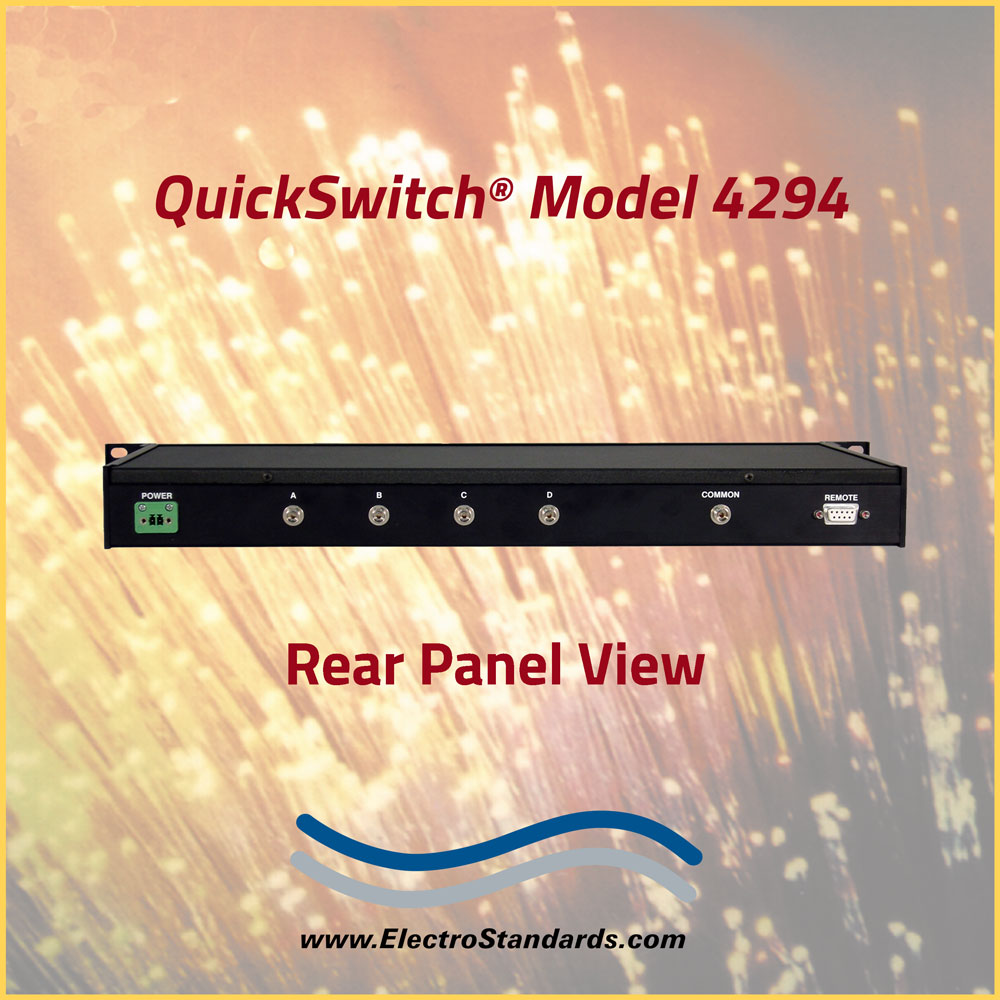

  • CONNECTORS: (5) FC Simplex Fiber Optic rear-panel connectors, A/B/C/D/COMMON.

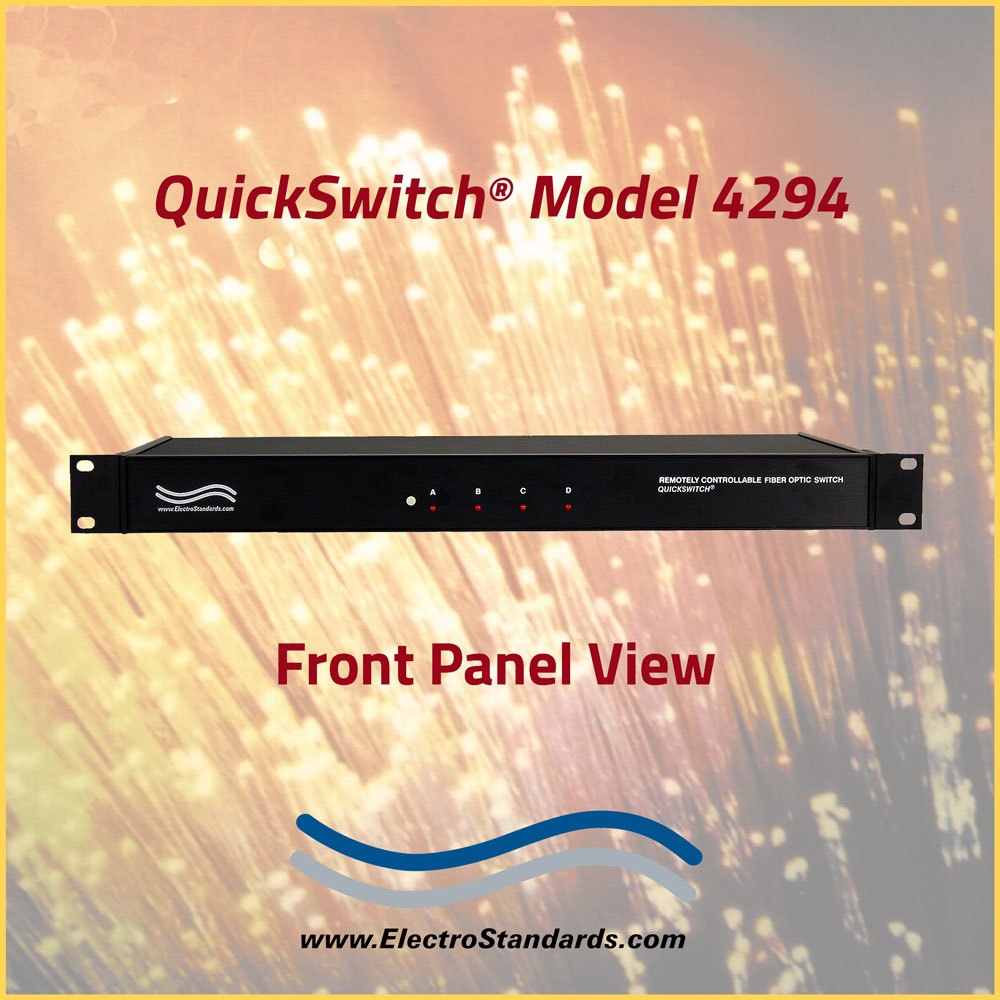

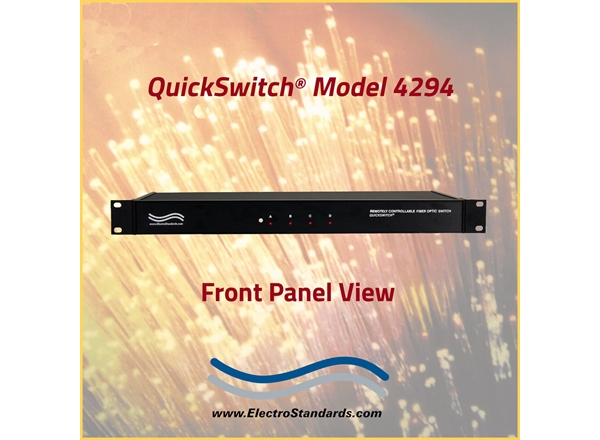

  • FRONT PANEL CONTROL: (1) Manual pushbutton allows local switching.
  • DISPLAY: (4) Front-panel red LEDs display switch position and power status.
  • REMOTE: (1) DB9 female connector on rear panel accepts ASCII RS232 Serial Data for Remote Control operation.
  • POWER: UL approved, 100VAC / 240VAC, 50Hz/60 Hz wall mount power module supplies 12 VDC, 500mA to the unit Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: 19.0" W x 1.75" H x 8.12" D. (48.3 x 4.5 x 20.7 cm)

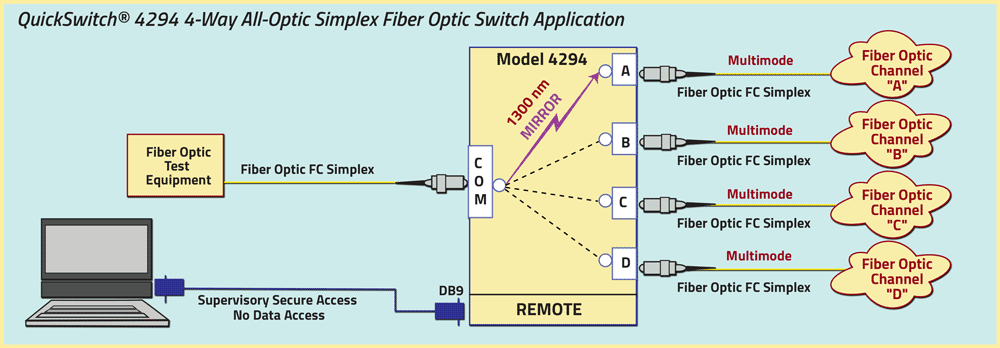

QuickSwitch® 4294 4-Way All-Optic Simplex Fiber Switch with Threaded FC Connectors Application

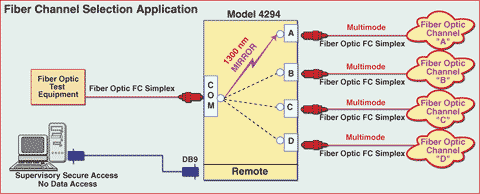

The illustration demonstrates a fiber optic device connected to the FC Simplex COMMON connector accessing any of the four fiber optic networks connected to the A, B, C, and D ports. The DB9 REMOTE port allows the user to control the switch remotely using ASCII RS232 Serial data commands.

QuickSwitch 4294 4-Way All-Optic Simplex Fiber Switch with Threaded FC Connectors Application

 QuickSwitch® 4294 Features

  • Optical Scalability.
  • Bit-Rate and Data Transparent.
  • Service/Protocol Transparent.
  • A/B/C/D/COMMON FC Simplex, UPC, not angle polished Rear-Panel Connectors.
  • Fiber Strand interface: 100/140 micrometer graded index multimode fiber.
  • Front-Panel Pushbutton selects A, B, C, or D positions.
  • Front-Panel LEDs Display Switch Position & Power Status.
  • Remote Control Via RS232 Serial Remote Port on rear panel.
  • MEMS-Based Multimode Mirror Switch supports Gigabit data rates.

QuickSwitch® 4294 Introduction

QuickSwitch® Model 4294 Remotely Controllable FC Simplex A/B/C/D, all optical switch, is designed with fiber optic mirror technology.  The signal is received by the unit as an optical signal over the fiber strand, is redirected by mirror mechanisms, and leaves the unit as an optical signal over a fiber strand (OOO).  Optimum wavelength is 1300 nm.

The QuickSwitch® Model 4294 allows a fiber optic device connected to the unit’s FC Simplex COMMON connector to access any of the four fiber optic networks connected to the  A, B, C, or D ports.  Switch position can be changed via the front-panel pushbutton, or from an RS232 Serial Remote Port located on the rear panel.

QuickSwitch® 4294 Operation

QuickSwitch® 4294’s FC Simplex ports are transparent to all data.  Front-panel LEDs indicate the switch position.  Position status can also be ascertained from the Remote port connector.  Remote switching is accomplished via the RS232 Serial Remote port located on the QuickSwitch® Model 4294 rear panel.

The QuickSwitch® Model 4294 has Switch Position Memory.  When power is lost, the QuickSwitch® 4294 automatically changes to the switches default position and will continue to pass data.

QuickSwitch® is a registered trademark of Electro Standards Laboratories.

QuickSwitch® Fiber Optic Switches are available in many configurations: auto fallback, switch/converters, multimode & single mode, and secure off-line positions. Check out our complete line of QuickSwitch® fiber optic switches.

For custom fiber optic network switches contact our friendly sales support staff at 401-943-1164; or email: eslab@electrostandards.com, or complete our online Custom Product Request form.

Electro Standards can supply all your Fiber Optic Cable requirements.

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

All ESL products are available for export.

Electro Standards welcomes International inquiries: commutateurs à fibres optiques, interruptores de fibra óptica, switch in fibra ottica, switches de fibra óptica, fiberoptiska switcher.
