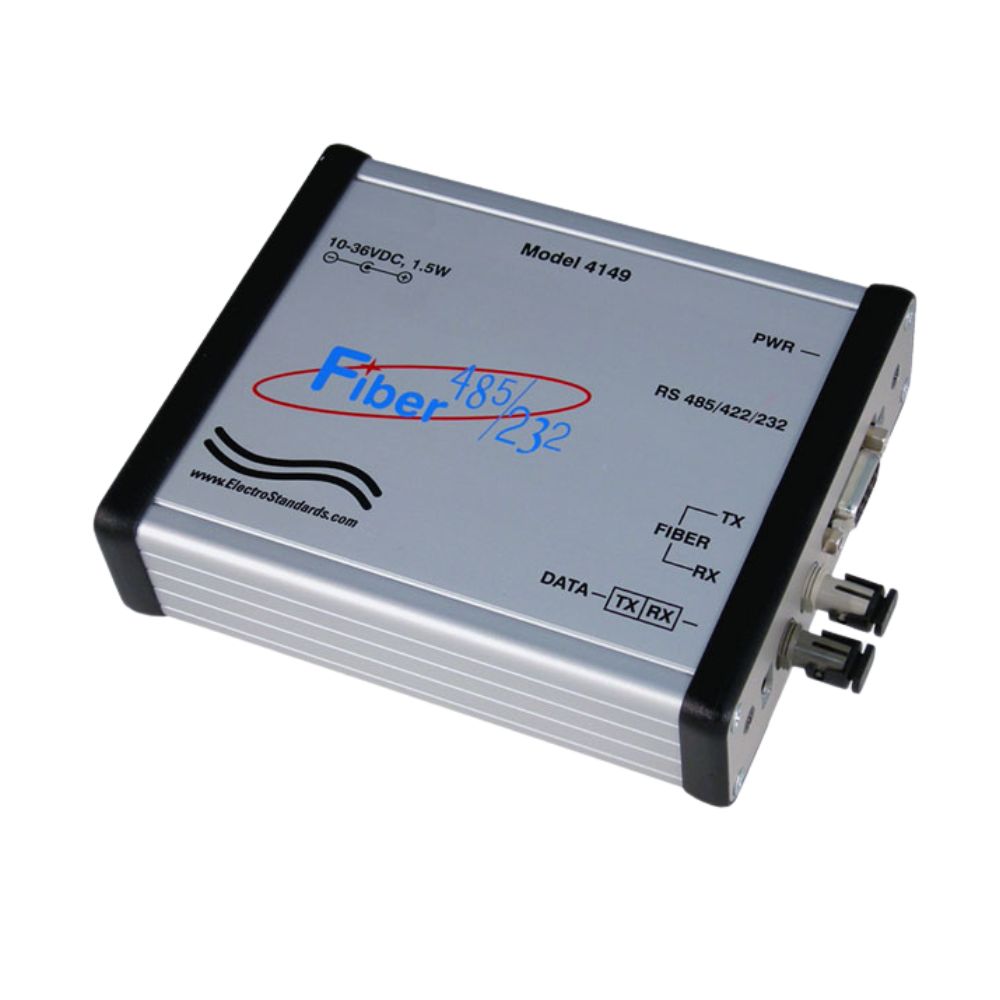

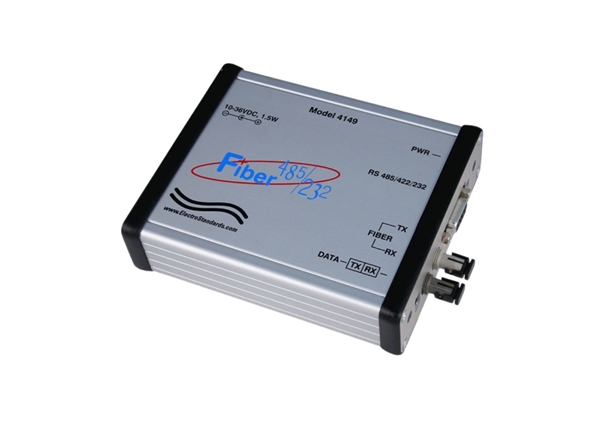

Model 4149-DIN Hi-Speed Rugged ST Fiber-to-RS-485/422/232 Converter, Catalog# 304149-DIN

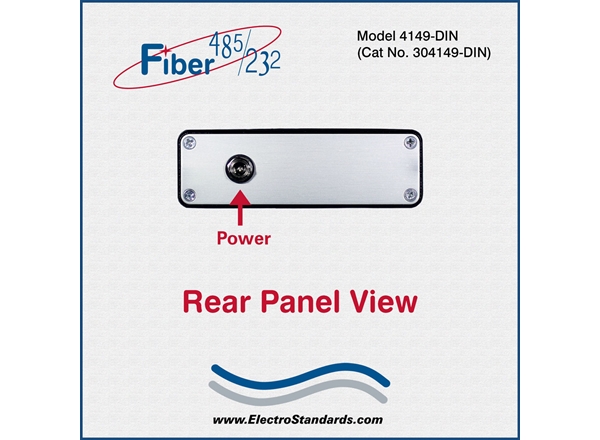

Click image to enlarge

Base Price:

$957.00

Catalog No:

304149-DIN

Model No:

4149-DIN

Product Type:

Interface Converter

Converter Port Connector:

DB9, ST

Conversion Type:

Glass Fiber, RS232, RS422, RS485

Configuration:

DIN Rail Mount

Speed:

RS232: 0 to 1.5 Mbps. RS422/485: 0 to 5 Mbps

Wavelength Nano:

820 nm/850 nm, multimode

Qty

Add to Cart

SPECIFICATION SHEET

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

Overview

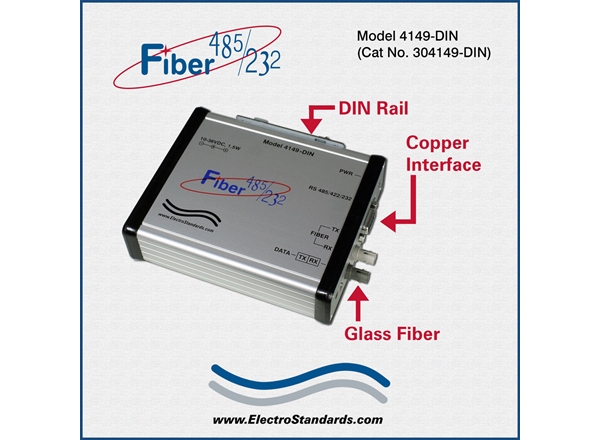

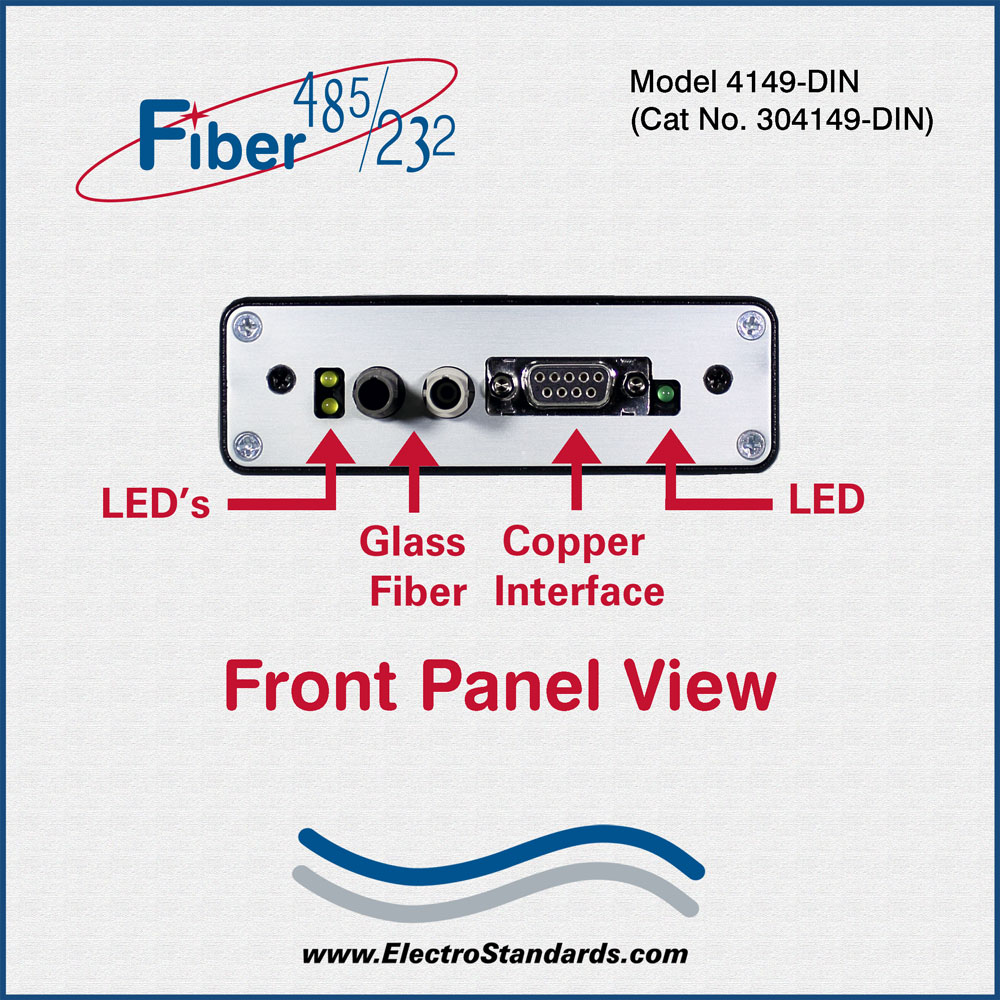

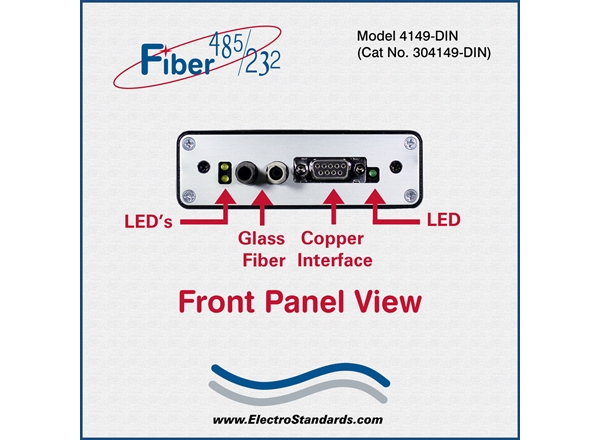

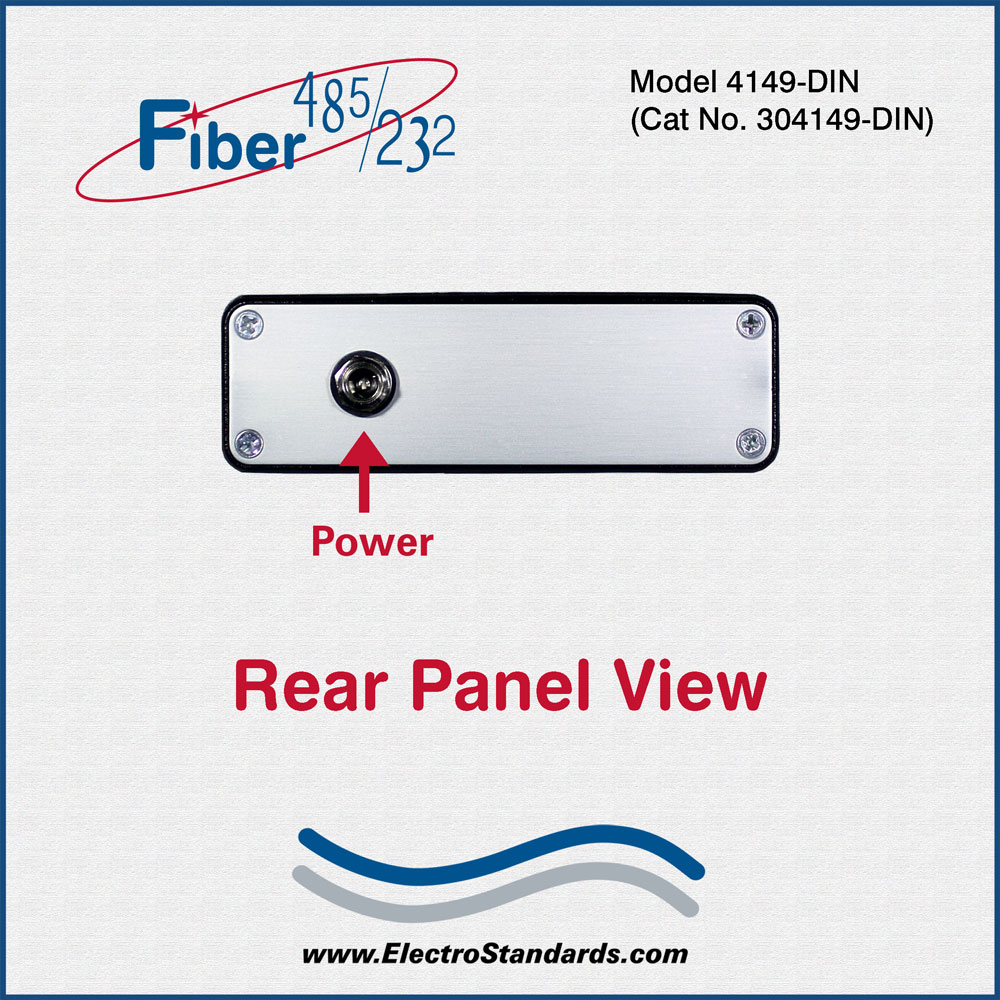

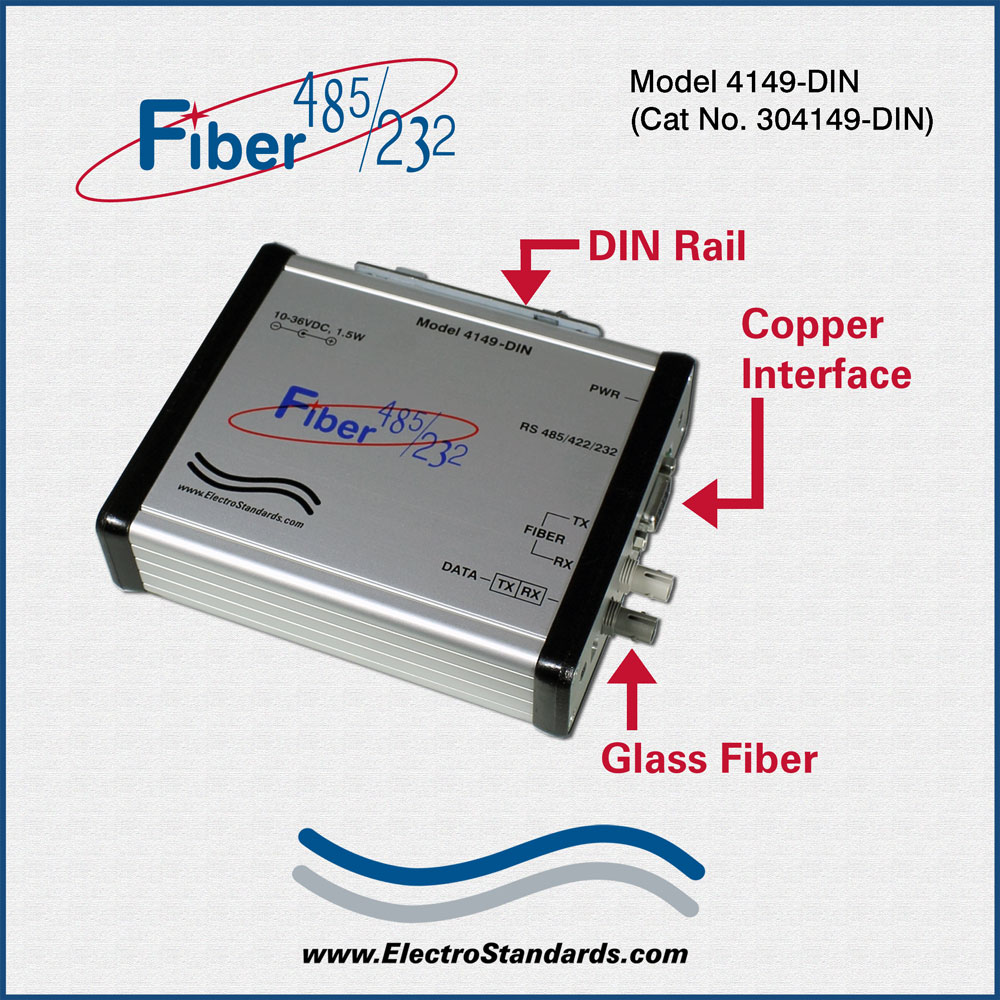

Model 4149-DIN Very High Speed Ruggedized ST Fiber to RS485 / RS422 / RS232 Interface Converter, DIN Rail

The 4149-DIN is a high-performance, industrial-grade fiber optic converter designed to extend RS-232, RS-422, and RS-485 communications over long distances while ensuring complete electrical isolation. Built for demanding environments, this rugged DIN-rail mounted unit provides reliable, high-speed data transmission in applications where noise, ground loops, and extreme temperatures are concerns.

Key Features

Multi-Protocol Support: Compatible with RS-232, RS-422, and RS-485 interfaces
High Data Rates:
- Up to 5 Mbps (RS-422/485)
- Up to 1.5 Mbps (RS-232)
Long Distance Communication: Fiber link supports distances up to 5 km (multimode)
Optical Isolation: 3,000V isolation protects equipment from surges and ground loops
Industrial Temperature Range: Operates reliably from –40°C to 85°C
DIN-Rail Mounting: Easy integration into industrial control panels
Rugged Construction: Designed for harsh environments including manufacturing, utilities, and transportation

Four Flexible Configurations for Fiber-to-Copper Conversion

The Model 4149-DIN is a high-speed, rugged, and protocol-independent ST fiber-to-RS-232/422/485 interface converter designed for reliable operation in demanding industrial environments. Engineered by Electro Standards Laboratories, it delivers fast, noise-immune communication over long distances.

Typical data rates include:

Up to 1.5 Mbps for RS-232 to fiber conversion
Up to 5 Mbps for RS-422/485 to fiber conversion

Built for extreme conditions, the 4149-DIN operates across a wide temperature range of –40°C to 85°C and is part of ESL’s trusted family of rugged fiber-to-copper media converters.

The unit incorporates advanced protection circuitry on all RS-232 and RS-422/485 transmitters and receivers, along with 3 kVDC isolation to safeguard against surges and eliminate ground loop issues. It supports a wide input power range of 9–36 VDC, with optional custom ranges available.

For added flexibility, the converter is offered in multiple configurations:

DIN-rail mount (Model 4149-DIN)
Desktop enclosure (Model 4149)
Board-level version (Models 4159 / 4159CC), with the 4159CC featuring conformal coating for harsh and military environments

Additional features include selectable fiber polarity, TX/RX/Power LED indicators, and dual DB9 power connectors on board-level models for convenient power distribution.

Three functions in one compact unit:

ST Fiber to RS-485
ST Fiber to RS-422
ST Fiber to RS-232

This versatile design simplifies integration while delivering the performance and durability required for mission-critical applications.

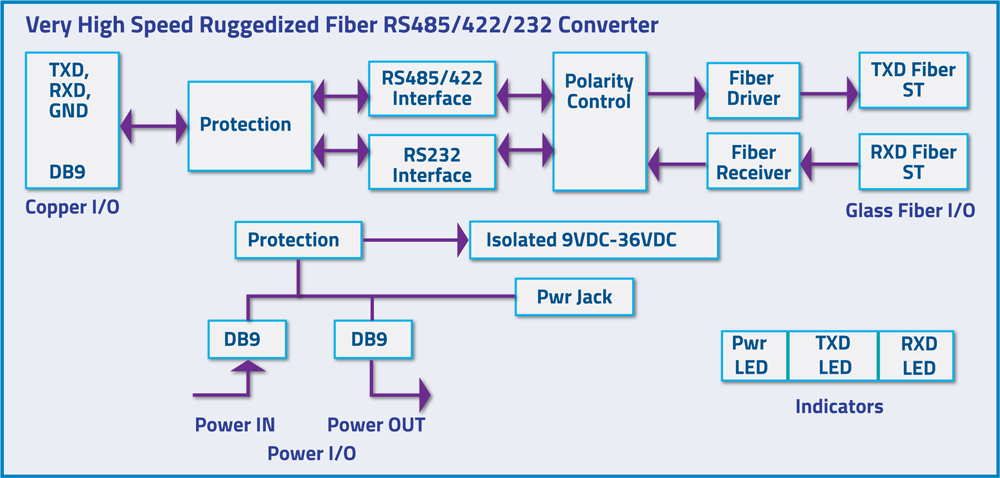

Block diagram for Model 4149/4149-DIN/4159/4159CC Glass ST Fiber to Copper RS485/422/232
