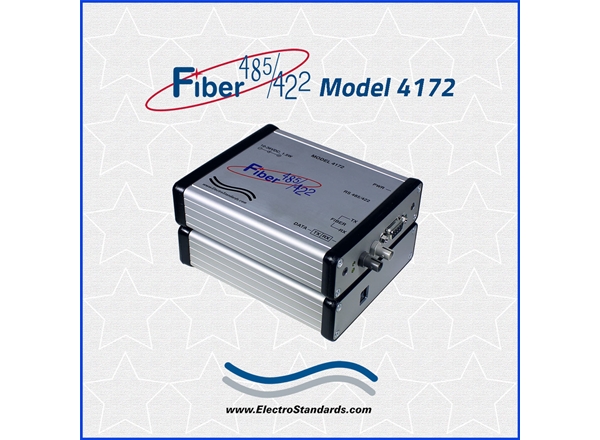

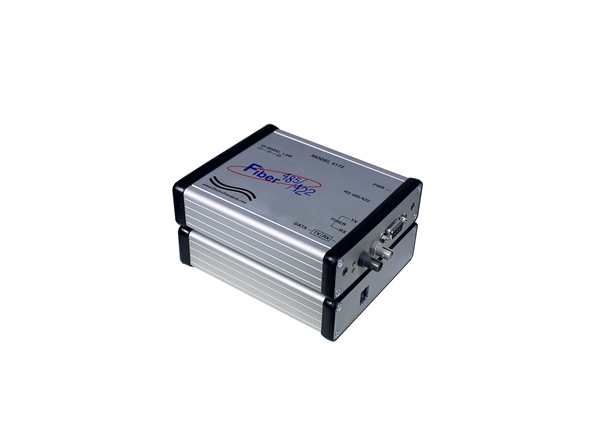

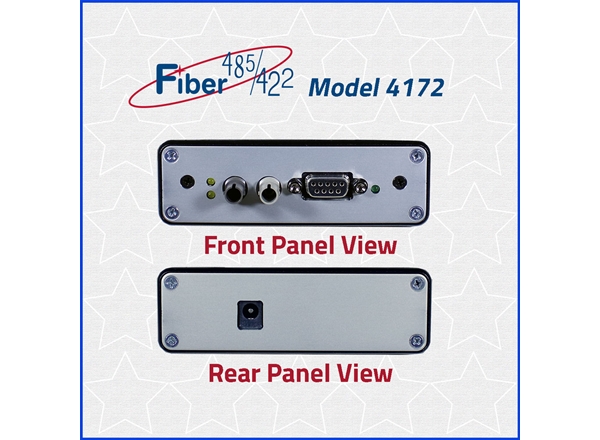

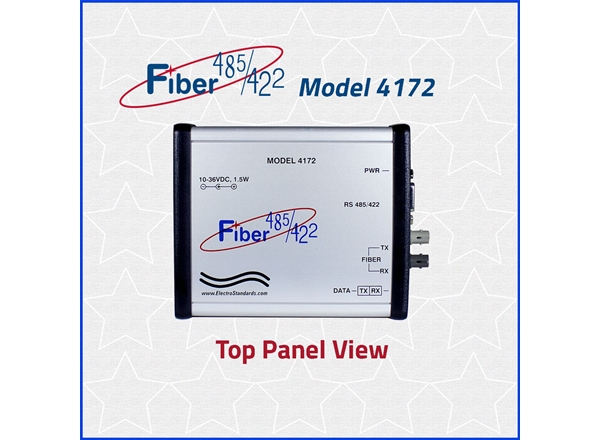

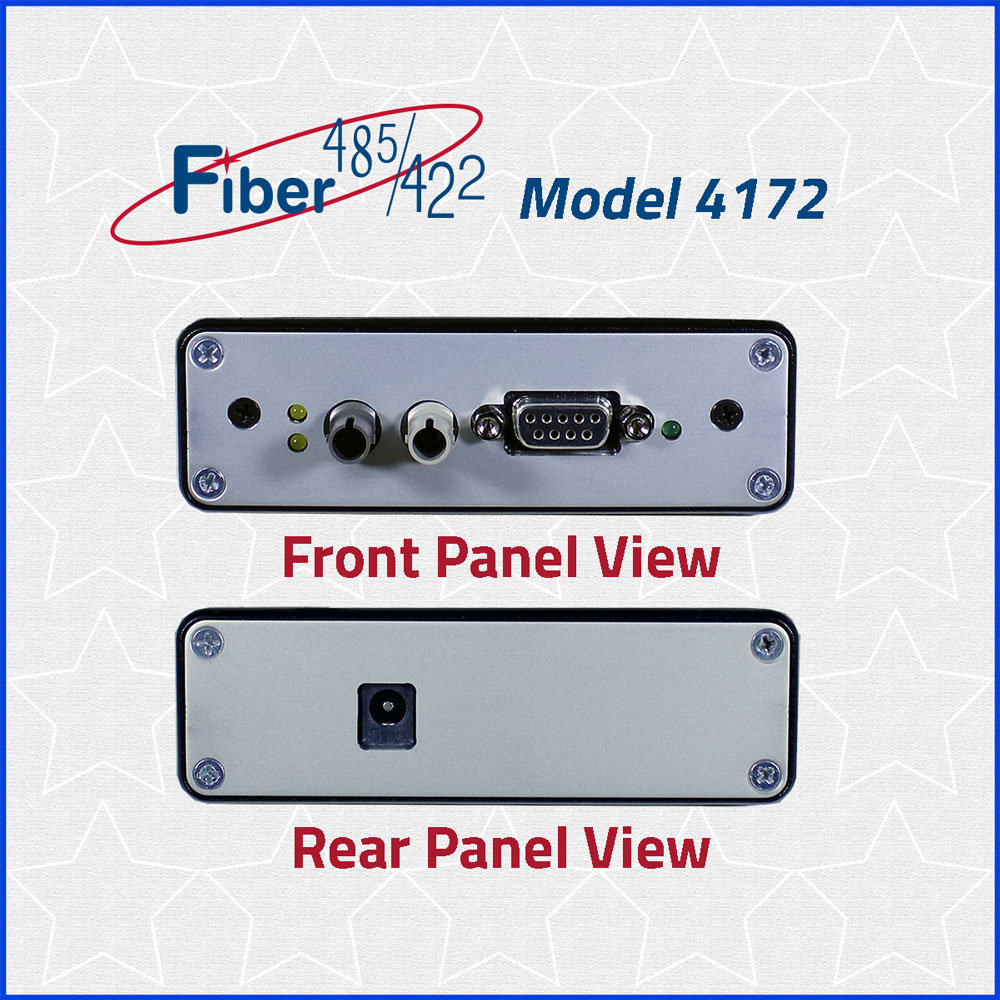

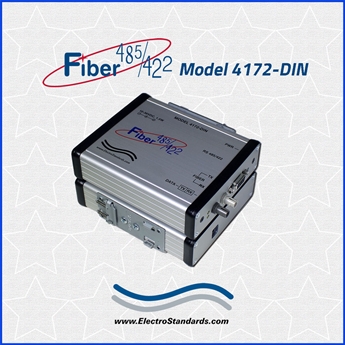

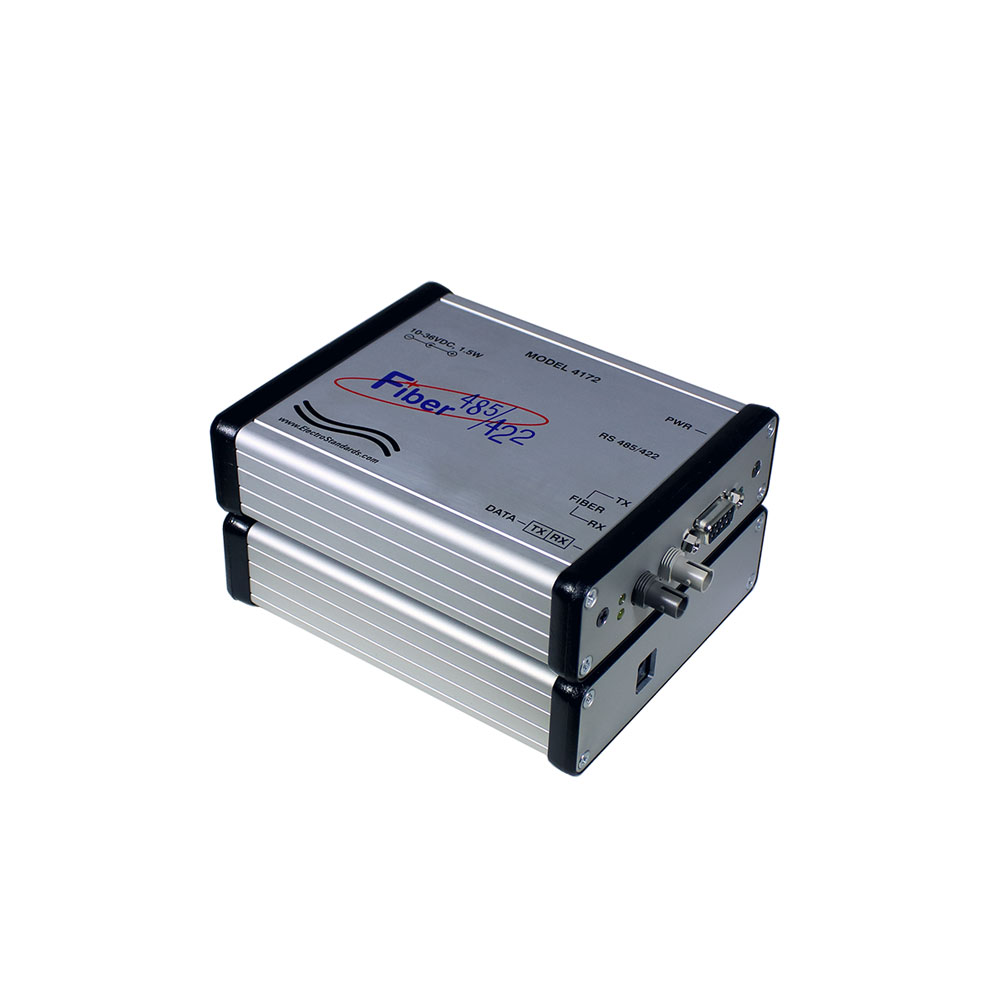

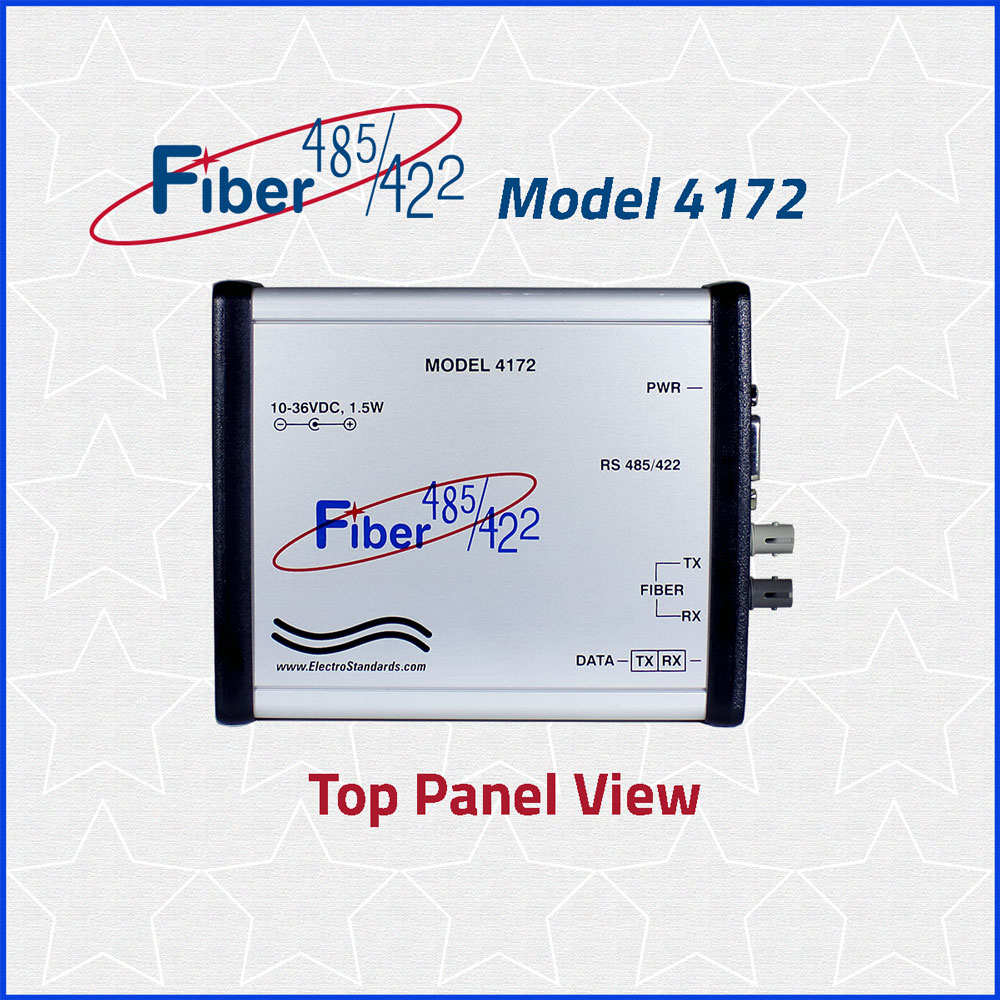

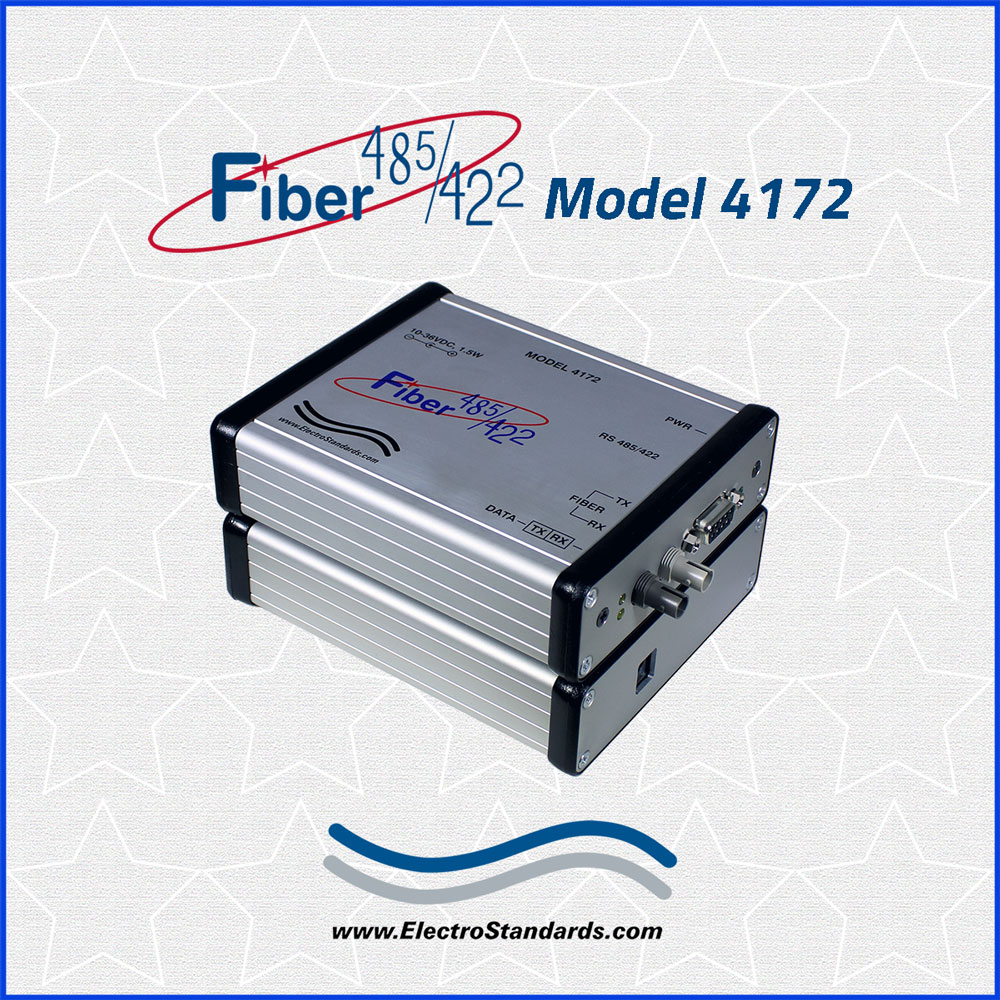

Fiber485® Model 4172 Very High Speed Ruggedized ST Duplex Fiber-to-Multi-Point RS485/422 Interface Converter

  • Ideal for RS485 Multi-Point Applications and Communications to Remote Sites

 The Model 4172 is a high speed ruggedized ST Duplex Fiber to RS485 / RS422 interface converter from Electro Standards Laboratories.  Typical operating speeds are up to 5 Mbps for RS485/422 to fiber conversion.  When operating in RS485/422 mode, the converter can be configured for 2-wire half duplex or 4-wire full duplex operation.

This Fiber to RS converter provides an industrial solution for applications requiring a single point-to-point or a multi-point communications link over short and long distances.  Typical applications include PC to PC long distance communications, factory automation, multi-drop data collection devices, barcode readers, time clocks, scales, data entry terminals, ATMs, toll booths and serial communications in harsh environments.

The Model 4172 Fiber to Multi-Point Converter is designed to operate from -40°C to 85°C and is a member of Electro Standards Laboratories rugged community of media converters.  This Fiber to RS converter features ESD protection circuitry on all receivers and transmitters for RS485/422 interfaces.  The unit's power input is protected from transients and features 3kVDC isolation to prevent system ground loops.  The Model 4172 media converter can be powered from a wide input range of 10VDC-36VDC, with models also available for other voltage ranges such as 4.5VDC-9VDC and 19VDC-72VDC.

Other features include user selectable fiber polarity and, also TX, RX and Power indicator LEDs.


Fiber Interface:

  • Connectors: Fiber Optic ST Duplex
  • TX Power: -12.5 dBm
  • RX Sensitivity: -27.5 dBm
  • Optical Budget: 15 dB
  • Max. Link Distance with 62.5/125µm fiber:
  • 5.35 kM at up to 5 Mbps, 25°C
  • 3.75 kM at up to 5 Mbps, -40°C to 85°C
  • Wavelength: 820 nm/850 nm, multimode
  • Fiber Size: 50/125 µm, 62.5/125 µm, 100/140 µm.

Fiber Polarity:

  • Logical 1 = Light ON/OFF: Jumper Selectable

Copper Interface:

  • Connectors: DB9, Female
  • RS485 (2-wire/4-wire)
  • Terminations: RS485 120 Ohm jumper selectable

Bit Rate (nom.):

  • RS485/422: 0 to 5 Mbps

Network Configurations:

  • RS485/422Point-to-Point
  • Multi-Point (Default ~280 uSec TX disable time) (user configurable TX disable time via a single thru-hole resistor)




  • Input Power: 10VDC-36VDC std, 4.5VDC-9VDC, 19VDC-72VDC, Others at 1.5W.
  • Isolation: 3 kVDC

Operating Environment:

  • -40°C to 85°C

Model 4172 Mechanical (Desktop Unit):

  • Model / Cat No: 4172 / 304172
  • Size: 5" x 4.25" x 1.4"
  • Weight: 10.1 oz (286g)

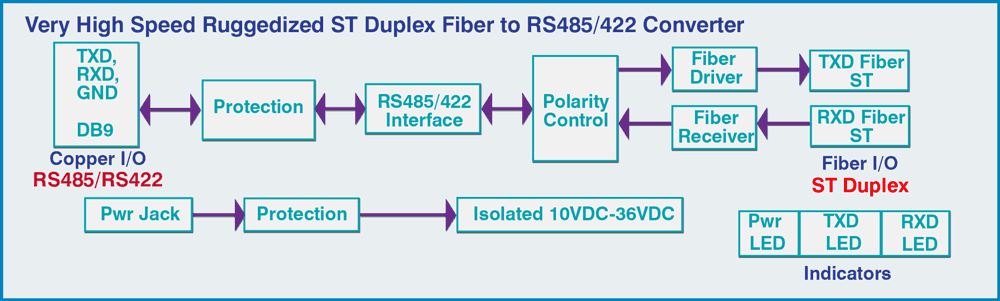

Very High Speed Ruggedized ST Duplex Fiber to RS485/RS422 Converter Block Diagram.

Very High Speed Ruggedized Fiber to RS485/422 Converter Block Diagram

APPLICATION: Fiber485/422, multi-point

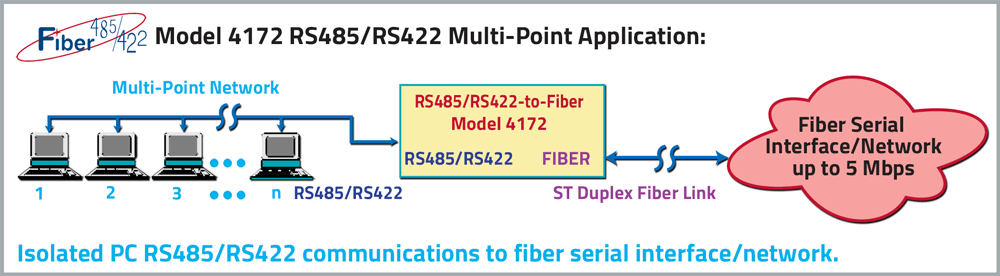

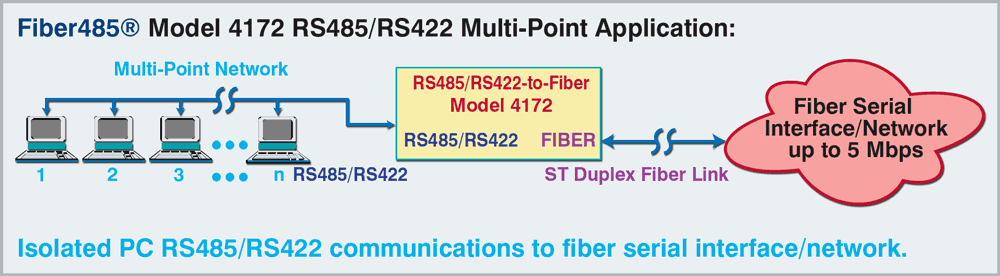

Model 4172 RS485/RS422 Multi-Point Application.

Isolated PC RS485/RS422 communications to fiber serial interface network.

Model 4172 RS485/RS422 interface Converter

APPLICATION: Fiber485/422 to Fiber485/422/232

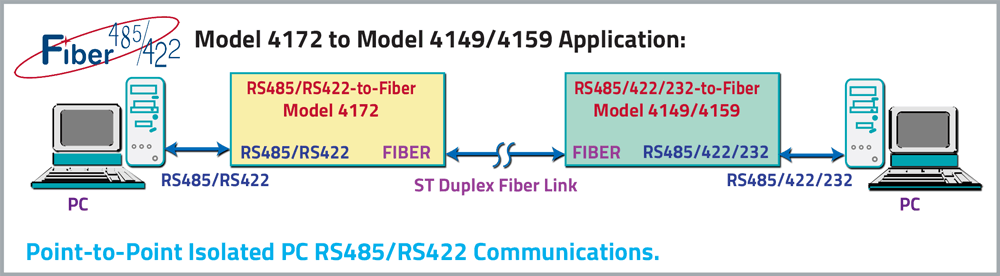

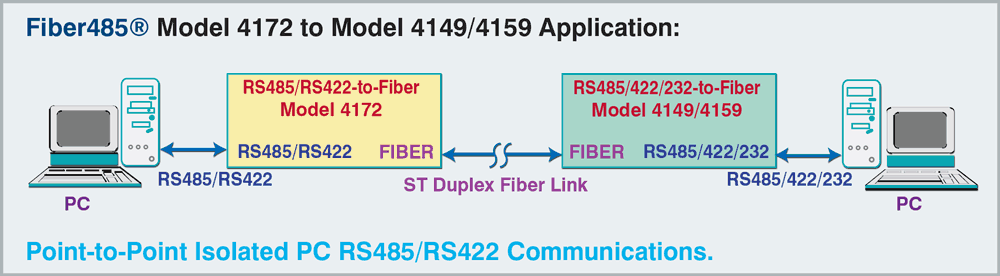

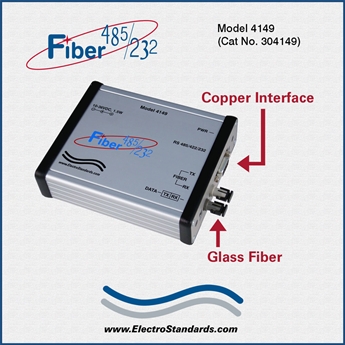

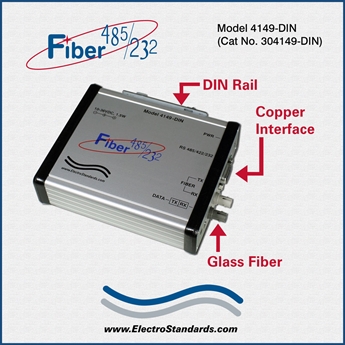

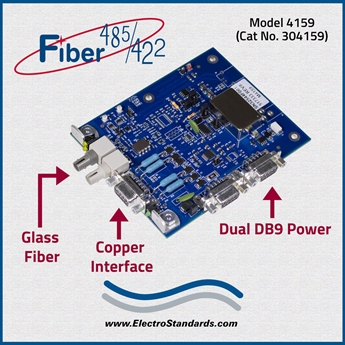

Model 4172 to Model 4149/4159 Application.

Point-to-Point Isolated PC RS485/RS422 Communications.

Fiber 485/422 Model 4172 to Model 4149/4159 application; point-to-point isolated PC RS485/RS422 Communications.

APPLICATION: FiberUSB to Fiber485/422

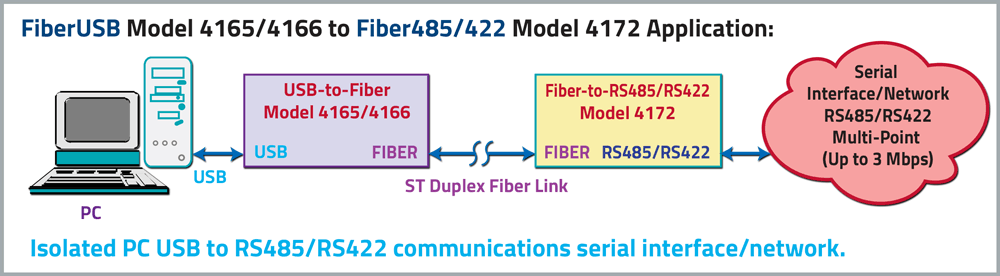

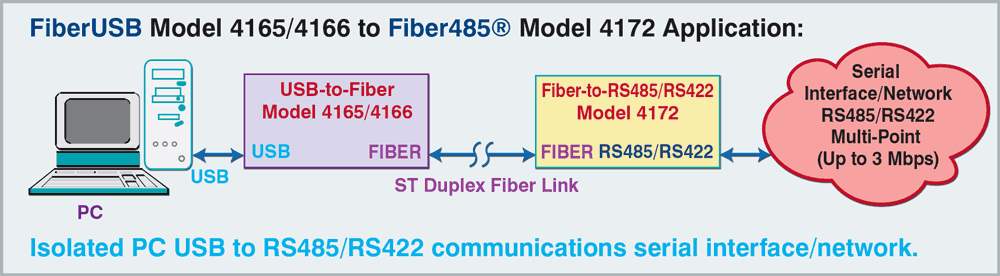

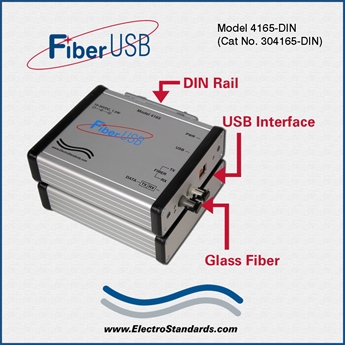

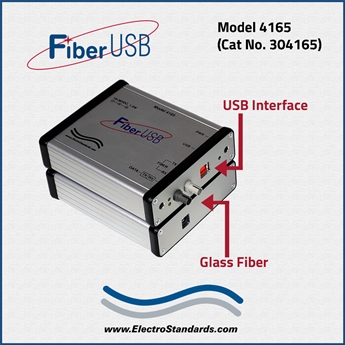

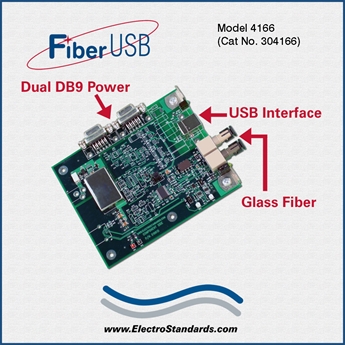

Model 4165/4166 to Model 4172 Application.
