Model 7183 Dual Channel BJ80 BNC A/B/OFFLINE Switch, with Secure Ethernet Remote
Switch has “A”, “B”, and Secure “OFFLINE” positions.
Exclusive Ethernet Remote Control, No front panel control.

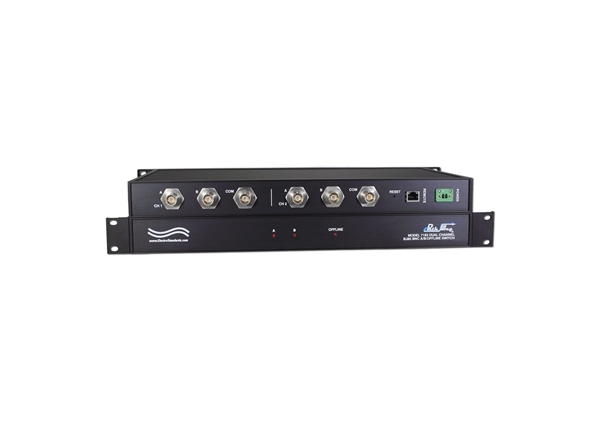

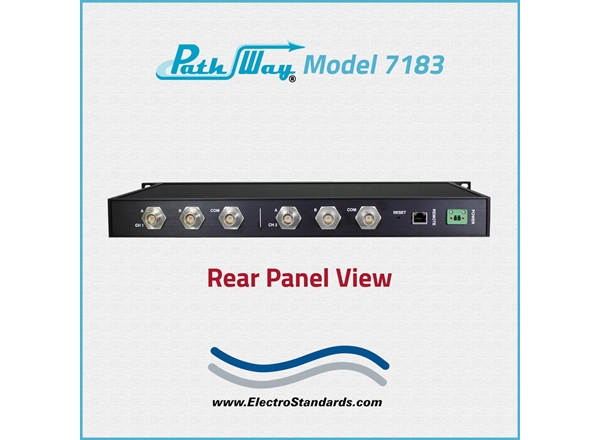

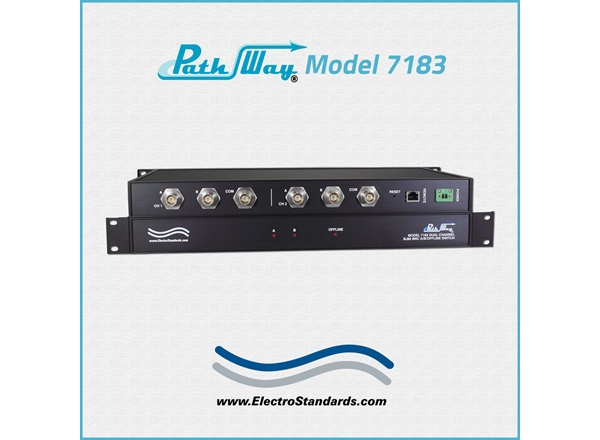

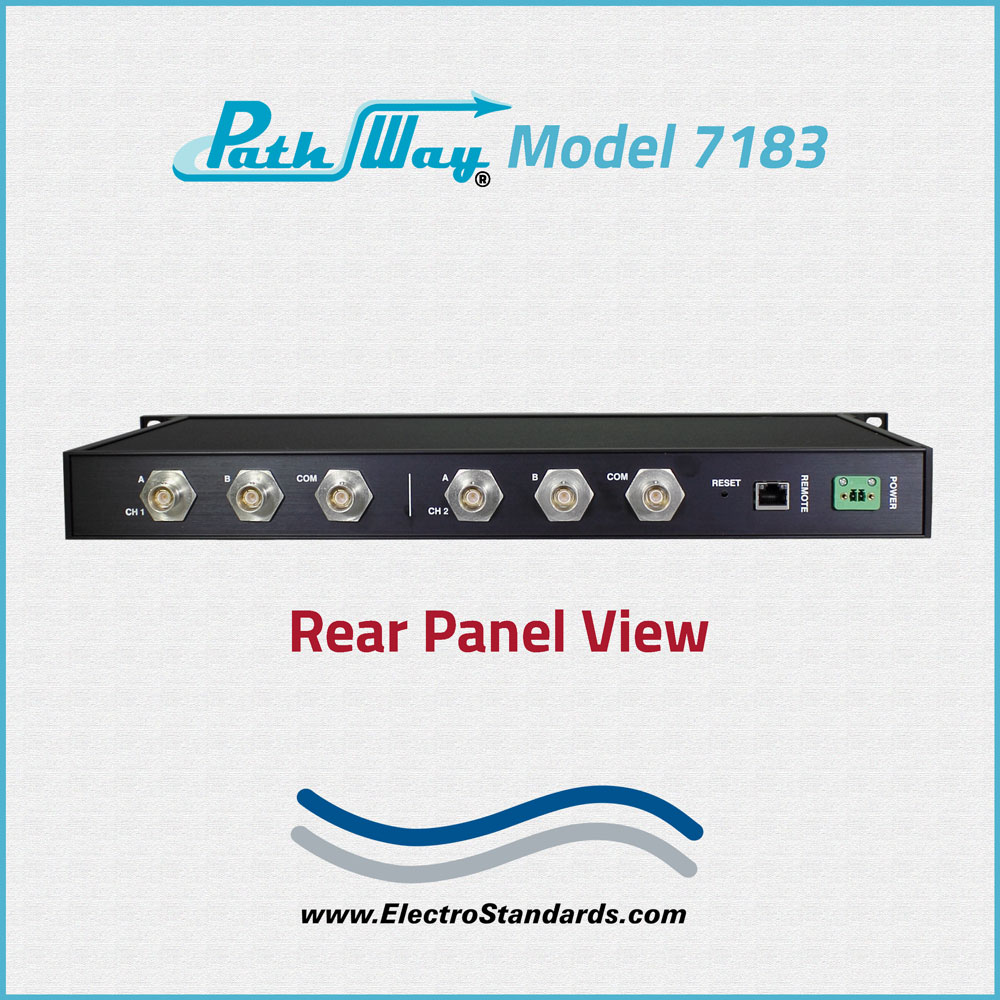

- PORT CONNECTORS: (3) BJ80 BNC connectors labeled A, B, and Common for each of the two channels.

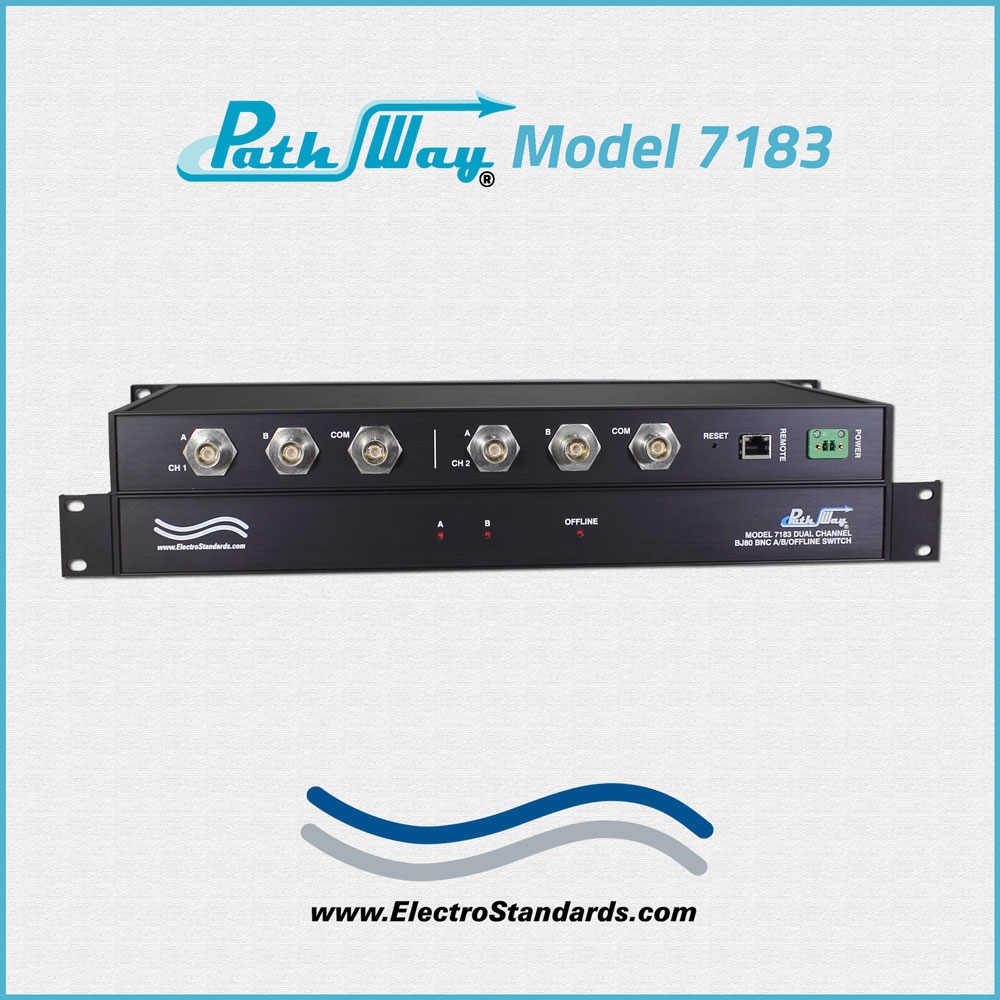

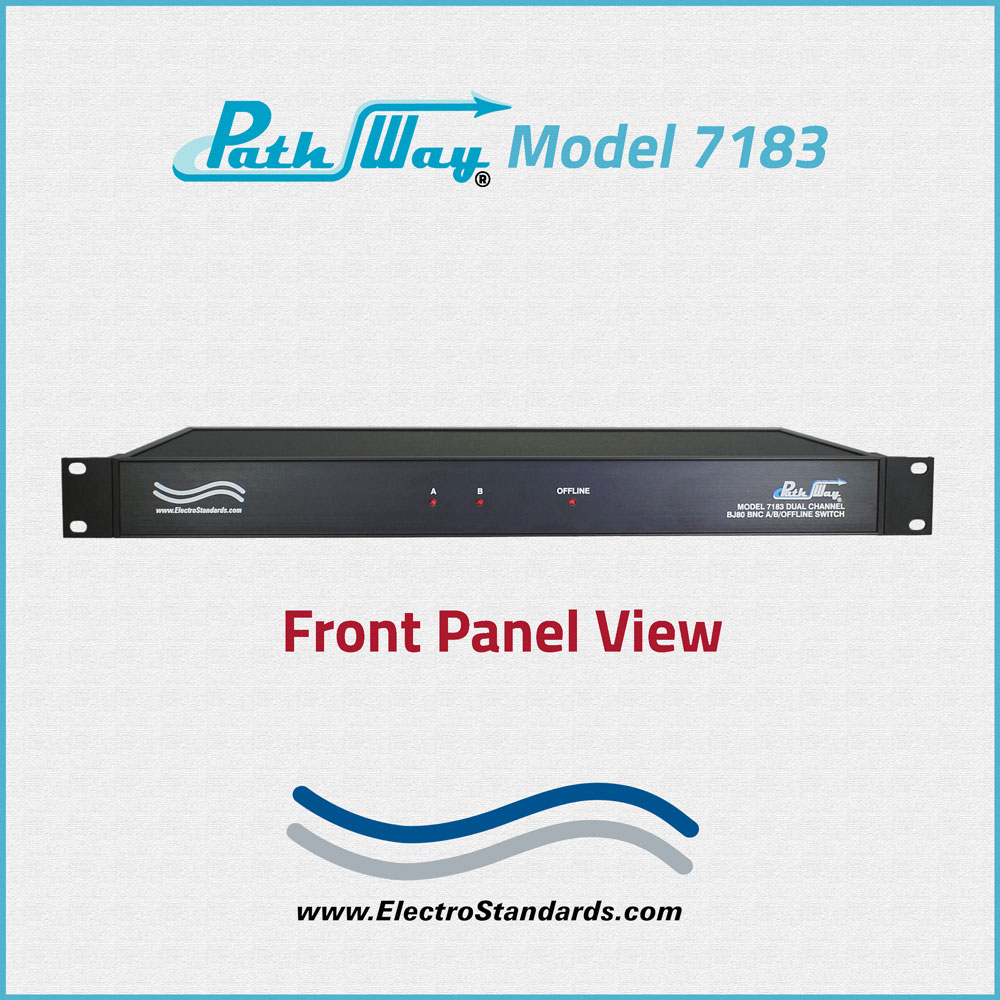

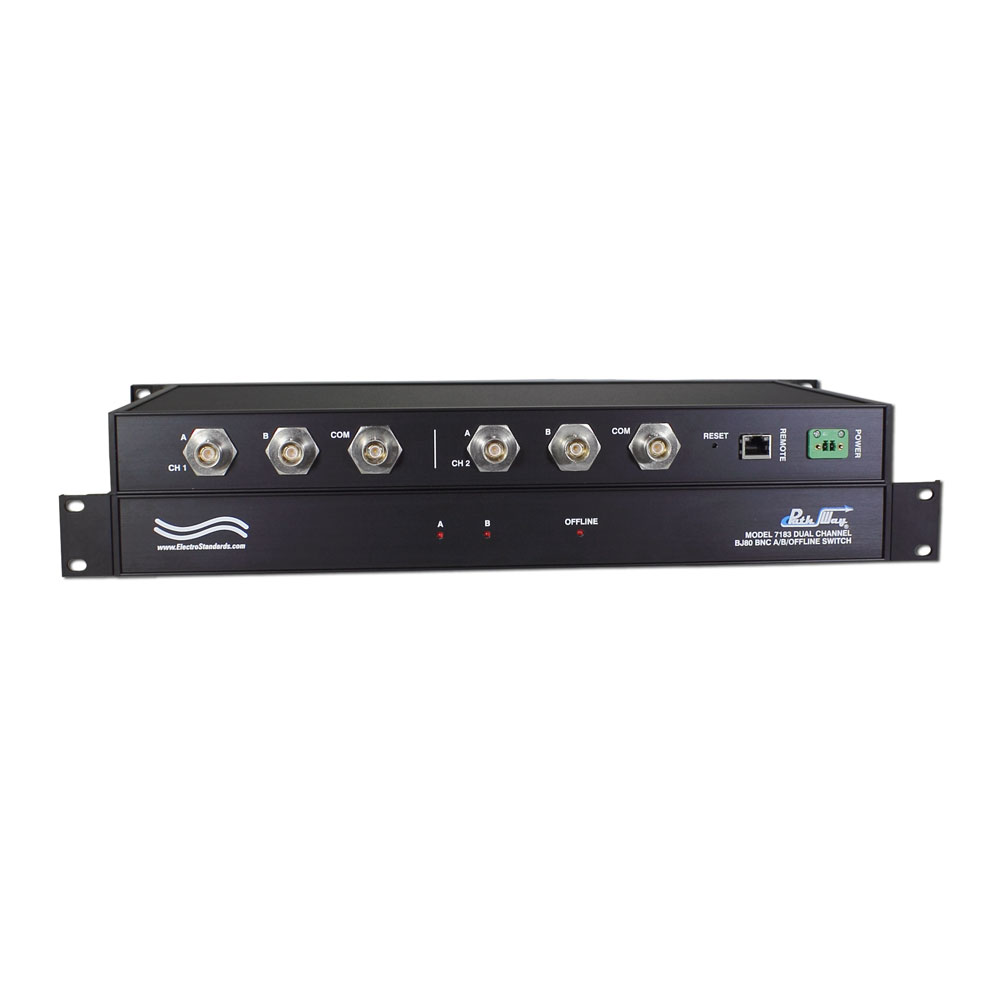

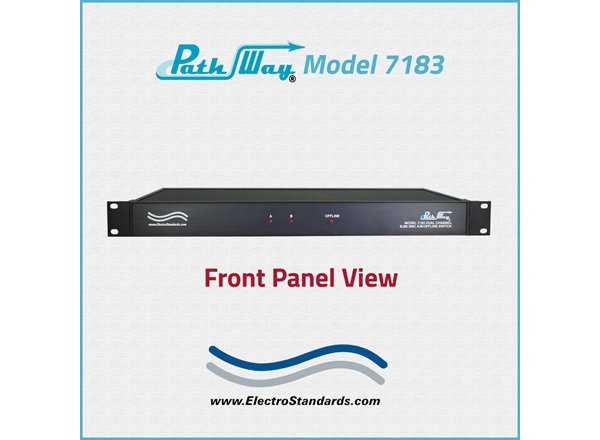

- A, B, OFFLINE INDICATORS: (3) Front panel LED's display switch position of each channel and power status.
- EXCLUSIVE REMOTE CONTROL: (1) RJ45 female connector on rear panel accepts Ethernet 10/100Base-T connection via Remote SSH Command Interface that allows the user to remotely control the unit.
- POWER: UL approved wall mount 100VAC/240VAC, 50Hz/60Hz power module supplies 12 VDC, 500mA to the unit. Has 2-prong, US, non-polarized plug.
- DIMENSIONS: Rackmount configuration 19" W x 1.75" H x 10.54" D. (48.3 x 4.4 x 26.8 cm)
- WEIGHT: Approximately 5.4 lbs (2.5 kg)
PathWay® Model 7183 Dual Channel BJ80 BNC A/B/OFFLINE Switch Application w/Secure Password Protected Remote

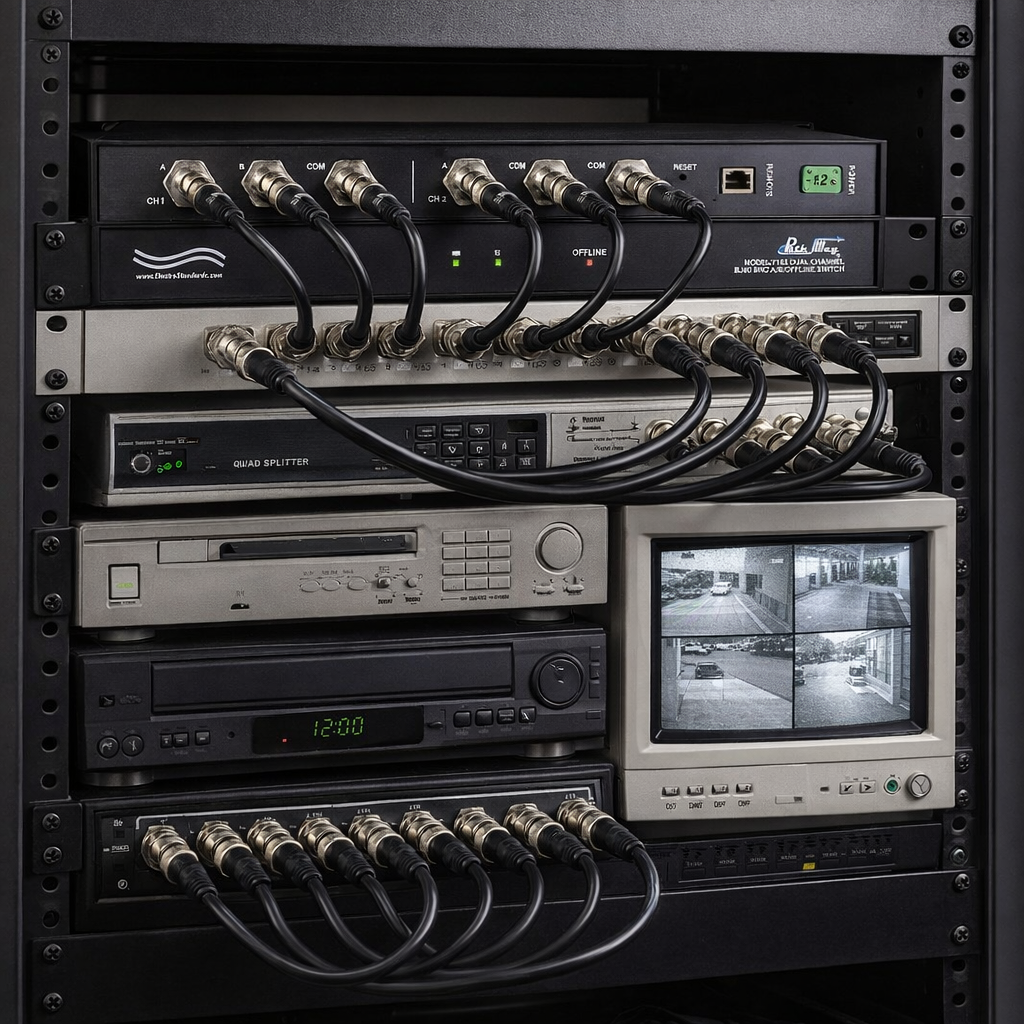

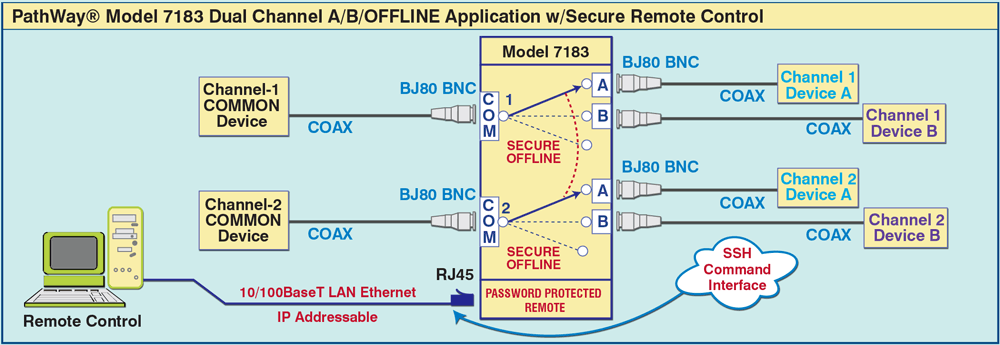

The application drawing illustrates two channels of simultaneous switching BJ80 A/B/OFFLINE Channels. Each channel has a COMMON Device connected to the COMMON port with access to either of two devices connected to the A and B ports. Also, each channel has a Secure OFFLINE position. The Secure OFFLINE switch position stops any and all data throughput for the unit. There is an RJ45 Ethernet Remote port that a user can control the unit via Remote SSH Command Interface.
- The switch ports are transparent to all data.
- Secure OFFLINE switch position stops any and all data throughput for the unit.
- Both the center pin and the shell signals are switched via break-before-make electromechanical relays.
- Switch maintains last set position on power loss and continues to pass data.
- Switch powers up in last known position.
- Simultaneous Channel Control.
- Exclusive Ethernet Remote Control, No front panel control.
- SSH Command Interface is password protected.
- Control of the switch position from a 10/100 Base-T LAN Ethernet environment.
- Remote Control SSH Command Interface that allows the user to control switch position, lockout front panel operations, and obtain switch status.
- Remote allows query of switch position before selecting a new switch position.
- Front panel LED's display present position and power status.
- All BJ80 BNC ports are impedance matched to support 50 Ohm equipment.
The PathWay® Model 7183 Dual Channel BJ80 BNC A/B/OFFLINE Switch with Secure Ethernet Remote, allows the user the capability of sharing a single port interface device connected to the COMMON port among two other devices connected to the A and B ports for each channel. Remote Control access can be accomplished using a Secure Ethernet 10/100 Base-T connection SSH Commands. The Model 7183 is enclosed in a 1U, full rack size, all metal black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.
OPTION: WIDE RANGE POWER MODULE
(Cat No 517277) CE, RoHS, and UL listed table mount power module, 100 VAC / 240 VAC, 50Hz/60Hz for use in place of standard power module that is included with the unit. Has IEC 60320 C14 inlet. Ideal for international applications.
