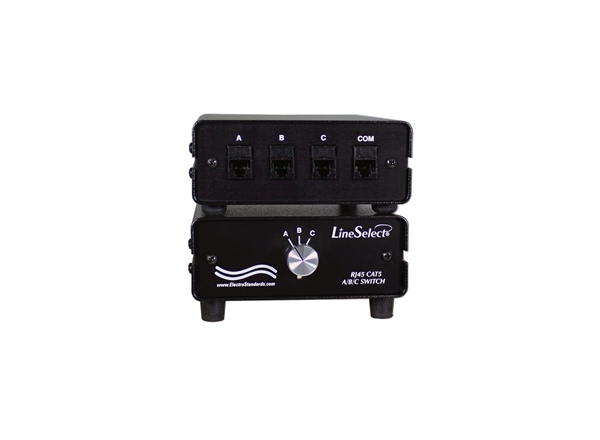

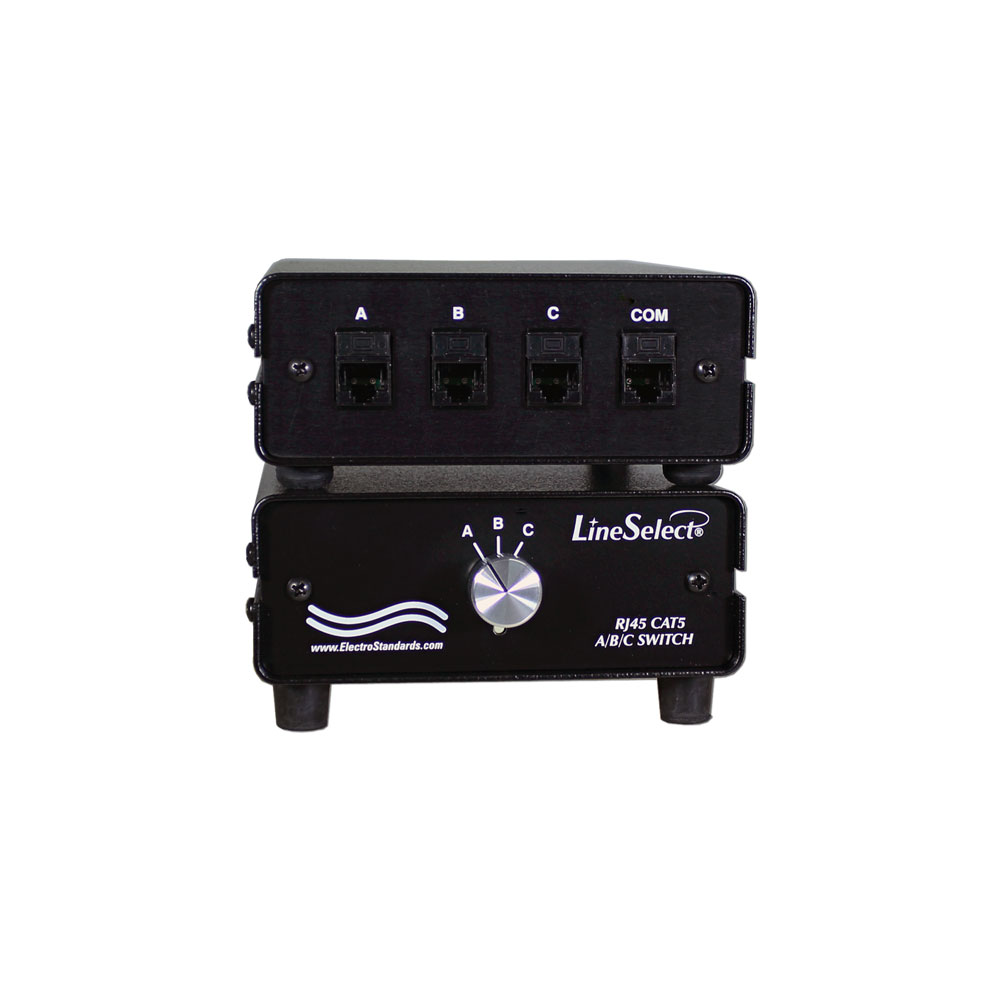

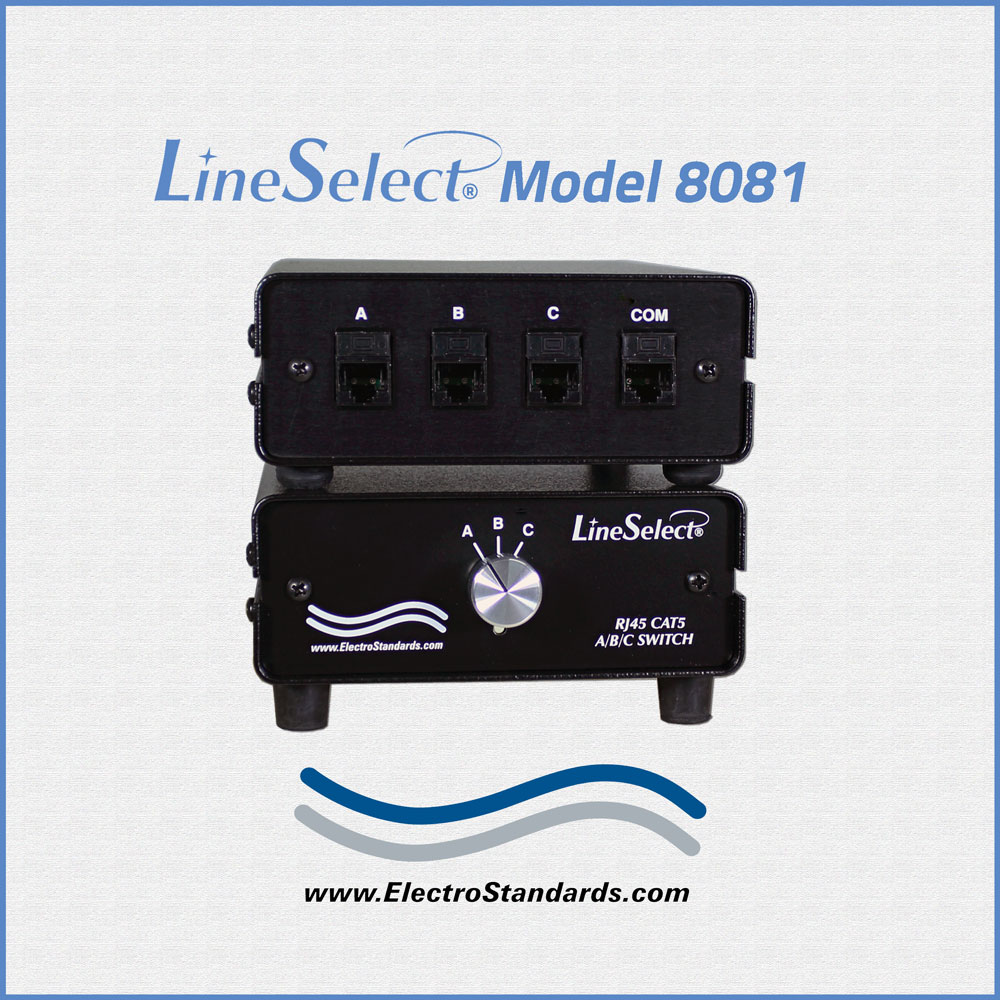

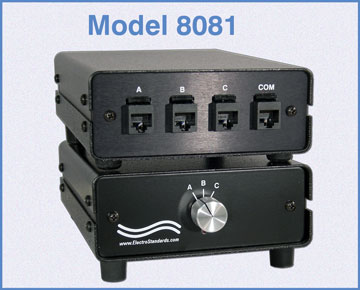

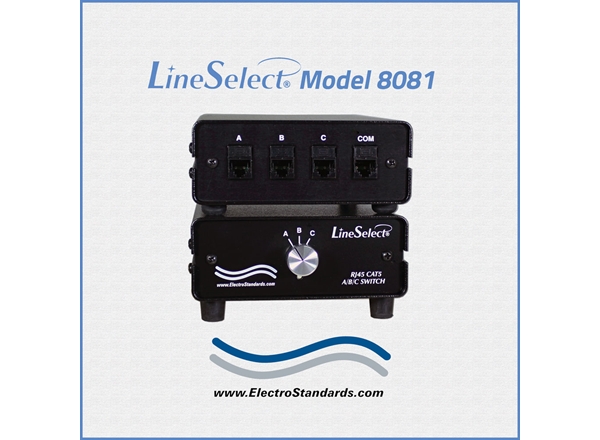

Model 8081 RJ45 3-Position, Cat 5 Manual Rotary Switch, Desktop, Catalog # 304081

Click image to enlarge

Base Price:

$400.00

Catalog No:

304081

Model No:

8081

Product Type:

Switches: Copper

Interface:

RJ45, 10/100 Base-T, Cat5

Positions:

Cable Type/Port Connector:

RJ45

Channels per Switch Chassis:

Manual Control/No Power Required:

LineSelect® Manual Operation

Compliance/Standards:

Cat5

Configuration:

Desktop

Pins Switched:

Local Control:

Rotary Knob

Qty

Add to Cart

LineSelect® Model 8081 A/B/C Switch:
Cat5 Compliant
Desktop Unit

SPECIFICATION SHEET

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

LineSelect® Model 8081 RJ45 A/B/C Network Switch, Manual Control, CAT 5 Compliant

Overview

The LineSelect® Model 8081 RJ45 A/B/C data network switch enables access to three 10/100 Base-T Cat5 networks from one Common RJ45 device. The Model 8081 Category 5 A/B/C Data Network Switch allows the user to reroute data between three networks with the flip of a switch (Rotary knob). This manual network switch supports all 8 pins of the RJ45 CAT5 interface. No need to plug and unplug cables thereby eliminating connector wear. The LineSelect® Model 8081 is enclosed in a slim desktop enclosure.

Applicable to switching ANY RJ45 interface devices.
High Quality Manual Data Network Switches Increase the Reliability of Your Network!

FEATURES OF THE MODEL 8081 MANUAL NETWORK SWITCH:

Model 8081 Cat5 A/B/C network switch allows access to three 10/100 Base-T Networks from one computer or workstation.
Certified for Category 5 compliance.
High quality sealed switch with self-wiping contacts.
Eliminates the need to plug and unplug cables.
The ports are transparent to all data.
All (8) pins of the RJ45 interface are switched via break-before-make rotary switch.
Manual control via knob located on front panel.
No external power required.
Rated for 10/100 Base-T networks (Up to CAT 5).
(4) RJ45 Connections, ports A, B C and COMMON, located on rear panel.
Attractive all metal black box packaging provides EMI/RFI shielding.
Switching mechanism is sealed precious metal contact switch.
Standard & custom category 5 cables available in multiple colors and any length!
Lifetime warranty against manufacturing defects.
For a similar switch, See Model 8080, Cat No 308081, Cat5e Compliant

TECHNICAL SPECIFICATIONS:

PORT CONNECTORS: (4) RJ45 female, Category 5 ports on rear panel
FRONT PANEL CONTROL: (1) Rotary Switch on front panel selects A, B, or C
PINS SWITCHED: All 8 pins switched.
POWER: No power required.
ENCLOSURE: Shielded Aluminum Enclosure
DIMENSIONS: 5.43" W x 7.91" D x 2.67" H (13.8 x 20.1 x 6.8 cm)
WEIGHT: 1.2 lb. (0.6 kg)

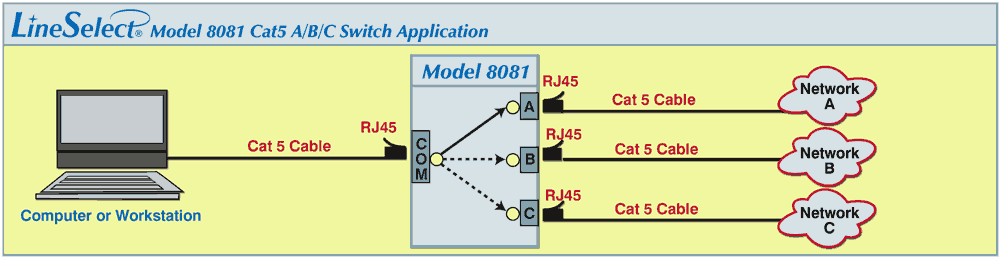

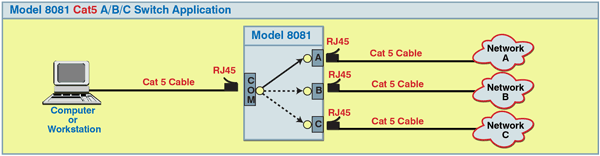

LineSelect® Model 8081 CAT5 A/B/C Switch Network Application: Rotary Switch, Manually Operated.

The drawing illustrates a computer or workstation connected to the CAT5 RJ45 COMMON port accessing one of three networks connected to the CAT5 RJ45 A, B, and C ports.

LineSelect® Model 8081 RJ45 A/B/C Application, Manually Operated

Ordering Information

Catalog Number: 304081
Model Number: 8081
Base Price: See website or contact us for current pricing and availability.

Documentation & Support

Specification Sheet (PDF) Download Available.
Product Manual available upon request.
For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
We welcome international inquiries and ship worldwide.

Shipping and Returns

Shipped via UPS ground (unless otherwise requested).
Freight Charges prepaid and added to invoice. We can estimate freight charges for you.
Return policy: contact us within 30 days of shipment for an RMA number. Items returned without RMA not accepted. Please refer to our full return policy in our Terms and Conditions found on our website.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.
