Path Way® Model 7469 8-Channel RJ45 CAT5e A/B/OFFLINE Switch, Ethernet Remote Control with Telnet and GUI

Overview

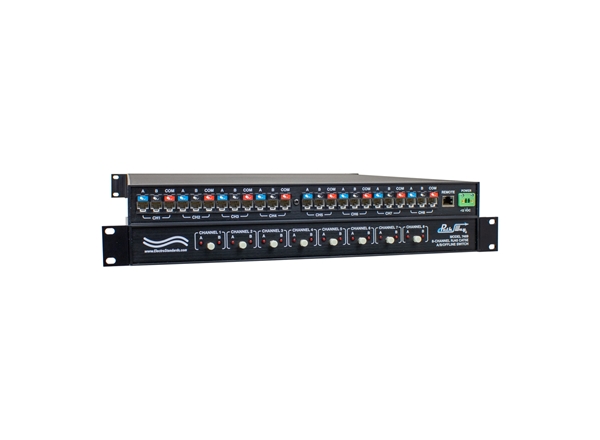

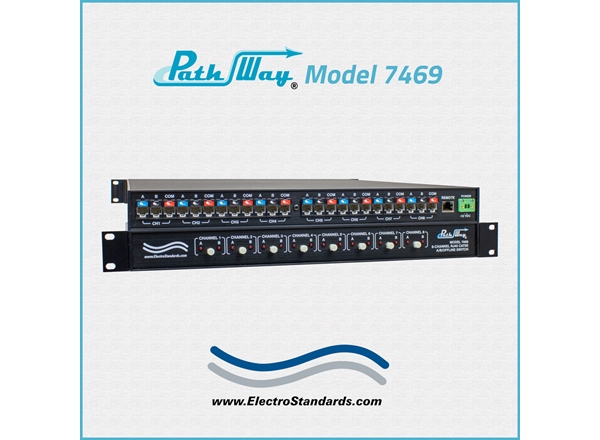

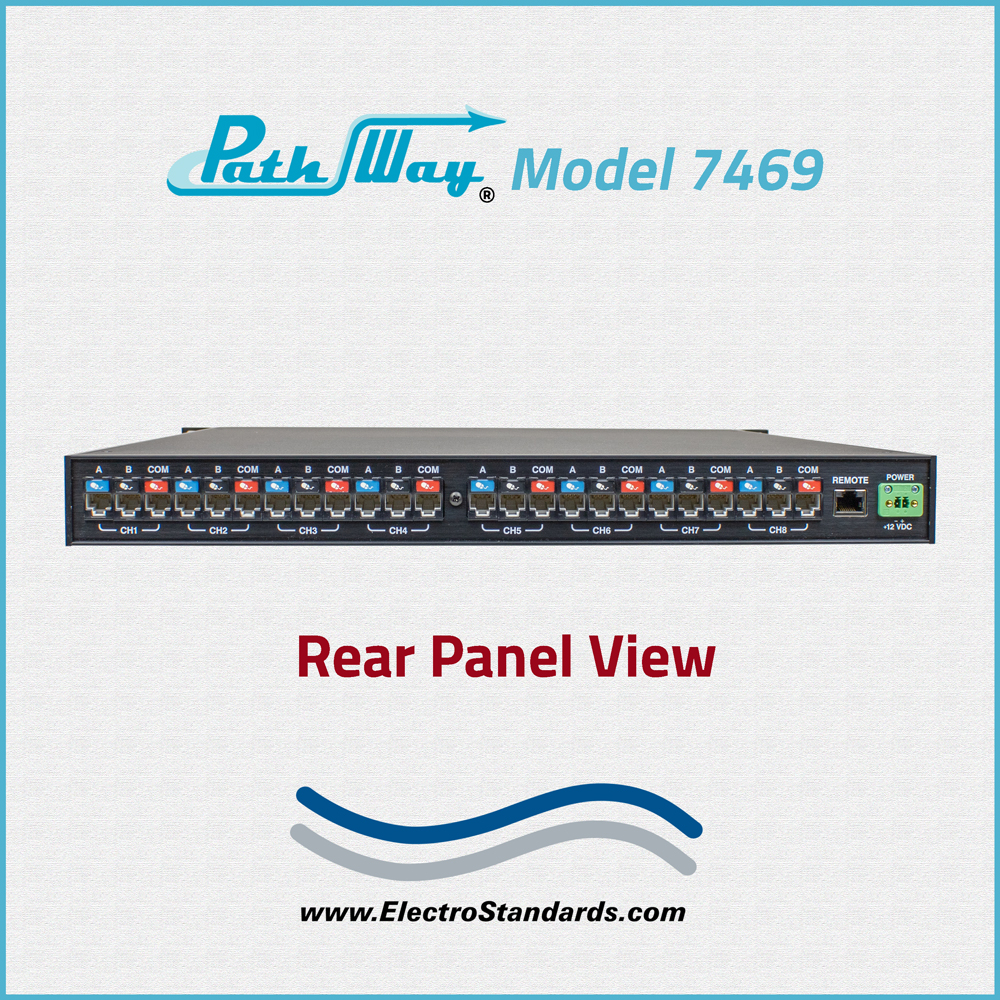

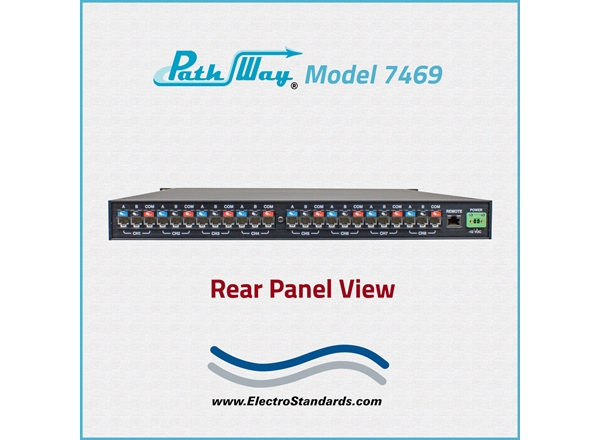

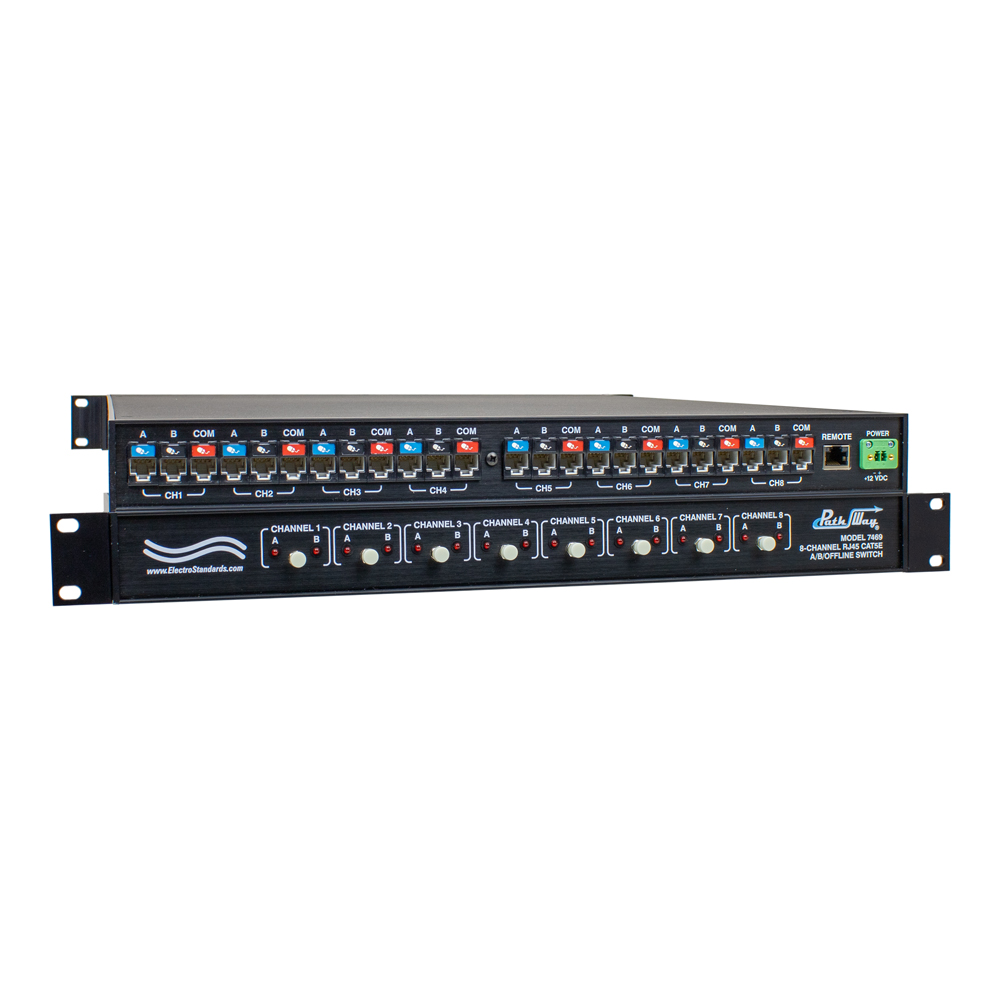

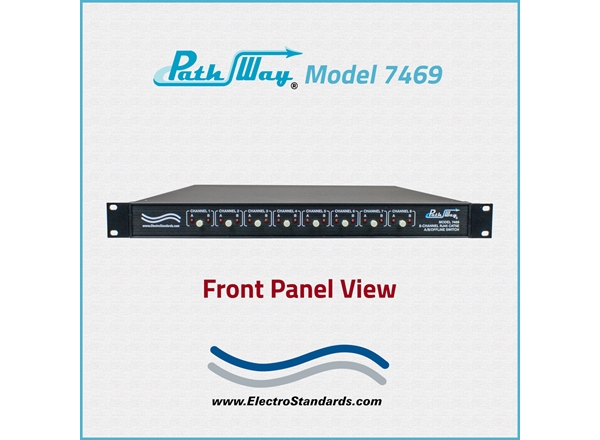

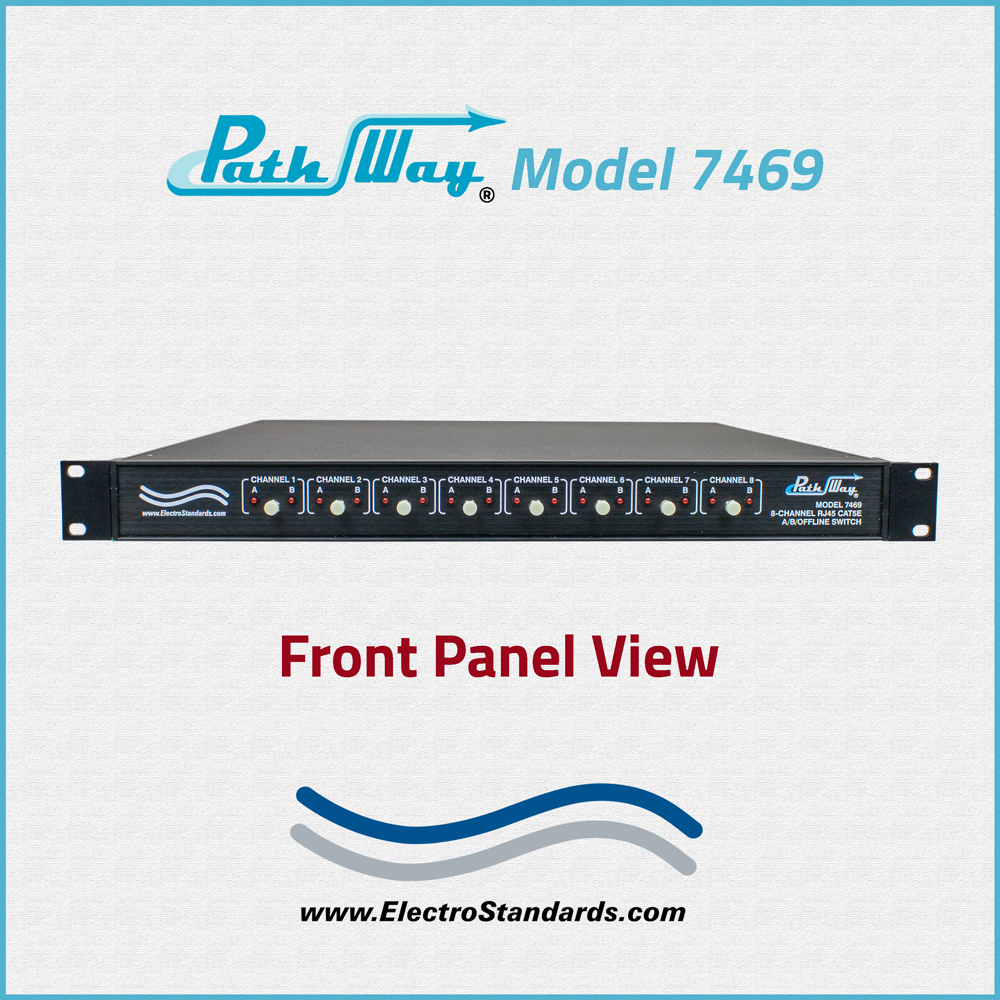

The PathWay® Model 7469 8-Channel RJ45 Cat5e A/B/OFFLINE Switch with Telnet and GUI allows the user the capability of sharing a single port interface device connected to the COMMON port, among two other devices connected to the A and B ports for each channel. Remote Control access can be accomplished using an Ethernet 10/100 Base-T connection and either Telnet Commands or Graphic User Interface. The Model 7469 is enclosed in a 1U full rack size, black all metal chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

  • Switch has "A", "B", and secure "OFFLINE" positions.

  • “OFFLINE” position blocks out intruders...

  • Supports Category 5e performance for 10/100/1000 Mbps Ethernet networks (up to 1 Gigabit).

FEATURES OF THE MODEL 7469 CAT5e A/B/OFFLINE SWITCH:

  • Each channel allows access to any one of two Cat5e networks from one COMMON network or device.
  • All 8 pins of the RJ45 interface are switched via break-before-make electromechanical relays.
  • The switch ports are transparent to all data.
  • Certified for Cat 5e compliance.
  • Local control via front-panel pushbuttons
  • Independently or simultaneously switch channels via Telnet Commands.
  • Remote Telnet Command Interface or Graphical User Interface that allows the user to control switch position, lockout front panel operations and obtain switch status.
  • Control of the switch position from a 10/100Base-T LAN Ethernet environment. IP addressable.
  • Remote control of the switch is password protected, where the password protection can be disabled.
  • Front panel LED's display present switch position and power status.
  • Switch reverts to the "OFFLINE" position on power loss and isolates all ports.
  • Switch remains in the "OFFLINE" position on power up.
  • Secure OFFLINE switch position stops any and all data throughput for the unit.
  • Attractive all metal black box packaging provides EMI/RFI shielding.
  • Custom length Cat5e cables available for your switch installation.

TECHNICAL SPECIFICATIONS:

  • PORT CONNECTORS: (24) RJ45(F) connectors, 3 for each channel labeled A, B, and COMMON.
  • COMPLIANCE: Interface meets or exceeds Cat 5e performance.
  • CONTROLS: (8) Pushbuttons to select A, B or OFFLINE for each channel.
  • DISPLAY: (16) Red LED's display switch position and indicate power presence; two for each channel.
  • REMOTE PORT: (1) RJ45 female connector on rear panel accepts Ethernet 10/100 Base-T connection and either TELNET commands or Graphical User Interface for Remote operation.
  • POWER: Wide Range (Cat No. 517277) CE, RoHS, and UL listed table mount power module,100VAC/240VAC, 50Hz/60Hz power module is included with the unit. Has and IEC 60320 C14 inlet. Ideal for international applications.
  • DIMENSIONS: 19.0" W x 1.75" H x 20.3" D. (48.3 x 4.4 x 51.6 cm)
  • WEIGHT: Approximately 8.6 lbs. (3.9 kg)

CAT 5e 8-CHANNEL RJ45 APPLICATION w/TELNET & GUI:

The drawing illustrates eight channels of Cat5e A/B/OFFLINE switching. Each channel has a COMMON device connected to the RJ45 COMMON port with access to two other interface devices connected to the RJ45 A and B ports respectively. The OFFLINE position stops any and all data throughput the unit. An RJ45 IP addressable REMOTE port is 10/100Base-T LAN Connection that accepts TELNET commands or a Graphical User Interface to remotely operate the Model 7469.

PathWay® Model 7469 A/B/OFFLINE Switch with Telnet and GUI Application, IP Addressable

UTILIZING THE USER FRIENDLY REMOTE GRAPHICAL USER INTERFACE SOFTWARE

To connect to the switch from a workstation or computer having access to the LAN that the Model 7469 LAN port is connected to simply launch a standard web browser and type in the appropriate IP address.

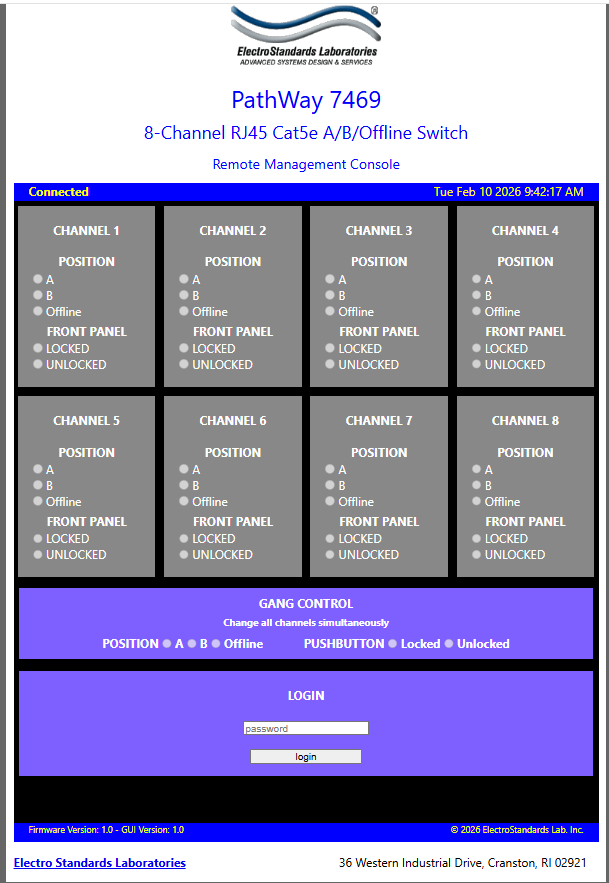

PathWay® Model 7469 Main GUI Panel

  Figure 1: GUI in a Standard Web Browser

CHANGING POSITION AND LOCK STATUS

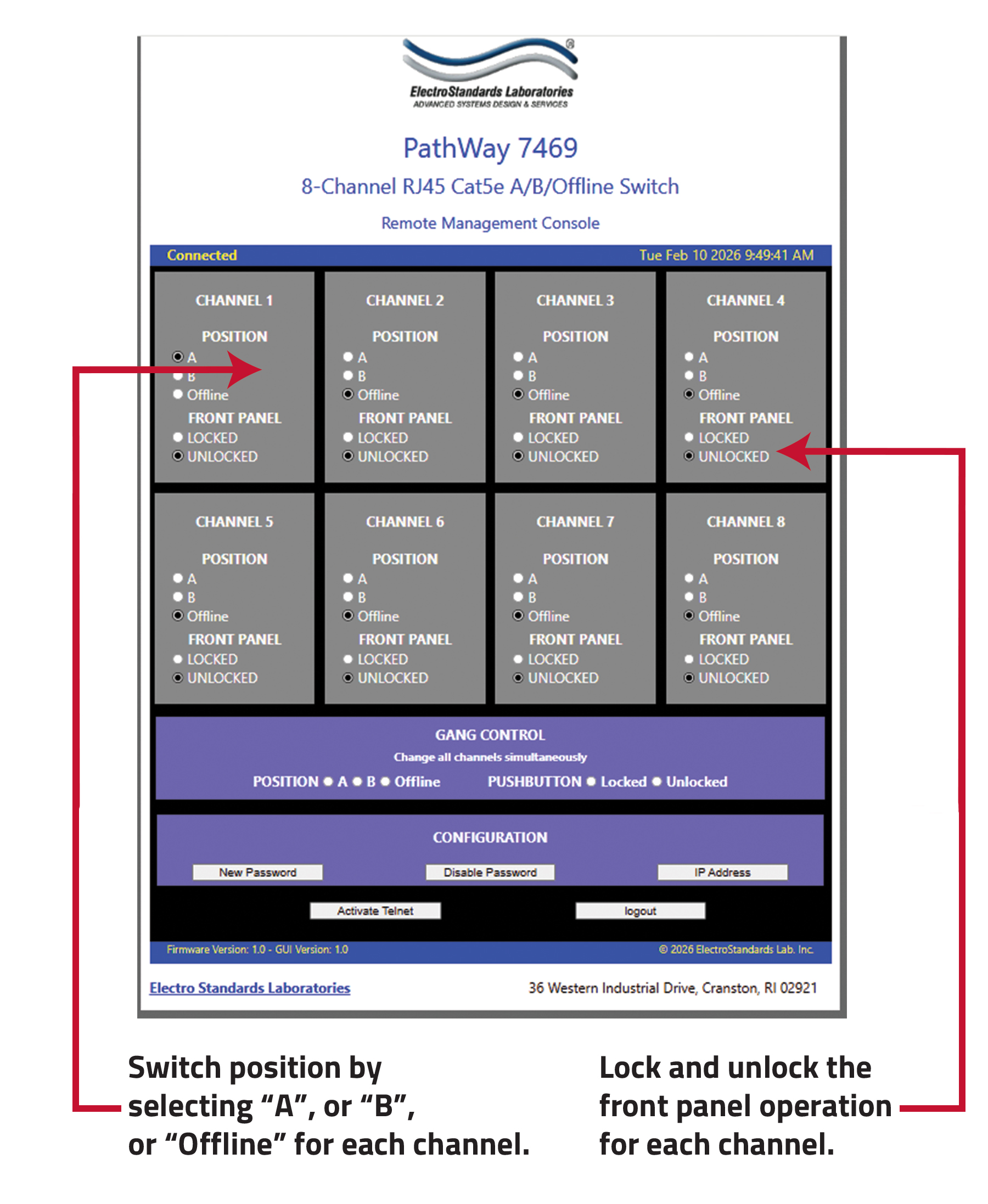

To change the switch position of a channel, click on the radio button A, B, or Offline as desired for each channel.  Locking and unlocking the front panel pushbuttons can be done by clicking on the "Locked" or "Unlocked" radio buttons for each channel. See Figure 2

PathWay Model 7374 Switch Position screen capture

Figure 2: Change the position and lockout from the GUI

USING GANG CONTROLS

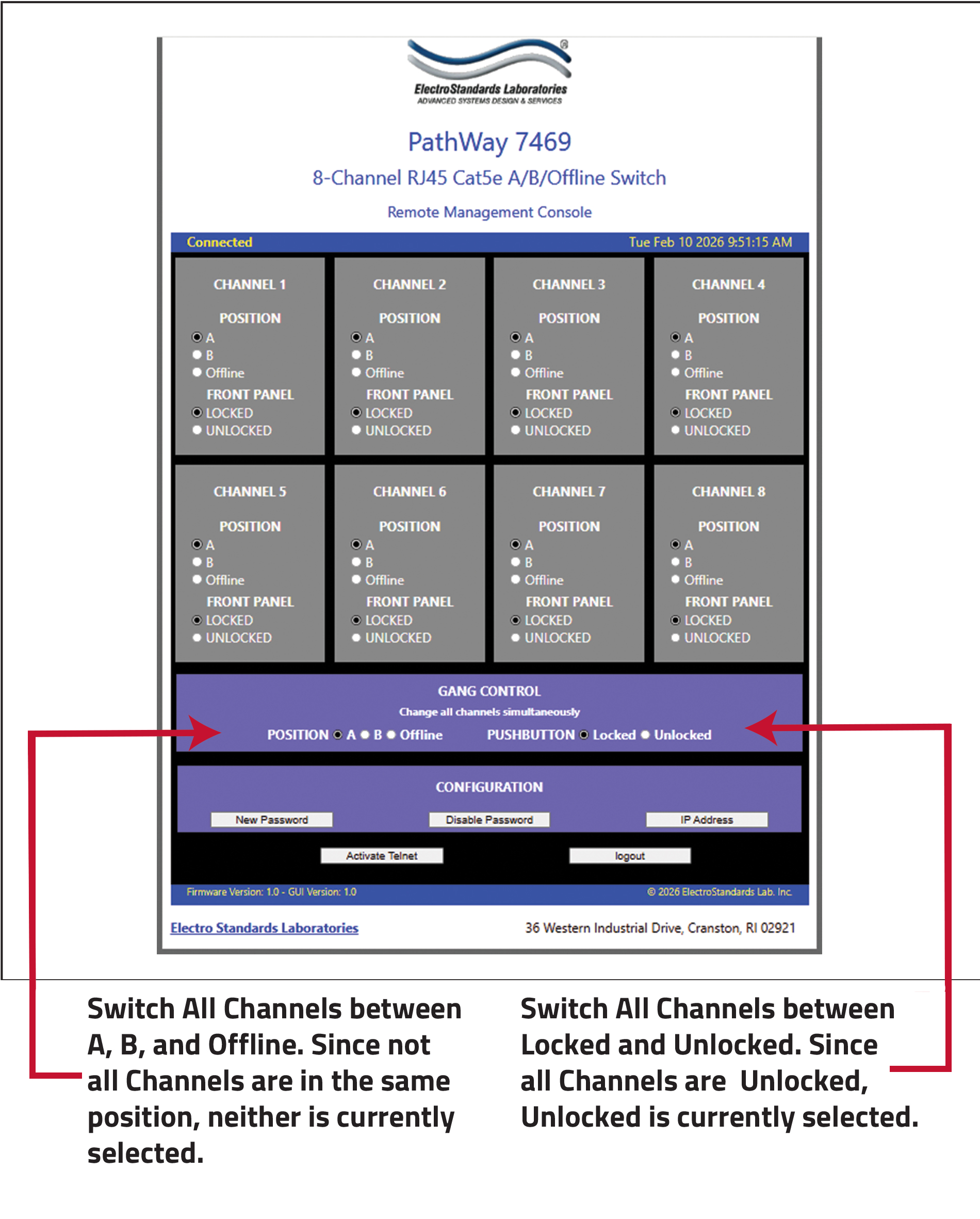

Gang Controls can be used to change the position or state of all channels simultaneously.  When all channels are in the same position or state, that position or state will be selected by the Gang Controls.  If one of the channels is in a different position or state, that respective Gang Control will not have either option selected. See Figure 3.

PathWay Model Graphical user Interface

 Figure 3: Using Gang Controls in the GUI.

QUERYING THE STATUS OF THE UNIT

Once connected, the GUI will stay up-to-date on the present position and status of the unit.  See Figure 4

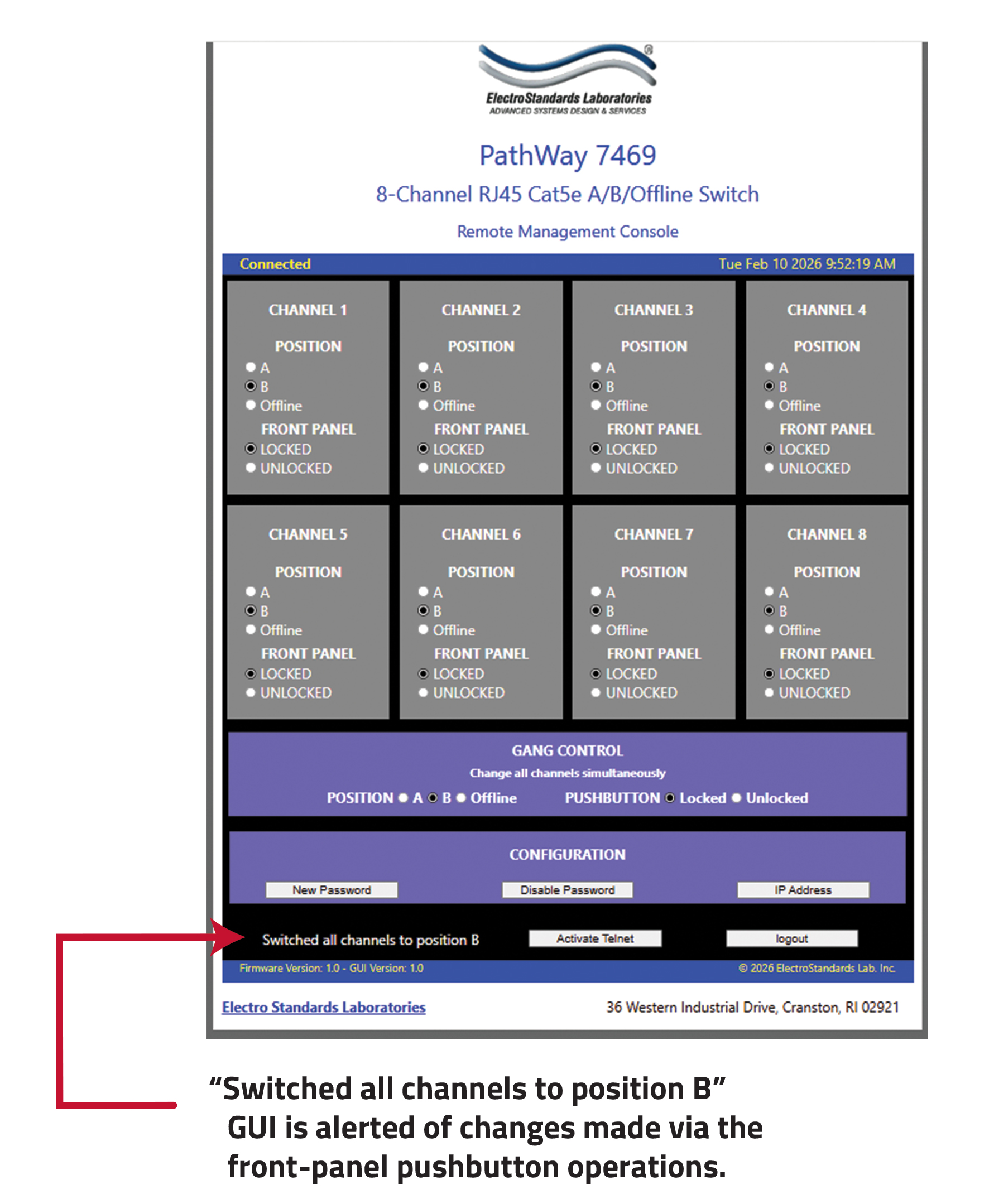

PathWay Model 7374 switch has been changed by pushbutton

Figure 4: The GUI is alerted to changes in the unit status.

Ordering Information

  • Catalog Number: 307469
  • Model Number: 7469
  • Base Price: See website or contact us for current pricing and availability.
  • Optional Wide-Range power supply: Catalog Number 517277 IEC C14 Inlet, 100-240VAC, 12 VDC

Documentation & Support

  • Specification Sheet (PDF) Download Available.
  • Product Manual available upon request.
  • For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
  • We welcome international inquiries and ship worldwide.
