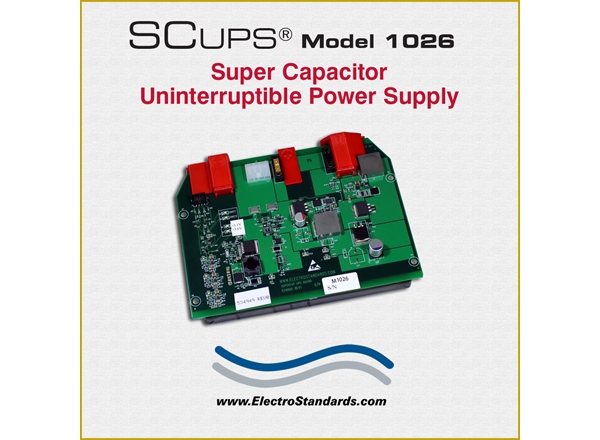

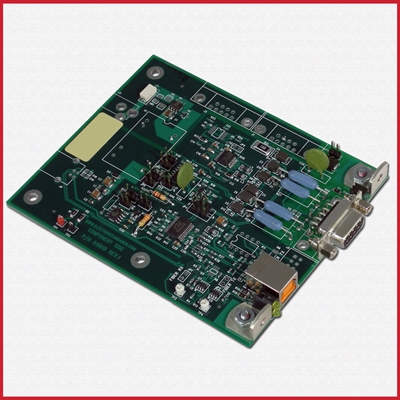

301026 - SCUPS® Model 1026 Super Capacitor Uninterruptible Power Supply, Board

    Super Capacitor Uniterruptible Power Supply, Board Unit, 12 VDC
Click image to enlarge
Base Price:
Call for Price
Catalog No: 301026
Model No: 1026
Power Load:12VDC

SCUPS® Super Capacitor 12VDC Uninterruptible Power Supply

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

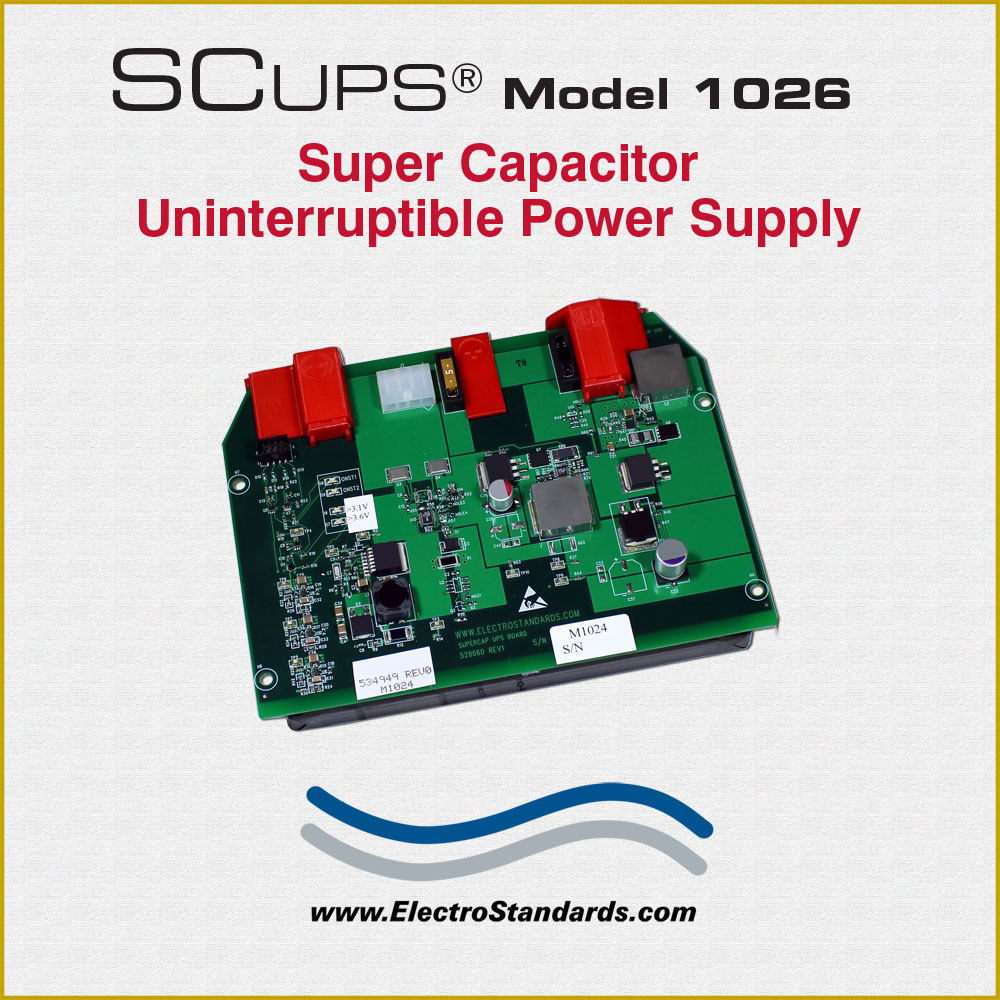

SCUPS® Model 1026 Super Capacitor 12VDC Uninterruptible Power Supply, Board Unit

  • Provides critical power backup for remote locations.

  • Recognized for significant advantages over battery UPS systems.

  • Low Maintenance, Long Service Life, Wide Temperature Change.

The SCUPS® Model 1026 SuperCapacitor based Uninterruptible Power Supply is designed to provide nominal 12VDC power when a unit’s 12VDC line power is interrupted. In addition, several digital signals are available to alert the host system that supplemental power is in use, and to provide a state of charge (SOC) indication. User applications can use digital signals to commence an orderly shutdown operation and can use the SOC signals to gauge the level of energy in the super capacitor. Once Primary power is restored, the unit’s super capacitor is recharged and becomes ready for the next power interruption event. The use of the SuperCapacitor for energy storage provides a very low maintenance solution with extremely high cycle life and without the shelf life concerns of typical battery backup systems. The SCUPS® is perfect for low power remote systems where primary power can be interrupted. Typical applications include remote locations with intermittent grid power or renewable energy systems such as solar powered systems. The SCUPS® Model 1026 is also available as a standalone desktop unit (See Model 1027, Cat No 301027).

SPECIFICATIONS:

  • Max Power to Load:
    • 12W, 12 VDC at 1A
  • Max Primary Load Voltage:
    • 15 VDC
  • Voltage during Hold up:
    • 11.6 VDC
  • Hold Up Time:
    • 14 minutes with 1A Load
    • 29 minutes with 0.5A Load
  • Full Recharge Time:
    • 103 minutes from full discharge to full charge
  • Min. Recharge Time:
    • 37 minutes from full discharge (nominal times at 22°C)
  • Energy Storage:
    • Lithium Ion Super Capacitor
  • Status Signals:
    • Digital: 2-State of Charge, Primary-ON, Backup-ON
  • Temperature:
    • -25°C to 65°C
  • Dimensions:
    • 6.502" x 4.879" x 1.061" (includes super capacitor)
  • Weight:
    • 1.1 lb. [0.5 kg] (includes super capacitor)
  • Operation Manual Describes:
    • Power Connector, Activating the UPS, Deactivating the UPS, UPS System Operations, Adjusting UPS Output Voltage Level, Hardware Specifications, Performance Specifications, UPS Discharge Characteristics, UPS Charge Characteristics, UPS Circuit Board Description, Digital Signal Pin Out, Digital Output Component Specifications.

TABLE OF CONTENTS:

  1. Introduction
    Figure 1: SCUPS® Model 1026 Block Diagram Super Capacitor-based UPS unit.
    SCUPS® 1026 Block Diagram
  2. Caution
  3. UPS integration Power Connector
    Figure 2: UPS Integration Wiring Diagram
  4. Power Connector
  5. Activating the UPS
  6. Deactivating the UPS
  7. UPS System Operations

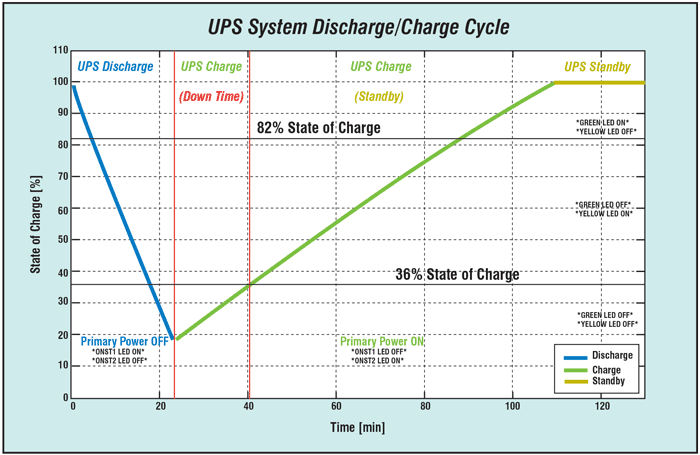

    Figure 3: Super capacitor state of charge during UPS system discharge/charge cycle.

    Figure 4: Voltage applied to the load during a primary voltage supply fault event.

  8. Adjusting UPS Output Voltage level.
  9. Hardware Specification
  10. Performance Specifications
    1. UPS Discharge Characteristics

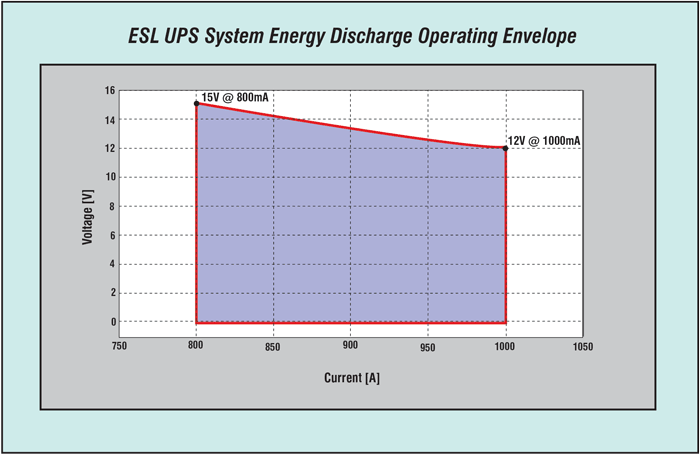

      Figure 5: ESL UPS Energy Discharge Operating Envelope for Current System Release.
      Figure 5

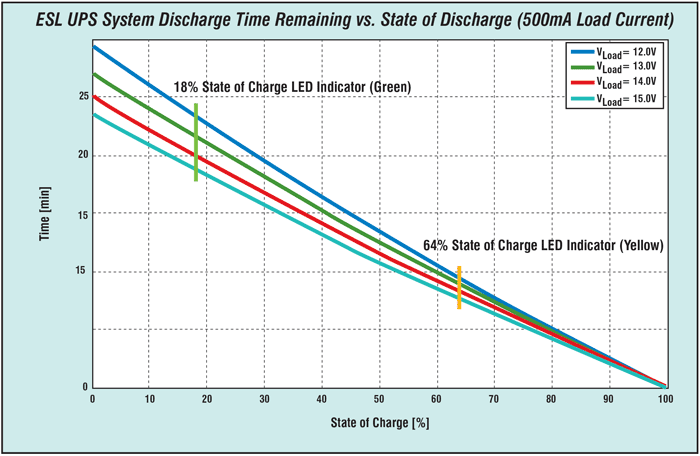

      Figure 6: UPS System Discharge time and state of discharge with 500 mA load different load voltages.
      Figure 6 UPS system discharge

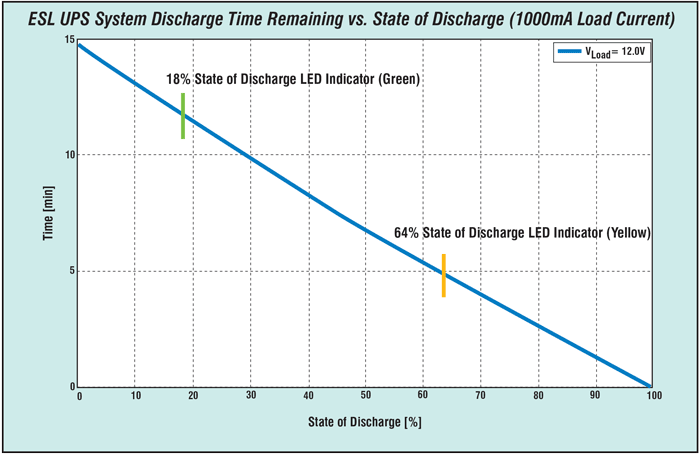

      Figure 7: UPS System Discharge time and state of discharge with 1000 mA load different load voltages.
      Figure 7
    2. UPS Charge Characteristics
      Figure 8: Charge versus state of charge.
  11. UPS Circuit Board Description
    1. Digital Signal Pinout
    2. UPS Circuit Board Component Specifications.
    3. Specifications
  12. Important Notices
    1. Agreement Not to Analyze or Reverse Engineer
    2. SAFETY INFORMATION: Advisement to Read and Understand Lithium Ion Capacitor Operational Manual Covering Safety Issues
    3. Limit of Liability
