Catalog # 307369 - Model 7369 2-Channel DB9 A/B Switch, RS232, Telnet, GUI

    2-Channel DB9 A/B Switch, RS232, Telnet, GUI
Click image to enlarge
Base Price:
$1,695.00
Catalog No: 307369
Model No: 7369
Feature:RS232/Telnet/GUI
Protocol:Telnet & GUI
Product Type:Switches: Copper
Positions:2
Cable Type/Port Connector:DB9 Switch Ports
Channels per Switch Chassis:2
Electronic Switches/Power Required:PathWay® Copper
Channel Control:Independent Channel Control, Gang Channel Control
Remote Control:Ethernet, RS232 Serial
Security:Password Protection
Configuration:Rackmount
Pins Switched:9
Remote Port:RJ45, DB9
Local Control:Pushbutton

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview


Path Way® Remotely Controllable Network Switch, DB9
Model 7369 Dual Channel DB9 A/B Switch with RS232, Telnet and GUI

  • Remote control of the switch is password protected for increased security.

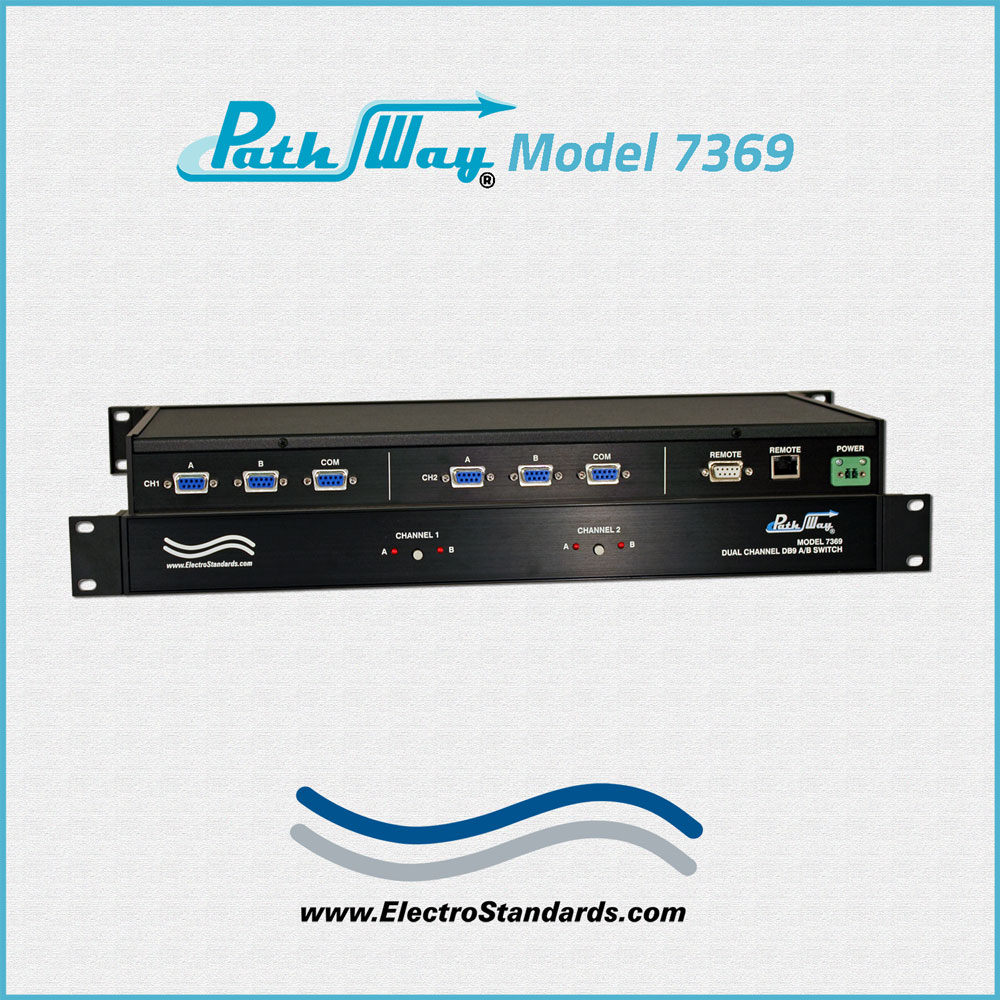

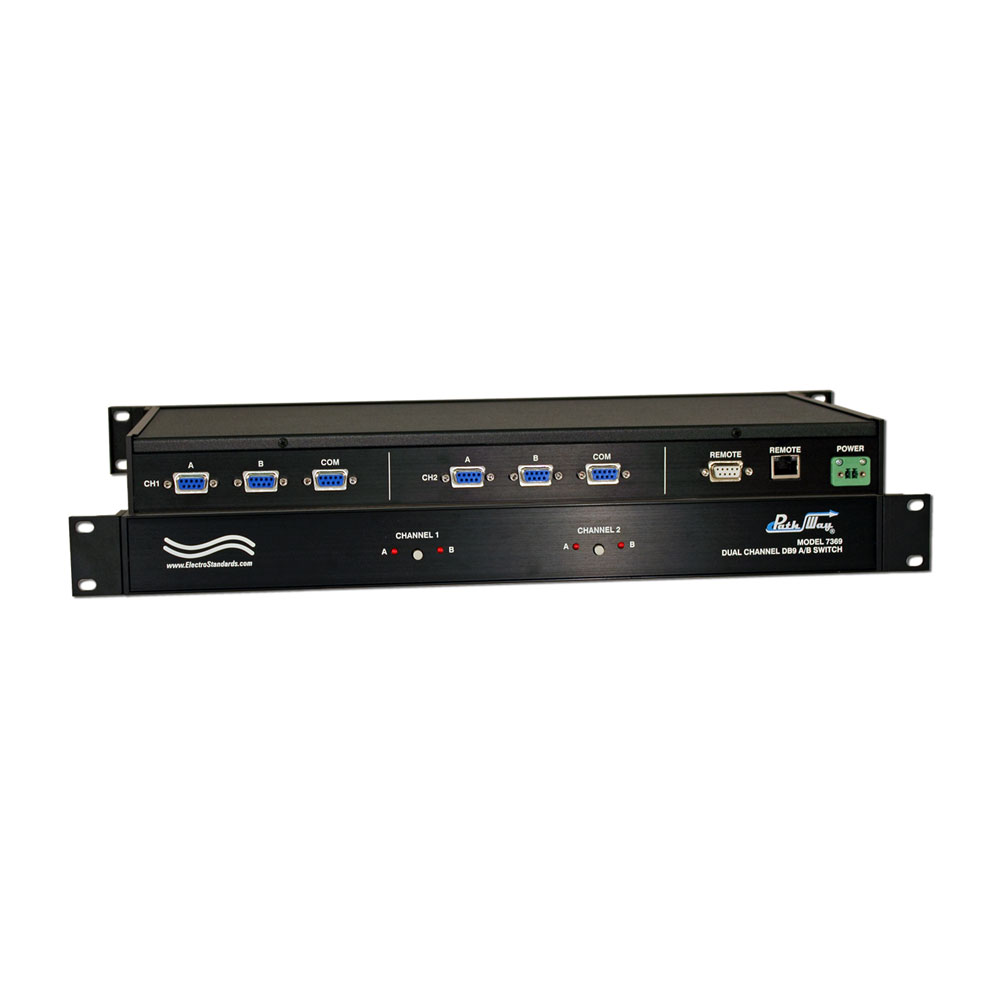

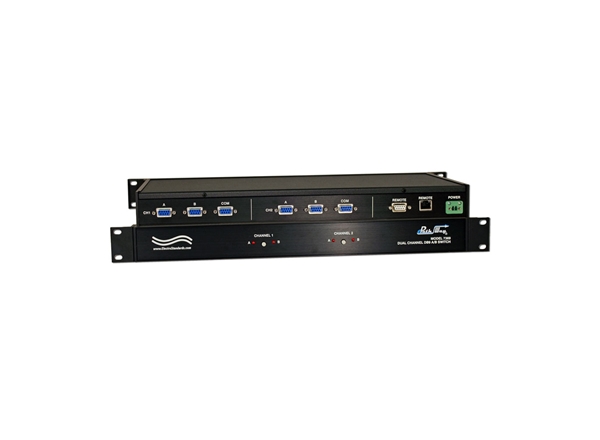

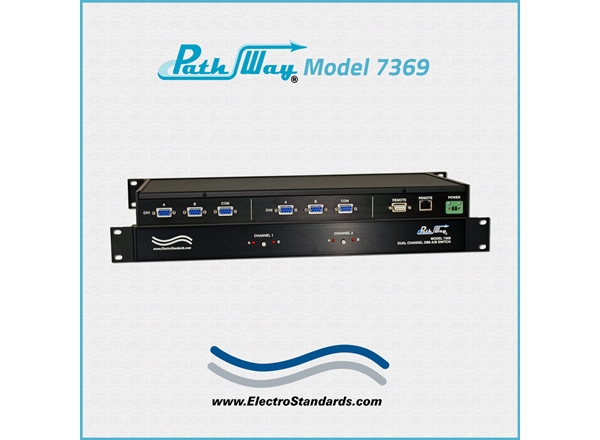

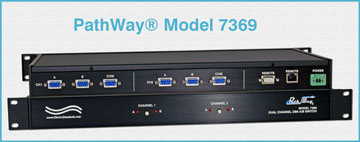

PathWay® Model 7369 Dual Channel DB9 A/B Swtich w/RS232, Telnet & GUI

SPECIFICATIONS:

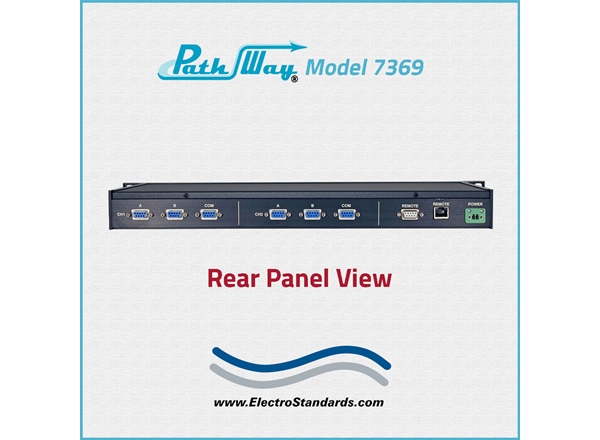

  • PORT CONNECTORS: (3) DB9 female connectors labeled A, B, and COMMON for each channel.

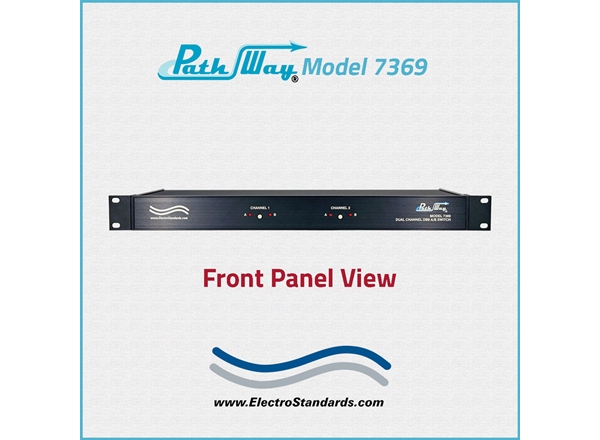

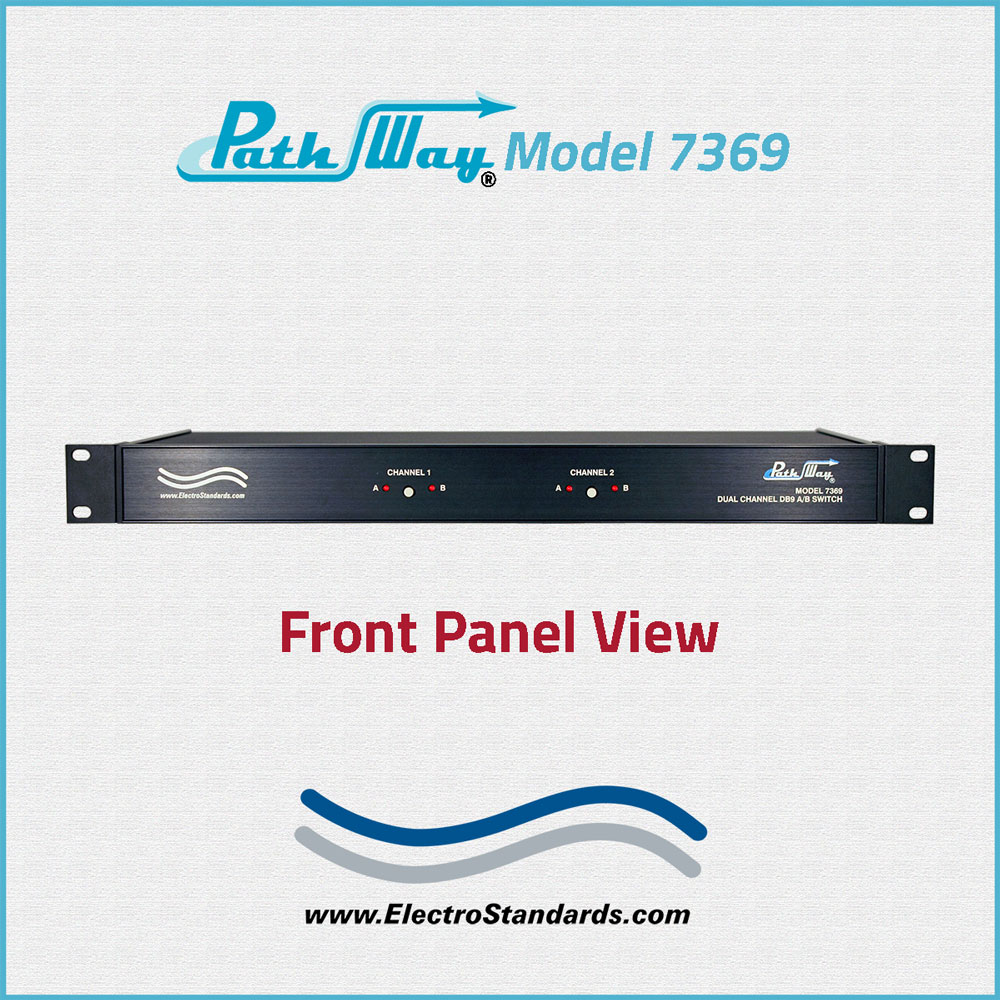

  • FRONT PANEL CONTROLS: (2) Manual pushbuttons allow local switching.
  • DISPLAY: (4) Front panel LED's display switch position and power status.
  • REMOTE:
    • (1) RJ45 female connector on rear panel accepts Ethernet 10/100Base-T connection and either TELNET commands or Graphical User Interface for remote operation.
    • (1) DB9 female connector on rear panel accepts ASCII RS232 Serial Data for Remote Control operation.
  • POWER: UL approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12 VDC, 500mA to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Rackmount 19.0" W x 1.75" H x 8.0" D. (48.3 X 4.4 X 20.3 cm)
  • WEIGHT: Approximately 4.4 lbs. (2.0 kg)

(Cat No 517277) Ideal for international applications. CE, RoHS, and UL listed table mount power module, 100 VAC / 240 VAC, 50Hz/60Hz for use in place of standard power module that is included with the unit. OPTION: WIDE RANGE POWER MODULE

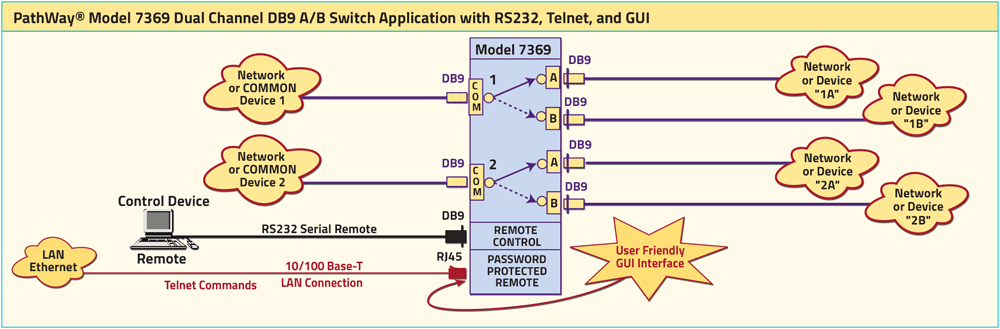

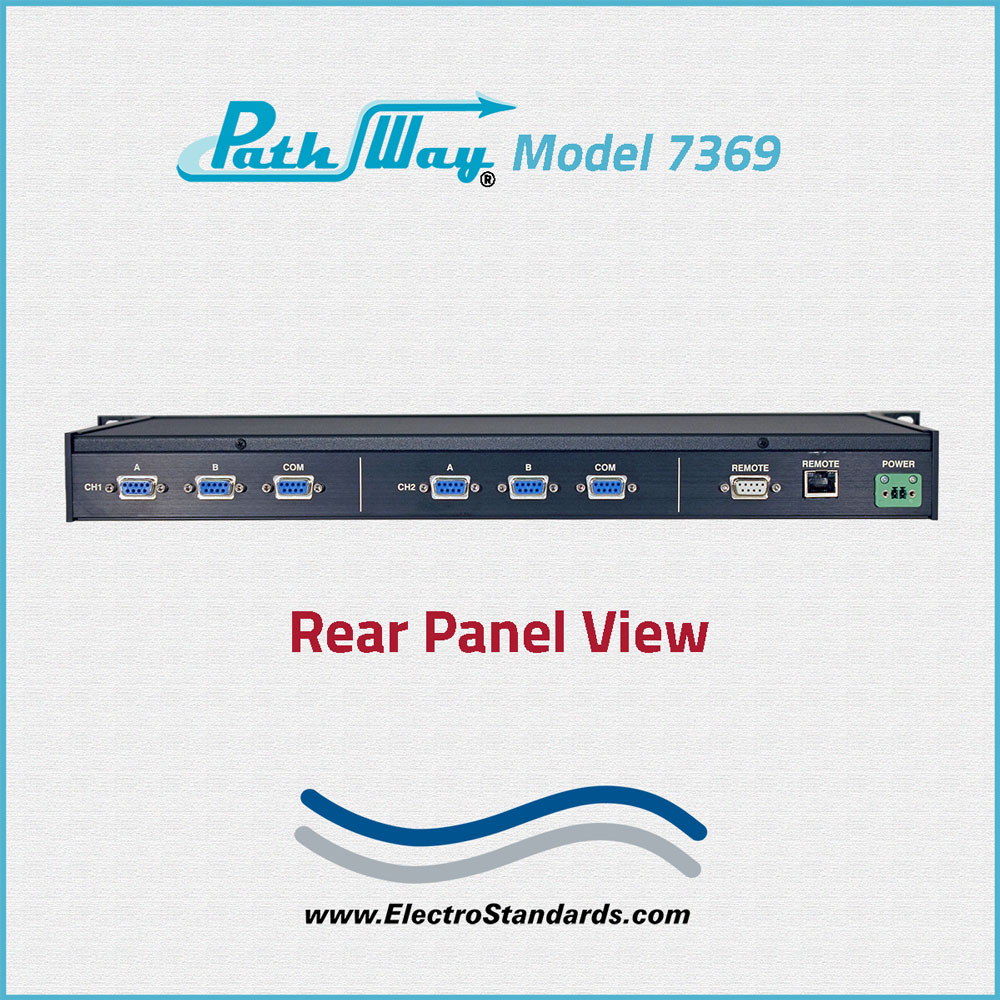

Dual Channel DB9 A/B Network Application with two Remote Control Ports: The illustration shows for each channel a COMMON network or device connected to the DB9 COMMON port accessing two other networks or devices connected to the DB9 A and B ports. There are two remote ports; a DB9 Remote for RS232 Serial commands to control the switch, an RJ45 10/100 Base-T LAN connection for Telnet commands or an easy-to-use graphical user interface that is a password protected remote.

Dual Channel DB9 A/B Switch w/RS232, Telnet & GUI Application Drawing

FEATURES:

  • Allows quick connection to any one of two DB9 interface devices from one COMMON port for each channel.
  • The switch ports are transparent to all data.
  • All (9) pins of the DB9 interface are switched via break-before-make electromechanical relays.
  • Independent control of each channel, with gang controls.
  • Front panel pushbutton control.
  • Switch maintains position on power loss and continues to pass data.
  • Control of the switch position from a 10/100-Base-T LAN Ethernet environment.
  • Remote Control RS232, Telnet command interface or Graphical User Interface that allow the user to control switch position, lockout front panel operations and obtain switch status.
  • Remote control of the switch is password protected, where the password protection can be disabled.
  • Front panel LED's display present position and power status.
  • Attractive all metal black box packaging provides EMI/RF shielding.
  • Custom length DB9 cables available for your switch installation.

The PathWay® Model 7369 Dual Channel A/B switch with RS232, Telnet and GUI allows the user the capability of sharing a single port interface device connected to the "COMMON" port among two other devices connected to the "A" and "B" ports for each channel. Remote Control access can be accomplished using an Ethernet 10/100Base-T connection and Graphical User Interface.  The unit can also be controlled via RS232 ASCII commands through the Rear Panel DB9 Remote Port.  The Model 7369 is enclosed in a 1U, full rack size, all metal black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.


UTILIZING THE USER FRIENDLY REMOTE GRAPHICAL USER INTERFACE SOFTWARE

To connect to the switch from a workstation or computer having access to the LAN that the Model 7369 LAN port is connected to, simply launch a standard web browser and type in the appropriate IP address.  The Java Applet will be automatically uploaded from the switch upon connection.  The environment requirement for the GUI is Java 1.7 and above.

LOGGING into the GUI
Once logged in, the user can perform one of several actions:

  • Change the switch position.
  • Lockout control of the switch's front panel.
  • Change the login password.
  • Enable or Disable password protection.
  • Re-configure the switch's IP address.

Logging into GUI for Model 7369 2-Channel DB9 A/B Switch

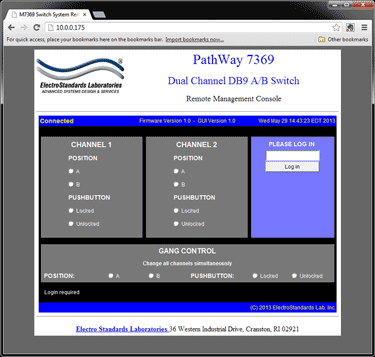

Figure 1: Logging into the GUI

SOFTWARE FEATURES:

  • Access User Interface via standard Web browser.
  • Easy to use, simple point and click operation.
  • Remotely access to control or monitor the Model 7369 Switch.
  • Users can change the switch's IP address.
  • LAN access gives users across the LAN or over the Internet access to control if user network is configured accordingly.

CHANGING SWITCH POSITION AND LOCK STATUS

To change the switch position of a channel, click on the radio button "A" or "B" as desired for each channel.  Locking and unlocking the front panel pushbutton can be done by clicking on the "Locked" or "Unlocked" radio buttons for each channel. See Figure 2

GUI can be used to change switch position and lock status of Model 7369

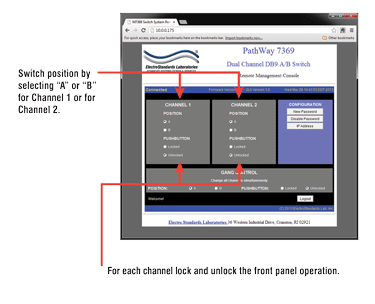

Figure 2: Change the position & lockout from the GUI.

USING GANG CONTROLS
Gang controls can be used to change the position or state of all channels simultaneously.  When both channels are in the same position or state, that position or state will be selected by the gang controls.  If one of the channels is in a different position or state, that respective gang control will not have either option selected.  See Figure 3.

Gang Controls are used via GUI to change position or state of all channels simultaneously on the Model 7369

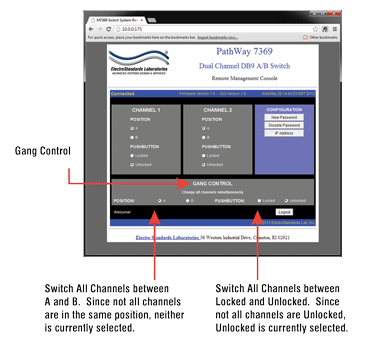

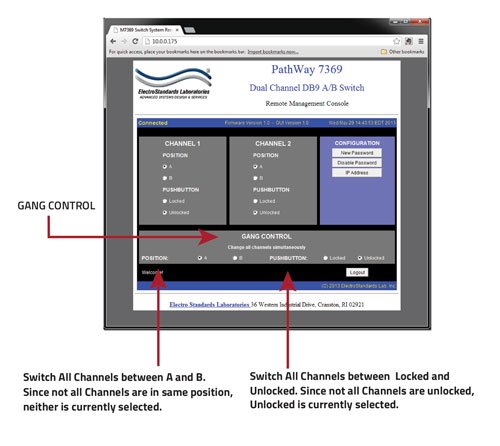

Figure 3: Gang Control, change all channels simultaneously.

QUERYING THE STATUS OF THE UNIT

Once connected, the GUI will stay up-to-date on the current position and status of the unit.  Any changes that are made outside the GUI, such as by pushbutton, will be reflected in the GUI.  These changes will cause the radio buttons of the GUI to automatically change to show the new status. The GUI will report the source of the most recent change in the bottom left of the panel.  See Figure 4

Querying the status of the unit via GUI for Model 7369 DB9 A/B Switch

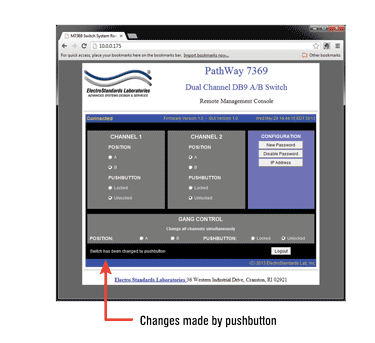

Figure 4: The GUI is alerted to changes in the unit status.
