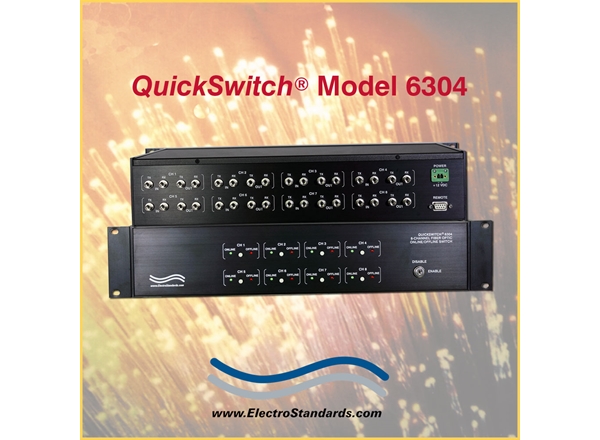

Catalog # 306304 - Model 6304 ST Duplex Fiber Optic ONLINE/OFFLINE Mutually Exclusive Switch, with RS232

    ST Duplex Mutually Exclusive Fiber Optic SwitchCatalog # 306304 - Model 6304 ST Duplex Fiber Optic ONLINE/OFFLINE Mutually Exclusive Switch, with RS232Catalog # 306304 - Model 6304 ST Duplex Fiber Optic ONLINE/OFFLINE Mutually Exclusive Switch, with RS232
Click image to enlarge
    • ST Duplex Mutually Exclusive Fiber Optic Switch
    • Catalog # 306304 - Model 6304 ST Duplex Fiber Optic ONLINE/OFFLINE Mutually Exclusive Switch, with RS232
    • Catalog # 306304 - Model 6304 ST Duplex Fiber Optic ONLINE/OFFLINE Mutually Exclusive Switch, with RS232
Base Price:
Catalog No: 306304
Model No: 6304
Product Type:Switches: Fiber Optic
Positions:2, Offline
Cable Type/Port Connector:ST
Channels per Switch Chassis:8
Electronic Switches/Power Required:QuickSwitch® Fiber Optic
Remote Control:RS232 Serial
Security:Keylock, Offline Position
Fiber Mode:Multimode
Fiber Size:62.5/125
Fiber Type:Duplex
Remote Port:DB9
Local Control:Keylock, Pushbutton
Mirror Technology:OO
Feature:Mutually Exclusive Switching
Wavelength Nano:1300


Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request


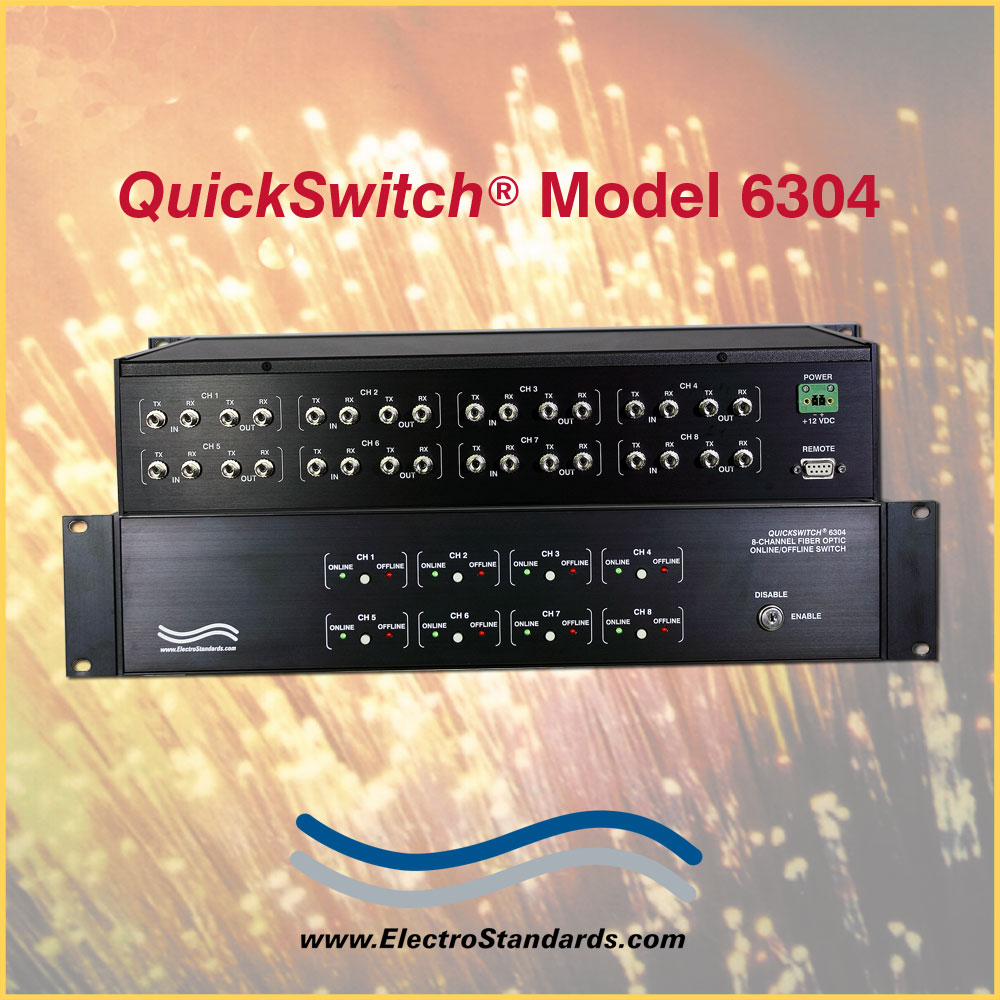

QuickSwitch® 6304 8-Channel ST Duplex Fiber Optic ONLINE/OFFLINE Mutually Exclusive Switch with RS232 Remote


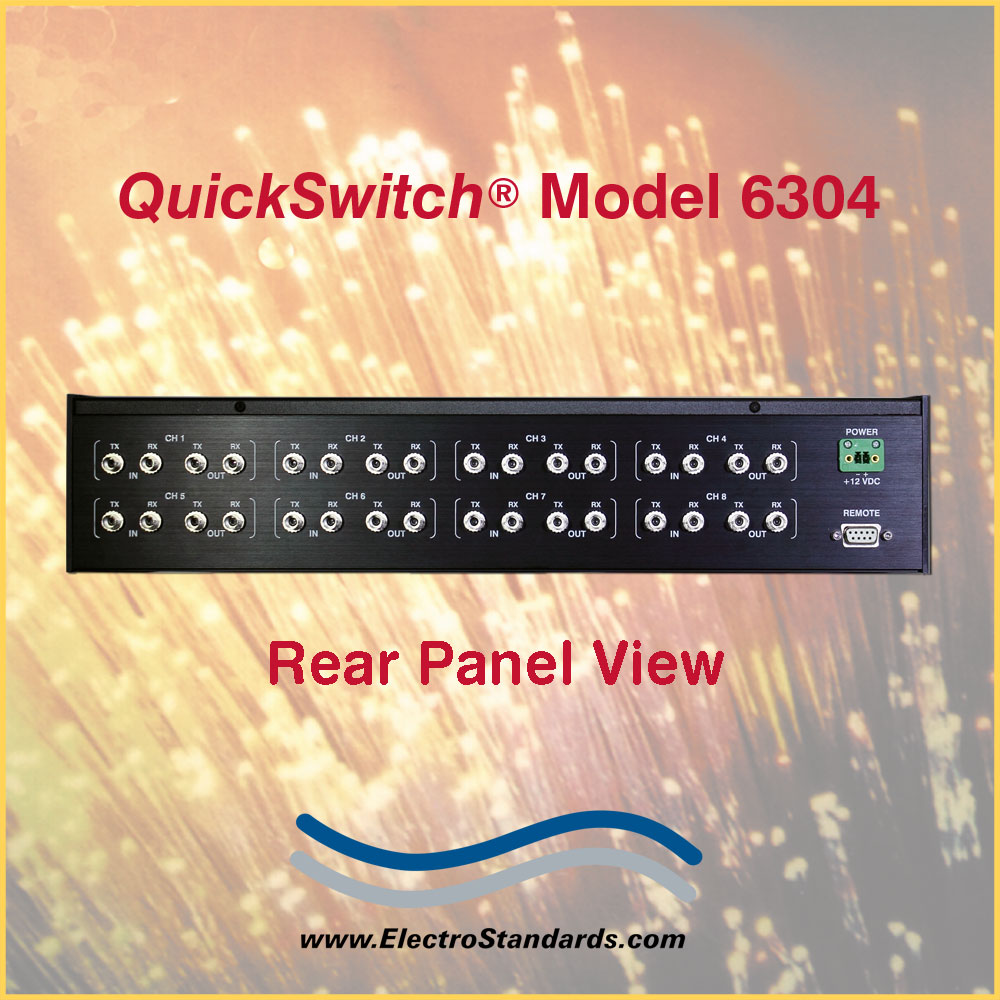

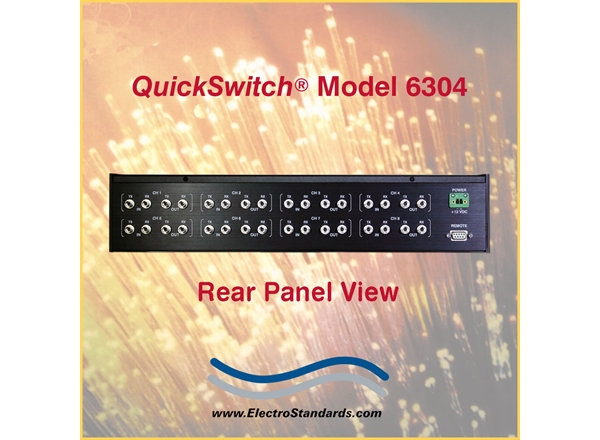

  • PORT CONNECTORS: (4) ST fiber optic connectors provide ST Duplex IN/OUT ports to each of 8 channels (32 ST fiber connectors total).
  • REMOTE PORT: (1) RJ45 female connector on rear panel accepts RS232 Serial Data for Remote Control operation.
  • POWER: UL approved 100VAC-240VAC 50Hz-60Hz wall mount power module supplies 12VDC 500 mA to the unit.  Has 2-prong, US, non-polarized plug.

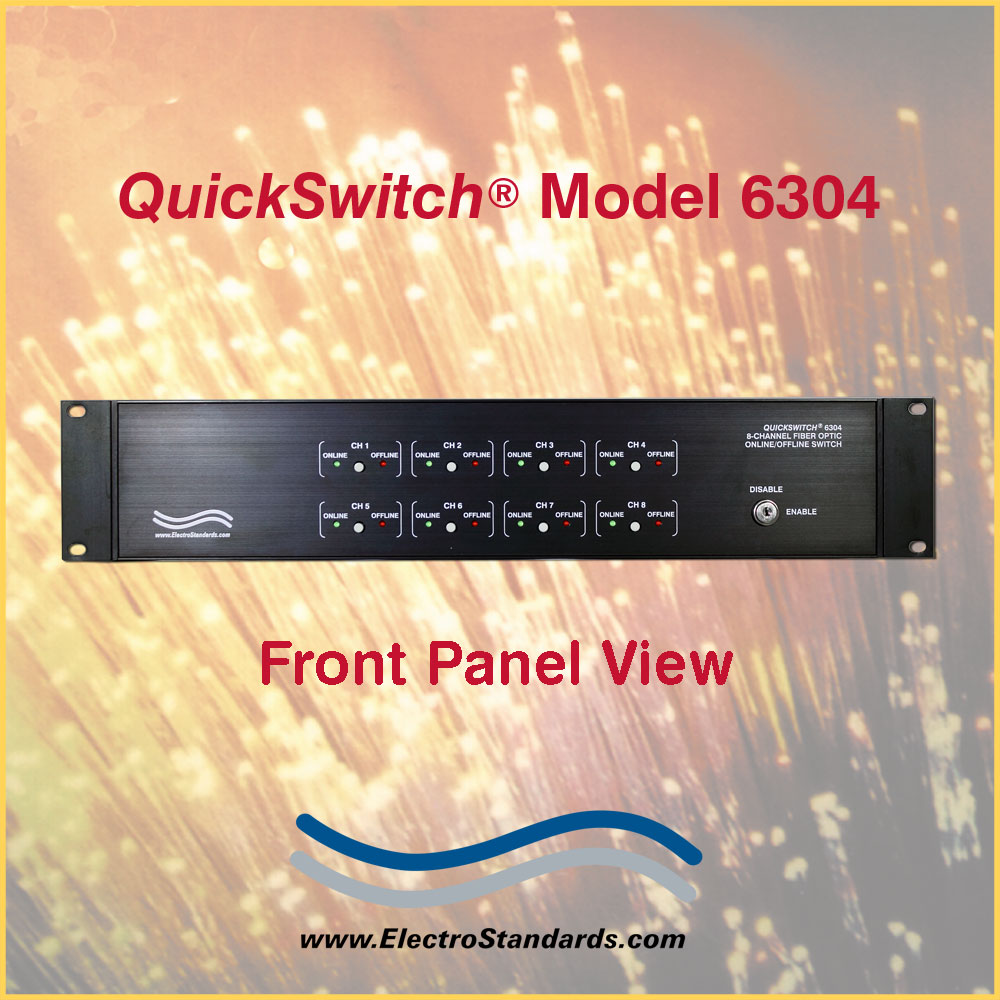

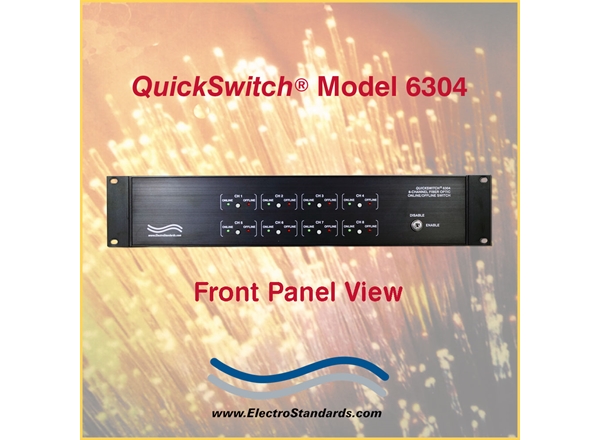

  • DISPLAY: (8) Green Led's and (8) Red LED's on front panel indicate Online or Offline.
  • FRONT CONTROL: (8) Pushbuttons on front panel allow switching for each of the 8 channels.
  • DIMENSIONS:  Rackmount Configuration 19.0" W x 3.5" H x 10.6" D. (48.3 X 8.9 X 27.0 cm)
  • WEIGHT: Approximately 7.8 lbs (3.6 kg)

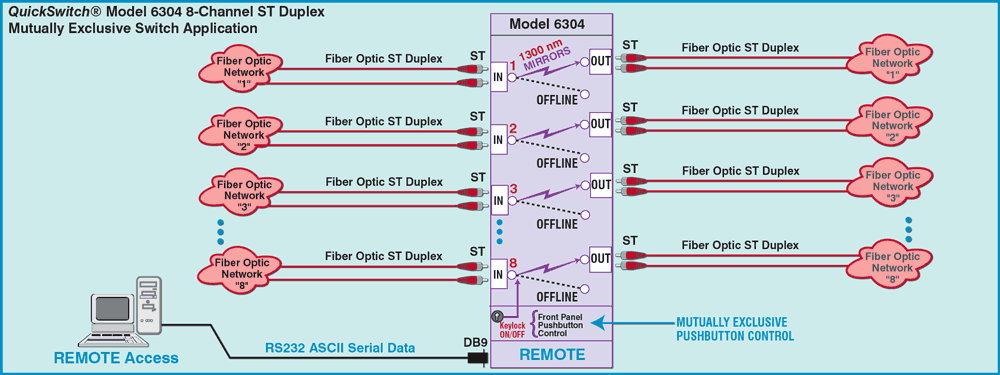

QuickSwitch® 6304 Mutually Exclusive 8-Channel ST Duplex Online/Offline Application with RS232 Remote & Front Panel Keylock:
