Path Way® Remotely Controllable Network Switch, BNC Interface

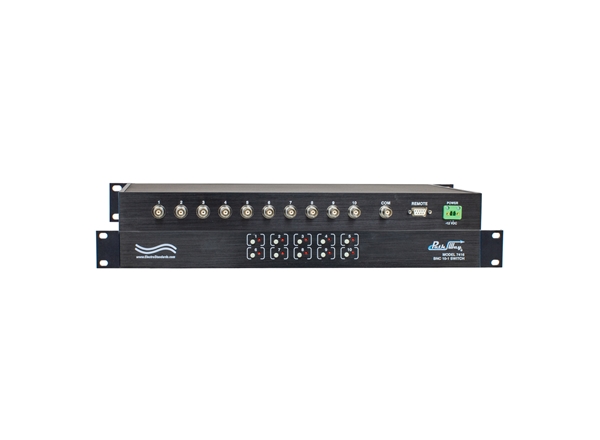

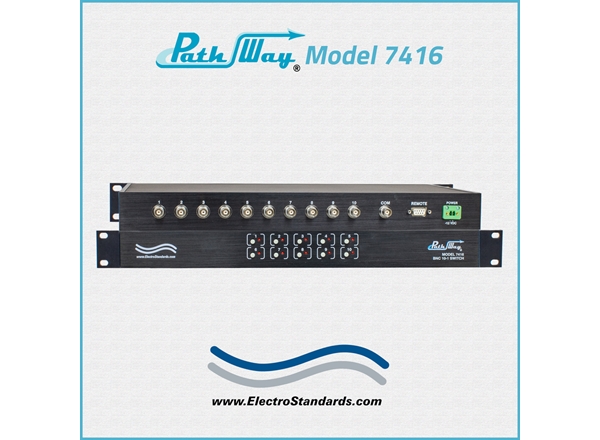

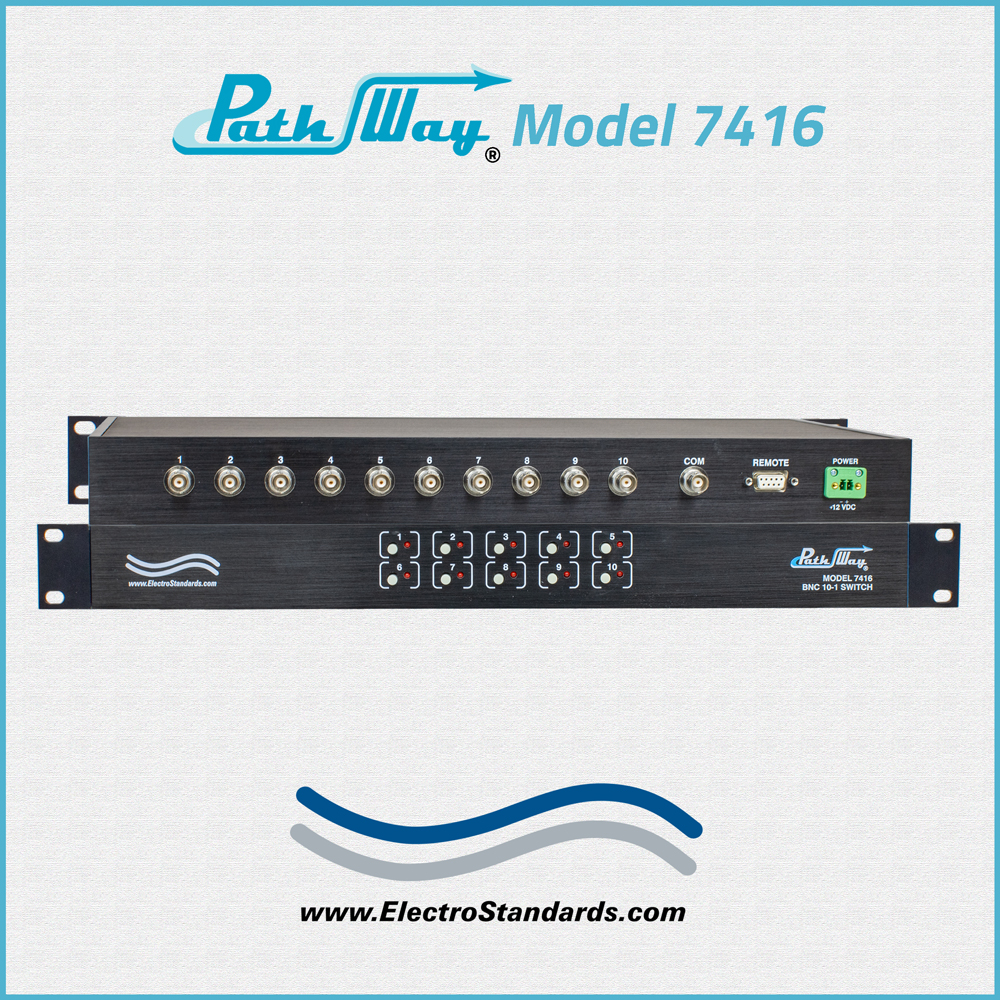

Model 7416 BNC Interface 10-1 Data Switch, Remotely Controllable Rackmount

Ideal for data, Global Positioning Systems (GPS), and test measurement coaxial networks!
Reliable and Field Proven in many Scientific Research Laboratory Applications.
Flexible Remote Control Capabilities.

SPECIFICATIONS:

PORT CONNECTORS: (11) BNC (F) connectors labeled 1 thru 10 and COMMON.

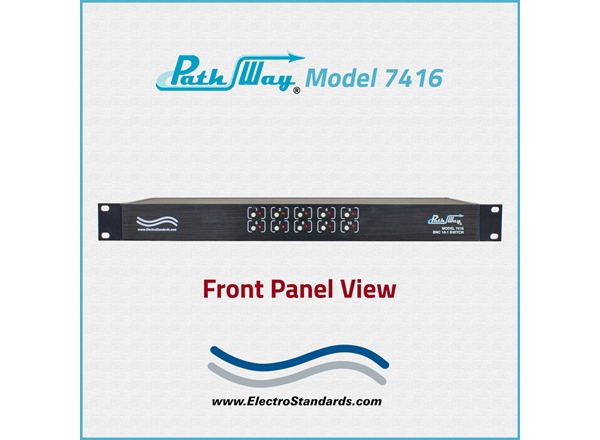

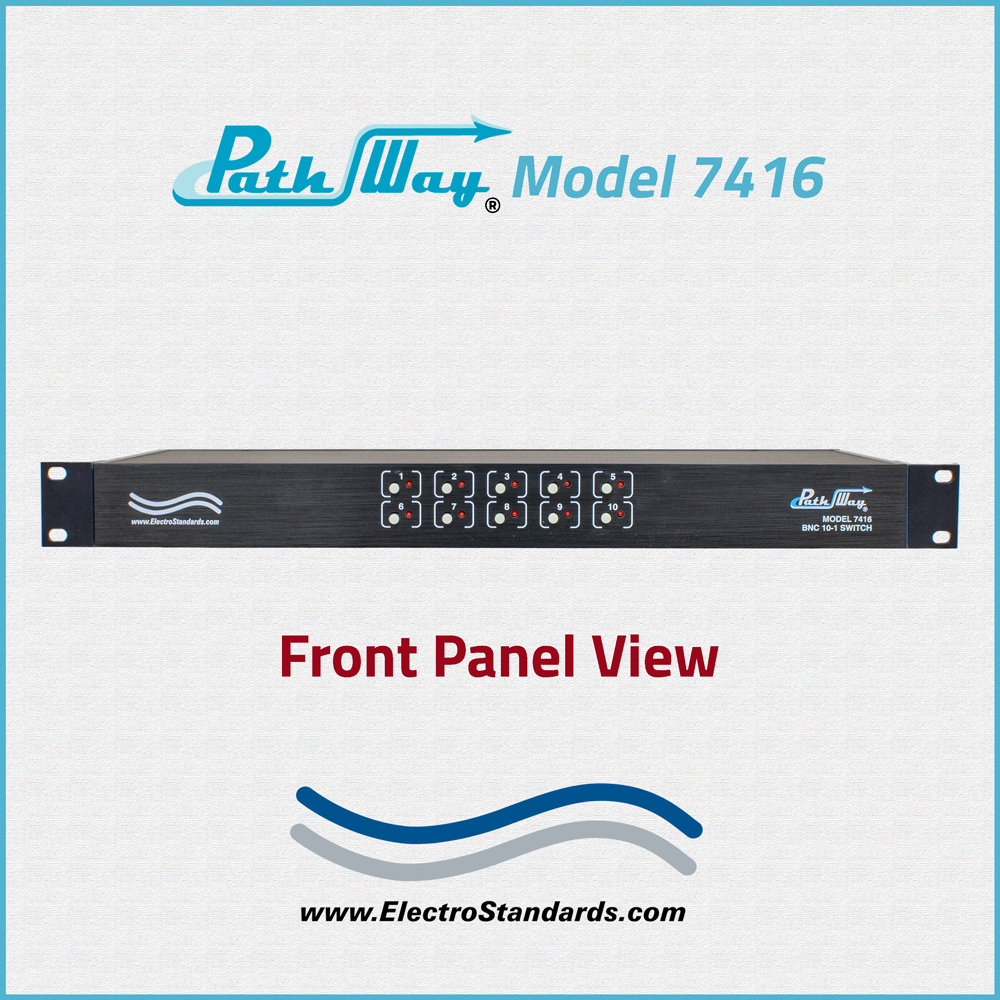

FRONT PANEL CONTROL: (10) Manual pushbuttons allow for local switching.
DISPLAY: (10) Front panel LED's display switch position and power status.

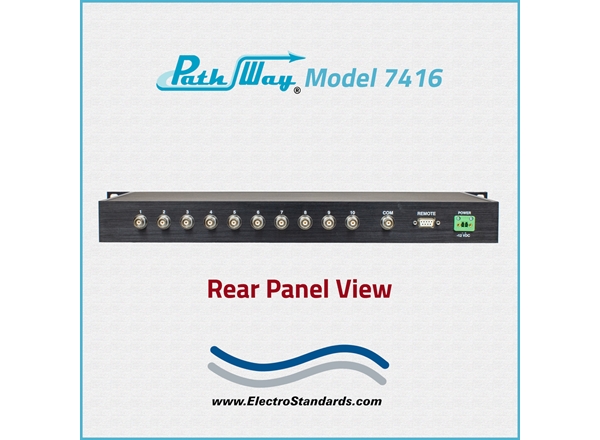

REMOTE CONTROL: (1) DB9 (F) connector on rear panel accepts RS232 Serial Data for remote control operation.
POWER: UL approved 100VAC-240VAC, 50Hz-60Hz wall mount power module supplies 12 VDC, 500mA to the unit. Has 2-prong, US, non-polarized plug.
DIMENSIONS: Rackmount 19" W x 1.75" (1U) H x 8.8" D. (43.3 x 4.5 x 22.4 cm)
WEIGHT: Approximately 4.6 lbs. (2.1 kg)

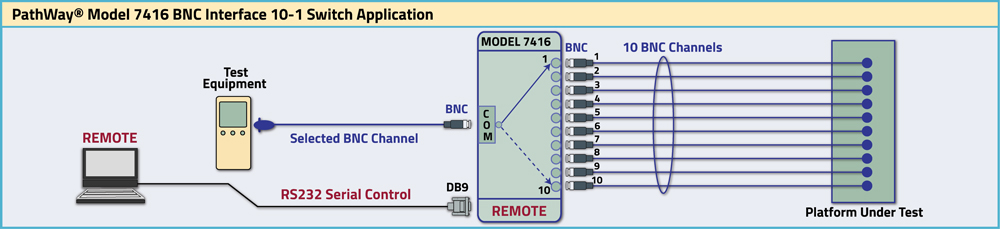

PathWay® Model 7416 BNC 10-1 SWITCH APPLICATION w/RS232 REMOTE:

Share a single BNC interface device connected to the COMMON port among ten other devices connected to ports one through ten. The COMMON Port device has access to 10 connections or devices. The COMMON Device is connected to one connection or device at a time. Control the switch from the DB9 Remote port that accepts ASCII RS232 Serial Data for Remote Control Operation.

Model 7206 BNC Interface 10-1 Switch application

FEATURES:

The switch ports are transparent to all data.
Both center and shell of the BNC interface are switched via break-before-make electromagnetic relays.
All ports are located on the rear panel.
The unit maintains last set position on power loss and continues to pass data.
Front panel pushbutton controls.
Remote RS232 ASCII commands that allow the user to control switch position, obtain switch status, as well as query firmware version number, query serial number, and enable/disable autosend of switch position.
Front panel LEDs display present position and power status.
Switch locally via one front panel pushbutton or remotely via an RS-232 serial remote port.
Switch powers up in last known position.
One year warranty against defect on manufacturer parts and labor.
Rugged aluminum package provides EMI/RFI shielding.

The PathWay® Model7416 Remotely Controllable BNC interface 10- 1 Switch allows the user the capability of sharing a single BNC interface device connected to the common port among 10 other devices connected to ports 1-10. The Model 7416 is packaged in a slim rackmount enclosure. The switch may be controlled manually via front panel pushbuttons or remotely from an RS232 serial port located on the rear of the unit. Switch position status may be attained via the front panel LED display of the remote control RS232 serial port located on the rear of the unit.

Option: Wide Range Power Module: (Cat No. 517277) CE, RoHS and UL listed table mount power module, 100VAC-240VAC, 50-60Hz for use in place of the standard power module that is included with the unit. Has IEC 60320 C14 inlet. Ideal for international applications.
