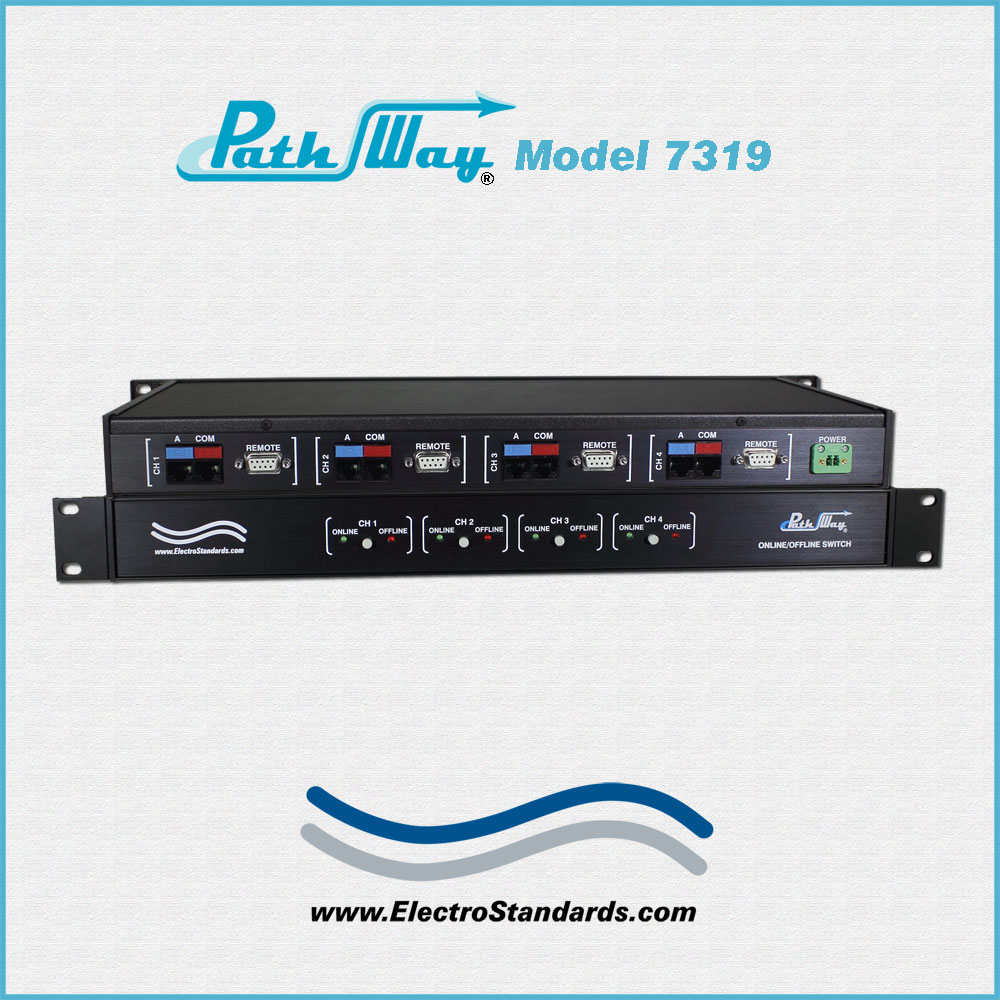

PathWay® Model 7319 Quad-Channel RJ45 Cat6 OnLine/OffLine Switch, with Current Sinking Remote

Overview

The PathWay® Model 7319 Quad Channel RJ45 Cat6 Online/Offline Switch with Current Sinking Remote allows the user the capability of connecting two separate devices, ports A and COM, via an Online or Offline connection for each channel. The Model 7319 is enclosed in a 1U, full rack size, all metal black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

The switch may be controlled manually via the front panel pushbuttons or remotely from the four DB9 ports (one for each channel) located on the rear of the unit. Switch position state may be attained via the front panel LEDs.

Absolutely NO data passes through the switch when in the OFFLINE position!
The Ultimate FIREWALL!

FEATURES OF THE MODEL 7319 4-CHANNEL ONLINE/OFFLINE APPLICATION:

Independently control each of four channels between Online and Offline via four front panel pushbuttons, or from the DB9 Remote ports via Optically Coupled Current Sinking Remote.
The switch ports are transparent to all data.
All (8) pins of the RJ45 interface are switched via break-before-make electromechanical relays.
The unit maintains last set position on power loss and continues to pass data.
Upon power up, the unit switches based on the state of Current Sinking Remote.
Front panel pushbutton control.
Four DB9 Remote ports, one for each of four channels.
Optically Coupled Current Sinking Remote Port to allow for the control of the switch position.
Front panel LED's display present position and power status.
Certified for Cat6 compliance.

TECHNICAL SPECIFICATIONS:

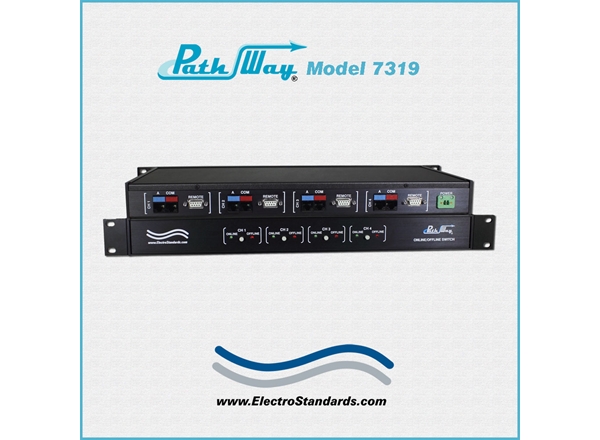

PORT CONNECTORS: (8) RJ45 female connectors:
- (2) labeled A and COM for each of four channels.

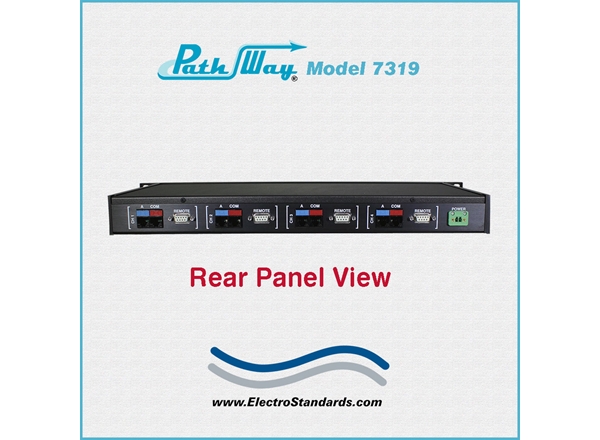

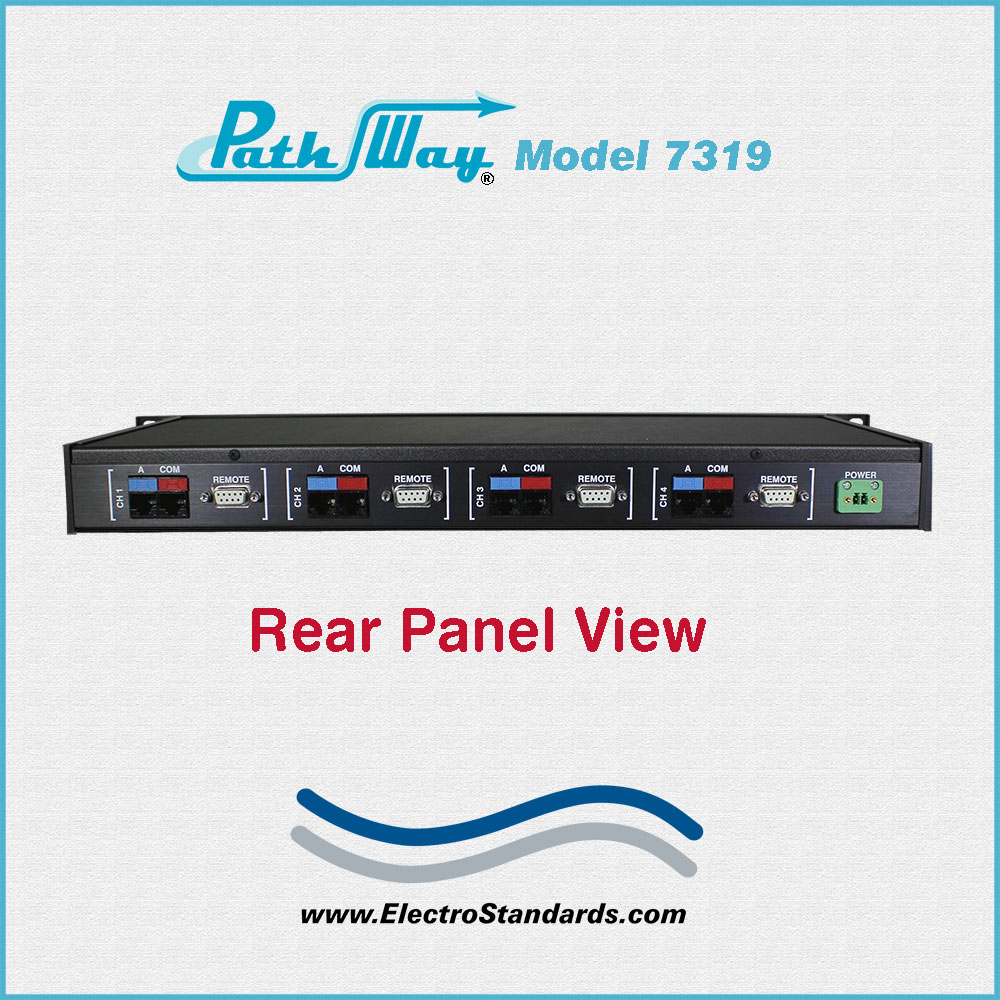

REMOTE PORT: (4) DB9 female connectors on rear accept Optically Coupled Current Sinking with custom pinout, one for each of four channels.

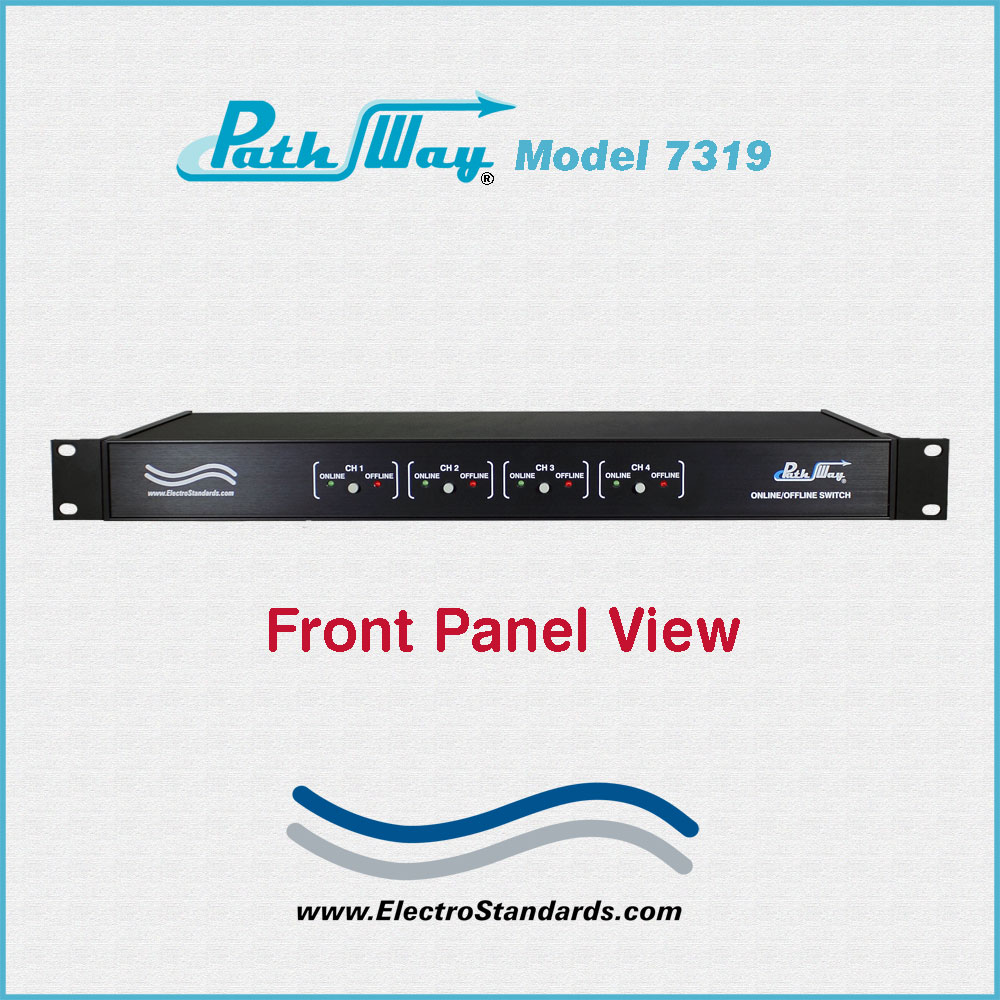

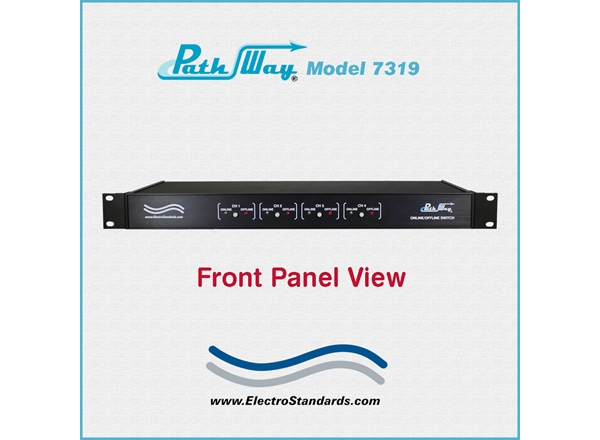

FRONT PANEL LED DISPLAY: On the front-panel, (4) Green LED (ONLINE) and (4) Red LED (OFFLINE) indicates switch position and power; (1) Green LED and (1) Red LED per channel.
FRONT PANEL CONTROL: (4) Pushbuttons for local switch control; (1) pushbutton per channel.
POWER: Wide Range (Cat No.517277) CE, RoHS, and UL listed table mount power module, 100VAC / 240VAC, 50Hz/60Hz is included with the unit.Has an IEC 60320 C14 inlet.Ideal for international applications.
DIMENSIONS: Rackmount, 19.0" W x 1.75" H x 8.28" D. (48.3 x 4.5 x 20.1 cm)
WEIGHT: Approximately 4.8 lbs. (2.2 kg)

QUAD-CHANNEL RJ45 CAT6 ONLINE/OFFLINE APPLICATION w/OPTICALLY COUPLED SINKING REMOTE:

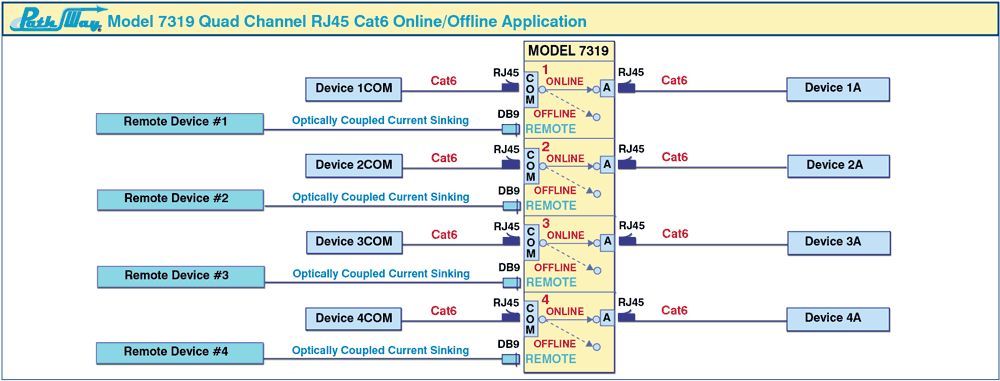

The application drawing illustrates four individual RJ45 Cat6 ONLINE/OFFLINE Channels. A device connected to the COM port can be connected or disconnected to the Device connected to the A port for each of four channels.

Each channel has its own DB9 Remote port that can be used to control the unit via Optically Coupled Sinking Remote.

PathWay® Model 7319 Quad-Channel RJ45 Cat6 ON/OFF Switch application drawing

Ordering Information

Catalog Number: 307319
Model Number: 7319
Base Price: See website or contact us for current pricing and availability.
Optional Wide-Range power supply: Catalog Number 517277 IEC C14 Inlet, 100-240VAC, 12 VDC

Documentation & Support

Specification Sheet (PDF) Download Available.
Product Manual available upon request.
