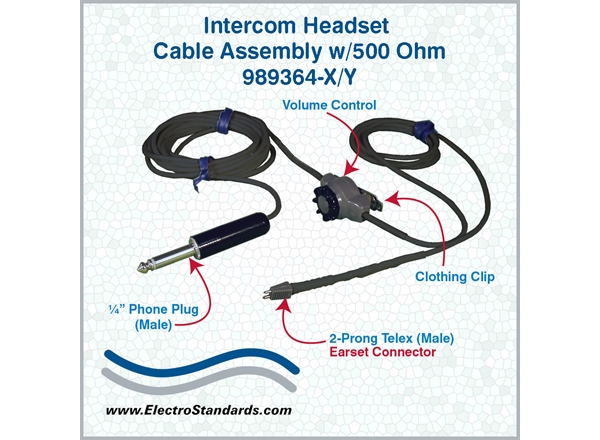

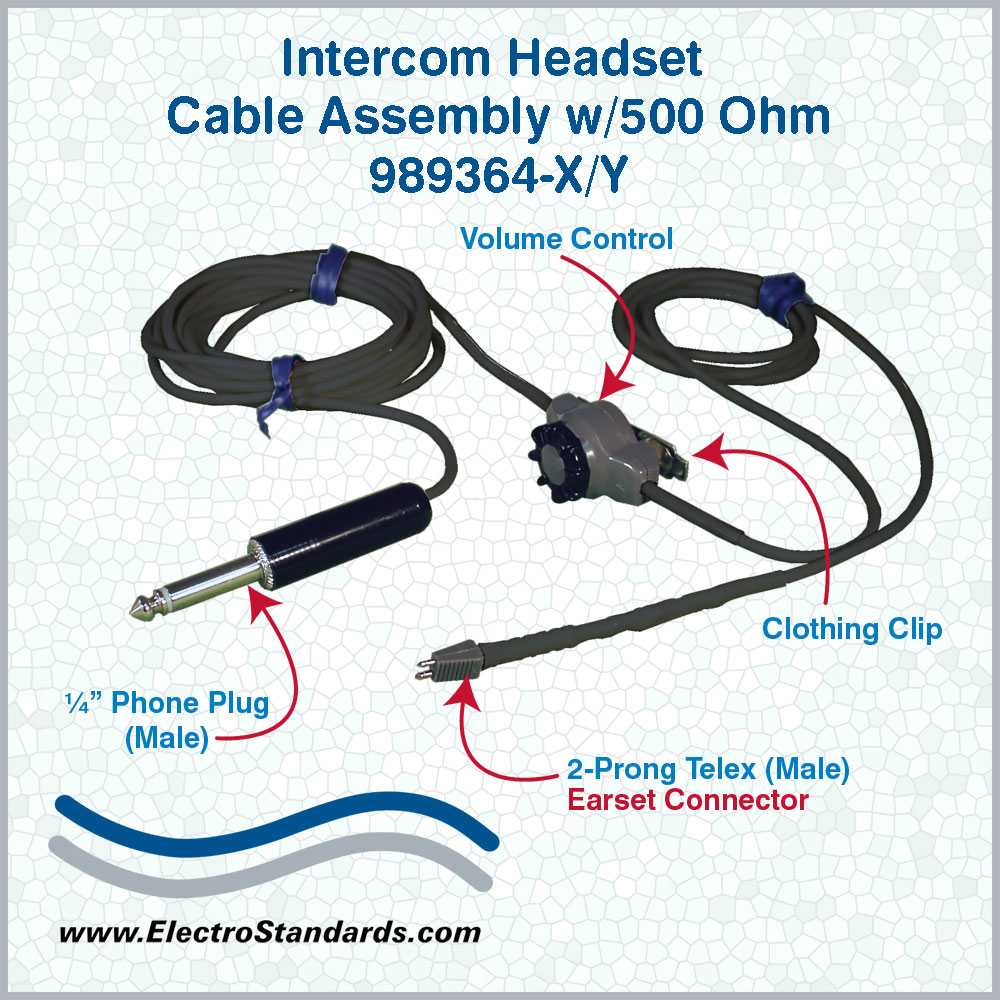

Model 9364-X/Y Intercom Headset Cable Assembly w/500 Ohm Volume Control, Custom Length
Designed for intercom headsets that support TV/Media Broadcasters, and Reporters.
- PHONE CONNECTOR: (1) Straight, standard 1/4 Inch Phone Plug (M)
- EARSET CONNECTOR: (1) 2-Prong Telex connector (M)
- CONTROL: 500 Ohm in-line Volume Control
- LEG LENGTHS: X inches, Y inches
- Connector ends: (1) ¼ Inch Straight Phone Plug to (1) small 2-Prong Telex.
- Assembly includes: (1) 500 Ohm Volume Control.
- Clothing Clip attached to volume control.
- Cable jacket color is black.
- Length between Phone Plug and center of Volume Control is "X" inches.
- Length between Volume Control and Earset Telex Connector is "Y" inches.
- Specify X and Y lengths (in inches) when ordering to completely customize the cable assembly for maximum comfort.
- Example: If requesting 105 inches between Phone Plug and center of Volume Control, and 43 inches between center of Volume Control and Earset Telex Connector, the Part Number to order would be: Model 9364-105/43, Catalog Number 989364-105/43.
The Model 9364-X/Y Intercom Headset Cable Assembly with Volume Control is provided for use by people on camera. As such, its length can be specified for maximum comfort of the user and, further, to facilitate being clothing-clipped for out-of-sight positioning. The volume control does not shut off completely at its low end so as not to cause the user to miss hearing the cues.

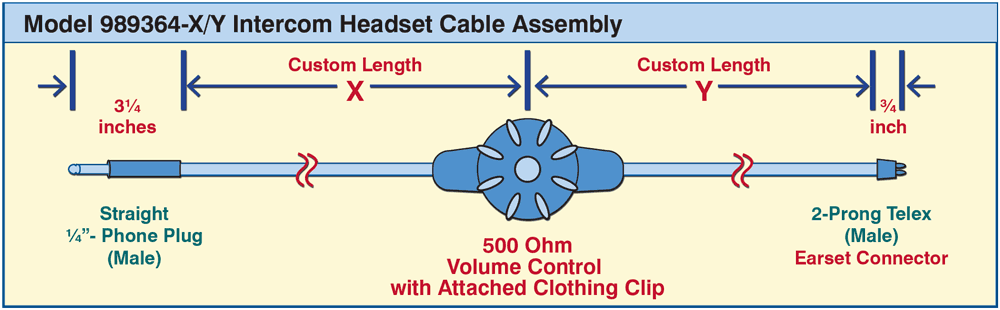

The overall length is approximately X plus Y inches (X is the length between the center of the Volume Control and the Phone Plug. Y is the length between the center of the Volume Control and the Earset Telex Connector). Note: the connectors on ends add an additional 4 inches to the overall length. See illustrations below.
Specify the desired X and Y lengths (in inches) when ordering. This will now allow you to completely customize the cable assembly length for your maximum comfort.
Application Diagram of Model 9364-X/Y Intercom Headset Cable Assembly with 500 Ohm Volume Control, Custom Length
