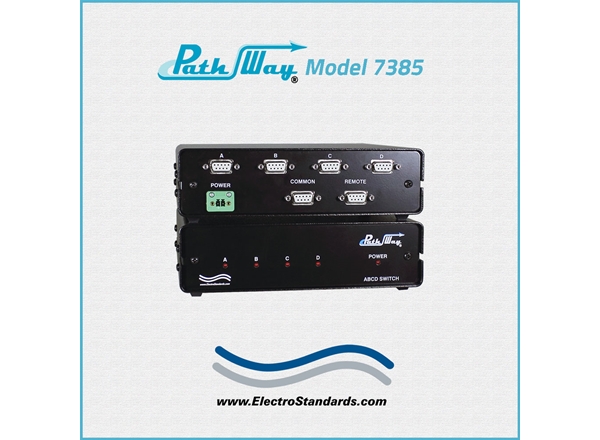

Model 7385 DB9 A/B/C/D Switch, Low Impedance, Exclusive Remote Control, Catalog # 307385

    DB9 A/B/C/D Switch, Low ImpedanceDB9 A/B/C/D Switch, Low ImpedanceDB9 A/B/C/D Switch, Low ImpedanceDB9 A/B/C/D Switch, Low Impedance
Click image to enlarge
    • DB9 A/B/C/D Switch, Low Impedance
    • DB9 A/B/C/D Switch, Low Impedance
    • DB9 A/B/C/D Switch, Low Impedance
    • DB9 A/B/C/D Switch, Low Impedance
Base Price:
$1,316.00
Catalog No: 307385
Model No: 7385
Product Type:Switches: Copper
Positions:4
Cable Type/Port Connector:DB9 Switch Ports
Channels per Switch Chassis:1
Electronic Switches/Power Required:PathWay® Copper
Remote Control:RS232 Serial
Security:Exclusive Remote Control
Configuration:Desktop
Pins Switched:9
Remote Port:DB9
Impedance:Less than 0.8 Ohms
Local Control:None

Add to Cart
DB9, A/B/C/D Switch, Low Impedance with Exclusive Remote Control
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Path Way® Model 7385 DB9 A/B/C/D Low Impedance Switch with Exclusive Remote Control, Desktop

Overview

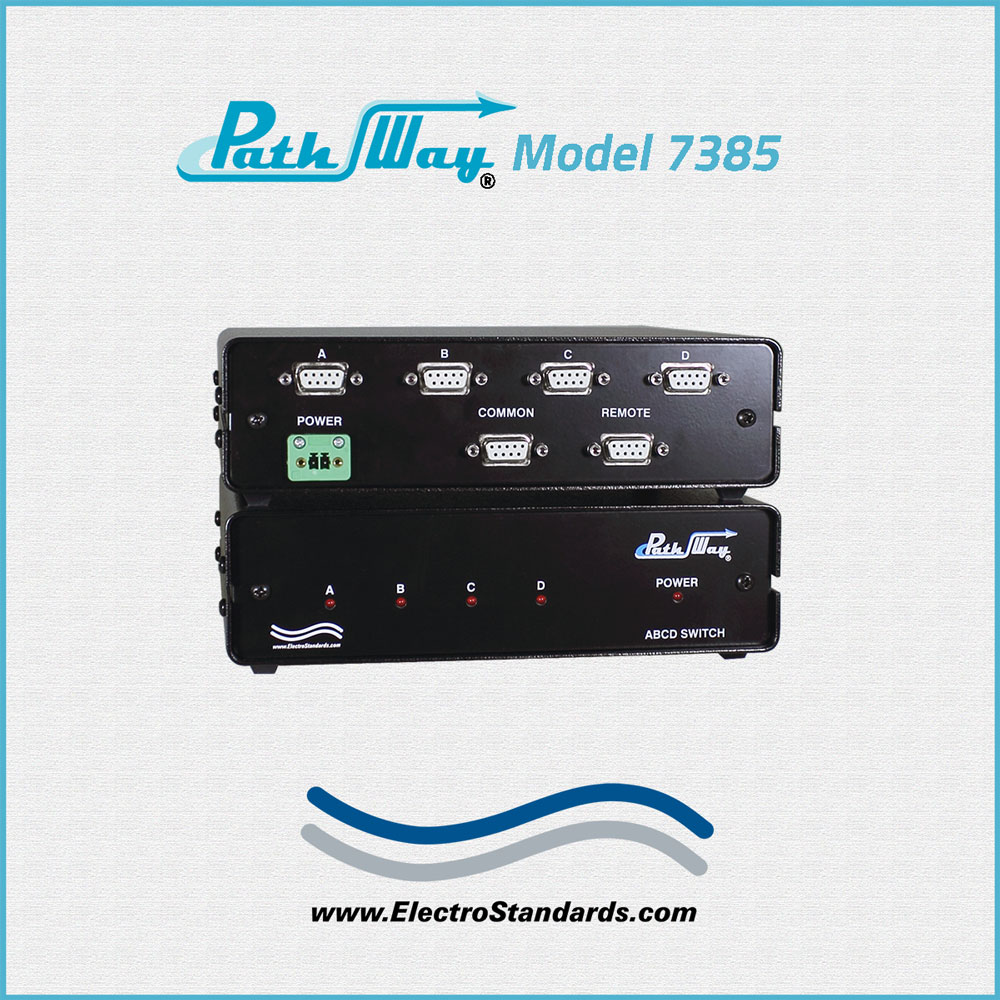

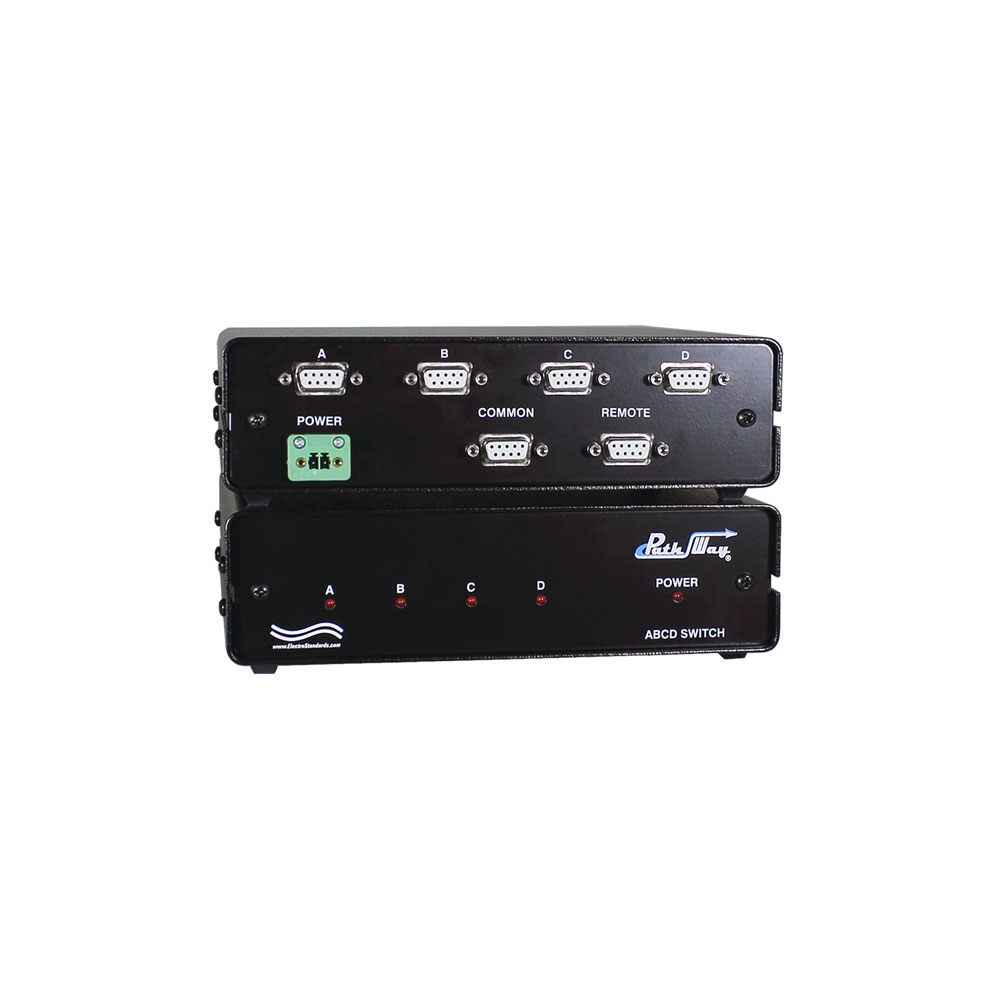

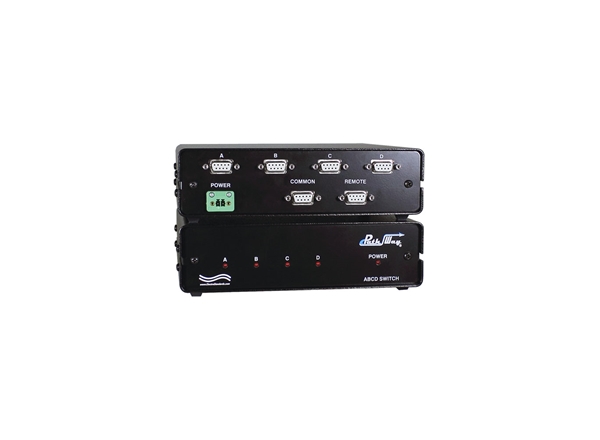

The PathWay® Model 7385 DB9 Interface A/B/C/D Switch with RS232 Remote allows the user the capability of sharing a single DB9 interface device connected to the Common port among four other devices connected to the "A", "B", "C", and "D" ports. The Model 7385 is packaged in a slim desktop style enclosure.

There is no local or front panel switch control on the unit. The Model 7385 data switch can ONLY be switched remotely from the DB9/female RS232 Serial Interface Remote port located on the rear of the unit. The front panel LED display indicates the switch position and unit power status.

•Ideal for IT Network Management of Multiple Remote Locations.

•Switch ANY DB9 Interface Device to share or backup.

FEATURES OF THE MODEL 7385 DB9 SWITCH:

  • Allows quick connection to any one of four devices from one COMMON device.
  • The switch ports are transparent to all data.
  • All (9) pins of the DB9 interface are switched via break-before-make electromechanical relays.
  • The resistance between the COMMON port pins and the corresponding current position pins is less than 0.8 ohms.
  • The unit maintains last set switch position in the event of a power loss and continues to pass data.
  • The REMOTE RS232 ASCII commands that allow the user to control switch position, obtain switch status, query firmware version number, and query serial number.
  • Ideal for "remote control only" applications. There is no local control on the Model 7385.

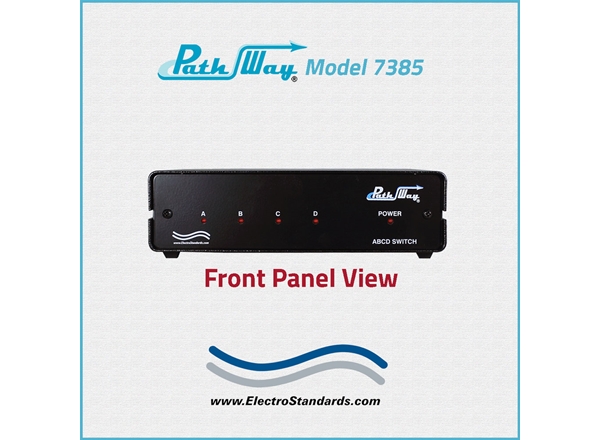

  • Front panel LEDs display the switch position and power status.
  • Attractive all metal black box packaging provides EMI/RFI shielding.
  • Custom length DB9 cables available for your switch installation.
  • Municipalities, schools, government: This product is on GSA Schedule!

TECHNICAL SPECIFICATIONS:

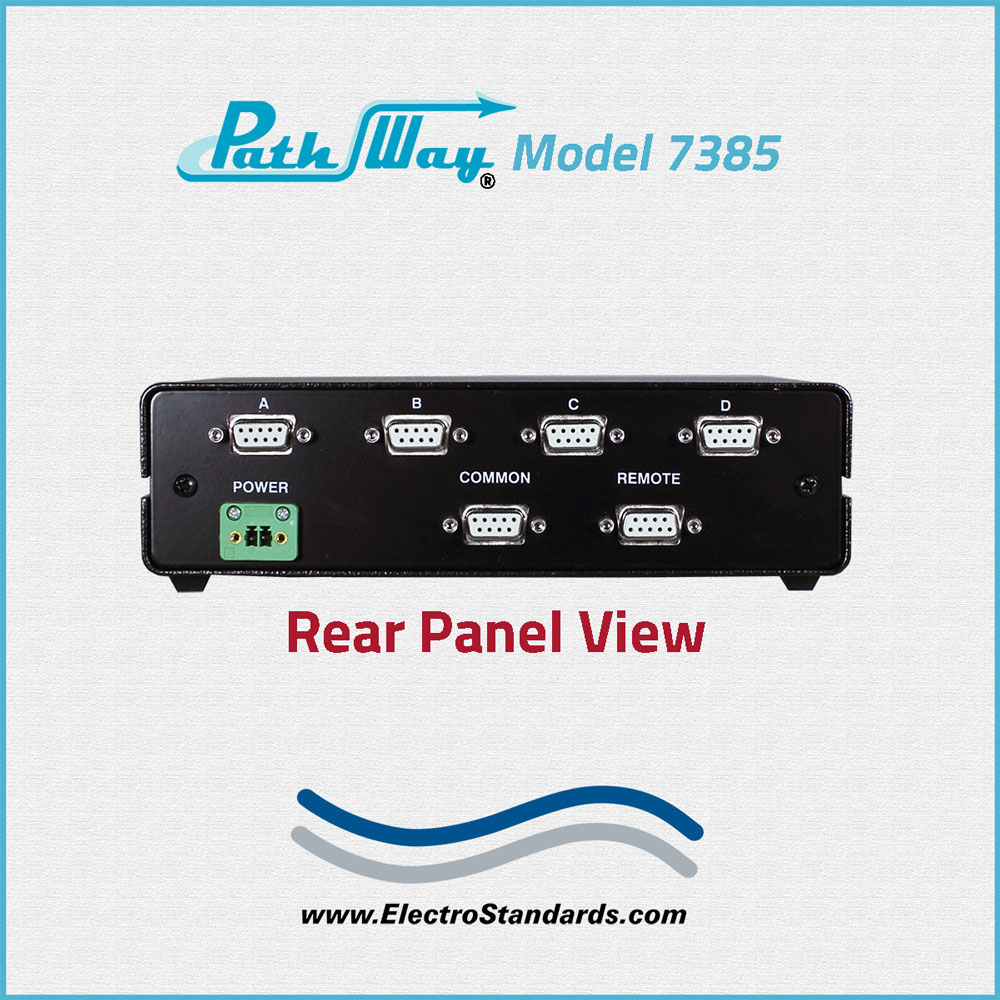

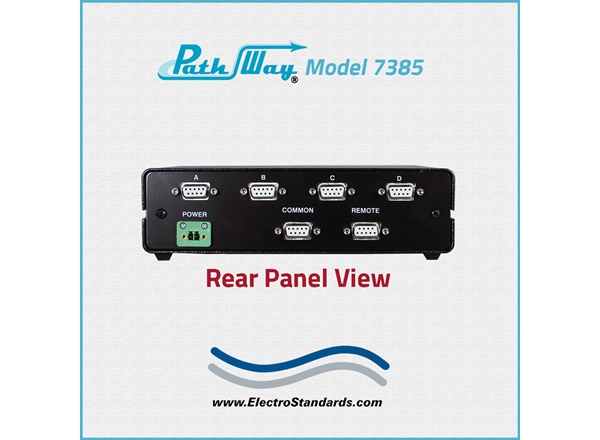

•PORT CONNECTORS: (5) DB9(F) connectors labeled A, B, C, D, and COMMON.
•REMOTE CONTROL: (1) DB9(F) connector labeled REMOTE accepts RS232 serial data ASCII commands for Remote Control operation.

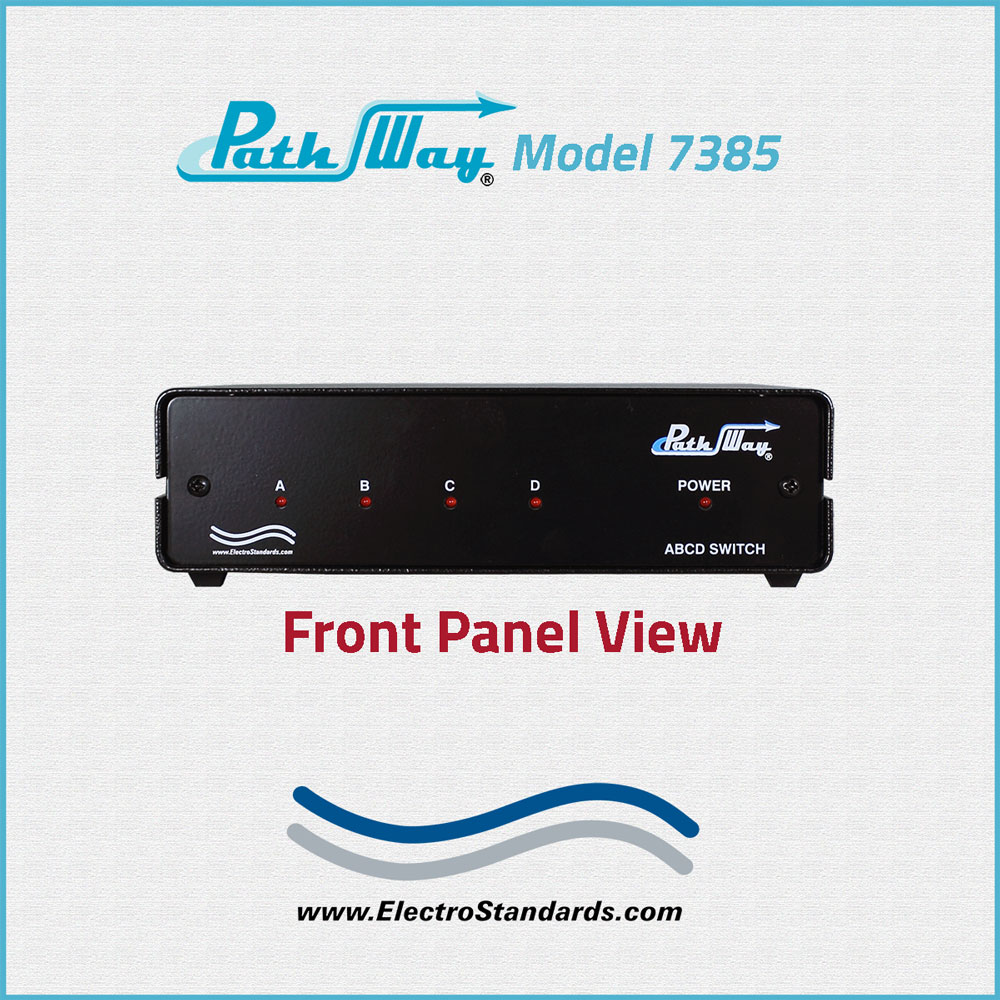

•DISPLAY: (4) LED's labeled A, B, C and D display switch position. (1) LED labeled POWER displays power position.
•POWER: UL approved wall mount 110/120VAC, 50Hz/60Hz power module supplies 12 VDC, 500 mA to the unit.  Has 2-prong, US, non-polarized plug.
•DIMENSIONS: Desktop configuration 8.11" W x 2.41" H x 7.35" D. [20.6 x 6.2 x 18.6 cm]
•WEIGHT: Approximately 2.1 lbs. [1.0 kg]

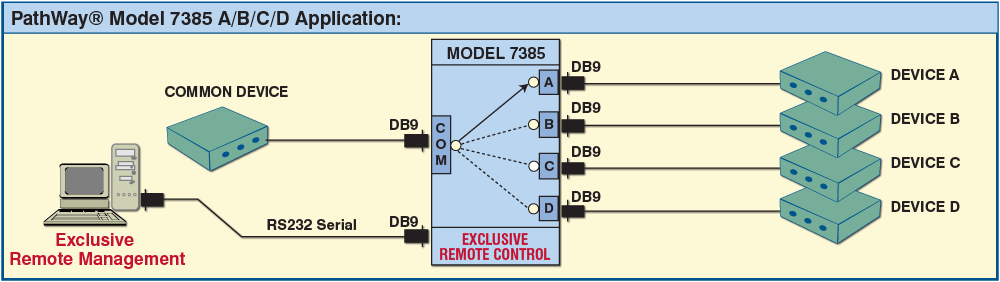

DB9 A/B/C/D SWITCH APPLICATION W/EXCLUSIVE REMOTE CONTROL:

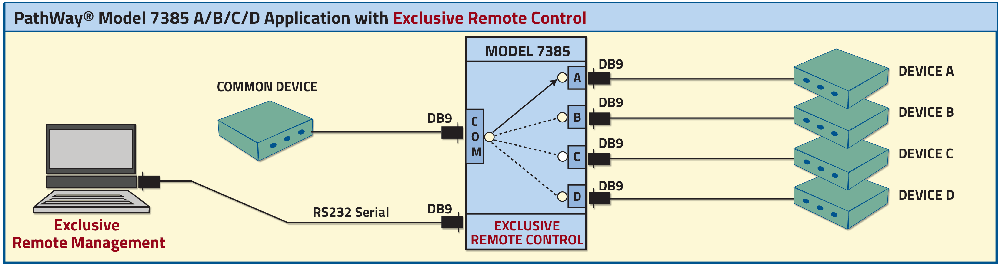

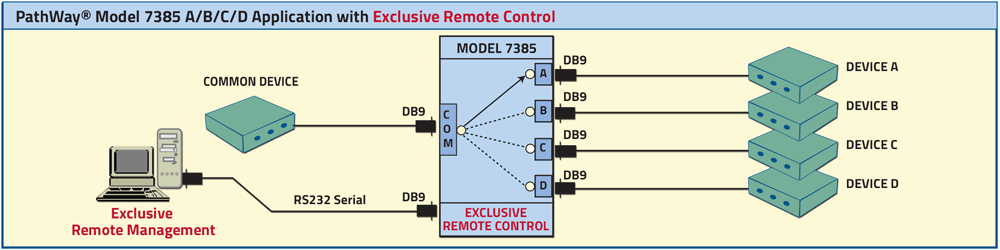

 The application drawing illustrates a four position DB9 Interface A/B/C/D Switch. The COMMON Device has access to four other devices connected to the A, B, C, and D ports.
There is a DB9 COMMON port with access to the four DB9 ports, A, B, C, and D. The DB9 Remote port is used for Exclusive Remote Control of the unit. There is no front panel control.

PathWay Model 7385 DB9 A/B/C/D Low Impedance Switch

Ordering Information

  • Catalog Number: 307385
  • Model Number: 7385
  • Base Price: See website or contact us for current pricing and availability.
  • Optional Wide-Range power supply: Catalog Number 517277 IEC C14 Inlet, 100-240VAC, 12 VDC
