Catalog # 309474 Model 9474 A/B and OFFLINE Position RJ45 Cat5e Secure Keylock Switch with Recessed Ports, Shielded Connectors & Shielded Internal Cabling

Click image to enlarge

Base Price:

$873.00

Catalog No:

309474

Model No:

9474

Product Type:

Switches: Copper

Interface:

RJ45/Cat5e

Positions:

3, Offline

Cable Type/Port Connector:

RJ45

Channels per Switch Chassis:

Manual Control/No Power Required:

LineSelect® Manual Operation

Security:

Keylock, Offline Position

Configuration:

Rackmount

Pins Switched:

Local Control:

Keylock

Qty

Add to Cart

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

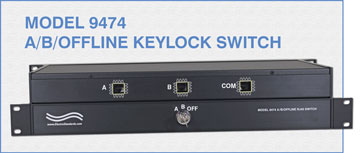

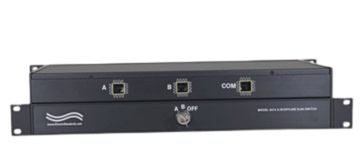

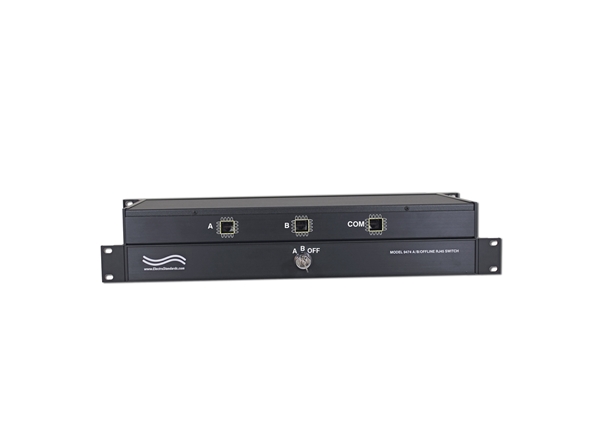

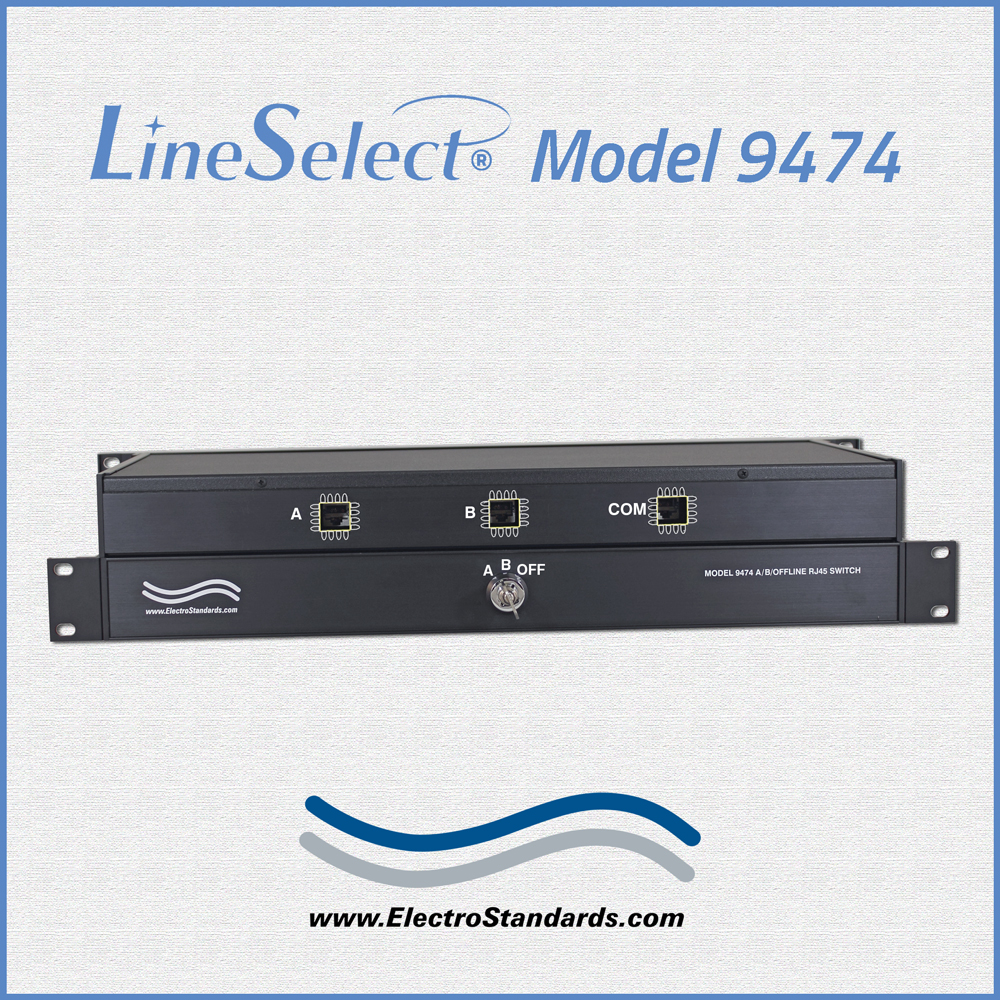

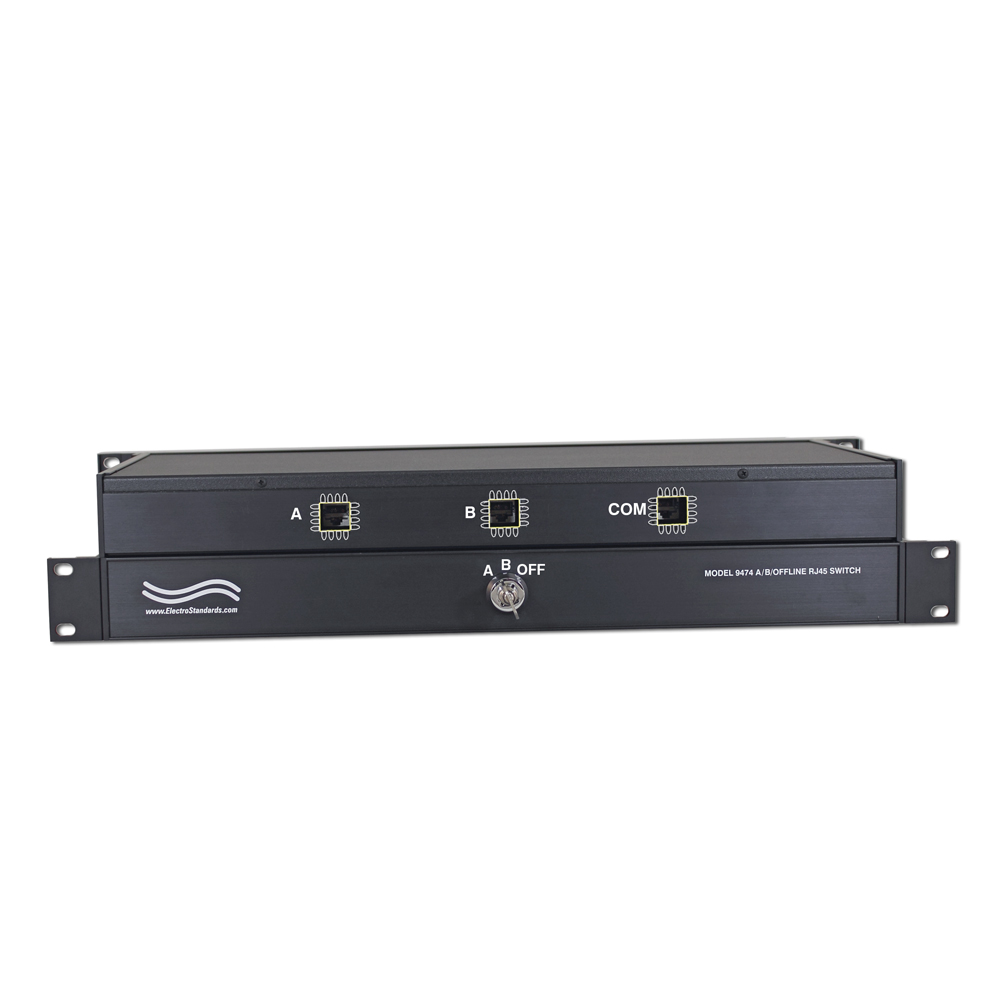

LineSelect® Model 9474 A/B and OFFLINE Position RJ45 Cat5e Secure Keylock Switch with Recessed Ports, Shielded Connectors & Shielded Internal Cabling

Overview

The Model 9474 RJ45 A, B, and Secure OFFLINE Cat5e Keylock switch allows the user to access two RJ45 devices connected to its A and B ports with one RJ45 device connected to its Common port, or to isolate all ports by switching to a secure OFFLINE position. The unit is a manually operated keylock switch, requiring no power. Port selection is quick and easy via the front panel keylock switch. The A, B, and Common RJ45 ports are located inside the unit, accessible through the rear panel for security. Shielded RJ45 connectors and shielded internal cabling ensures signal integrity.

Deep Recessed Ports, Shielded RJ45 Connectors & Internal Cabling for Added Signal Integrity & Reliability
Secure Keylock Control of Switch Position

FEATURES OF THE MODEL 9474 RJ45 A/B/OFFLINE SWITCH:

Allows one Common RJ45 port to be shared among either of two RJ45 ports A and B or isolate all ports by switching to OFFLINE position.
Shielded RJ45 connectors. Shielded internal cabling.
All (8) leads of the RJ45 interface are switched via break-before-make keylock switch.
The switch ports are transparent to all data.
Certified for category 5e compliance.
High quality sealed switch with self-wiping precious metal contacts.
Manually operated keylock switch. No power required.
RJ45 A, B, and Common ports are deep recessed inside the unit, accessible through the rear panel for security.
Rackmounted switch occupying only 1U height of space.
Attractive all metal black box packaging provides EMI/RFI shielding.
Improves computer network efficiency by allowing sharing of peripherals.
Custom length Cat5e RJ45 cables available.
Municipalities, schools, government: This network switch is on
GSA Schedule GS-35F-0286V.

TECHINICAL SPECIFICATIONS:

Port Connectors: (3) RJ45 female shielded connectors labeled A, B, and COMMON.
Front Panel Controls: (1) keylock switch allows local switching.
Power: No power required. Manually operated.
Enclosure: Shielded Aluminum Enclosure.
Dimensions: Rackmount: 19.0" W x 1.75" H x 8.18" D. (48.3 x 4.4 x 20.8 cm)
Weight: 4.5 lbs. (2.1 kg)

RJ45 A/B/OFFLINE Cat5e MANUAL KEYLOCK SWITCH APPLICATION:

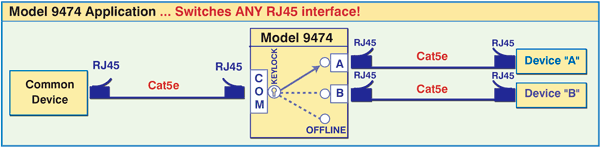

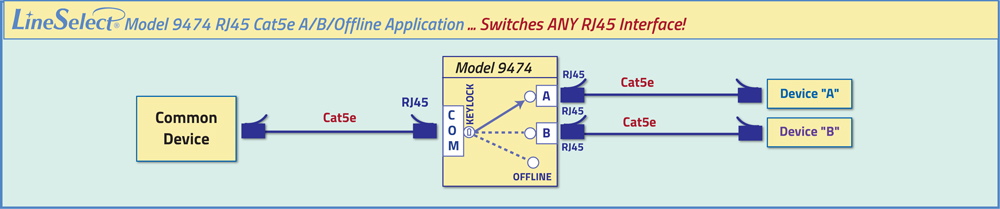

The drawing illustrates an RJ45 Interface COMMON device connected to the COMMON RJ45 port with access to two other devices connected to the A and B ports. Select one of three positions with the "Keylock" switch, "A", "B", or "OFFLINE" position. In the "OFFLINE" position all ports are isolated.

Model 9474 Cat5e Keylock application switches any RJ45 interface

Ordering Information

Catalog Number: 309474
Model Number: 9474
Base Price: See website or contact us for current pricing and availability.

Documentation & Support

Specification Sheet (PDF) Download Available.
Product Manual available upon request.
For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
We welcome international inquiries and ship worldwide.

Shipping and Returns

Shipped via UPS ground (unless otherwise requested).
Freight Charges prepaid and added to invoice. We can estimate freight charges for you.
Return policy: contact us within 30 days of shipment for an RMA number. Items returned without RMA not accepted. Please refer to our full return policy in our Terms and Conditions found on our website.

TO READ THE ARTICLE "HOW TO DETERMINE THE RIGHT FIBER OPTIC NETWORK BACKUP SWITCH FOR YOUR APPLICATION" EITHER CLICK THE LINK OR APPLICATION NOTE ICON AT TOP OF PAGE.

LineSelect® is a registered trademark of Electro Standards Laboratories.

For custom fiber optic network switches contact our friendly sales support staff at 401-943-1164; or email: eslab@electrostandards.com, or complete our online Custom Product Request form.

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.
