Catalog 307223 Model 7223 DB15 A/B LAN/WAN Network Switch

    DB15 A/B LAN/WAN Network SwitchDB15 A/B LAN/WAN Network Switch
Click image to enlarge
    • DB15 A/B LAN/WAN Network Switch
    • DB15 A/B LAN/WAN Network Switch
Base Price:
$2,026.00
Catalog No: 307223
Model No: 7223
Product Type:Switches: Copper
Positions:2
Cable Type/Port Connector:DB15 Switch Ports
Channels per Switch Chassis:1
Electronic Switches/Power Required:PathWay® Copper
Remote Control:Ethernet
Configuration:Desktop
Pins Switched:15
Remote Port:RJ45
Local Control:Pushbutton
Feature:IP Addressable

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

Remotely Controllable Network Switch, DB15
PathWay® Model 7223 DB15 A/B Switch with 10BASE-T LAN/WAN Access

IP Addressable Switch for Critical Network Alternate-Path Switching!

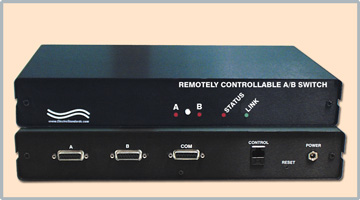

Model 7223 DB15 A/B Switch with 10 Base-T LAN / WAN Access

SPECIFICATIONS:

  • REAR PANEL CONNECTORS:
    • (3) DB15/F connectors for A & B inputs and COMMON output,
      all 15 pins supported and switched
    • (1) RJ45 connector for remote control, 10BASE-T interface
    • (1) Power jack
  • POWER SUPPLY: Unit supplied with external power module, 110VAC, 60 Hz.
  • FRONT PANEL CONTROLS: (1) pushbutton, switch position selection
  • INDICATORS: (2) red LED status indicators display current switch position.
  • DIMENSIONS: 13.6" W x 2.1" H x 7.25' D. (34.5 x 5.3 x 18.4 cm)
  • WEIGHT: 2.5 lbs. (1.0 Kg)

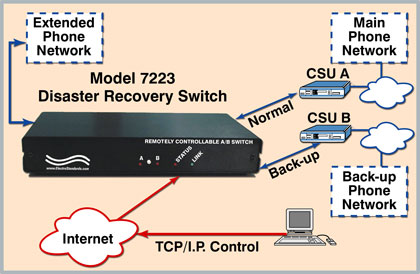

T1 LINK, DISASTER RECOVERY APPLICATION:

Model 7223 T1 Link Disaster Recovery application.

FEATURES:

  • Enables sharing of a single device with a DB15 interface connector among two other devices.
  • Control manually via pushbutton or remotely via LAN/WAN connection to the unit's 10BASE-T rear-panel port.
  • A standard Web browser pointed at the IP address of the unit launches a graphical user interface to the switch.
  • The Web access allows the user to remotely control the switch position, see the current status, and lockout the front-panel pushbutton.
  • Create user categories with different authorities.
  • Password protected.
  • Easy-to-use intuitive screens.
  • No special software required.
  • LEDs indicate switch position, lockout and power status at all times.
  • All switched signals maintain position and continuity in event of a power loss.
  • Switched ports are transparent to data.
  • All pins of the DB15 interface are switched.

The PathWay® Model 7223 network switch enables sharing of a single device with a DB15 interface connector among two other devices. Control the Model 7223 manually via the front panel pushbutton or remotely via a LAN/WAN connection to the unit's 10 Base-T rear port panel.  A standard Web browser, such as Internet Explorer, pointed at the IP address of the unit launches a graphical user interface to the switch.  The Web access allows the user to remotely control the switch position, see current status, and lockout the front-panel push button, if desired.

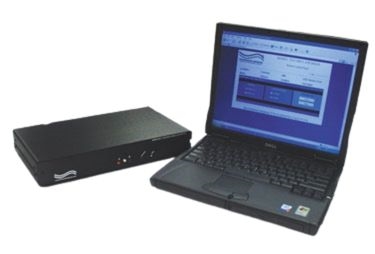

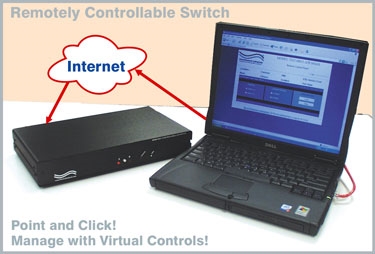

Model 7223 DB15 switch can be connected to a laptop for remote control via graphical user interface.

Electro Standards can supply all of your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

The Model 7223 was featured on ThomasNet Industrial NewsRoom:
http://news.thomasnet.com/fullstory/452051

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
