Model 9258R Six-Channel RS530 DB25 A/B Switch, RoHS Compliant

Overview

The LineSelect® Model 9258R 6-Channel RS530 DB25 A/B Switch, allows the user six independent channels of A/B switch function.  The A/B function permits access by either of two devices connected to ports A and B, to a single COMMON port.  The LineSelect® Model 9258R is a manual switch and requires no power. The LineSelect® Model 9258R is enclosed in a 2U, full rack size, all metal chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

  • Applicable to switching ANY DB25 interface devices.

  • Ideal for Commercial-Off-The-Shelf (COTS) purchase applications.

  • RoHS Compliant.

FEATURES OF THE MODEL 9258R 6 CHANNEL A/B SWITCH:

  • Each channel allows quick connection to any one of two devices from one COMMON device.
  • The ports are transparent to all data.
  • All (25) pins of the DB25 interface are switched via break-before-make rotary switch.
  • Manual operation via front-panel rotary switches.
  • Independently switch each of six channels via knobs on the front panel.
  • RoHS Compliant.
  • High quality sealed self-wiping low impedance contacts.
  • Eliminates the need to plug and unplug cables.
  • No external power required.
  • Improves computer network efficiency by allowing sharing of peripherals.
  • Attractive all metal, black box packaging provides EMI/RFI Shielding.
  • Lifetime warranty against manufacturing defects.
  • Custom Length DB25 Cables available for your switch installation.

TECHNICAL SPECIFICATIONS:

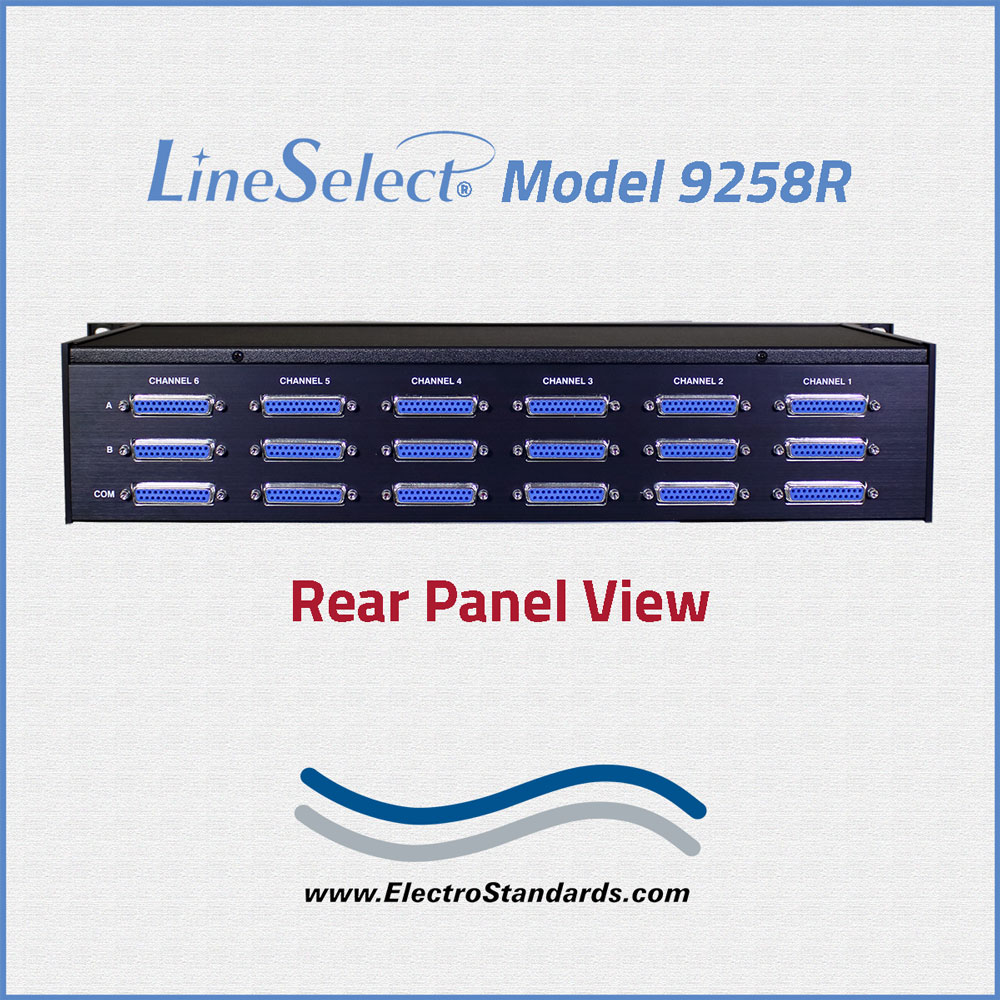

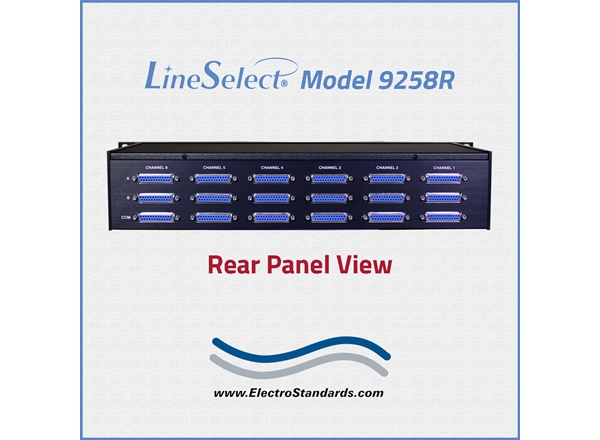

  • PORT CONNECTORS: (18) DB25 female connectors labeled A, B, and COMMON. (Three for each of six channels)

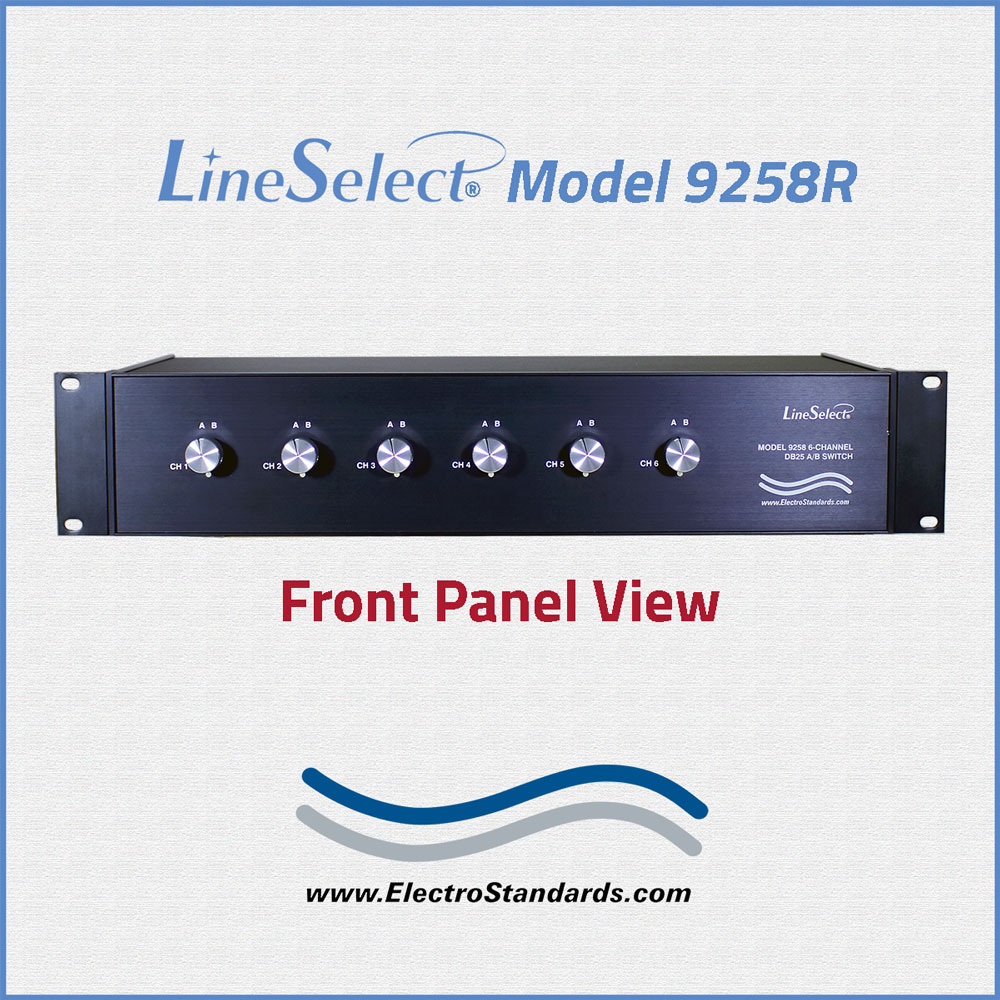

  • FRONT PANEL CONTROLS: (6) Rotary Switches on front panel, one knob per channel, to switch each channel independently.
  • PINS SWITCHED:  All 25 pins switched.
  • POWER:  No power is required.
  • DIMENSIONS:  Rackmount configuration 19.0"W x 3.5"H x 8.75"D. (48.3 x 8.9 x 22.2 cm)
  • WEIGHT: Approximately 6.1 lbs. (2.8 kg.)

LineSelect® Model 9258R 6-Channel DB25, RS530 A/B Switch with Six Independent Channels: (RoHS Compliant)

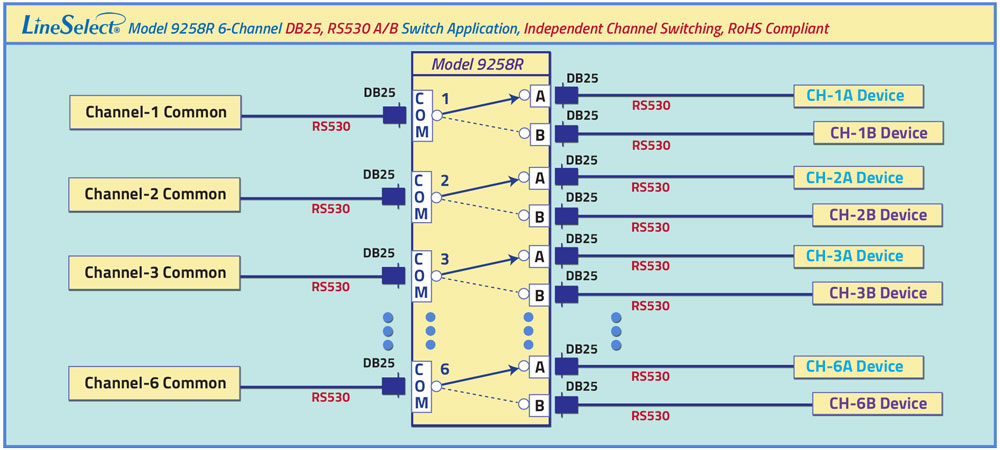

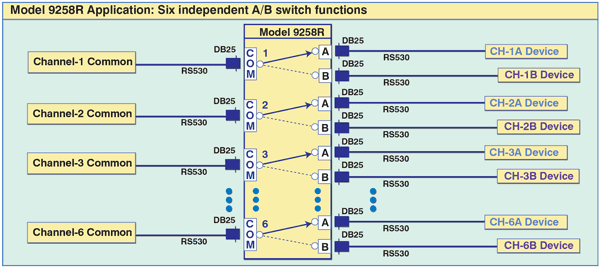

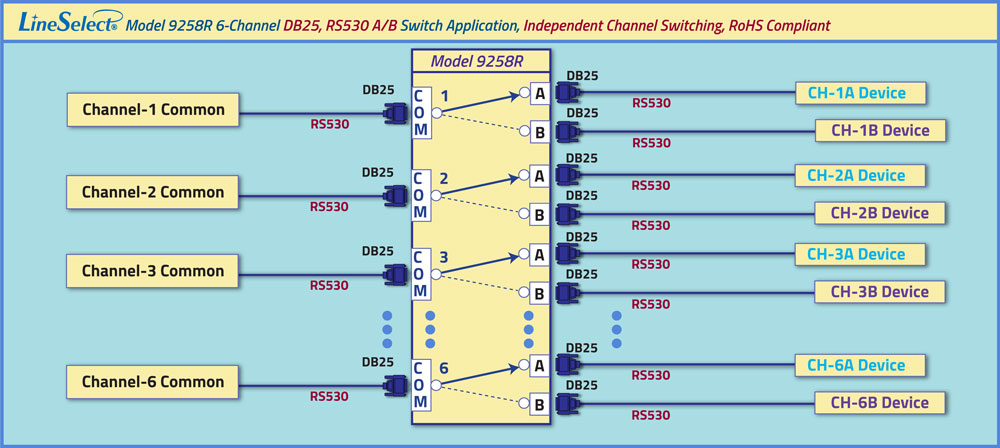

  • The drawing illustrates six channels of DB25, RS530 A/B independent channel switching.
  • Each channel has a COMMON device connected to the DB25 COMMON port sharing between two devices connected to the DB25 A and B ports.
  • RoHS Compliant!

LineSelect Model 9258R 6-Channel DB25l, RS520 A/B Switch application

Ask about our popular Model 900 EIA/TIA RS-530 Interface Analyzer

  • Red and Green light emitting diodes indicate status of key signals at the EIA/TIA data interface.
  • Easy to use, for fault isolation.
  • Electro Standards can supply all your Network Cable requirements.

Model 900 EIA/TIA RS520 Interface Analyzer

Ordering Information

  • Catalog Number: 309258R
  • Model Number: 9258R
  • Base Price: See website or contact us for current pricing and availability.

Documentation & Support

  • Specification Sheet (PDF) Download Available.
  • Product Manual available upon request.
  • For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
  • We welcome international inquiries and ship worldwide.
