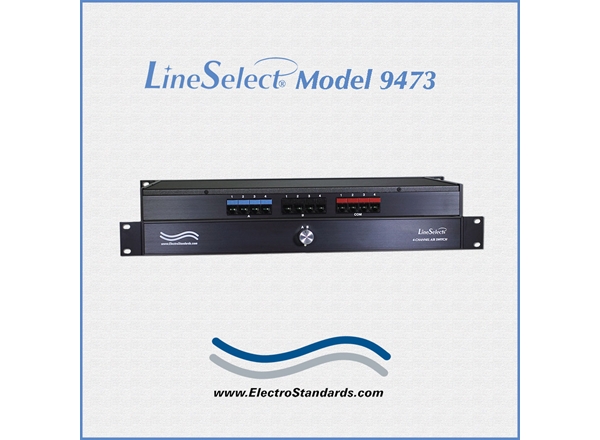

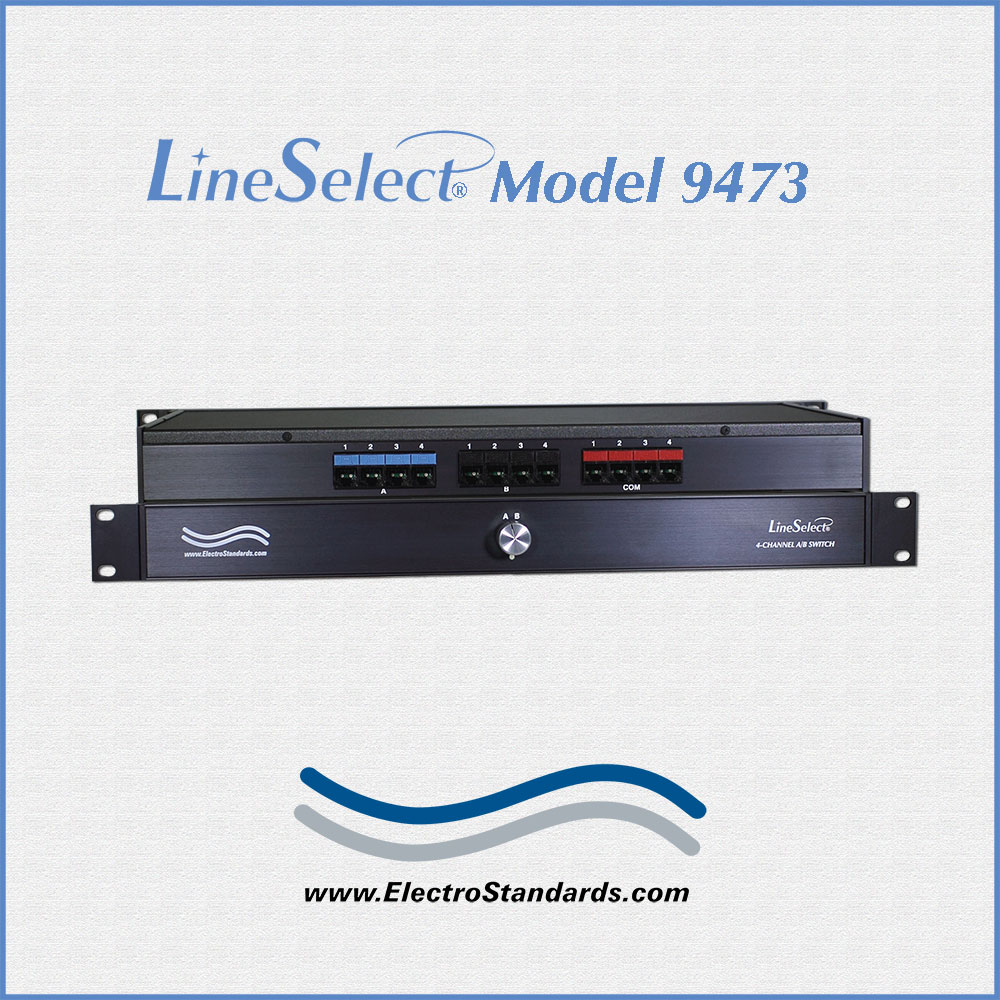

Model 9473 4-Channel RJ45 Cat6 A/B Switch, Simultaneous Control, Manual Catalog # 309473

    Model 9473 4-Channel RJ45 CAt6 A/B Switch, Simultaneous ControlModel 9473 4-Channel RJ45 CAt6 A/B Switch, Simultaneous ControlModel 9473 4-Channel RJ45 CAt6 A/B Switch, Simultaneous ControlModel 9473 4-Channel RJ45 CAt6 A/B Switch, Simultaneous Control
Click image to enlarge
    • Model 9473 4-Channel RJ45 CAt6 A/B Switch, Simultaneous Control
    • Model 9473 4-Channel RJ45 CAt6 A/B Switch, Simultaneous Control
    • Model 9473 4-Channel RJ45 CAt6 A/B Switch, Simultaneous Control
    • Model 9473 4-Channel RJ45 CAt6 A/B Switch, Simultaneous Control
Base Price:
$1,925.00
Catalog No: 309473
Model No: 9473
Product Type:Switches: Copper
Positions:2
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:4
Manual Control/No Power Required:LineSelect® Manual Operation
Channel Control:Simultaneous Channel Control
Compliance/Standards:Cat6
Configuration:Rackmount
Pins Switched:8
Local Control:Rotary Knob

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

LineSelect® Model 9473 4-Channel RJ45 Cat6 A/B Switch, Manual, Simultaneous Control, Rackmount

Overview

LineSelect® Model 9473 provides fast, reliable manual switching between two network paths or devices across four RJ45 Cat6 channels simultaneously. Instead of manually unplugging and reconnecting network cables, operators can switch all four channels together using a single front-panel rotary control. No power. No software. No network configuration. Just dependable physical A/B switching.

  • Switch Four RJ45 Connections Between A and B with One Simple Control

  • Applicable to switching ANY RJ45 interface, quickly and reliably.

FEATURES OF THE MODEL 9473 4-CHANNEL A/B MANUAL SWITCH:

  • Tested for Cat6 Compliance.
  • All 8 pins of the RJ45 interface are switched via break-before-make rotary switch.
  • Simultaneously switches all four channels via front-panel rotary switch knob.
  • High quality sealed switch with self-wiping low impedance contacts.
  • Manually operated. No power required.
  • Rackmount configuration is standard.
  • Attractive all metal black box packaging provides EMI/RFI shielding.
  • Lifetime warranty against manufacturing defects.
  • Cutsom length Cat6 cables available for your switch application.

TECHNICAL SPECIFICATIONS:

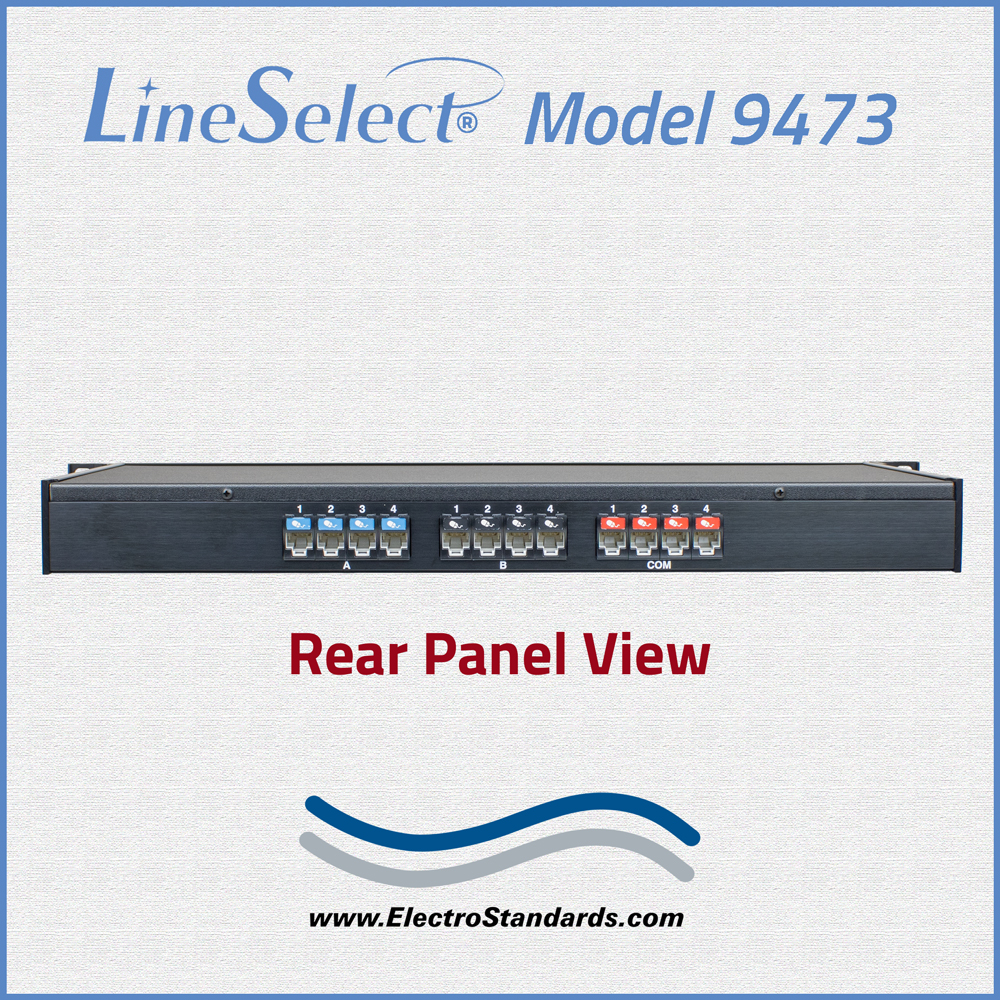

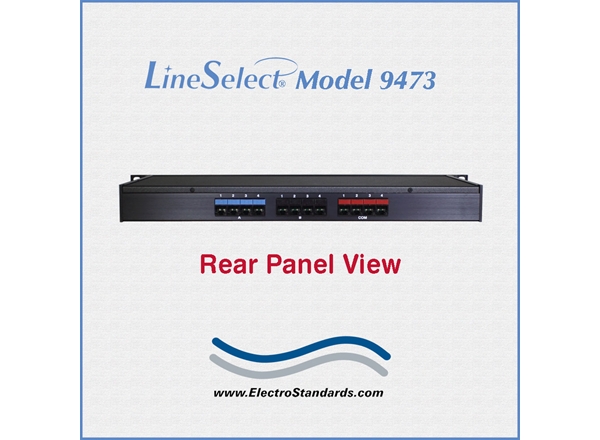

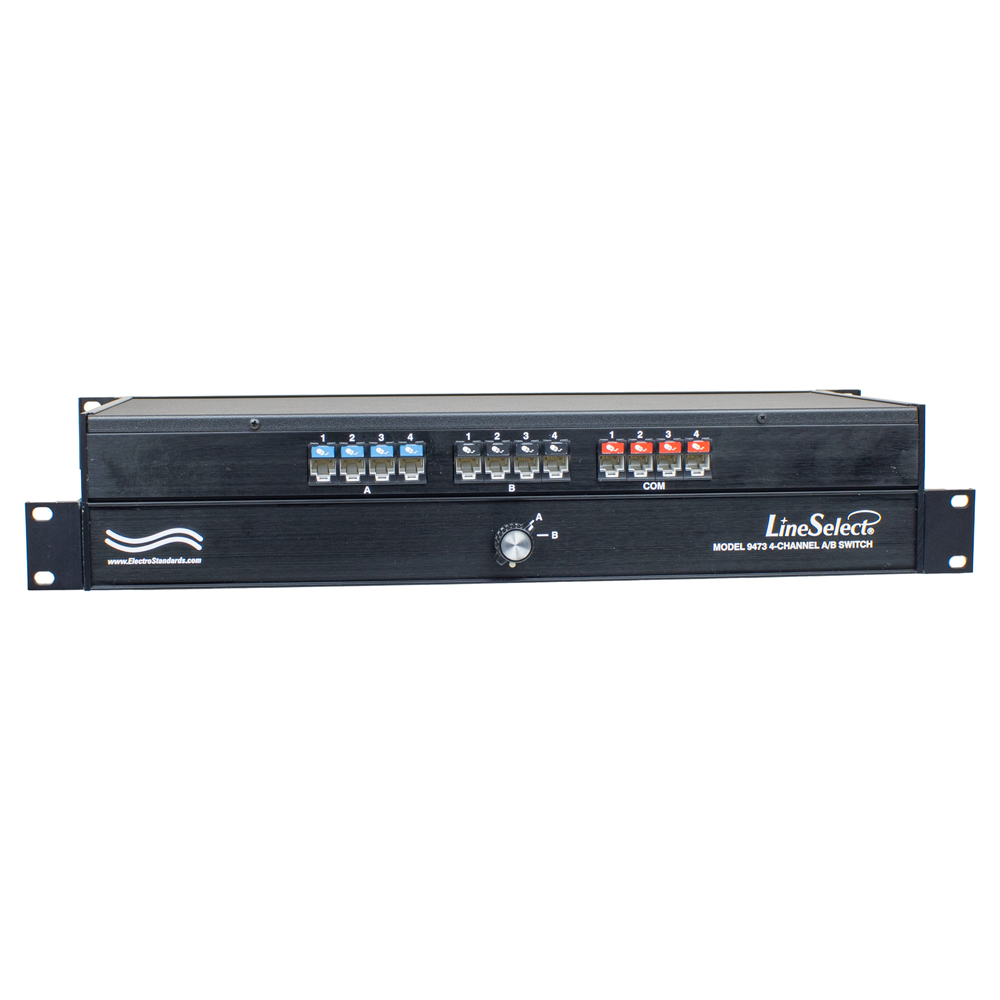

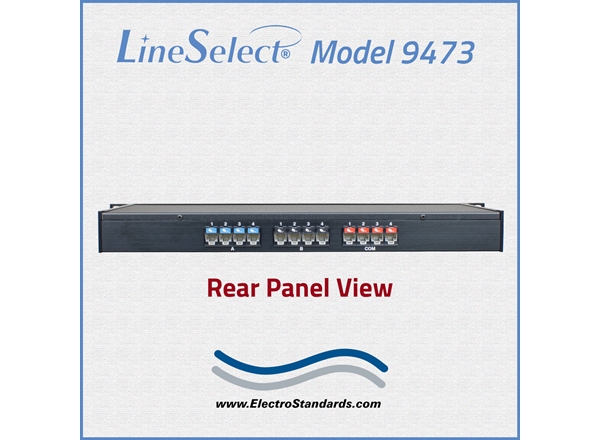

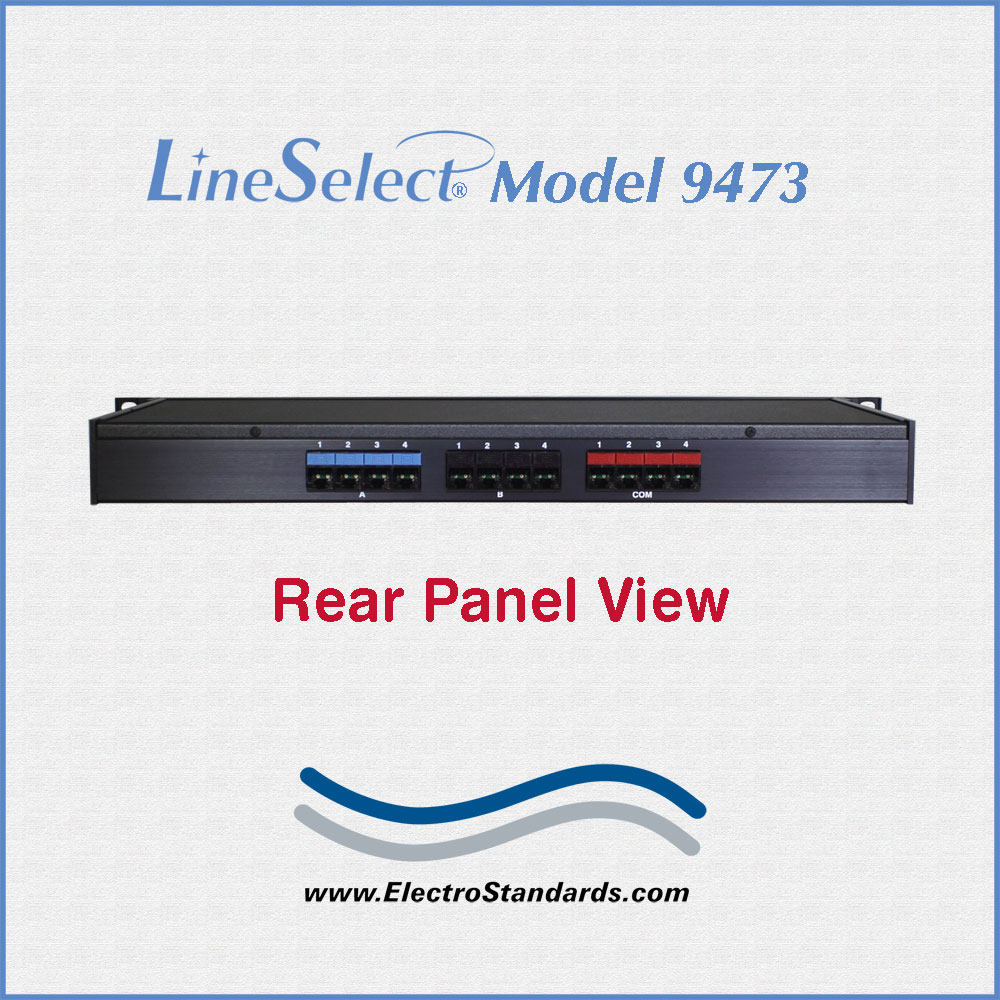

  • PORT CONNECTORS: (12) RJ45 female connectors, three labeled A, B, and COMMON, for each of the 4 Channels.

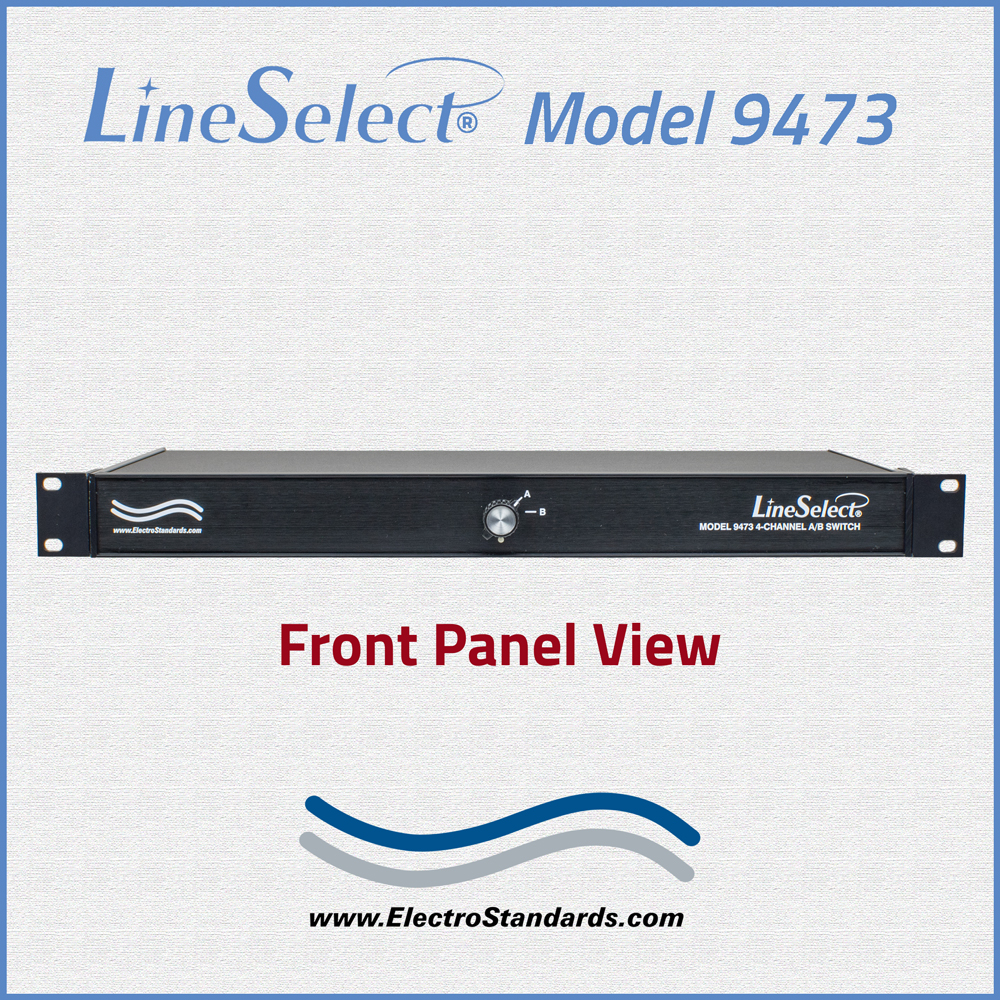

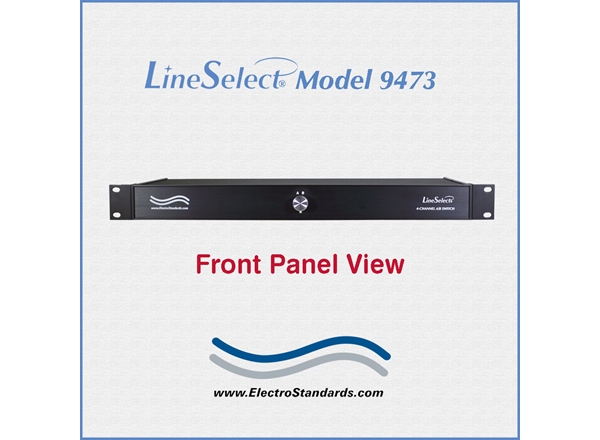

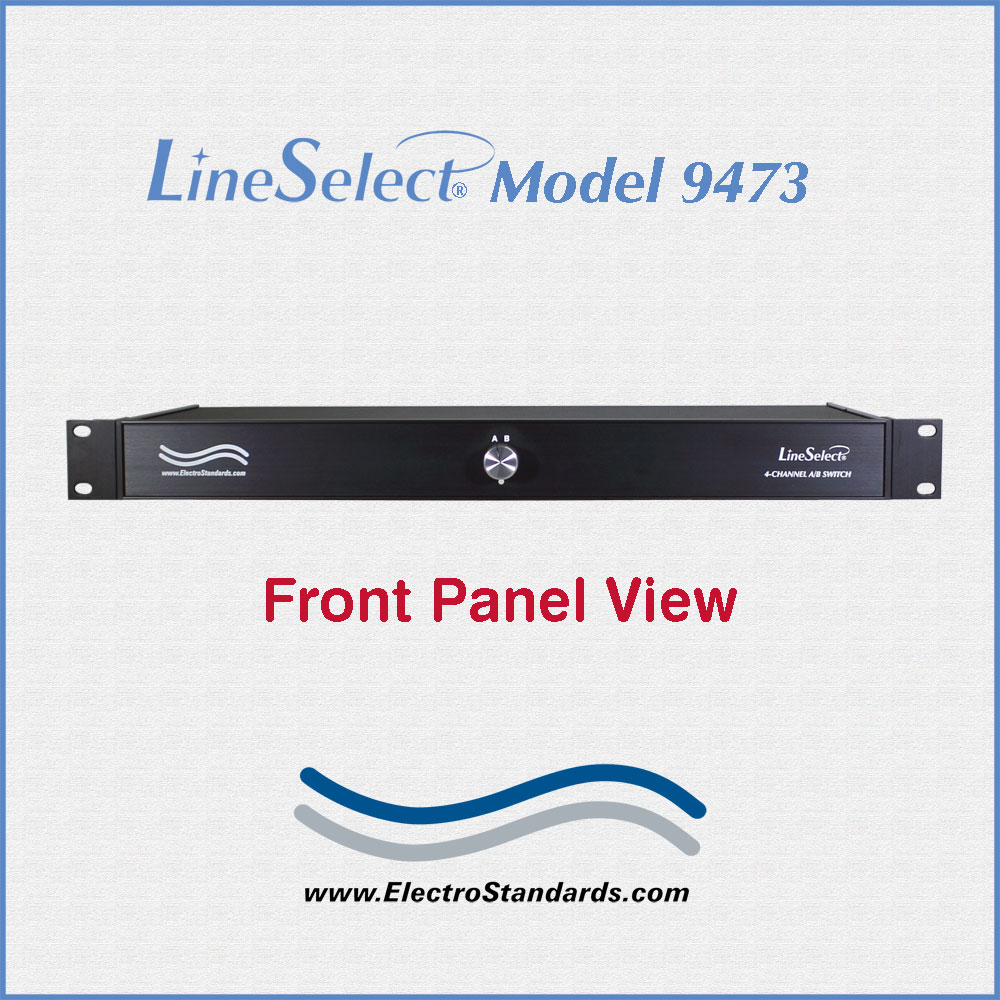

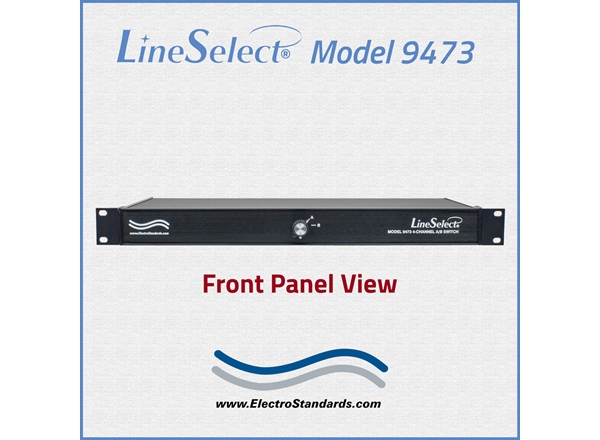

  • FRONT PANEL CONTROL: (1) Rotary switch on front panel switches all 4 channels simultaneously.
  • POWER: No power required. Manually operated.
  • DIMENSIONS: Rackmount 19.0" W x 1.75" H x 8.65" D. [48.3 x 4.4 x 22.0 cm]
  • WEIGHT: Approximately 2.0 lbs. [0.9 kg]

MODEL 9473 SWITCH OPERATION:

  • The LineSelect® Model 9473 enables each of four RJ45 Cat6 Common ports to select either of two network LAN's or devices via A or B port RJ45 connectors.
  • All four channels of the LineSelect® Model 9473 A/B Switch are switched simultaneously via rotary switch knob located on the front panel.
  • The unit supports all 8 pins of the RJ45 Cat6 interface.
  • No need to plug and unplug cables thereby eliminating connector wear.

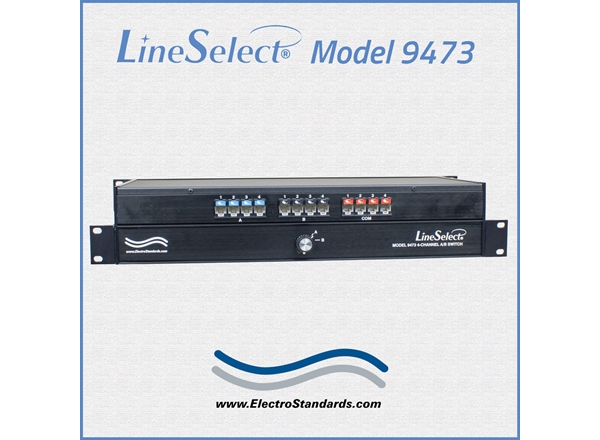

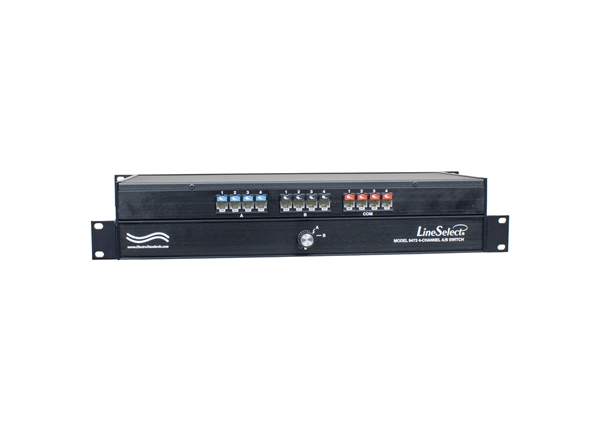

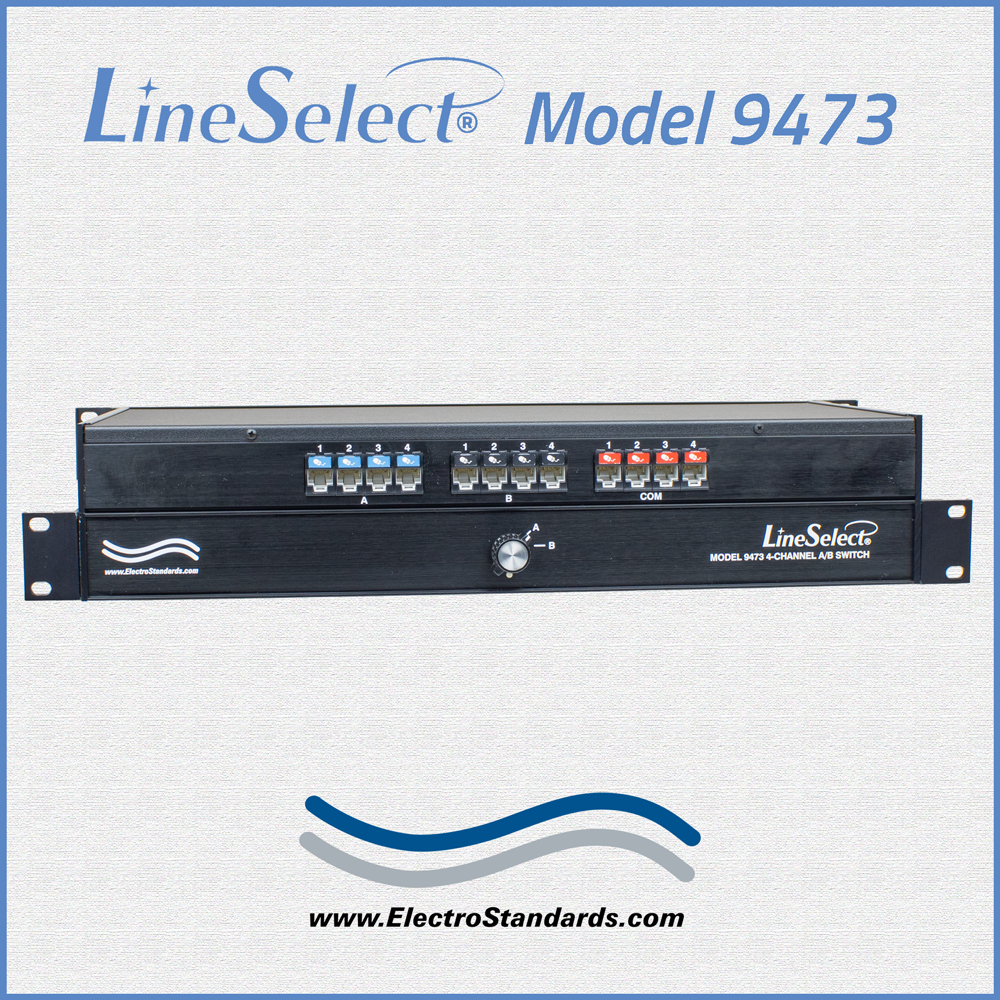

  • The LineSelect® Model 9473is enclosed in a 1U full rack size, all metal black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

LineSelect® Model 9473 4-Channel RJ45 Cat6 A/B Switch Application:

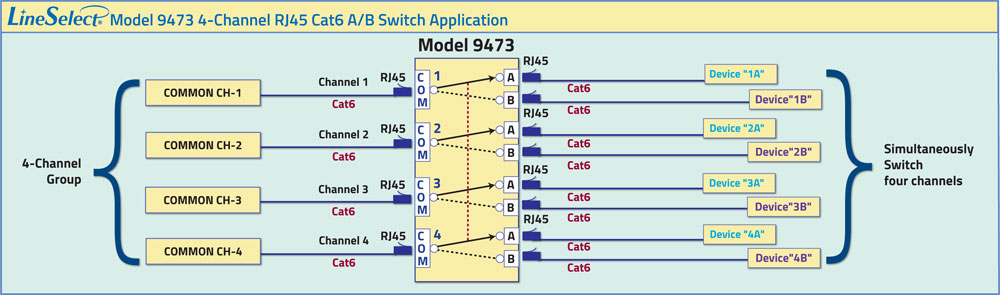

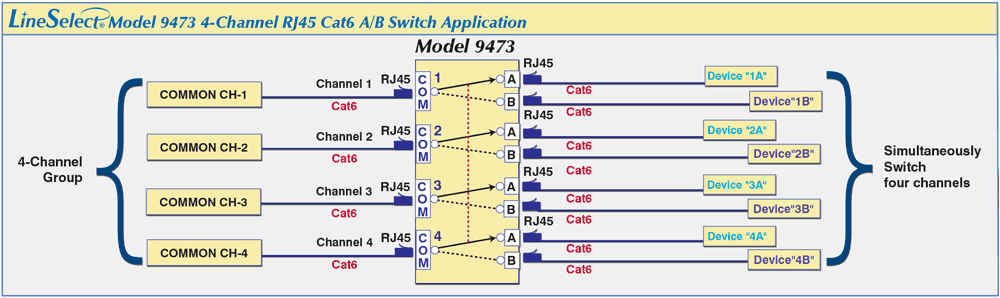

The drawing illustrates four Cat6 RJ45 COMMON ports. Each Common port has access to two devices. Simultaneous switch from Device A to Device B and from Device B back to Device A as a 4 channel Group.

LineSelect® Model 9473 Dual 4-Channel RJ45 Cat6 A/B application

Ordering Information

  • Catalog Number: 309473
  • Model Number: 9473
  • Base Price: See website or contact us for current pricing and availability.

Documentation & Support

  • Specification Sheet (PDF) Download Available.
  • Product Manual available upon request.
  • For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
  • We welcome international inquiries and ship worldwide.
