Model 9050 16-Channel RJ11/12 2-Position Switch, Manual, Rackmount, Catalog # 309050

Click image to enlarge

Base Price:

$2,030.00

Catalog No:

309050

Model No:

9050

Product Type:

Switches: Copper

Positions:

Cable Type/Port Connector:

RJ11/12

Channels per Switch Chassis:

Manual Control/No Power Required:

LineSelect® Manual Operation

Channel Control:

Simultaneous Channel Control

Configuration:

Rackmount

Qty

Add to Cart

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

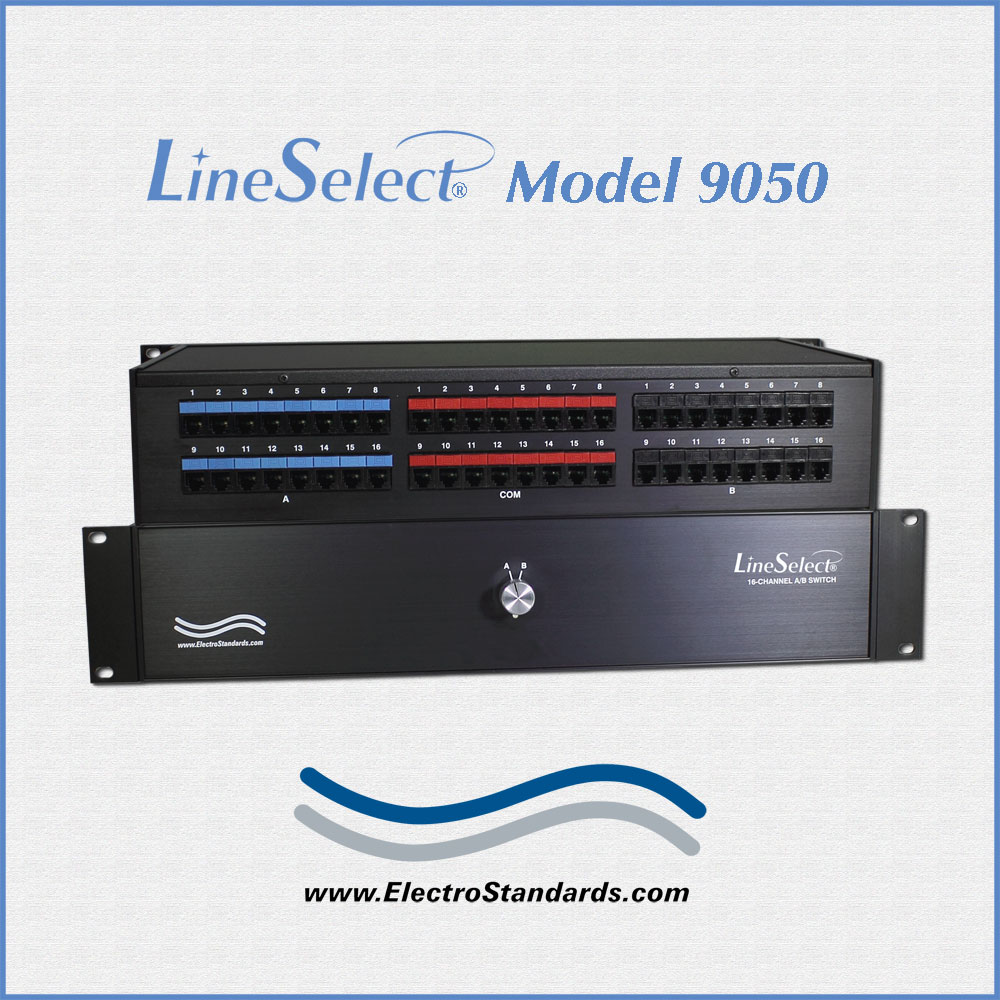

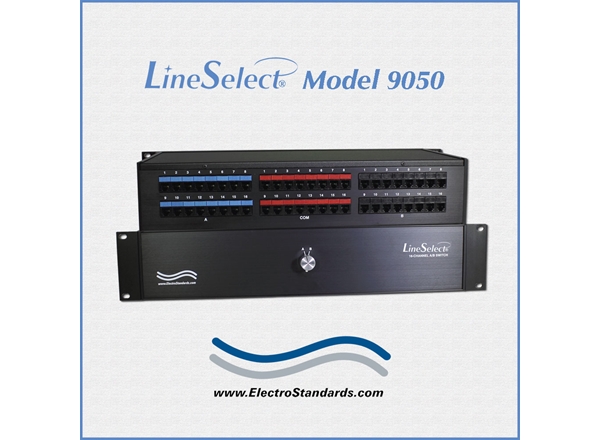

LineSelect® Model 9050 16-Channel RJ11/12 A/B Switch, Manual, Rackmount

Overview

With each of its sixteen channels, the LineSelect® Model 9050 RJ11/12 A/B switch allows the user to access two RJ11/12 interface devices connected to its A and B ports with one RJ11/12 device connected to its COMMON port. The unit supports 4 center pins of the RJ11/12 interface. The sixteen channels are switched simultaneously via one knob located on the front panel. No need to plug and unplug cables thereby eliminating connector wear. The LineSelect®Model 9050 is enclosed in a 2U, full rack size, all metal, black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

Ideal for fax, modem, and phone line switch applications.
Eliminates need for dedicated phone lines for fax or modem.

FEATURES OF THE MODEL 9050 16-CHANNEL A/B SWITCH:

Each channel allows quick connection to any one of two devices from one COMMON device.
Simultaneously switch all sixteen channels between Positions A and B via the front panel rotary switch.
High quality sealed switch with self-wiping low impedance contacts.
The switch ports are transparent to all data.
Four center pins 2, 3, 4, 5 of the RJ11/12 Interface are switched via a break-before-make rotary switch.
Eliminates the need to plug and unplug cables.
Manually operated. No power required.
Attractive all metal, black box packaging provides EMI/RFI shielding.
Custom length, high quality RJ11/12 patch cords available for your switch installation.
Lifetime warranty against manufacturing defects.

TECHNICAL SPECIFICATIONS:

PORT CONNECTORS: (48) RJ11/12 female connectors;
- (16) A
- (16) B
- (16) COMMON
FRONT PANEL CONTROL: (1) Rotary Switch on front panel selects A or B.
POWER: No power required. Manually Operated.
DIMENSIONS: Rackmount 19.0" W x 3.5" H x 8.6" D.
(48.3 x 8.9 x 22.0 cm).
WEIGHT: Approximately 5.7 lb. (2.6 kg)

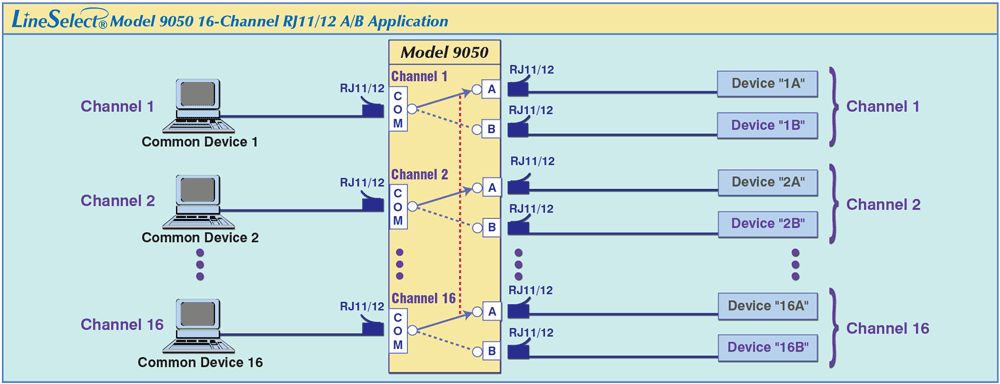

LineSelect® Model 9050 16-Channel RJ11/12 A/B Switch Application: (RJ11/12 Telco Modular Switch)

The drawing illustrates simultaneous switching of sixteen RJ11/12 A/B Switch channels from Position A to Position B and reversely from Position B to Position A for all 16 channels. Each channel has a device connected to the RJ11/12 Common port with access to two other devices connected to the RJ11/12 A and B ports.

LineSelect® Model 9050 16-Channel RJ11/12 A/B application

Ordering Information

Catalog Number: 309050
Model Number: 9050
Base Price: See website or contact us for current pricing and availability.

Documentation & Support

Specification Sheet (PDF) Download Available.
Product Manual available upon request.
For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
We welcome international inquiries and ship worldwide.

Shipping and Returns

Shipped via UPS ground (unless otherwise requested).
Freight Charges prepaid and added to invoice. We can estimate freight charges for you.
Return policy: contact us within 30 days of shipment for an RMA number. Items returned without RMA not accepted. Please refer to our full return policy in our Terms and Conditions found on our website.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form by clicking here.

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.
