Catalog # 307376 - Model 7376 RJ45 Cat5e A/B Switch, Contact Closure/TTL Remote

    RJ45 Cat5e A/B Switch, Contact Closure/TTL RemoteRJ45 Cat5e A/B Switch, Contact Closure/TTL RemoteRJ45 Cat5e A/B Switch, Contact Closure/TTL RemoteRJ45 Cat5e A/B Switch, Contact Closure/TTL Remote

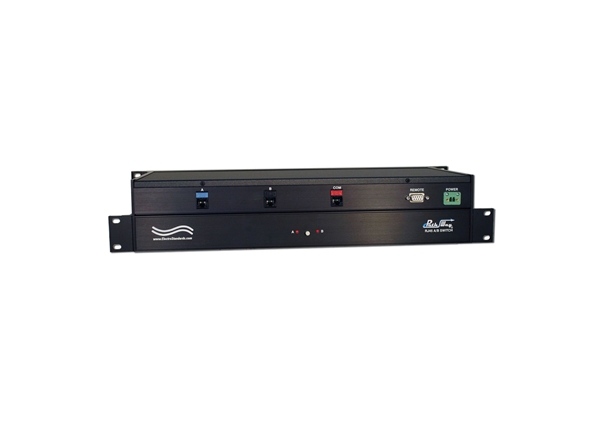

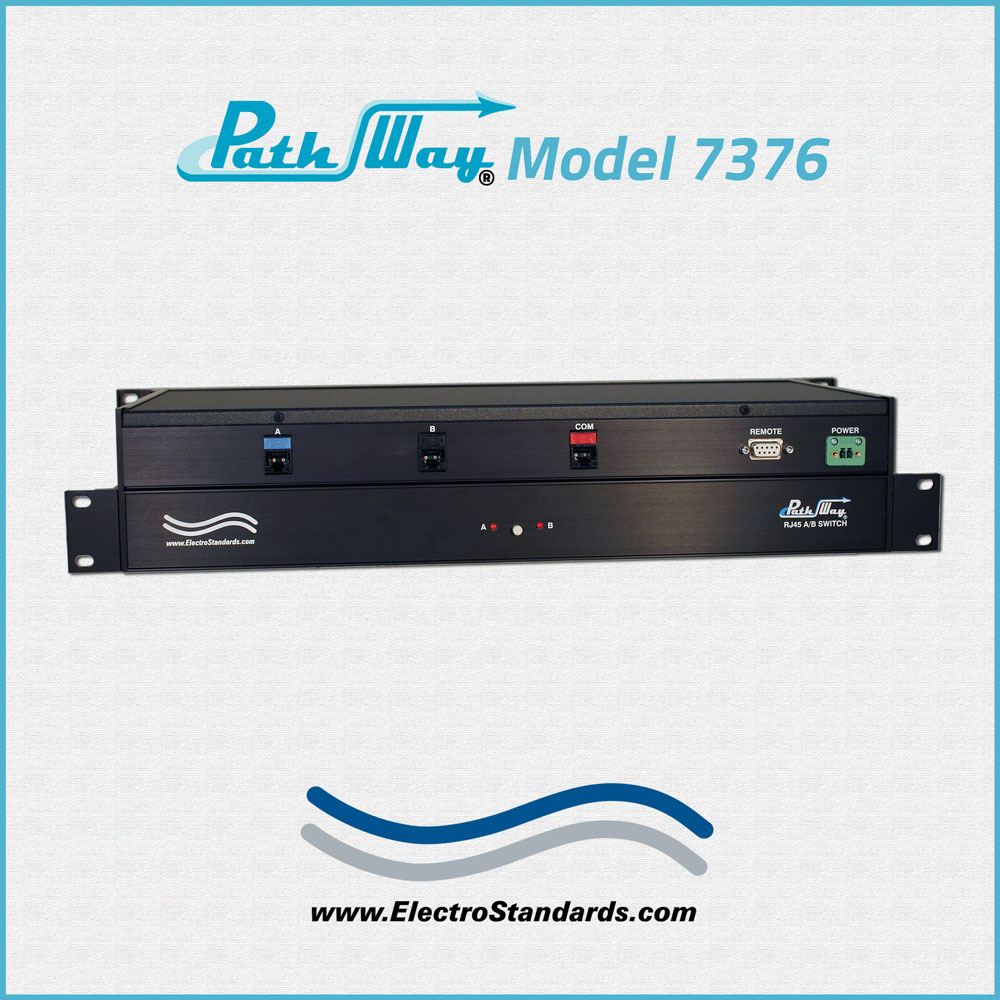

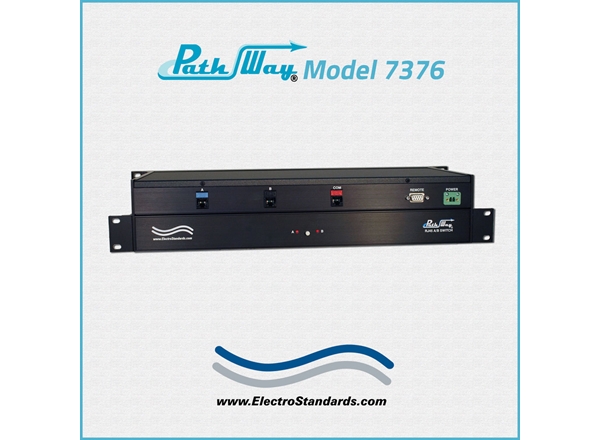

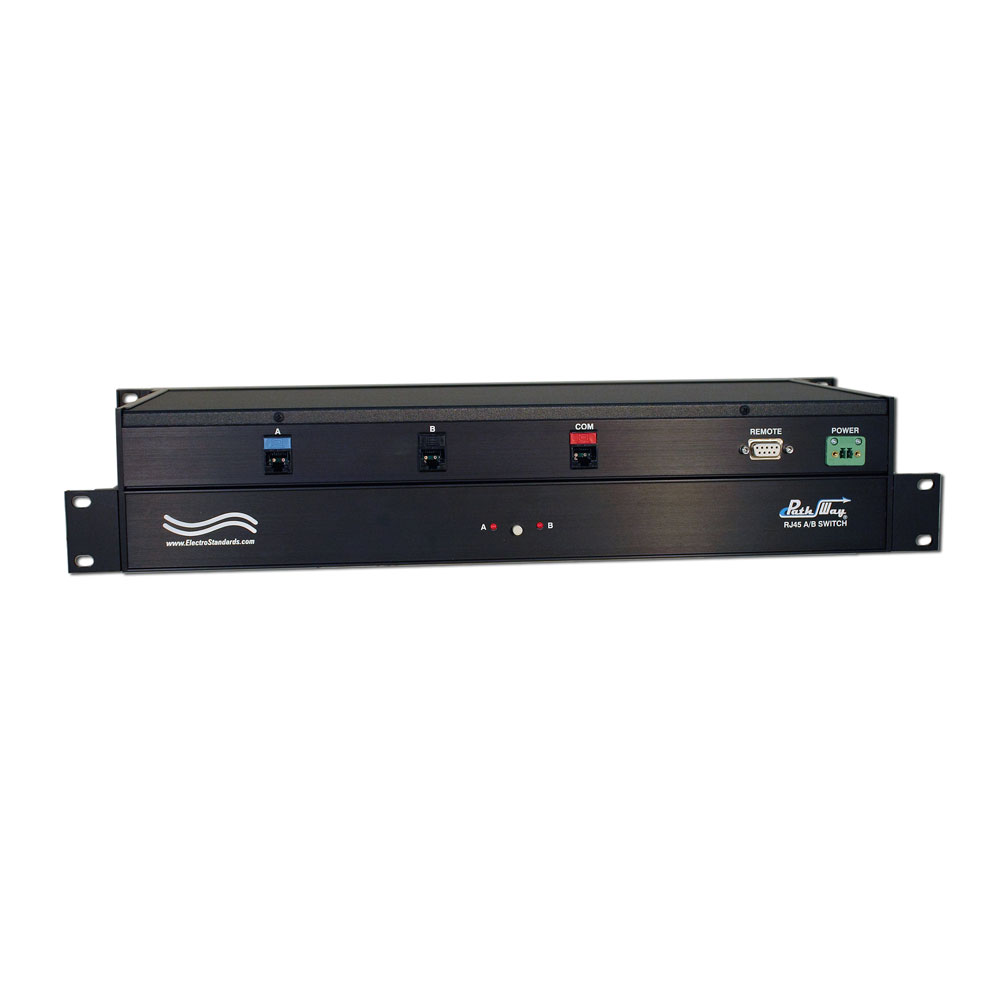

Click image to enlarge
    • RJ45 Cat5e A/B Switch, Contact Closure/TTL Remote
    • RJ45 Cat5e A/B Switch, Contact Closure/TTL Remote
    • RJ45 Cat5e A/B Switch, Contact Closure/TTL Remote
    • RJ45 Cat5e A/B Switch, Contact Closure/TTL Remote
Base Price:
Catalog No: 307376
Model No: 7376
Product Type:Switches: Copper
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:1
Electronic Switches/Power Required:PathWay® Copper
Remote Control:Contact Closure
Pins Switched:8
Remote Port:DB9
Local Control:Pushbutton


Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



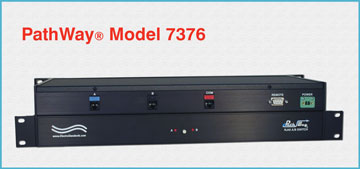

Path Way® Remotely Controllable Network Switch, Cat5e, RJ45
Model 7376 RJ45 CAT 5e A/B Switch with Contact Closure/TTL Remote

  • Provides reliable network backup for mission critical systems!


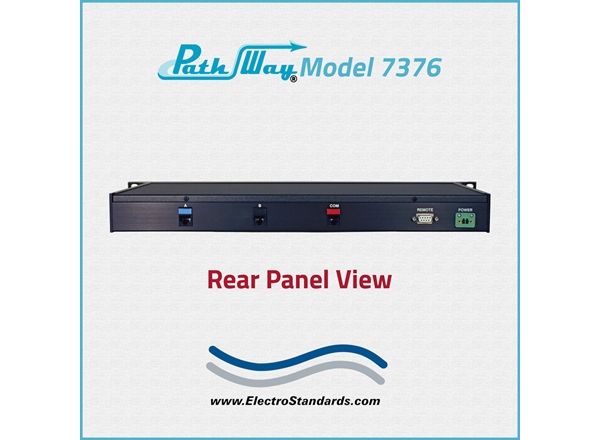

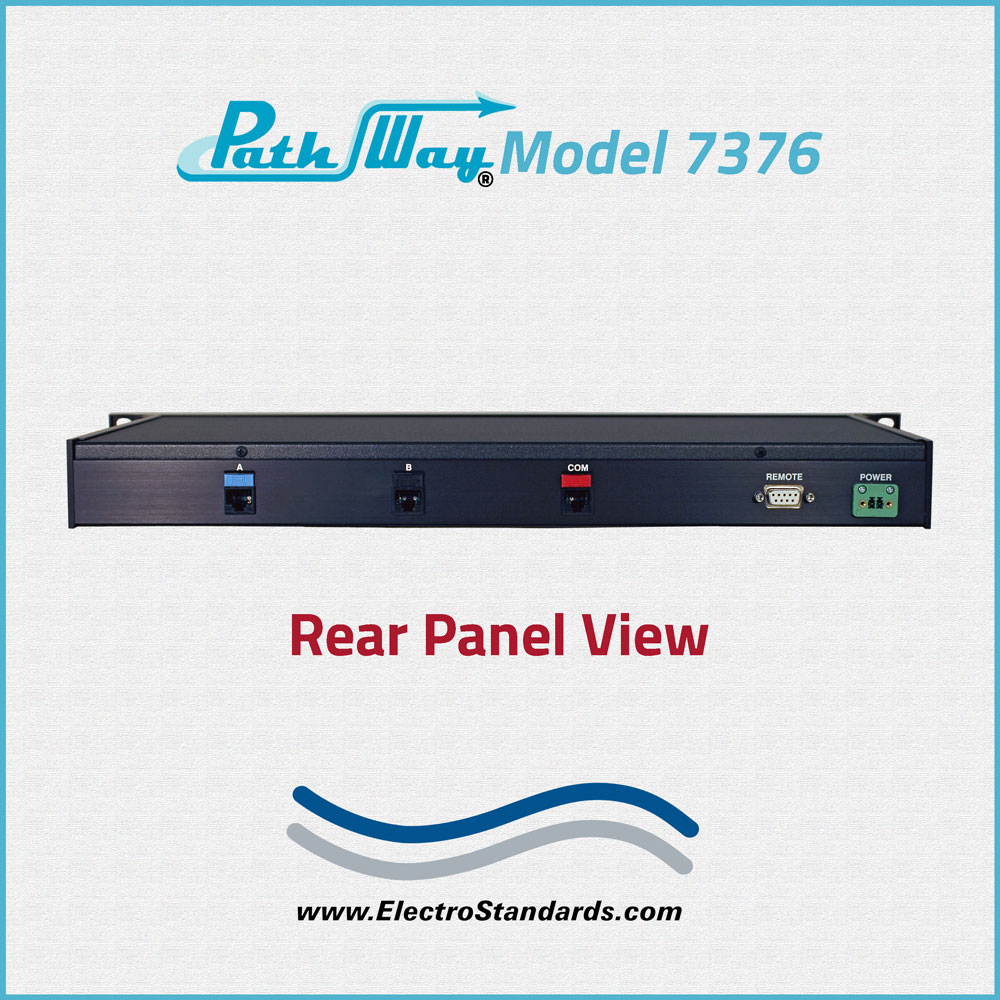

  • PORT CONNECTORS: (3) RJ45(F) ports labeled, A, B, and COMMON.
  • COMPLIANCE: Interface meets or exceeds Category 5e performance.

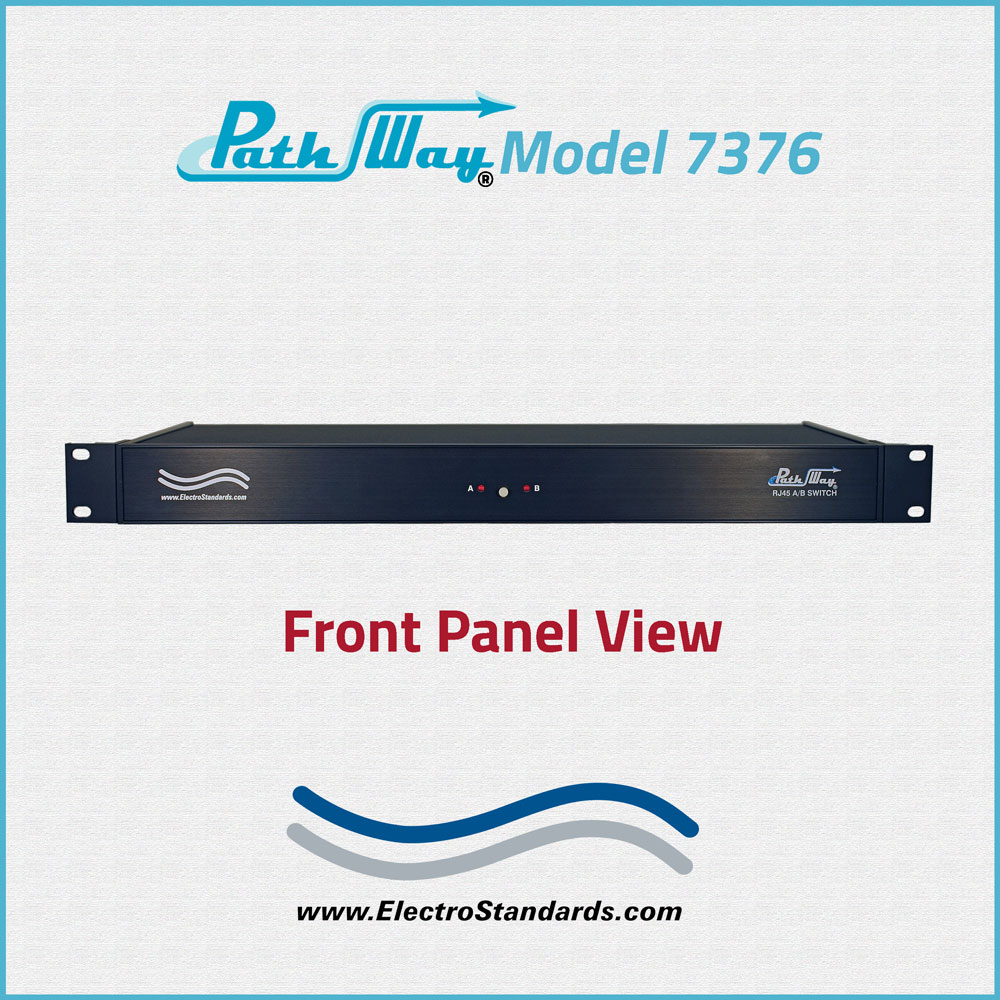

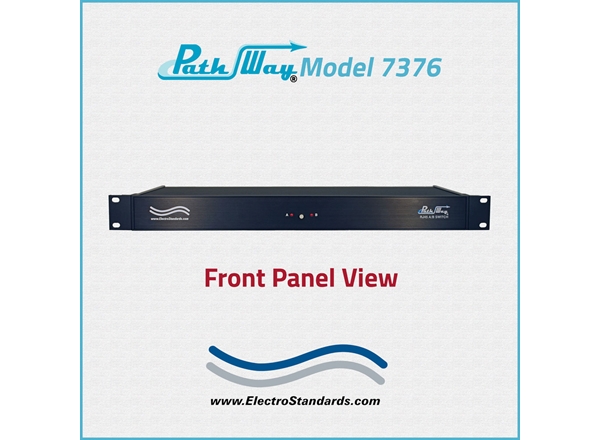

  • FRONT PANEL CONTROL: (1) Manual pushbutton to select port A or B.
  • DISPLAY: (2) Front panel LED's display switch position and power status.
  • REMOTE CONTROL PORT: (1) DB9(F) REMOTE connector accepts Contact Closure/TTL logic signals from a Remote device.
  • POWER: UL approved 100VAC-240VAC, 50Hz-60Hz wall mount power module supplies 12 VDC, 500 mA supplied to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Rackmount, 19.0" W x 1.75" H x 8.20" D. (48.3 x 4.4 x 20.9 cm)
  • WEIGHT: Approximately 4.2 lbs (1.9 kg)

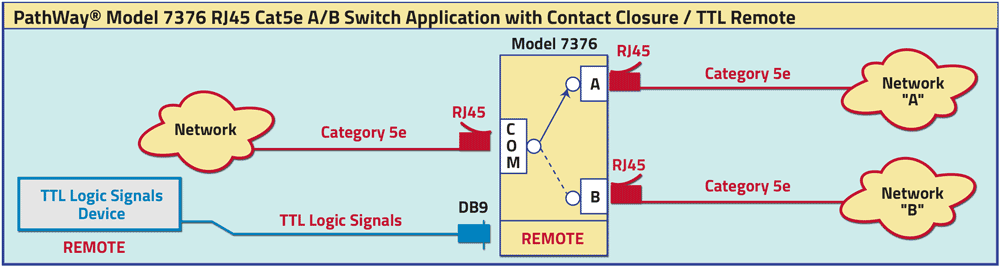

PathWay® Model 7376 Cat5e A/B Switch Application with CONTACT CLOSURE and TTL REMOTE:

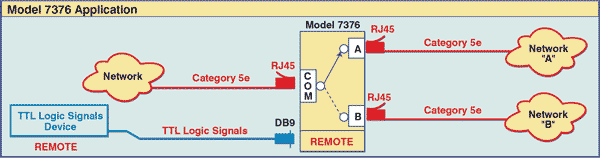

The drawing illustrates a COMMON CAT5e Network connected to the RJ45 COMMON port with access to Cat5e Network A and Cat5e Network B. The illustration application demonstrates a TTL Logic Signals device connected to the DB9 Remote port. The DB9 REMOTE control port allows the user to control the switch remotely via TTL Logic Signals.

PathWay® Model 7376 RJ45 Cat5e A/B Switch Application


  • Allows quick connection to any one of two RJ45 Cat5e interface devices from one COMMON device.
  • The switch ports are transparent to all data.
  • All (8) pins of the RJ45 interface are switched via break-before-make electromechanical relays.
  • The unit maintains last set position on power loss and continues to pass data.
  • Front panel pushbutton control.
  • Upon power up, the unit remains in the last known position.
  • The DB9 Remote port provides access to remotely control the switch position, obtain switch position status and lockout the front panel operations via TTL logic.
  • Front panel LED's display present position and power status.
  • Certified for Cat5e compliance.
  • Attractive all metal, black box packaging provides EMI/RFI shielding.
  • Great solution for fallback applications.
  • Custom length data cables are available for your switch application.

The PathWay® Model 7376 RJ45 Cat 5e A/B Switch with TTL Logic Remote allows the user the capability of accessing two separate devices connected to ports A and B via connection through a device connected to the Common port.  The Model 7376 is enclosed in a 1U, full rack size, all metal, black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

The switch may be controlled manually via the front panel pushbutton or remotely from a DB9 port located on the rear of the unit.  Switch position state may be attained via the front panel LED's.

OPTION: WIDE RANGE POWER MODULE (Cat. No. 517277) CE, RoHS, and UL listed table mount power module, 100VAC-240VAC, 50Hz-60Hz for use in place of the standard power module that is included with the unit.  Has IEC 60320 C14 inlet.  Ideal for international applications.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL products are available for export.

Electro Standards welcomes International inquiries: commutateur d'ordinateur,  equipo interruptor, interruttore del calcolatore, interruptor do computador, dator switch.
