Catalog # 307315 - Model 7315 12-Channel RJ45 CAT6 ON/OFF Network Switch

    12-Channel RJ45 CAT6 ON/OFF Network Switch12-Channel RJ45 CAT6 ON/OFF Network Switch12-Channel RJ45 CAT6 ON/OFF Network Switch
Click image to enlarge
    • 12-Channel RJ45 CAT6 ON/OFF Network Switch
    • 12-Channel RJ45 CAT6 ON/OFF Network Switch
    • 12-Channel RJ45 CAT6 ON/OFF Network Switch
Base Price:
$5,240.00
Catalog No: 307315
Model No: 7315
Feature:Shielded Cat6 Ports
Protocol:Telnet Commands
Switch Media:Copper
Positions:2
Channels per Switch Chassis:12
Connector/Port:RJ45
Electronic Switches/Power Required:PathWay® Copper
Channel Control:Independent Channel Control
Remote Control:Ethernet
Compliance/Standards:Cat6
Enclosure Configuration:Rackmount
Pins Switched:8
Remote Port:RJ45
Local Control:Pushbutton

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

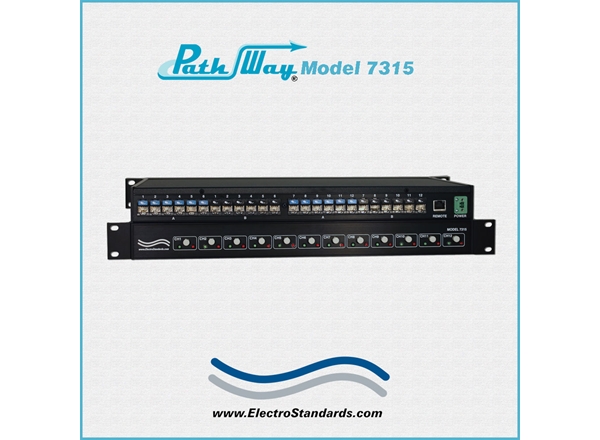

Path Way® Remotely Controllable Network Switch, Cat6

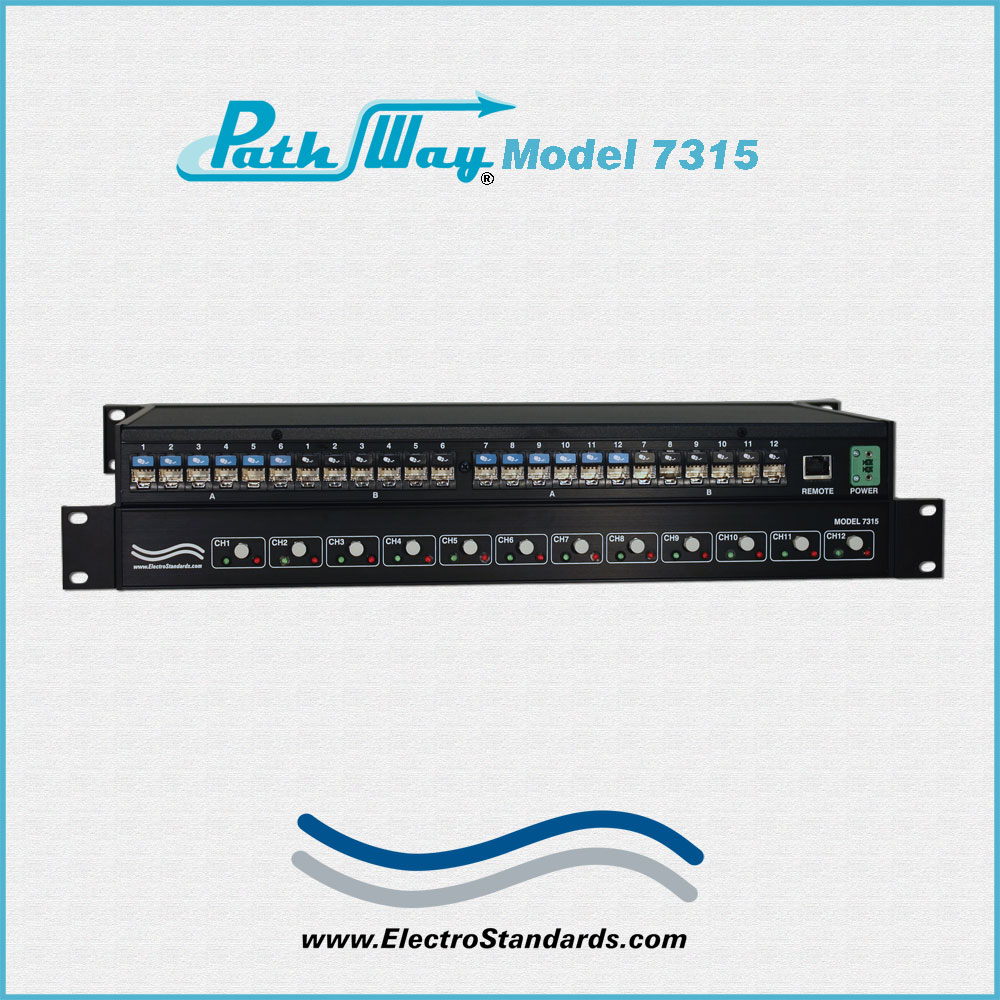

Model 7315 12-Channel Cat6 RJ45 ON/OFF Switch with Ethernet Remote Port, Independent Channel Control, Shielded Cat6 ports, 1U Rackmount

  • IP Addressable. Remotely control the switch via Telnet command interface.

SPECIFICATIONS:

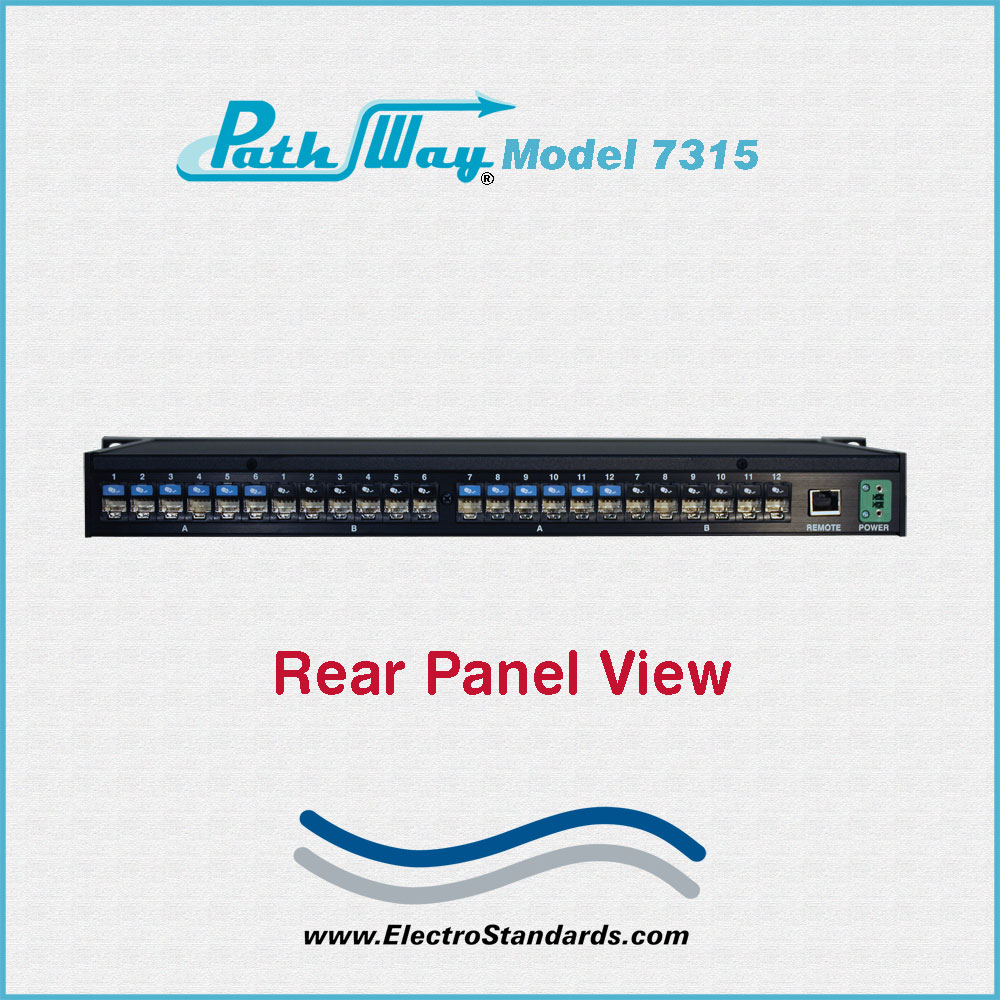

  • PORT CONNECTORS: (24)  Shielded RJ45 female connectors; (12) labeled A, and (12) labeled B.
  • COMPLIANCE: Certified for Cat6.

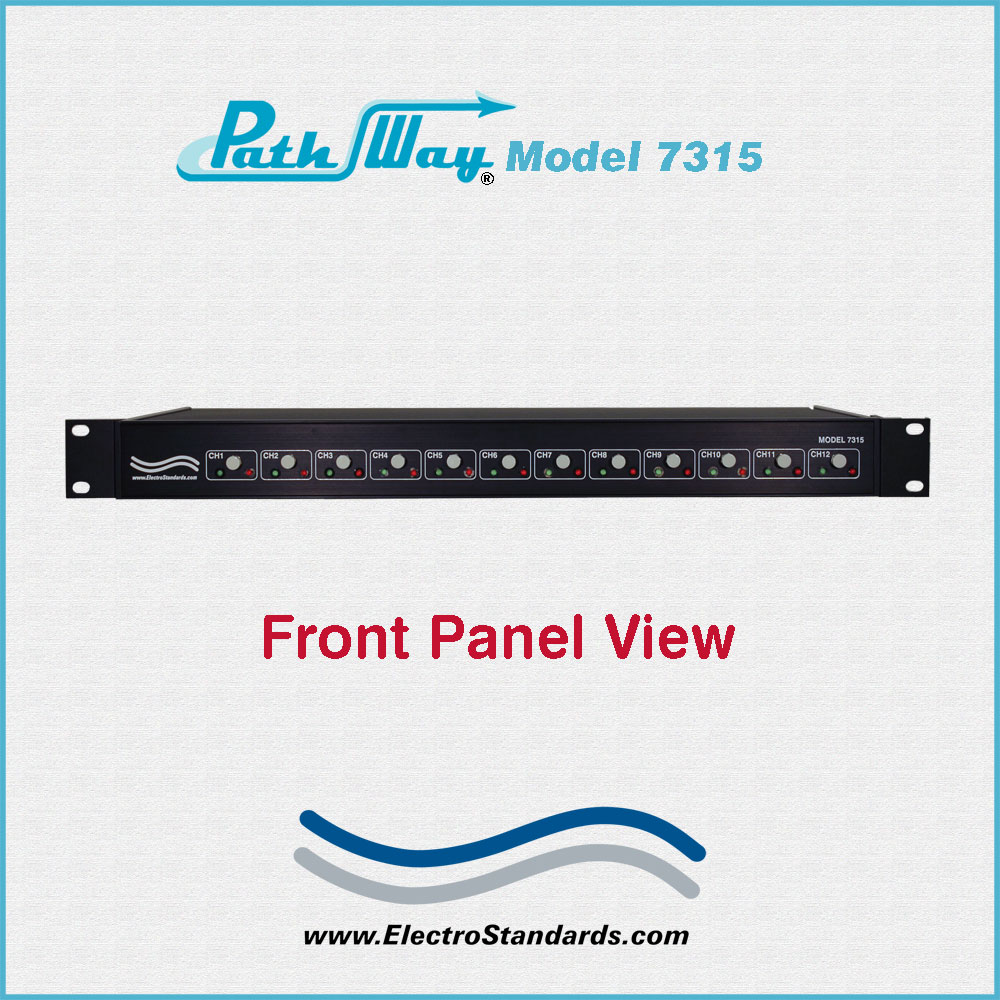

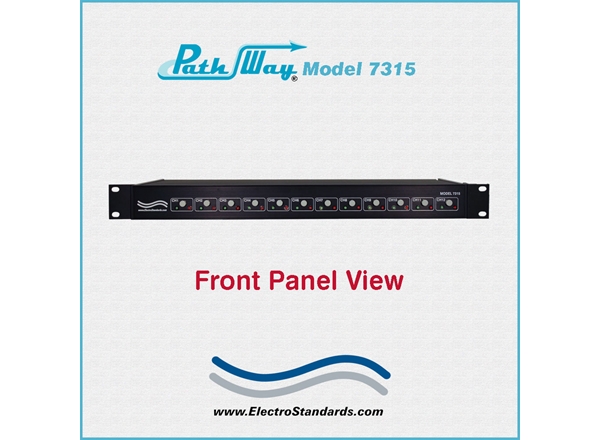

  • FRONT PANEL CONTROL: (12) Manual pushbuttons allow local switching.
  • DISPLAY: On the front-panel, (1) Green LED (ON) and (1) Red LED (OFF) for each channel display switch position and power.

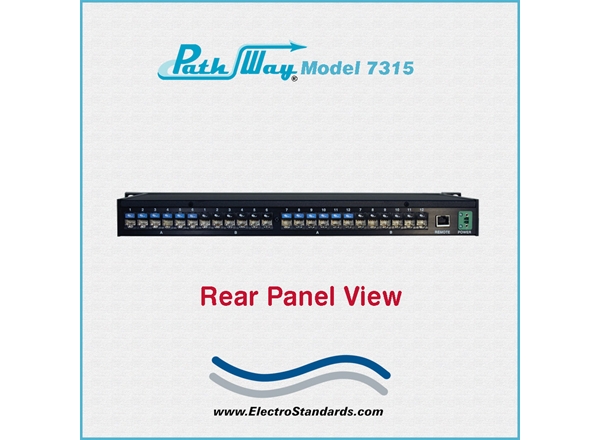

  • REMOTE CONTROL: (1) RJ45 female connector on rear panel accepts 10/100Base-T LAN Access Ethernet that uses Telnet commands for Remote Control operation.
  • POWER: UL approved 100VAC-240VAC 50 Hz/60Hz wall mount power module supplies 12VDC, 500mA to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Rackmount, 19.0" W x 1.75" H x 10.34" D (48.3 x 4.4 x 26.3 cm)
  • WEIGHT:Approximately 7.4 lbs. (3.4 kg)

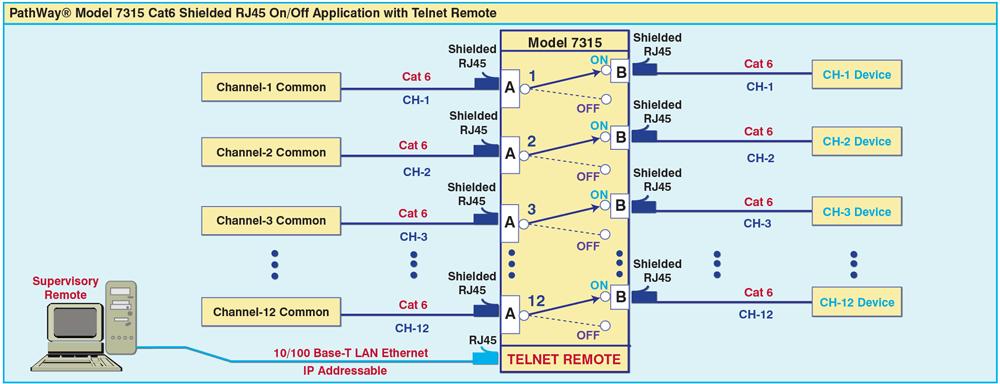

PathWay® Model 7315 Cat6 RJ45 ON/OFF Application with Telnet Remote: (Shielded Ports)

The Model 7315 RJ45 Cat6 ON/OFF Switch drawing shows a COMMON Device connected to a COMMON port labeled A for each of 12 channels with access to connect to a Device connected to the B port or to disconnect the COMMON device from the B port to the OFF position for each of 12 channels. Independently switch each channel or simultaneously switch all 12 channels via the Telnet Commands.

PathWay® Model 7315 Shielded Connectors Cat6 RJ45

FEATURES:

  • The switch ports are transparent to all data.
  • All (8) pins of the RJ45 interface are switched via break-before-make electromechanical relays.
  • The unit maintains last set position on power loss and continues to pass data.
  • Upon power up, unit maintains its position from power down
  • Front panel pushbutton control.
  • Individual control of each channel
  • Control of the switch position from a 10/100-Base-T LAN Ethernet environment.
  • Remote Control Telnet command interface that allows the user to control switch position, lockout front panel operations, obtain switch status, query unit MAC address, firmware version number, as well as, serial number.
  • Independently or simultaneously switch channels via Telnet commands.
  • Front panel LED’s display present ON/OFF status and power status.
  • Certified for Cat6 compliance.
  • Switch features shielded Cat6 RJ45 ports and shielded Cat6 internal cable.

The PathWay® Model 7315 Shielded RJ45 Cat6 ON/OFF Switch with Telnet Remote allows the user the capability of connecting two separate devices, ports A and B, via an Online or Offline connection for each channel. The Model 7315 is enclosed in a 1U, full rack size, all metal black chassis designed to provide EMI/RFI shielding and fit in a standard 19” rack.

The switch may be controlled manually via the front panel pushbuttons. Remote Control access can be accomplished using an Ethernet 10/100BASE-T connection and Telnet commands.

Option: Wide Range Power Supply: (Cat No. 517277) CE, RoHS, and UL listed table mount power module, 100VAC/240VAC, 50/60Hz for use in place of the standard power module that is included with the unit. Has IEC 60320 C14 inlet. Ideal for international applications.

PathWay® is a registered trademark of Electro Standards Laboratories.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

All ESL products are available for export. Electro Standards welcomes business from International companies: commutateur de réseau, conmutador de red, switch di rete, przelacznik sieciowy , switch de rede, nätverksswitch.

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
