Catalog # 307372 - Model 7372 RJ45 CAT6 Online/Offline Network Switch

    RJ45 CAT6 Online/Offline Network Switch
Click image to enlarge
Base Price:
$965.00
Catalog No: 307372
Model No: 7372
Feature:Remotely Controllable
Switch Media:Copper
Positions:2
Channels per Switch Chassis:1
Compliance/Standards:Cat6
Connector/Port:RJ45
Remote Control Method:Contact Closure
Enclosure Configuration:Rackmount
Pins Switched:8
Remote Control Port:DB9
Local/Manual Control:Pushbutton

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview


Path Way® Remotely Controllable Network Switch, RJ45, Cat6

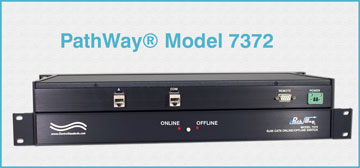

Model 7372 Single Channel CAT 6 RJ45 Online/Offline Switch, with Contact Closure Remote

  • Certified For Cat6 Compliance!
  • Utilizes High Performance Shielded RJ45 Connectors.

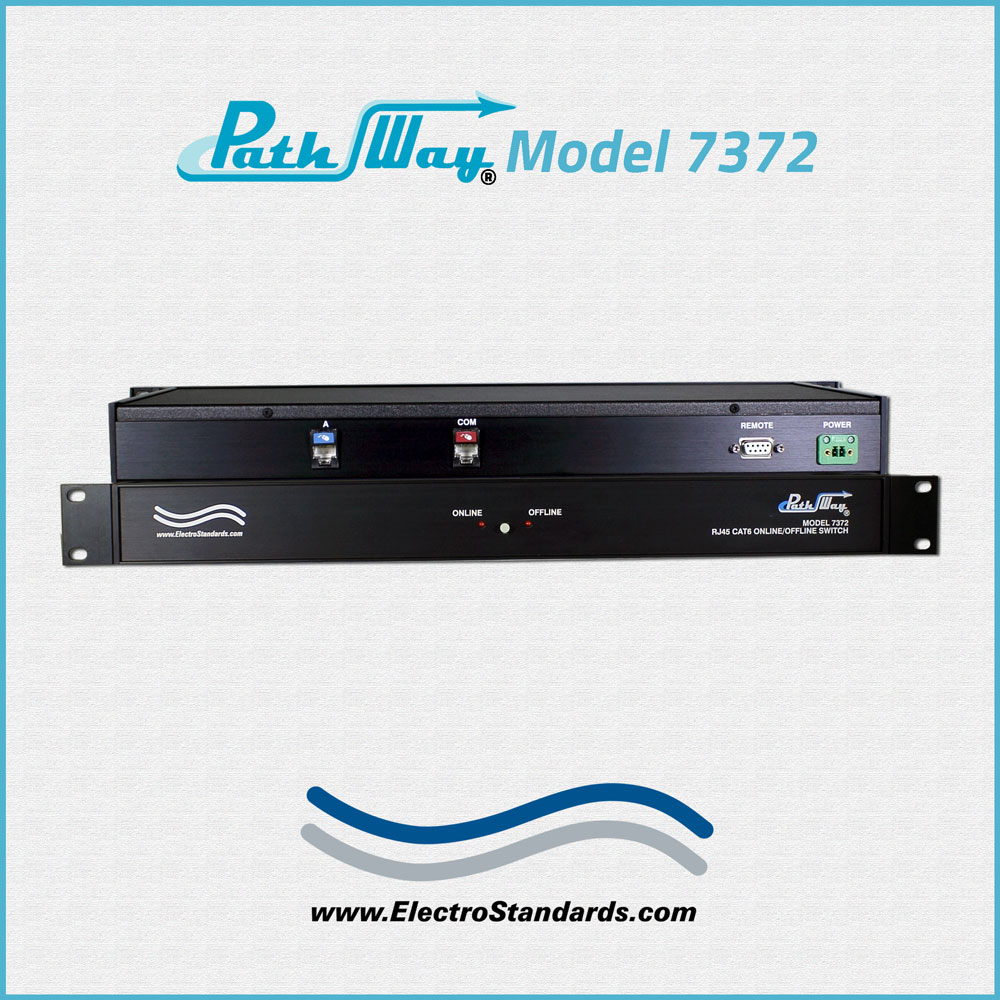

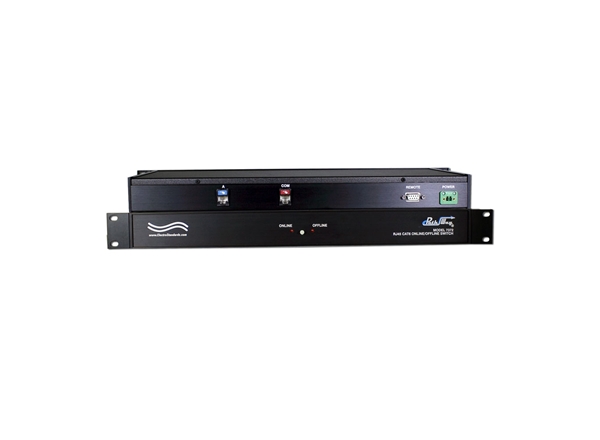

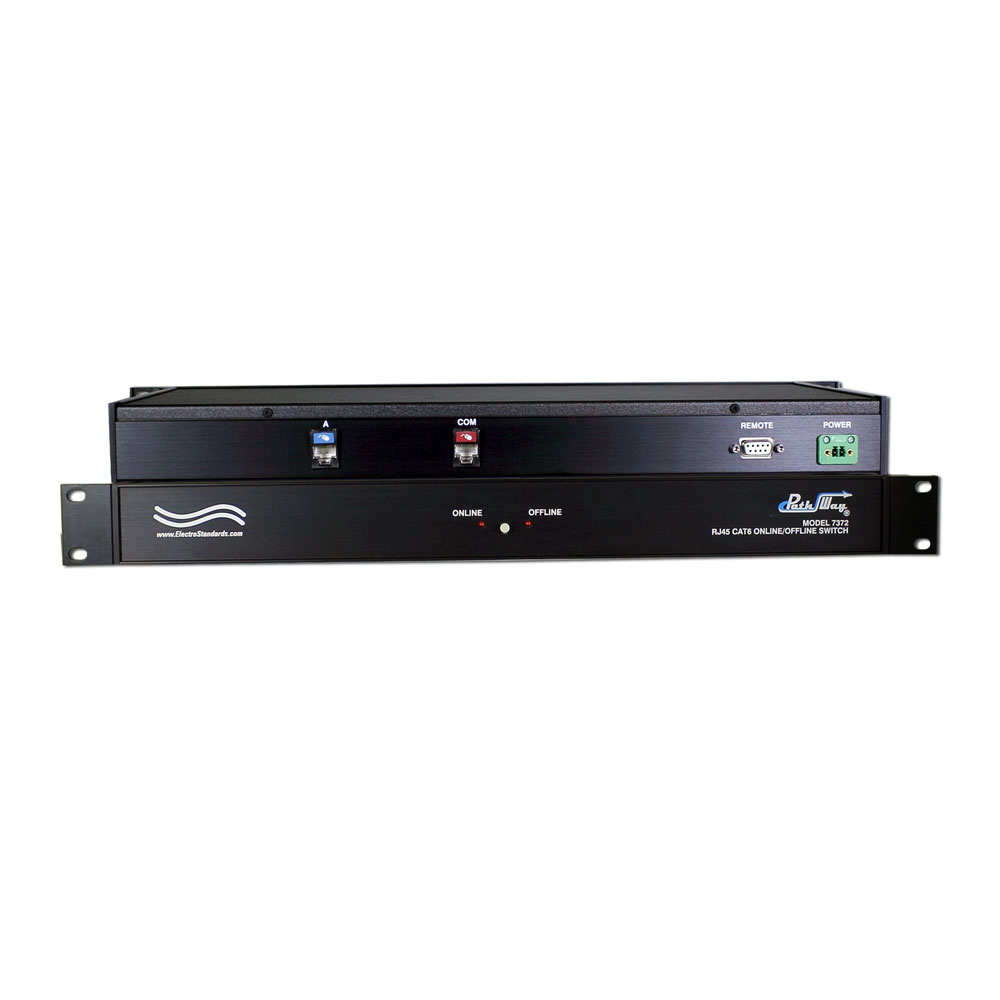

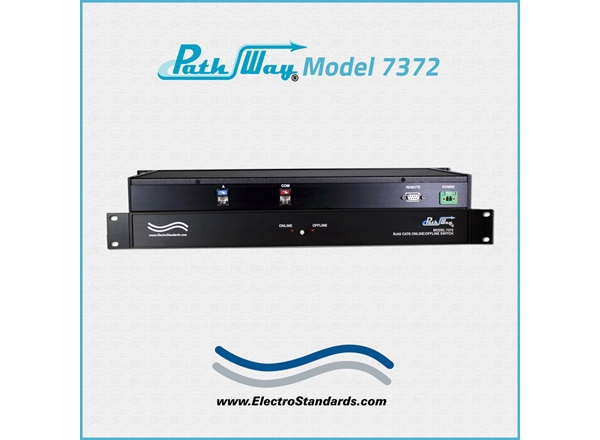

PathWay® Model 7372 Single Channel Cat6 RJ45 Online/Offline switch w/Contact Closure Remote

 SPECIFICATIONS:

  • PORT CONNECTORS: (2) RJ45 female shielded connectors labeled A, and COM.
  • COMPLIANCE: Interface meets or exceeds Cat 6 performance.

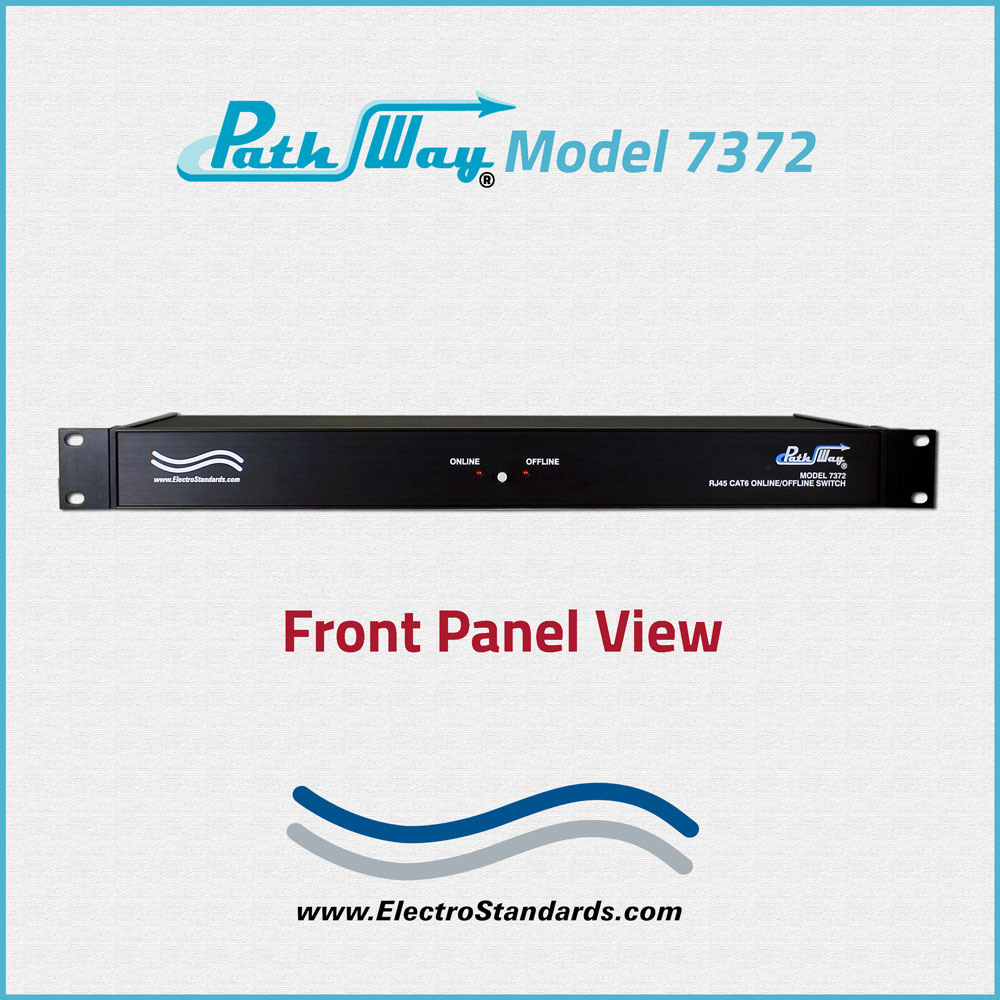

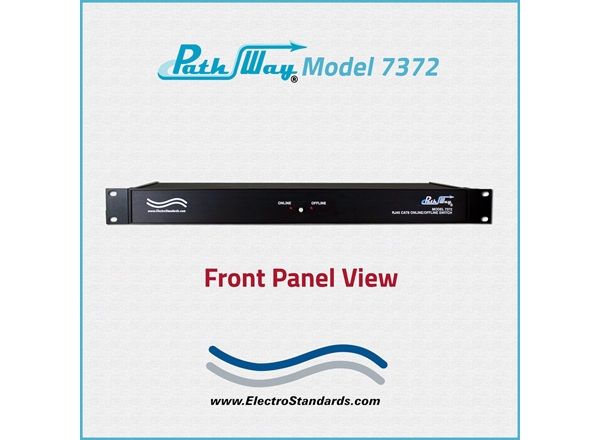

  • FRONT PANEL CONTROL: (1) Manual pushbutton allows local switching.
  • DISPLAY: (2) Red LED's display switch position and power status.

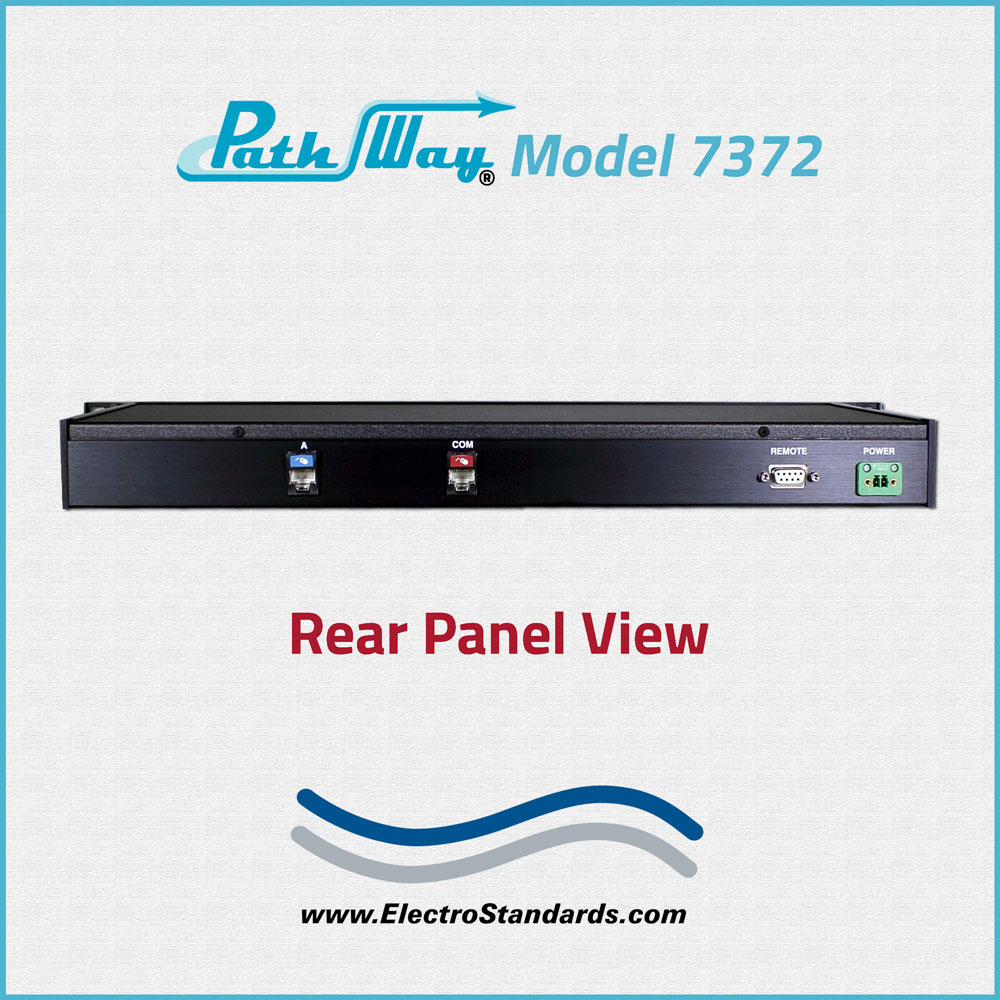

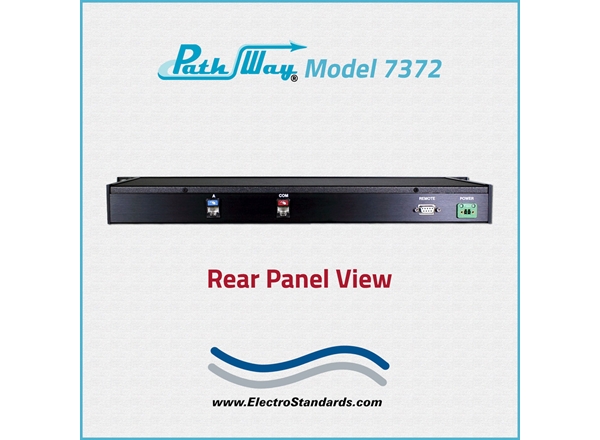

  • REMOTE CONTROL: (1) DB9 female connector on rear panel accepts Contact Closure switch commands for Remote Control Operation.
  • POWER: UL approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12 VDC, 500 mA to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: 19.0" W x 1.75" H x 8.0" D (48.3 x 4.4 x 20.3 cm)
  • WEIGHT: Approximately 4.2 lbs. (1.9 kg)

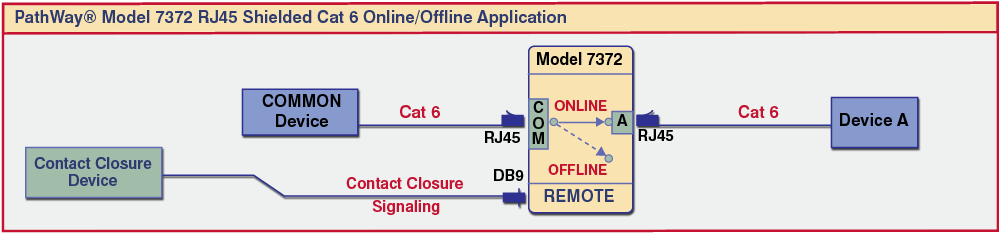

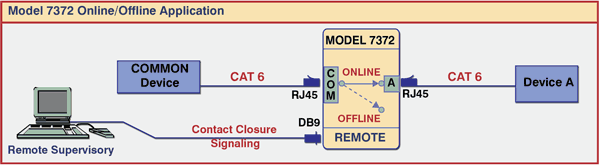

ONLINE/OFFLINE CAT6 APPLICATION w/CONTACT CLOSURE REMOTE: The Model 7372 application drawing illustrates two separate devices, a COMMON device (connected to the RJ45 COMMON port) and Device A (connected to the A port). When the switch is in ONLINE position, the two devices are connected. OFFLINE switch position stops any all data throughput for the unit. The DB9 Remote port accepts Contact Closure signaling allowing control of switch position and front panel lockout.

Model 7372 Cat6 RJ45 Online/Offline application with Contact Closure Remote

 FEATURES:

  • Allows quick connection or disconnection between two Cat6 RJ45 networks or devices.
  • The switch ports are transparent to all data.
  • All (8) pins of the RJ45 interface are switched via break-before-make electromechanical relays
  • The unit maintains last set position on power loss and continues to pass data.
  • Upon power up, unit maintains last set position on power loss and continues to pass data.
  • Front-panel pushbutton control.
  • Secure Off-Line switch position.
  • "Off-Line" switch position stops any and all data throughput for the unit.  The ultimate firewall.
  • Remote Contact Closure control and status provides dry contact logic to allow control of switch position as well as obtain the present position.
  • Front panel LED's display present position and power status.
  • Certified for Cat6 compliance.
  • Attractive all metal black box packaging provides EMI/RFI shielding.
  • Eliminates the need to plug and unplug cables.
  • Custom length RJ45 cables available for your switch installation.

The PathWay® Model 7372 RJ45 Cat6 Online/Offline Switch with Contact Closure Remote allows the user the capability of connecting two separate devices, connected to ports A and COM, via an Online or Offline connection. The Model 7372 is enclosed in a 1U, full rack size, all metal black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

The switch may be controlled manually via the front panel pushbutton or remotely from a DB9 port located on the rear of the unit.  Switch position state may be attained via the front panel LED's or by a set of dry contacts on the remote DB9 port.

OPTION: WIDE RANGE POWER MODULE
(Cat No 517277) CE, RoHS, and UL listed table mount power module, 100 VAC / 240 VAC, 50Hz/60Hz in place of standard power module.  Has IEC 60320 C14 inlet.  Ideal for international applications.

Don't forget to order RJ-45 patchchords.  Custom lengths and many colors are available.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

Electro Standards can supply all of your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

 All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
All ESL products are available for export.
