Catalog # 307355 - Model 7355 2-Channel RJ45 CAT5e A/B/Offline Switch

    2-Channel RJ45 CAT5e A/B/Offline Switch2-Channel RJ45 CAT5e A/B/Offline Switch2-Channel RJ45 CAT5e A/B/Offline Switch
Click image to enlarge

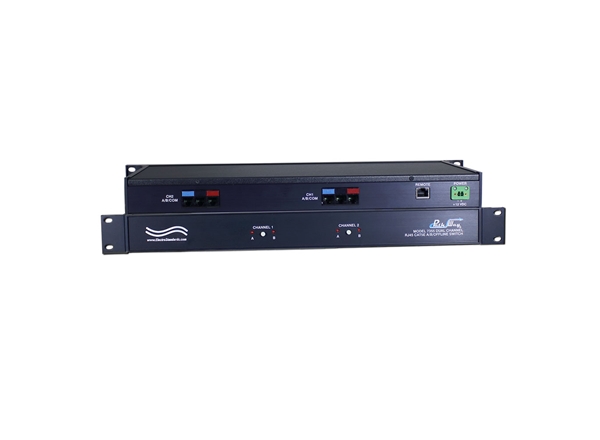

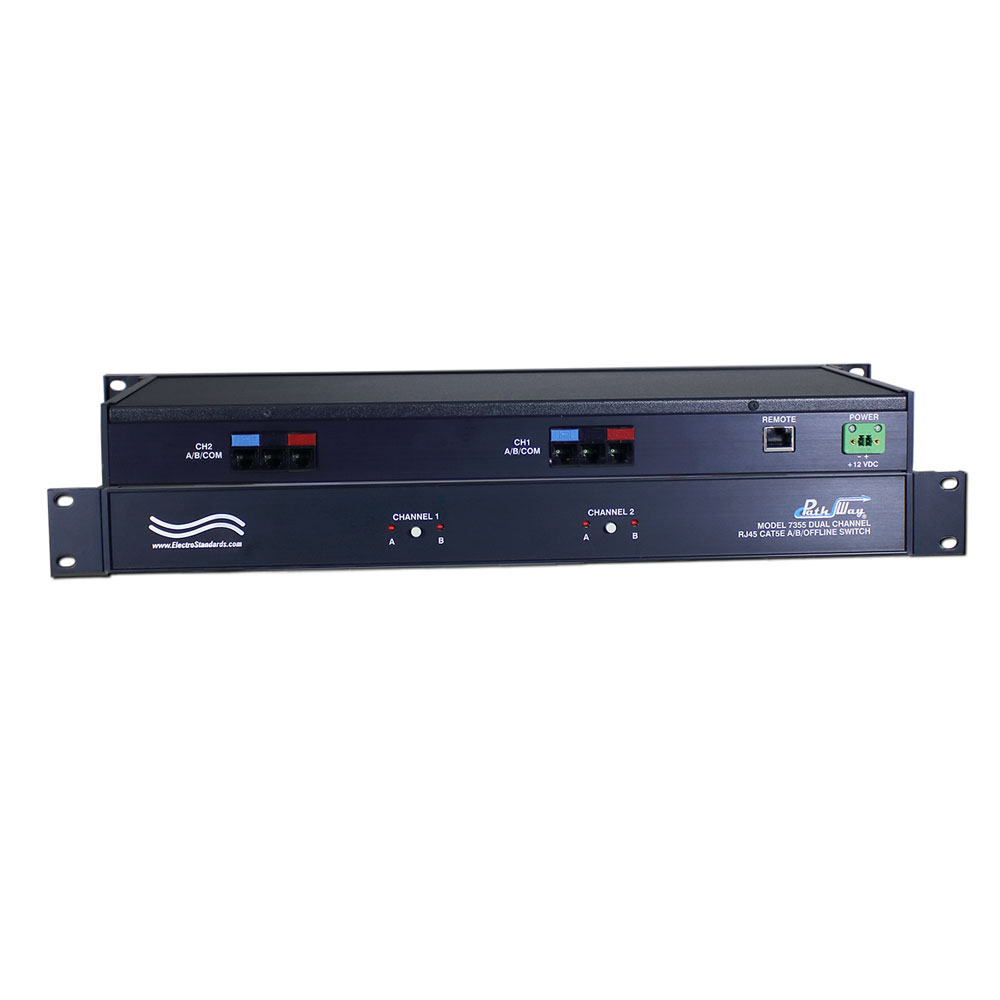

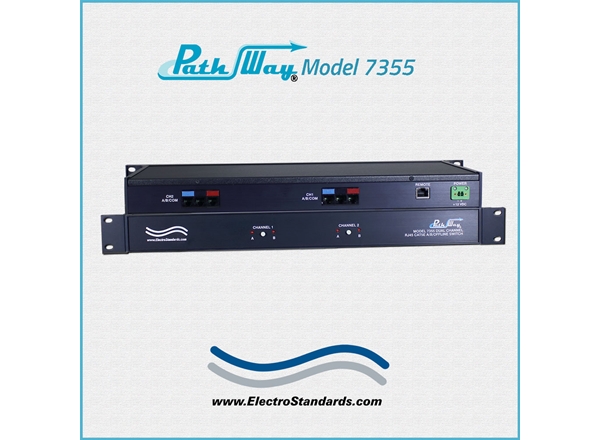

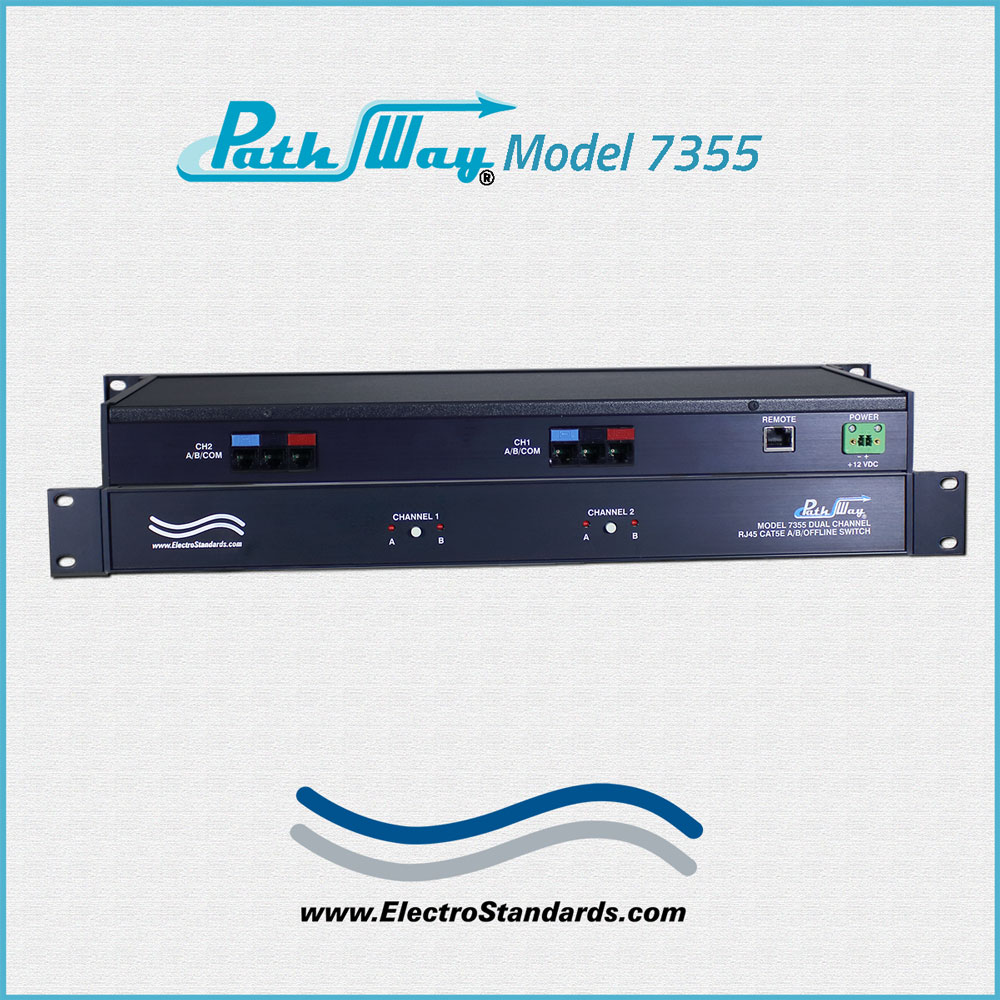

    • 2-Channel RJ45 CAT5e A/B/Offline Switch
    • 2-Channel RJ45 CAT5e A/B/Offline Switch
    • 2-Channel RJ45 CAT5e A/B/Offline Switch
Base Price:
$2,930.00
Catalog No: 307355
Model No: 7355
Product Type:Interface Converter
Positions:3, Offline
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:2
Electronic Switches/Power Required:PathWay® Copper
Channel Control:Independent Channel Control
Remote Control:Ethernet
Security:Offline Position, Password Protection
Compliance/Standards:Cat5e
Configuration:Desktop
Pins Switched:All 8 pins of RJ45
Remote Port:RJ45
Local Control:Pushbutton

  • Dual Independent Channels A/B/OFFLINE
  • Front-Panel Pushbutton Control
  • Remote Control viaTelent & GUI
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

Model 7355 Dual Channel Cat5e, RJ45, A/B/OFFLINE Switch, with 10/100 BASE-T Remote Access and GUI

  • IP Addressable! Communicate with Switch via Internet Explorer running a PC.

SPECIFICATIONS:

  • PORT CONNECTORS: (3) RJ45 female connectors labeled A, B, and Common for each of the two channels.

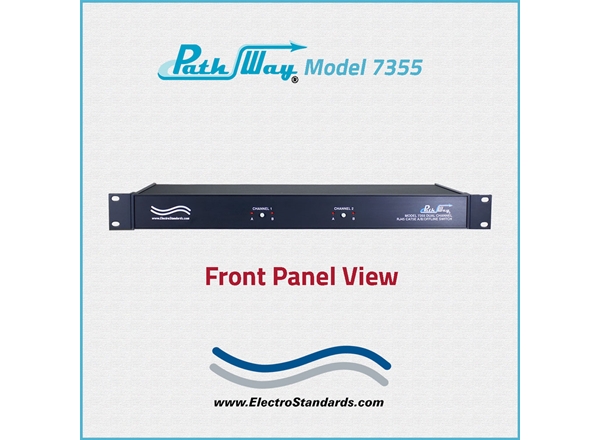

  • FRONT PANEL CONTROLS: (2) Manual pushbuttons allow local switching.
  • DISPLAY: (4) Front panel LED's display switch position of each channel and power status.

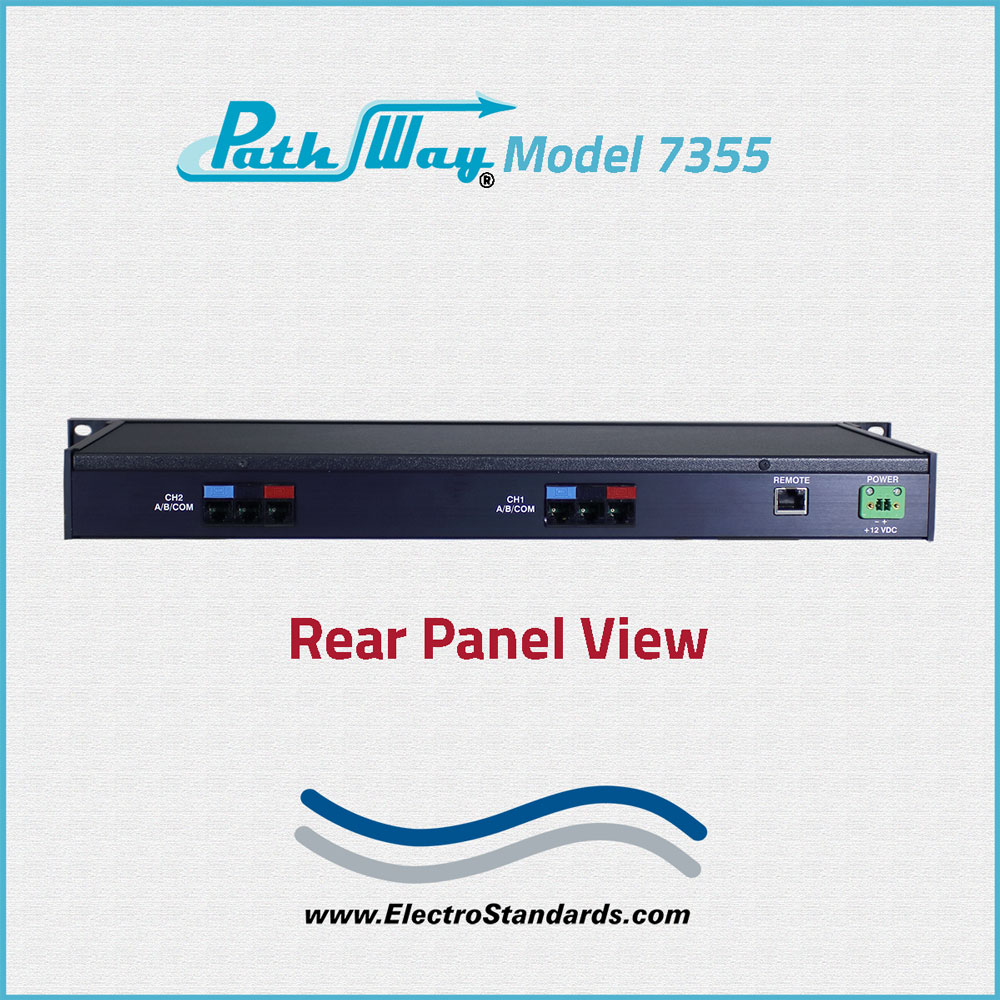

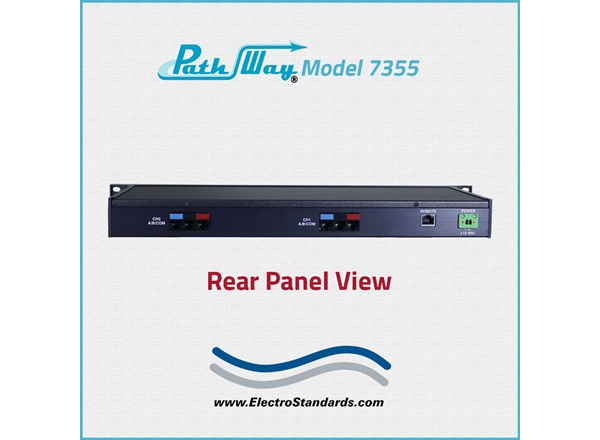

  • REMOTE: (1) RJ45 female connector on rear panel accepts Ethernet 10/100Base-T connection and either TELNET commands or Graphical User Interface for Remote CONTROL operation.
  • POWER: UL approved wall mount 100VAC-240VAC, 50Hz/-0Hz power module supplies 12 VDC, 500mA to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Rackmount configuration 19" W x 1.75" H x 8" D. (48.3 x 4.4 x 20.3 cm)
  • WEIGHT: Approximately 4.5 lbs. (2.0 kg)

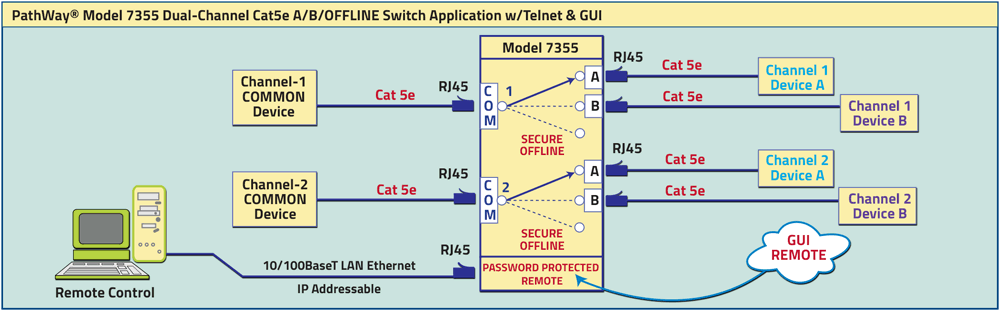

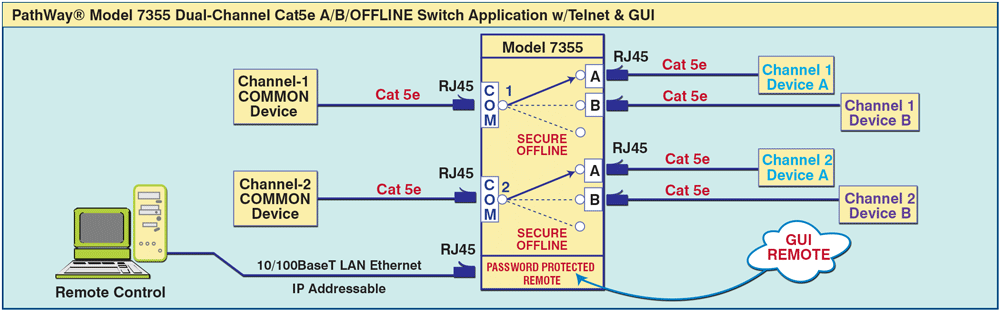

PathWay® Model 7355 Dual-Channel RJ45 A/B/OFFLINE Switch Application w/ Telnet Commands & GUI:

Cat5e Dual Channel Secure OFFLINE Switching with LAN Ethernet Remote Control allows GUI Interface Switching. Each channel has a COMMON device that can access two other devices via port A or port B. The user can select a secure OFFLINE position for each channel independently. The REMOTE port allows the user to control the switch remotely using either Telnet commands or Graphical User Interface.

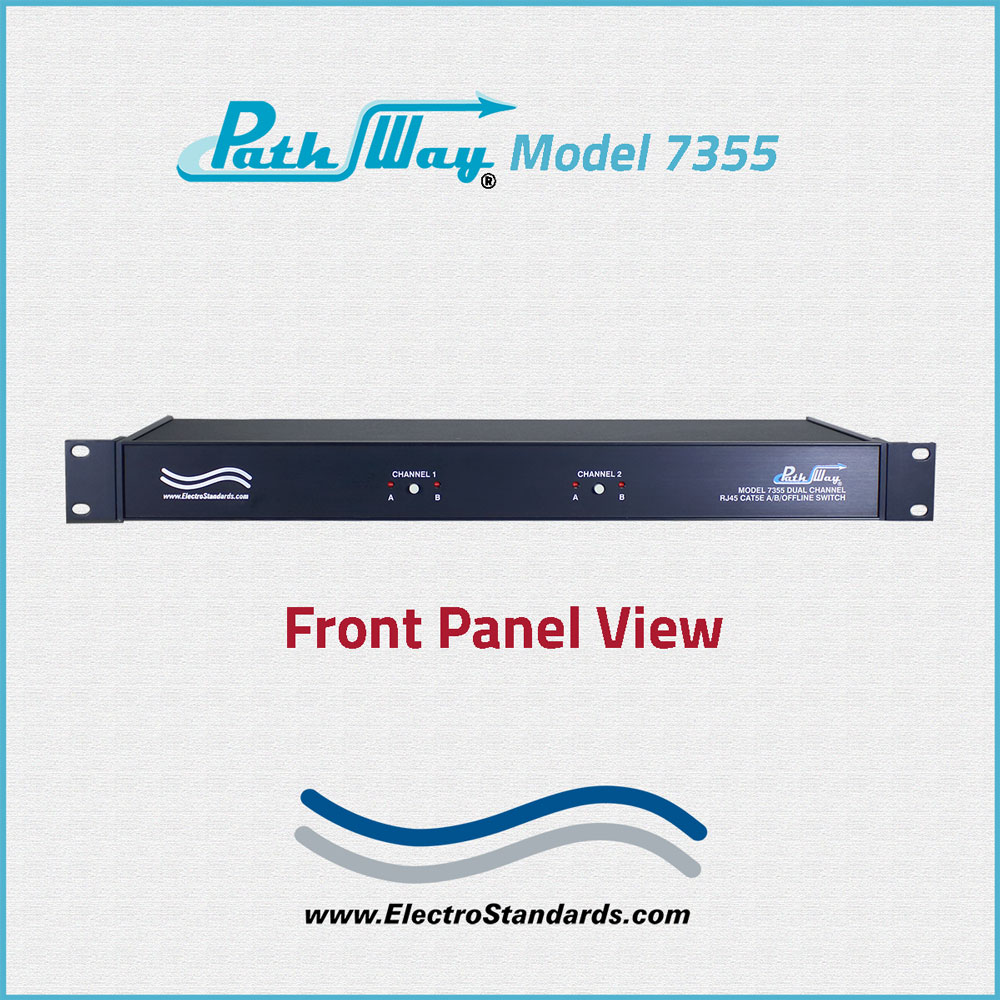

PathWay® Model 7355 Dual-Channel Cat5e A/B/OFFLINE Switch w/Telnet &  GUI
