Dual (Redundant) Power Supplies Catalog 307341R, Model 7341R RJ45 CAT5e A/B Switch, GUI

    7341R RJ45 CAT5e A/B Switch, GUI7341R RJ45 CAT5e A/B Switch, GUI7341R RJ45 CAT5e A/B Switch, GUI
Click image to enlarge

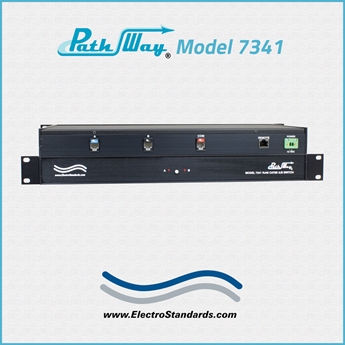

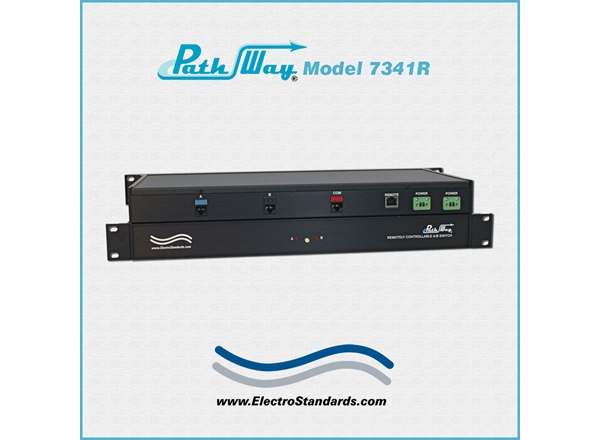

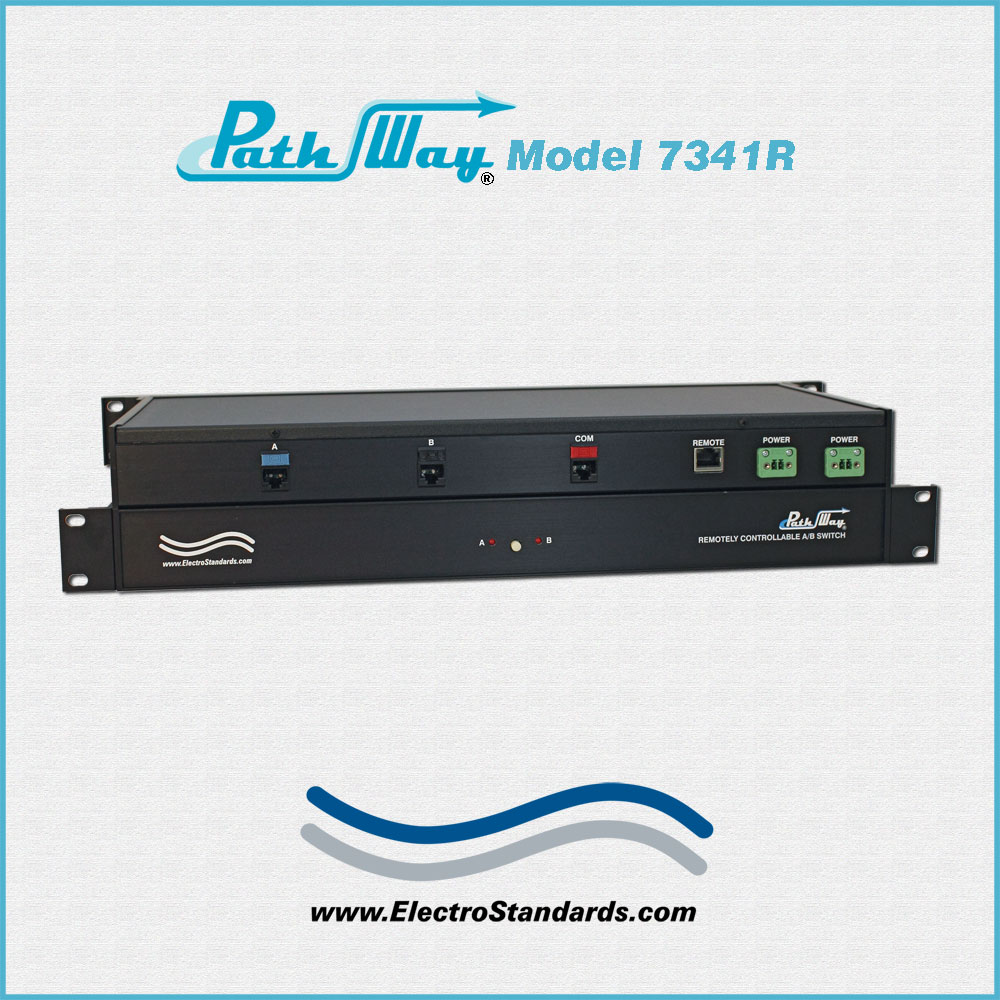

    • 7341R RJ45 CAT5e A/B Switch, GUI
    • 7341R RJ45 CAT5e A/B Switch, GUI
    • 7341R RJ45 CAT5e A/B Switch, GUI
Base Price:
$2,019.00
Catalog No: 307341R
Model No: 7341R
Product Type:Switches: Copper
Positions:2
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:1
Electronic Switches/Power Required:PathWay® Copper
Remote Control:Ethernet
Compliance/Standards:Cat5e
Configuration:Rackmount
Pins Switched:All 8 pins of RJ45
Remote Port:RJ45
Local Control:Pushbutton
Feature:Remote Control/Cat 5e
Protocol:TELNET Commands or GUI Interface

PathWay® Model 7341R has Dual (Redundant) Power Supplies.
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

Path Way® Remotely Controllable Network Switch, Cat5e
Model 7341R Single Channel RJ45 CAT5e A/B Switch, with Telnet and GUI Remote Control

  • Dual (Redundant) Power Supplies for increased reliability

SPECIFICATIONS:

  • PORT CONNECTORS: (3) RJ45(F) connectors, A, B, and COMMON.
  • COMPLIANCE: Interface meets or exceeds Cat 5e performance.
  • CONTROLS: (1) Pushbutton to select A or B.
  • DISPLAY: (2) Red LED's display switch position and indicate power presence.

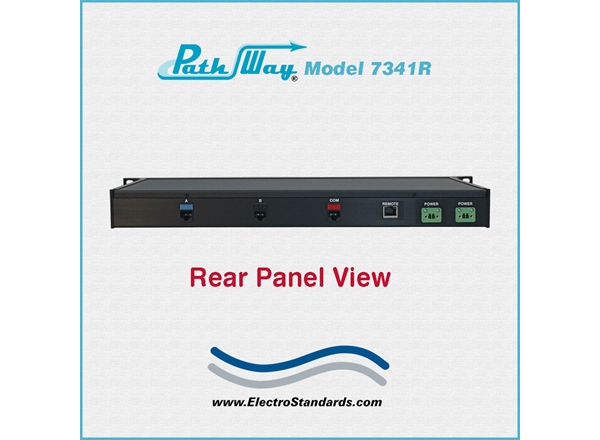

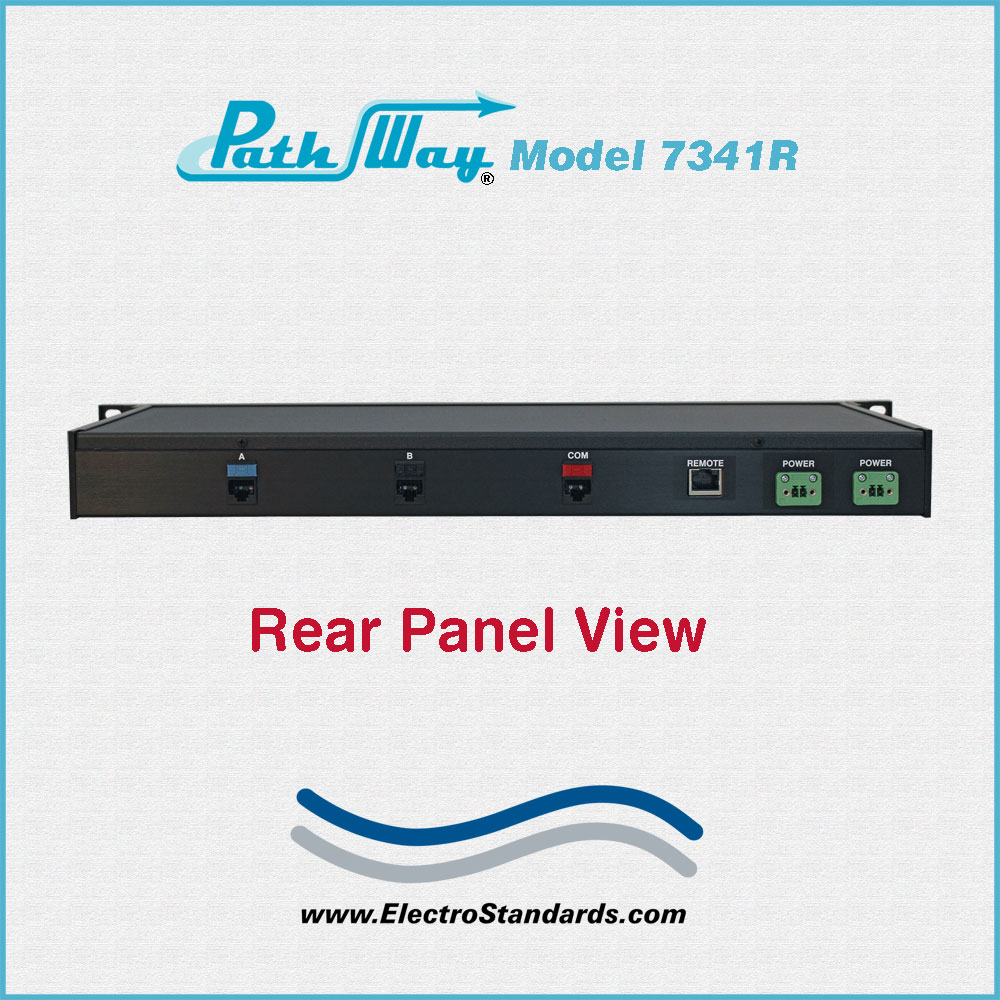

  • SUPERVISORY REMOTE PORT: (1) RJ45 female connector on rear panel accepts Ethernet 10/100 Base-T connection and either TELNET commands or Graphical User Interface for remote operation.
  • POWER: (2) UL approved 100VAC-240VAC, 50Hz-60Hz wall mount power module supplies 12 VDC, 500 mA to the unit.  Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: 19.0" W x 1.75" H x 8.18" D. (48.3 x 4.4 x 20.8 cm)
  • WEIGHT: Approximately 4.3 lbs. (2.0 kg)

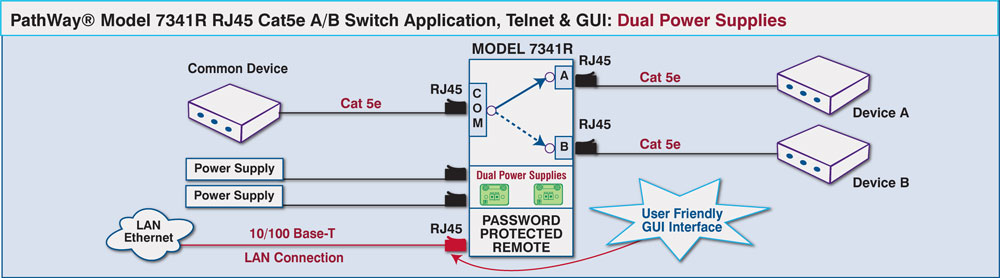

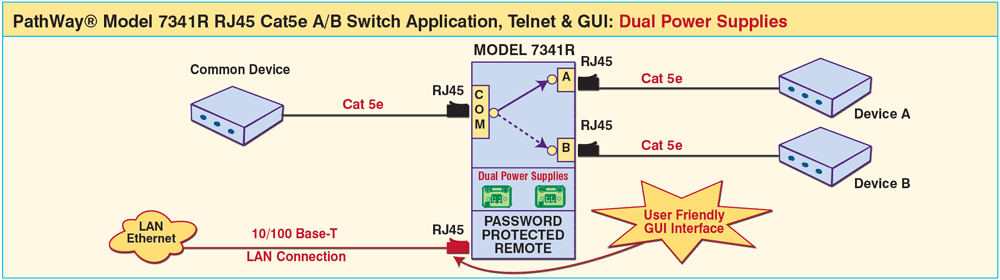

PathWay® Model 7341R CAT5e A/B Switch Application w/ GUI Interface & Dual Power Supplies:

The drawing illustrates a Cat5e compliant RJ45 A/B Switch. A COMMON device connected to the RJ45 COMMON port has access to Device A and Device B connected to the RJ45 A and RJ45 B ports. There is an RJ45 Remote port that allows the user to use Telnet Commands or a Graphical User Interface to remotely control the Model 7341R. The Remote control of the unit is password protected. The Model 7341R has two power supplies for increased reliability.

PathWay® Model 7341R RJ45 Cat5e A/B Switch App w/Telnet, GUI & Dual Power Supplies

FEATURES:

  • Allows quick connection to any one of two RJ45 devices from one COMMON device.
  • The switch ports are transparent to all data.
  • All (8) pins of the RJ45 interface are switched via break-before-make electromechanical relays.

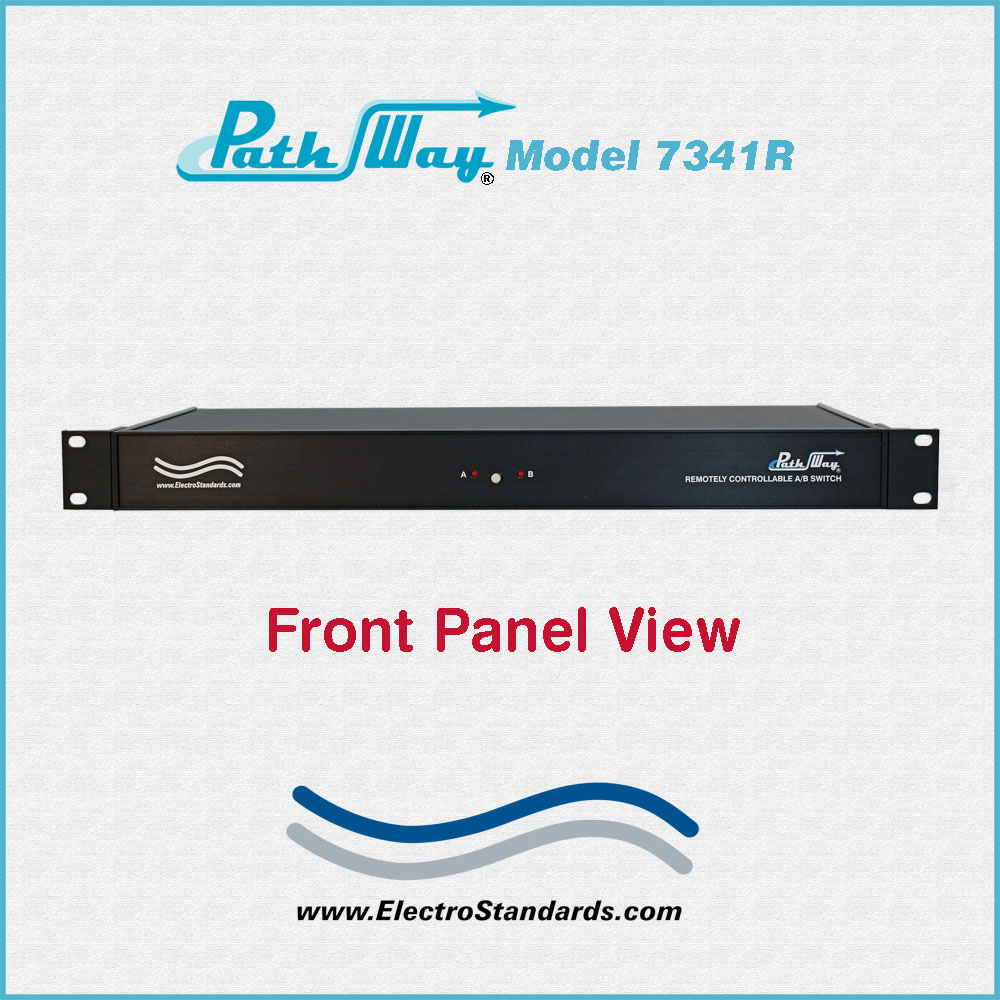

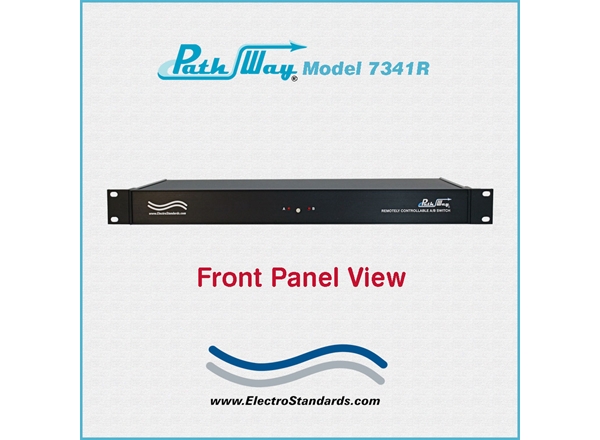

  • Front panel pushbutton control.
  • Switch maintains last set position on power loss and continues to pass data.
  • Control of the switch position from a 10/100Base-T LAN Ethernet environment. IP Addressable!
  • Remote Control Telnet Command Interface or Graphical User Interface that allows the user to control switch position, lockout front panel operations and obtain switch status.
  • Remote control is password protected.
  • Front panel LED's display present switch position and power status.
  • Cat 5e compliance.
  • Redundant Power Supplies help reduce downtime due to power loss. Two power supplies are included.
  • Attractive all metal, black box packaging provides EMI/RFI shielding.
  • Custom length RJ45 cables available for your switch installation.

The PathWay® Model 7341R Single Channel RJ45 Cat5e A/B Switch with Telnet and GUI allows the user the capability of sharing a single port RJ45 interface device, connected to the "COMMON" port, among two other devices, connected to the A and B ports. The Model 7341 is enclosed in a 1U, full rack size, all metal, black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

Remote access can be accomplished using an Ethernet 10/100 Base-T connection and Telnet or GUI.

Proper authentication is required for remote access via the 10/100Base-T connection.  Users can then monitor status, lockout front panel pushbutton control, and control switch position.

OPTION: WIDE RANGE POWER MODULE

(Cat No 517277) CE, RoHS, and UL listed table mount power module, 100 VAC - 240 VAC, 50Hz/60Hz for use in place of standard power module that is included with the unit. Has IEC 60320 C14 inlet.  Ideal for international applications.

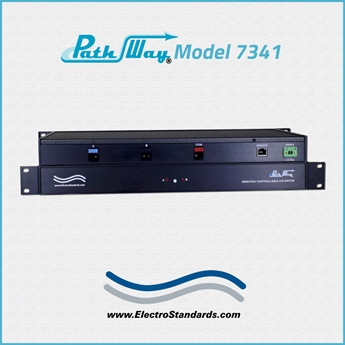

FOR A UNIT WITH A SINGLE POWER SUPPLY

See Model 7341, Cat. No. 307341

UTILIZING THE USER FRIENDLY REMOTE GRAPHICAL USER INTERFACE SOFTWARE

To connect to the switch from a workstation or computer having access to the LAN that the Model 7341 LAN port is connected to simply launch a standard web browser and type in the appropriate IP address.  The Java Applet will be automatically uploaded from the switch upon connection.  The environment requirement for the GUI is Java 1.7 and above.

10/100Base-T LAN SETUP

Network Setup

The switch is configured from the factory to use DHCP to automatically get its IP address from a DHCP server on the local area network when connected to the network and powered up. Therefore, a DHCP server is needed on the local area network for the initial configuration.  After that, the switch can be configured to use a static IP address. To find the IP address of a switch that it has gotten from the DHCP server, or to reconfigure the IP Address of the switch, use Lantronix® DeviceInstaller application.

Getting DeviceInstaller

DeviceInstaller requires Microsoft's .NET Framework version 4.0 or higher.  If the .NET Framework is not already installed, it must first be installed. The .NET Framework can be downloaded from Microsoft's website, either as a web install, or as a standalone installation.  The latest version of DeviceInstaller can be downloaded from the Lantronix's website.

SOFTWARE FEATURES:

  • Access User Interface via standard web browser.
  • Easy to use, simple point and click operation.
  • Remotely access to control or monitor the Model 7341.
  • Remote Control is password protected.
  • Users can change the login password and/or switch's IP address.
  • LAN access gives users across the LAN or over the Internet access to control if user network is configured accordingly.

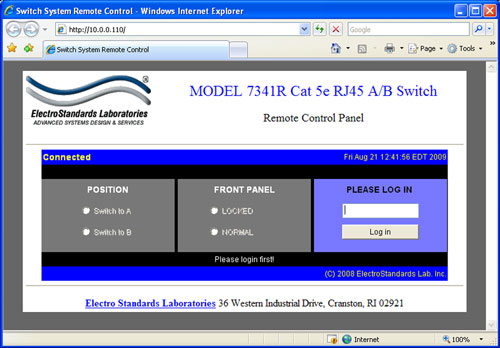

PathWay® Model 7341R Cat5e RJ45 A/B Switch Main GUI

Figure 1: GUI in a Standard Web Browser

LOGGING into the GUI

  • Once logged in, the user can perform one of several actions:
  • Change the switch position.
  • Lockout control of the switch's front panel.
  • Change the login password.
  • Re-configure the switch's IP address.
PathWay® Model 7341R Cat5e RJ45 A/B Switch Main GUI

Figure 2: Logging into the GUI.

CHANGING POSITION AND LOCK STATUS

To change the switch position, click on the radio button for A or B, as desired.  Locking and unlocking the front panel pushbutton can be done by clicking on the "Locked" or "Unlocked" radio buttons. See Figure 3.
PathWay® Model 7341R GUI

Figure 3: Change the position and lockout from the GUI.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
