Model 9475 4-Channel RJ45 Cat5e A/B Keylock Switch, Simultaneous Control

Overview

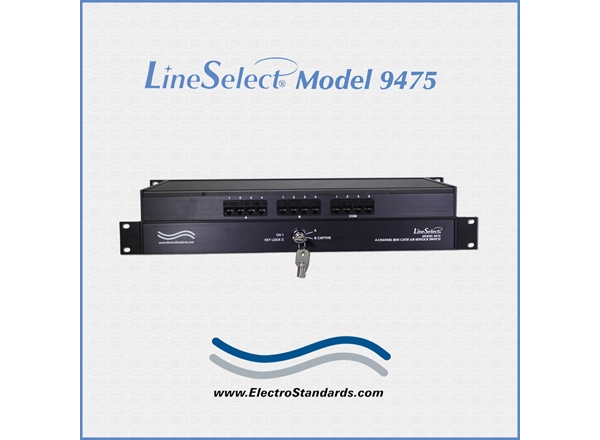

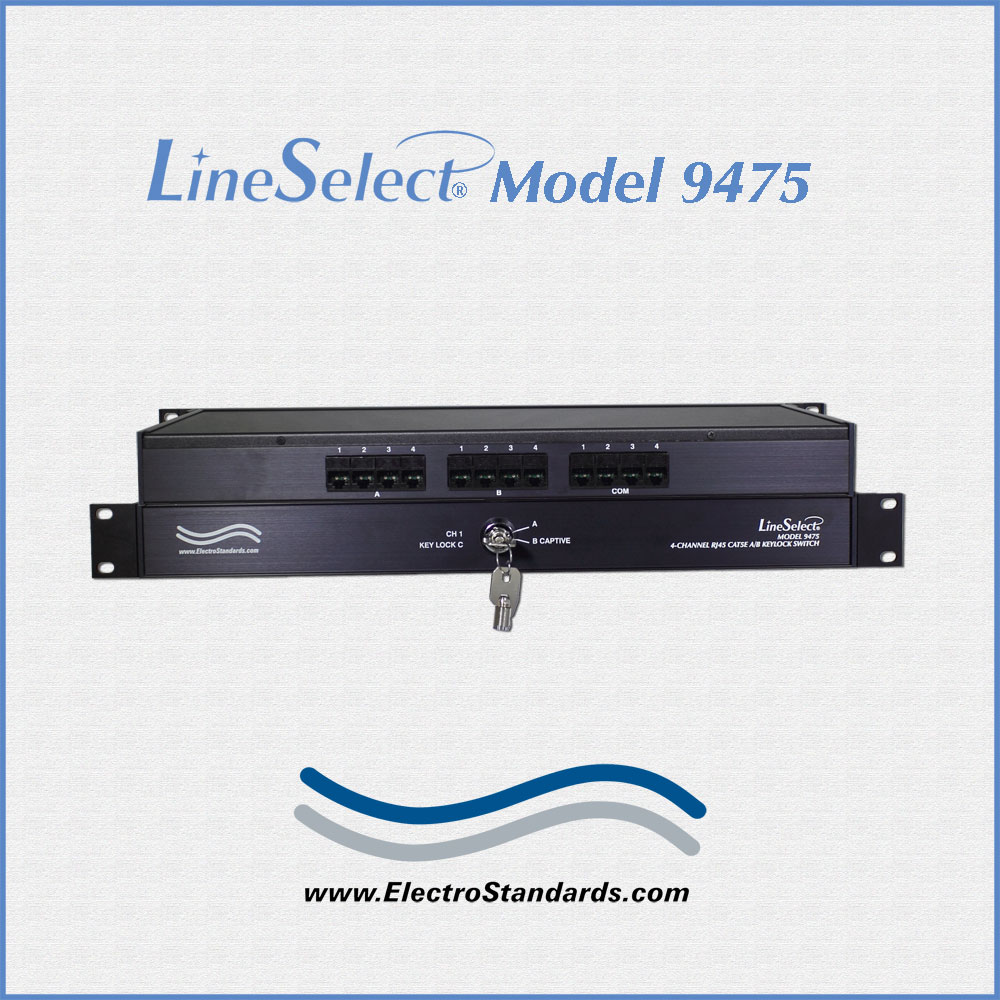

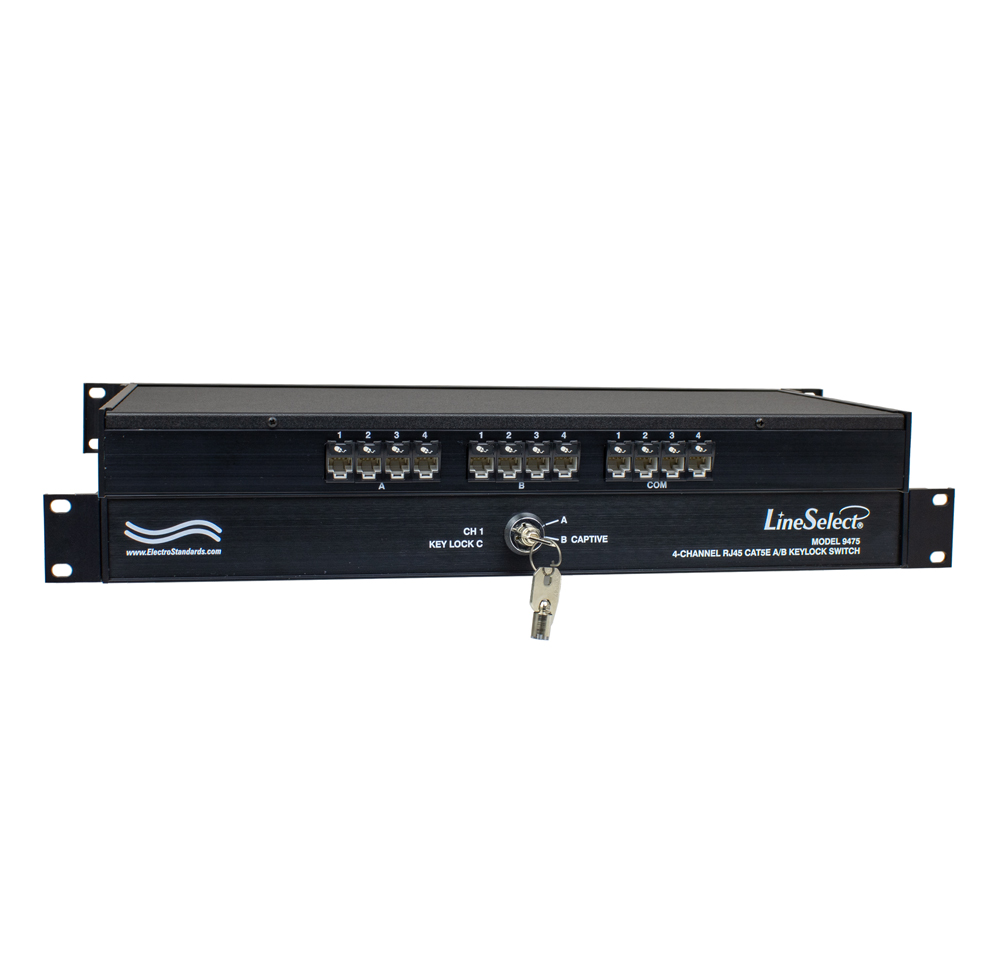

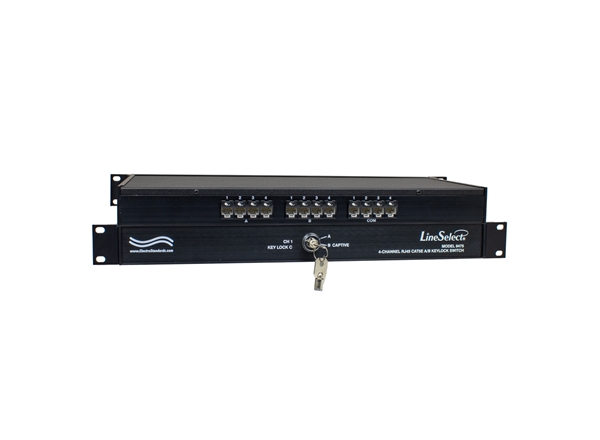

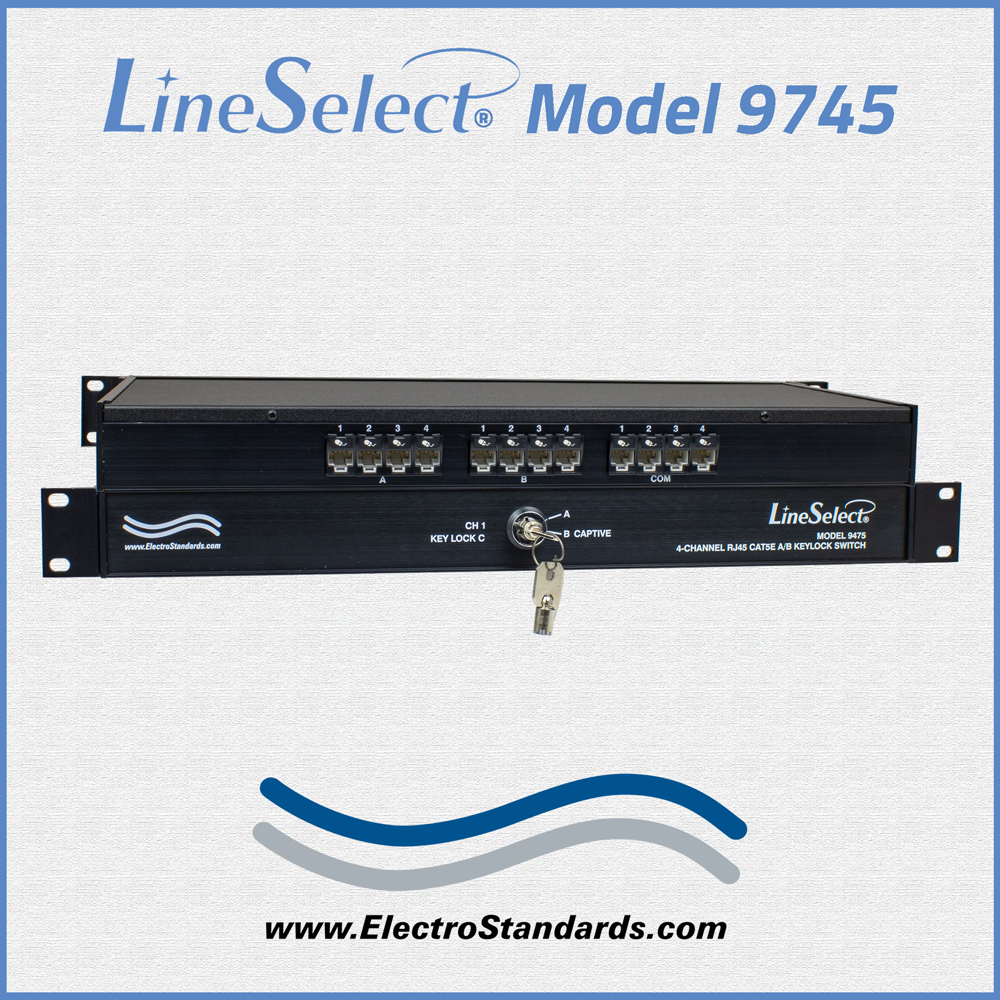

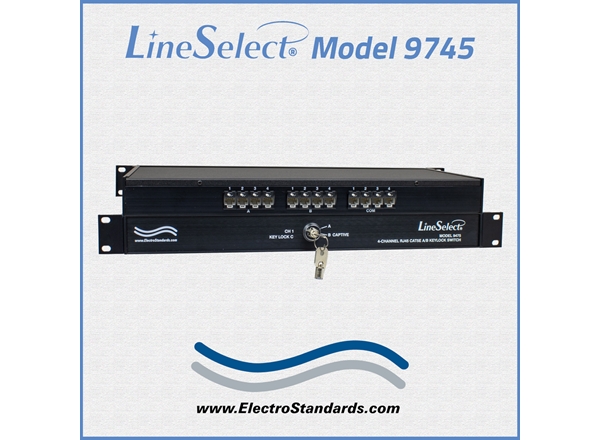

The LineSelect® Model 9475 enables each of four RJ45 Cat5e Common ports to select either of two network LANs or devices via A or B port RJ45 connectors.  All four channels of the LineSelect® Model 9475 A/B Switch are switched simultaneously via a keylock actuator located on the front panel.  The key for the LineSelect® Model 9475 is uniquely keyed as a style C key.

The unit supports all 8 pins of the RJ45 Cat5e interface.  No need to plug and unplug cables thereby eliminating connector wear.  The LineSelect® Model 9475 is enclosed in a 1U full rack size, all metal, black chassis designed to provide EMI/FRI shielding and fit in a standard 19" rack.

  • Applicable to switching ANY RJ45 interface, quickly and reliably.

FEATURES OF THE MODEL 9475 RJ45 KEYLOCK SWITCH:

  • Simultaneously switch all four channels of RJ45 A/B via keylock actuator located on the front panel using a style C key.
  • Tested for Cat5e compliance.
  • Key is removable in the "A" position and captive in the "B" position.
  • All 8 pins of the RJ45 interface are switched via break-before-make keylock switch.
  • High quality sealed switch with self-wiping low impedance contacts.
  • Manually operated keylock switch.  No power required.
  • Attractive all metal, black box packaging provides EMI/RFI shielding.
  • Rackmount configuration is standard.
  • Lifetime warranty against manufacturing defects.

TECHNICAL SPECIFICATIONS:

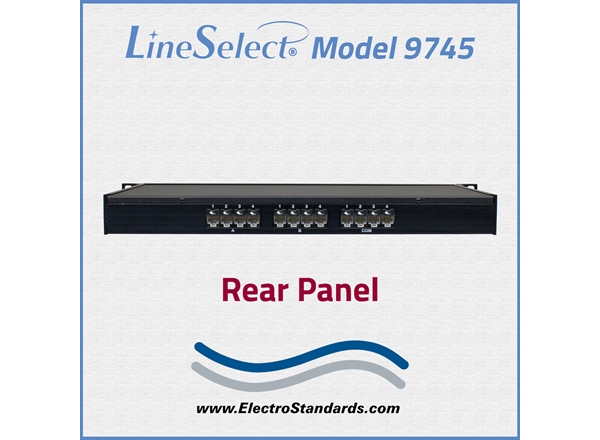

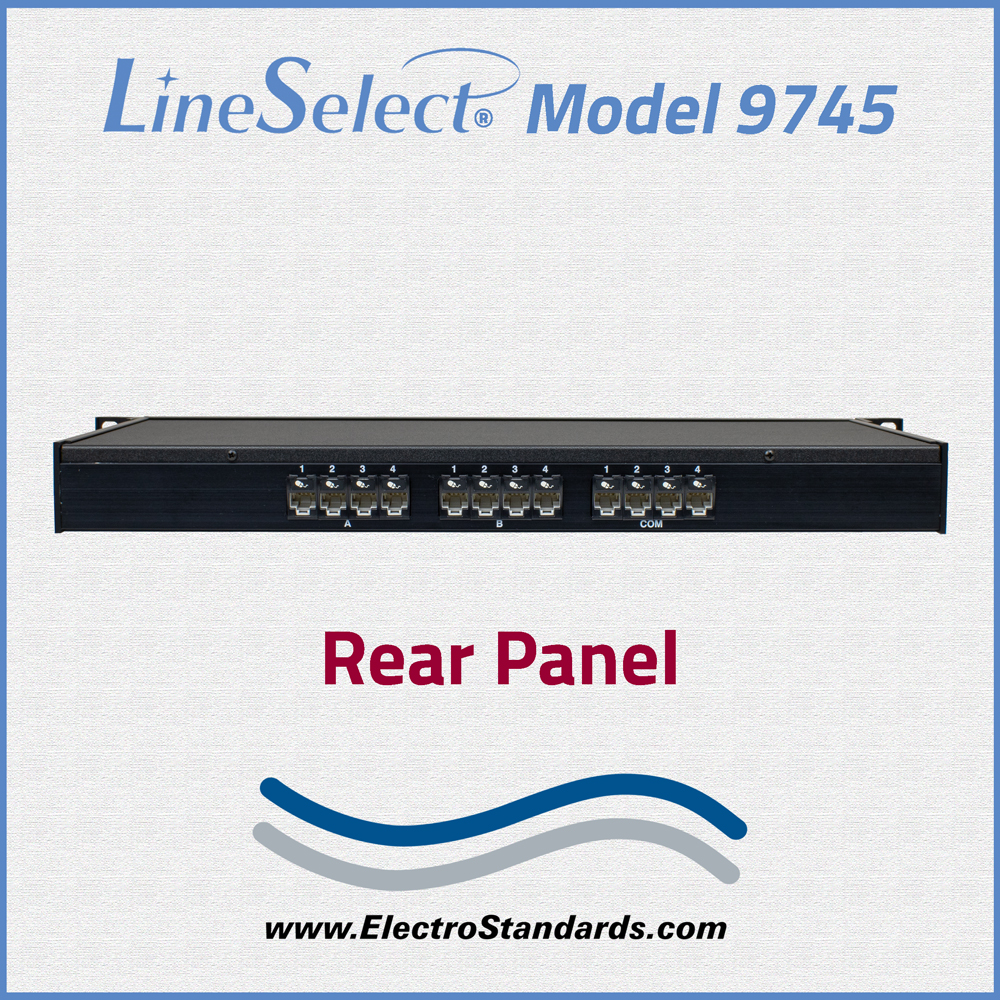

  • PORT CONNECTORS: (12) RJ45 female connectors labeled A, B, and COMMON, for each of the 4 channels.

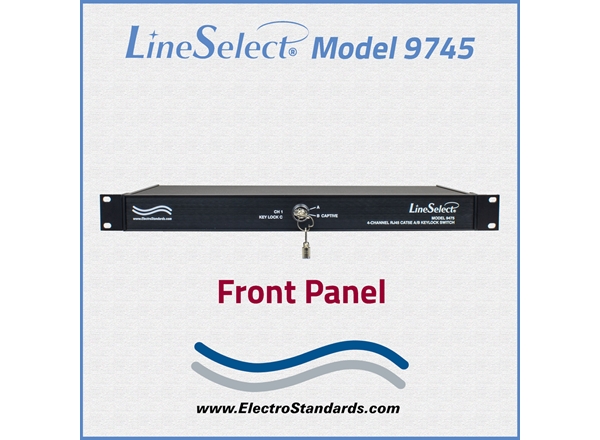

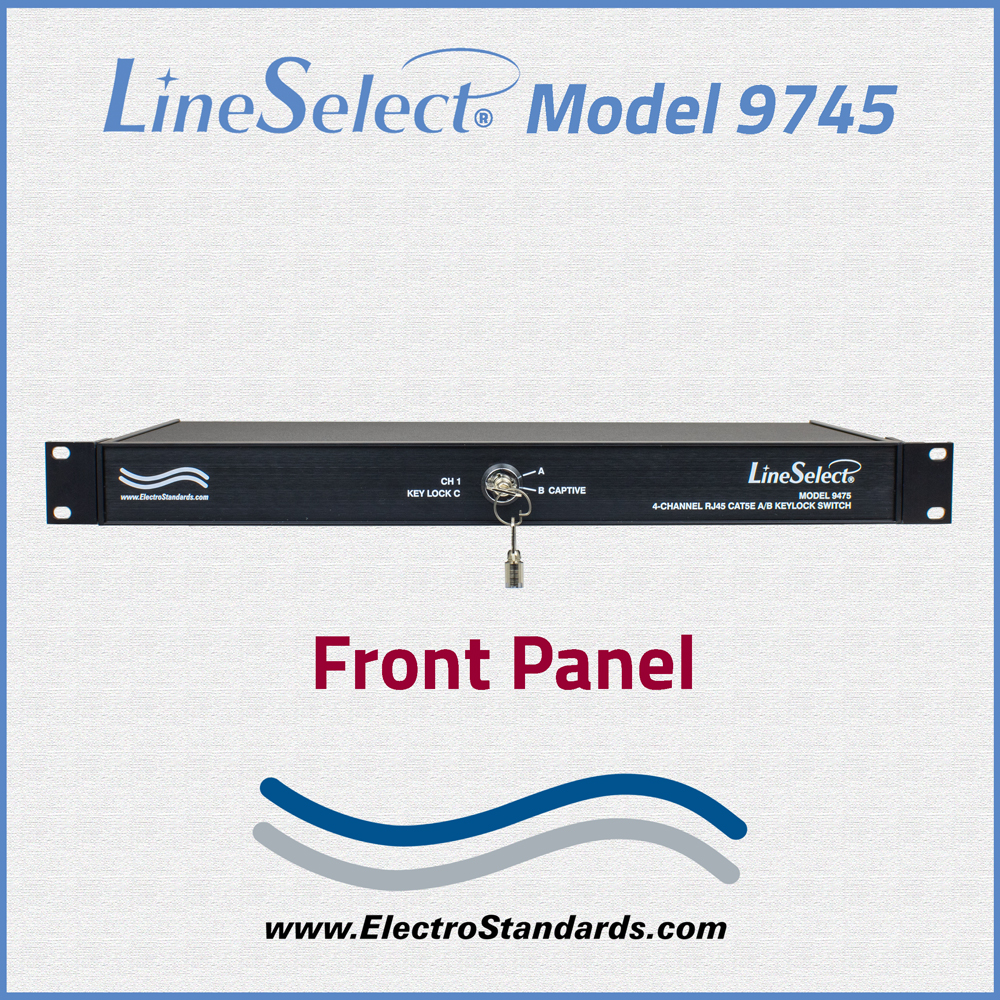

  • FRONT PANEL CONTROLS: (1) keylock switch on front panel. Keylock actuator selects A or B (key captive position) switching all 4 channels simultaneously by inserting a style C key.
  • POWER: No power required.  Manually operated.
  • DIMENSIONS: Rackmount: 19.0" W x 1.75" H x 8.23" D. (48.3 x 4.4 x 21.0 cm)
  • WEIGHT: Approximately 4.6 lbs. (2.1 kg)

MODEL 9475 4-CHANNEL RJ45 CAT5e A/B KEYLOCK SWITCH APPLICATION:

The drawing illustrates a 4-Channel Group. Each Channel in the group has a Common Device connected to the COMMON Port with access to one of two devices connected to the Cat5e A and B ports. The 4-Channel Group switches all four channels simultaneously from A position to B position or Position B to Position A. The front panel operation is controlled by a Keylock to allow or inhibit operations.

LineSelect® Model 9475 4-Channel RJ45 Cat5e A/B Keylock Switch application
