Catalog #307305 Model 7305 RJ45 Cat5e A/B Switch, Exclusive Voltage Remote Control, Din Rail

    RJ45 Cat5e A/B Switch, Exclusive Remote Control, Din RailRJ45 Cat5e A/B Switch, Exclusive Remote Control, Din RailRJ45 Cat5e A/B Switch, Exclusive Remote Control, Din RailRJ45 Cat5e A/B Switch, Exclusive Remote Control, Din RailRJ45 Cat5e A/B Switch, Exclusive Remote Control, Din Rail
Click image to enlarge
    • RJ45 Cat5e A/B Switch, Exclusive Remote Control, Din Rail
    • RJ45 Cat5e A/B Switch, Exclusive Remote Control, Din Rail
    • RJ45 Cat5e A/B Switch, Exclusive Remote Control, Din Rail
    • RJ45 Cat5e A/B Switch, Exclusive Remote Control, Din Rail
    • RJ45 Cat5e A/B Switch, Exclusive Remote Control, Din Rail
Base Price:
$1,567.00
Catalog No: 307305
Model No: 7305
Product Type:Switches: Copper
Interface:RJ45
Positions:2
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:1
Electronic Switches/Power Required:PathWay® Copper
Remote Control:Voltage Control
Security:Exclusive Remote Control
Compliance/Standards:Cat5e
Configuration:DIN Rail Mount
Pins Switched:8
Remote Port:DB9
Local Control:None

Add to Cart

Ideal for use in process control systems

Exclusive Remote control, No local control on this unit, DIN Rail mounted.

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

PathWay®

PathWay® Model 7305 Single Channel RJ45 Cat5e A/B Switch with Exclusive Voltage Remote Control, 24VDC

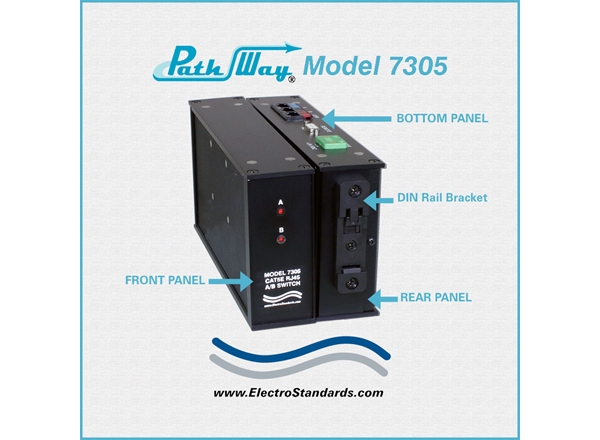

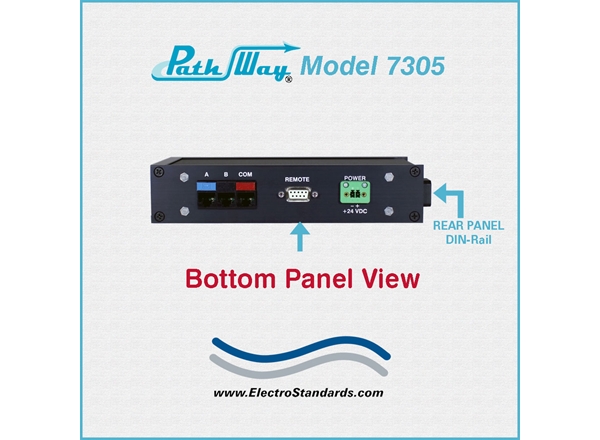

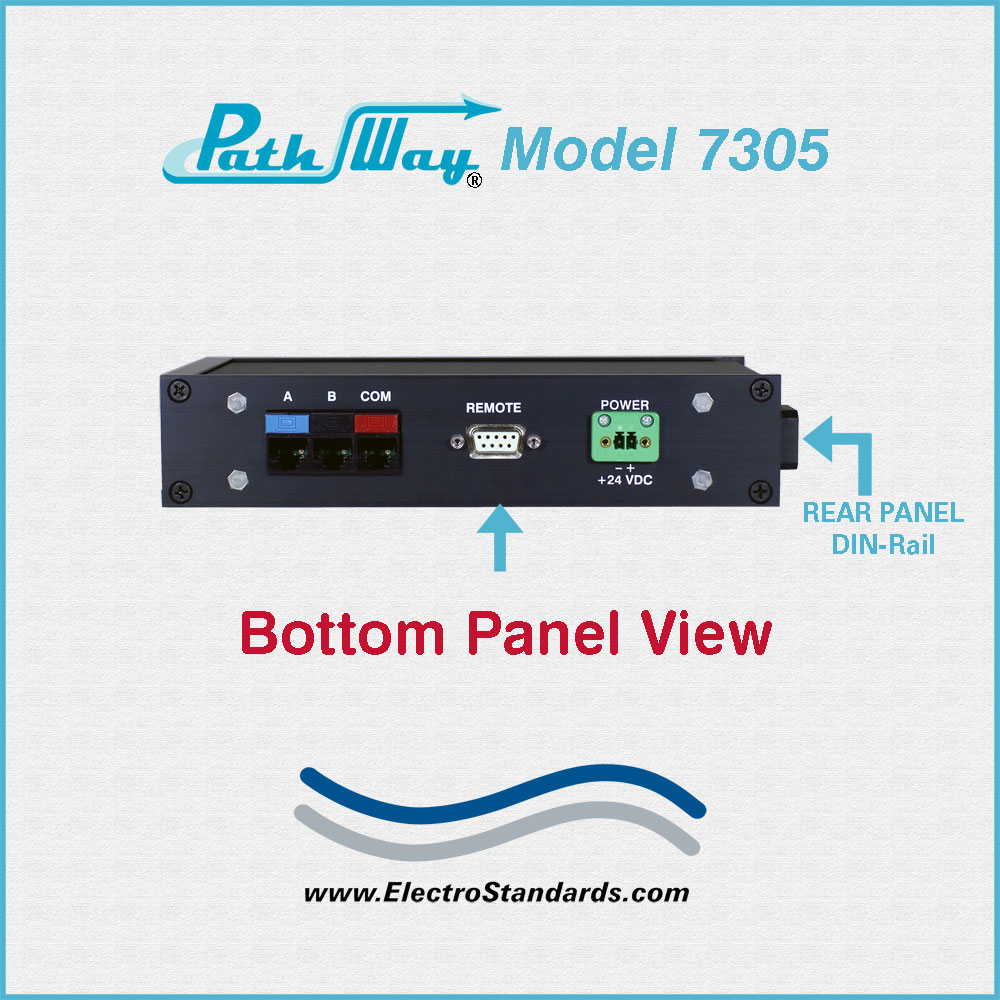

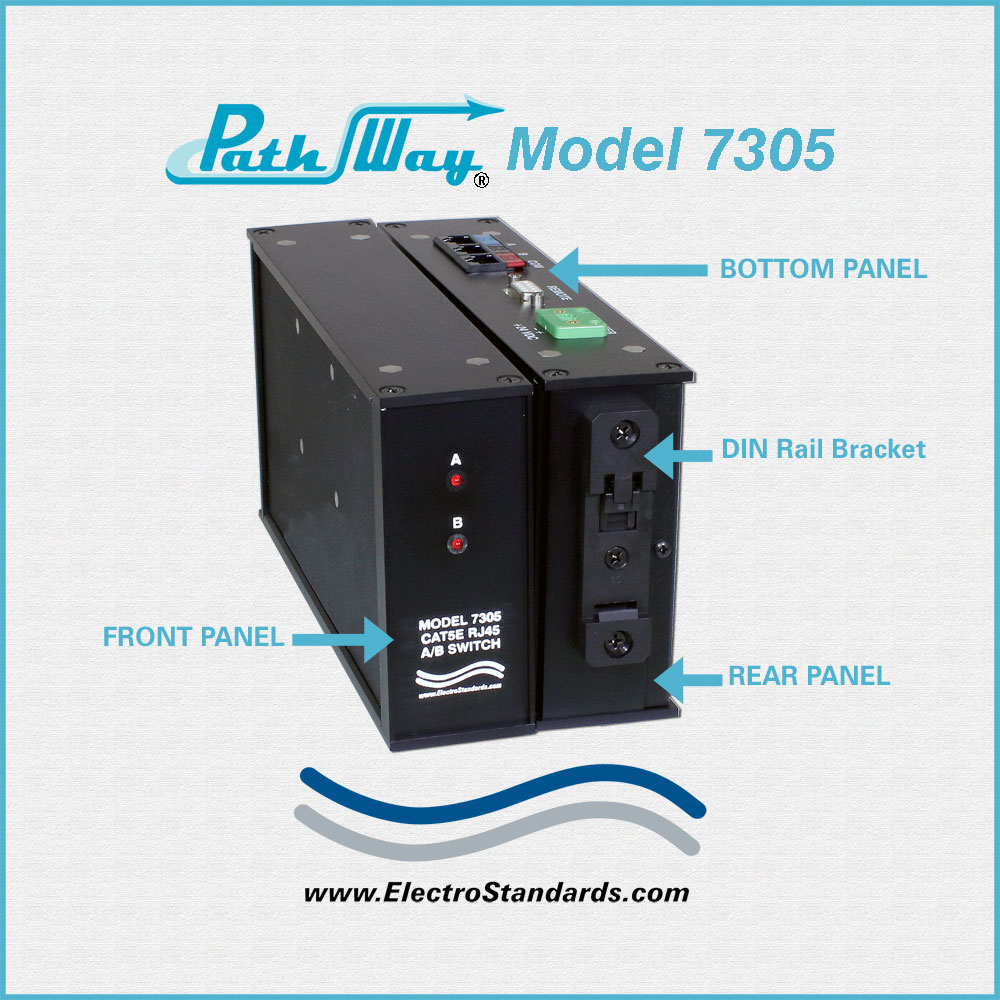

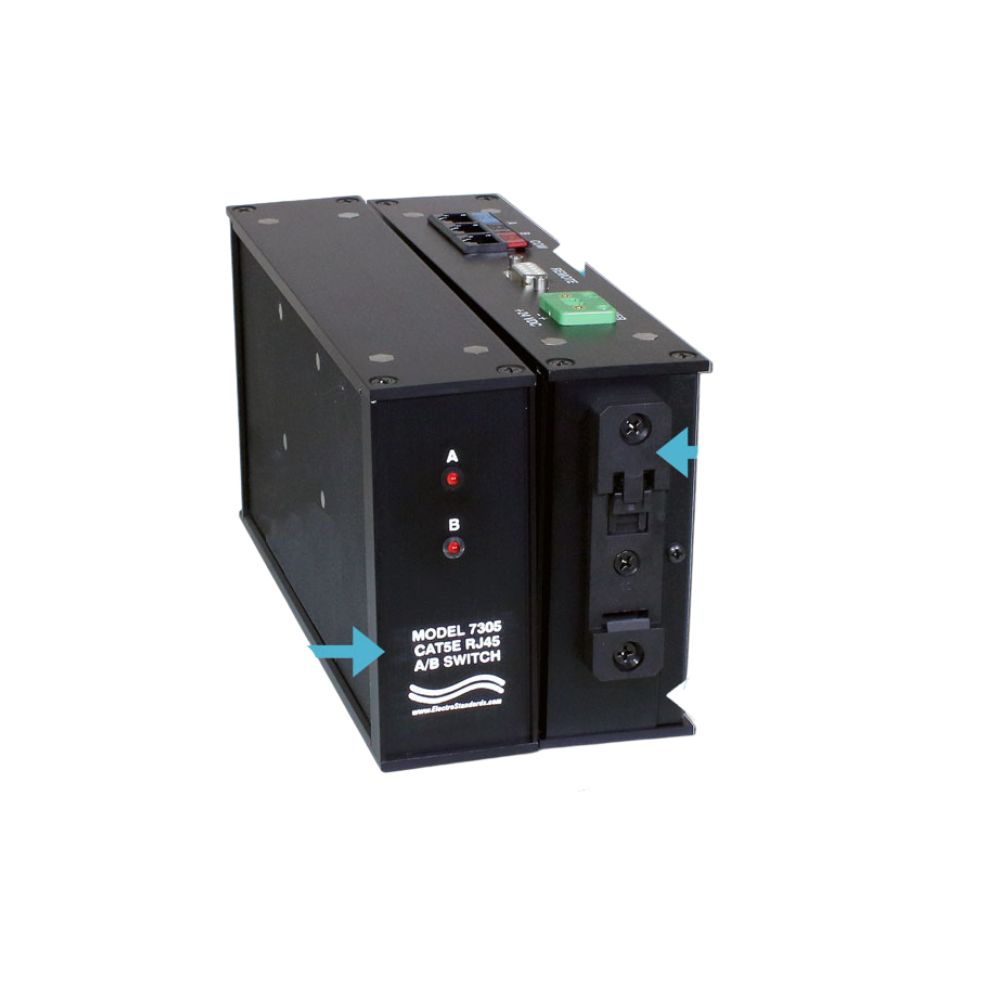

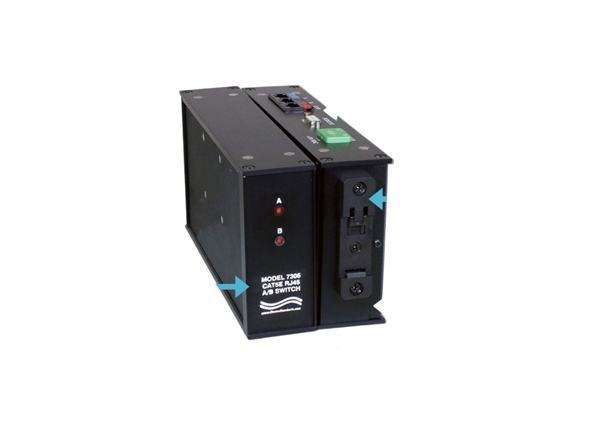

The PathWay® Model 7305 shares a single RJ45 device/network among two other RJ45 devices/networks on ports A and B. The devices can only be switched via a Supervisory Remote Control connected to the DB9 Voltage Control Port. The voltage control provides low power dry contact logic to allow the control of the switch position to and from the A or B positions.  The Model 7305 is enclosed in a slim all metal, black chassis designed to provide EMI/RFI shielding and mount on a standard DIN Rail. There is no "local" or front panel switch control on the unit.  The Model 7305 can ONLY be switched remotely via the DB9 Remote port located on the bottom of the unit.

  • Convenient DIN Rail Mounting

  • Ideal for Use in Process Control Systems

  •  No Front Panel Local Control Prevents Unauthorized or Accidental Changes

FEATURES:

  • Allows quick connection to any one of two RJ45 devices from one COMMON device.
  • The switch ports are transparent to all data.
  • All (8) pins of the RJ45 interface are switched via break-before-make electromechanical relays.
  • Certified for Cat5e compliance.
  • Exclusive Remote Control. No front panel control.
  • Remote voltage control provides low power dry contact logic to allow the control of the switch position.
  • Switch reverts to A position on power loss and continues to pass data.
  • Upon power up, unit switches based on state of Remote port.

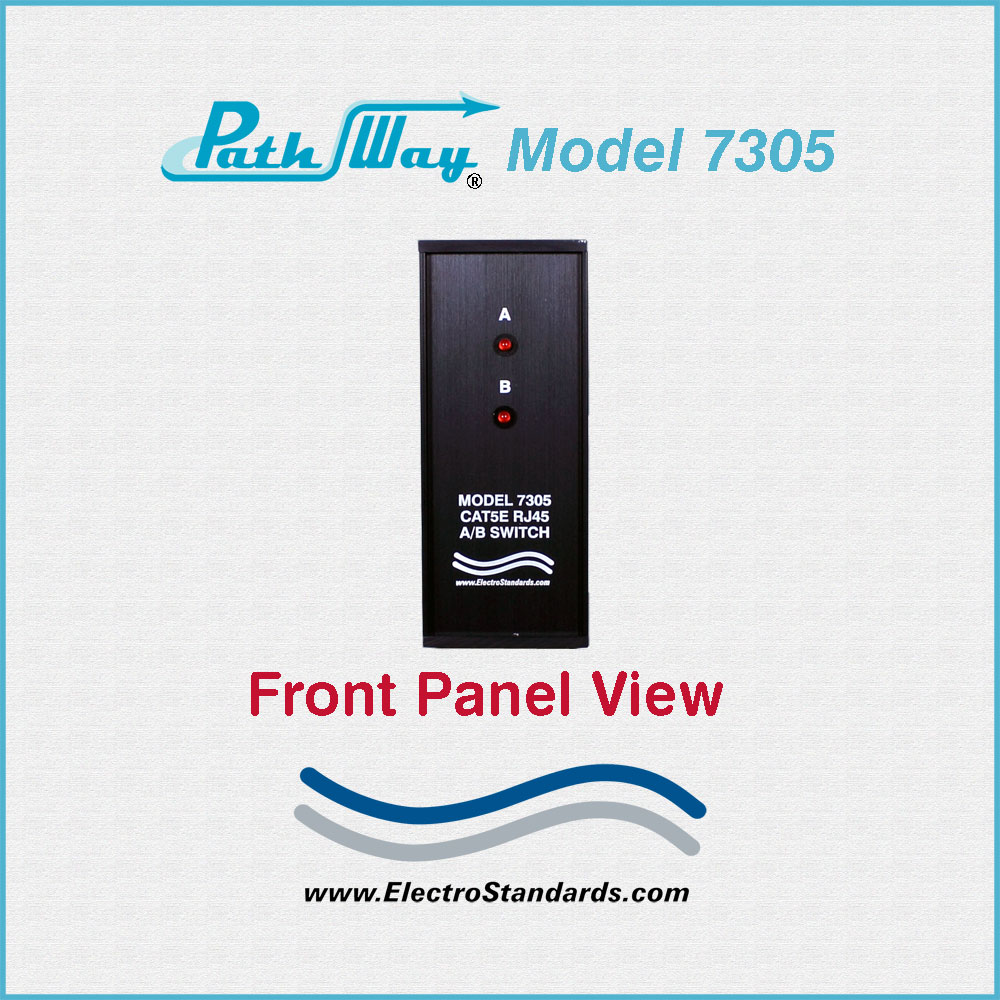

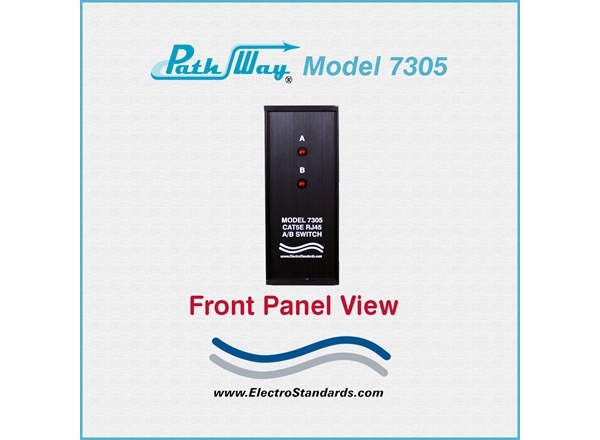

  • Front panel LED's display switch position and power status.
  • Eliminates the need to plug and unplug cables.
  • Attractive all metal, black box packaging provides EMI/RFI shielding.
  • Custom length RJ45 cables available for your switch installation,

SPECIFICATIONS:

  • PORT CONNECTORS: (3) RJ45 female connectors labeled A, B, and COMMON.
  • REMOTE VOLTAGE CONTROL: (1) DB9 female port accepts low power dry contact logic to allow the control of the switch position.
  • DISPLAY: (2) Front panel LED's display switch position.
  • POWER: 24 VDC required to be supplied to the unit.

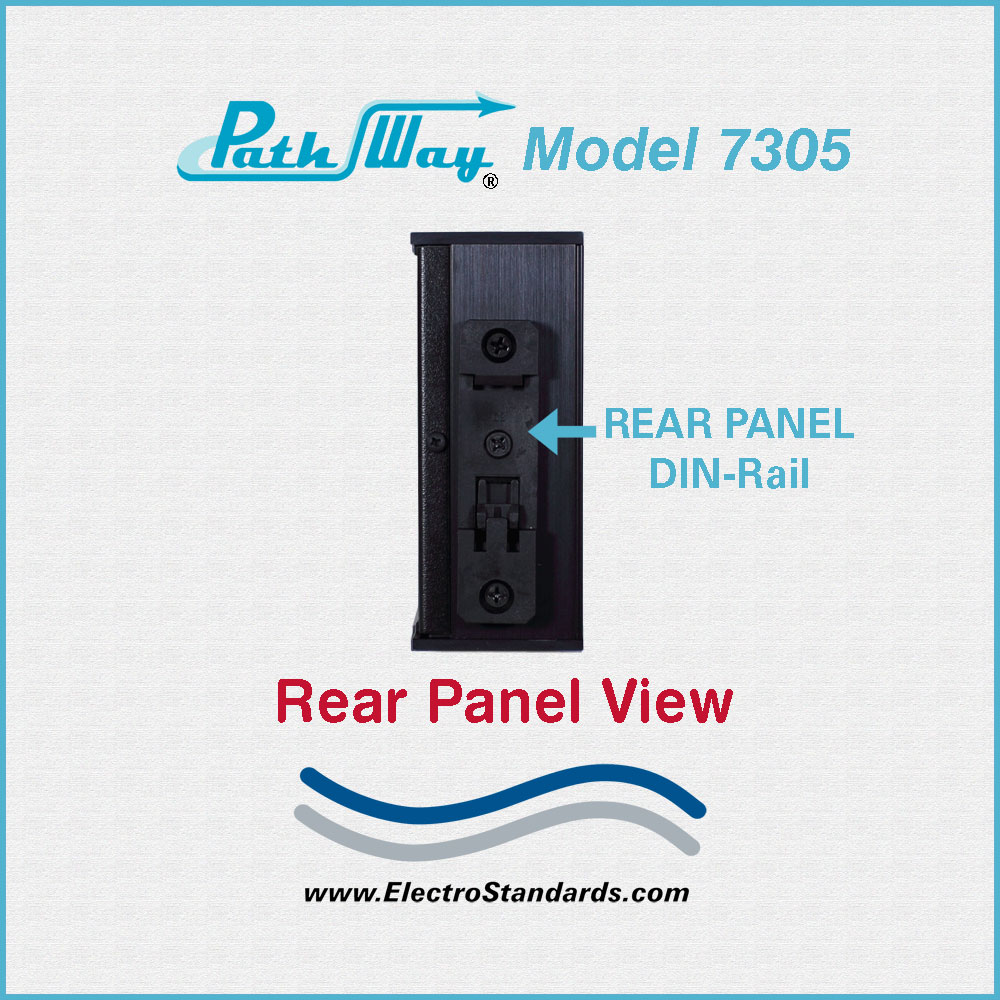

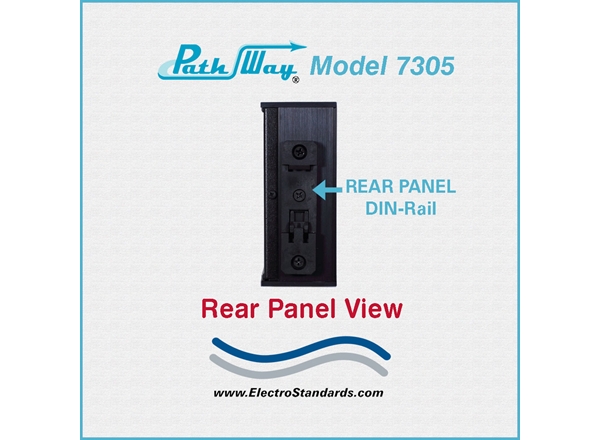

  • DIMENSIONS: DIN Rail Mount Package: 1.75"W x 4.25"H x 8.0"D.
  • (4.4 x 10.8 x 20.3 cm)
  • WEIGHT: Approximately 1.4 lbs. (0.7 kg)

VOLTAGE REMOTE CONTROL OPERATION:
 Remote voltage control provides low power dry contact logic to allow the control of the switch position.

  • 0 VDC - Switches to the A Position
  • 24 VDC -  Switches to B Position

PathWay® Model 7305 CAT5e A/B SWITCH APPLICATION WITH EXCLUSIVE REMOTE CONTROL: (DIN-Rail, Process Control Systems)

The drawing illustrates a COMMON device connected to the RJ45 port. The COMMON device has access to Device A and Device B connected to the RJ45 Ports A and B. A user can control the switch position exclusively using the DB9 Remote Voltage Control via low power dry contact logic.

PathWay® Model 7305 Cat5e A/B Switch Application with Exclusive Remote Control Port.
