PathWay® Model 7305C Single Channel RJ45 Cat5e A/B Switch with Exclusive Voltage Remote Control, 24VDC RoHS & CE Compliant

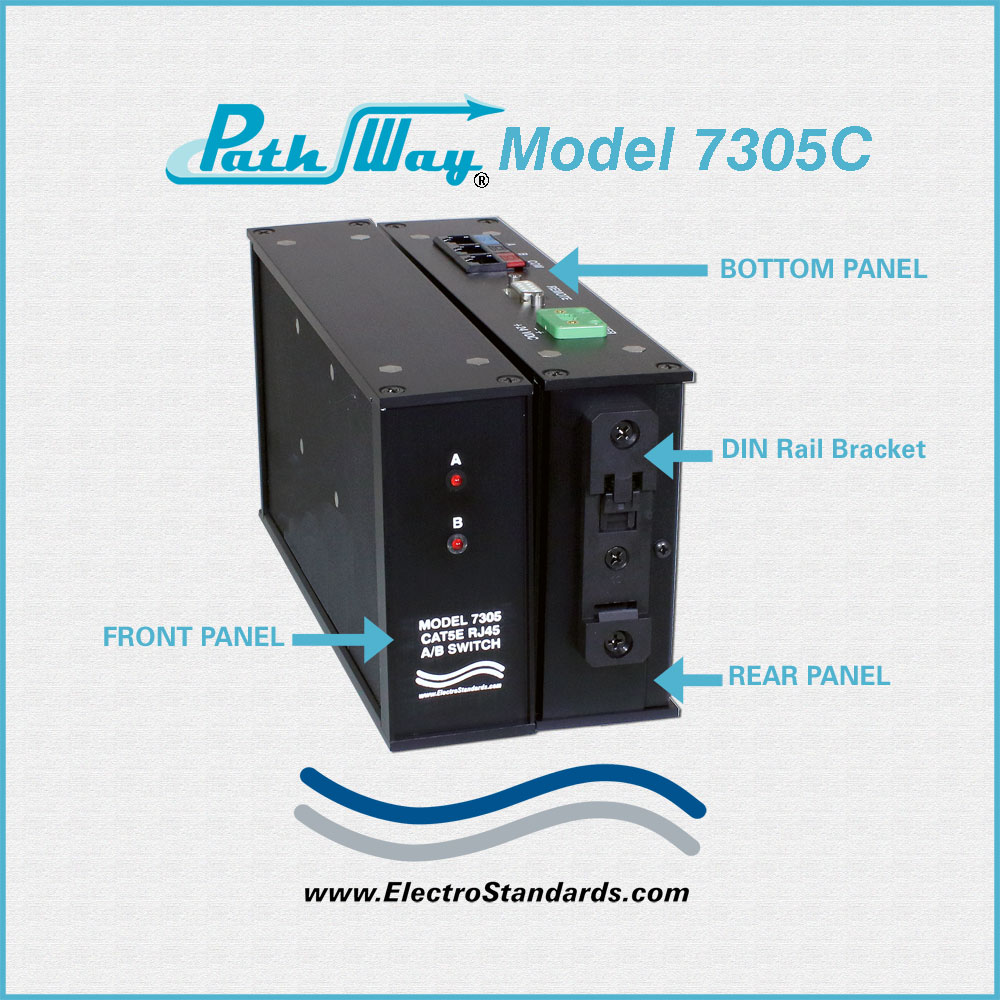

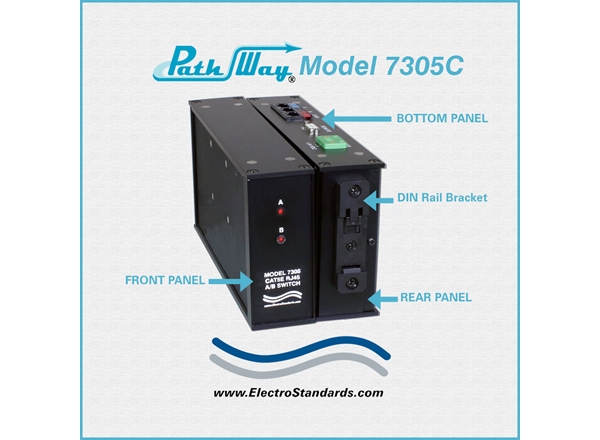

Overview

The PathWay® Model 7305C shares a single RJ45 device/network among two other RJ45 devices/networks on ports A and B. The devices can only be switched via a Supervisory Remote Control connected to the DB9 Voltage Control Port. The voltage control provides low power dry contact logic to allow the control of the switch position to and from the A or B positions.  The PathWay® Model 7305C is RoHS Compliant and CE Certified.The Model 7305C is enclosed in a slim all metal, black chassis designed to provide EMI/RFI shielding and mount on a standard DIN Rail. There is no "local" or front panel switch control on the unit.  The Model 7305C can ONLY be switched remotely via the DB9 Remote port located on the bottom of the unit.

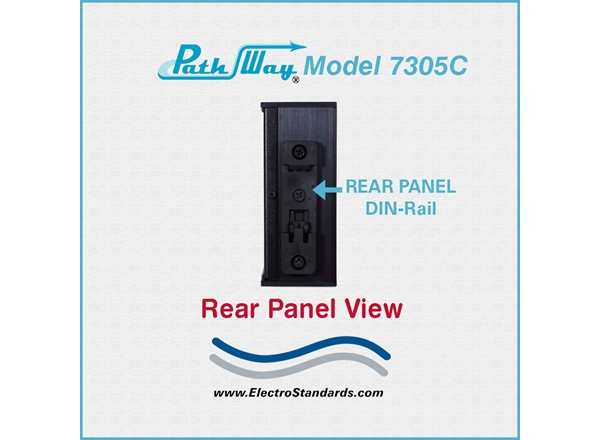

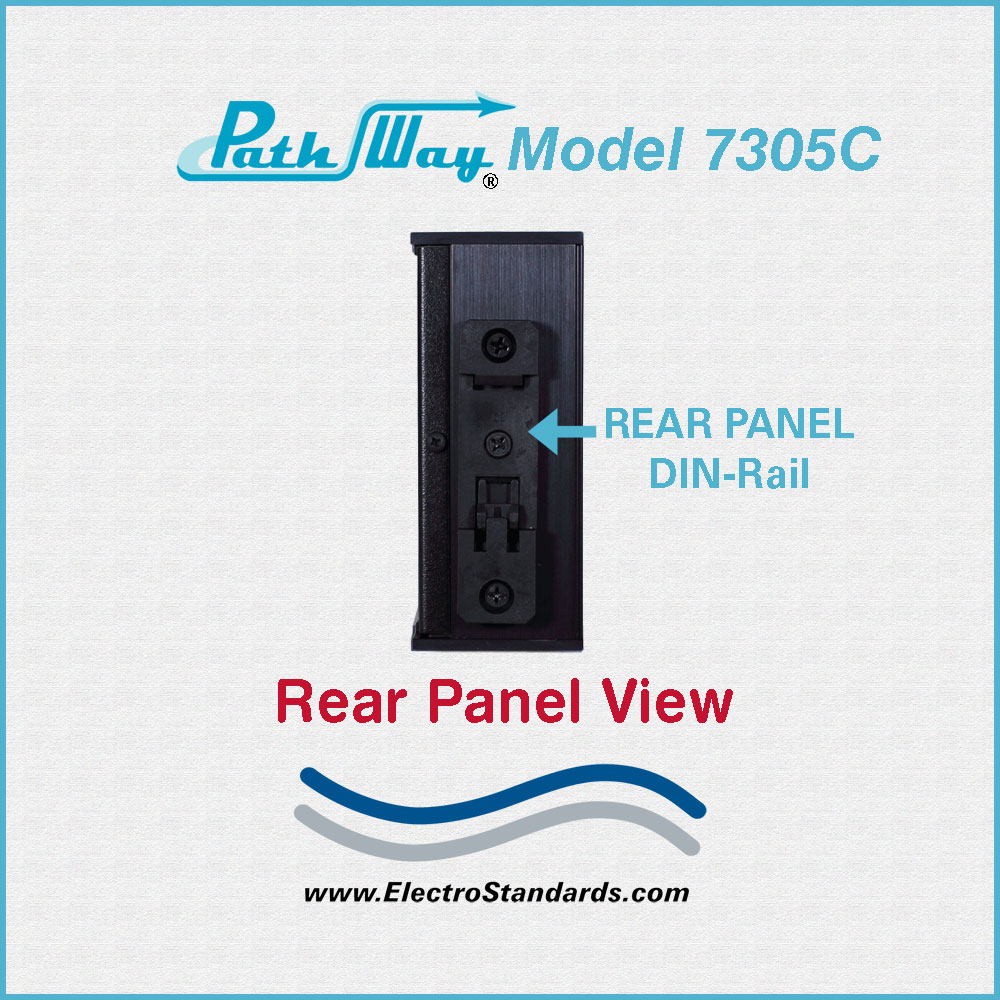

  • Convenient DIN Rail Mounting

  • Ideal for Use in Process Control Systems

  • No Front Panel Local Control Prevents Unauthorized or Accidental Changes

FEATURES OF THE MODEL 7305C RJ45 A/B SWITCH:

  • Allows quick connection to any one of two RJ45 devices from one COMMON device.
  • The switch ports are transparent to all data.
  • All (8) pins of the RJ45 interface are switched via break-before-make electromechanical relays.
  • RoHS Compliant and CE Certified.
  • No front panel control.
  • Exclusive Remote Control. No front panel control.
  • Remote voltage control provides low power dry contact logic to allow the control of the switch position.
  • Switch reverts to A position on power loss and continues to pass data.
  • Upon power up, unit switches based on state of Remote port.

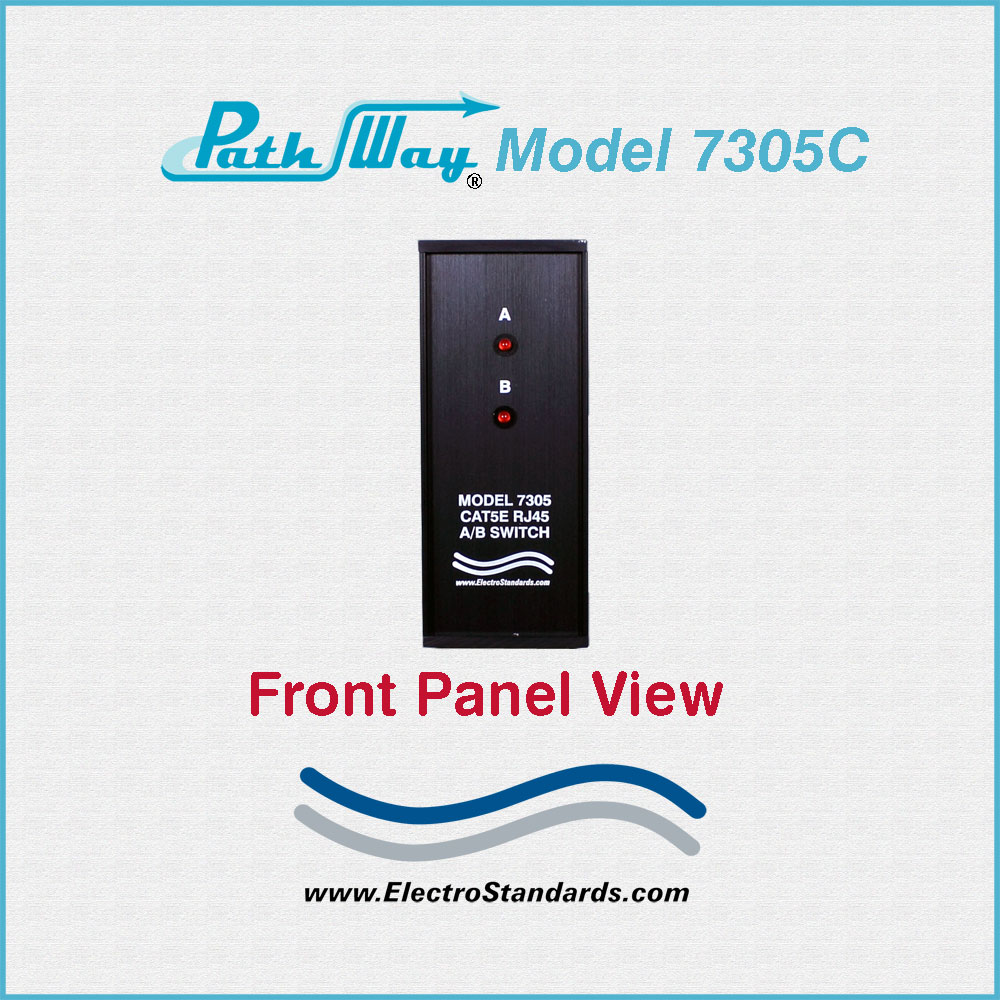

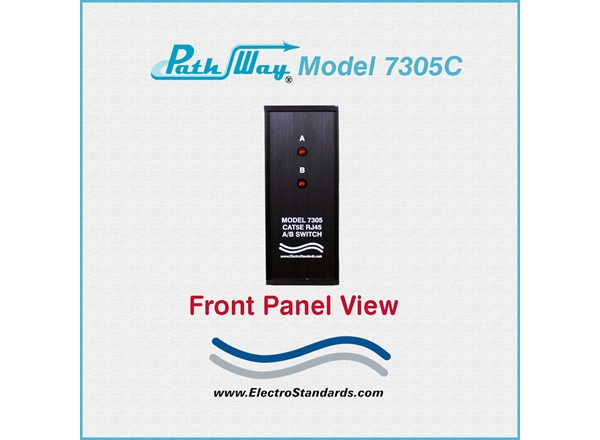

  • Front panel LED's display switch position and power status.
  • Eliminates the need to plug and unplug cables.
  • Attractive all metal, black box packaging provides EMI/RFI shielding.
  • Custom length RJ45 cables available for your switch installation,

TECHNICAL SPECIFICATIONS:

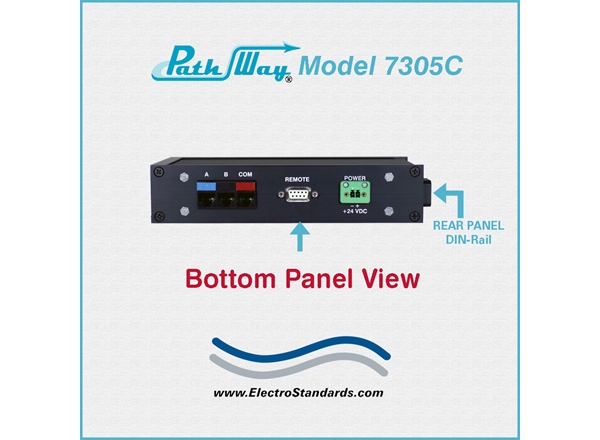

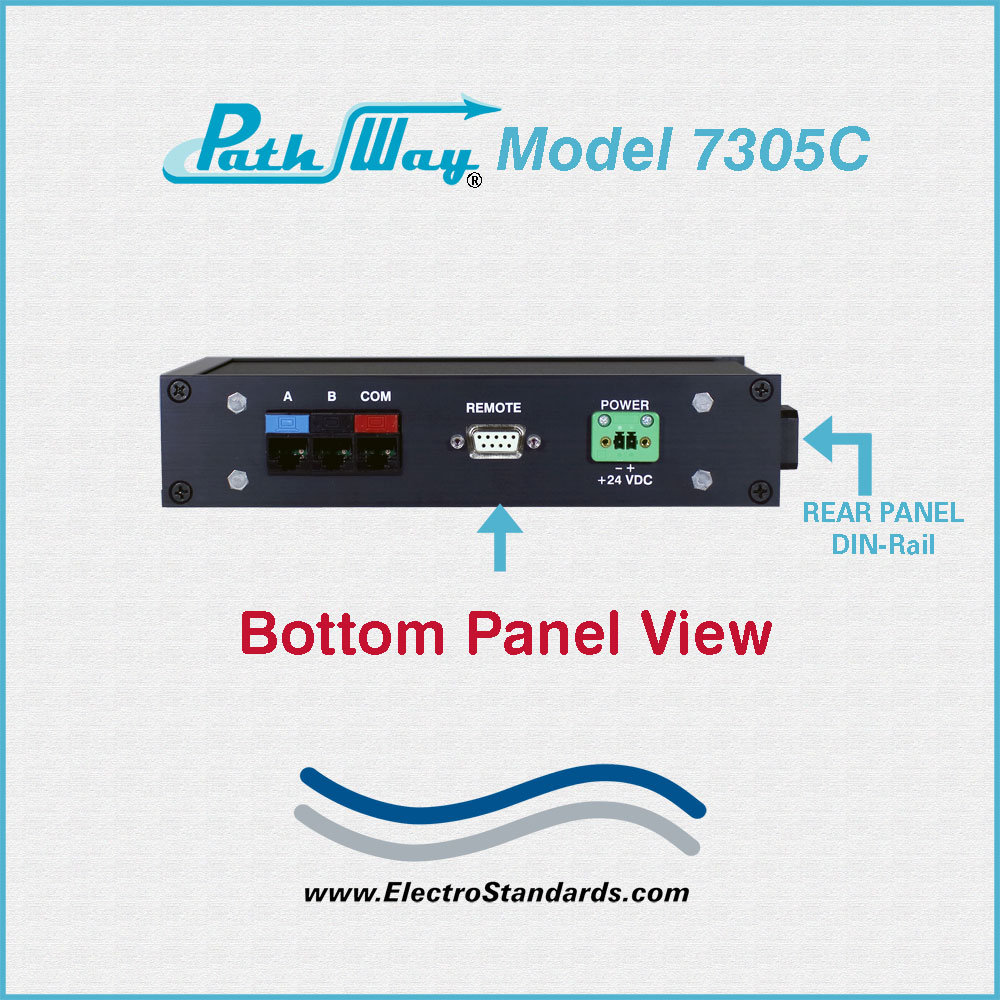

  • PORT CONNECTORS: (3) RJ45 female connectors labeled A, B, and COMMON.
  • REMOTE VOLTAGE CONTROL: (1) DB9 female port accepts low power dry contact logic to allow the control of the switch position.
  • DISPLAY: (2) Front panel LED's display switch position.
  • POWER: 24 VDC required to be supplied to the unit.
  • DIMENSIONS: DIN Rail Mount Package: 1.75"W x 4.3"H x 8.3"D.
  • (4.4 x 11.0 x 21.1 cm)
  • WEIGHT: Approximately 1.4 lbs. (0.7 kg)

VOLTAGE REMOTE CONTROL OPERATION:
 Remote voltage control provides low power dry contact logic to allow the control of the switch position.

  • 0 VDC - Switches to the A Position
  • 24 VDC -  Switches to B Position

PathWay® Model 7305C CAT5e A/B SWITCH APPLICATION WITH EXCLUSIVE REMOTE CONTROL: (DIN-Rail, Process Control Systems)

  • RoHs Compliant
  • CE Certified

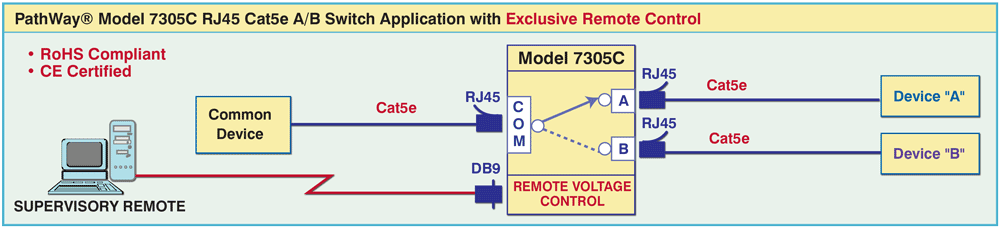

The drawing illustrates a COMMON device connected to the RJ45 port. The COMMON device has access to Device A and Device B connected to the RJ45 Ports A and B. A user can control the switch position exclusively using the DB9 Remote Voltage Control via low power dry contact logic.

Ordering Information

  • Catalog Number: 307305C
  • Model Number: 7305C
  • Base Price: See website or contact us for current pricing and availability.
  • Optional Wide-Range power supply: Catalog Number 517277 IEC C14 Inlet, 100-240VAC, 12 VDC

Documentation & Support

  • Specification Sheet (PDF) Download Available.
  • Product Manual available upon request.
  • For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
  • We welcome international inquiries and ship worldwide.
