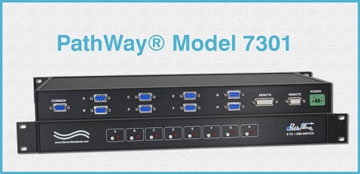

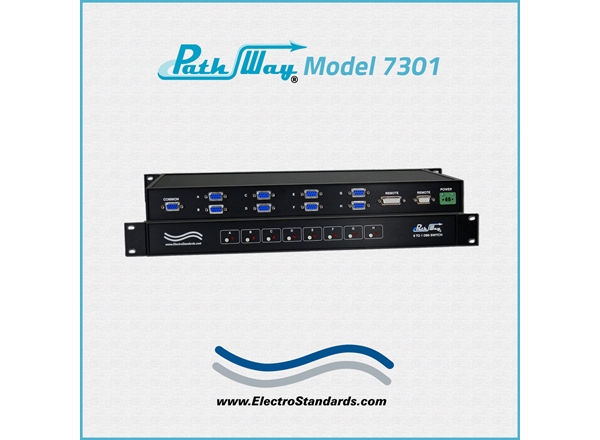

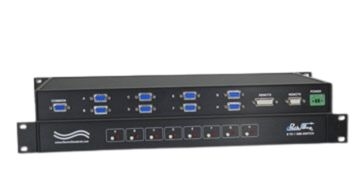

Path Way® Model 7301 8-to-1 DB9 Switch with Contact Closure and RS232 Serial Remotes

Overview

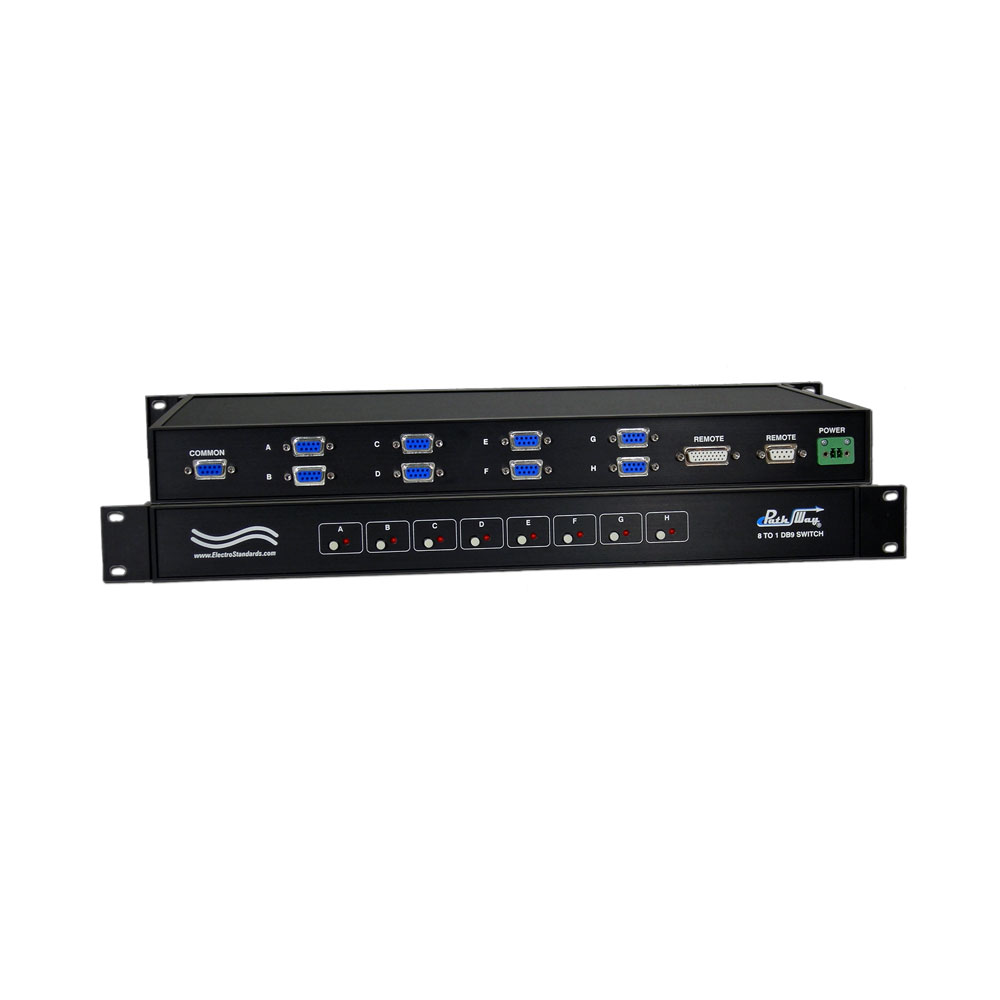

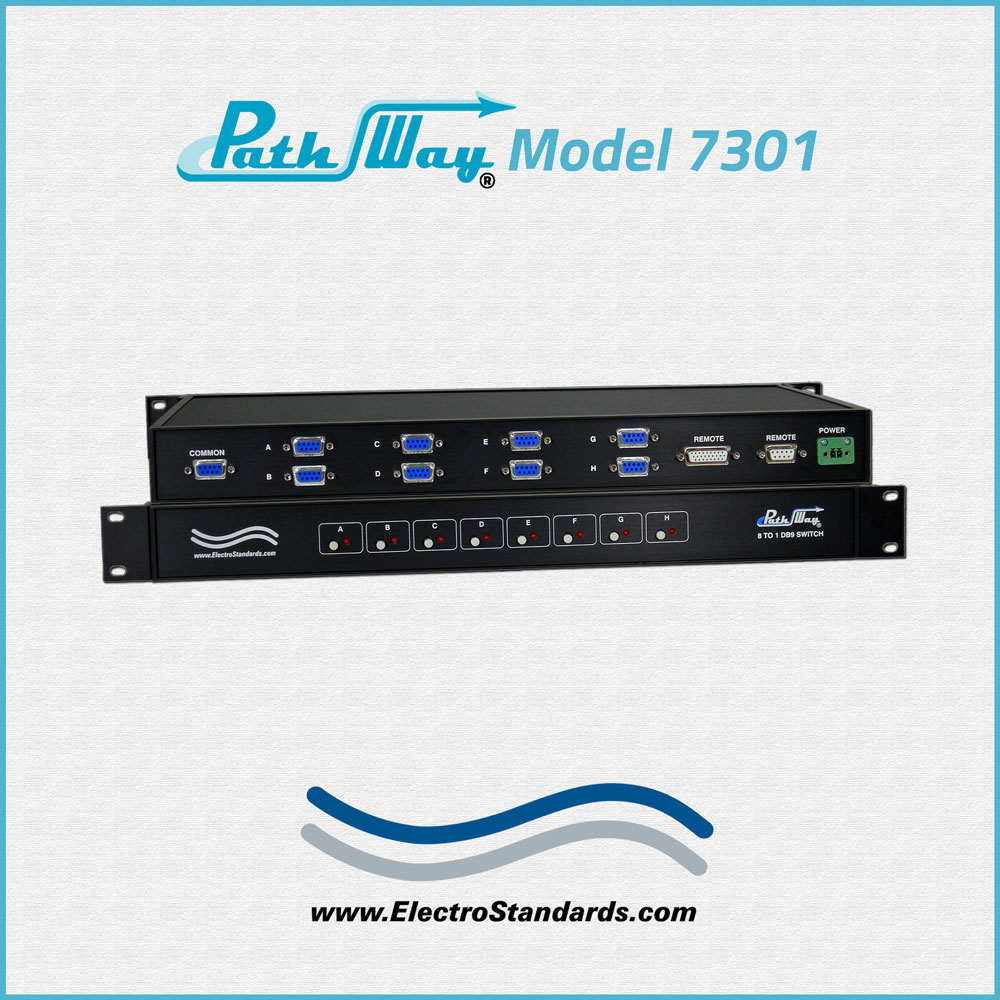

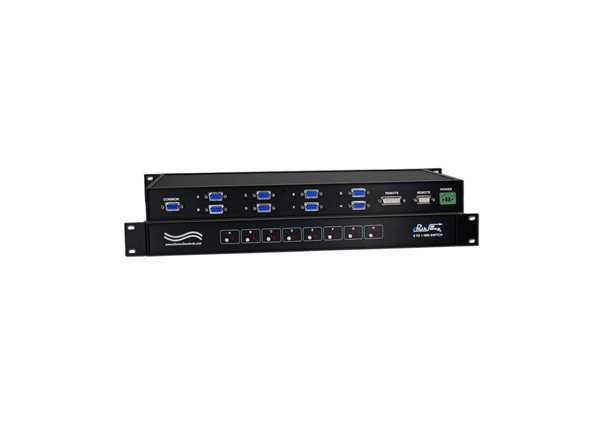

The PathWay® Model 7301 8-to-1 DB9 Switch with both Contact Closure and RS232 Serial Remotes allow the user the capability of sharing a single port interface device connected to the COM port among eight other devices connected to the A, B, C, D, E, F, G, and H ports. The Model 7301 is enclosed in a 1U, full rack size, all metal black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

The switch may be controlled locally by the front panel pushbuttons or remotely from a DB9 (F) port located on the rear of the unit using Serial ASCII Commands. It may also be controlled by contact closure through the HD26 (F) port. Switch position states may be attained locally via the front panel LED display or remotely using Serial Commands.

Dual Remote Control ports provide flexible remote management capability.

FEATURES OF THE MODEL 7301 8-TO-1 DB9 SWITCH:

Allows access to eight networks from one computer or workstation.
Switches all 9 pins of the DB9 interface.
The switch ports are transparent to all data.
Local control via front-panel pushbutton.
Remote RS232 ASCII commands allow the user to control switch position, lockout front panel operations, obtain switch status, query firmware version number, query serial number, and enable/disable autosend of switch positions through the DB9 Remote.
Remote Contact Closure commands are accepted and allow the user to control the switch position through the HD26 (F) Remote port.
Mating HD26 (M) solder cup connector provided for the HD26 (F) Remote port.
The unit maintains last set position on power loss and continues to pass data.
Front panel LED's display the switch position and power status.
Attractive all metal, black box packaging provides EMI/RFI shielding.
Custom length DB9 data cables for this switch are available.

TECHNICAL SPECIFICATIONS:

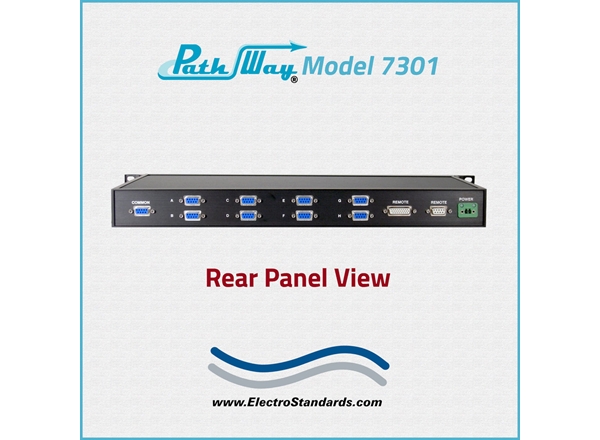

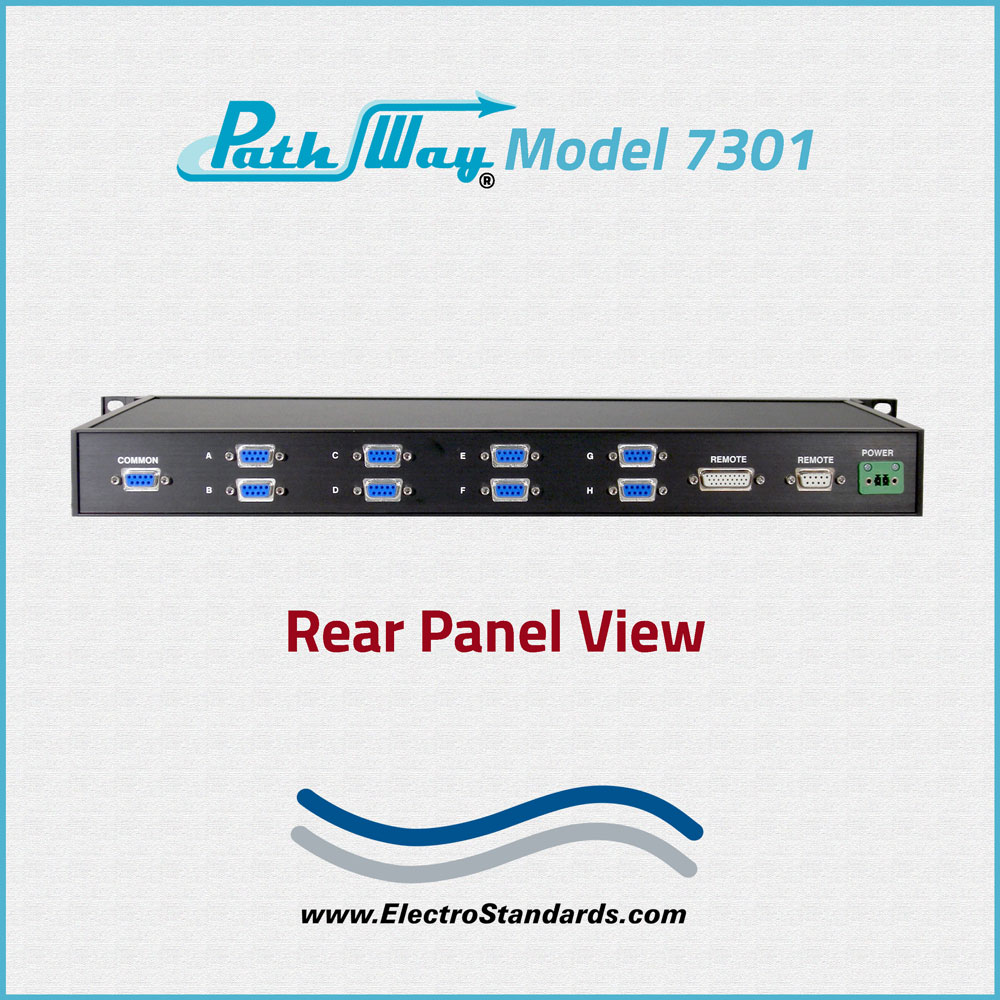

PORT CONNECTORS: (9) DB9 female connectors labeled A, B, C, D, E, F, G, H, and Common.

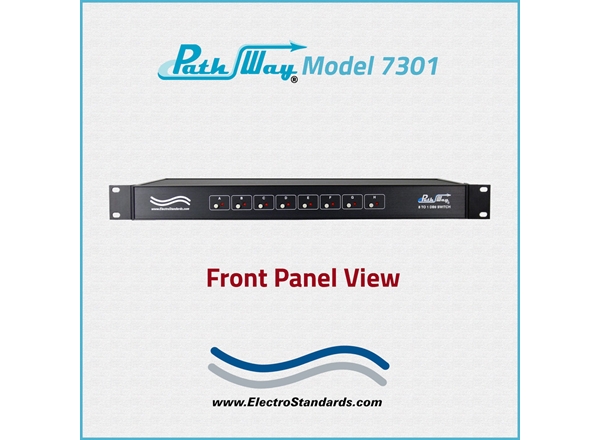

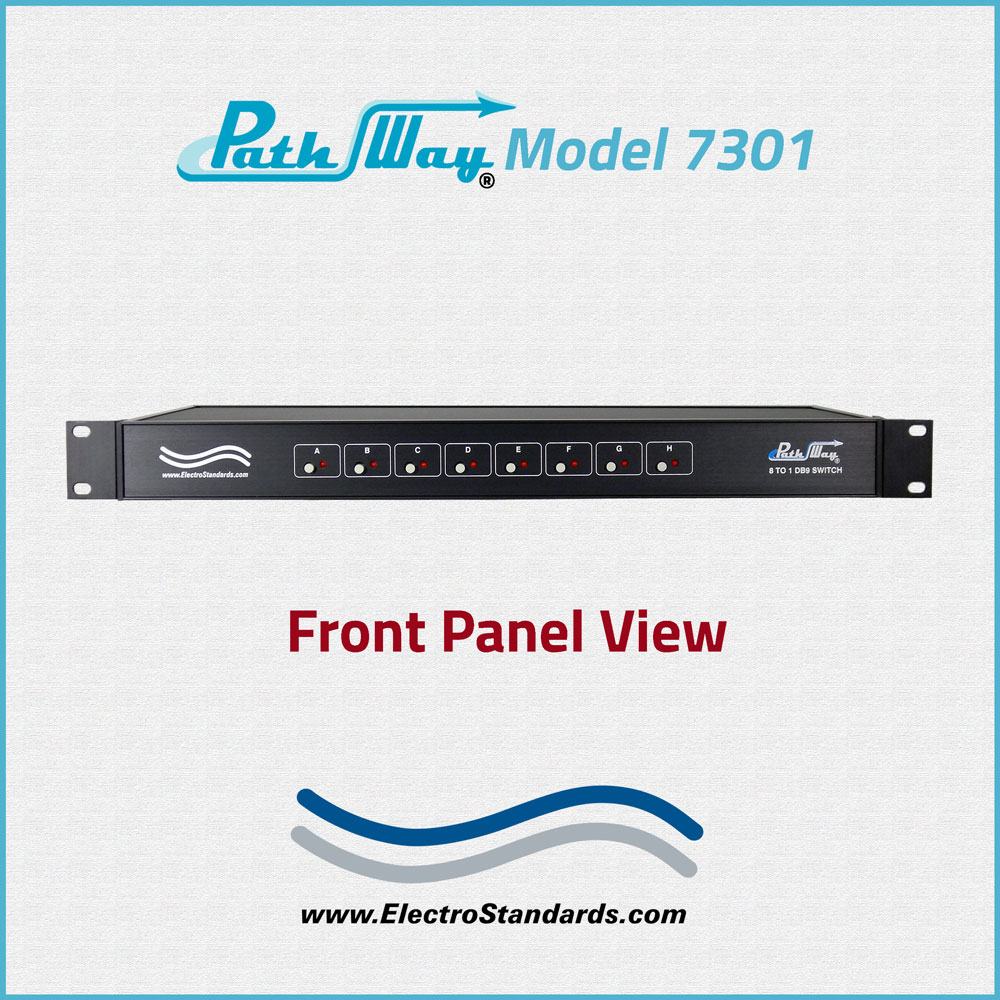

FRONT PANEL CONTROL: (8) Manual pushbuttons allow local switching.
DISPLAY: (8) Front panel LED's display switch position and power status.
REMOTE CONTROL:
(1) DB9 female connector on rear panel accepts ASCII RS232 Serial Data for Remote Control operation.
(1) HD26 female connector accepts Contact Closure signals.
POWER: UL approved 100VAC/240VAC, 50Hz/60 Hz wall mount power module supplies 12 VDC, 500mA to the unit. Has 2-prong, US, non-polarized plug.
DIMENSIONS: Rackmount 19.0" W x 1.75" H x 10.16" D. (48.2 x 4.4 x 25.9 cm)
WEIGHT: Approximately 6.0 lbs. (2.72 kg)

DB9 8-TO-1 SWITCH APPLICATION WITH RS232 REMOTE & CONTACT CLOSURE REMOTE:

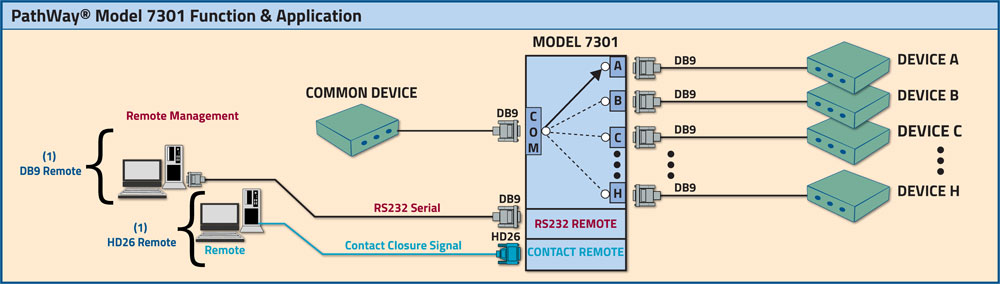

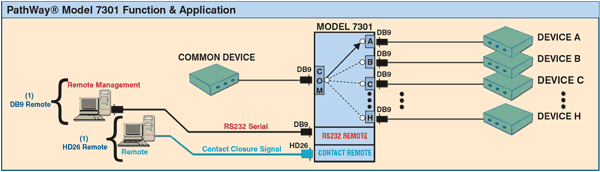

The drawing illustrates a COMMON Device connected to the DB9 COMMON port with access to eight devices connected to the DB9 ports labeled A, B, C, D, E, F, G and H.

There are two remote ports.

DB9 port for RS232 Serial Control
HD26 port for Contact Closure Signaling.

Ordering Information

Catalog Number: 307301
Model Number: 7301
Base Price: See website or contact us for current pricing and availability.
Optional Wide-Range power supply: Catalog Number 517277 IEC C14 Inlet, 100-240VAC, 12 VDC

Documentation & Support

Specification Sheet (PDF) Download Available.
Product Manual available upon request.
For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
We welcome international inquiries and ship worldwide.

Shipping and Returns

Shipped via UPS ground (unless otherwise requested).
Freight Charges prepaid and added to invoice. We can estimate freight charges for you.
Return policy: contact us within 30 days of shipment for an RMA number. Items returned without RMA not accepted. Please refer to our full return policy in our Terms and Conditions found on our website.

Option: Wide Range Power Supply:

(Cat No. 517277) CE, RoHS, and UL listed table mount power module, 100VAC/240VAC, 50/60Hz for use in place of the standard power module that is included with the unit. Has IEC 60320 C14 inlet. Ideal for international applications.

Don't Forget to order Your Custom Cables, Custom Length!

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

PathWay® is a registered trademark of Electro Standards Laboratories

Electro Standards can supply all of your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.
