Catalog # 307286 - Model 7286 DB25 Normal / Crossover Switch, Contact Closure Remote Control

    DB25 Normal / Crossover Network SwitchDB25 Normal / Crossover Network SwitchDB25 Normal / Crossover Network SwitchDB25 Normal / Crossover Network Switch
Click image to enlarge
    • DB25 Normal / Crossover Network Switch
    • DB25 Normal / Crossover Network Switch
    • DB25 Normal / Crossover Network Switch
    • DB25 Normal / Crossover Network Switch
Base Price:
$1,663.00
Catalog No: 307286
Model No: 7286
Power:Customer Supplied 12VDC, 500mA
Product Type:Switches: Copper
Positions:Normal/Crossover
Cable Type/Port Connector:DB25 Switch Ports
Channels per Switch Chassis:1
Electronic Switches/Power Required:PathWay® Copper
Remote Control:Contact Closure
Configuration:Rackmount
Pins Switched:25
Remote Port:DB9
Local Control:Pushbutton
Feature:Normal & Crossover Switching

DB9 Remtote, Contact Closure Transition Signals
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview


Path Way® Remotely Controllable Network Switch, DB25, Crossover
Model 7286 DB25 Normal / Crossover Switch with Contact Control Remote Port

  • Designed for switching between data sources to either of two destinations.

  • Applicable to ANY DB25 interface devices.

  • Ideal for Commercial-Off-the-Shelf (COTS) purchase.

SPECIFICATIONS:

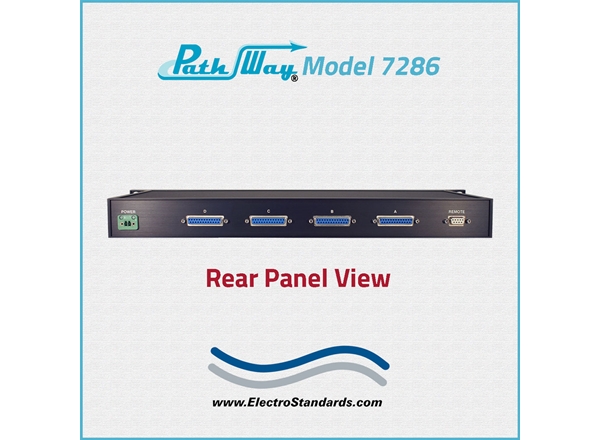

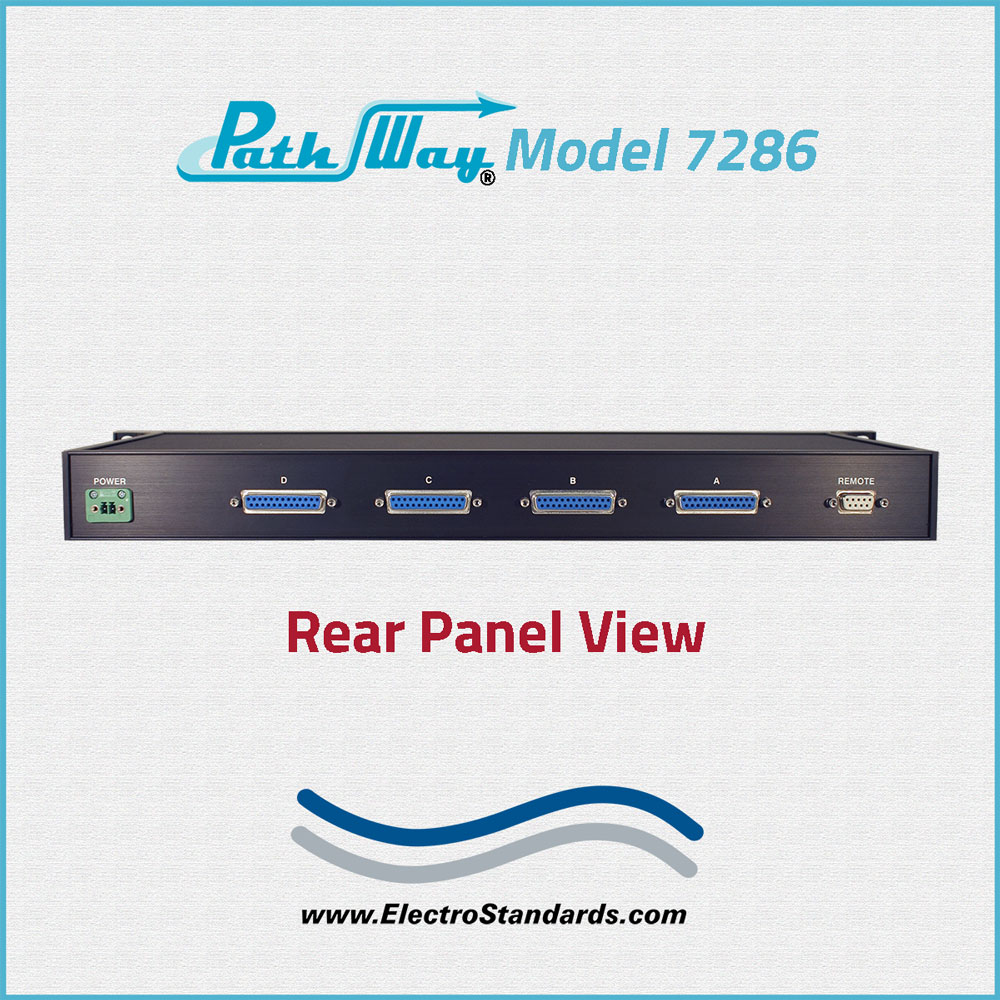

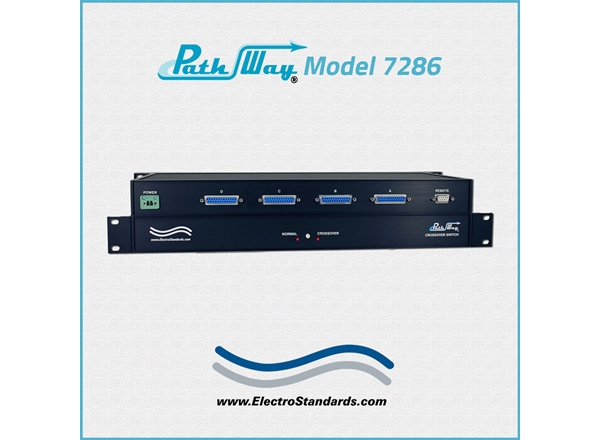

  • PORT CONNECTORS: (4) DB25(F) connectors labeled A, B, C, and D.
  • REMOTE CONTROL: (1) DB9(F) custom remote contact control port accepts dry contact closure transition signals for Remote Control Operation.

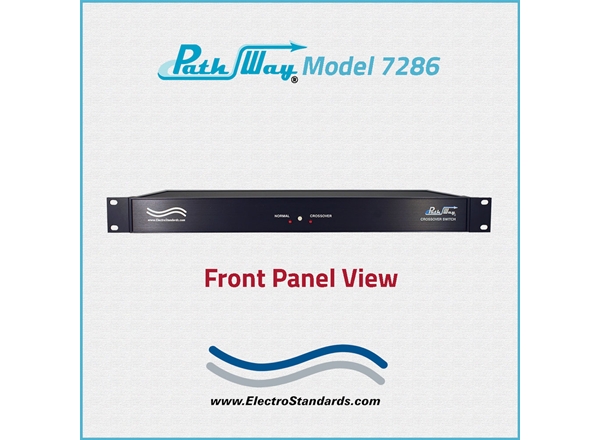

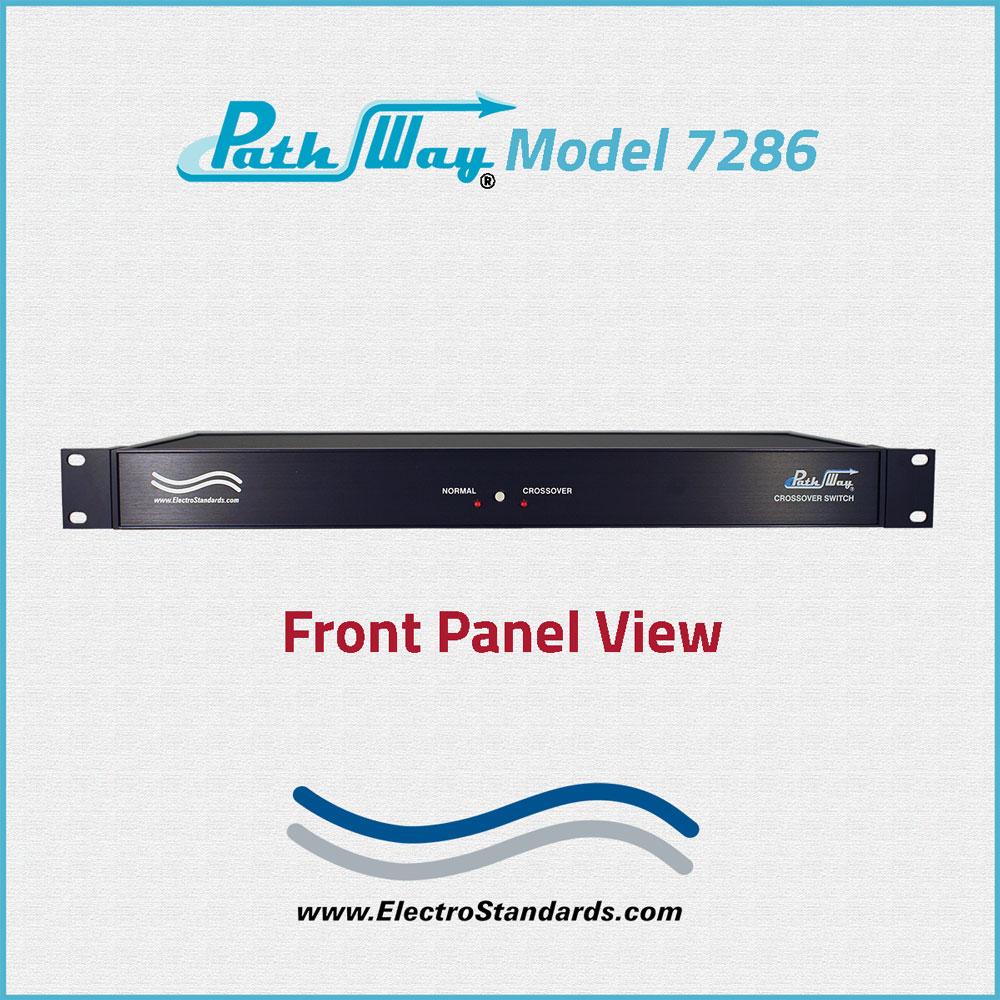

  • DISPLAY: (2) LED's labeled NORMAL and CROSSOVER front panel display indicate switch position and power status.
  • LOCAL CONTROL: (1) Front panel pushbutton allows local control of switch between NORMAL and CROSSOVER state.
  • POWER: Requires customer supplied 12VDC, 500mA Power Input. A mating power connector is included with the Model 7286.
  • DIMENSIONS: 19" W x 1.75" H x 8.16" D (48.3 x 4.4 x 20.7 cm)
  • WEIGHT: 5.5 lbs. (2.5 kg)

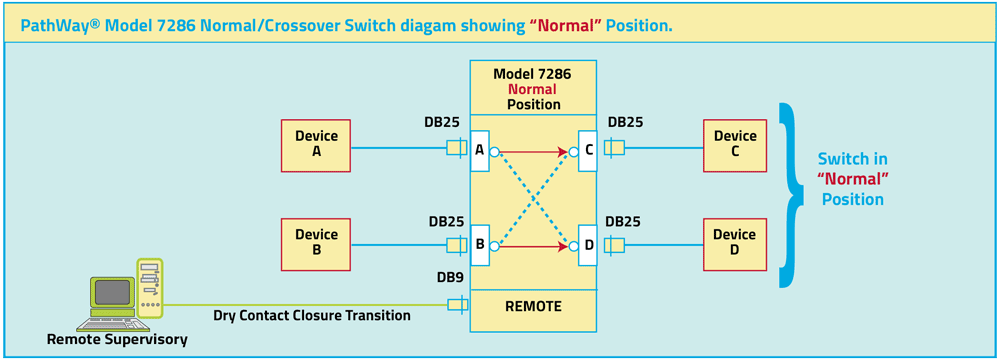

DB25 Normal Crossover Application showing “Normal Position”:

Model 7286 DB25 crossover switch is shown in NORMAL position. Device A is connected to Device C, while Device B is connected to Device D in the NORMAL state. The DB9 REMOTE and lockout the front panel, obtain switch status and control the switch via dry contact closure transition signals.

Model 7286 DB25 Normal Crossover switch shown in Normal position with Contact Closure Remote application

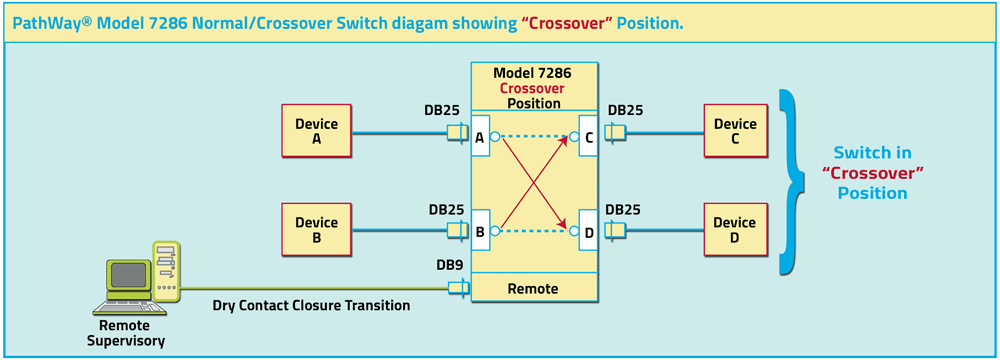

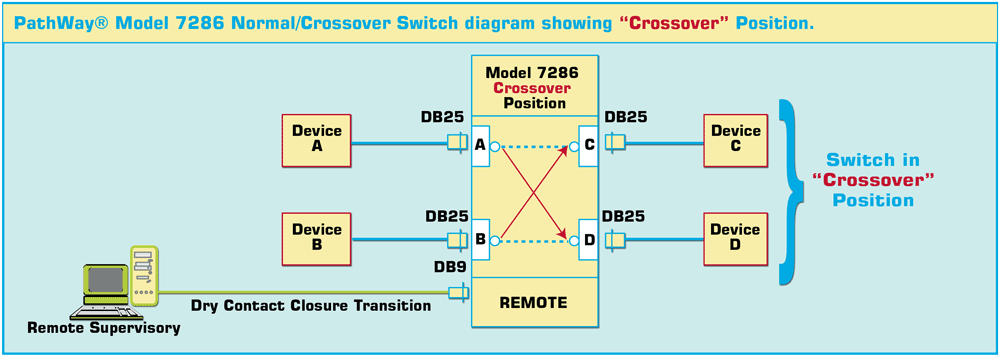

DB25 Normal Crossover Application showing “Crossover Position”:

Model 7286 DB25 Crossover switch is shown in Crossover position. Device A is connected to Device D while Device B is connected to Device C in the CROSSOVER state. The DB9 REMOTE and lockout the front panel, obtain switch status and control the switch via dry contact closure transition signals.

Model 7286 DB25 Normal Crossover switch shown in Crossover position with Contact Closure Remote.

FEATURES:

  • Switch allows selection between Normal and Crossover position.
  • Facilitates quick and easy EXCHANGE of connections from two computers to either of two peripherals.
  • The ports are transparent to all data.
  • All (25) pins of the DB25 interface are switched via break-before-make electromechanical relays.
  • The unit maintains last set position on power loss and continues to pass data.
  • Front panel pushbutton control.
  • Remote Contact Closure control and status provides dry contact logic to allow the control of the switch position and lockout state as well as obtain the present position.
  • Front panel LEDs display the present switch position and power status.
  • Custom length data cables available.
  • For a DB25 Crossover Network Switch with ASCII RS232 Serial Remote Control, See Model 7285, Cat No 307285
  • Municipalities, schools, government: This product is on GSA Schedule!
  • See Companion product, Model 700 RS-232 Breakout Box.

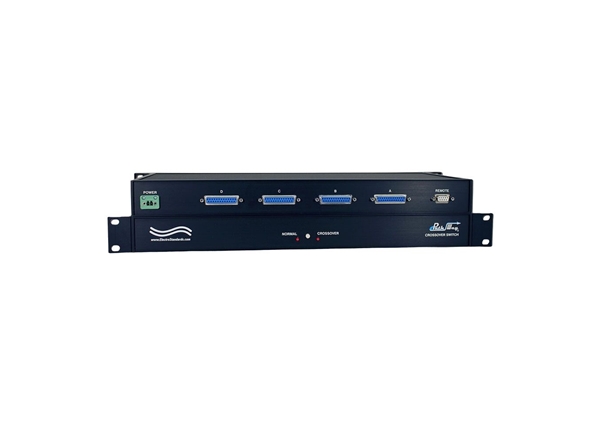

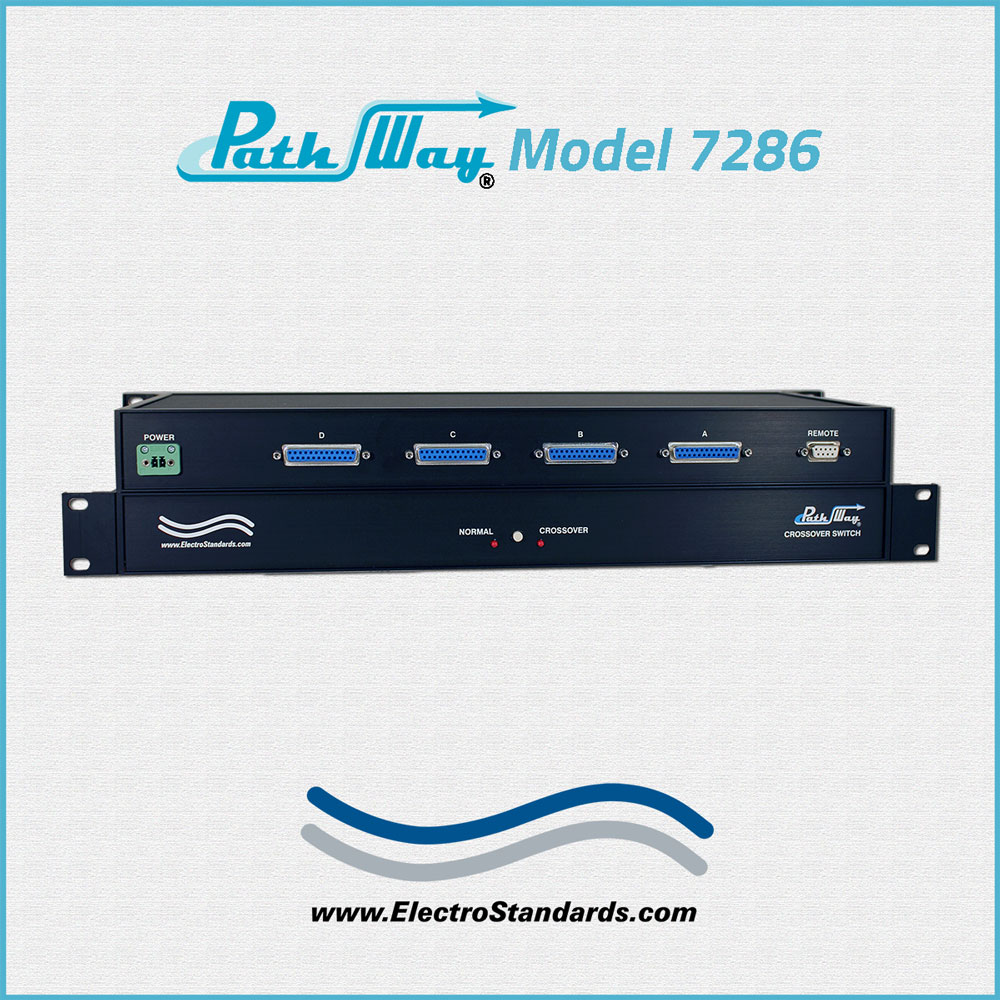

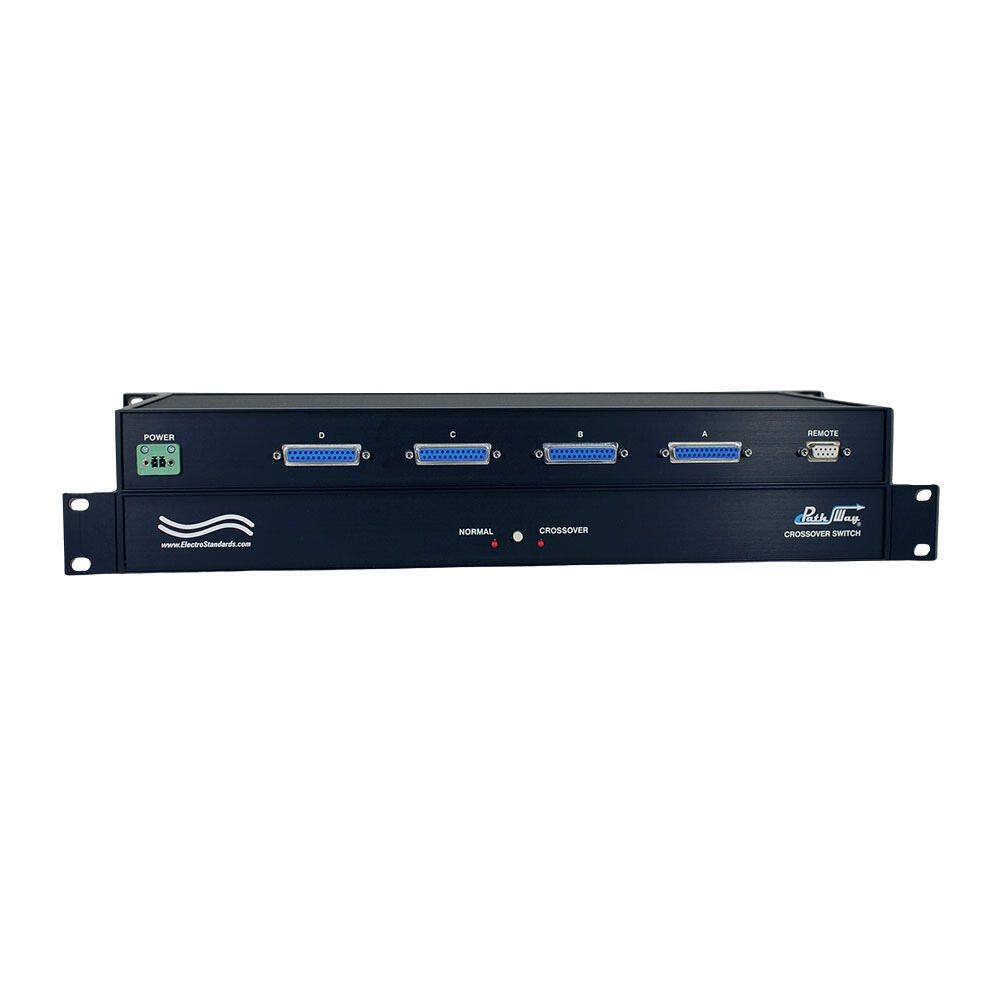

The PathWay® Model 7286 DB25 Crossover Switch with Contact Closure Remote supports connections between four devices connected to the “A”, “B”, “C”, and “D” ports in either a “Normal” or “Crossover” configuration. The Model 7286 is enclosed in a 1U, full rack size, all metal, black chassis designed to provide EMI/RFI shielding and fit in a standard 19” rack.

The switch may be controlled manually via the front panel pushbutton or remotely from a DB9 port located on the rear of the unit.

Switch position state may be attained via the front panel LED display or by a set of dry contacts on the remote DB9 port.

Ask about our popular Model 700 RS-232 Breakout Box.

Tri-State LED's monitor the data interface for fault isolation

Model 700 RS232  Breakout Box

This high-quality network switch is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V. Click here for GSA details.

Model 7286 is available to government purchasers on our GSA Schedule GS-35F-0286V. Call for discounted price and terms.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL products are available for export.

Electro Standards welcomes International inquiries: commutateur d'ordinateur,  equipo interruptor, interruttore del calcolatore, interruptor do computador, dator switch.
