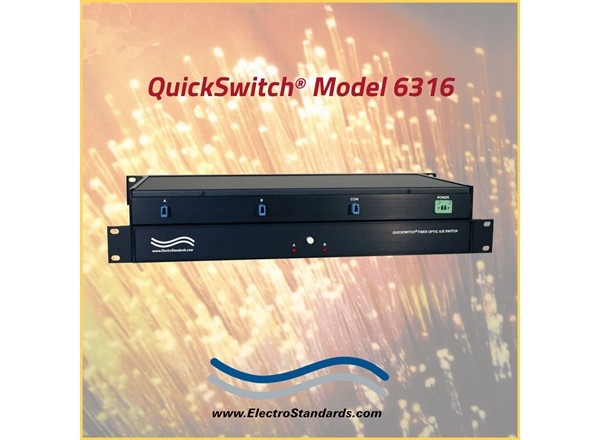

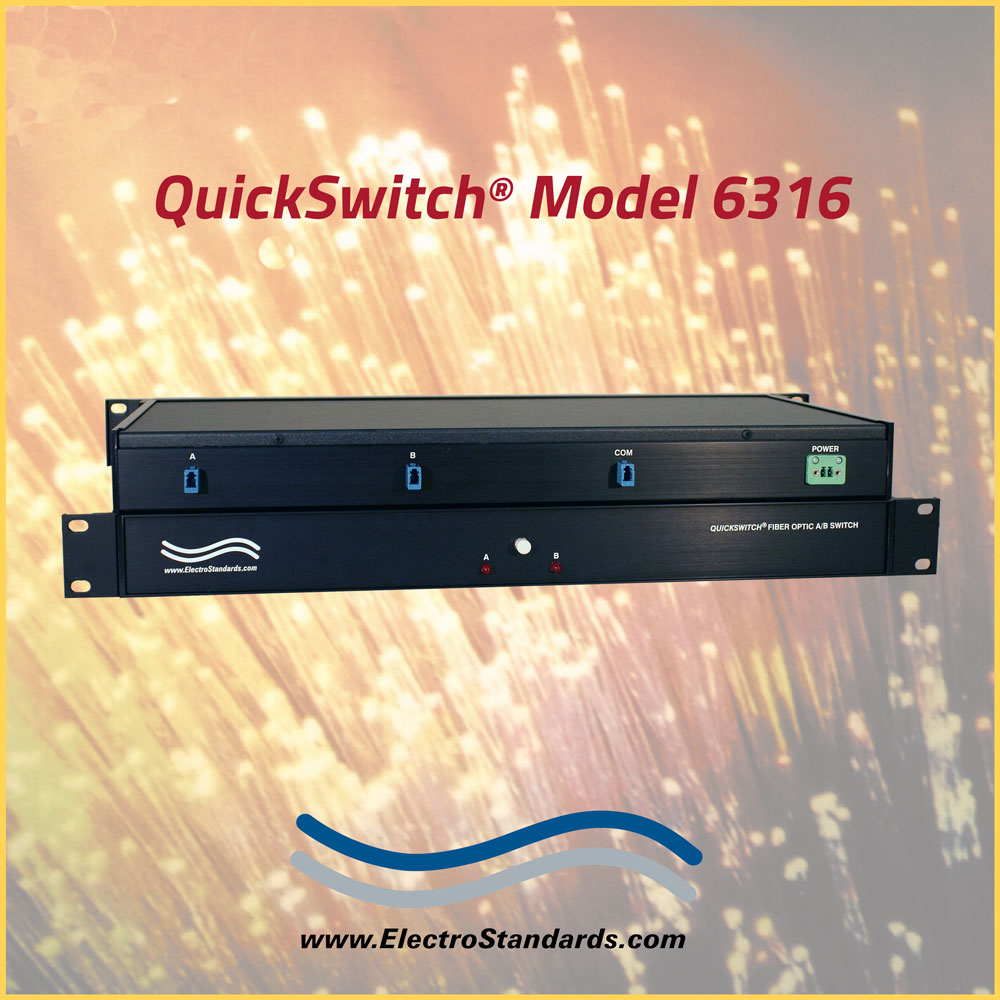

QuickSwitch® Model 6316 Single Channel All Fiber Optic LC Simplex A/B Switch

Overview

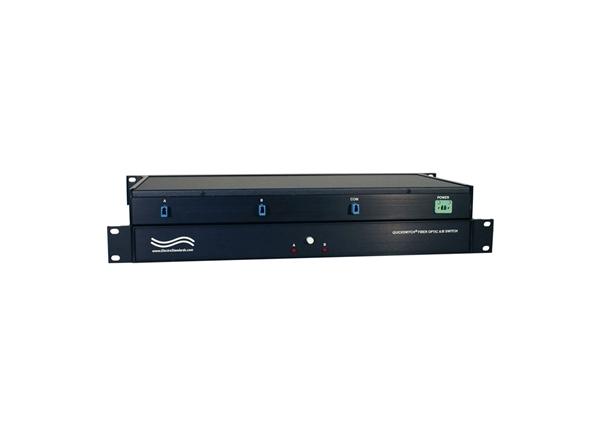

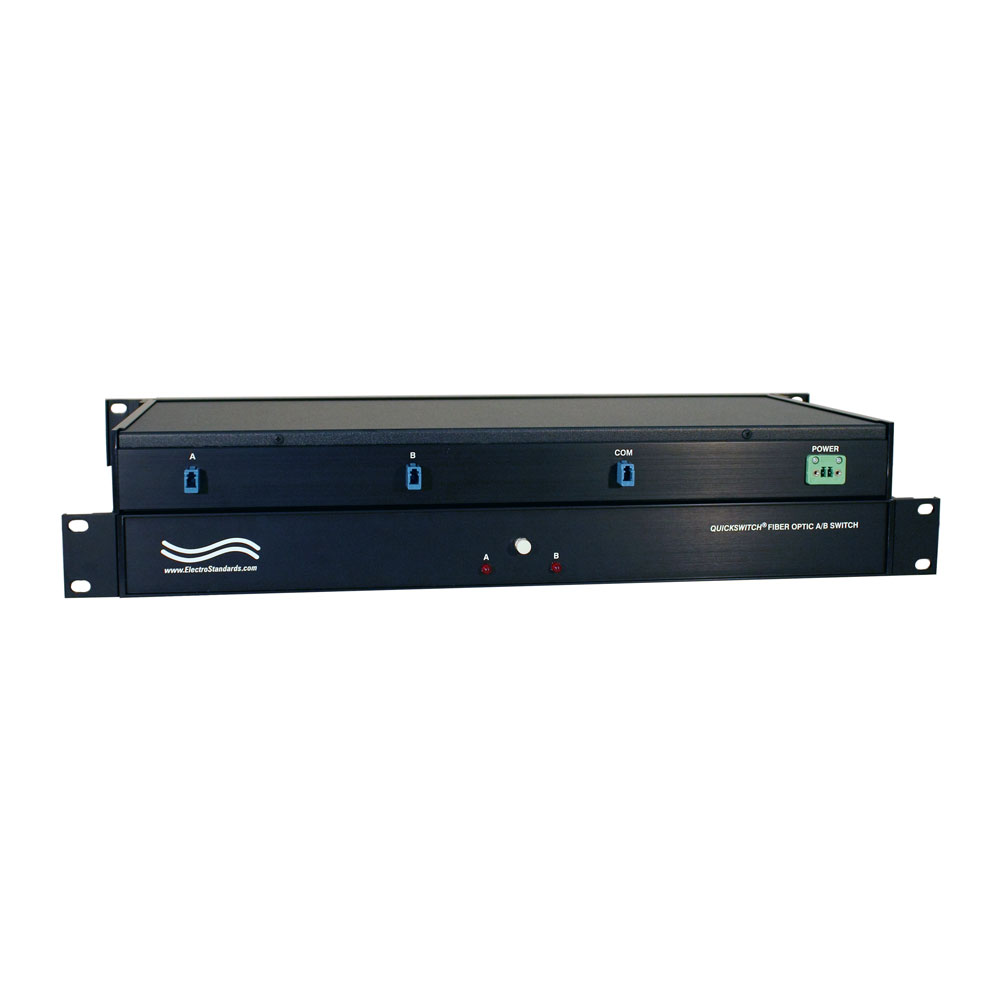

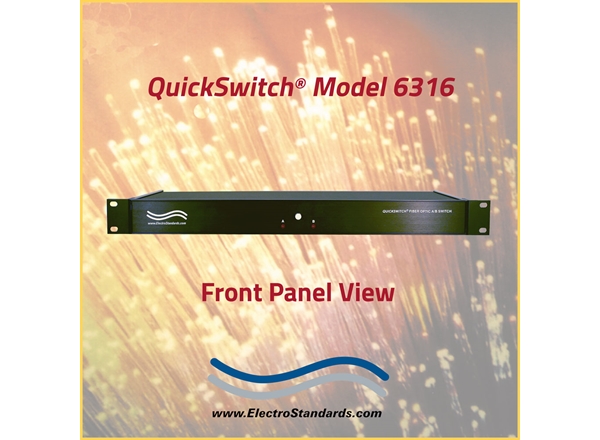

The QuickSwitch® 6316 Single Channel LC Simplex A/B Switch allows the user the capability of sharing a single port interface device, connected to the "COMMON" port, among two other devices, connected to the "A" or "B" ports. The QuickSwitch® 6316 is enclosed in a 1U, full rack size, all metal, black chassis designed to fit in a standard 19" rack. The switch may be controlled locally by manually operating the front-panel pushbutton. The front panel LED display indicates the switch position and unit power status.

Switch to backup fiber optic data link, quickly and easily!
Ideal for switching data to multiple displays, billboards, signs.
Add flexibility to IT platforms and networks.

FEATURES OF THE MODEL 6316 LC SIMPLEX FIHBER SWITCH:

Allows quick connection to any one of two LC fiber optic interface devices from one COMMON port.
The switch ports are transparent to all data.
All fiber signals are switched via break-before-make MEMS-based mirror/prism switch technology and supports Gigabit data rates.
Switch maintains position and continues to pass data during power loss.
Switch powers up in the last known position.
Front panel pushbutton control.
No Remote Control.
Front panel LED's display present position and power status.
All A, B, and COM ports are LC, Single mode, 9/125 micron, and support a wavelength of 1310 nm & 1500 nm.
Ideal for fallback applications.
Optical data throughput scalability.

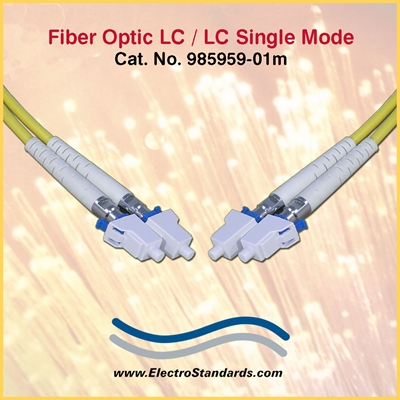

Custom length, rigorously tested and certified LC fiber optic cables available for your switch installation.

TECHNICAL SPECIFICATIONS:

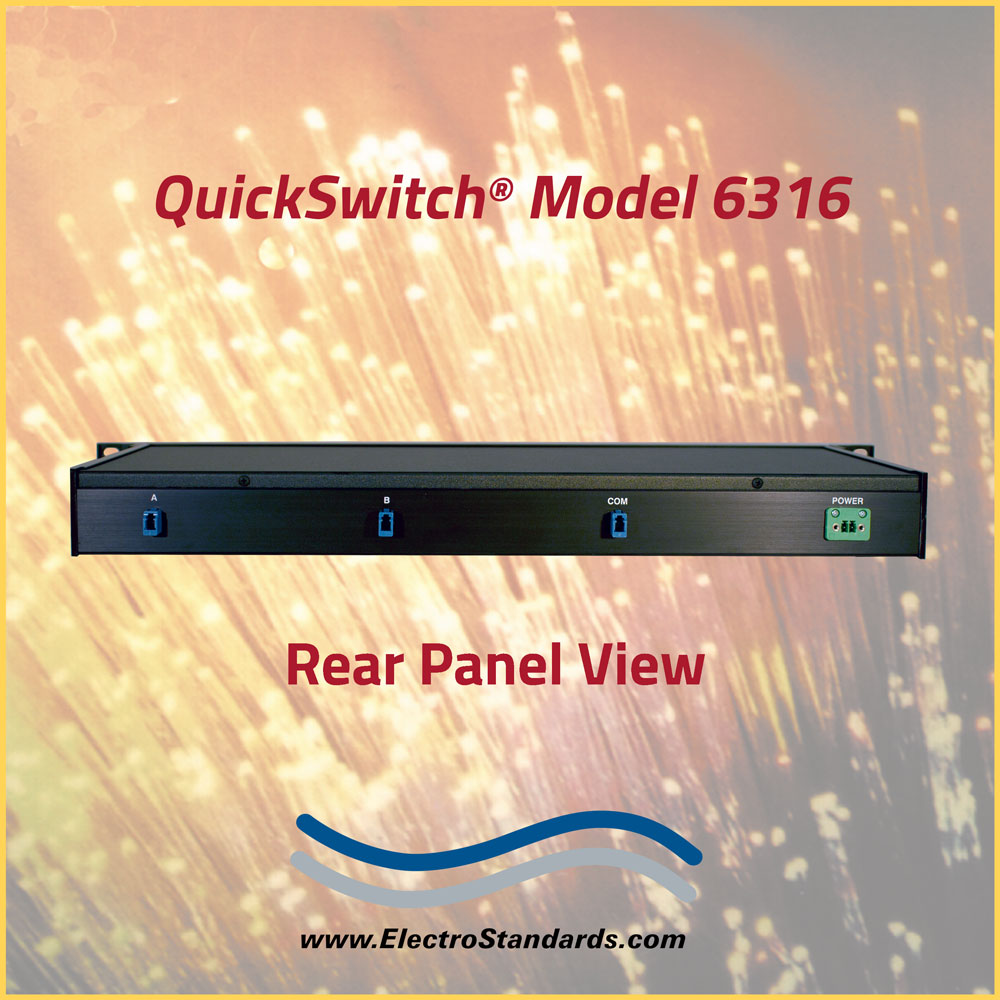

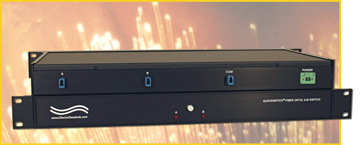

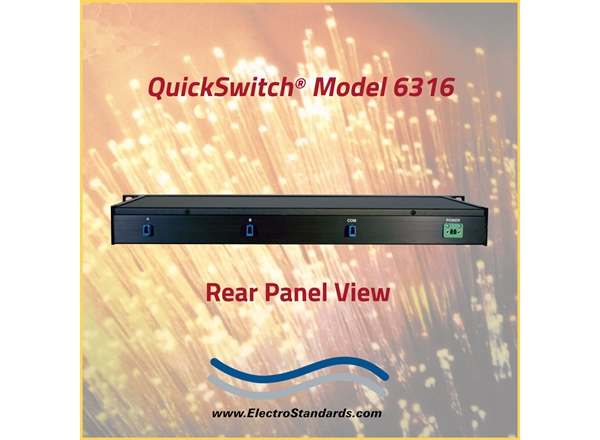

PORT CONNECTORS: (3) LC Simplex Female connectors labeled A, B, and COMMON.
FIBER: 9/125 micron, 1310 nm & 1500 nm.

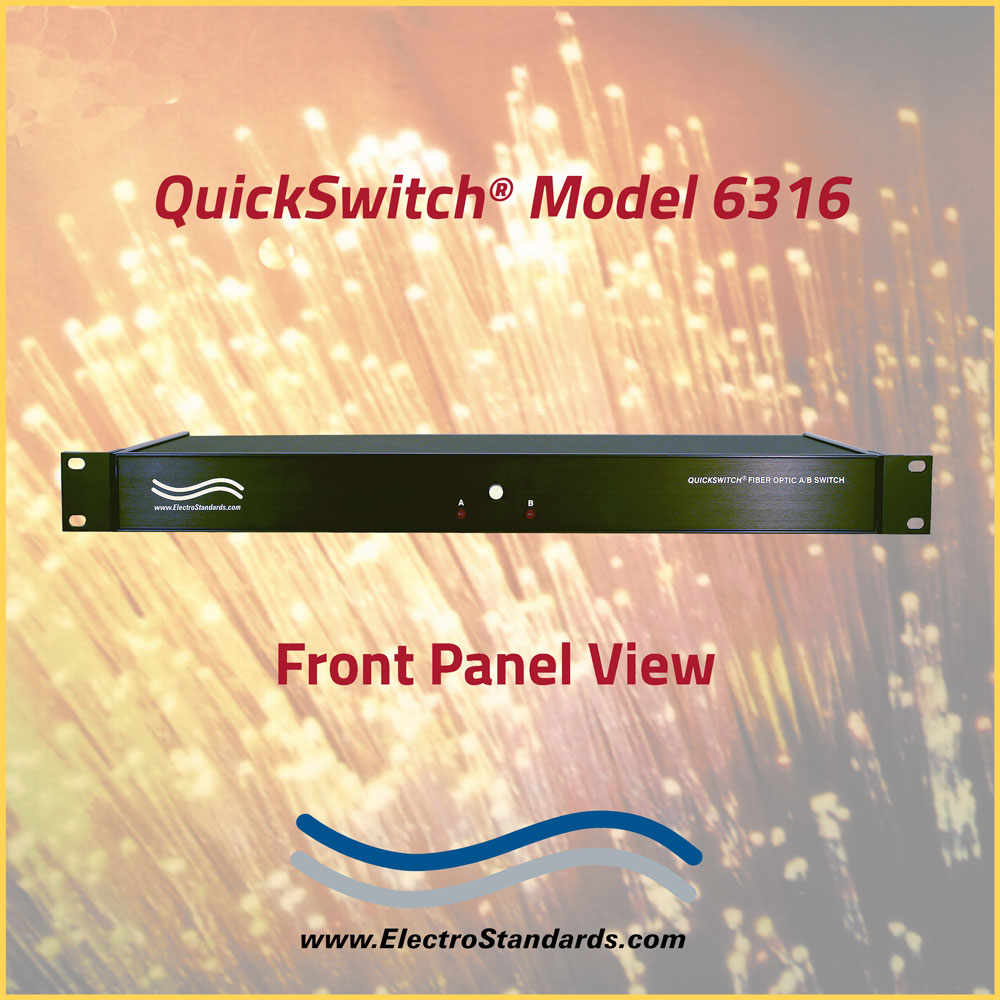

FRONT PANEL CONTROL: (1) Pushbutton allows local switching (No remote control).
POWER: UL approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12 VDC, 500mA to the unit. Has 2-prong, US, non-polarized plug.
DISPLAY: (2) Front panel LED's display switch position and power status.
DIMENSIONS: 19.0" W x 1.75" H x 8.76" D. (48.3 x 4.4 x 22.3 cm)
WEIGHT: Approximately 4.2 lbs. (2.0 kg)

QUICKSWITCH LC SIMPLEX A/B FIBER OPTIC SWITCH APPLICATION:

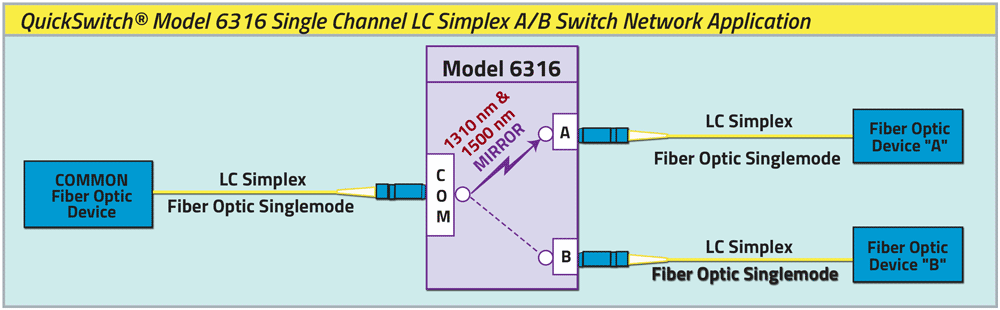

The drawing illustrates a COMMON Fiber Optic device connected to the COMMON port with access to two devices, Fiber Optic Device A and Fiber Optic Device B, connected to the LC simplex A and B ports, respectively. The fiber optic unit supports 1310 nm and 1500 nm.

QuickSwitch 6316 Single Channel LC Simplex A/B Switch Network Application

Ordering Information

Catalog Number: 306316
Model Number: 6316
Base Price: See website or contact us for current pricing and availability.
Optional Wide-Range power supply: Catalog Number 517277 IEC C14 Inlet, 100-240VAC, 12 VDC

Documentation & Support

Specification Sheet (PDF) Download Available.
Product Manual available upon request.
For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
We welcome international inquiries and ship worldwide.

Shipping and Returns

Shipped via UPS ground (unless otherwise requested).
Freight Charges prepaid and added to invoice. We can estimate freight charges for you.
Return policy: contact us within 30 days of shipment for an RMA number. Items returned without RMA not accepted. Please refer to our full return policy in our Terms and Conditions found on our website.

Wide Range Power Option Available: (Cat. No. 517277) CE, RoHS and UL listed table mount power module,100VAC/240VAC, 50Hz/60Hz for use in place of standard power module that is included with the unit. Has IEC 60320 C14 inlet. Ideal for international applications.
