Catalog # 307271 - Model 7271 RJ45 A/B/C/D Switch

    RJ45 A/B/C/D SwitchRJ45 A/B/C/D SwitchRJ45 A/B/C/D SwitchRJ45 A/B/C/D Switch
Click image to enlarge

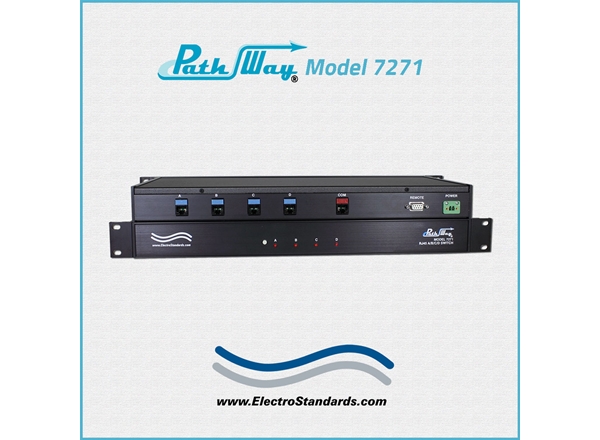

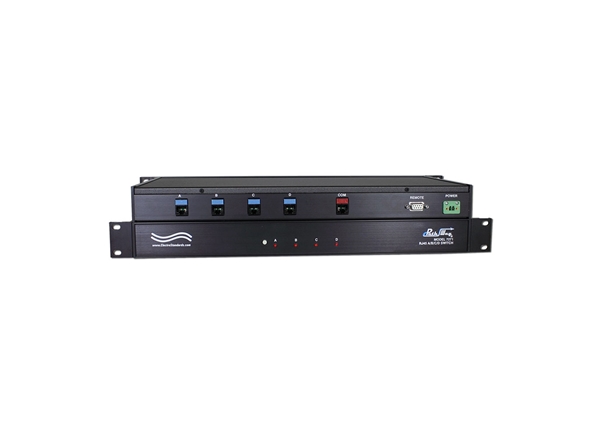

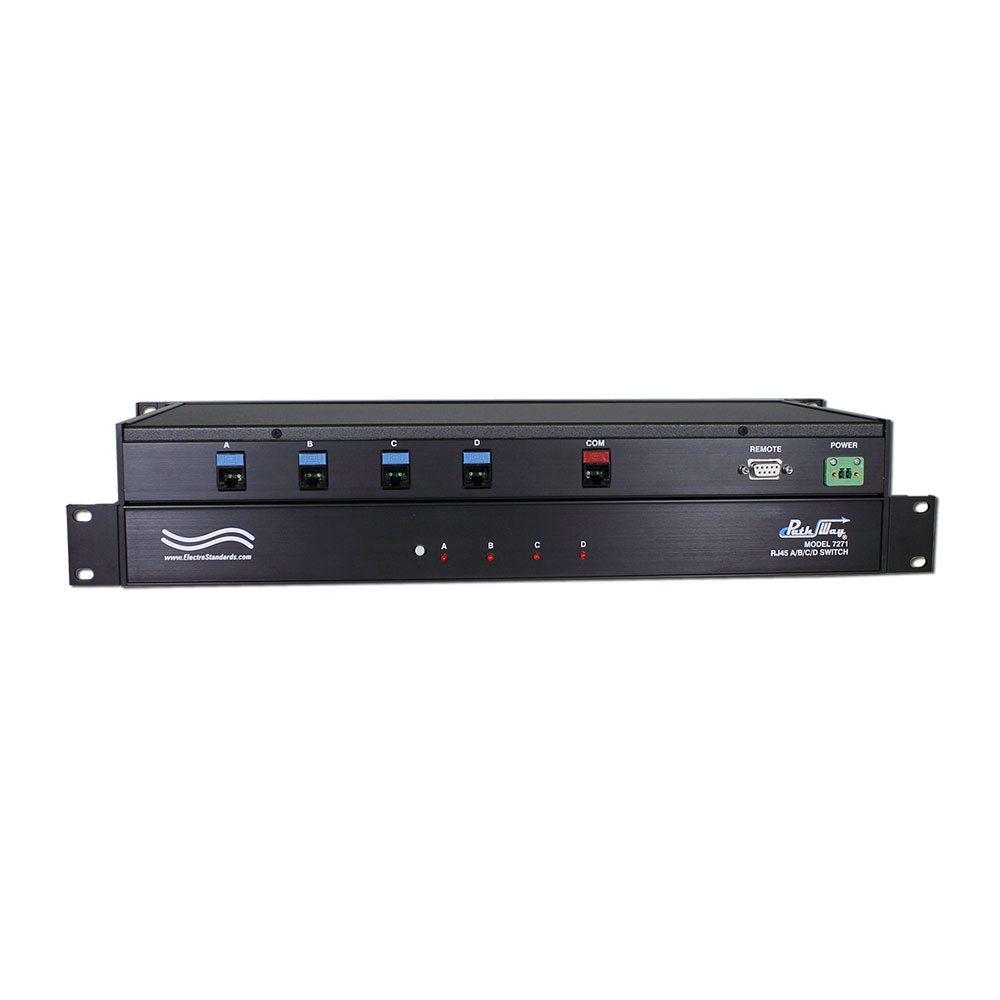

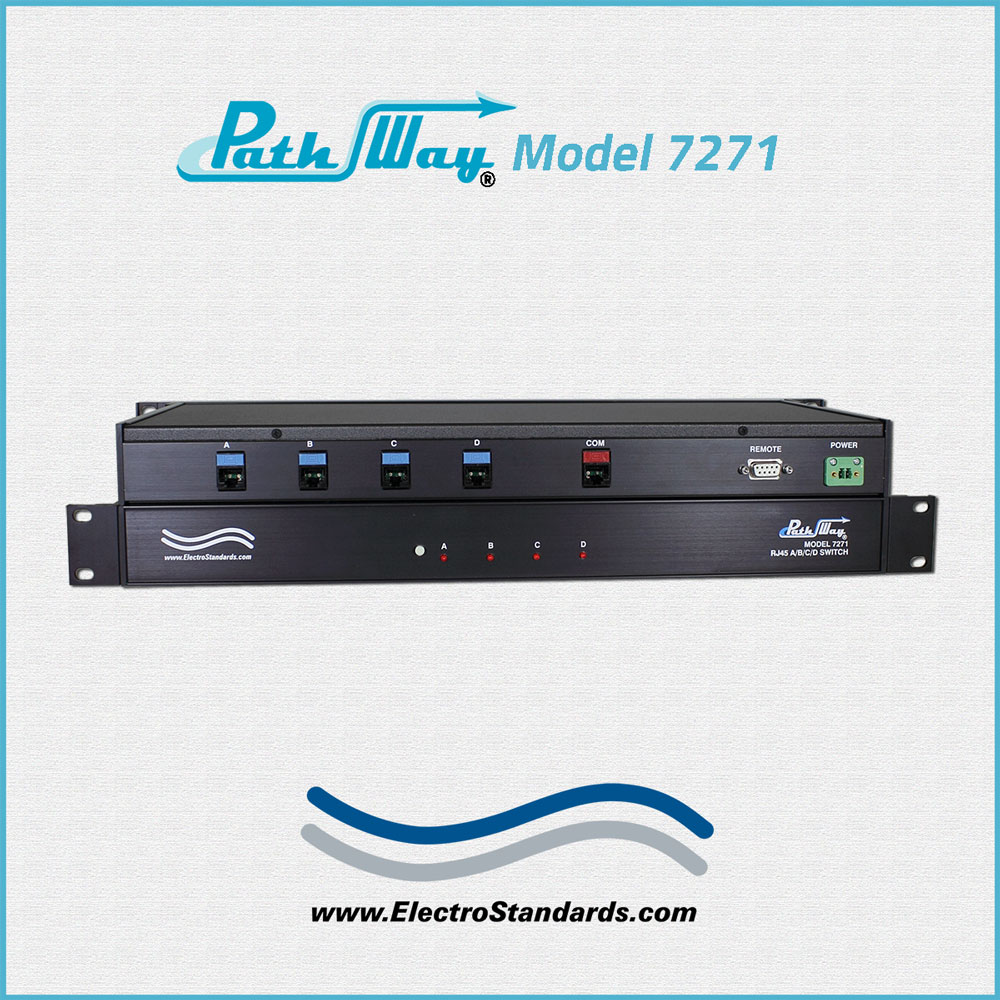

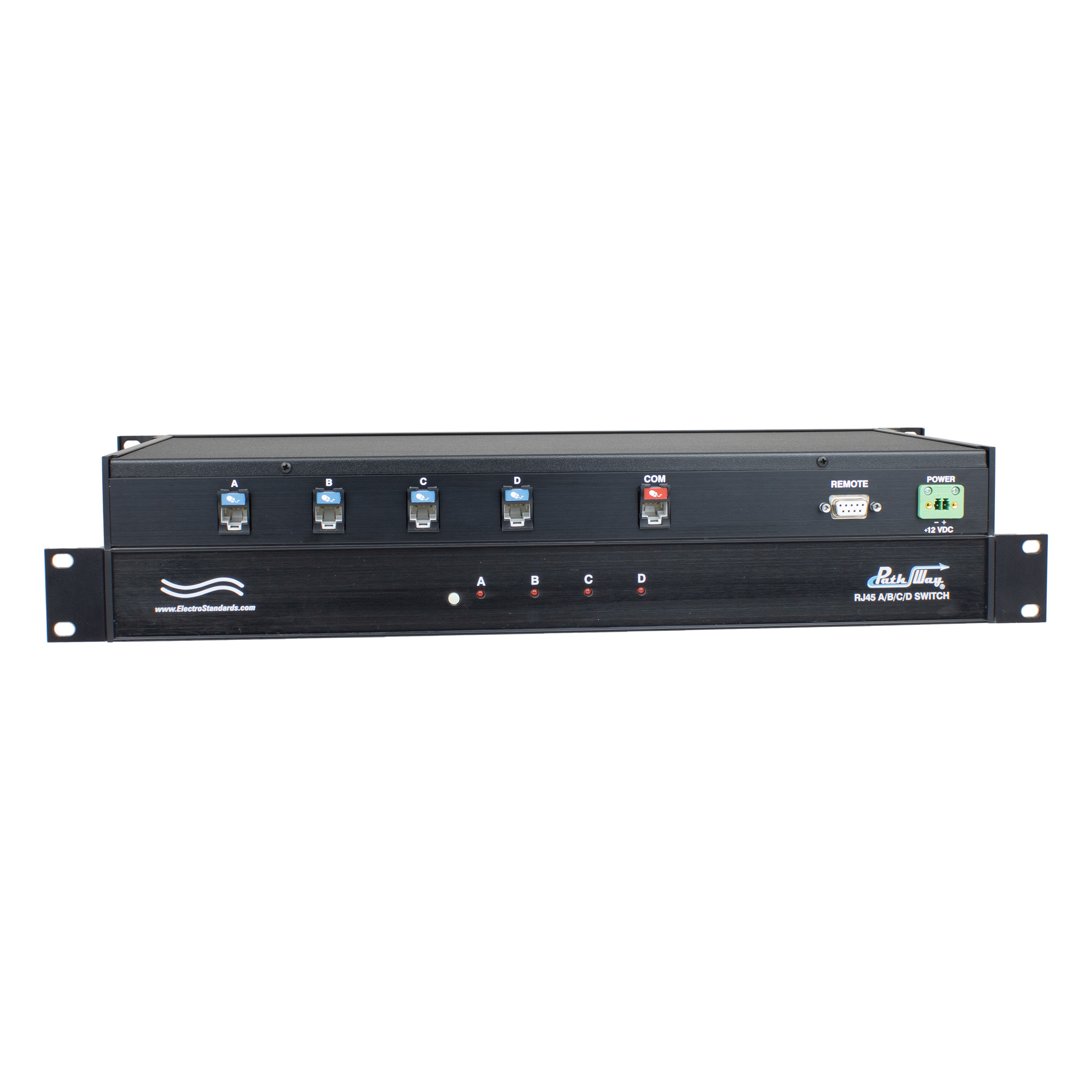

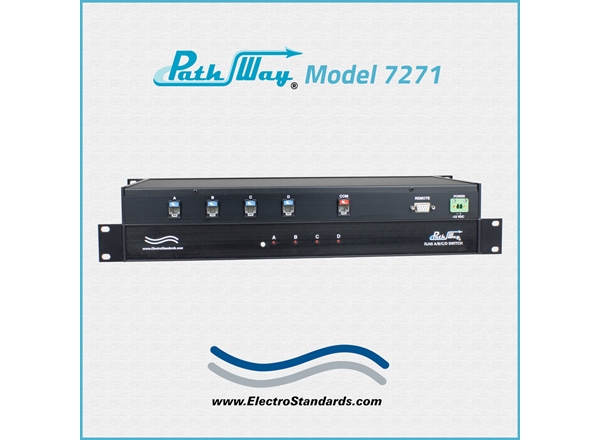

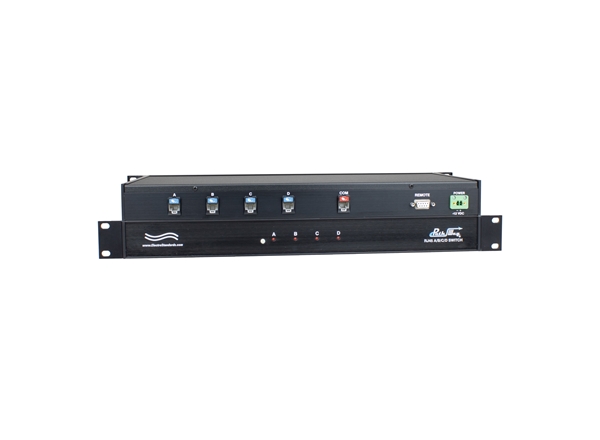

    • RJ45 A/B/C/D Switch
    • RJ45 A/B/C/D Switch
    • RJ45 A/B/C/D Switch
    • RJ45 A/B/C/D Switch
Base Price:
$1,031.00
Catalog No: 307271
Model No: 7271
Product Type:Switches: Copper
Positions:4
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:1
Electronic Switches/Power Required:PathWay® Copper
Remote Control:RS232 Serial
Configuration:Rackmount
Pins Switched:8
Remote Port:DB9
Local Control:Pushbutton
Feature:Low Profile Rack Unit
Protocol:ASCII

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

Path Way® Remotely Controllable Network Switch, RJ45

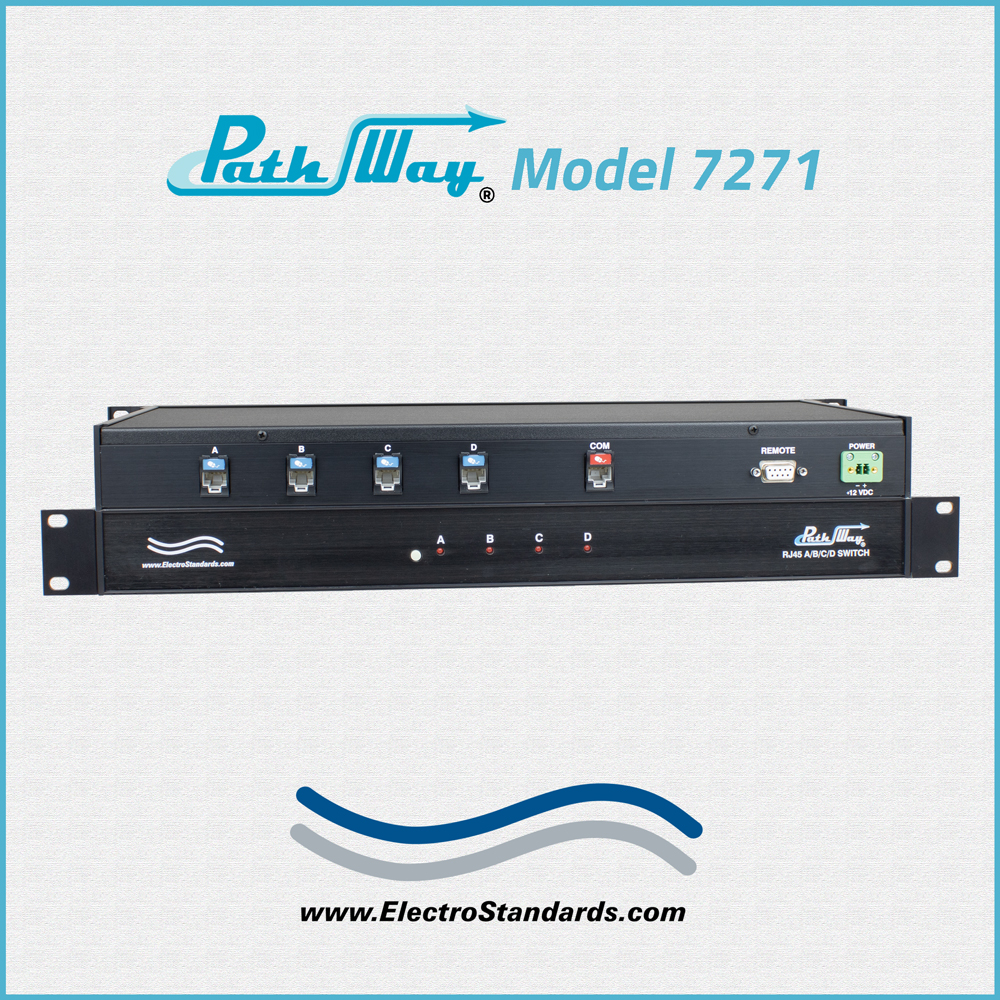

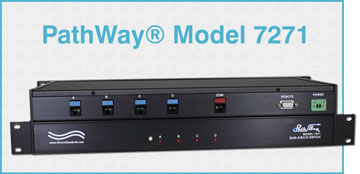

Model 7271 Single Channel RJ45 A/B/C/D Switch, with Serial Remote Control Port

  • Reliable Switch. Applicable to ANY RJ45 Interface.

  • Share ANY RJ45 Interface Devices. Quick & Easy!

 SPECIFICATIONS:

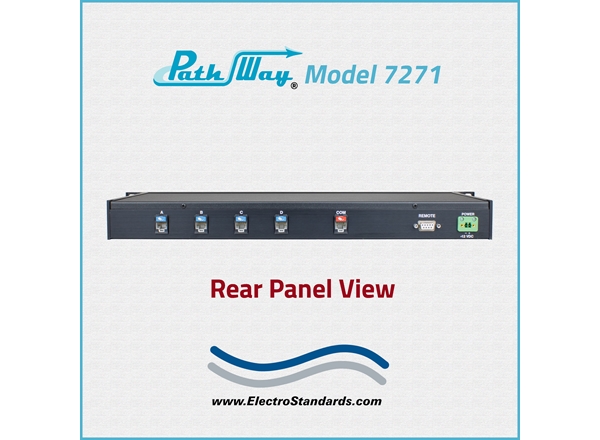

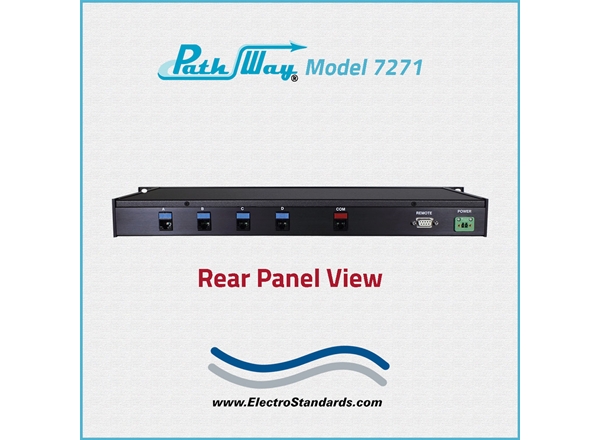

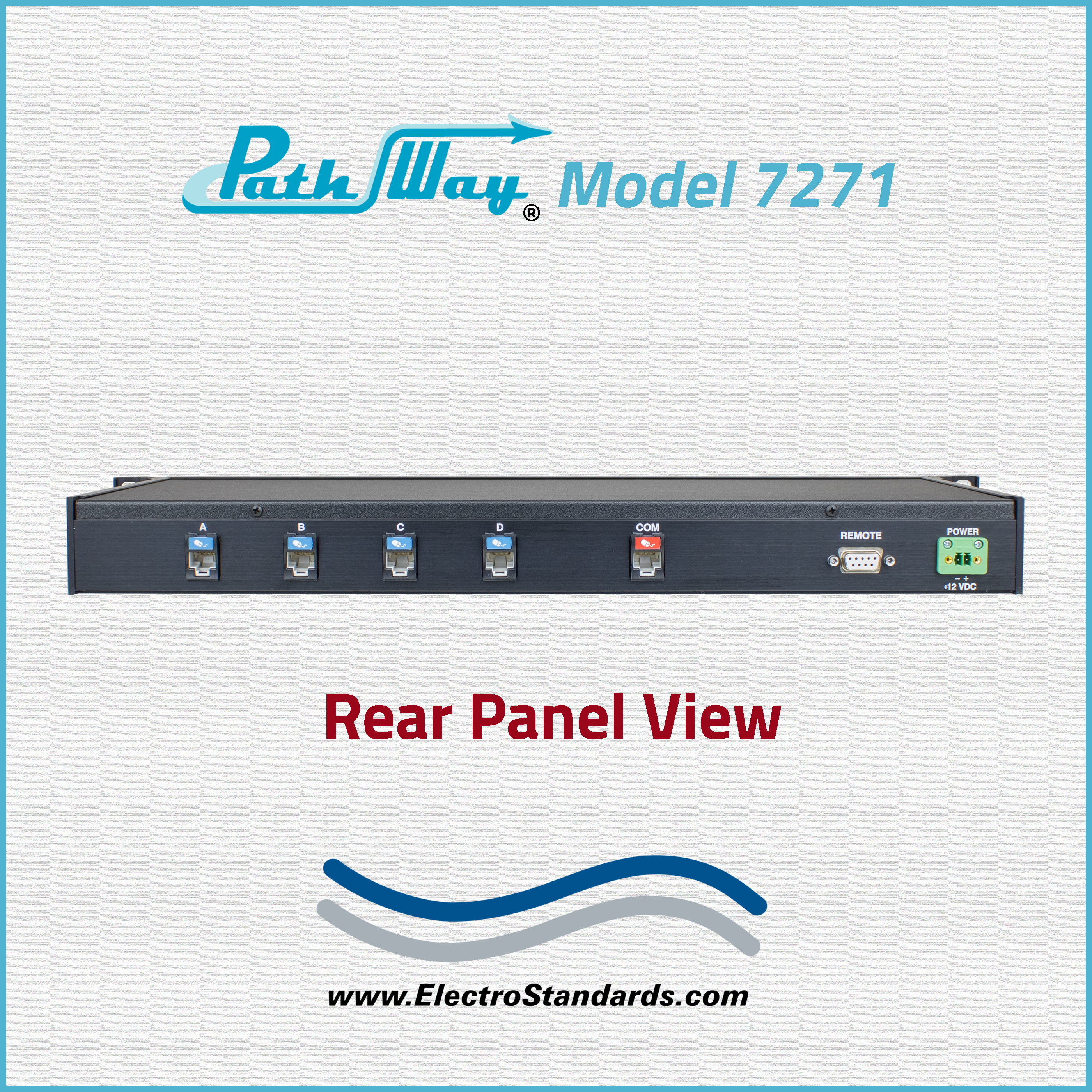

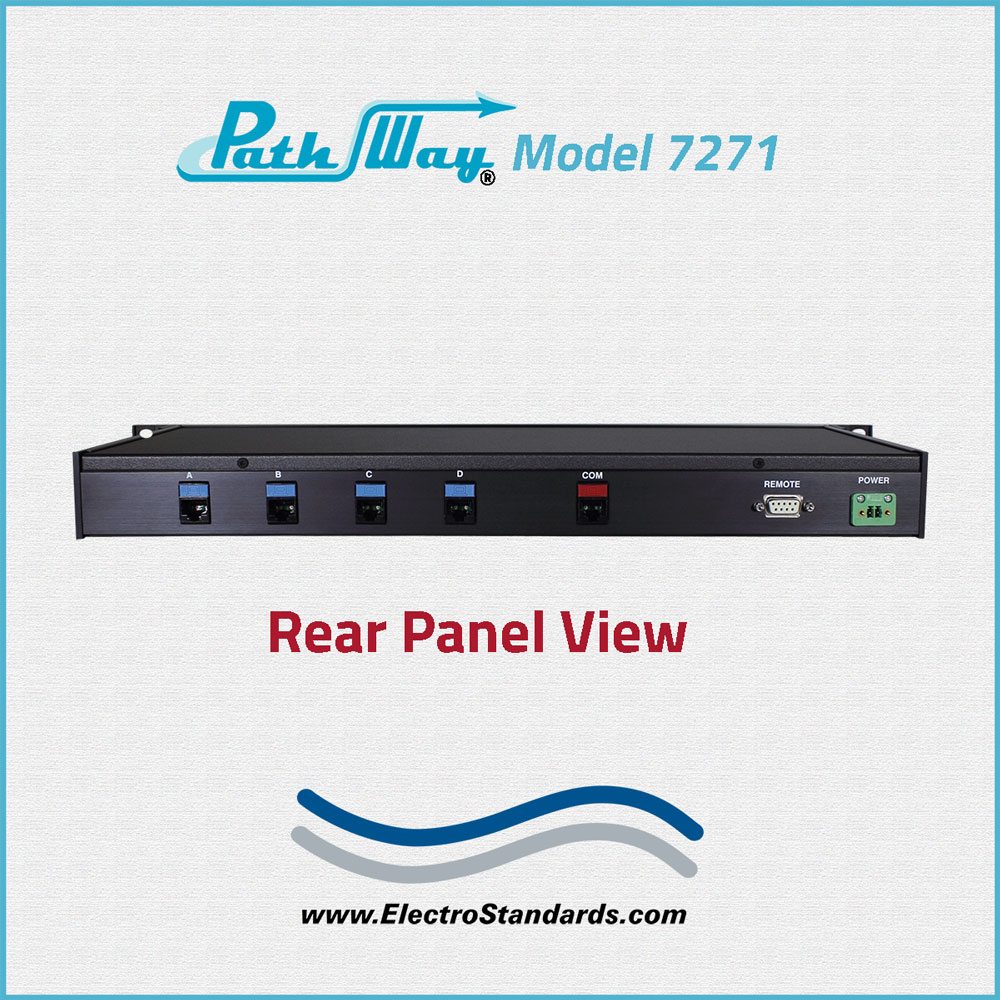

  • PORT CONNECTORS: (5) RJ45 (F) port connectors labeled A, B, C, D and COMMON on the rear panel.

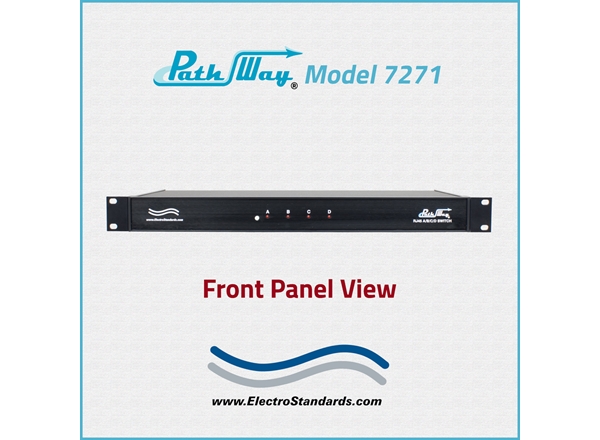

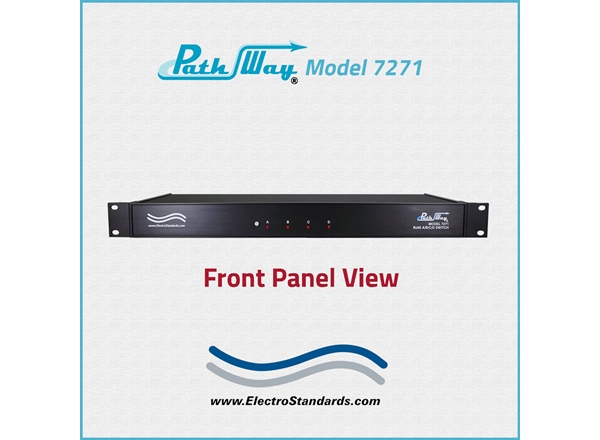

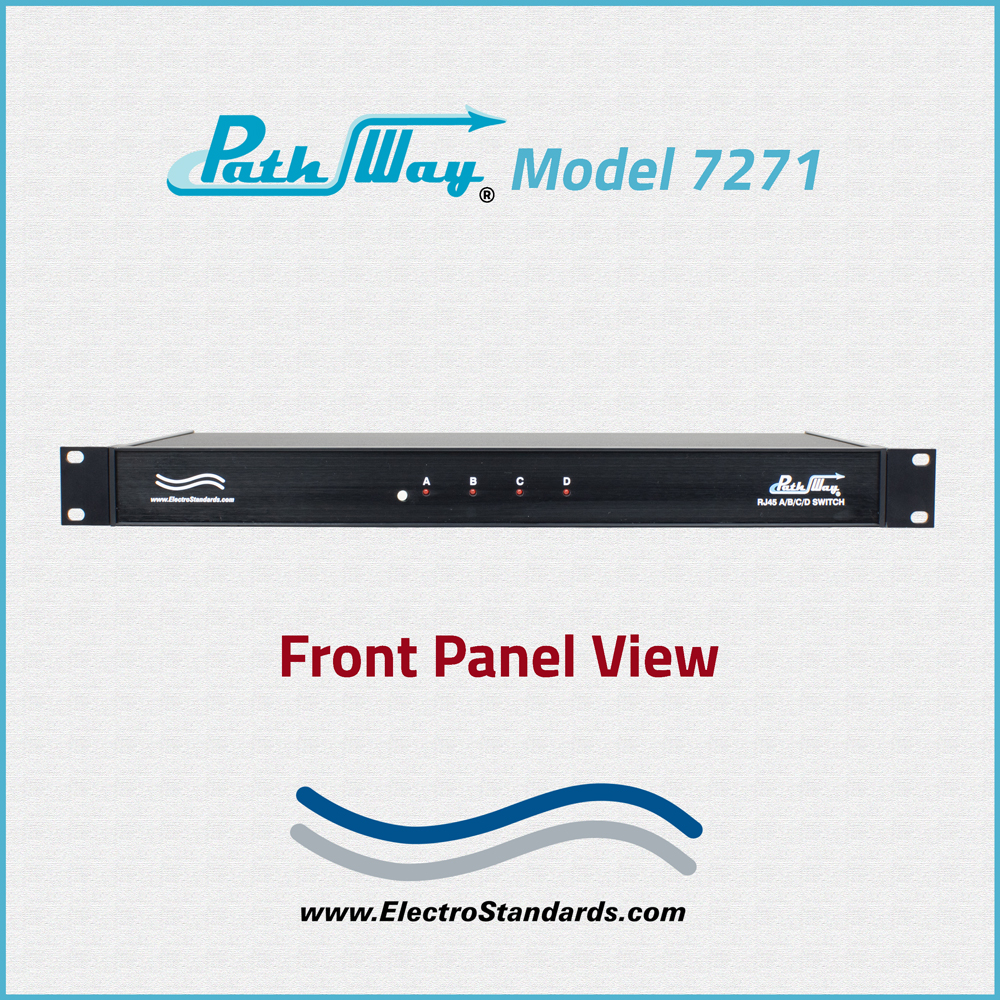

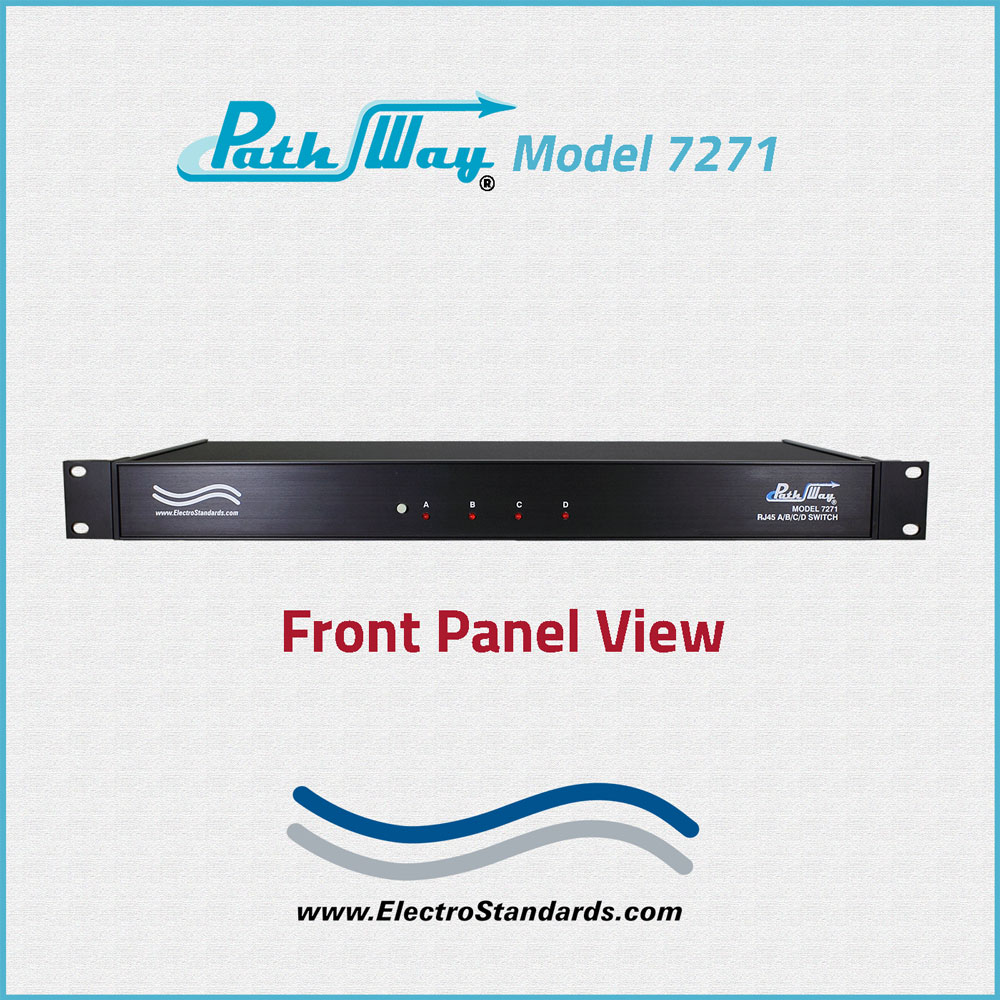

  • FRONT PANEL CONTROL: (1) Manual pushbutton on front panel allows local switching.
  • DISPLAY: (4) Front panel LED's labeled A, B, C and D display switch position and power status.
  • REMOTE CONTROL: (1) DB9 (F) connector on rear panel accepts ASCII RS232 Serial Data for Remote Control operation.
  • POWER: UL Approved wall mount 100VAC/240VAC, 50Hz/60Hz power module supplies 12 VDC, 500mA to the unit. Has 2-prong, US non-polarized plug.
  • DIMENSIONS: 19.0" W x 1.75" H x 8.15" D. (48.3 x 4.4 x 10.8 cm)
  • WEIGHT: Approximately 4.4 lbs. (2.2 kg).

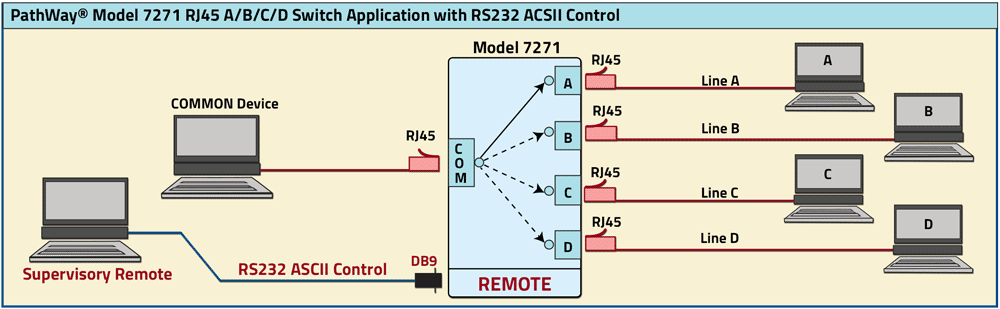

PathWay® Model 7271 RJ45 A/B/C/D application w/Serial Remote:

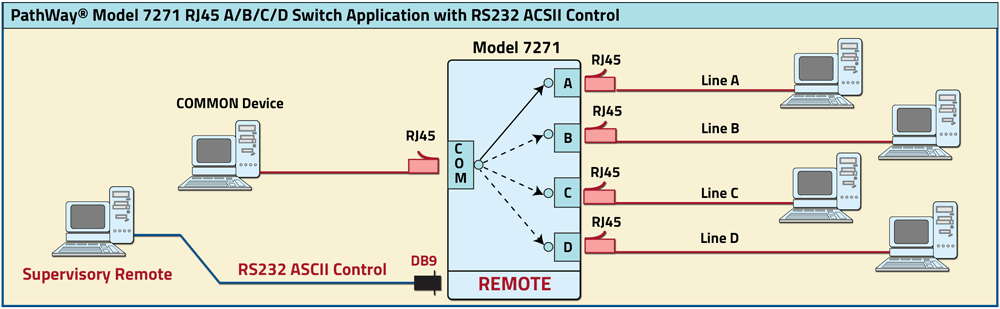

The drawing illustrates a single port interface Device connected to the RJ45 COMMON port sharing among four other devices connected to the A, B, C, and D RJ45 ports. The DB9 Remote port allows the user to control and monitor the switch from a remote location as well as lockout front panel control via ASCII RS232 commands.

PathWay Model 7271 RJ45 A/B/C/D Switch with RS232 Remote Control application

  FEATURES:

  • The PathWay® Model 7271 network switch enables sharing one COMMON RJ45 port among four RJ45 ports, A, B, C & D.
  • The switch ports are transparent to data.
  • All (8) pins of the RJ45 interface are switched via break-before-make electromechanical relays.
  • Front panel pushbutton control.
  • Remote RS232 ASCII commands that allow the user to control switch position, lockout front panel operations and obtain switch status.
  • Front panel pushbutton control can be locked out remotely.
  • The unit maintains last set position on power loss and continues to pass data.
  • Front panel LED's display the present position and power status.
  • Attractive all metal, black box packaging provides EMI/RFI shielding.
  • Custom length RJ45 cables available for your switch installation.
  • Municipalities, schools, government: This product on GSA Schedule!

The PathWay® Model 7271 Single Channel RJ45 Interface A/B/C/D Switch with Serial Remote Control allows the user the capability of sharing a single port interface device connected to the COMMON port among four other devices connected to the A, B, C, and D ports with remote access functionality.  The Model 7271 is enclosed in a 1U, full rack size, all metal chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

The Model 7271 may be controlled locally by manually operating the front panel pushbutton or remotely from the DB9 Remote Control port located on the rear of the unit. The DB9 Remote port provides control through RS232 serial commands and allows the user to both control and monitor the switch position remotely. The front panel LED display indicates the switch position and unit power status.

OPTION: WIDE RANGE POWER MODULE

(Cat No 517277) CE, RoHS, and UL listed table mount power module, 100 VAC - 240 VAC, 50Hz-60Hz for use in place of standard power module that is included with the unit. Has IEC 60320 C14 inlet.  Ideal for international applications.

This high-quality network switch is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V. Click here for GSA details.

Model 7271 is available to government purchasers on our GSA Schedule GS-35F-0286V. Call for discounted price and terms.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL products are available for export.

Electro Standards welcomes International inquiries: commutateur d'ordinateur,  equipo interruptor, interruttore del calcolatore, interruptor do computador, dator switch.

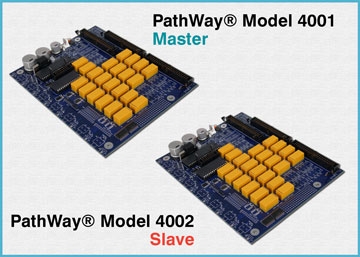

Available Combo Deals
