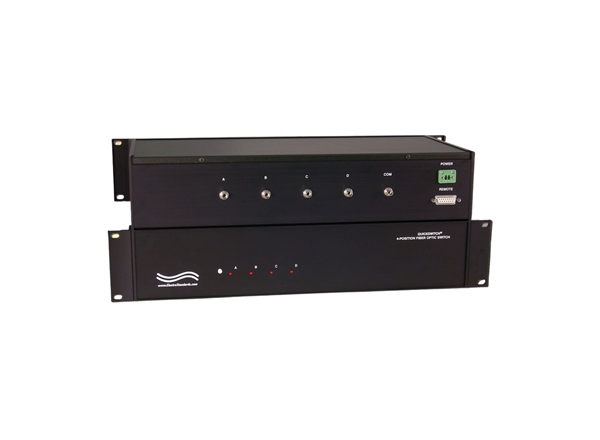

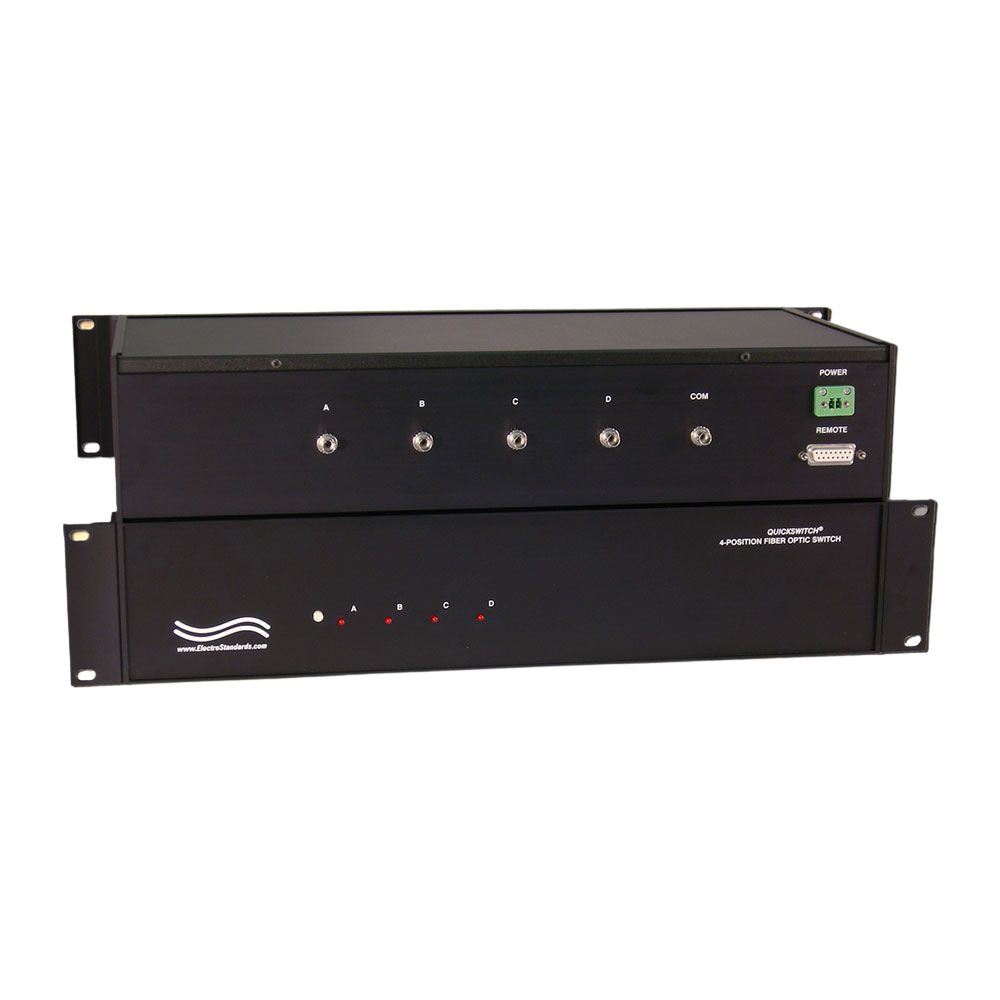

Catalog # 306274 - Model 6274 A/B/C/D Gigabit Fiber Switch

    ST Simplex A/B/C/D Gigabit Fiber SwitchST Simplex A/B/C/D Gigabit Fiber SwitchST Simplex A/B/C/D Gigabit Fiber SwitchST Simplex A/B/C/D Gigabit Fiber Switch
Click image to enlarge

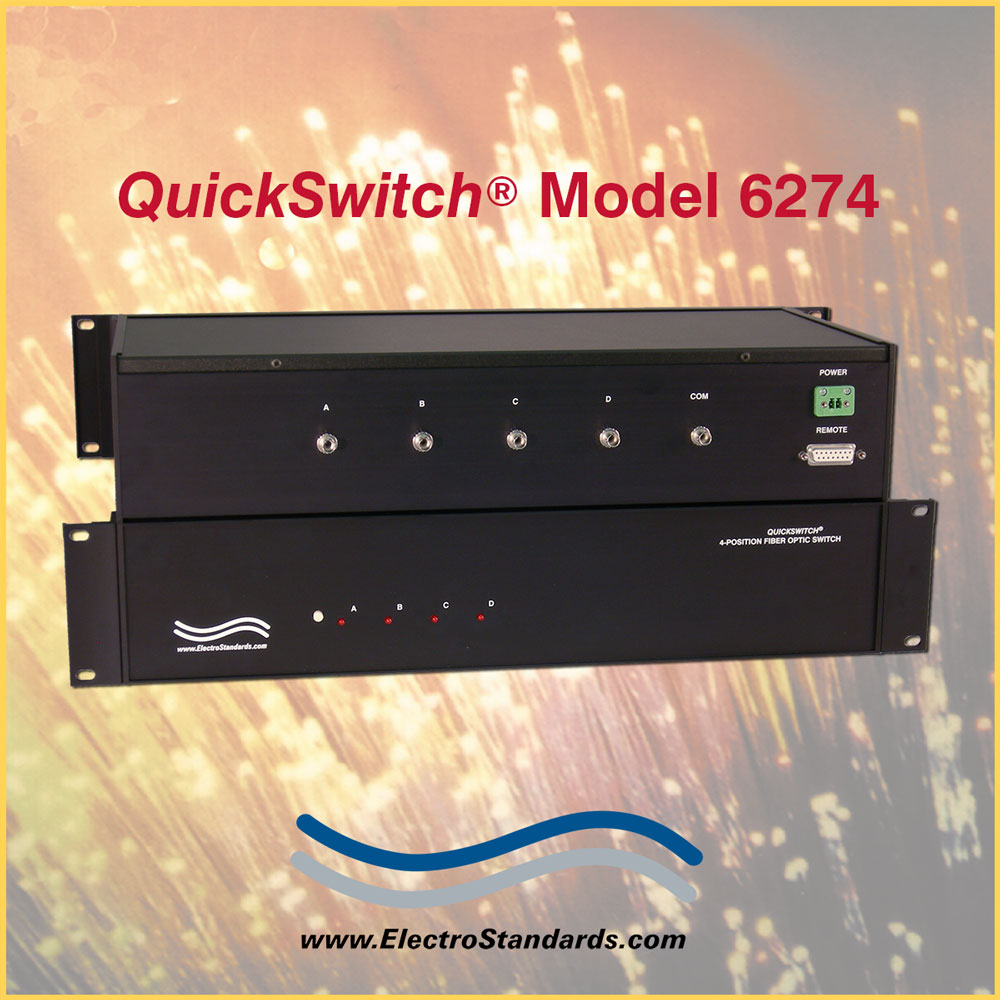

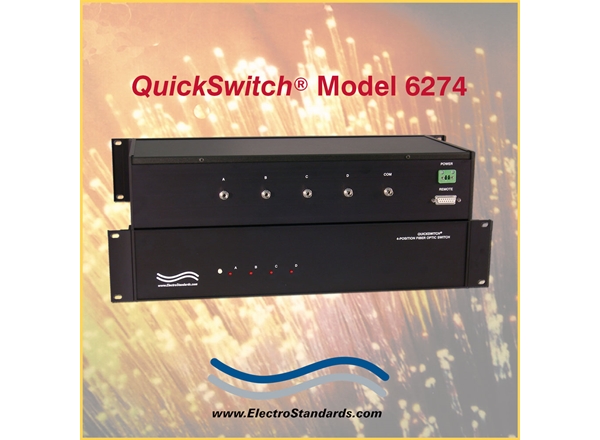

    • ST Simplex A/B/C/D Gigabit Fiber Switch
    • ST Simplex A/B/C/D Gigabit Fiber Switch
    • ST Simplex A/B/C/D Gigabit Fiber Switch
    • ST Simplex A/B/C/D Gigabit Fiber Switch
Base Price:
$5,558.00
Catalog No: 306274
Model No: 6274
Product Type:Switches: Fiber Optic
Positions:4
Cable Type/Port Connector:ST
Channels per Switch Chassis:1
Electronic Switches/Power Required:QuickSwitch® Fiber Optic
Remote Control:Contact Closure
Configuration:Rackmount
Fiber Mode:Single Mode
Fiber Size:8.2/125
Fiber Type:Simplex
Remote Port:DB15
Mirror Technology:OO
Speed:100 Mbps
Wavelength Nano:Dual Wavelength 1310/1550

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

QuickSwitch® Fiber Optic Network Switch, ST Simplex
QuickSwitch® 6274 ST Simplex, Single Mode, Dual Wavelength, Fiber Optic A/B/C/D Switch with Remote Contact Control and Gigabit Data Rates!

  • Field Proven. Highly Reliable.

  • Ideal for Commercial-Off-The-Shelf (COTS) Purchase Applications.

SPECIFICATIONS:

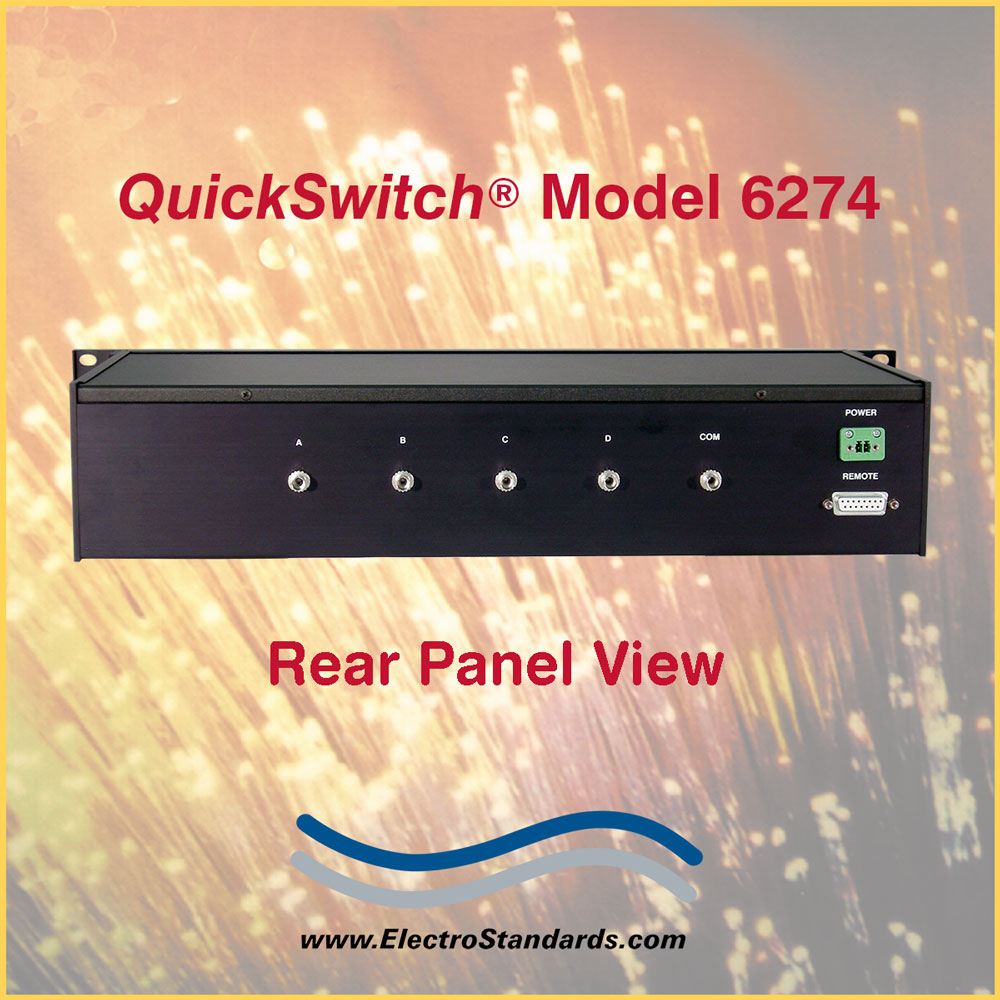

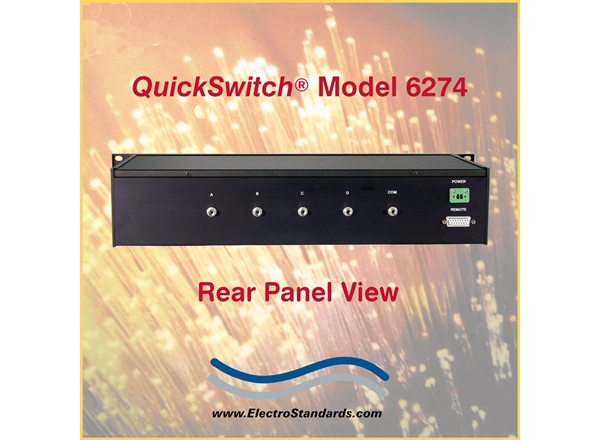

  • PORT CONNECTORS: (5) ST Simplex Fiber Optic connectors on rear panel, A, B, C, D and COMMON.
  • REMOTE: (1) DB15(F) Remote Connector accepts contact closure to control switch position.

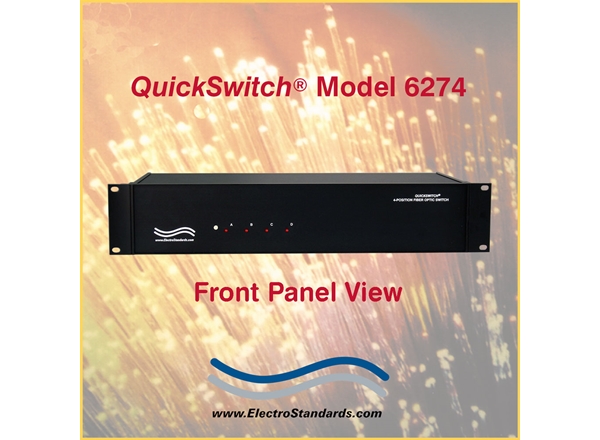

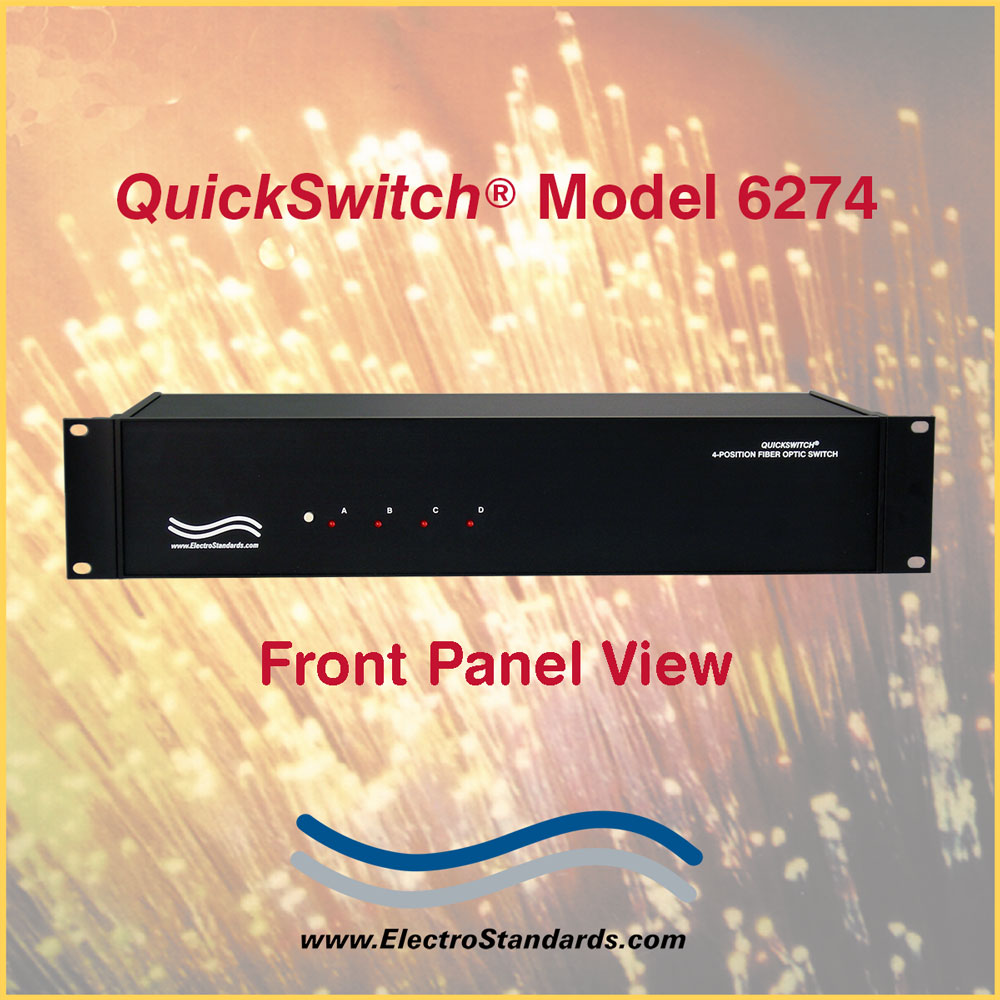

  • FRONT PANEL CONTROLS: (1) pushbutton allows switch selection A, B, C, D.
  • POWER: UL approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12 VDC, 500mA to the unit. Has 2-prong, US, non-polarized plug.
  • WAVELENGTH: 1310 nm and 1550 nm.
  • DIMENSIONS: 19" W x 3.5" H x 8" D. (48.3 x 8.9 x 20.3 cm)
  • WEIGHT: Approximately 5.5 lbs. (2.5 kg)

QuickSwitch® 6274 Fiber Optic A/B/C/D Switch Application:

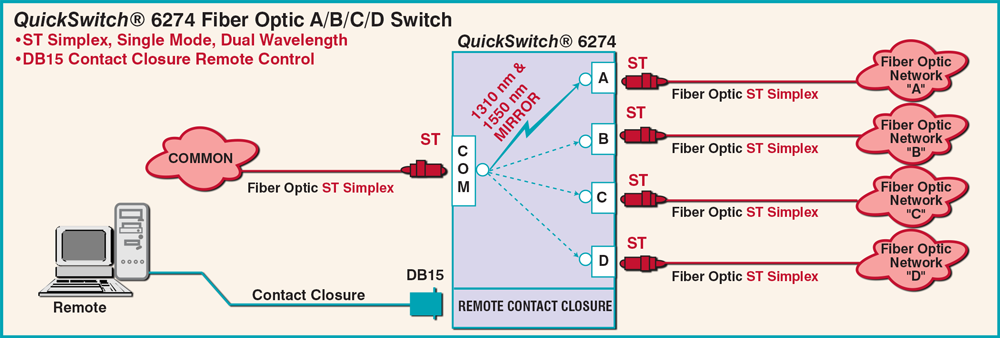

The QuickSwitch® Model 6274 drawing illustrates a COMMON device connected to the ST COMMON port accessing any one of four Fiber Optic networks labeled A, B, C and D connected to the ST Simplex fiber switch ports, A, B, C and D. The switch can be controlled via the DB15 remote port using contact closure signals.

  • ST Simplex, Single Mode, Dual Wavelength
  • DB15 Contact Control Remote

QuickSwitch® 6274 ST Simplex, A/B/C/D Switch Application

FEATURES:

  • Fiber Optic Switch allows access to up to four separate fiber optic networks.
  • The switch uses mirror technology and is transparent to data and speed.  Supports gigabit data rates.
  • A, B, C, D, and COM ports are ST Simplex.
  • Supports Single Mode, SMF-28, 8.2 micron fiber with wavelengths of 1310nm and 1550nm.
  • Front panel pushbutton control or Remote Contact Control access through the DB15 Remote Port.
  • Remote Contact Control allows the user to change the unit's position and lockout the front panel pushbutton.
  • Front panel LED's display the presetn switch position and power status.
  • Maintains position and data transmission if power is lost.
  • Standard 2U high rackmount configuration.
  • Custom length rigorously tested and certified ST simplex fiber optic cables available for your switch installation.
  • Municipalities, schools, government: This product is on GSA Schedule!

The QuickSwitch® 6274 ST Simplex, Single Mode, Dual Wavelength, Fiber Optic A/B/C/D Switch with Remote Contact Control allows the user the capability of connecting one COMMON port device to any one of four networks.  The system affords local and remote access functionality.  Remote access can be accomplished by Contact Closure on the Remote DB15 port.

Option: Wide Range Power Supply: (Cat No. 517277) CE, RoHS, and UL listed table mount power module, 100VAC-240VAC, 50-60Hz for use in place of the standard power module that is included with the unit. Has IEC 60320 C14 inlet. Ideal for international applications.

Model 6274 is available to government purchasers on our GSA Schedule GS-35F-0286V. Call for discounted price and terms.

QuickSwitch® is a registered trademark of Electro Standards Laboratories.

QuickSwitch® Fiber Optic Switches are available in many configurations: auto fallback, switch/converters, multimode & single mode, and secure off-line positions. Check out our complete line of QuickSwitch® fiber optic switches.

For custom fiber optic network switches contact our friendly sales support staff at 401-943-1164; or email: eslab@electrostandards.com, or complete our online Custom Product Request form.

Electro Standards can supply all your Fiber Optic Cable requirements.

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

All ESL products are available for export.

Electro Standards welcomes International inquiries: commutateurs à fibres optiques, interruptores de fibra óptica, switch in fibra ottica, switches de fibra óptica, fiberoptiska switcher.
