Model 6239 Audio and Video XLR 3-Pin & BNC Coax Interface, A/B Manual Switch

Overview

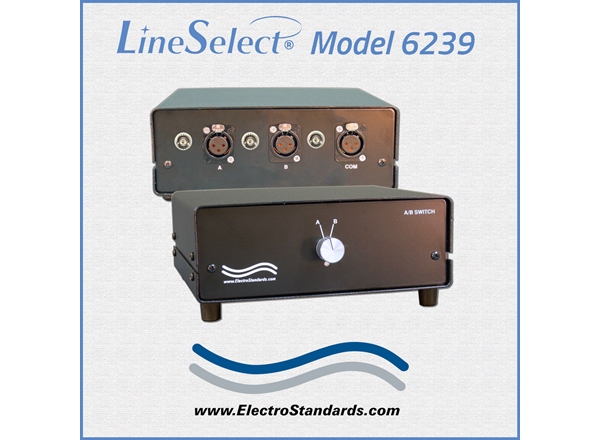

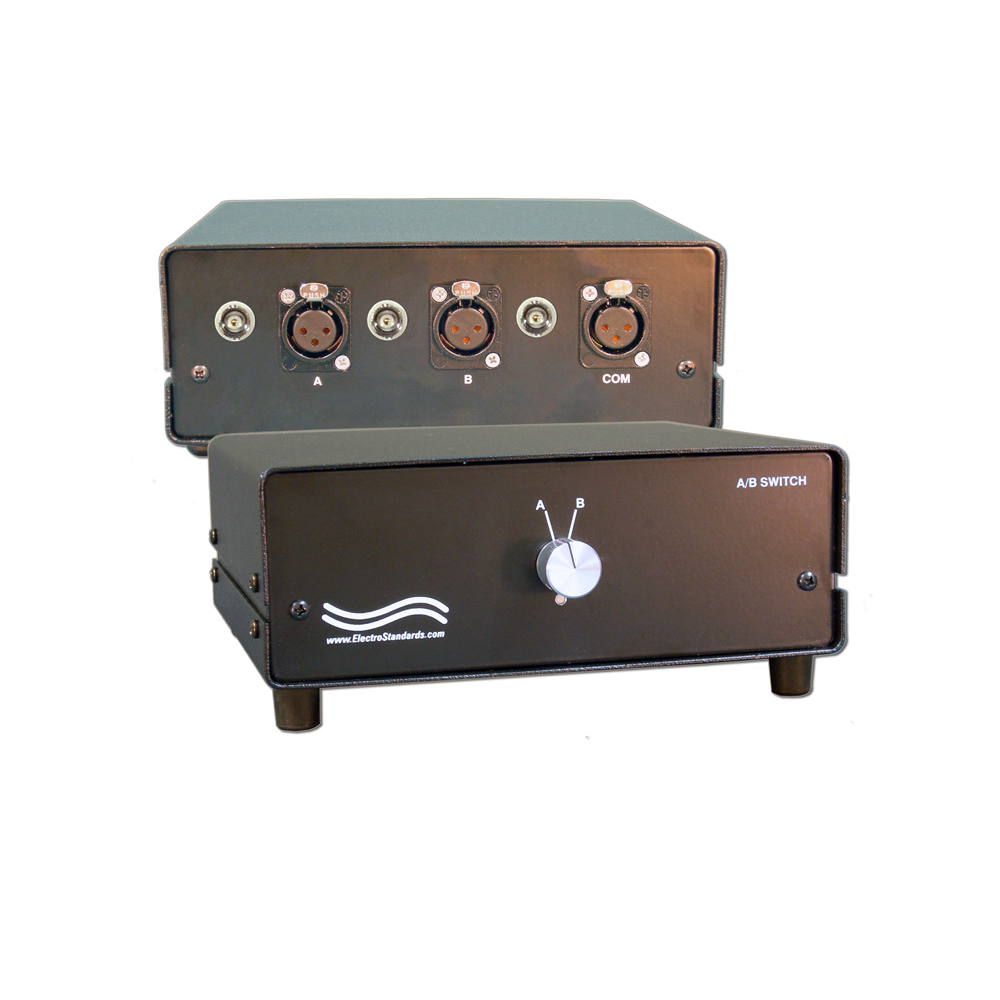

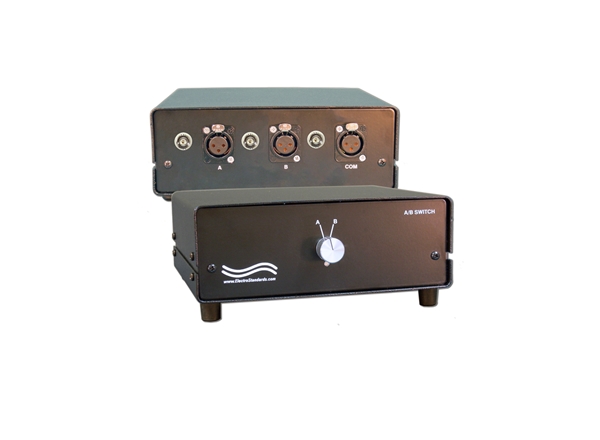

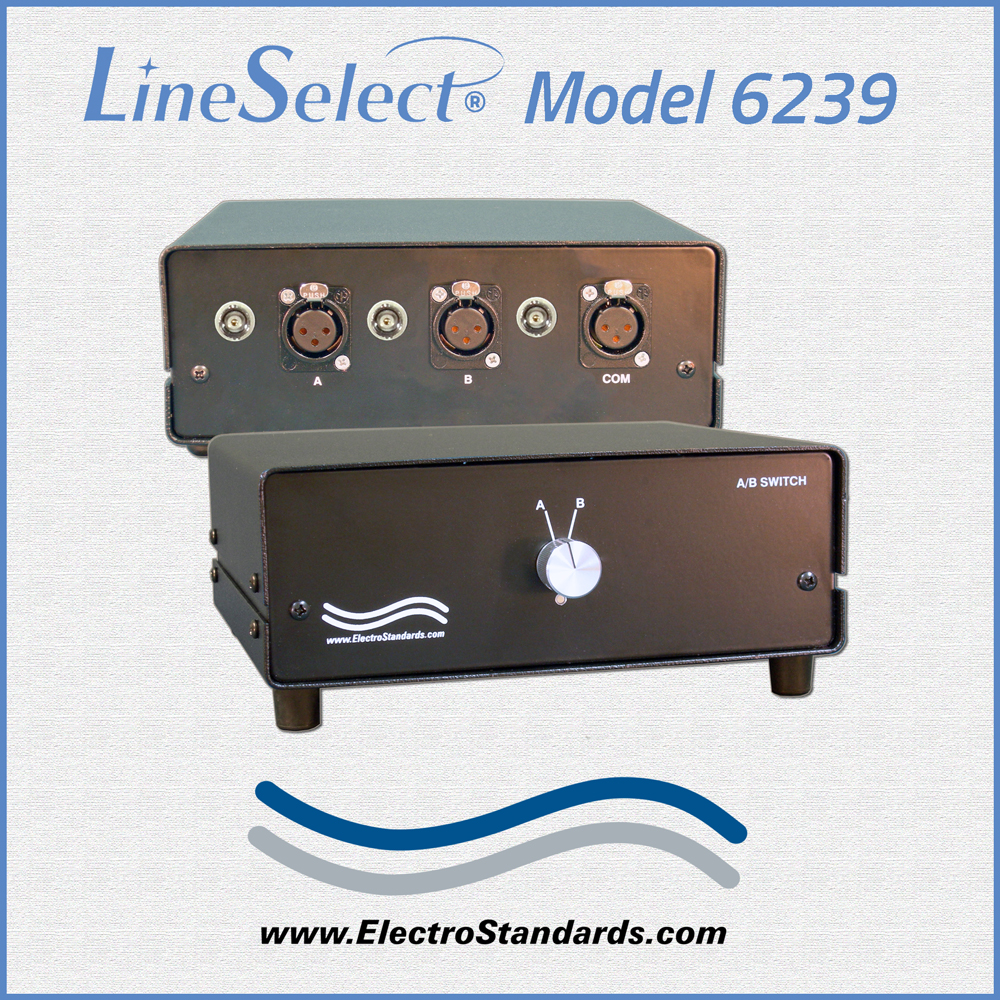

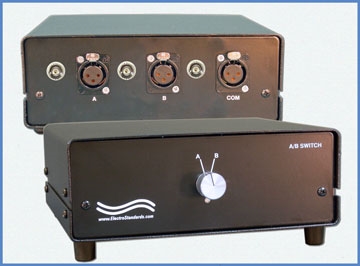

The LineSelect® Model 6239 allows quick and easy connection of Audio and Video channels to either of two remote locations. The audio channel utilizes XLR 3-pin microphone connectors and cabling. The video channel utilizes BNC Coax connectors and cabling. The Model 6239 is controlled via a front panel rotary switch. All three pins of the XLR connectors, and both center conductor & shell of the BNC connectors are switched simultaneously.

Switches Audio & NTSC Composite channels to either of two locations!

FEATURES OF THE MODEL 6239 AUDIO & VIDEO MANUAL SWITCH:

Allows quick and easy connection of local audio and video channels to either of two remote locations.
High quality sealed switch with self-wiping low impedance contacts.
Manual operation via front-panel rotary switch.
All three pins of the XLR audio connector are switched.
Both the shield and center conductor of the BNC connector are switched.
Simultaneously switches both the audio and video channels.
Eliminates the need to plug and unplug cables
No external power required.
Attractive black box packaging provides EMI/RFI shielding.
Lifetime guarantee against manufacturing defects.
Custom length cables available for your switch installation.

TECHNICAL SPECIFICATIONS:

PORT CONNECTORS:
(3) XLR 3-pin female connectors labeled A, B, and COMMON.
(3) BNC female connectors labeled A, B, and COMMON.
FRONT PANEL CONTROL: (1) rotary switch on
front panel selects A or B.
POWER: No power required. Manually operated.
DIMENSIONS: 8.0" W x 3.0" H x 8.0" D. (20.3 x 7.6 x 20.3 cm)
WEIGHT: Approx. 1.5 lbs. (0.7 Kg)

AUDIO AND VIDEO SWITCH WITH XLR & BNC INTERFACE APPLICATION:

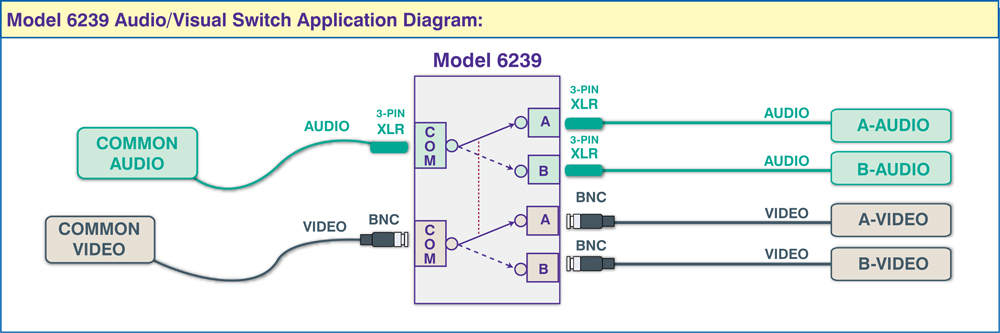

The drawing illustrates a COMMON Video device connected to the BNC COMMON port allowing access to two other Video devices connected to the BNC A and B ports. There is also a COMMON Audio device connected the COMMON 3-Pin XLR port allowing access to two other Audio devices connected to the 3-Pin XLR A and B ports. Both the Audio channel and Video Channel switch simultaneously from one location to the another location.

Audio and Video XLR 3-Pin & BNC Coax Interface A/B Switch Network Application, Model 6239
