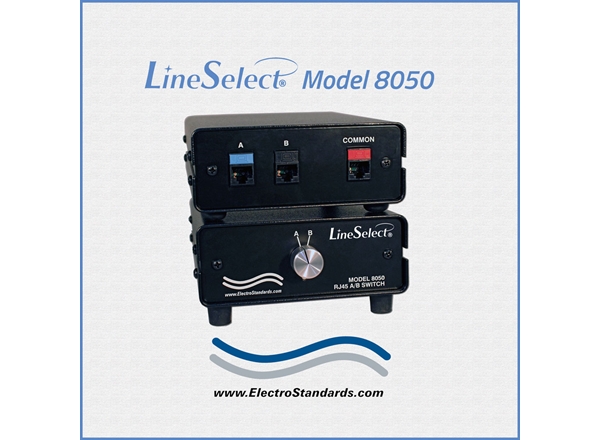

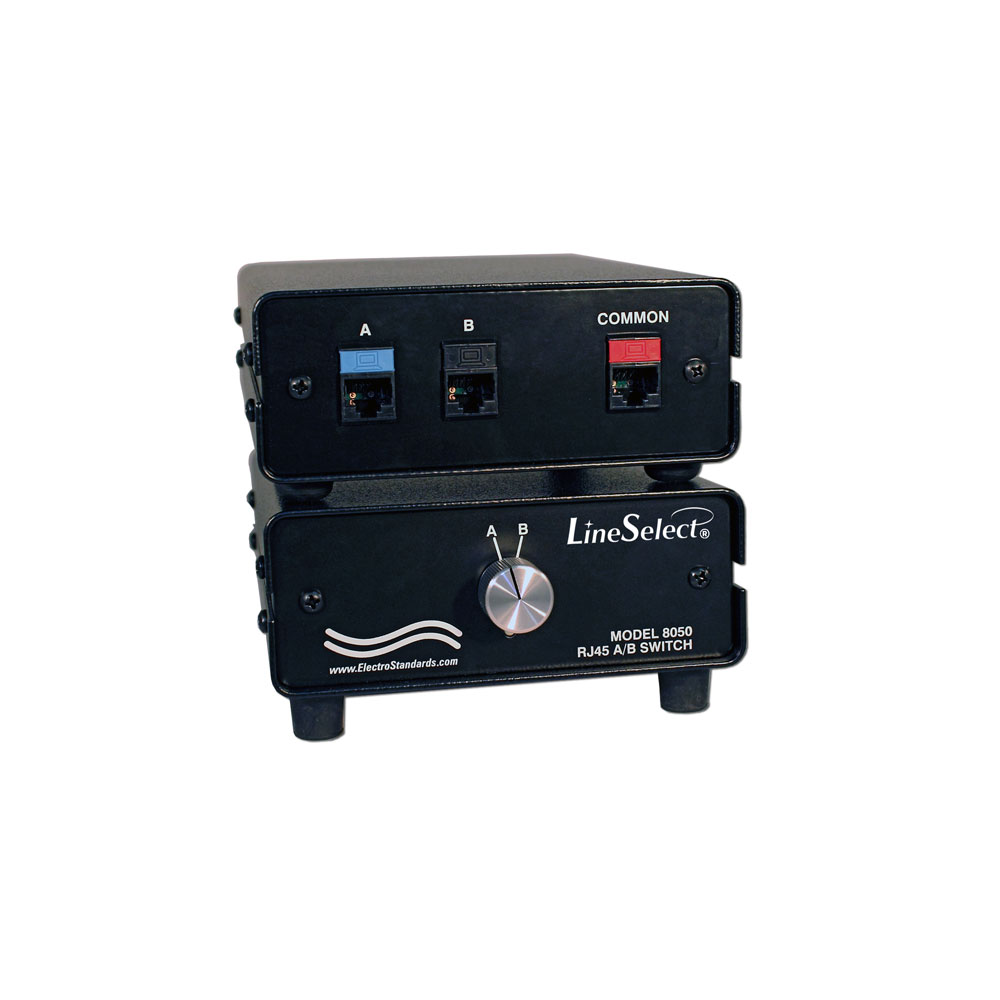

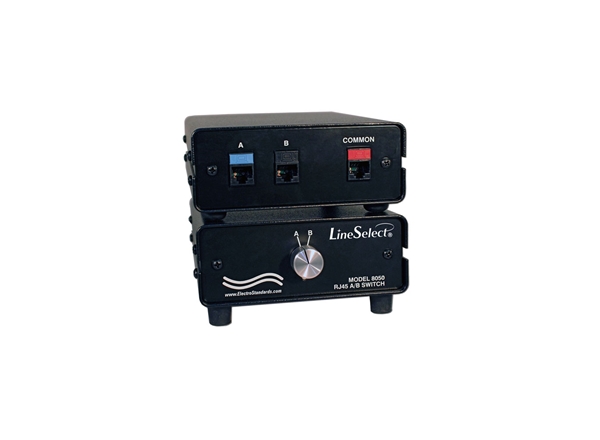

Model 8050 RJ45 Cat5 A/B Rotary Switch, Front Panel Knob Control, Catalog# 304870

    LineSelect® Model 8050 RJ45 A/B SwitchLineSelect® Model 8050 RJ45 A/B SwitchLineSelect® Model 8050 RJ45 A/B SwitchLineSelect® Model 8050 RJ45 A/B Switch
Click image to enlarge
    • LineSelect® Model 8050 RJ45 A/B Switch
    • LineSelect® Model 8050 RJ45 A/B Switch
    • LineSelect® Model 8050 RJ45 A/B Switch
    • LineSelect® Model 8050 RJ45 A/B Switch
Base Price:
$481.00
Catalog No: 304870
Model No: 8050
Product Type:Switches: Copper
Interface:RJ45 Cat 5
Positions:2
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:1
Manual Control/No Power Required:LineSelect® Manual Operation
Compliance/Standards:Cat5
Configuration:Desktop
Pins Switched:8
Local Control:Rotary Knob

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

LineSelect® Model 8050 RJ45 Cat5 A/B Rotary Switch, Front Panel Knob Control

Overview

The LineSelect® Model 8050 Cat5 Manual Data Network Switch enables access to two 10/100 BASE-T networks (Up to 100 Mbps). The Model 8050 RJ45 Category 5 A/B switch allows the user to reroute data between two networks with a simple turn of the front panel rotary switch. Model 8050 supports all 8 pins of the RJ45 CAT5 interface. No need to plug and unplug cables thereby eliminating connector wear.  The Model 8050 is packaged in a slim desktop style enclosure.

  • No External Power Required!

  • Quickly switch a single network or device between two others without unplugging cables, saving time and reducing connector wear.

  • Simple manual design allows reliable operation without software or network dependencies.

  •  Applicable to switching any RJ45 device.

  • Ideal for Commercial-Off-The-Shelf (COTS) purchase applications.

FEATURES OF THE MODEL 8050 A/B ROTARY SWITCH:

  • LineSelect® Model 8050 manual data network switch allows access to two RJ45 Cat5 networks from one computer or workstation.
  • Rated for 10/100 Base-T networks (up to Cat5).

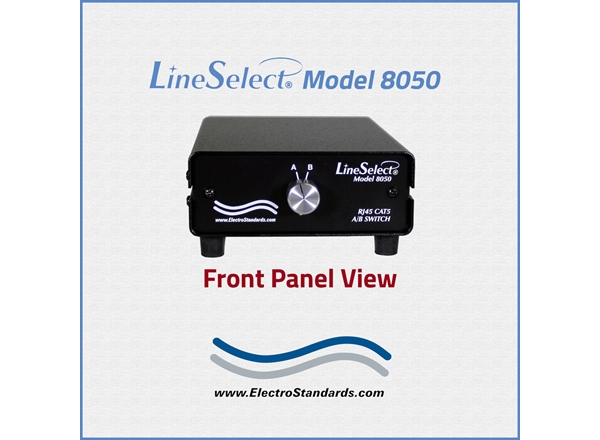

  • Manual operation via front-panel rotary switch.
  • High quality sealed switch with self-wiping low impedance contacts.
  • Transparent to data speed and format.
  • All 8 pins of the RJ45 interface are switched via break-before-make rotary switch.
  • Eliminates the need to plug and unplug cables.
  • No external power required.
  • Attractive anodized black box packaging provides EMI/RFI shielding.
  • Improves computer network efficiency by allowing sharing of peripherals.
  • Custom length RJ45 Cat 5 cables available for your switch installation.
  • Lifetime warranty against manufacturing defects.
  • Municipalities, schools, government: This product is on GSA Schedule!

This high-quality network switch is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V. Click here for GSA details.

Model 8050 is available to government purchasers on our GSA Schedule GS-35F-0286V. Call for discounted price and terms.

TECHNICAL SPECIFICATIONS:

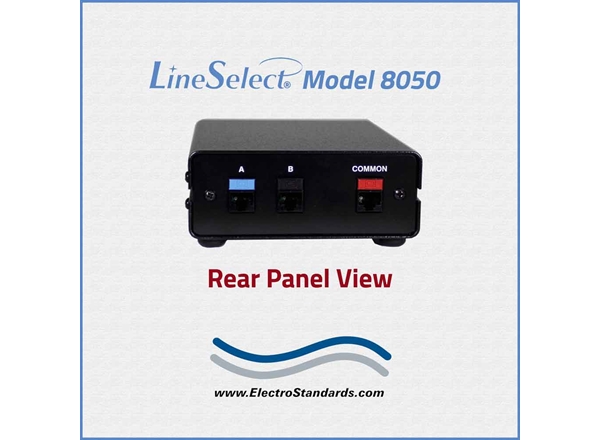

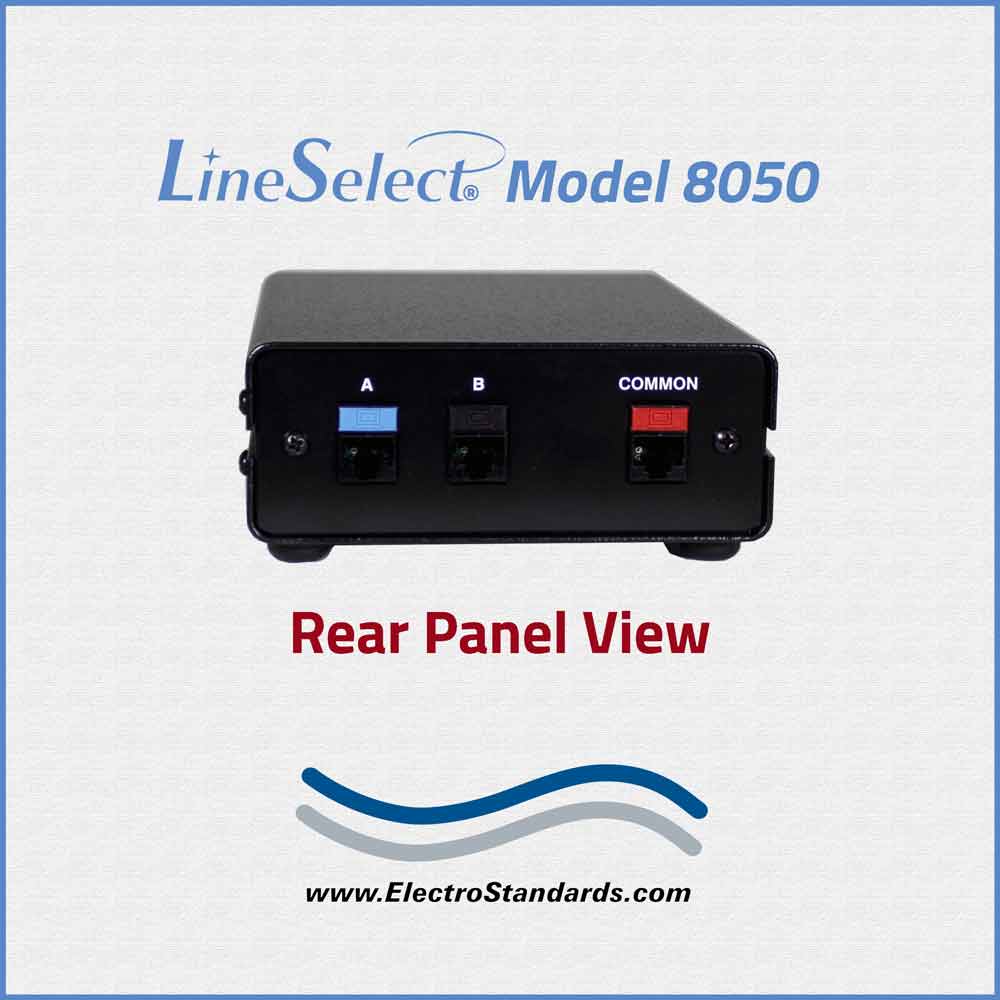

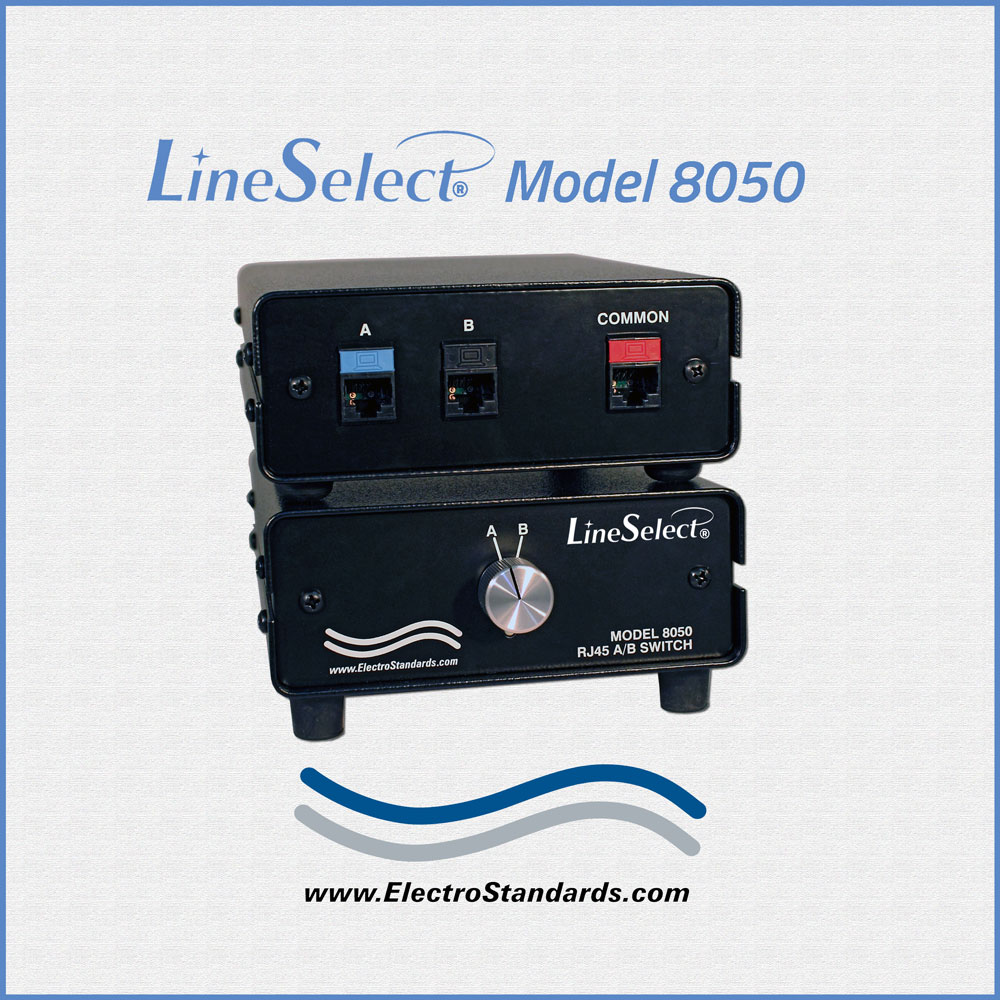

  • PORT CONNECTORS: (3) RJ45, Cat 5 female connectors labeled A, B, and COMMON.

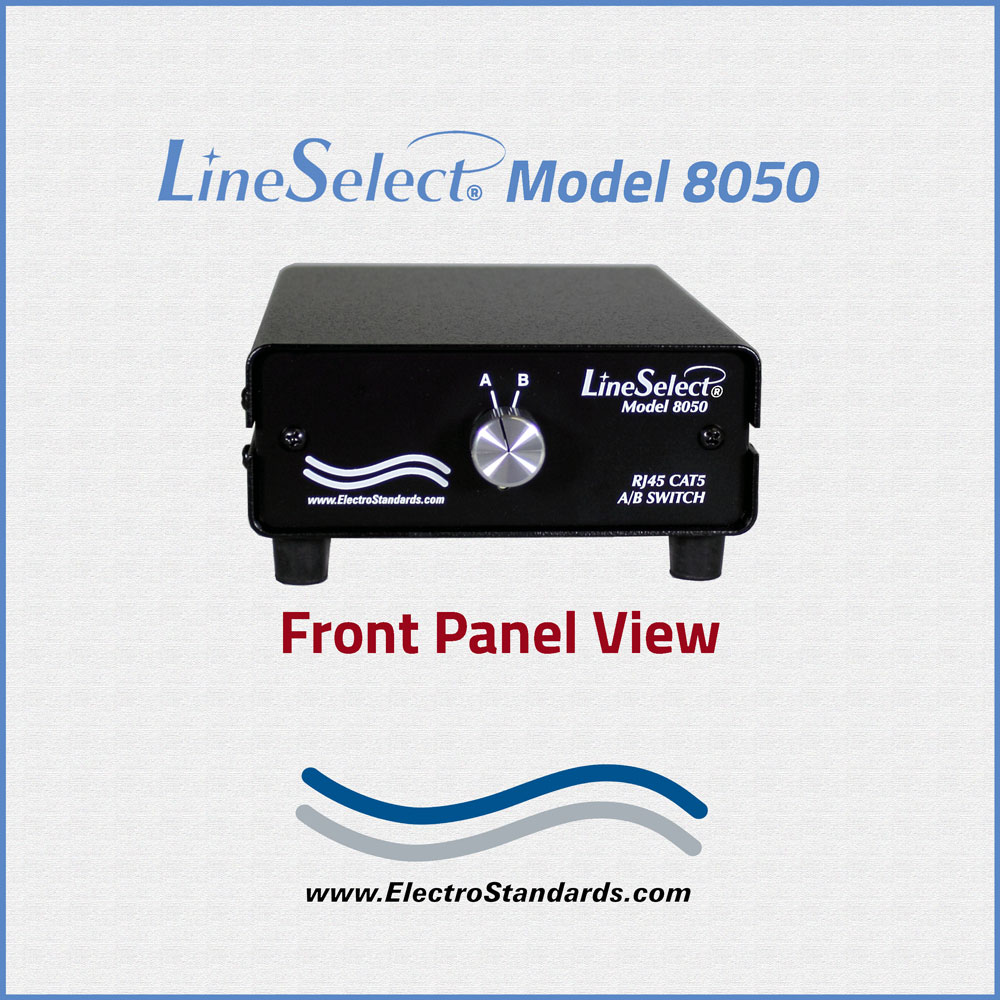

  • FRONT PANEL CONTROL: (1) Rotary Switch on front panel selects A or B.
  • POWER: No power required. Manually Operated.
  • DIMENSIONS: 5.44" W x 2.71" H x 7.75" D. (13.9 x 6.9 x 19.7 cm).
  • WEIGHT: Approximately 1.1 lb. (0.5 kg)

LineSelect® Model 8050 Cat5 A/B Manual Network Application:

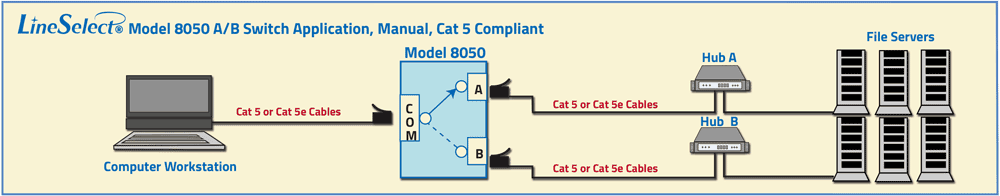

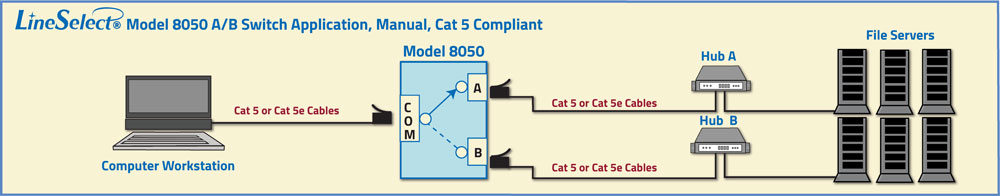

The drawing illustrates a computer connected to the RJ45 COMMON port with access to two networks connected to the RJ45 A and RJ45 B ports, respectively. The computer can share between two networks with a simple turn of the front panel rotary knob on the Model 8050. Manually operated.

LineSelect® Model 8050 Cat5 RJ45 A/B rotary switch application

Ordering Information

  • Catalog Number: 304870
  • Model Number: 8050
  • Base Price: See website or contact us for current pricing and availability.

Documentation & Support

  • Specification Sheet (PDF) Download Available.
  • Product Manual available upon request.
  • For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
  • We welcome international inquiries and ship worldwide.

Shipping and Returns           UPS

  • Shipped via UPS ground (unless otherwise requested).
  • Freight Charges prepaid and added to invoice. We can estimate freight charges for you.
  • Return policy: contact us within 30 days of shipment for an RMA number. Items returned without RMA not accepted. Please refer to our full return policy in our Terms and Conditions found on our website.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL products are available for export.

Electro Standards welcomes International inquiries: commutateur d'ordinateur,  equipo interruptor, interruttore del calcolatore, interruptor do computador, dator switch.
