401-943-1164 / US & Canada Toll Free: 877-943-1164

Catalog # 305534 - Model 5534 4-State CAT5e Switch for Secure Video Conferencing

    OFF/SVCN/JSIS/GPCN CAT5e Switch
Click image to enlarge
Base Price:
$860.00
Catalog No: 305534
Model No: 5534
Product Type:Switches: Copper
Positions:4, Offline
Switch Application:Audio/Video Switching
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:1
Security:Keylock, Offline Position
Compliance/Standards:Cat5e
Configuration:Rackmount
Pins Switched:8
Local Control:Keylock

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

Video Conference Room Switch, RJ45 Cat5e
Model 5534 Single Channel 4-State OFF/SVCN/JSIS/GPCN RJ45 Cat5e Switch

  • Ideal for secure conference room communication applications

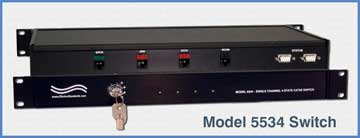

Model 5534 Single Channel 4-State, OFF/SVCN/JSIS/GPCN, RJ45 CAT5e Switch

SPECIFICATIONS:

  • PORT CONNECTORS: (4) RJ45 female connectors labeled GPCN, JSIS, SVCN, and ROOM.
  • DISPLAY: (4) Front panel LED's display switch position and power status.
  • STATUS PORTS: (2) DB9 (F) ports allow linking the Model 5534 switch to a remote large character alpha display unit, Model 5533.  Custom port contact closures indicate switch position: OFF, SVCN, JSIS, and GPCN.
  • POWER: No power required to operate the 4-position switch.  Power for LED's provided from connection to the Model 5533 Display Unit.
  • DIMENSIONS: 19" W x 1.75" H x 8.0" D
  • WEIGHT: 4.5 lbs

5534 Single Channel 4-State OFF/SVCN/JSIS/GPCN RJ45 CAT5e Switch App Note

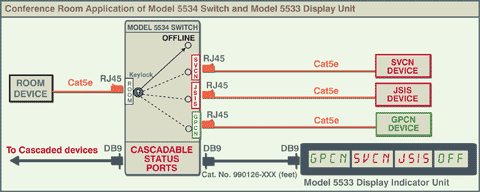

The Model 5534 RJ45 Switch allows the user the capability of accessing three separate devices, ports SVCN, JSIS, and GPCN via connection through a device connected to the ROOM port.  Users can link this model to the Model 5533 OFF/SVCN/JSIS/GPCN Display Indicator unit for a robust conference communications switching system.  The dimensions of the unit are 1.75"H x 8"D x 19"W and the unit mounts in a standard 19" equipment rack.

FEATURES:

  • Manually operated by the keylock.  No power is required to operate unit.
  • The position of the Model 5534 network switch will follow the keylock actuator position at all times.
  • The key can only be removed from the keylock actuator in the OFF position.
  • The switch ports are transparent to all data.
  • All pins of the RJ45 interface are switched.
  • Interface meets Cat5e performance.
  • The front panel indicator LED's on the Model 5534 will display the position status of the unit when linked to a powered Model 5533 unit.
  • Unit permits signal to pass uninterrupted (SVCN, JSI, and GPCN positions) or isolates in/out copper (OFFLINE position).
  • Status ports for linking switch system unit to the Model 5533 OFF/SVCN/JSIS/GPCN Display Indicator unit.
  • Installs in a standard 19" wide equipment rack.

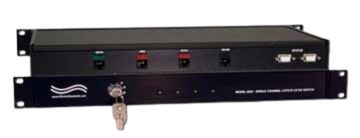

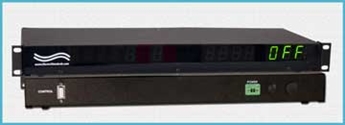

Model 5534 4-State RJ45, Cat5e Keylock Switch is shown below with the Model 5533, Cat. No. 305533 Display Indicator Unit.  The Model 5534 switch is in the OFF position.

5534 4-State RJ45, Cat5e Keylock Switch with Model 5533 Indicator  in OFF position

Custom Network Switches are available. Contact us by phone, email, or complete the Online Custom Products Form. /Products-Custom/Copper-Switch/

Electro Standards can supply all of your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

All data switch boxes, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.
All ESL Secure Offline Switches are available for export.

Available Combo Deals
