Model 8022 Coaxial BNC A/B/C/D, Manual Data Network Switch, Catalog # 305070

    Coaxial BNC A/B/C/DCoaxial BNC A/B/C/DCoaxial BNC A/B/C/DCoaxial BNC A/B/C/D
Click image to enlarge
    • Coaxial BNC A/B/C/D
    • Coaxial BNC A/B/C/D
    • Coaxial BNC A/B/C/D
    • Coaxial BNC A/B/C/D
Base Price:
$616.00
Catalog No: 305070
Model No: 8022
Product Type:Switches: Copper
Positions:4
Cable Type/Port Connector:Coax Switch Ports
Channels per Switch Chassis:1
Manual Control/No Power Required:LineSelect® Manual Operation
Configuration:Desktop

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

The LineSelect® Model 8022 BNC Coaxial A/B/C/D Manual Data Network Switch, Desktop Configuration

Overview

The LineSelect® Model 8022 BNC Coaxial A/B/C/D Switch allows the user to reroute data between either of four BNC interface devices to one Common device with the simple flip of a rotary selector switch. Both the center conductor and the shield of the coaxial interface are switched via break-before-make rotary switch.

The LineSelect® Model 8022 is packaged in a slim desktop style enclosure.  It is ideal for use in coaxial network-device sharing or network-sharing applications.

  • Share any BNC peripherals that have BNC Coaxial Interface.

FEATURES OF THE MODEL 8022 BNC COAXIAL MANUAL DATA SWITCH:

  • Ideal for switching 10 Base-T BNC Network devices.
  • Allows quick connection to any one of four devices from the COMMON port.
  • Share one controller with four workstations.
  • Share one terminal with four controllers.
  • High quality, sealed switch with self-wiping precious metal contacts.
  • Eliminates the need to plug and unplug cables.
  • Switches both the shield and center conductor of the coaxial interface via break-before-make rotary switch.
  • The switch ports are transparent to all data.
  • Manual operation via front panel rotary switch.
  • No external power required.
  • Attractive anodized black box packaging provides EMI/RFI shielding.
  • Custom length BNC Coaxial cables available for your switch installation.

TECHNICAL SPECIFCATIONS:

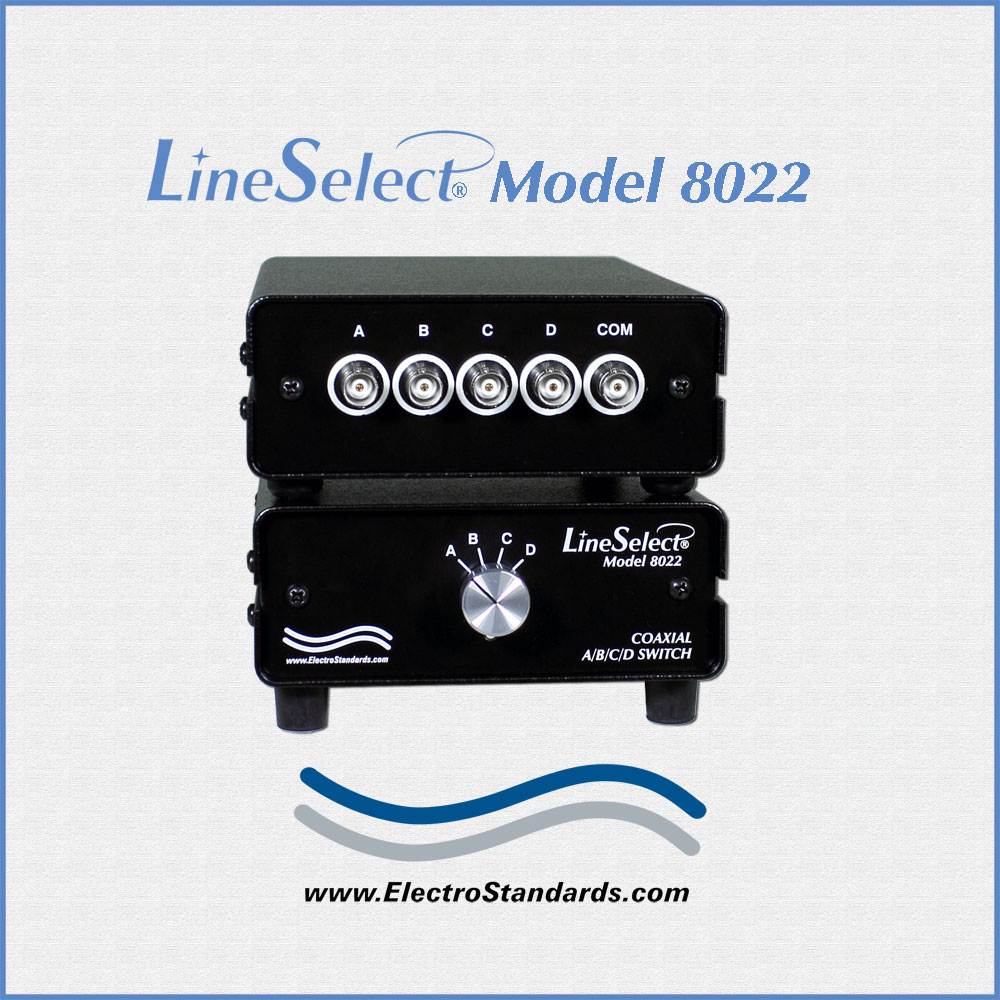

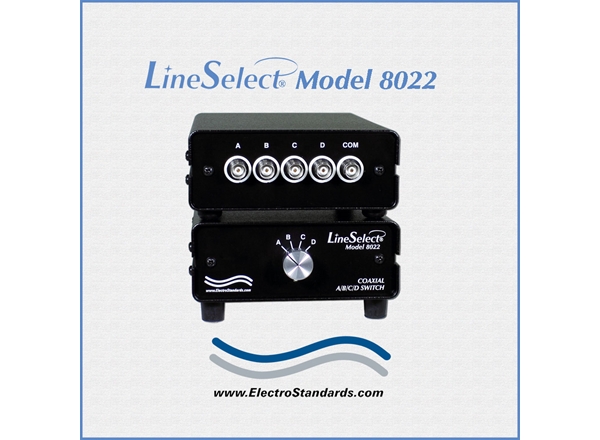

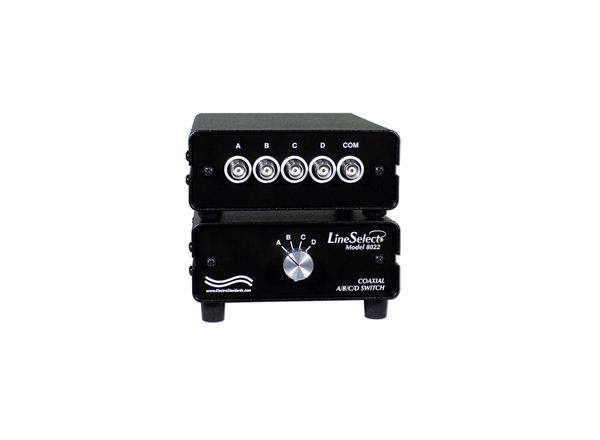

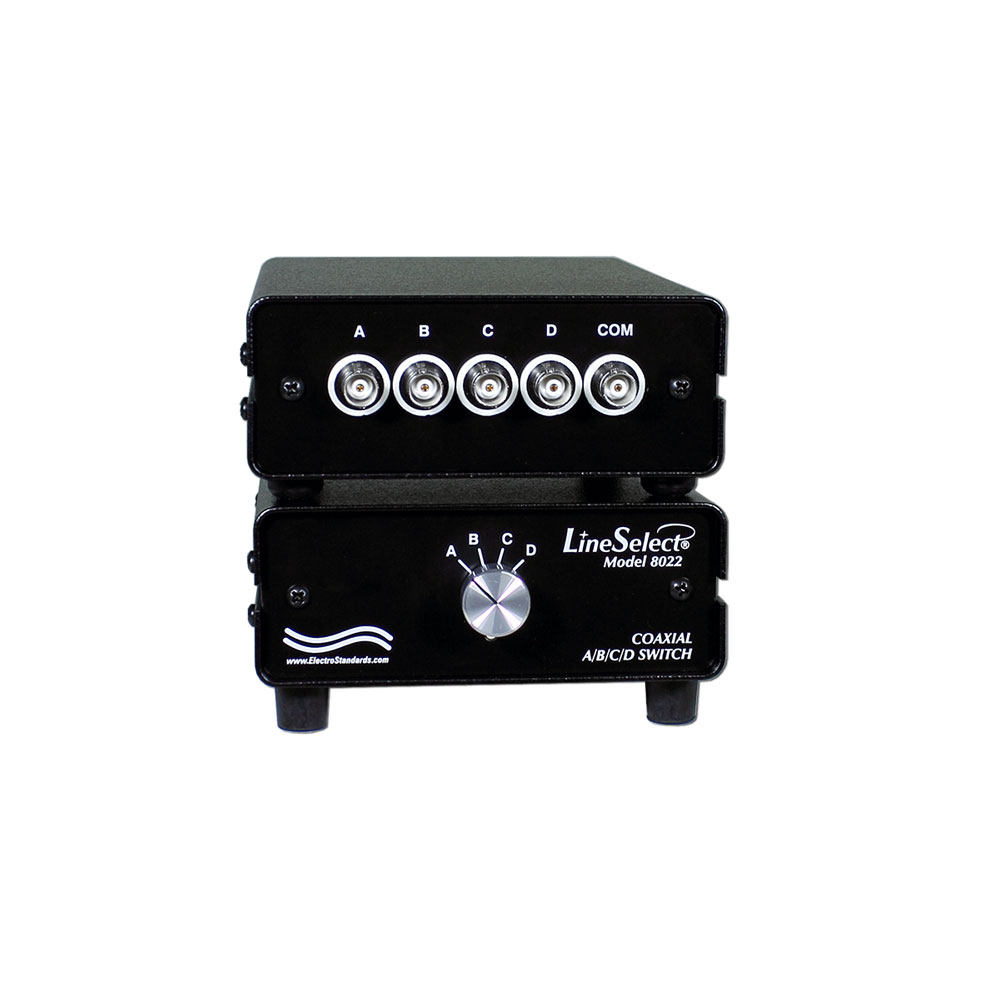

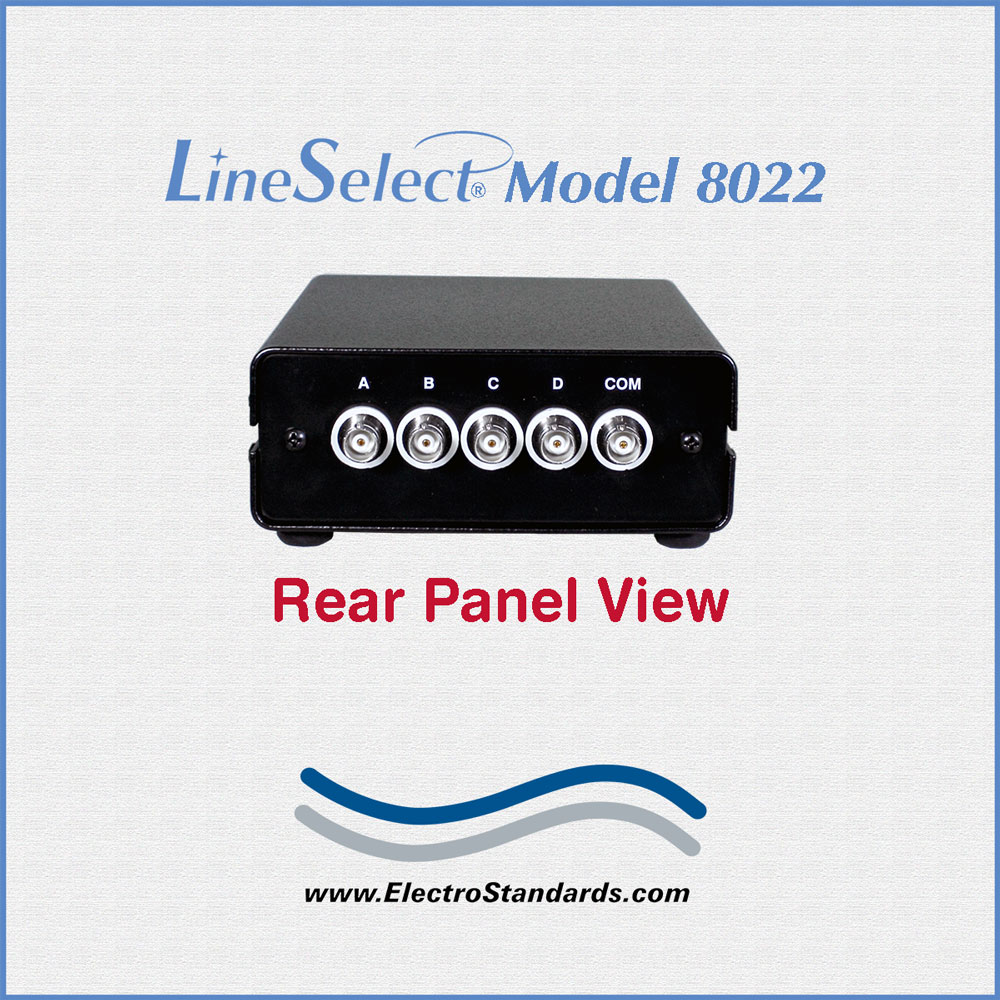

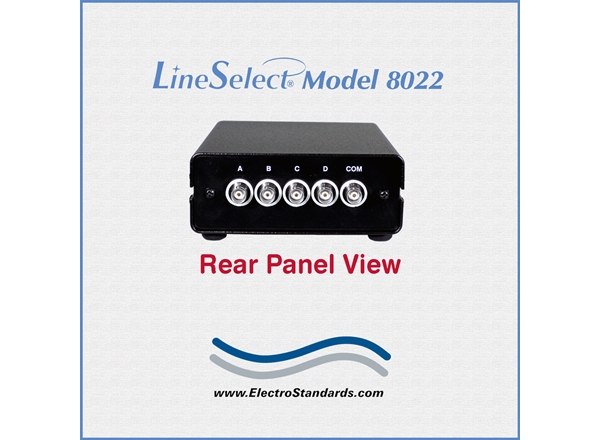

  • PORT CONNECTORS: (5) Isolated coaxial female connectors
  • labeled A, B, C, D, and Common.

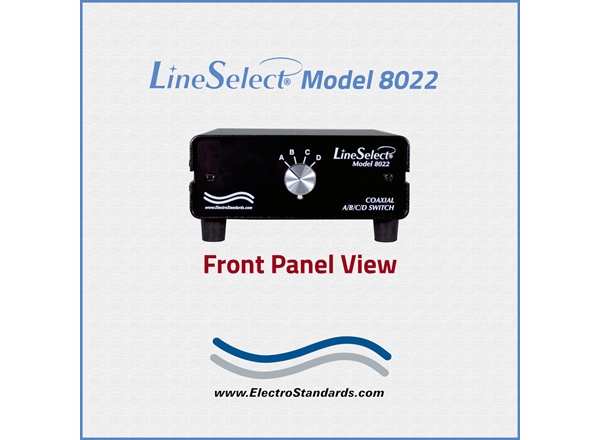

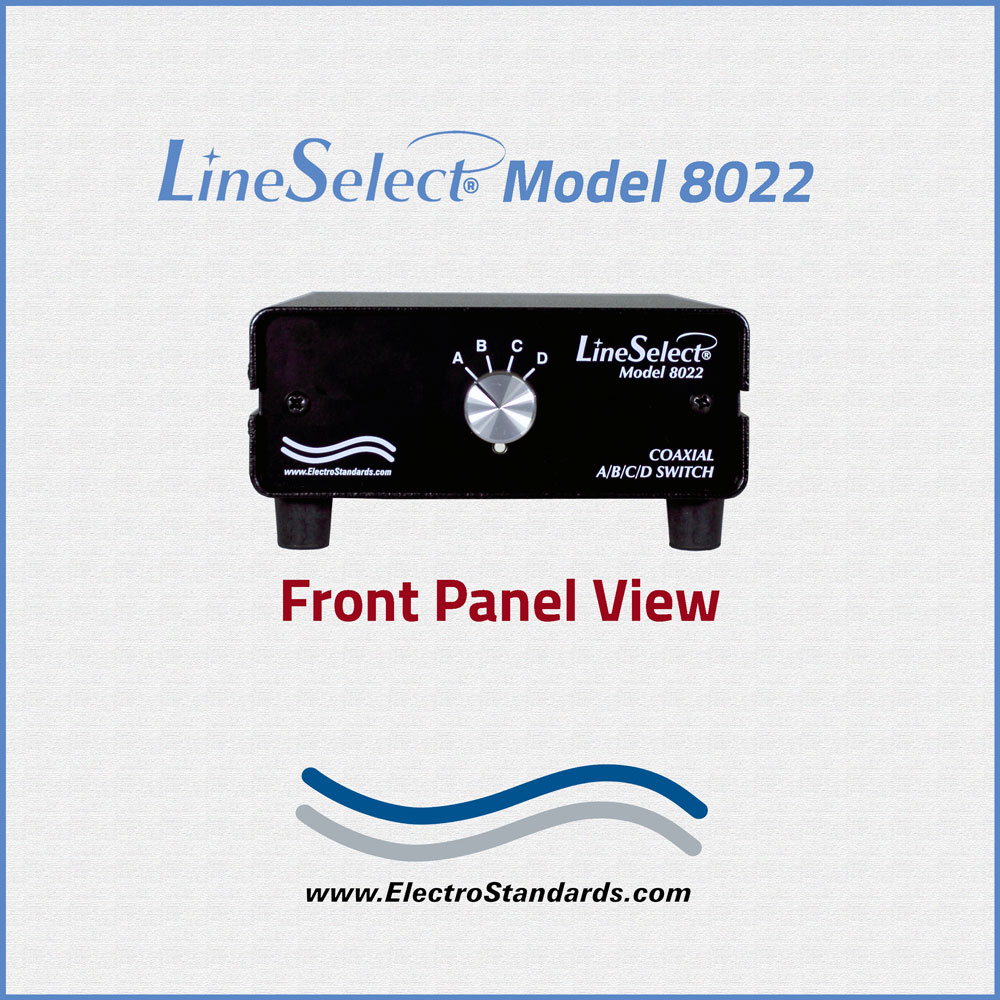

  • FRONT PANEL CONTROL: (1) Manual rotary selector switch allows local switching.
  • POWER: No power required.
  • DIMENSIONS: 5.44" W x 2.63" H x 8.08" D. (13.9 x 6.7 x 20.6 cm)
  • WEIGHT:  Approximately 1.3 lbs. (0.6 kg)

LineSelect® Model 8022 BNC Coaxial A/B/C/D Application:

  • Ideal for use in coaxial network-device sharing or network-sharing application.

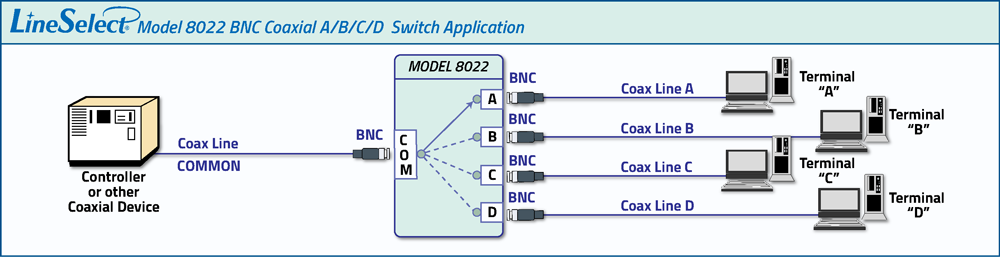

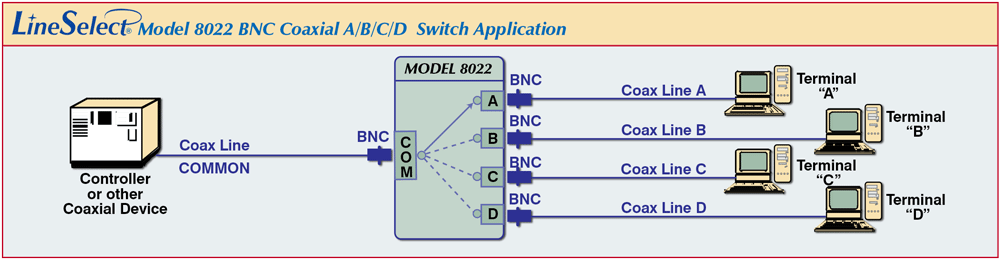

The drawing illustrates a Controller or other Coaxial Device connected to the BNC COMMON port. Terminal A, Terminal B, Terminal C, and Terminal D are connected to BNC ports A, B, C, and D. The COMMON device has access to Terminal A, Terminal B, Terminal C, and Terminal D via ports A, B, C and D.

LineSelect® Model 8022 BNC Coaxial A/B/C/D Switch network-device sharing or network-sharing application.

Ordering Information

  • Catalog Number: 305070
  • Model Number: 8022
  • Base Price: See website or contact us for current pricing and availability.

Documentation & Support

  • Specification Sheet (PDF) Download Available.
  • Product Manual available upon request.
  • For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
  • We welcome international inquiries and ship worldwide.

Shipping and Returns           UPS

  • Shipped via UPS ground (unless otherwise requested).
  • Freight Charges prepaid and added to invoice. We can estimate freight charges for you.
  • Return policy: contact us within 30 days of shipment for an RMA number. Items returned without RMA not accepted. Please refer to our full return policy in our Terms and Conditions found on our website.

Suggested cables for use with Model 8022 Switch.
Specify length (in Feet) when ordering.
Part Number  Description
990136  M/M, 50 ohm, BNC Coaxial Cable, PVC
990137  M/M, 75 ohm, BNC Coaxial Cable, PVC
990138  M/M, 93 ohm, BNC Coaxial Cable, PVC

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL products are available for export.

Electro Standards welcomes International inquiries: commutateur d'ordinateur,  equipo interruptor, interruttore del calcolatore, interruptor do computador, dator switch.
