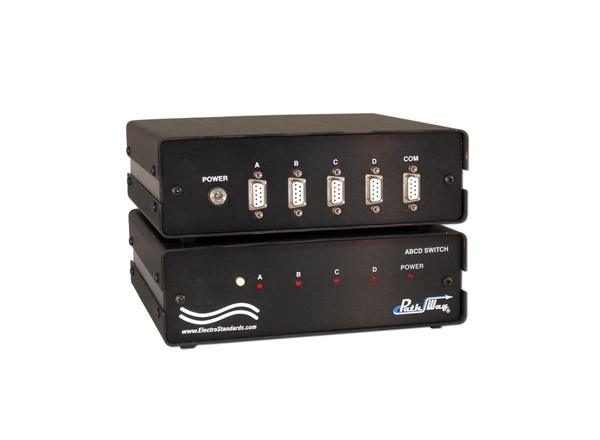

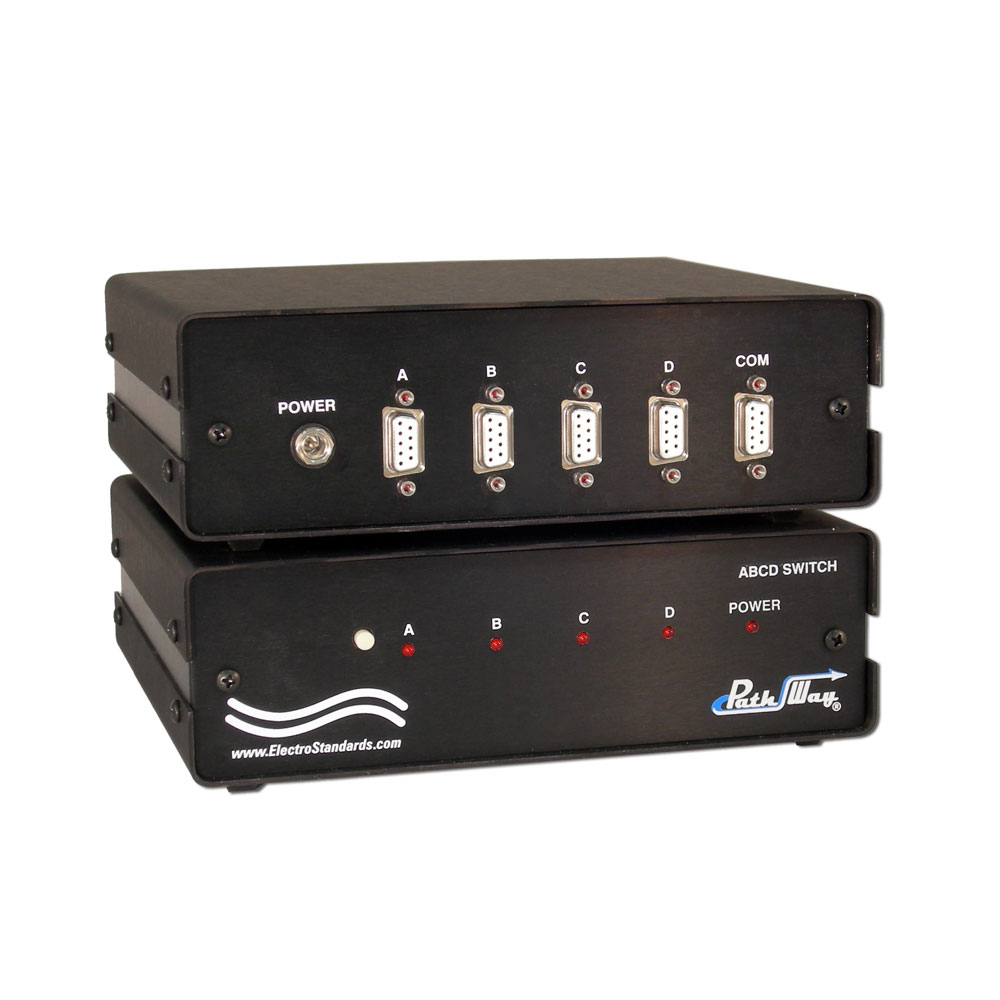

Model 4441 4-Channel DB9 RS232 Serial Port Sharer with Automatic Channel Sequencing , Catalog # 304441

Click image to enlarge

Base Price:

$912.00

Catalog No:

304441

Model No:

4441

Product Type:

Switches: Copper

Positions:

Cable Type/Port Connector:

DB9 Switch Ports

Electronic Switches/Power Required:

PathWay® Copper

Configuration:

Desktop

Pins Switched:

3 (TD, RD and SG)

Comments:

Allows 4 data Channels to Contend for One Port

Qty

Add to Cart

SPECIFICATION SHEET

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

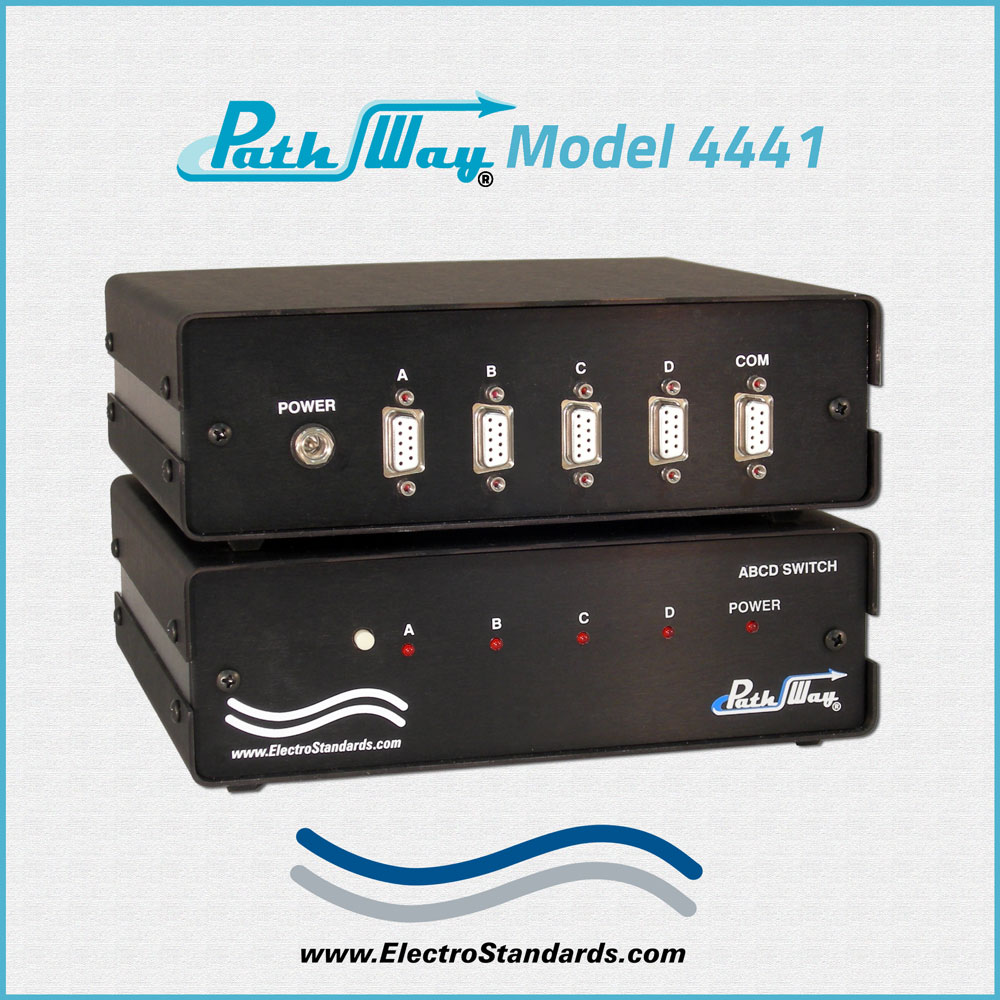

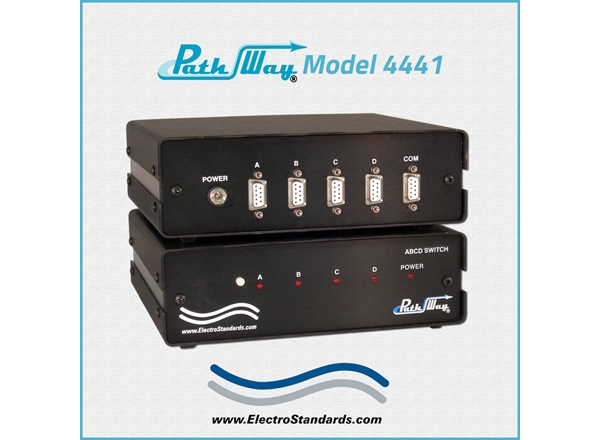

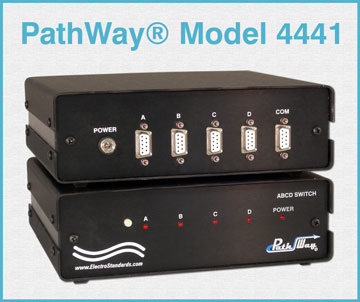

Path Way® Model 4441 4-Channel DB9 RS232 Serial Port Sharer with Automatic Channel Sequencing

Overview

The PathWay® Model 4441 is a four channel, port sharing device. It allows a single destination port, the Common port, to automatically connect through to any of four source channels, A, B, C, or D based on data activity. Each of these respective four DB9 RS232 serial interface source channels contend for connection. Channels A, B, C, or D are sequentially scanned or monitored for data activity. Once data is detected on a single channel, the remaining three channels are locked out until the data traffic stops and is absent for a preset timeout period. At that point, the Model 4441 4-channel data sharer resumes monitoring of all four channels for data activity. There are status LED's that indicate the unit is scanning, or whether the unit has established a dedicated connection to a single channel.

Automatically connect four RS232 devices to one host port based on data activity. The PathWay® Model 4441 4-Channel DB9 RS232 Port Sharer intelligently monitors four serial channels and automatically connects the active channel to a common host port. With automatic channel sequencing, selectable timeout, LED status indication, and front-panel channel control, the Model 4441 simplifies sharing a single RS232 interface among multiple asynchronous devices.

Automatic "Channel Sequencing" allows 4 data channels to access one port!
Automatic Port Contention expands accessibility of four channels to host computer.

FEATURES OF THE MODEL 4441 RS232 SERIAL PORT SWITCH:

A "CONTENTION-TYPE" port sharer.
Allows four asynchronous data channels, A/B/C/D, to contend for access to one Common port.
Front panel LED's display channel scanning status and power status.
Signals supported: TD, RD, and SG.
Selectable timeout period.
Front panel control allows disabling of any erroneous streaming data channel.
For a "BROADCAST-TYPE", see Model 8982, Cat.No.302077.

TECHNICAL SPECIFICATIONS:

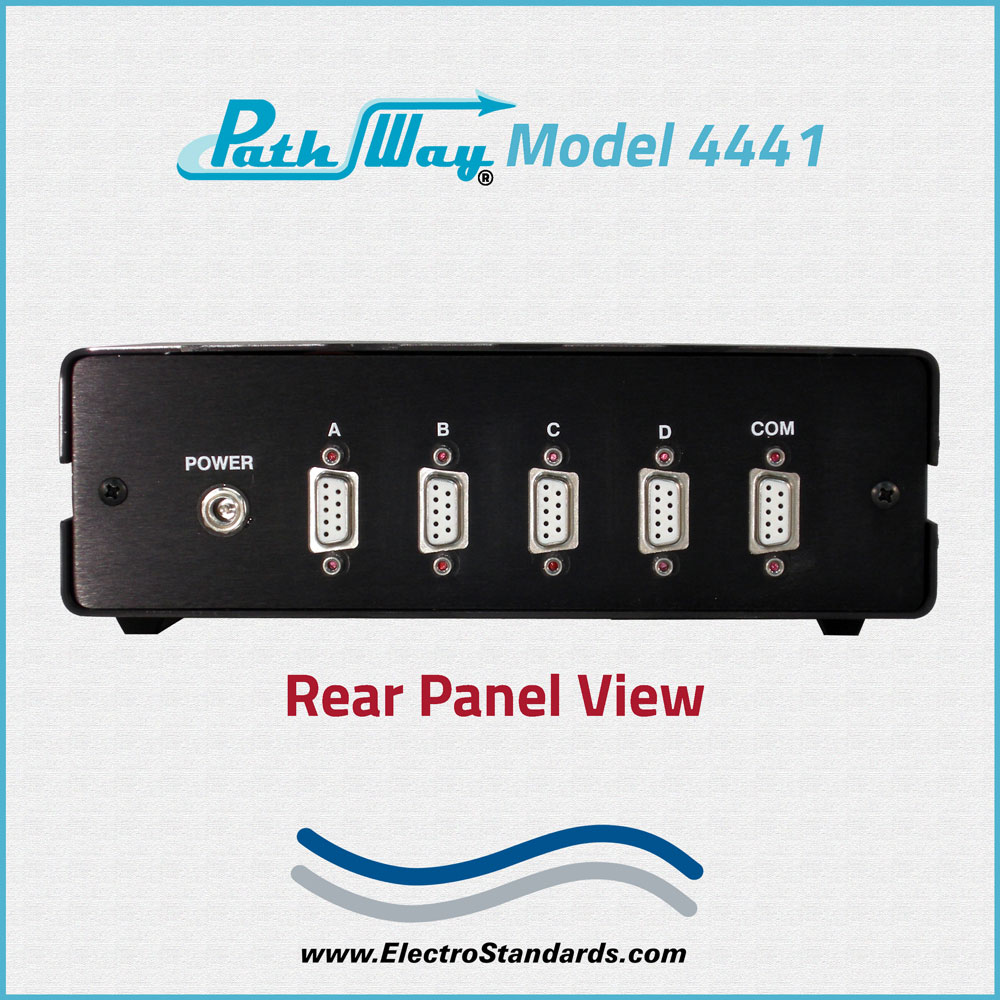

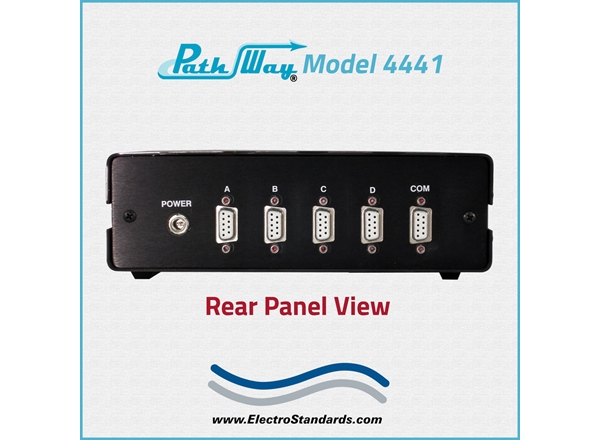

PORT AND CHANNEL CONNECTORS: (5) DB9 Female connectors labeled A, B, C, D and Common.
FRONT PANEL CONTROL: (1) Manual pushbutton allows local channel selection control.

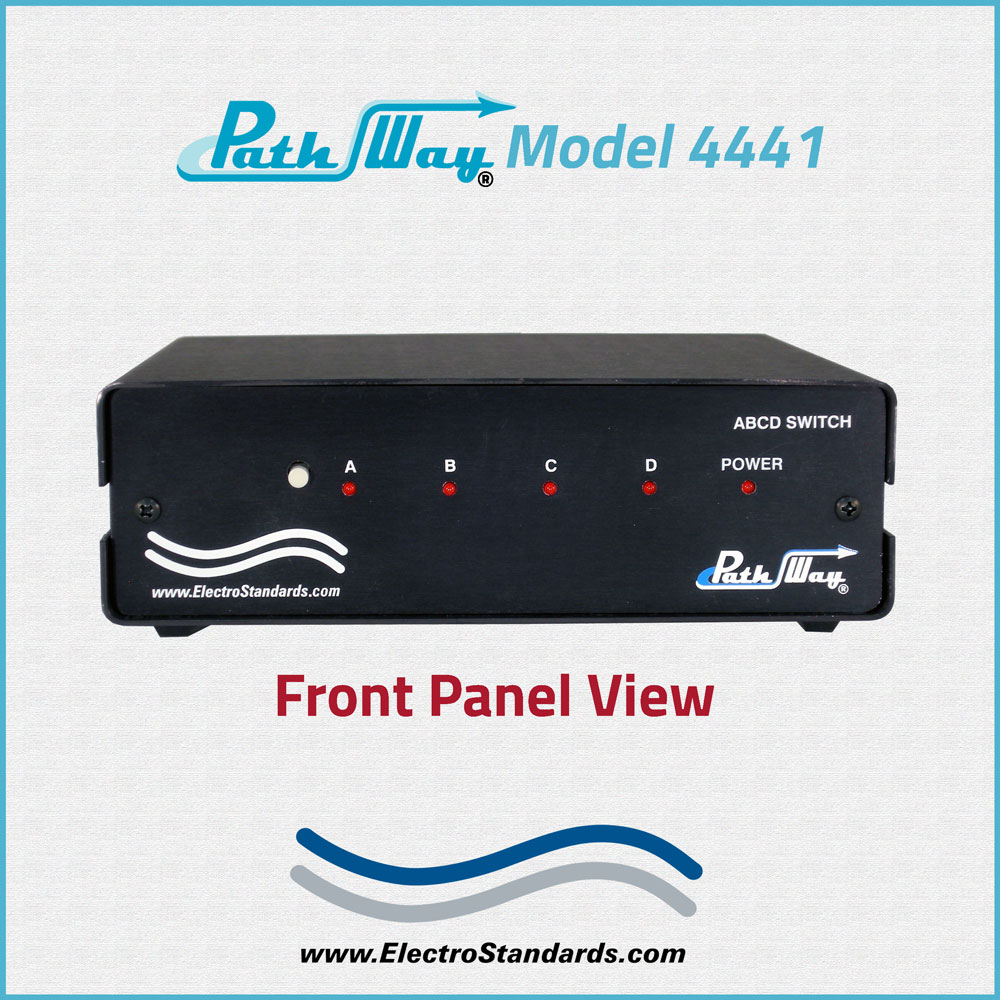

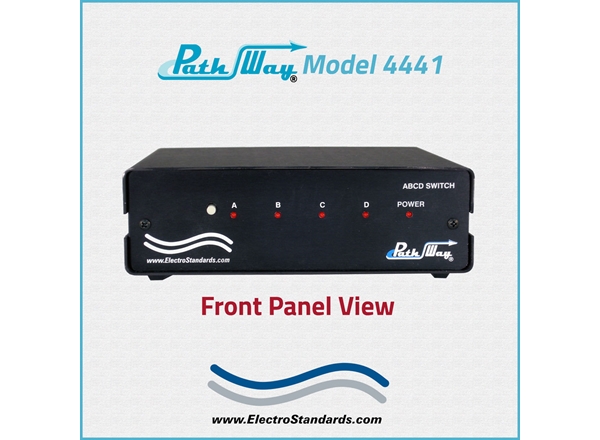

DISPLAY: (5) Front panel LED's display sharer scanning and power status.
POWER: UL Approved 120VAC, 60Hz wall mount power module supplies 12 VDC to the unit.
DIMENSIONS: Desktop, 8.0" W x 8.0" D x 2.5" H. (20.3 x 20.3 x 6.4 cm)
WEIGHT: Approximately 3.5 lbs (1.6 kg)

MODEL 4441 4-CHANNEL PORT SHARER OPERATION:

The devices connected to channels A, B, C and D of the Model 4441 sharing unit contend for connection to the Common port device. Once activity is initiated on a source port A, B, C, or D, that channel is serviced. Connection is maintained while data activity is detected between pin 3, TD, of the DB9 source channel and pin 2, RD, of the DB9 destination / Common port. The signals supported by the Model 4441 are TD, RD, and SG.
While connected and data activity is present, the scanning is suspended. The channel is released, and scanning is resumed only after data activity has been absent for a programmed timeout period, or if the channel is disabled via the front panel pushbutton switch.
The timeout period is selectable via a dipswitch located on the top circuit board inside the unit. The program switch is accessible by removing the four screws that fasten the top cover to unit. The Model 4441 is factory set for a one-minute timeout period. To change the period, please refer to the Operation Manual.
If a connected device is streaming erroneous data, the user can use the front panel pushbutton switch to disable the channel and remove it from the scanning/monitoring function. Disabling the channel will allow the unit to continue to function as a port sharer among the remaining channels and connected devices.

PathWay® Model 4441 4-CHANNEL DB9 RS232 SERIAL DATA PORT SHARER APPLICATION:

"Automatic "Channel Sequencing"
"Automatic Port Contention"

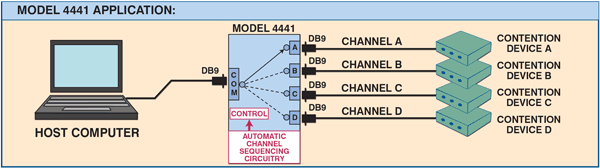

The diagram illustrates four asynchronous data channels A, B, C, and D to contend for access to one Host Computer connected to the DB9 COMMON port. Channels A, B, C, and D are sequentially scanned and monitored based on data activity. (Automatic Channel Sequencing Circuitry)

PathWay® Model 4441 4-Channel DB9 RS232 Port Sharer, Data Activity Port Contention, Model 4441 App Note

Ordering Information

Catalog Number: 304441
Model Number: 4441
Base Price: See website or contact us for current pricing and availability.
Optional Wide-Range power supply: Catalog Number 517277 IEC C14 Inlet, 100-240VAC, 12 VDC

Documentation & Support

Specification Sheet (PDF) Download Available.
Product Manual available upon request.
