Model 4045 Very High-Speed Ruggedized ST Fiber to RS422 Interface Converter for Fiber Optic (Glass) to DB9 (Copper) Communications

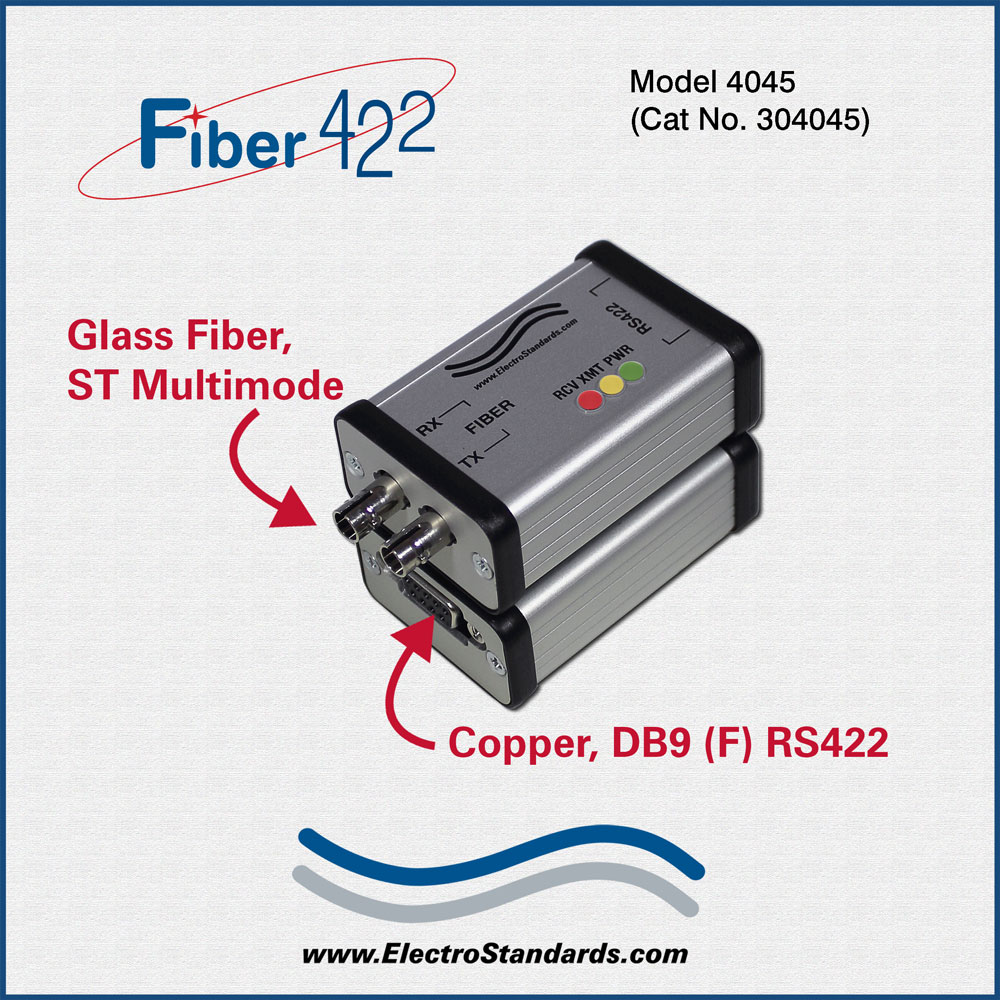

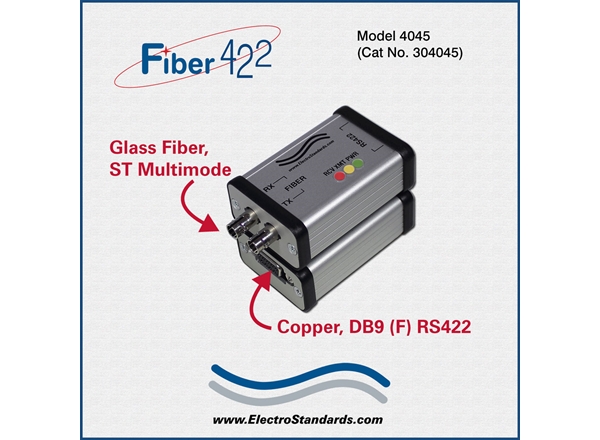

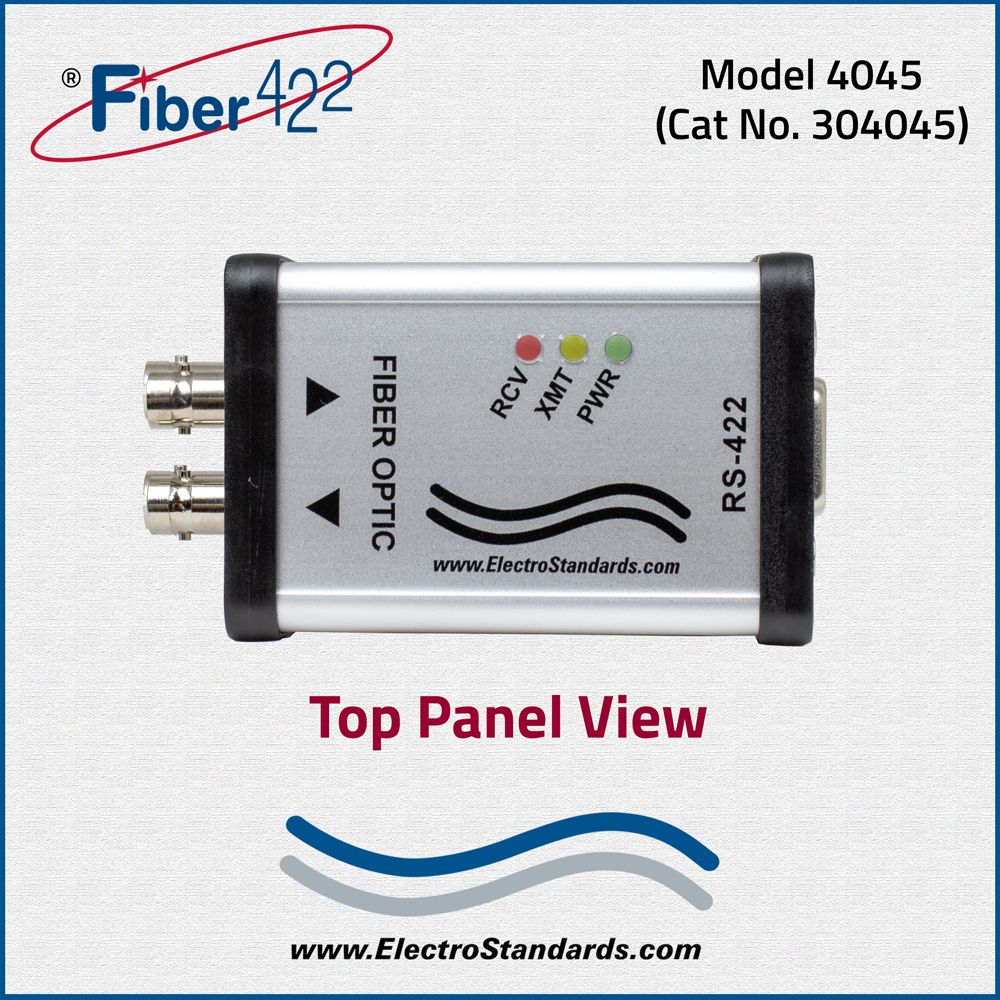

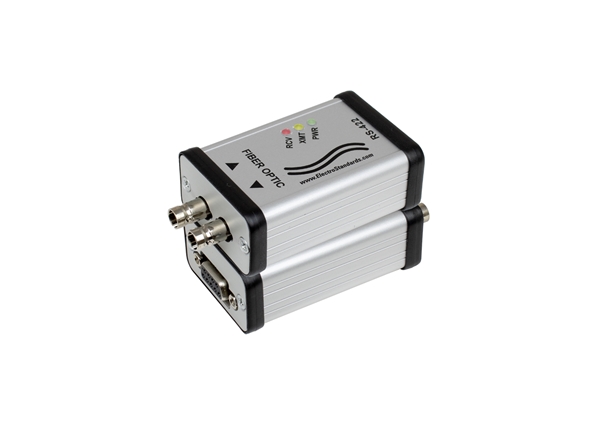

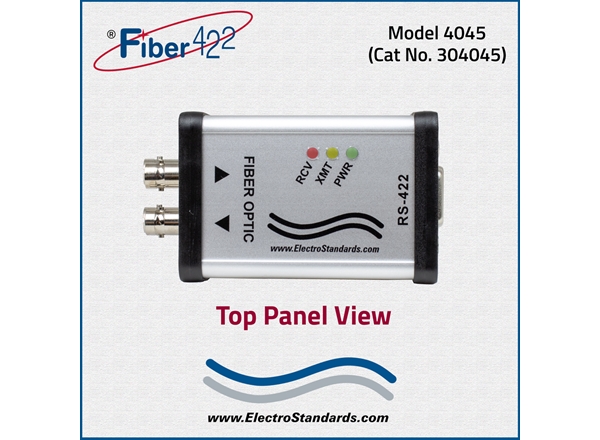

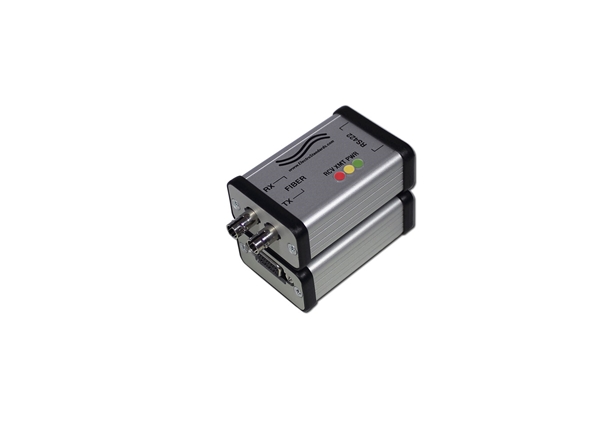

The Model 4045 is a high-speed ruggedized ST Fiber to RS422 interface converter. Typical operating speeds are up to 12.6 Mbps for RS422 to fiber conversion. When operating in RS422 mode, the converter is configured for 4-wire full duplex operation.

Model 4045 Fiber RS422 APPLICATIONS:

The converter provides an industrial solution for applications requiring a single point-to-point or a communications link over short and long distances.
PC to PC Long Distance Communications
Factory Automation
Data Collection Devices
Barcode Readers
Time Clocks, Scales
Data Entry Terminals, ATM's
Serial Communications
The converter is powered from a 28V power source via the DB9 connector from a customer supplied power supply. Other features include TX, RX and Power indicator LEDs.

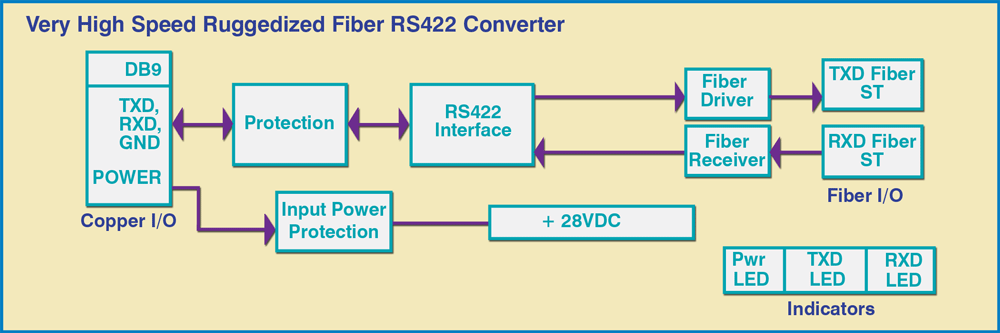

Model 4045 Very High-Speed Ruggedized Fiber RS422 Converter Block Diagram.

MODEL 4045 FIBER RS422 FEATURES

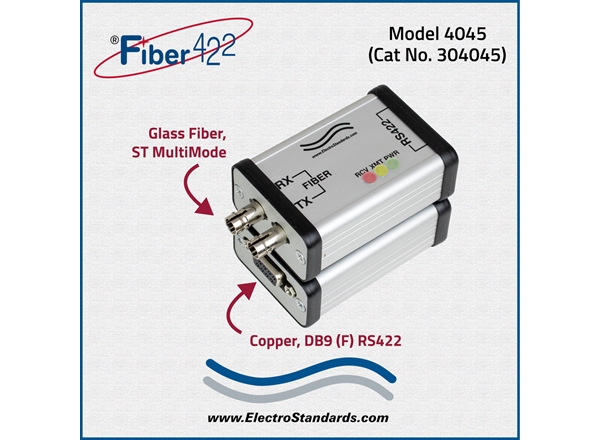

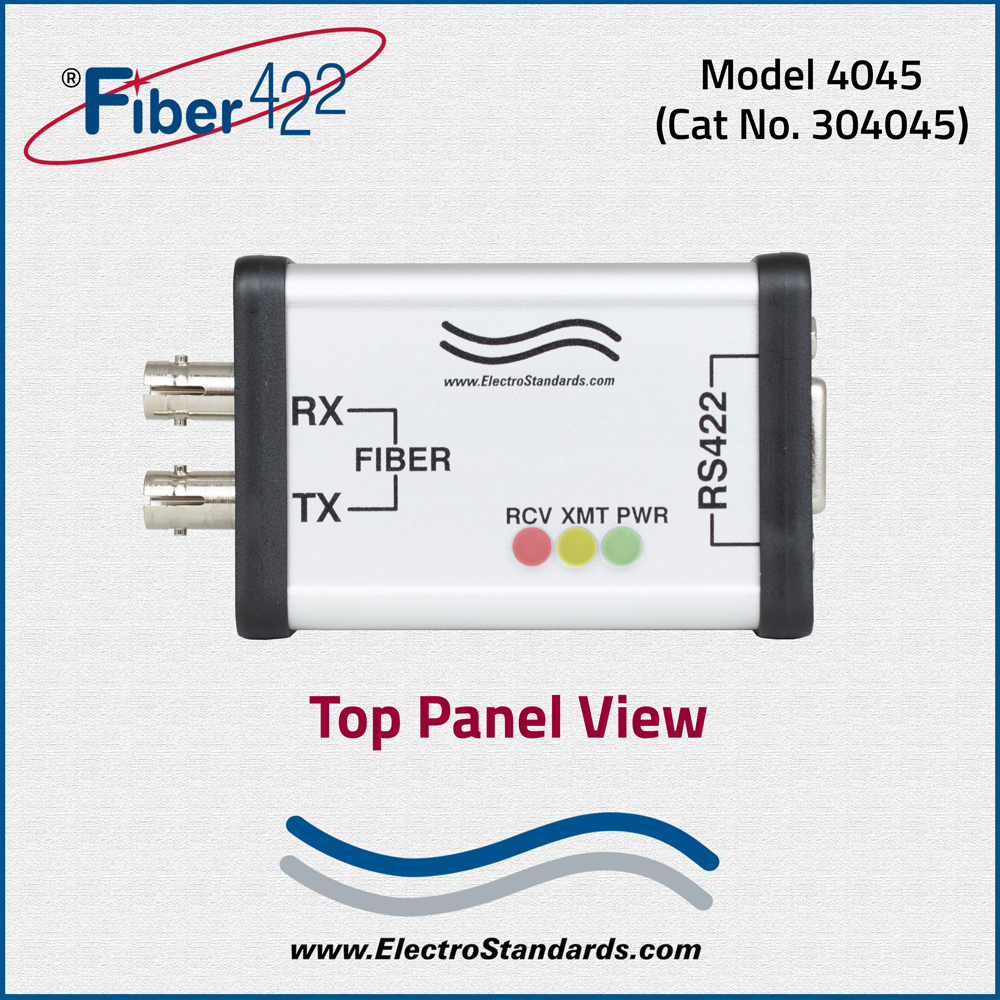

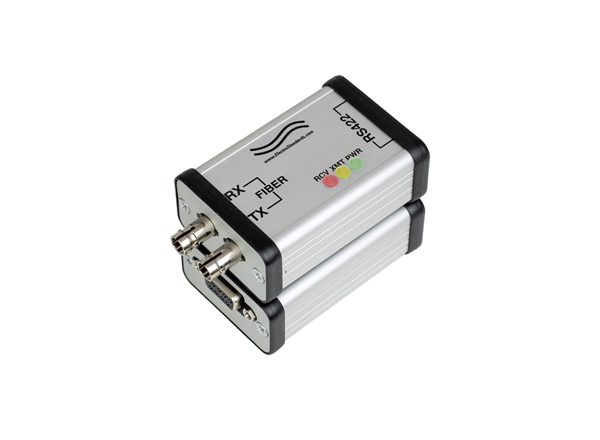

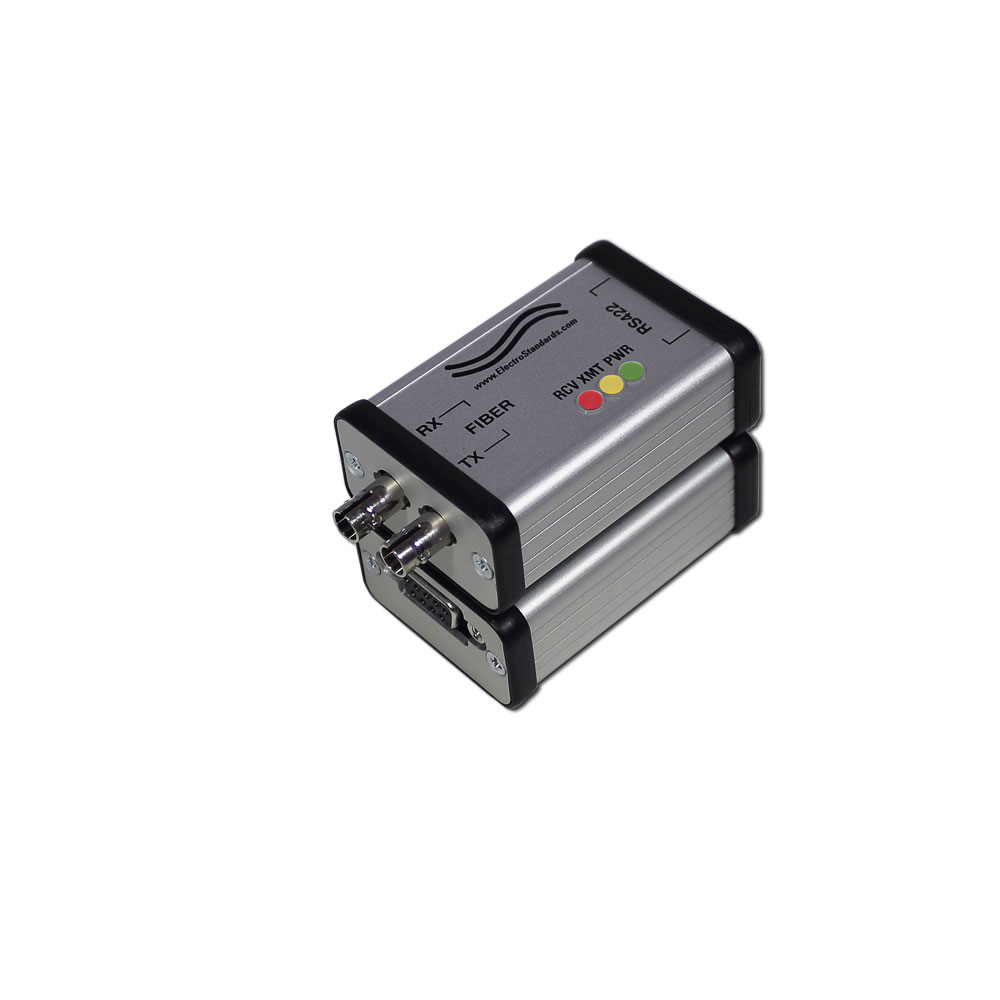

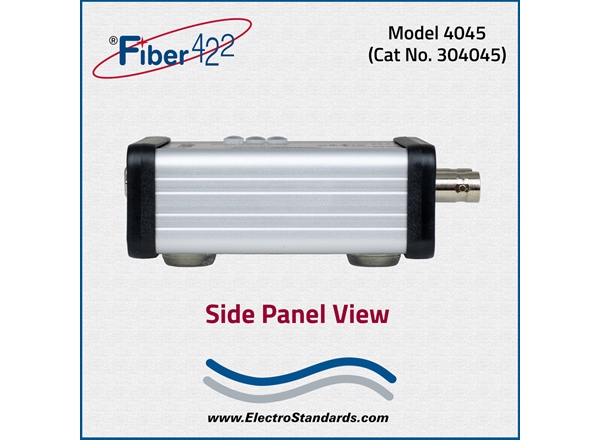

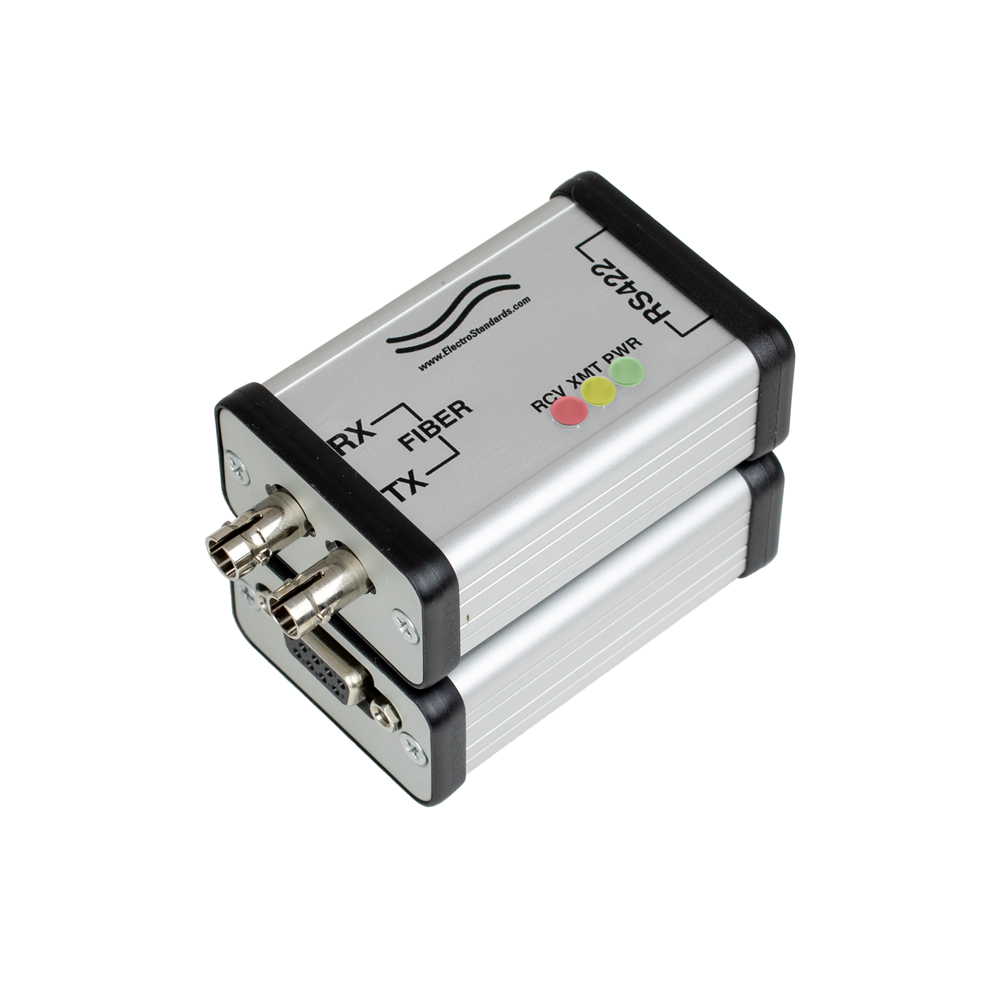

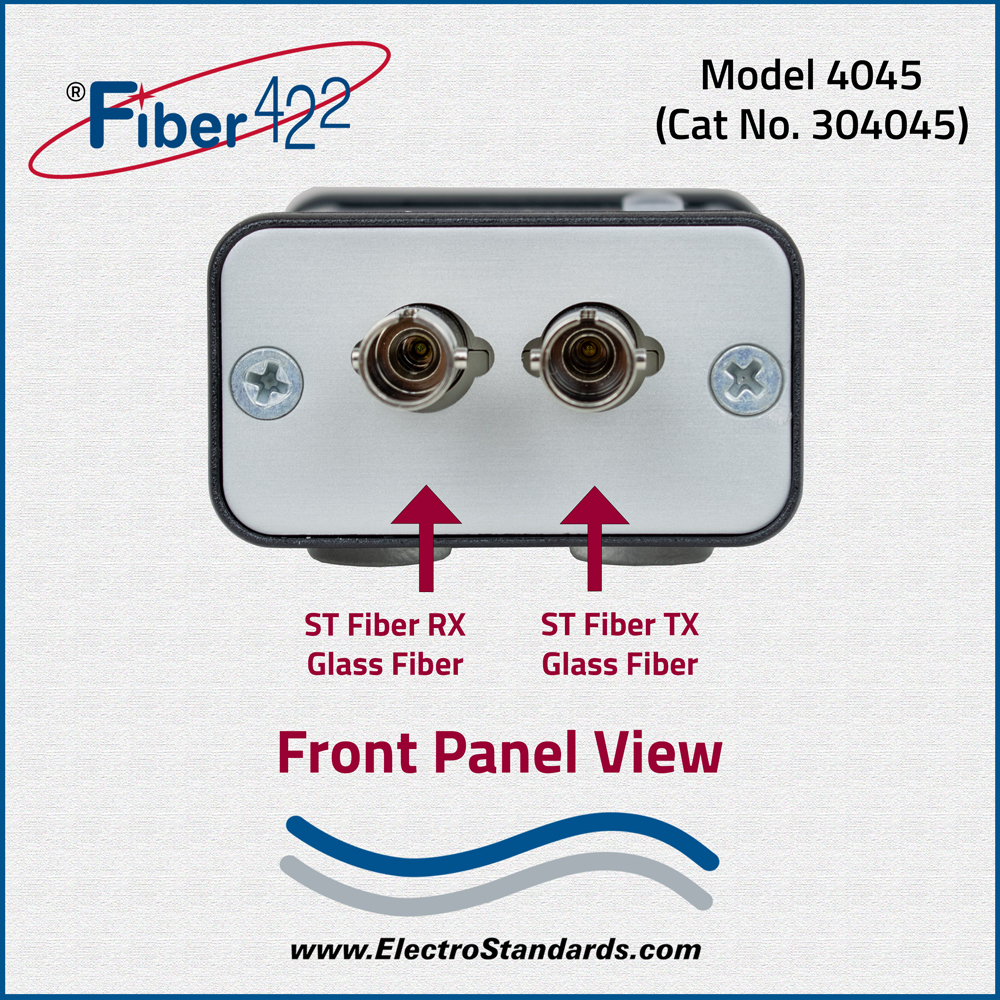

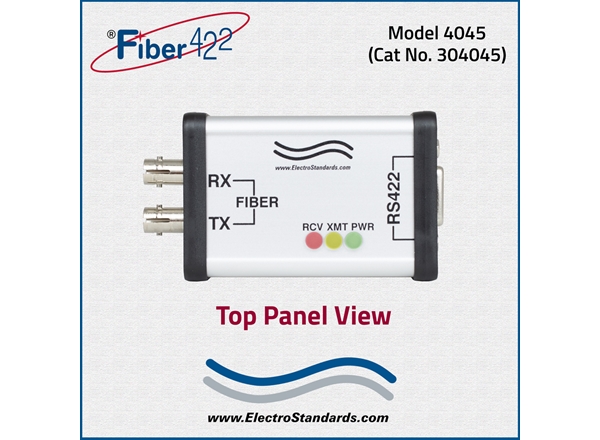

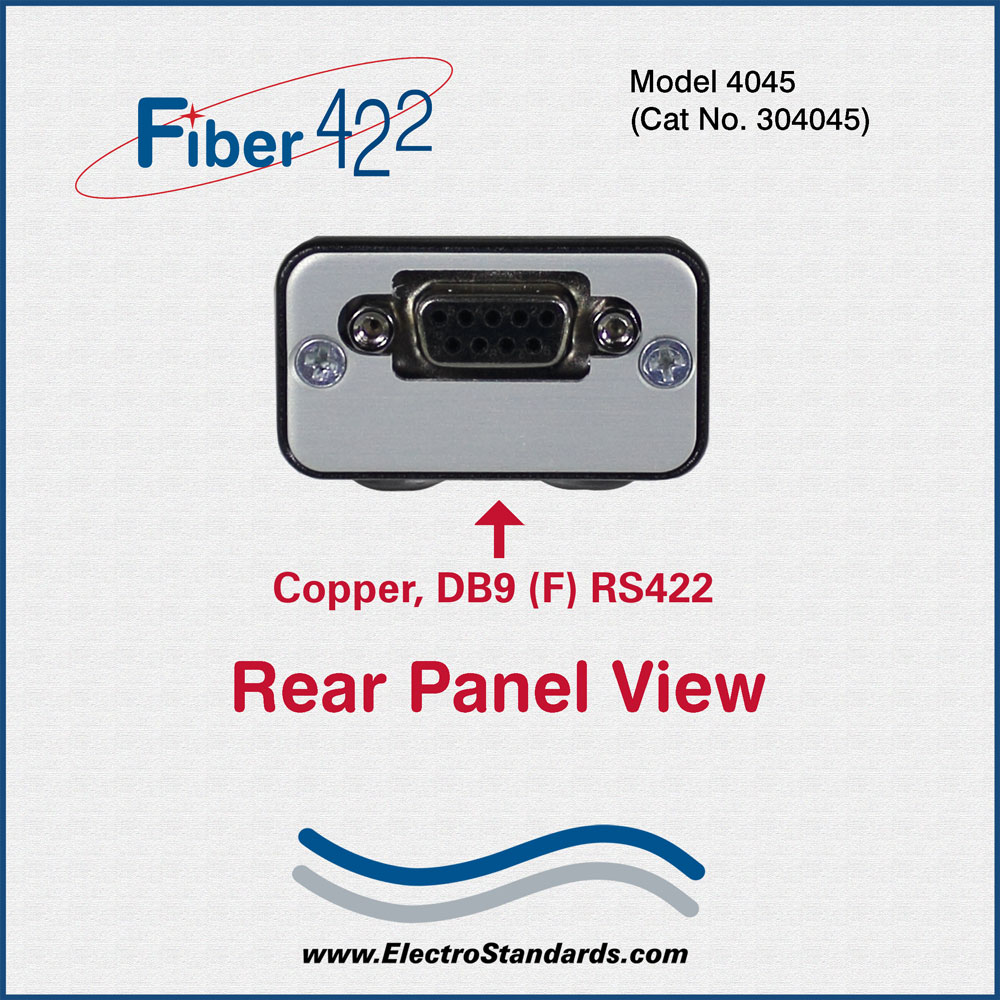

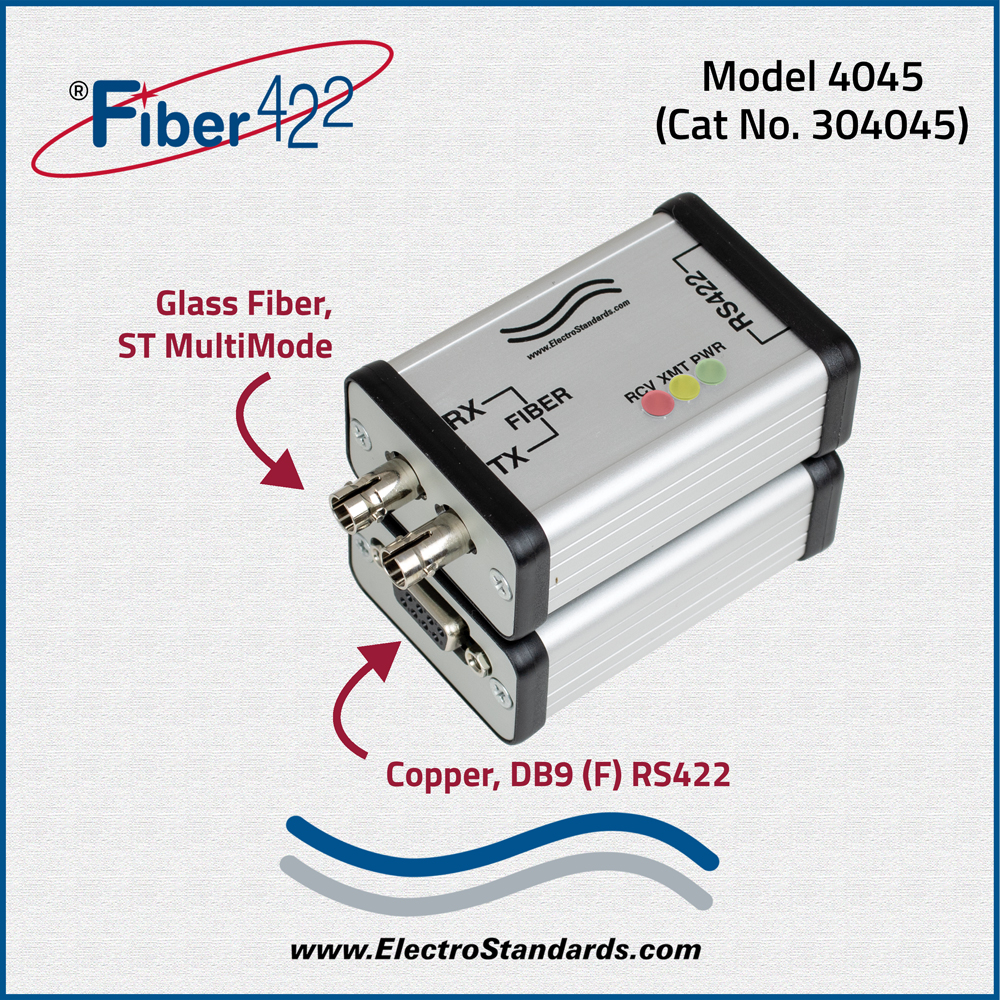

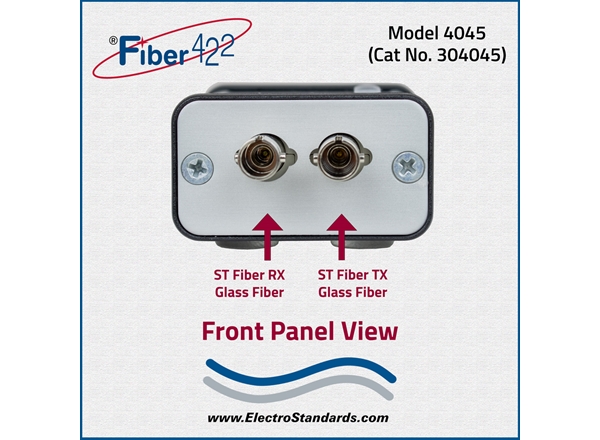

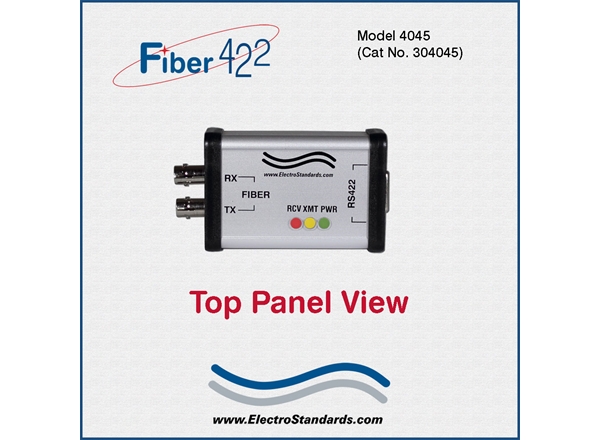

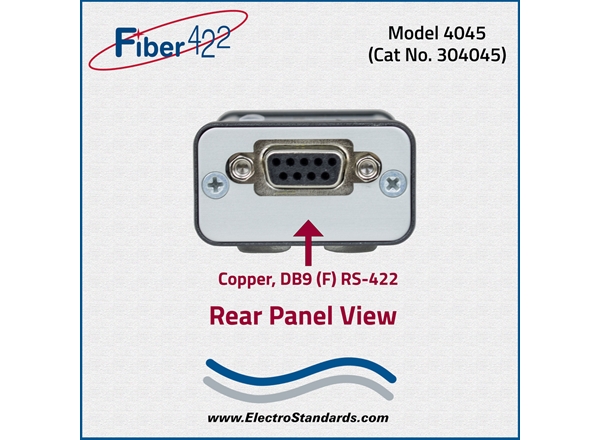

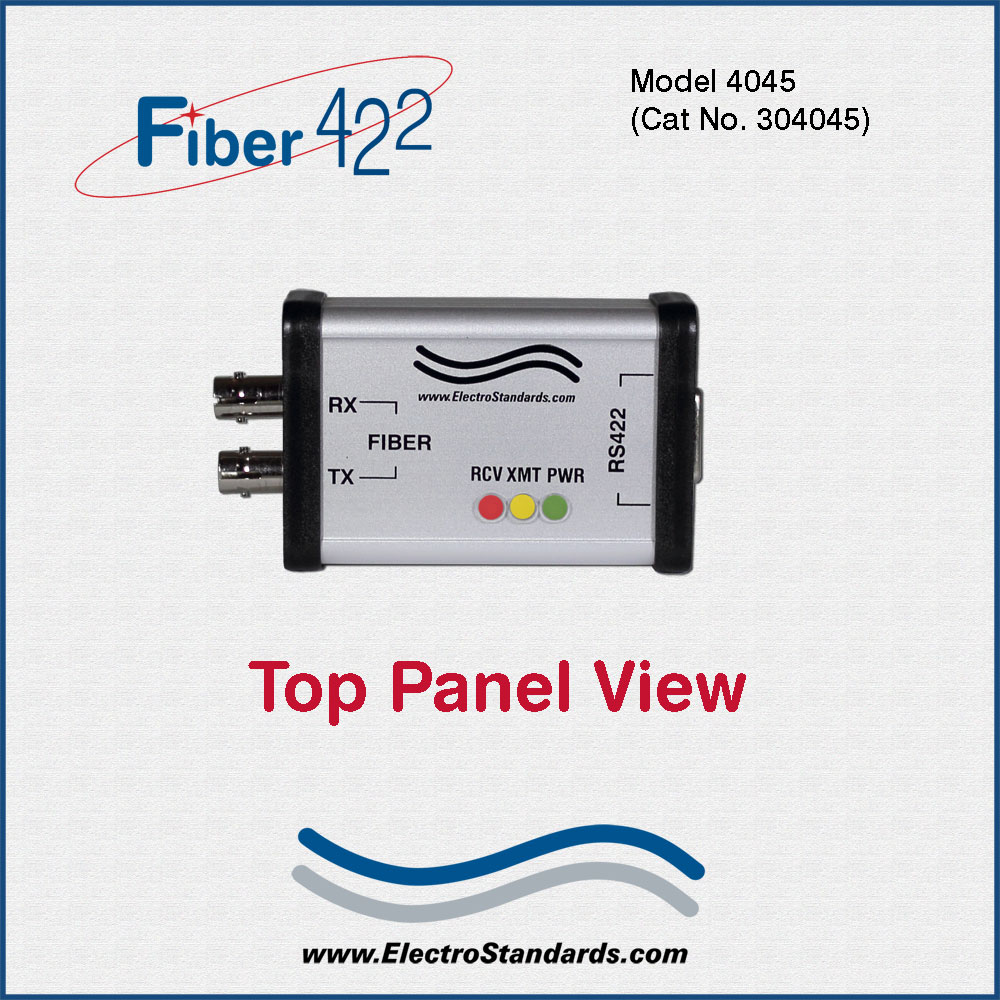

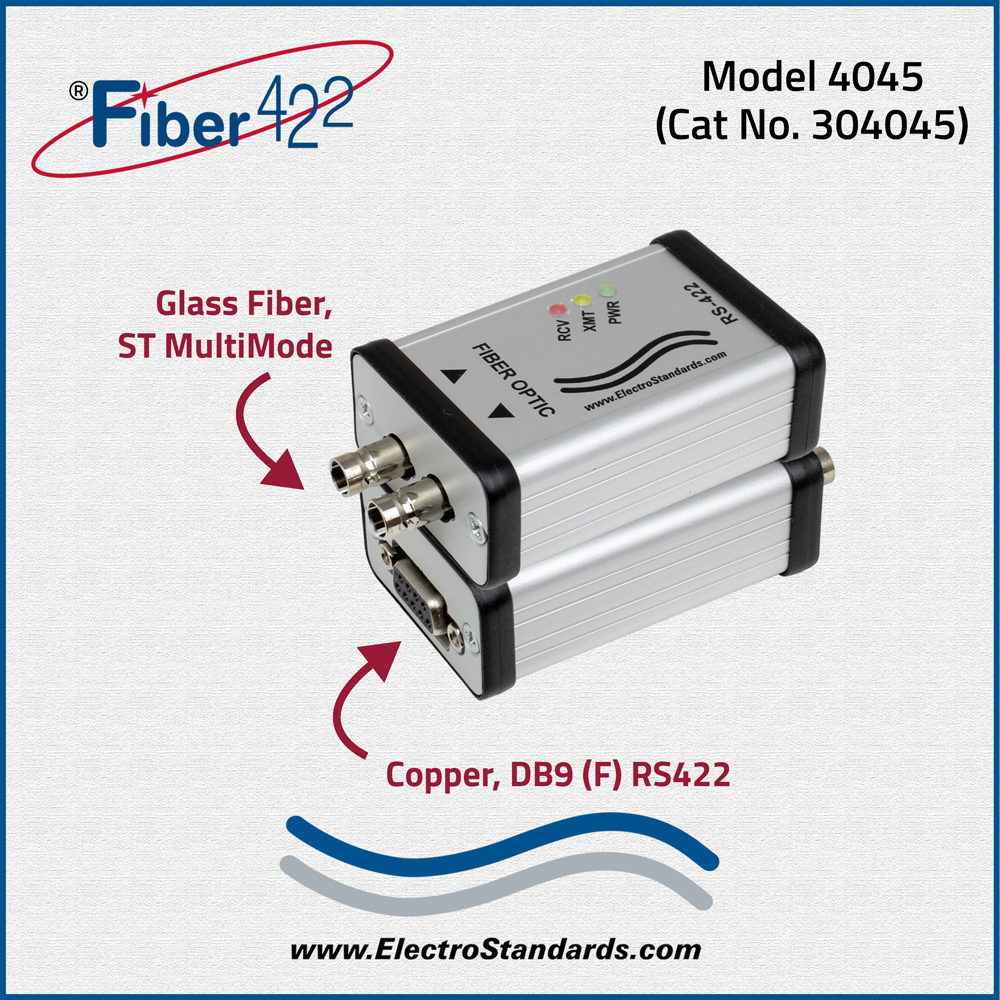

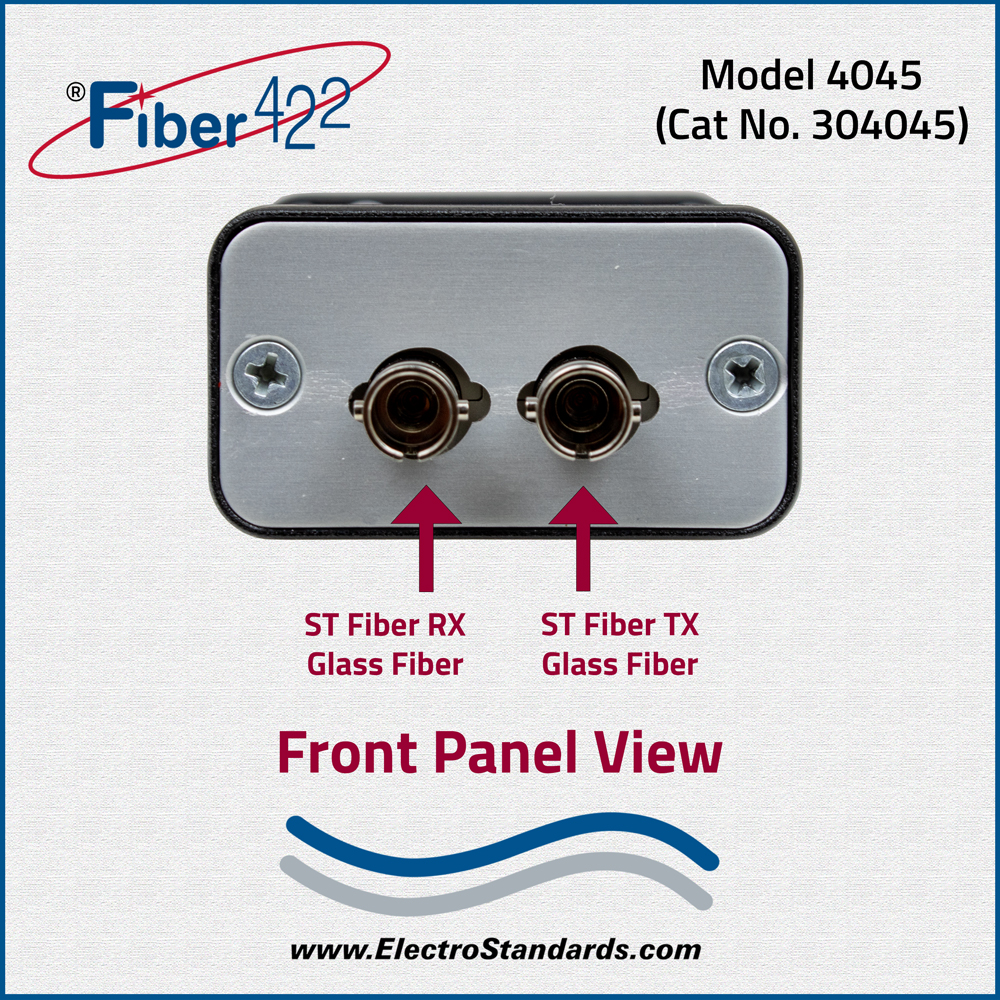

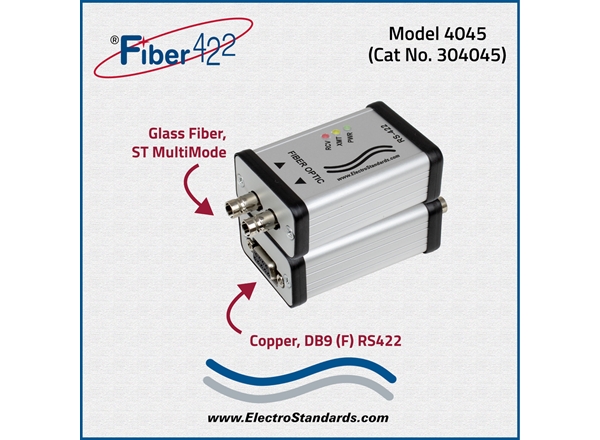

Converts ST Duplex Fiber to Copper RS422 DB9 (F) port.
Supports constructing an optically isolated high-speed communication link between connected devices.
Typical operating speeds are up to 12.6 Mbps for RS422 to fiber conversion.
Provides full galvanic isolation (no metallic connection) between connected devices.
LED Status indicators display Fiber RX, TX activity and power indication.

SPECIFICATIONS:

Fiber Interface:

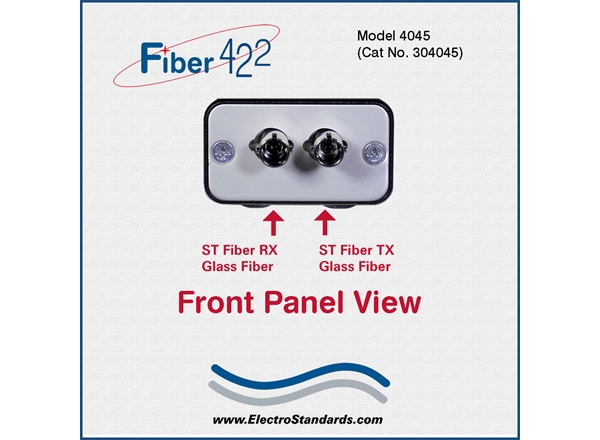

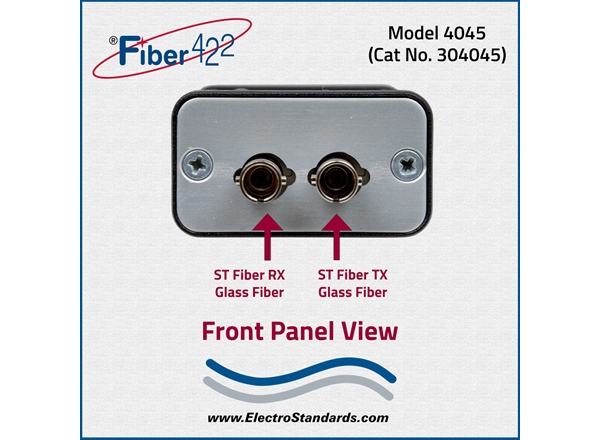

Connectors: Fiber Optic ST Female, Multimode
TX Power: -14 dBm with 62.5/125µm Fiber
RX Sensitivity: -24 dBm with 62.5/125µm Fiber
Optical Budget: 10 dB
Max. Link Distance with 62.5/125µm Fiber:
2 kM at up to 12.6 Mbps
Wavelength: 850 nm, multimode
Fiber Size: 50/125 µm, 62.5/125 µm, 100/140 µm.

Copper Interface:

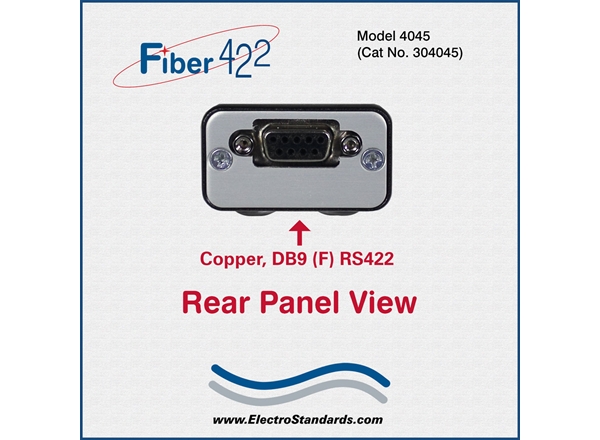

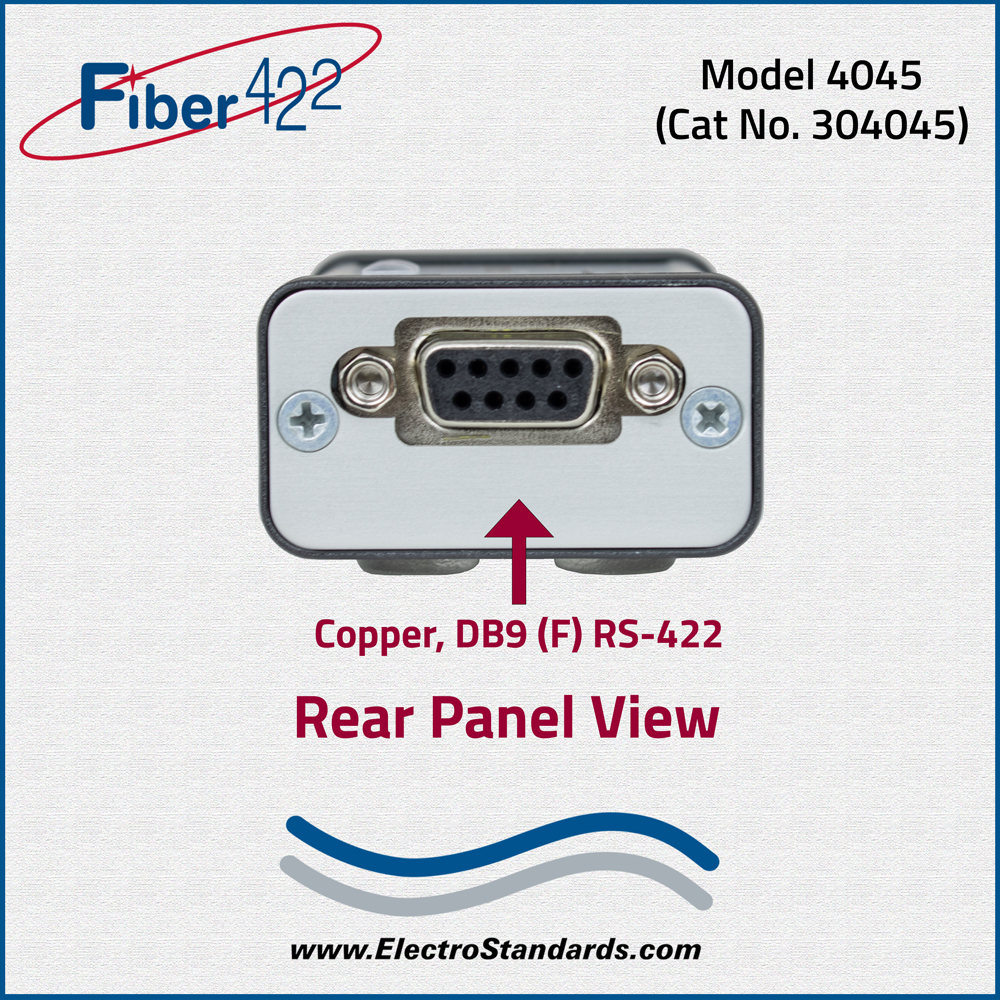

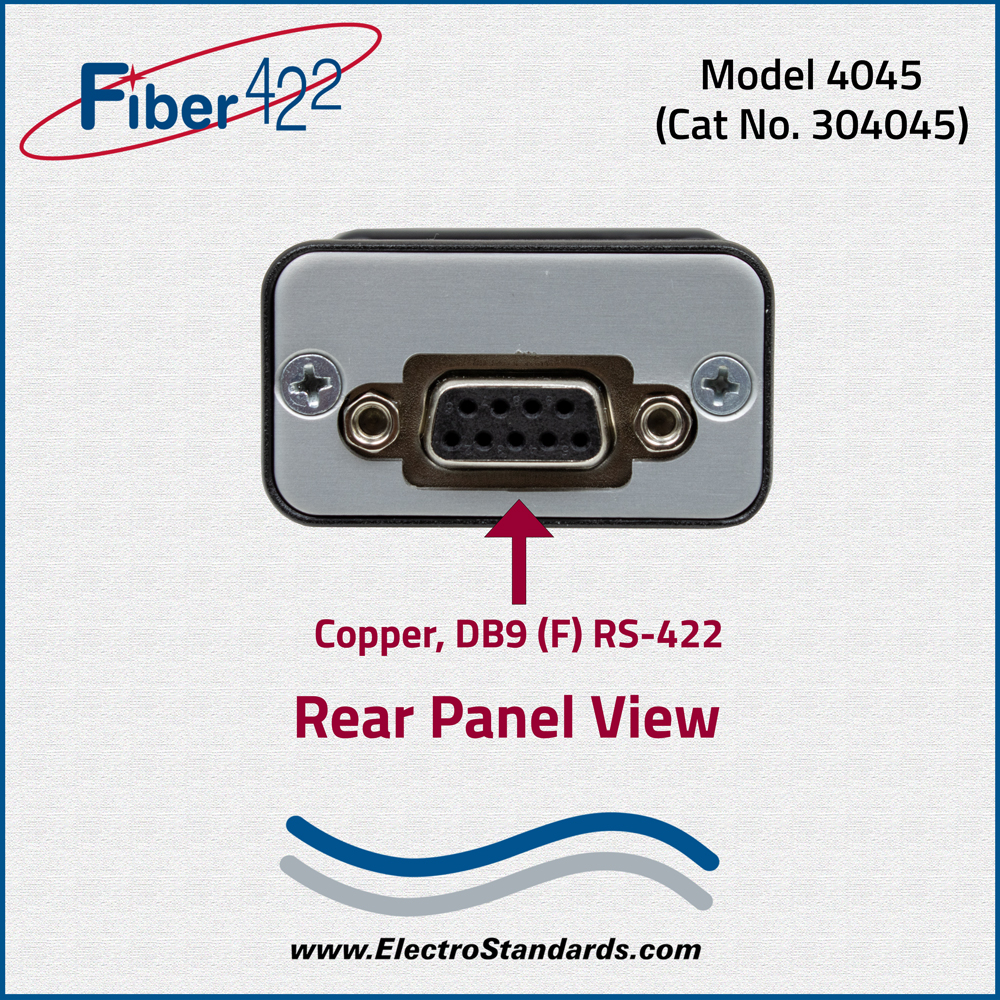

Connectors: DB9, Female
Type: RS422 (4-wire)

Bit Rate (nom.):

RS422: 0 to 12.6 Mbps

Network Configurations:

RS422 Point-to-Point

Indicators:

(1) Red: Fiber RCV (RX Data)
(1) Yellow: Fiber XMT (TX Data)
(1) Green: Power Indicator

Power:

Input Power: (8-32 VDC) 28VDC (Nominal).
Connectors: DB9F, Pin 1 ( 28V), Pin 5 (GND)
Customer Supplied power to unit via DB9(F) connector.

Model 4045 Mechanical (Desktop Unit):

Model 4045, Cat No: 304045
Size: 3.14" x 1.77" x 1.08" (8.0 cm x 4.5 cm x 2.8 cm)
Weight: 0.2 lb. (74g)

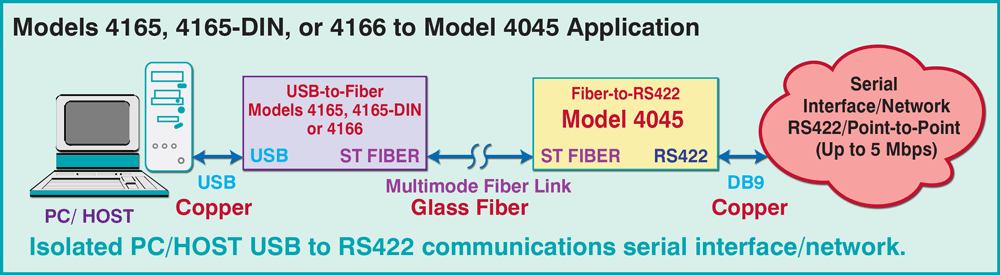

MODELS 4165, 4165-DIN, or 4166 to MODEL 4045 APPLICATION:

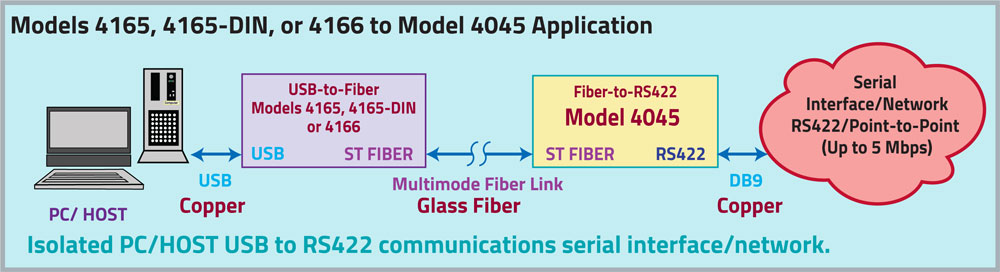

Isolated PC/Host USB (Copper) to Multimode Fiber Link (Glass Fiber) to DB9 (Copper) to RS422 Serial Interface / Network. (Models 4165 or 4166 to Model 4045)

Models 4165, 4165-DIN & 4166 to Model 4044 application drawing

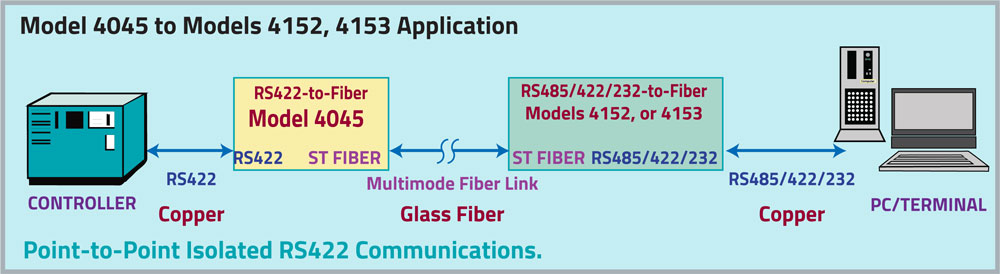

MODEL 4045 to MODELS 4152 or 4153 APPLICATION:

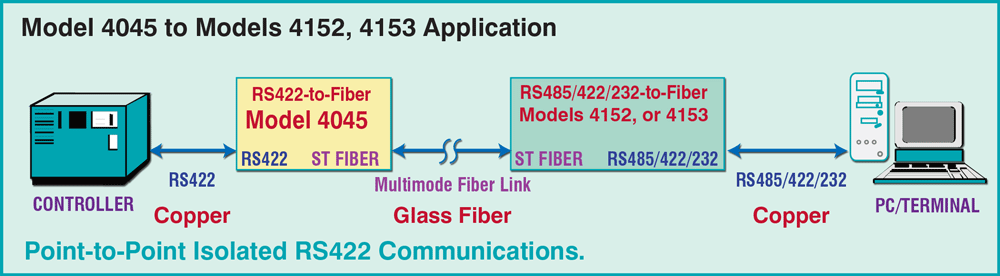

From a Controller RS422 to Multimode Fiber Link (Glass Fiber) to DB9 (RS485/422/232) (Copper) to a PC/Terminal. (Model 4045 to Models 4152 or 4153)

Model 4045 to Model 4152 or 4153 application drawing.

MODEL 4045 to MODEL 4179 APPLICATION (RS422 to Multimode Fiber to (POF) Fiber):

From a Controller to ESL Model 4045 RS422 (Copper) to ST Fiber to ESL Model 4179, SC Fiber (Glass Fiber, Multimode Fiber Link) to POF Fiber (Plastic Optical Fiber, Versalink).

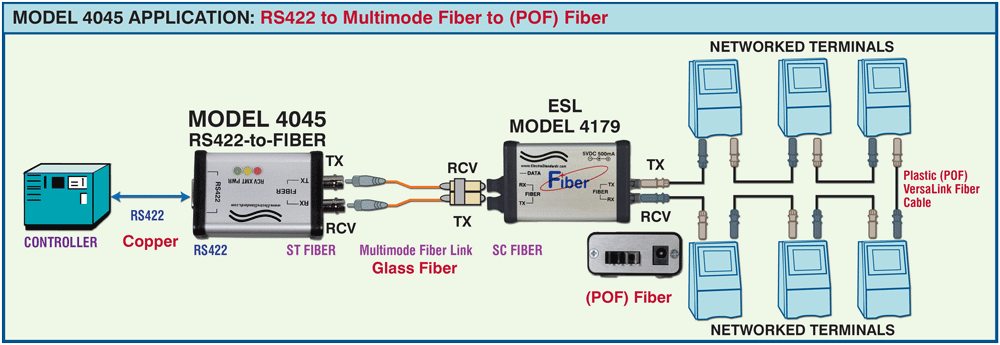

Model 4045 to Model 4179 Interface conversion application

Why / When to Use the Model 4045 ST Fiber RS422 Converter:

Long Distance Serial Communication:

RS422 is a differential serial standard that's good for longer cable runs compared to RS232. But even RS422 over copper has limits due to noise, ground loops, etc.
By converting to fiber, running a serial link over a longer distance can be done without electrical issues.

Industrial Environments / Harsh EM Environments

If you have industrial equipment (PLC’s, factory automation, scales, barcode readers, time clocks) that talk RS422 and the environment is electrically noisy (lots of motors, EMI), fiber helps isolate and avoid interference.
The galvanic isolation protects against ground loops, surges, and voltage differences between devices.

Data Collection / Remote Serial Devices

Connecting remote data collection devices to a central controller or PC over long distances.
Point to point serial link

Optical Isolation for Safety / Signal Integrity

In systems where isolation is critical (for safety, for reducing ground loop problems, or protecting sensitive electronics) fiber is often used.
Fiber optic cables are more difficult to tap into than copper cables, providing a more secure data link
This converter makes it possible to bridge the gap and connect RS422 industrial/legacy devices to newer fiber based infrastructure.
