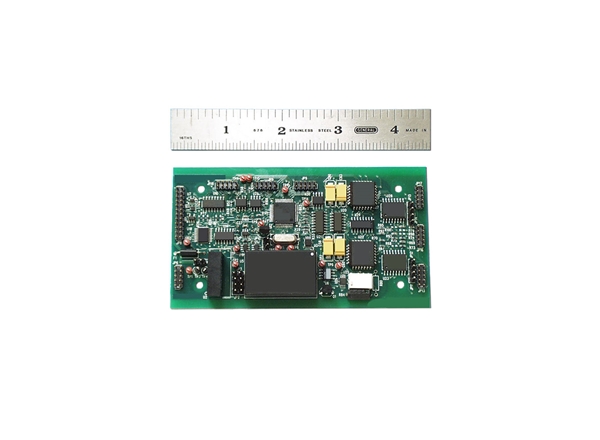

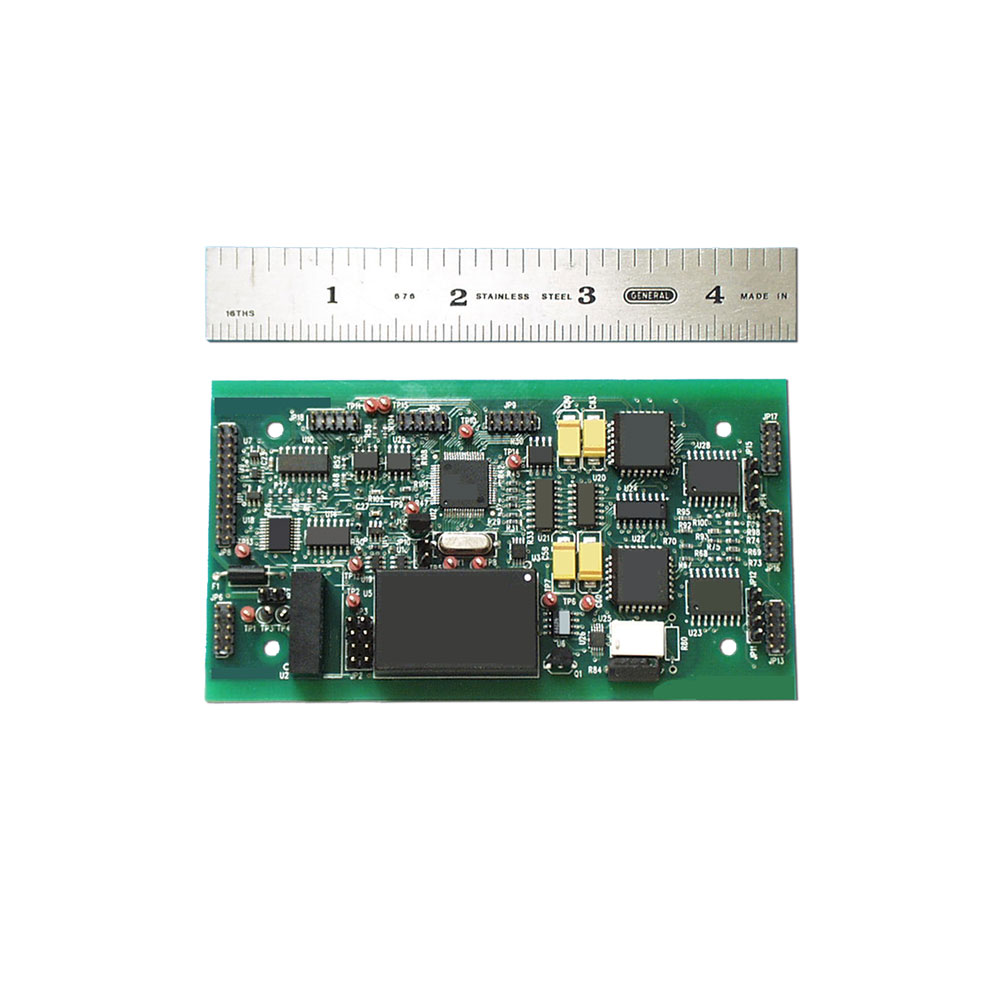

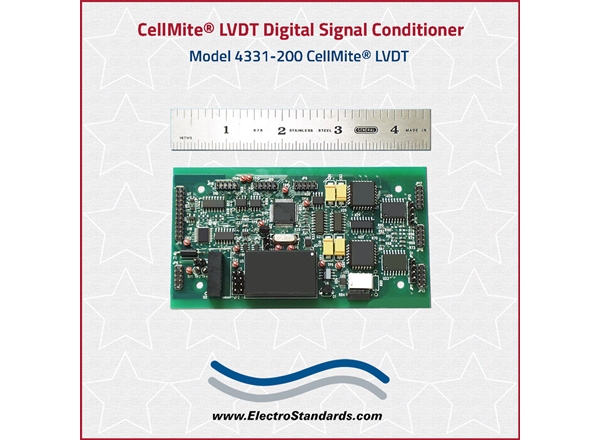

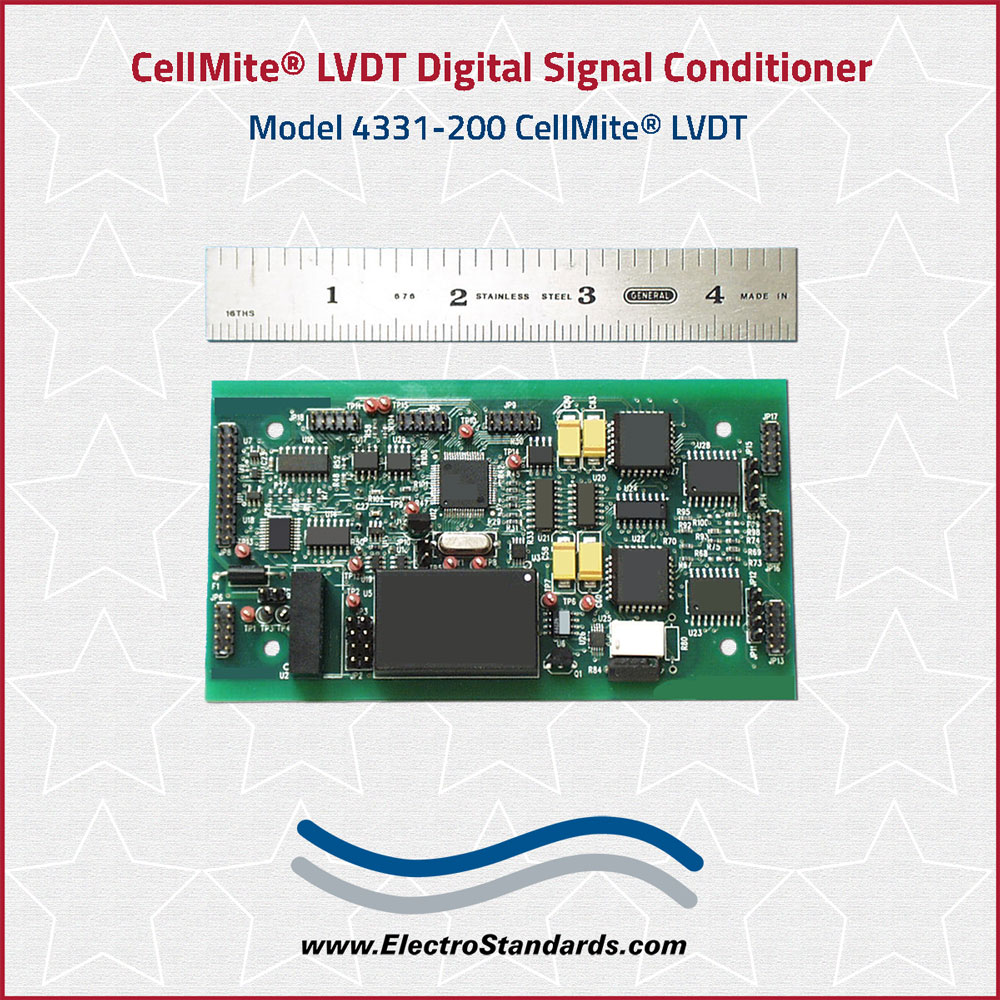

CellMite® 4331-200 LVDT AC Excitation Dual Channel Embedded Digital Signal Conditioner Board

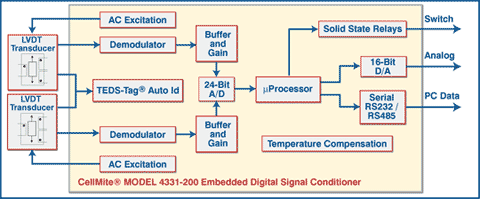

The CellMite® Model 4331-200 connects directly to two standard AC LVDT (Linear Variable Differential Transformer) transducers and simultaneously generates a serial output for connection to a PC and a /-10V analog output. The CellMite® LVDT can be operated with a computer or simply setup by a computer and then used as a stand-alone intelligent LVDT digital signal conditioner with an analog output.

The CellMite® Model 4331-200 LVDT has on-board storage for up to three calibrated LVDT's, each with integrated 6-point calibration that can be used to linearize the LVDT outputs. Its multidrop RS232/RS485 serial port and simple command set allow for connection of multiple units in a serial network configuration. This compact unit is ideally suited for in-situ transducer conditioning and distributed process measurements. It provides OEM users and system integrators with an affordable and complete LVDT-to-PC solution.

The CellMite® Model 4331-200 features include nonvolatile memory for parameter and calibration storage, the ability to select between 3 stored LVDT calibrations, and automatic LVDT identification using TEDS-Tag® technology. Solid state relay switches, multi-point and mV/V calibration, and the ability to locate LVDT core null position are incorporated into the unit. Internal generation of precision sine wave AC excitation voltages, remote sense excitation, and 24-bit internal resolution with 16-bit analog output are also standards.

CellMite® Model 4331-200 Features:

CellMite® Model 4331-200 Specifications:

  •  Excitation:
    • Voltage: 3kHz, 3 Vrms (std)
    • Sensors: LVDT's, AC Bridges
  • Operation:
    • Internal Resolution: 24-bit
    • Input Range: software adjustable from <10mV/V to> 100mV/V
    • Conversion Rate:
      • 60/sec, single channel only
      • 7.5/sec. dual channel
    • Error: 0.05% /-1 count
    • Precision Shunt: 60K ohms for bridge applications.
  • Outputs:
    • Analog: 16-bit Scalable, /-10V
    • Serial Data: Multi-drop RS232, RS485
    • Switch: Dual solid state relays
  • Power:
    • 5VDC, 0.6A (std)
    • Included Adapter: 110/240VAC, 60/50 Hz
    • Optional: 12, 24, 48 VDC
  • Mechanical:
    • Size: 4.5" x 2.5" x 0.85"
    • Weight: 2 oz. (57 g)

Check out our complete line of CellMite® Intelligent Digital Signal Conditioners!

CellView Lite Software for CellMite® Product Line Data Acquisition Software

The CellView Lite Windows-based Software provides an easy graphical user interface (GUI) to CellMite®  products.

CellView Lite Software Features:

  • Easy guides through adding/removing CellMite®  units.
  • Stores calibration data for three sensors.
  • Guides user through sensor calibration.
  • Ability to individually name CellMite® units.
  • Tare and reset peak and valley for sensor.
  • Set output data with a quadratic filter.
  • Save/Load the CellMite® unit and sensor setup information.
  • Setup a test to start and stop automatically.
  • LEDs indicate operational status of the CellView Lite interface.
  • Save date, calibration, and sensor test information to spread sheets.
  • Control output with two relay switches and analog output of voltage.
  • Units of Lb, Kg, In, Cm, %, and User-defined.

CellView Multi-Display GUI Software (Cat. No. 514424)

  •  Turnkey simultaneous data acquisition system for networked CellMite® and CellMite® LVDT units.
  • Supports mix and match of CellMite® and CellMite® LVDT units on network.
  • Ability to define 8 simultaneous data displays from multiple channels on multiple units.
  • Save data, calibration, and sensor test information to Excel spreadsheets for all networked units.
  • Guides user through sensor calibrations.
  • Guides user through adding/removing networked CellMite® and CellMite® LVDT units.
  • Ability to select and name any networked units.
  • Tare and reset peak and valley for the sensors.
  • Save/Load units and sensor setup information.
  • Set output data with user-define 5th order polynomial function.
  • Setup a test to start and/or stop automatically with user-selectable trigger events and delayed triggering.
  • Multi sample rate data acquisition via user-definable data logging profile.
  • User programmable analog output voltage range for attached CellMite® and CellMite® LVDT units.
  • Units of In, Cm, mm, %, Lb, mV/V and User Defined.

 CellView with Graphing GUI (Cat. No. 514358)
