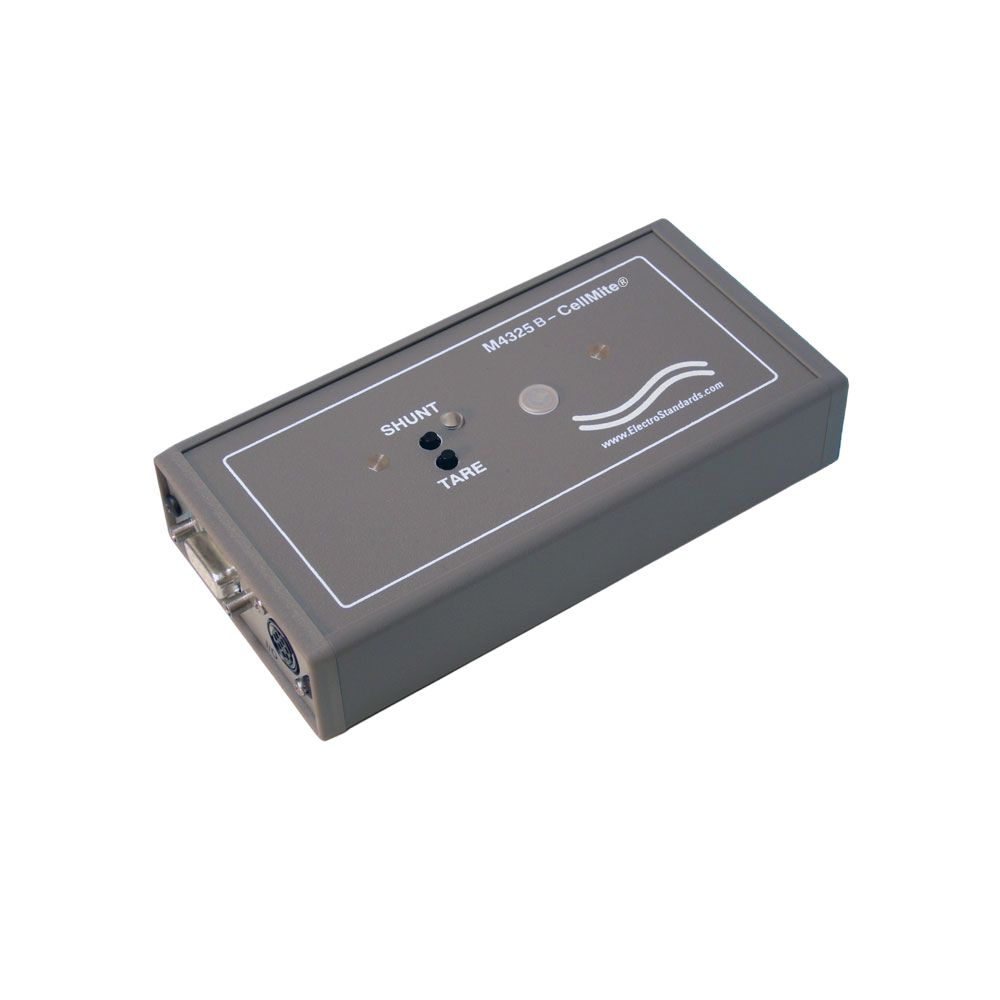

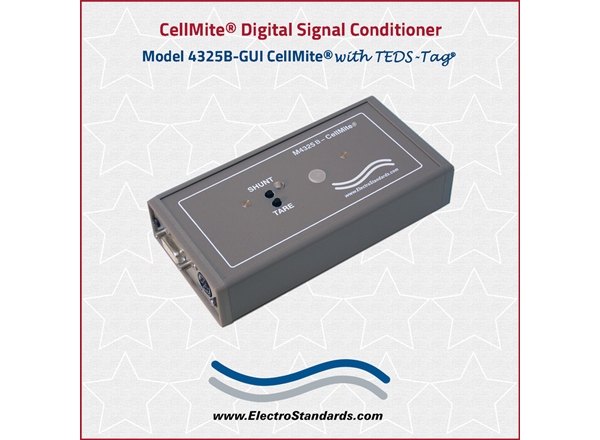

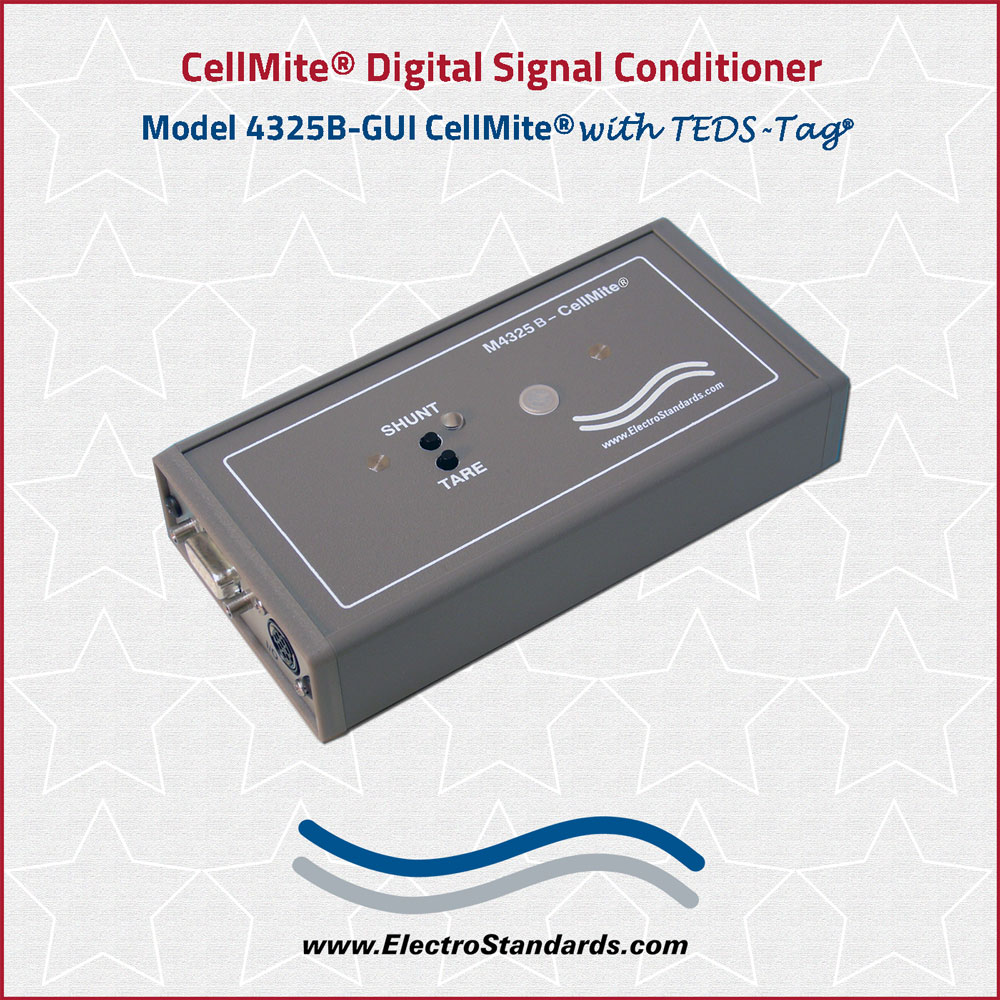

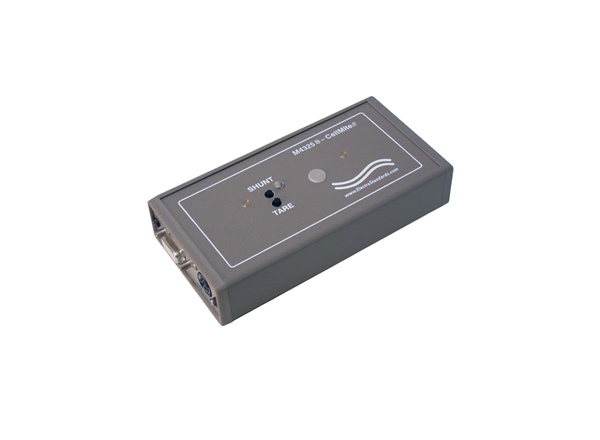

Model 4325B-GUI CellMite® Intelligent Digital Signal Conditioner with TEDS-Tag® Auto Identification

Powerful load cell electronics!

CellMite® Model 4325B-GUI is a compact digital signal conditioner that connects directly to a standard strain gage-based load cell, extensometer, or pressure sensor and simultaneously generates a serial digital output for connection to a PC as well as a /- 10V analog output.

CellMite® Model 4325B-GUI compensates for transducer nonlinearities using its integrated 6-point calibration capability not found in standard signal conditioners. Its multi-drop RS232 serial port, unit addressing capabilities, and simple command set allow for connection of multiple units in a serial network configuraton. The TEDS-Tag® auto identification feature with integrated electronic tags allows the CellMite® Model 4325B-GUI to automatically select the correct sensor calibration and analog output for scaling for the connected transducer.

CellMite® Model 4325B-GUI features a nonvolatile memory for parameter and calibration storage, the ability to select between three transducers, multi-point and mV/V calibration, remote sense excitation, and a 24-bit internal resolution with 16-bit analog output.

CellMite® Model 4325B-GUI Features:

  • Single Channel (Model 4325B-GUI)
  • 2-pt mV/V Calibration
  • 6-pt Linearization Calibration
  • Scalable /-10V Analog Output
  • 16-Bit Analog Output
  • Direct to PC with RS232 Data
  • 24-Bit Resolution
  • Multiple Filter Selections
  • Storage for Three Calibrated Transducers
  • Remote Sense Excitation
  • Addressable for Serial Network
  • Tare, Peak, Valley
  • Unit Support: In, Cm, mm, %, Lb, Kg, N, mV/V, User Defined
  • TEDS-Tag® Auto Identification
  • Power Supplies Internally Isolated
  • Din Rail mount available

Graphical User Interfaces and Software Drivers sold separately. Select from:

CellMite® Model 4325B-GUI Specifications (Cat. No. 303326).

Excitation:

  • Voltage: 5 VDC, Nom. Load 350 ohms.

Operation:

  • Internal resolution: 24-bit
  • Input Range: /-5.5 mV/V
  • Conversion rate: 60 per second.
  • Error: 0.01%, /- 1 count.
  • Precision Shunt 60K.

Outputs:

  • Analog: 16-bit, Scalable, /-10V.
  • Serial Data: Multi-drop RS-232.
  • Mechanical:
  • Size: 5.5" x 2.75" x 1.2"
  • Weight: 8.3 oz. (235g).
  • Din Rail mount available.

Power:

  • 5 VDC, 150mA, (Included Adapter)
  • 110/240VAC, 60/50 Hz.

Included Items;

  • DB9 Mating Connectors
  • Operational Manual on CD ROM.

The Model 4325B-GUI is ideally suited for in-situ transducer conditioning and distributed process measurements!

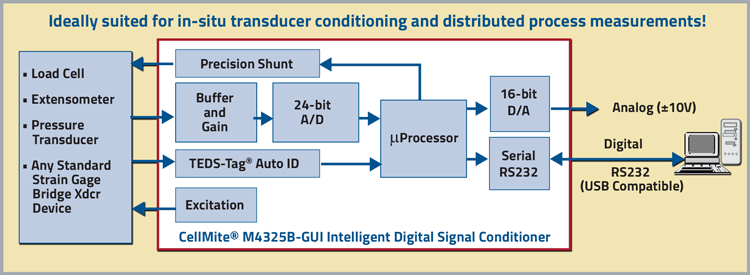

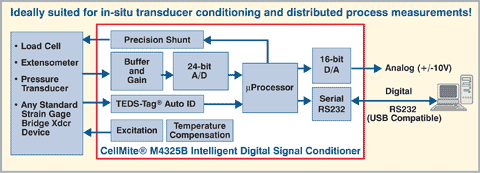

Model 4325B-GUI CellMite® Intelligent Digital Signal Conditioner with TEDS-Tag® Auto Identification Block Diagram!
