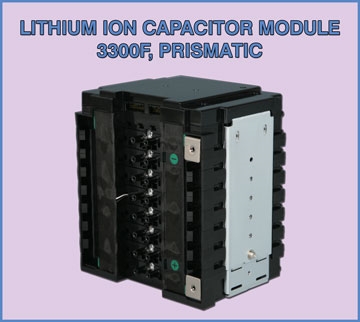

3300F Prismatic in Series of 12, Lithium Ion SuperCapacitor Module ESL703312 (JSR MPA45G275H)

    12 Prismatic Cells (JSR MPA45G275H)
Click image to enlarge
Base Price:
Call for Price
Catalog No: ESL703312
Model No: MPA45G275H
DC-IR [m Ohm]:14
Dimensions:260.5 x 168.8 x 127.1 (H x W x D mm)
Operating Temp [°C]:-30 to 70
Rate Voltage Min.:26.4V
Rated Voltage Max.:45.6V
Self Discharge:Less than 5%
Weight [G]:Total 6.39kg
Cell Type:Prismatic
# of Cells:12
Capacitance [F]:275


Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request

Lithium Ion SuperCapacitor Module, ULTIMO Prismatic 3300F x 12

Model MPA45G275H, ESL Part#703312


  • Ultra Low Resistance ULTIMO Prismatic Cells 3300F, 12 in a Series.
  • Key Technology: Pre-doping the anode with lithium ions provides: Higher Capacitance, Higher Voltage, and Higher Energy Density.
  • A Master Controller is used to balance between modules.
  • Unique laminate design retains 95% of charge for >3 months and can be cycled up to 1 million times.
  • High accurate inter-cell voltage balance control.
  • All modules include cell balancing, over charge and over discharge alarms, and a high temperature alarm
  • Enables fast charge/discharge at high current.
  • Excellent durability/reliability.
  • High energy density for compact light weight equipment.
  • Higher operating voltage.
  • Extremely low leakage.
  • Long cycle life

Electro Standards Laboratories Designs & Builds

Electro Standards Labs can design and build your power electronic systems, converters, and cables. Hybrid Energy Storage Systems (HESS) can be designed to combine batteries and ultra-caps together for energy density and power density. Call 401-943-1164 to speak to a sales engineer or email: eslab@electrostandards.com.

Low Resistance Lithium Ion Supercapacitors for Superior Energy and Power

ULTIMO Prismatic Cell is an electricity storage device with both high energy density and high power density features that can be charged and discharged at a large current. Ensuring high degree of safety, ULTIMO cells feature enhanced repeated charge and discharge characteristics, little self-discharge, and wider working temperature ranges.

Backup, Storage, Peak Assist, Power Leveling & Other Uses

They can be used for various purposes such as Power Backup, Storage, Leveling, Peak Assist, and Energy Regeneration, Contributing to Stabilization of Power Supply, Electricity Storage, Electricity Economization, Electricity Conservation, and the like.

Ideal for Mobile Applications such as Energy Recuperation

ULTIMO cells can be used in mobile applications such as energy recuperation in cars, buses, light rail vehicles (LRV), trams and other commercial vehicles.

Prismatic cells are thin, robust, lightweight, compact, safe in use and show excellent thermal behavior, resulting in a wide spectrum of applications.  This design excels in heat radiation efficiency and ease of implementation in comparison with the common cylindrical type.

Call for Pricing. Quantity discounts may apply.

To ensure your safety, this product is being offered to businesses only. All orders placed will be reviewed for proper applications. All safety instructions will be reviewed. When the review process is complete, a Non-Disclosure Agreement must be signed before the order is processed.

Electro Standards Labs offers Engineering Services

Electro Standards Labs can design and build your power electronic systems, converters, and cables. Hybrid Energy Storage Systems (HESS) can be designed to combine batteries and ultra-caps together for energy density and power density. Call 401-943-1164 to speak to a sales engineer or email: eslab@electrostandards.com.

Long Life, High Durability

An ULTIMO cell can be operated at a cell voltage higher than that of an electric double layer capacitor and has excellent high temperature durability. This characteristic is achieved by a design that uses the pre-doping process to lower the potential of the negative electrode and thereby to restrict an increase in the potential of the positive electrode; at the same time, this suppresses the deterioration of the negative electrode, resulting in high durability even after repetition of charge-discharge cycles.

Safety, ULTIMO Cells Neither Burn Nor Explode

ULTIMO cells neither burn nor explode in any of overcharge, over discharge, and external short-circuit tests, exhibiting excellent safety.

In a lithium ion battery, the positive electrode uses metal oxide, which is decomposed thermally as a result of an increase in the cell temperature under abnormal conditions and releases oxygen, with the possibility of triggering a thermal runaway reaction.

On the other hand, an ULTIMO cell uses activated charcoal in the positive electrode and releases heat due to short-circuit or the like under abnormal conditions; however, this does not cause a thermal runaway reaction, exhibiting excellent safety.
