331206C - Energy ActionSystem Model 3312-6C, Air Cooled Lithium Ion Capacitor Development Shelf

    Model 3312-6C, Air Cooled Lithium Ion Capacitor Development Shelf
Click image to enlarge
Base Price:
Call for Price
Catalog No: 331206C
Model No: 3312-6C
Application:Energy ActionSystem Model 3312, Lithium Ion Capacitor Development Shelf


Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request


Energy ActionSystem Model 3312-6C Air Cooled Lithium Ion Capacitor Development Shelf, Cat#331206C

  • Available as an option to any LiC Development Shelf having 2, 3, 4, 5, or 6 Modules

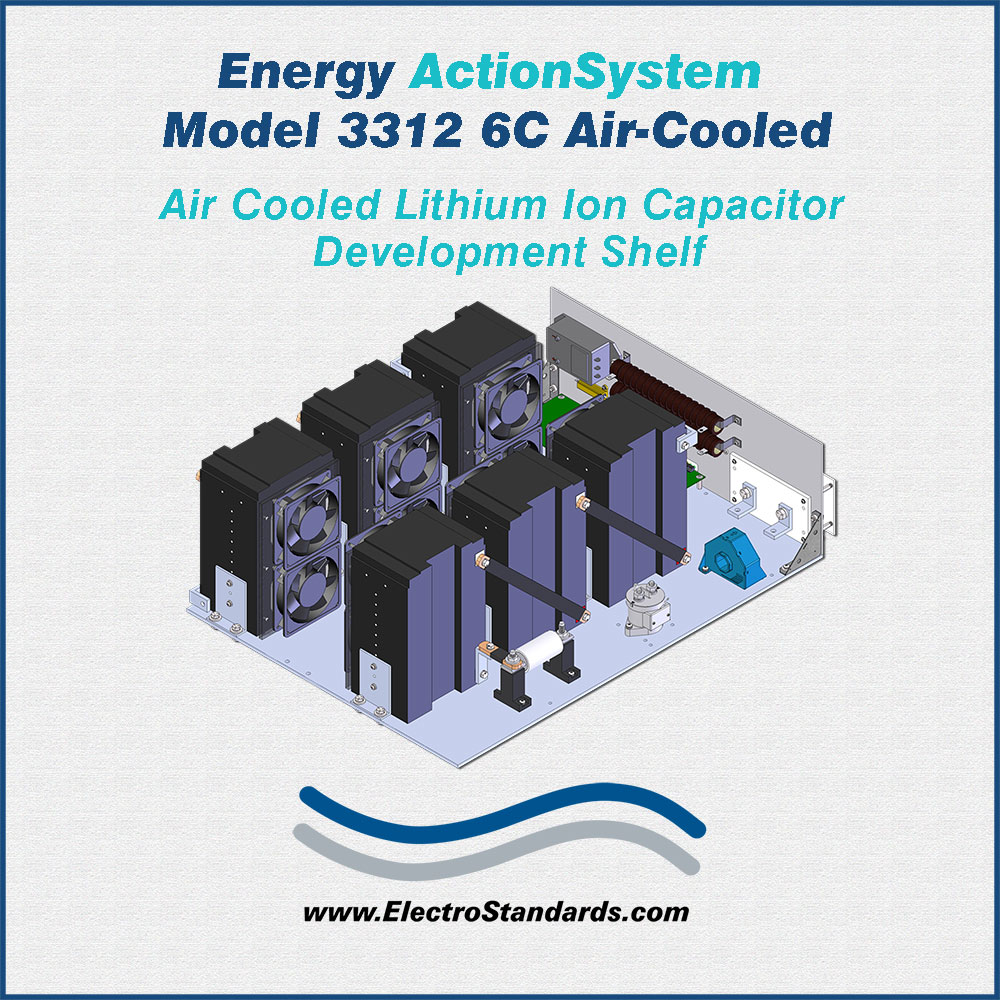

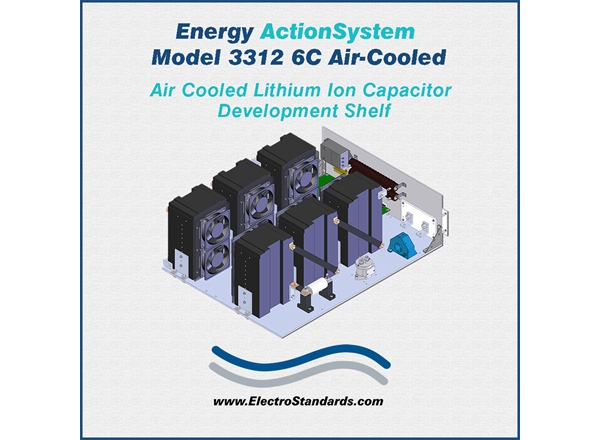

Electro Standards Laboratories has expanded its series of Energy ActionSystem Lithium Ion Capacitor Development Shelves to include units with air cooling. Model 3312-6C, Cat. No. 331206C, Air-Cooled Lithium Ion Super Capacitor (LiC) Development Shelf, as shown below, includes active cooling fans for each of six LiC Modules. The LiC modules can be connected in series and the shelf can include a protection fuse, contactor for computer controlled isolation, current sensor, voltage sensor, and over/under voltage board for monitoring faults from the Master Controller and aiding in protecting the LiC stack.  This shelf can be stacked with additional LiC shelves connected in series for higher voltages and/or parallel for higher currents. The shelf is designed to fit into a commercially available vented rack or a vented enclosure can be added to it for bench top applications.

The LiC Development Shelf series includes a wide variety of variations such as:

  • Number of Modules per Shelf
  • Total Capacitance per Shelf
  • Number of Cells per Module
  • Total Shelf Voltage

The shelf product series is designed to save time, effort, and development costs associated with operating and testing LiC energy systems. See "Related Products" tab for more of the LiC Development Shelf series.

LiC Supercapacitor systems are ideal for applications that require bidirectional high power pulses, very low leakage, very high cycle life, and exceptional energy density.

Custom Lithium Ion Capacitor Development Shelf Configurations are available to meet your application requirements.
