Custom DAQ - Custom Data Acquisition Boards

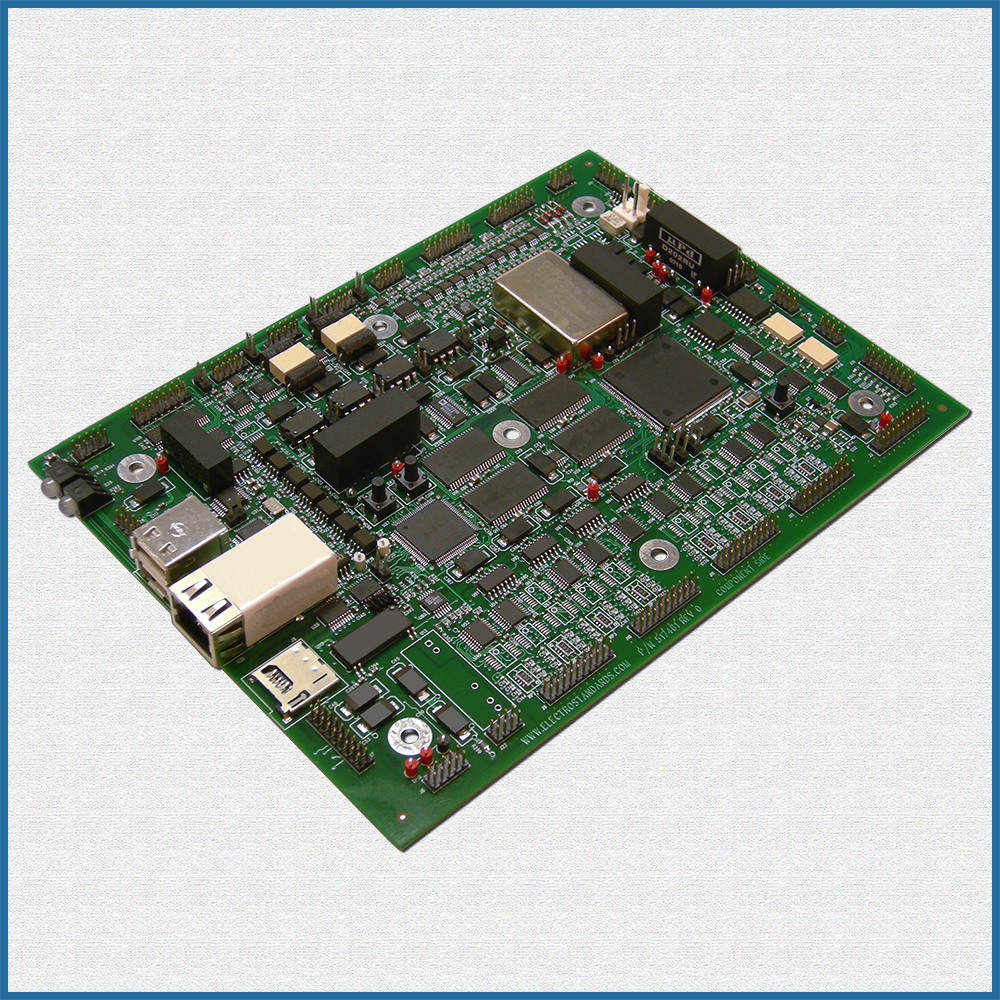

    Custom Data Acquisition Boards
Click image to enlarge
Base Price:
Call for Price
Catalog No: Custom DAQ
Model No: Custom DAQ
Display:Custom
Excitation:Custom
Input Range:Custom
Ouput_Analog:Custom
Output_Serial_Data:Custom
Storage:Custom
Conversion Rate:Custom

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

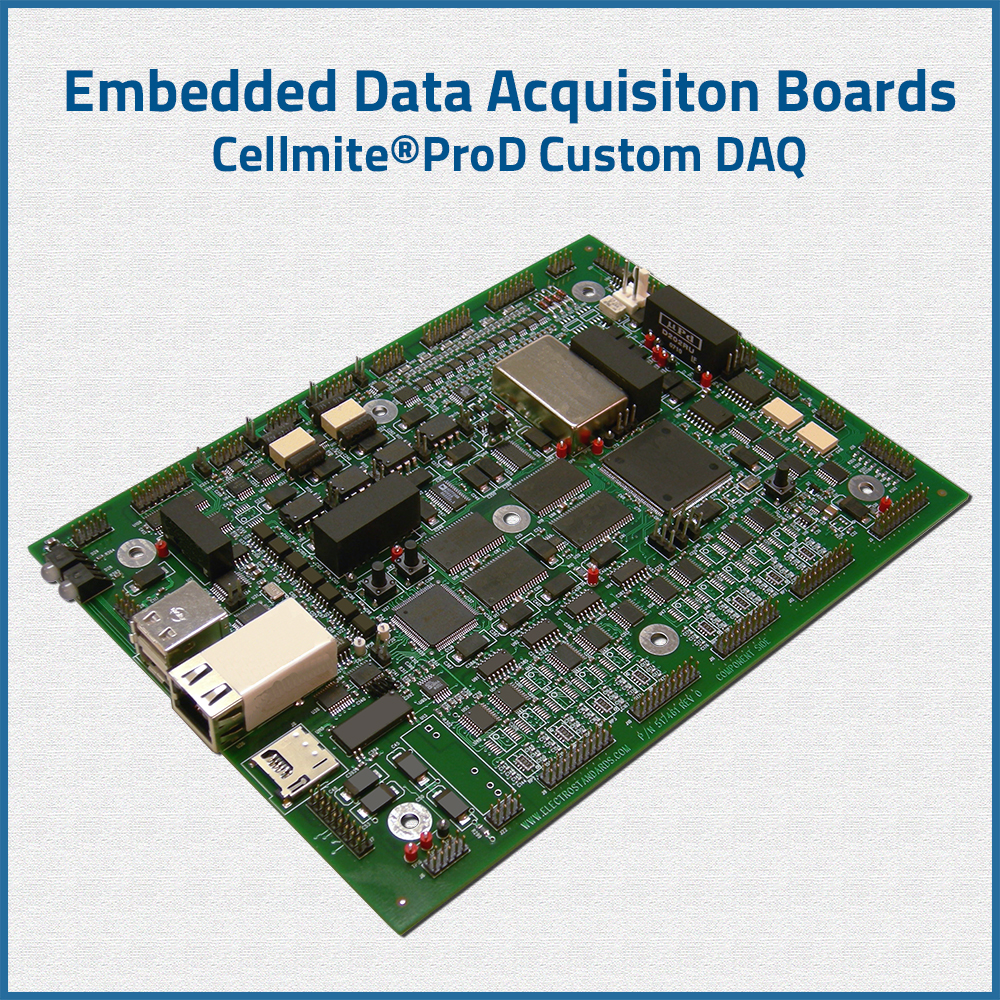

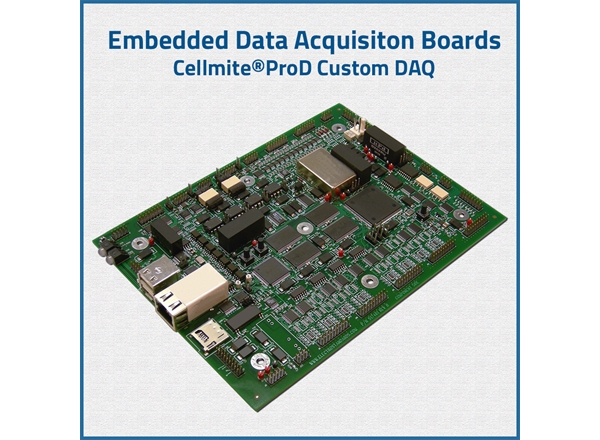

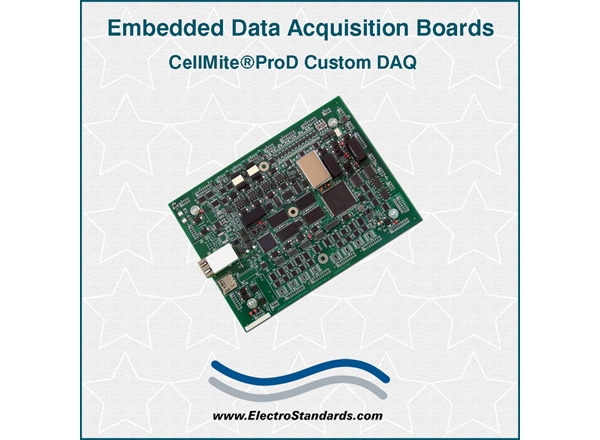

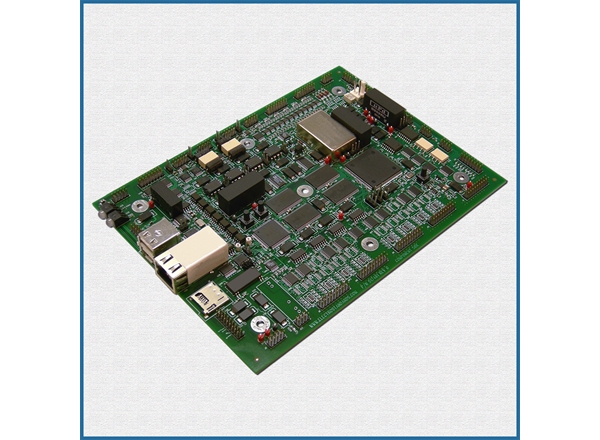

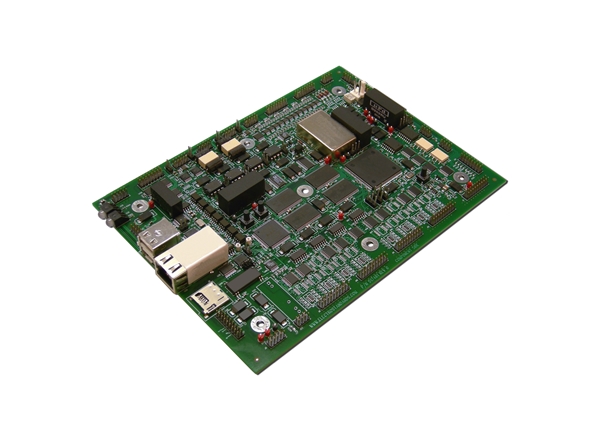

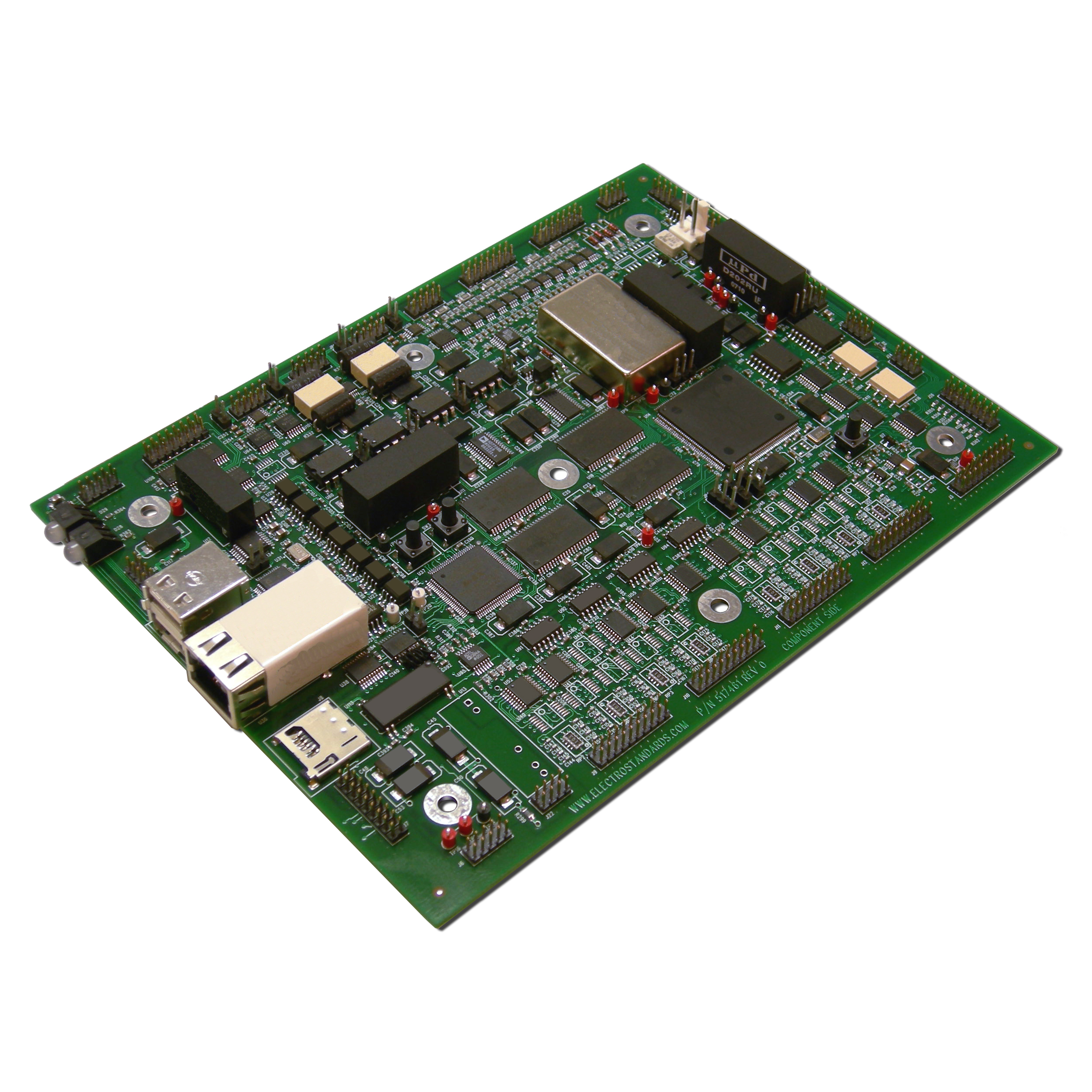

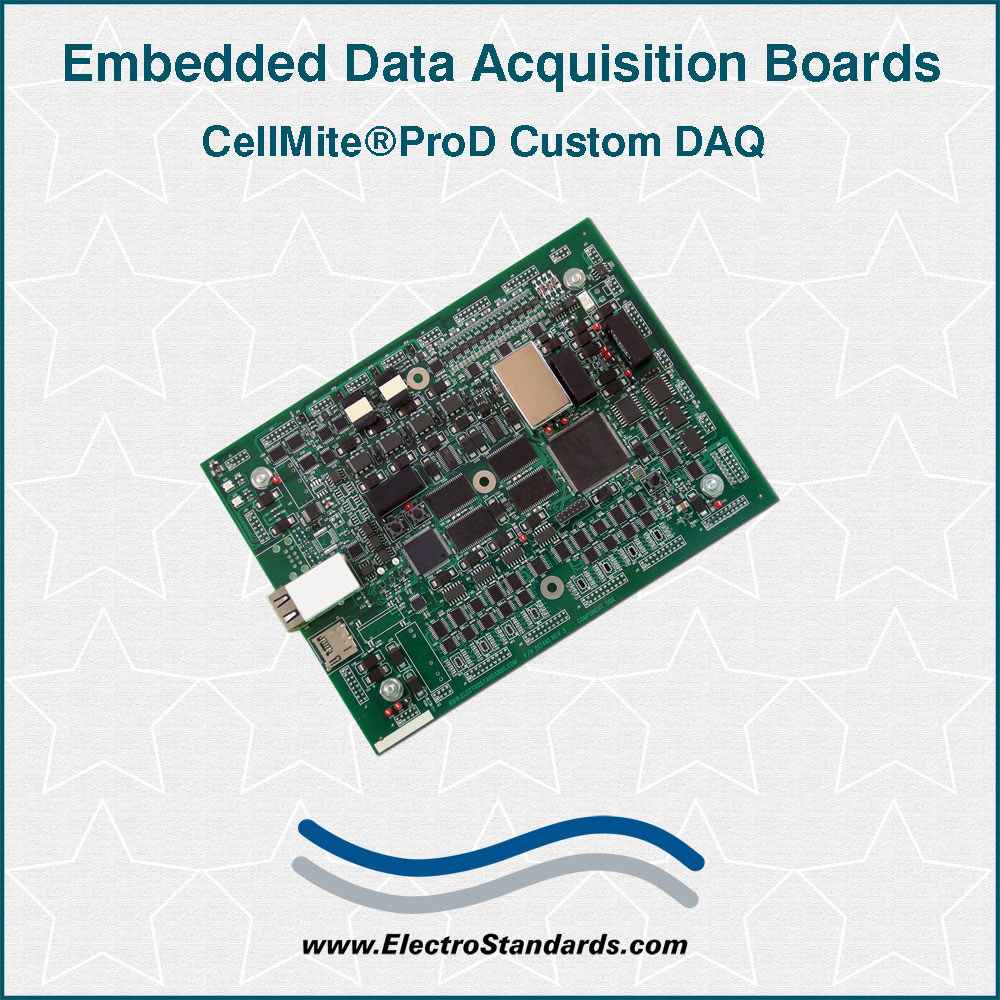

Electro Standards offers High-Performance Customized Embedded Data Acquisition Boards

(Also available in encased units, din rail mounting)

Electro Standards will custom engineer and build to your specs. Because ESL has its own manufacturing capabilities, the ESL Engineering Services Group can design, build, and deliver custom products for each project in prototype or production quantities. This guarantees functionality and performance along with unsurpassed quality control.

Examples of products recently developed include:

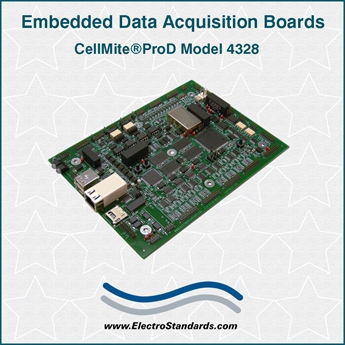

  • CellMite® ProD High Performance Embedded Data Acquisition and Strain Gage Interface Board, Model Number 4328 (Cat. No. 304328)

Our Model 4328 features dual 24-bit independent strain gage channels with simultaneous sampling at 15K samples/second that can also be configured as quad 24-bit strain gage channels sampled at 5k samples/second. In addtion Model 4328 features 12 additional 12-bit analog input channels with a throughput of 1M samples/second. Digital data acquisition is also supported with 64-bits of simultaneously sampled digital inputs. The digital inputs can be sampled at 20M samples/second.

  • CellMite® ProD Ruggedized High Performance Embedded Data Acquisition and Sensor Monitoring Node, Model Number 4333 (Cat. No. 304333)

Our Model 4333 is a high performance data acquisition and sensor monitoring module that is suitable for embedded applications that require a ruggedized high speed analog and digital data acquisition unit that is acccessible via an Ethernet network. The Model 4333 creates both a low speed monitoring data stream and a high speed transient event data stream that are designed to measure and report both static and pulsed sensor events. Typical sensors can include load cells, temperature sensors, strain gages, general analog outputs, voltages, currents, pulse counting, and digital contacts. Complex systems can be monitored by using a multitude of Model 4333 boards as Ethernet monitoring nodes within an Ethernet network.

Contact Electro Standards at 401-943-1164 or e-mail eslab@electrostandards.com for assistance in designing your High-Performance Customized Embedded Data Acquisition Boards.

Our Engineering Services Team would be pleased to work with you to provide the exact Custom High-Performance Embedded Data Acquisition Board to meet your exact specifications.

Experience Counts!

Electro Standards Engineering Design Team has the experience to deliver products that work!

Electro Standards is significantly involved in a number of projects including Electromagnetic Aircraft Launch Systems (EMALS), hybrid electric vehicles, and precision instrumentation. We work with our client from theory to simulation, design, development, programming, etc., to develop working systems.

Electro Standards' expertise includes: embedded controls, sensorless motor controls, multi-level inverters, controls modeling and simulation for motor drive systems, energy storage, and energy harvesting.

Electro Standards is versed in using many types of DSP/microcontrollers to implement controls including TI DSP TMS320C3X, TMS320F24XX, TMS320C67XX, ADSP Sharc, Motorola 68HCxx, Infineon DSPs, 8xCXX, and more.

Electro Standards has been involved in structural controls to reduce bending or vibrations and designed PI controllers, advanced LQG, H-inf controllers, and sliding mode controllers and more.

Electro Standards has expertise in designing and manufacturing precision instrumentation products involving strain gage and LVDT sensors, MIL spec custom cable assemblies, high-density fiber optic cable assemblies, and state-of-the-art copper and fiber optic network switches.

For more information, please check out Electro Standards R&D Webpage.

 Our Engineering Team is ready to work with you. Call 401-943-1164 or e-mail: eslab@electrostandards.com.
