CellMite® ProD Ruggedized High Performance Embedded Data Acquisition and Sensor Monitoring Node

  • Powerful load cell electronics

  • Ideal for high traffic network applications. Has extended buffering.

  • Ideal for Commercial Off-the-Shelf (COTS) Application

The CellMite® ProD Model 4349 is a high performance data acquisition and sensor monitoring module from Electro Standards Laboratories that is suitable for embedded applications that require a ruggedized high speed analog and digital data acquisition unit that is accessible via an Ethernet network.

The Model 4349 creates both a low speed monitoring data stream and a high speed transient event data stream that are designed to measure and report both static and pulsed sensor events.  Typical sensors can include load cells, temperature sensors, strain gages, general analog outputs, voltages, currents, pulse counting, and  digital contacts. Complex systems can be monitored by using a multitude of CellMite® ProD Model 4349 boards as Ethernet monitoring nodes within an Ethernet network.

The CellMite® ProD  features 11 channels of 12-bit analog inputs that can be sampled up to 10,000 samples/second.  Digital data acquisition is also supported with 64-bits of simultaneously sampled digital inputs, 4-bits of isolated digital inputs, and 3 digital counter inputs that are also sampled at up to 10,000 samples/second. The high sampling rates make the Model 4349 perfect for recording important sensor data from transient applications such as pulsed power systems.

Direct PC or network communication is supported by a 10/100 BaseT Ethernet data channel with user selectable event and monitor data packet size in order to minimize network congestion.  The communication channels are optically isolated in order to minimize system ground loops.  For applications requiring on-board data storage, the CellMite® ProD features 750K Words of onboard memory that can be used to buffer transient event data.  The CellMite® ProD features a wide input voltage range of 19VDC-36VDC, along with 3kVDC isolation.  The CellMite® ProD is designed for ruggedized applications and is designed to operate from -40C to 85C.

Applications include:

  • High speed data logging
  • Recording pulsed sensor events
  • Multiple data stream monitoring
  • Multi-rate & mixed signal data recording
  • Recording transient data triggered by events


Analog Signal Inputs:

  • Analog Input: Very high impedance differential
  • Input Range: /- 10V
  • Resolution: 12-bits
  • Number of Channels: 11
  • Max. Sampling Rate: 10,000 samples/second, all channels

Digital Signal Inputs:

  • Input type: Logic, TTL, and HC compatible with hysteresis
  • Number of Channels: 64 bits, simultaneously sampled
  • Max Sampling Rate: 10,000 samples/second

Digital Counter Inputs:

  • Excitation: 5 VDC
  • Interface: Single ended TTL, compatible
  • Type: Pulse
  • Channels: 3
  • Resolution: 8-bits

Digital Isolated Inputs:

  • Type: Optically Isolated
  • Channels: 4

Digital Trigger Input:

  • Type: Digital trigger
  • Source:  Any digital input

Input Power:

  • Range: 19VDC-36VDC, std, 4.5VDC-9VDC, Others
  • Power: 8.5W (Ex. 300 mA at 28 VDC)


  • Discrete: Dual LEDs


  • Size: 7.5” x 5.5” x 1”
  • Mounting: 7 mounting holes
  • Signal Connectors: 2mm ribbon
  • Environment: Operating -40°C to 85°C

Communications Interface:

  • Interface Types: 10/100Base-T Ethernet with flow control
  • Isolation: Optical

Monitor Data Format (Continuous Monitoring):

  • Data Packet: Selectable to 20 bytes
  • Data Packet Rate: 0.1 Hz to 10 Hz
  • Data Stream Type: Data Push (continuous monitoring)
  • Data Content: User Specified Analog, Digital, Counter data

Event Data Format (Transient Event Monitoring):

  • Data Packet: Selectable to 20 bytes
  • Data Sample Rate: 10 Hz to 10,000 Hz
  • Transmit Packet Size: Selectable
  • Data Stream Type: Triggered Data Push / Data Pull
  • Data Content: User Specified Analog, Digital, Counter data
  • Buffered Data Storage: 750K Words


  • Model/Catalog No. 4349/304349

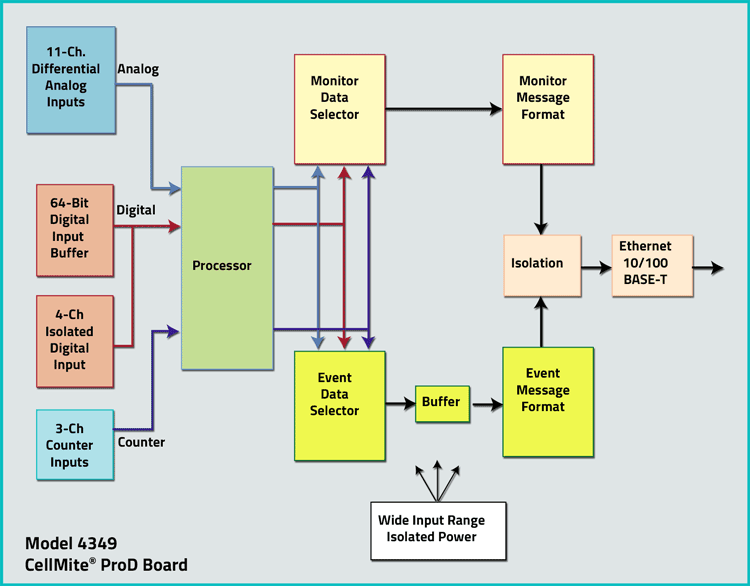

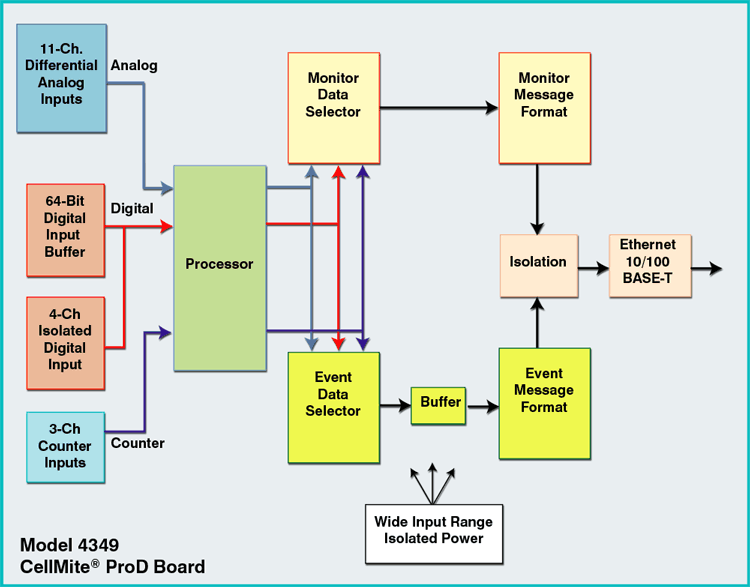

CellMite®ProD Model 4349 Board Block Diagram

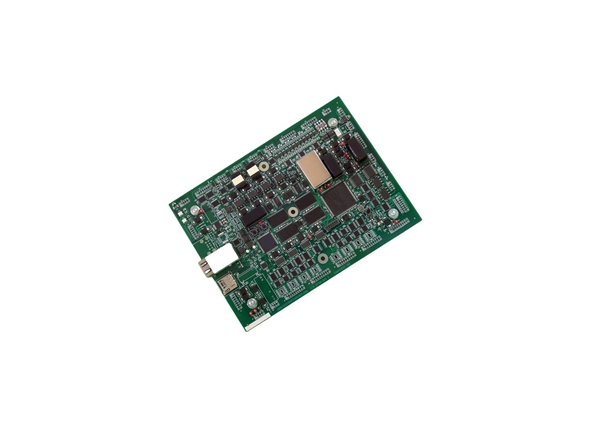

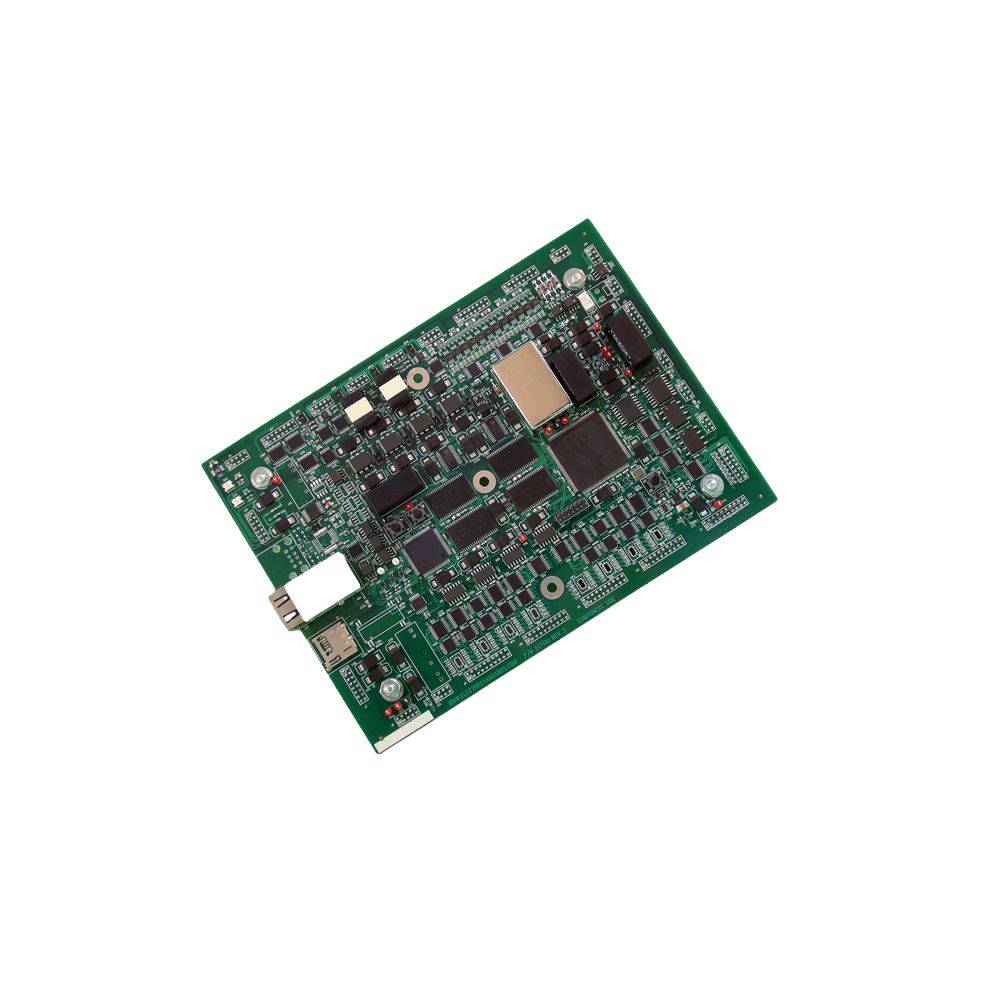

CellMite ProD Board

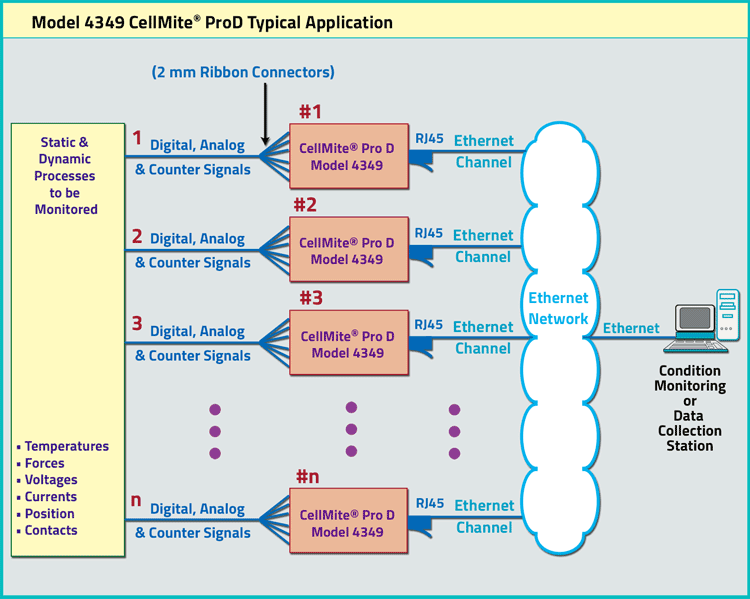

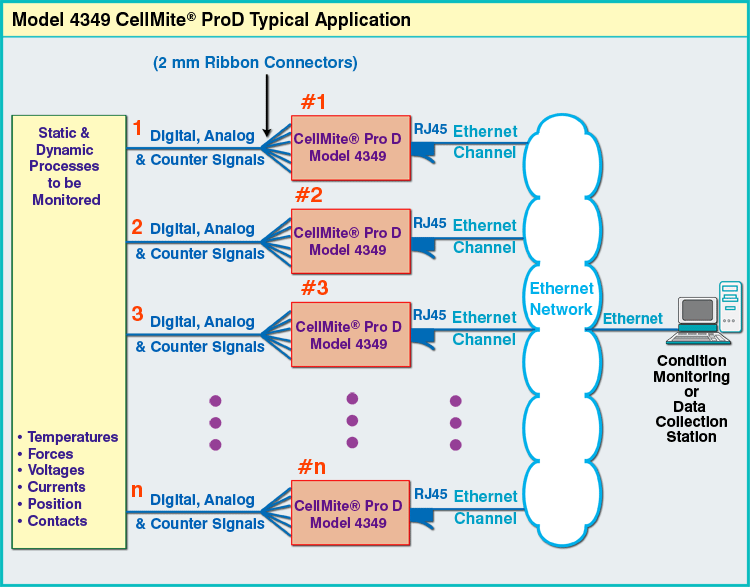

CellMite® ProD Typical Application


Check out our complete line of CellMite® Intelligent Digital Signal Conditioners!
